Overview
Manufacturer's name:S-MIGMA 250.IGBT

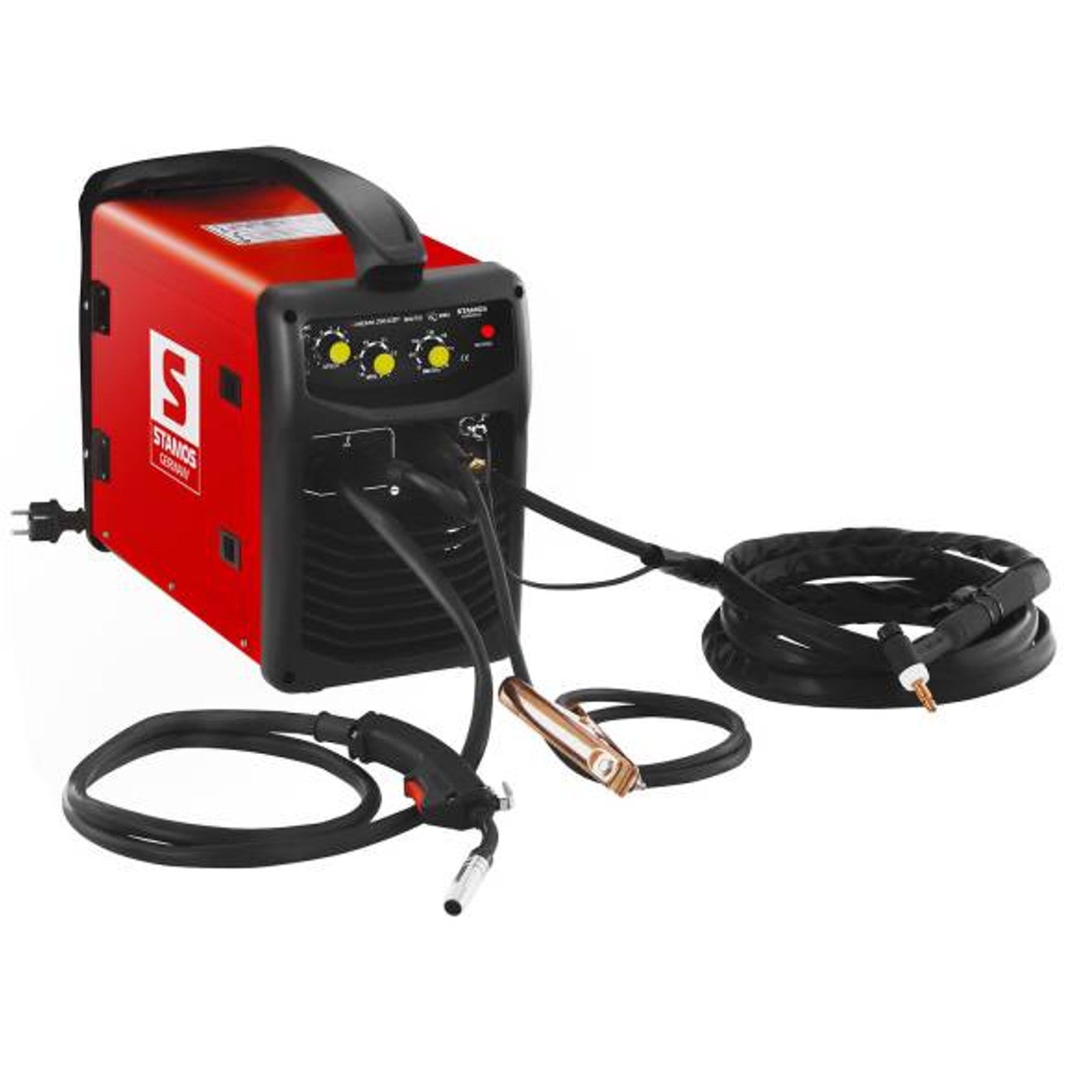

The multifunctional semi-automatic welding machine from Stamos Germany will allow the processing of metal elements thanks to the ability to work in theMIG, MAG, FCAW, TIG and MMA modes. S-MIGMA 250.IGBT, thanks to the stepless regulation of the welding current (max 250 A), allows precise determination of the appropriate value, which increases the convenience of work.
The welding machine uses modern IGBT inverter technology. It guarantees a high degree of failure-free operation, as well as efficient operation and quick switching between functions. This is due to the three-contact semiconductor element, which is resistant to short circuits.
STAMOS devices are made according to strict European standards and have been tested for compliance with CE and RoHS. This guarantees a long service life and high quality of the device.
Working methods:
Key features
| Specification | Detail |
|---|---|
| Model | S-MIGMA 250.IGBT |
| Catalog number | 2208 |
| Article condition | New |
| Power supply | 230 V / 50 Hz |
| Rated input current | MIG 29.5 A / MMA 33 A / TIG 22.5 A |
| Maximum input current | MIG 38 A / MMA 43 A / TIG 29 A |
| Open circuit voltage | 62 V |
| Current MIG | 50 – 250 A |
| MMA current | 10 – 250 A |
| TIG current | 10 – 250 A |
| Welding current in a duty cycle of 60% | 250 A (MIG/MMA/TIG) |
| Current welding in a duty cycle of 100% | 193 A (MIG/MMA/TIG) |
| Duty cycle | 60% |
| Welding thickness | 0.5 – 10 mm |
| TIG electrode diameter | 0.5 – 4 mm |
| MMA electrode diameter | 1.6 – 5 mm |
| Cooling | Fan |
| Handle cooling | Gas |
| Hot Start | Yes |
| Wire feeder | 2.5 – 13 m/min |
| Cable with MMA handle | 1.4 m |
| Ground cable | 1.3 m |
| Cable with MIG torch | 1.75 m |
| Cable with TIG torch | 3.7 m |
| Safety class | IP21 |
| Insulation class | F |
| Dimensions (LxWxH) | 54.00 x 24.00 x 41.00 cm |
| Weight | 15.00 kg |
| Shipping dimensions (LxWxH) | 64.00 x 34.50 x 44.50 cm |
| Shipping weight | 27.05 kg |
