MSW

EAN:4062859144201

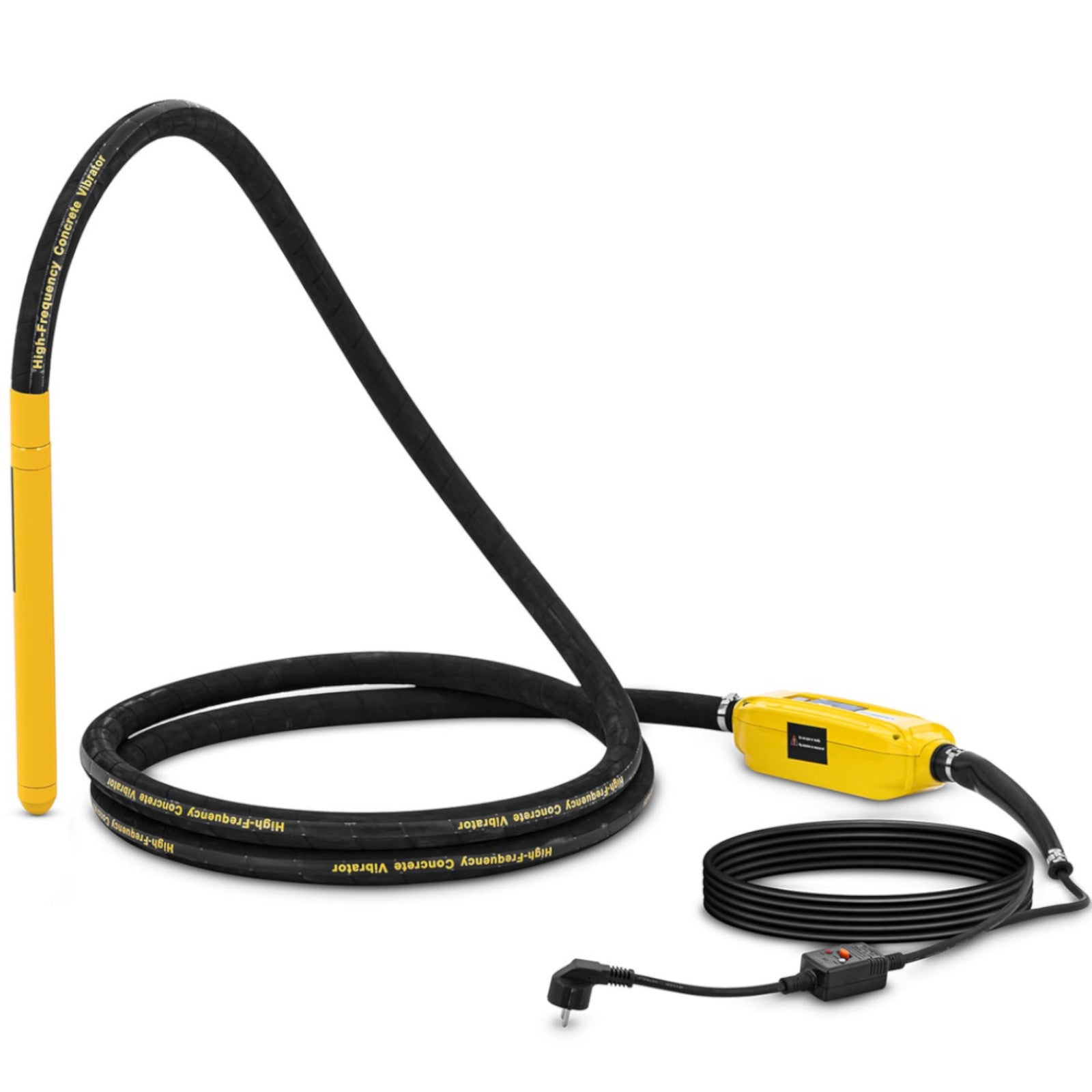

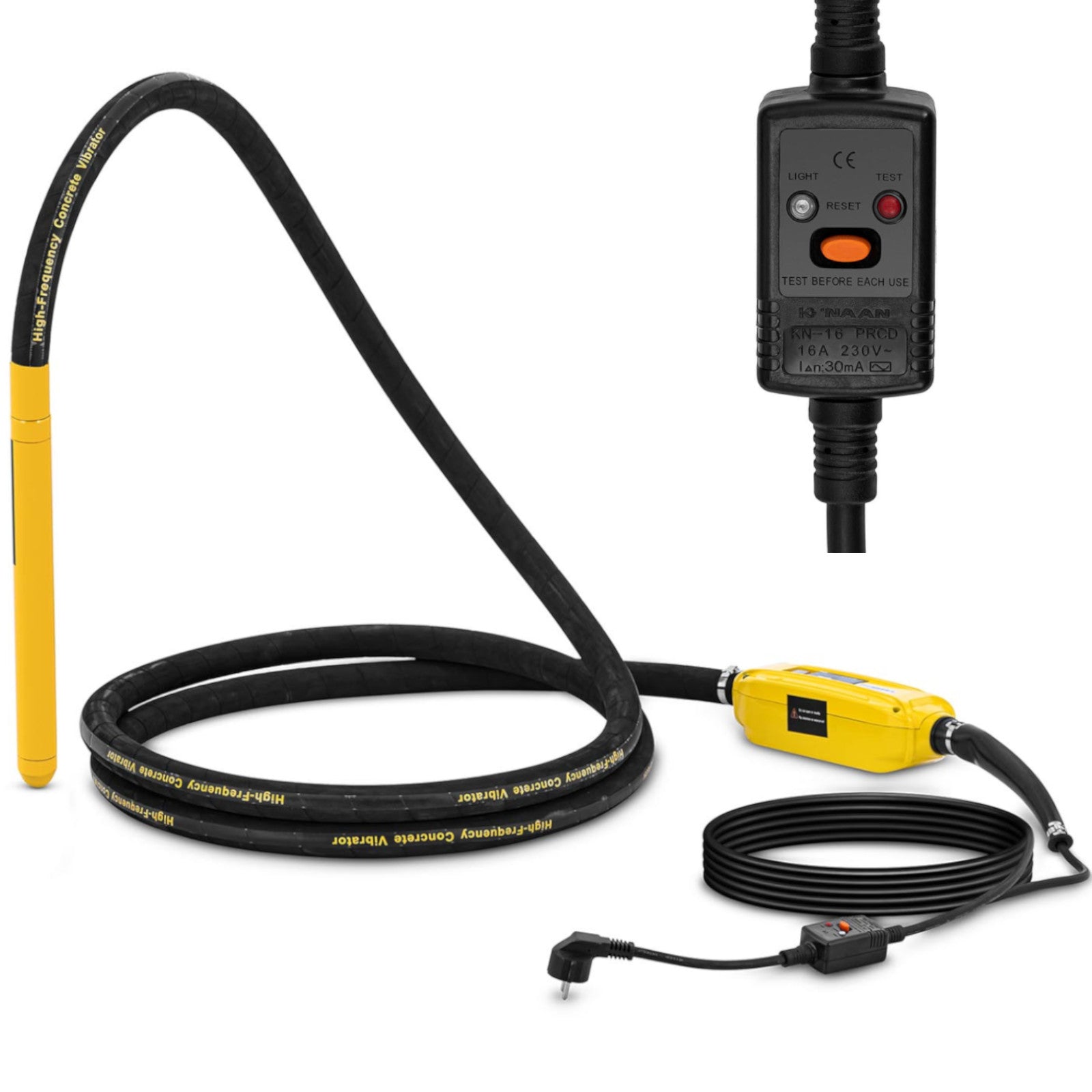

Concrete compactor vibrator, length 5m, poker 40cm x 34mm, 1200W

Concrete compactor vibrator, length 5m, poker 40cm x 34mm, 1200W

7 noliktavā

Daudzums
Parastā cena €584,45 EUR
Parastā cena €656,69 EUR Pārdošanas cena €584,45 EUR
Izpārdošana Izpārdots
Cenā iekļauti nodokļi. Piegāde tiks aprēķināta, veicot pasūtījumu.
Skatīt visu informāciju

Overview

Manufacturer's code: 10062101

A concrete vibrator with an integrated frequency converter from the MSW brand is an ideal solution for professional concrete compaction. The 1200 W motor generates strong vibrations of12,000/minand a frequency of200 Hz. The 40 x 34.5 mm poker body removes even very fine air bubbles. Thanks to the integrated converter, the construction vibrator is connected directly to the AC power supply and starts working immediately, which is particularly practical. The concrete vibrator has a hose of5 mlong and a cable of15 mof length. Both enable a wide range of applications with maximum freedom of movement. Working with the device is particularly gentle thanks to the motor built into the poker body, which transmits vibrations directly to the concrete. The amount of work and force required when using the equipment has been reduced to a minimum. The concrete vibrator has a protection rating of IPX8 (waterproof) for the vibrating head and IPX5 (water splash protection) for the converter, as well as protection against motor overheating. Solid construction and high quality of workmanship make the equipment easy to maintain and very durable.

Product features:

Technical parameters:

In the set:

Key features

With an output power of 1200 W and a vibration frequency of 200 Hz, the equipment reaches a number of vibrations of 12,000 per minute,

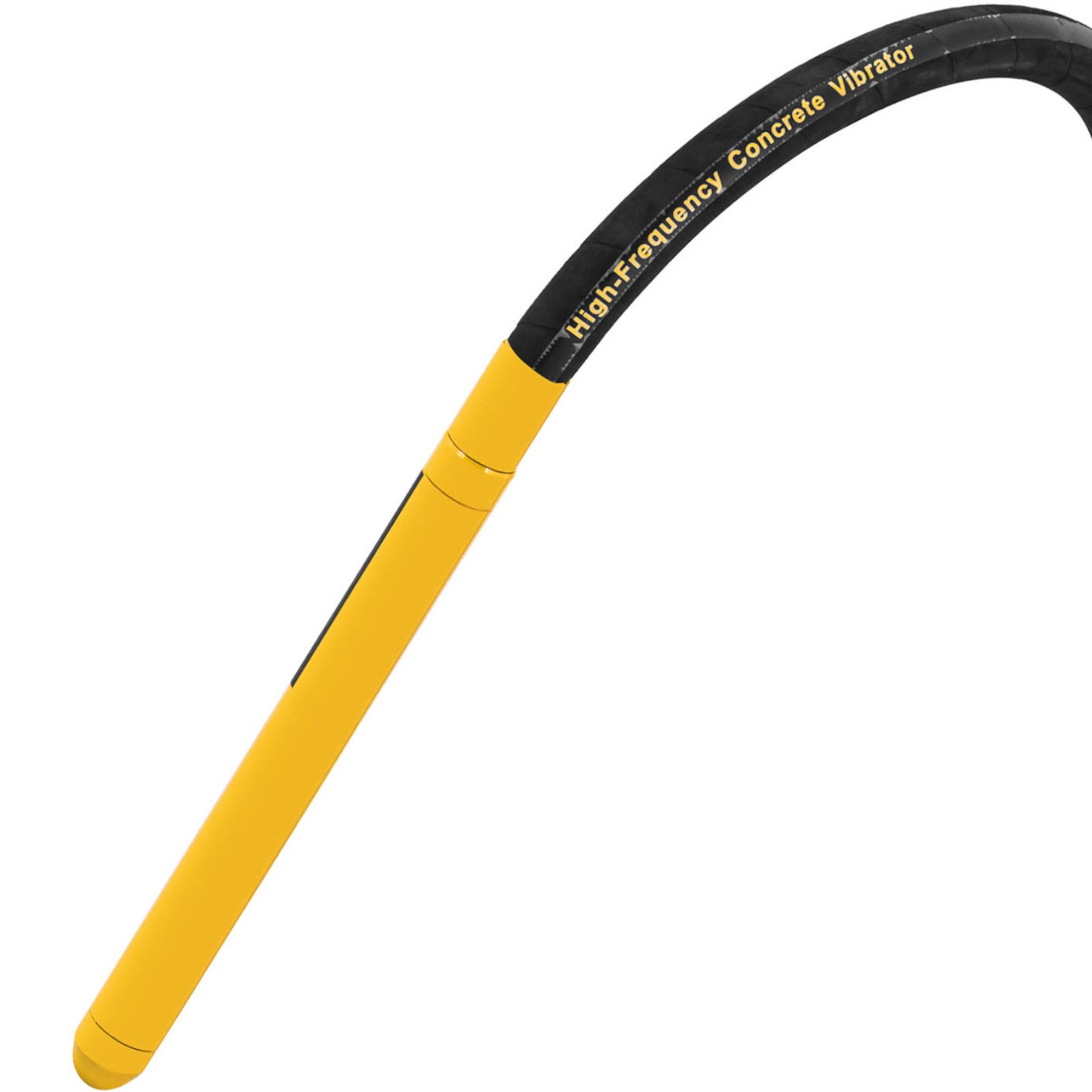

A large poker 40 x 34.5 mm removes even very small air bubbles,

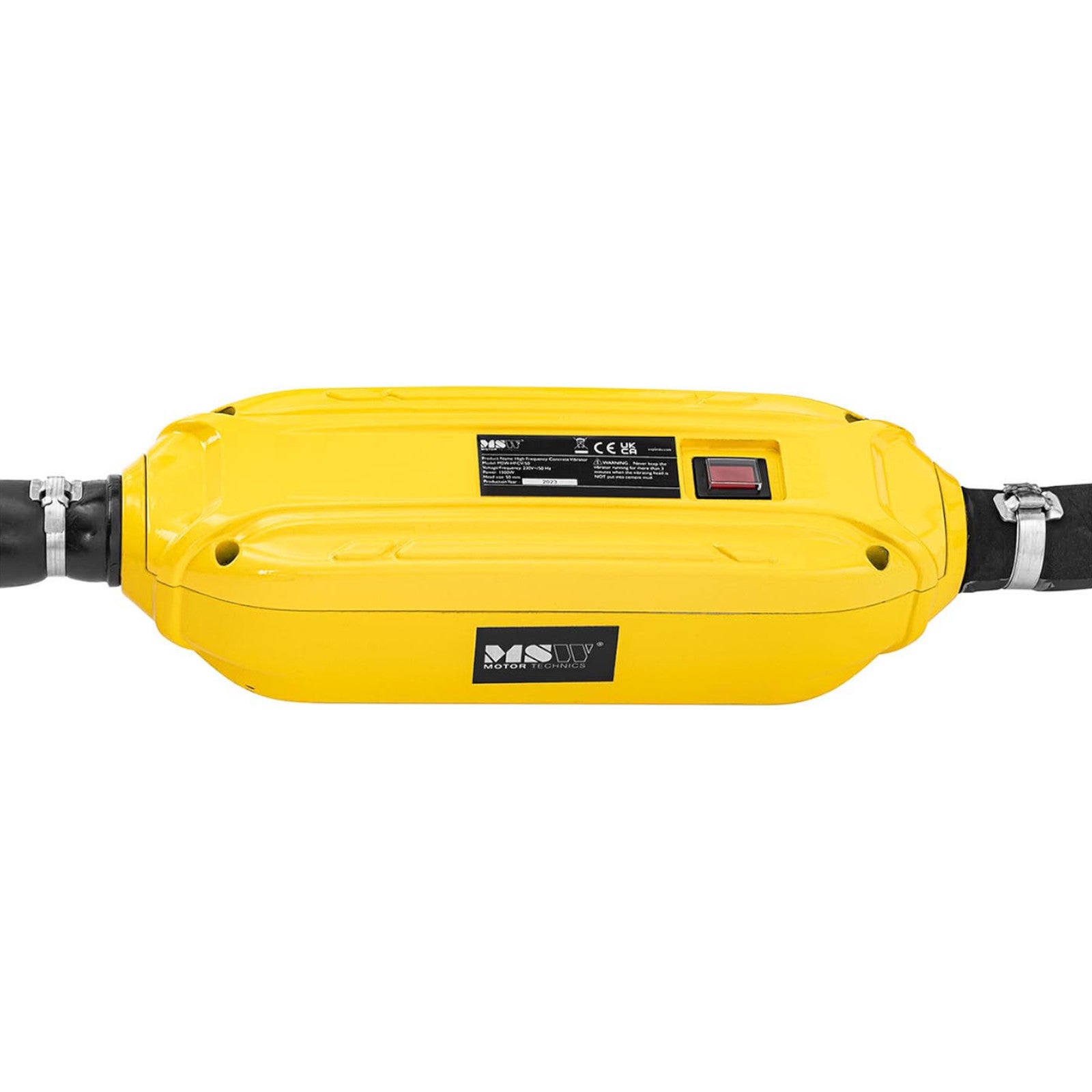

Thanks to the converter, you can directly connect the AC power,
Low vibration with a motor in the poker body for gentle and energy-saving work,
Safety with protection classes IPX8 for the poker body and IPX5 for the converter and protection against overheating
Concrete vibrator
User manual
Technical specification
SpecificationDetail
Catalog number10062101
Article conditionNew
ModelMSW-HFCV-40
MaterialStainless steel, Rubber, Copper
Cable length [m]15
Frequency [Hz]50
Excitation force [kN]3.2
IP protection levelIPX8 (poker body) / IPX5 (converter)
Hose length [m]5
Rated rotational speed [rpm]12,000
Voltage [V]230
Power [W]1200
Poker body [mm]40 x 34.5
Vibration frequency [Hz]200
Dimensions (LxWxH)10 x 10 x 550 c
Weight14.1 kg
Shipping dimensions (LxWxH)58 x 21 x 60 cm
Shipping weight14.9 kg
