Apraksts
Manufacturer's code:

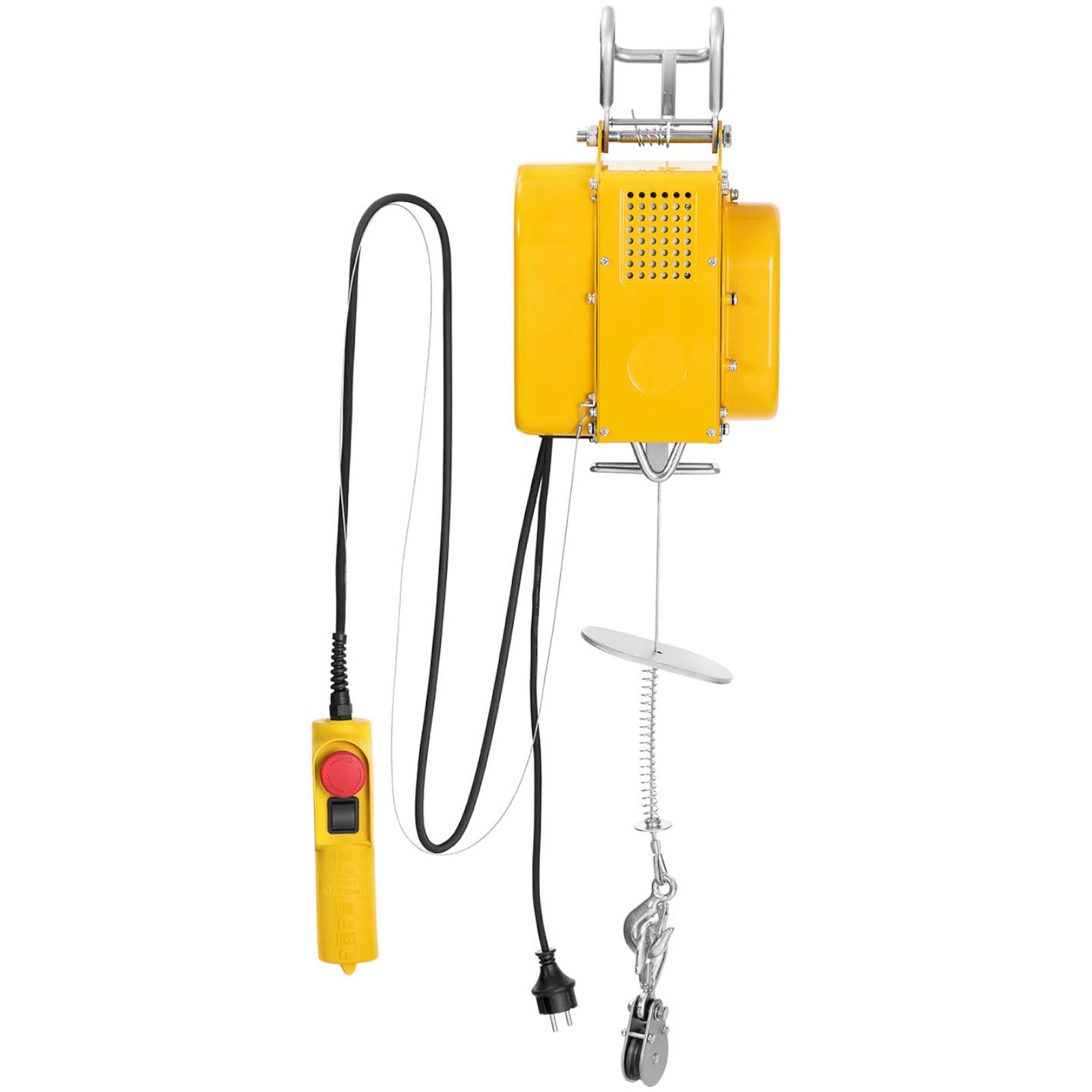

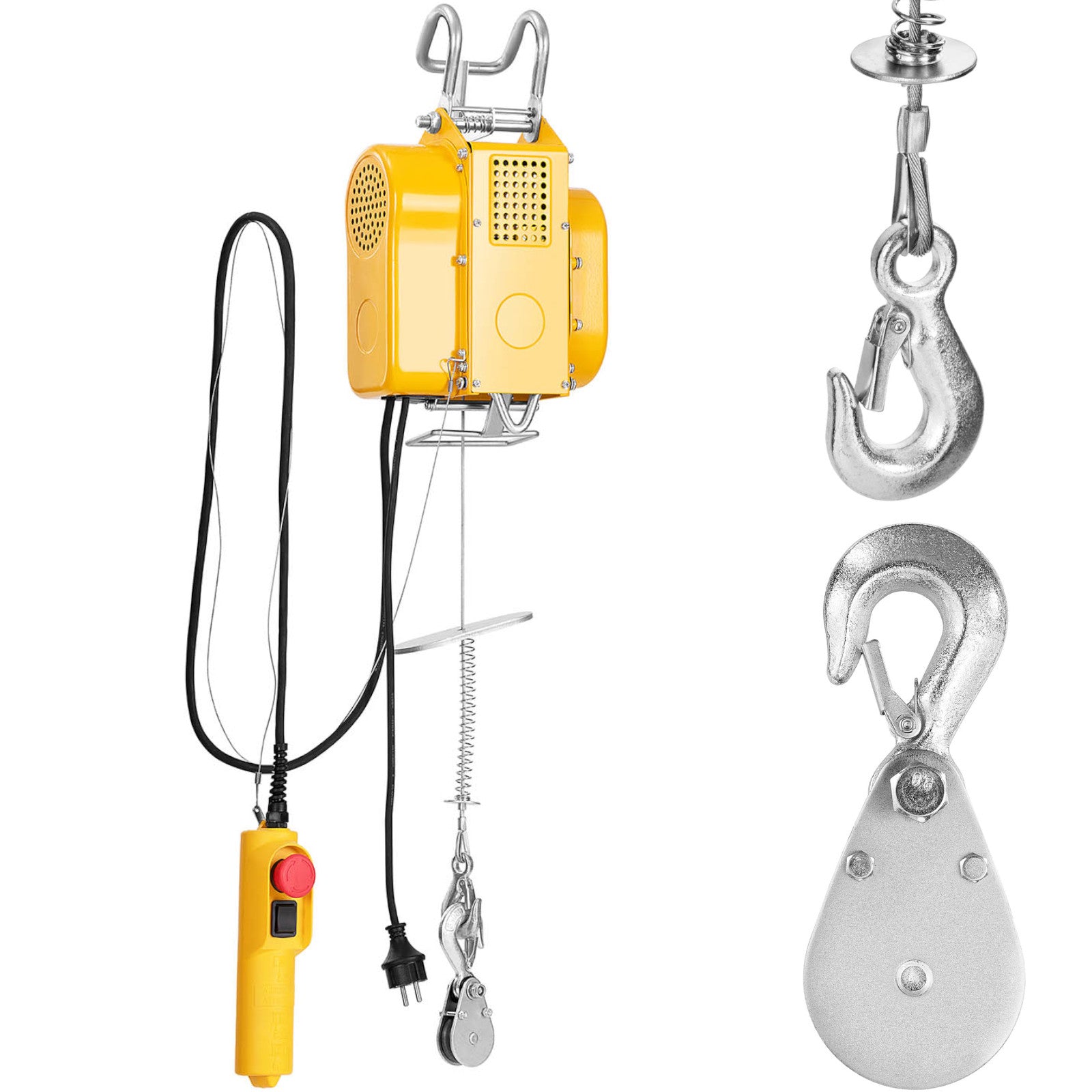

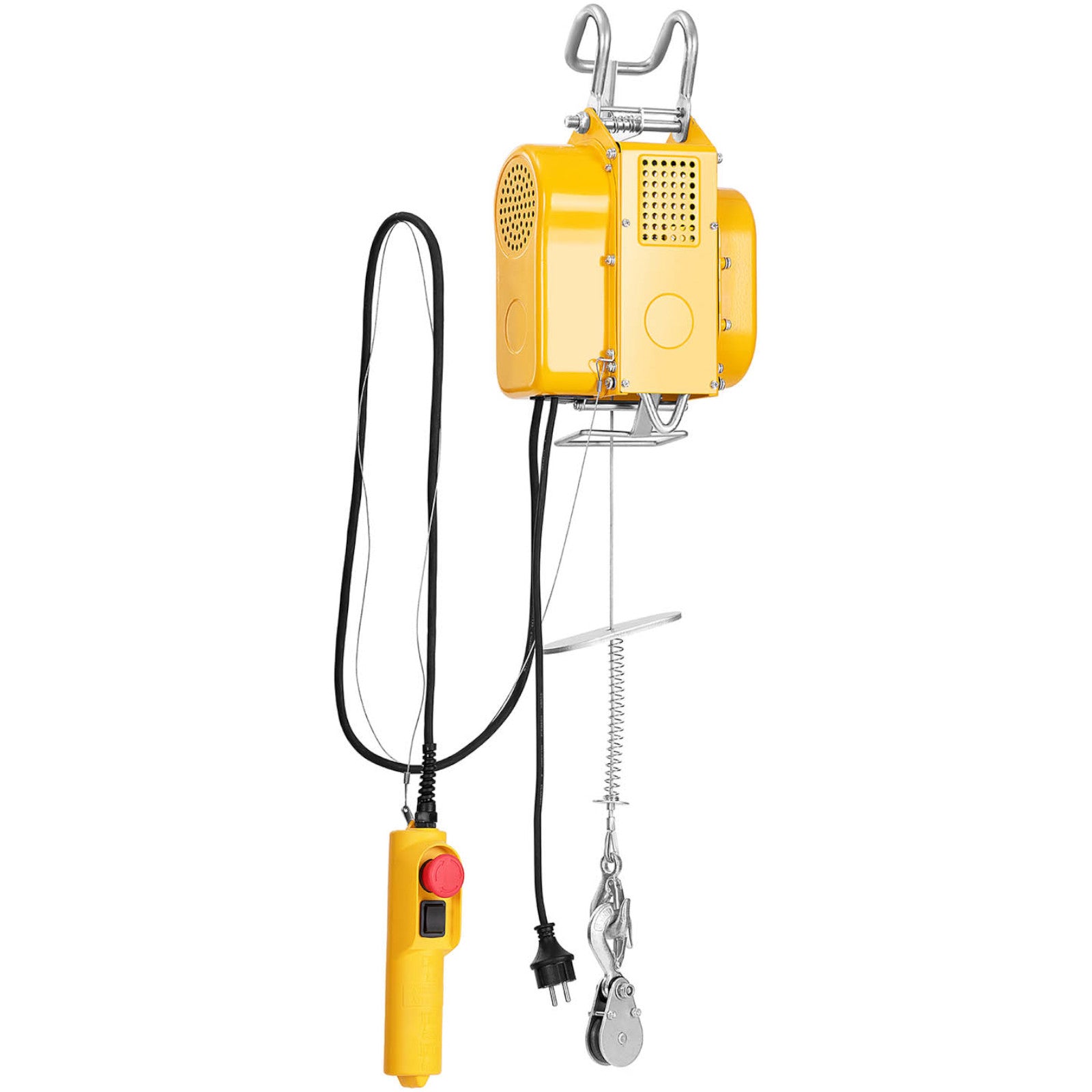

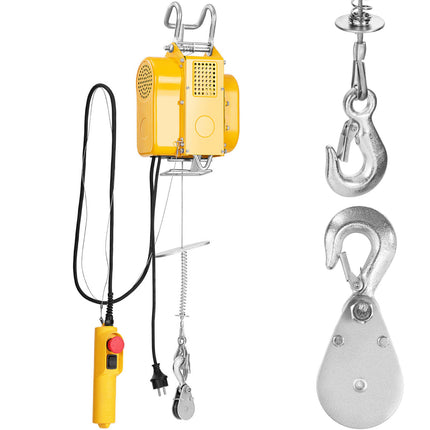

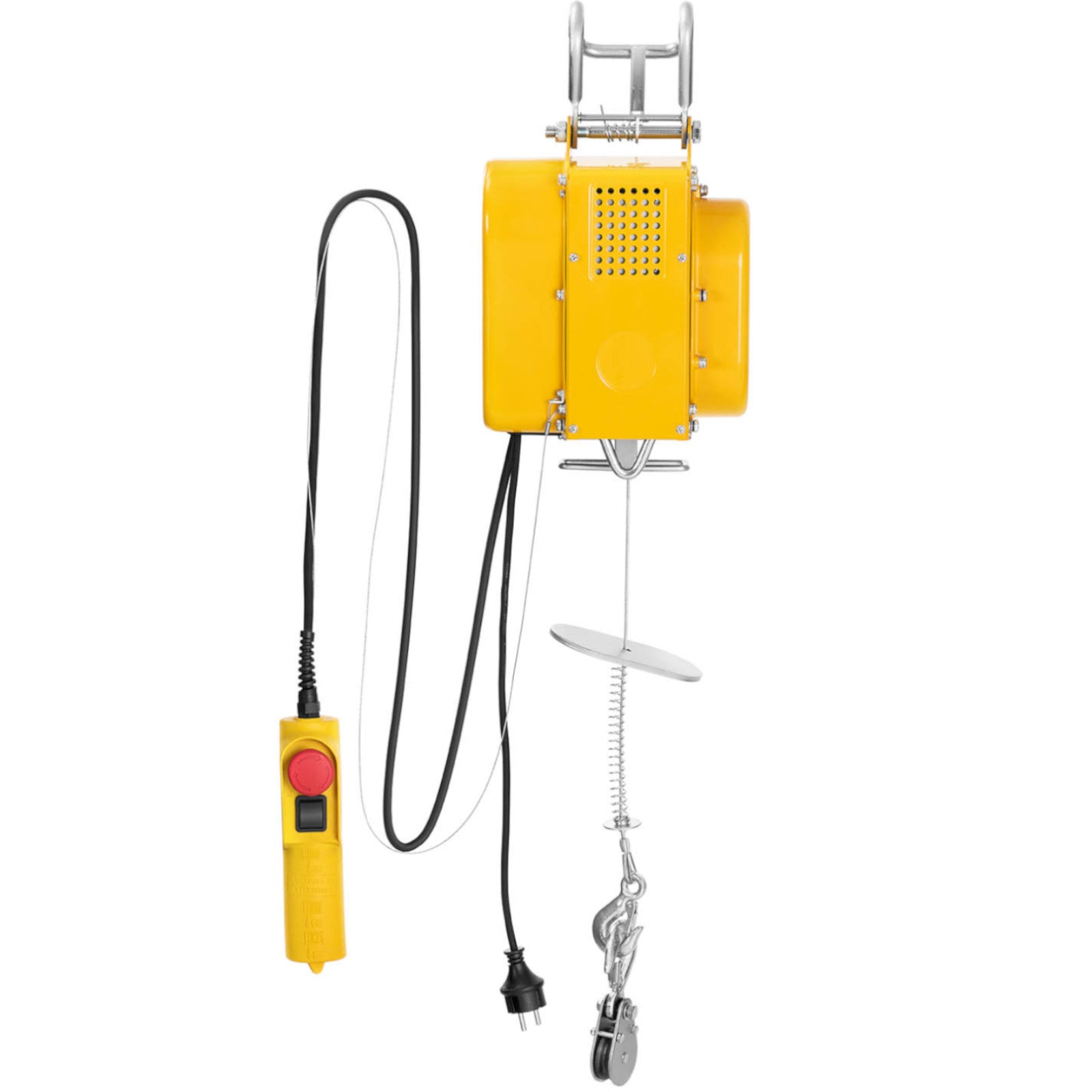

10030793Steinberg Systems cable winch will be used to lift heavy loads in a warehouse, garage or garage. Engine power
1050 W may increase
loads up to 300 kg in height up to 18 mThe lifting speed is
8 m/minThe steel rope is resistant to twisting and wear. The stacked pads reduce lifting height by half, up to 6m and the lifting speed decreases by half, up to 4 m/min. At the same time the load of the winch increases to 600 kg and allows lifting heavy loads. The stretching force is twice as high when the disc is used.

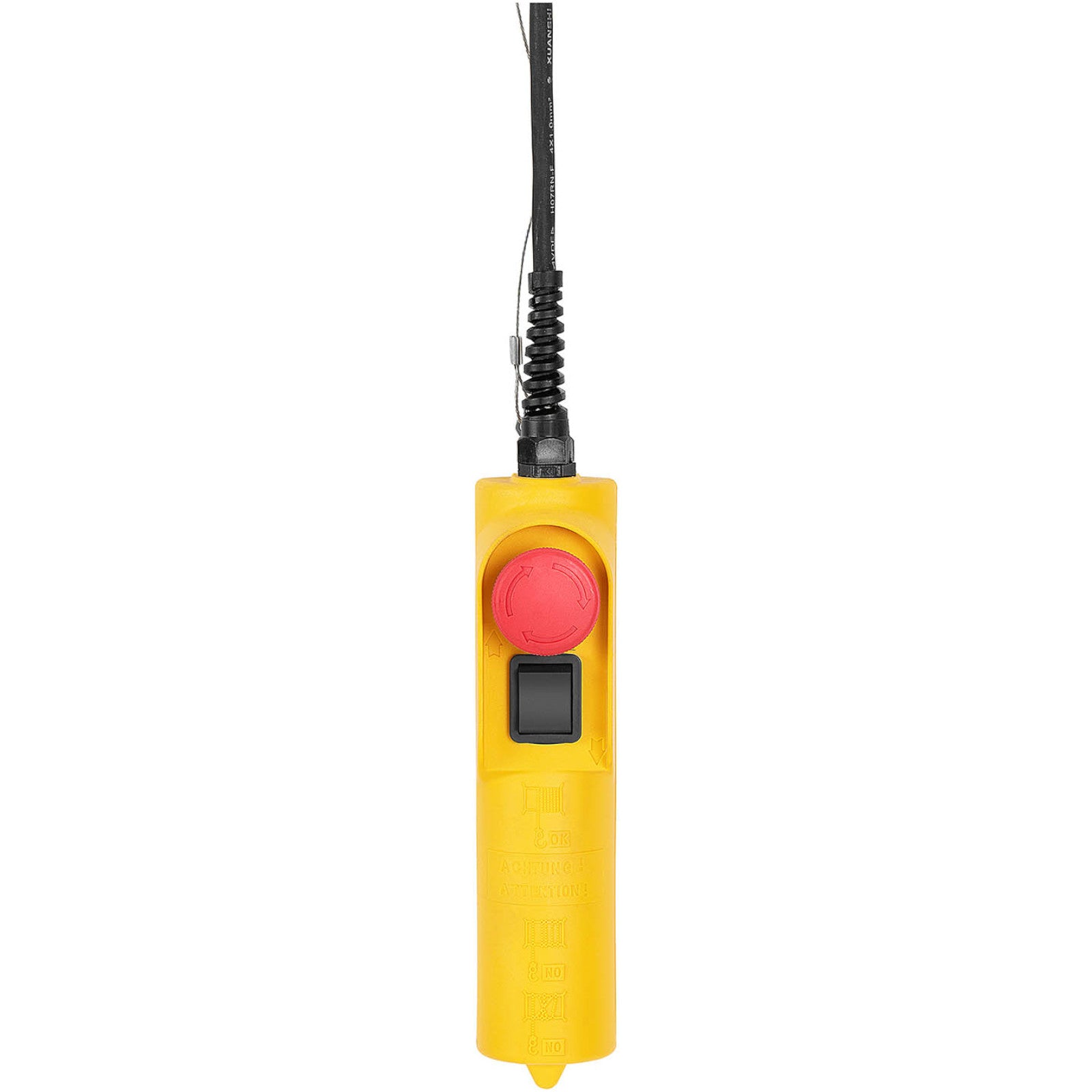

Wired pilot controls the winch,
emergency switch Each hook has a safety lock. The device
switch off automatically in the highest and lowest position. The housing of the winch was made from
steelwhich is scratch-resistant, splash-resistant and corrosion resistant.
IP54 protection classthat is, the protection against dirt and water entering and thermal protection against overload.
Product features: - - Power of a stretch of up to 600 kg,
- - Solid steel rope with a diameter of 4.5 mm,
- - Height of lifting 18 m, with a 6 m block,
- - emergency switch and safety lock hooks,
- - Steel and copper construction.
Technical parameters: - - Model - SBS-EH-600/18
- - Catalog number - 10030793
- - The state of the article - New
- - Voltage [V] - 230
- - The diameter of the chain [mm] - 4,5
- - Material - Steel, copper
- - Permissible load [kg] - 600
- - Maximum load [kg] - 600
- - Engine power [W] - 1050
- - Diameter of the rope [mm] - 4,5
- - The rope material - Steel
- - IP protection - IP54
- - Lifting speed - without block [m/min] - 8
- - Carry-on - without block [kg] - 300
- - Lifting speed - with a lock [m/min] - 4
- - Carry-on with a blob. - 600
- - Max. lifting capacity - without block [m] - 18
- - Max. lifting capacity - with a lock [m] - 6
- - Loading hook - Yes.
- - Emergency switch - Yes.
- - Dimensions (DxSxW) [cm] - 45 x 27 x 15
- - Weight [kg] - 20,3
- - Dimensions of dispatch (DxSxW) [cm] - 48 x 36.5 x 31
- - Weight of dispatch [kg] - 21,2
Included: - - Cable winch
- - User manual
