Manufacturer's number:

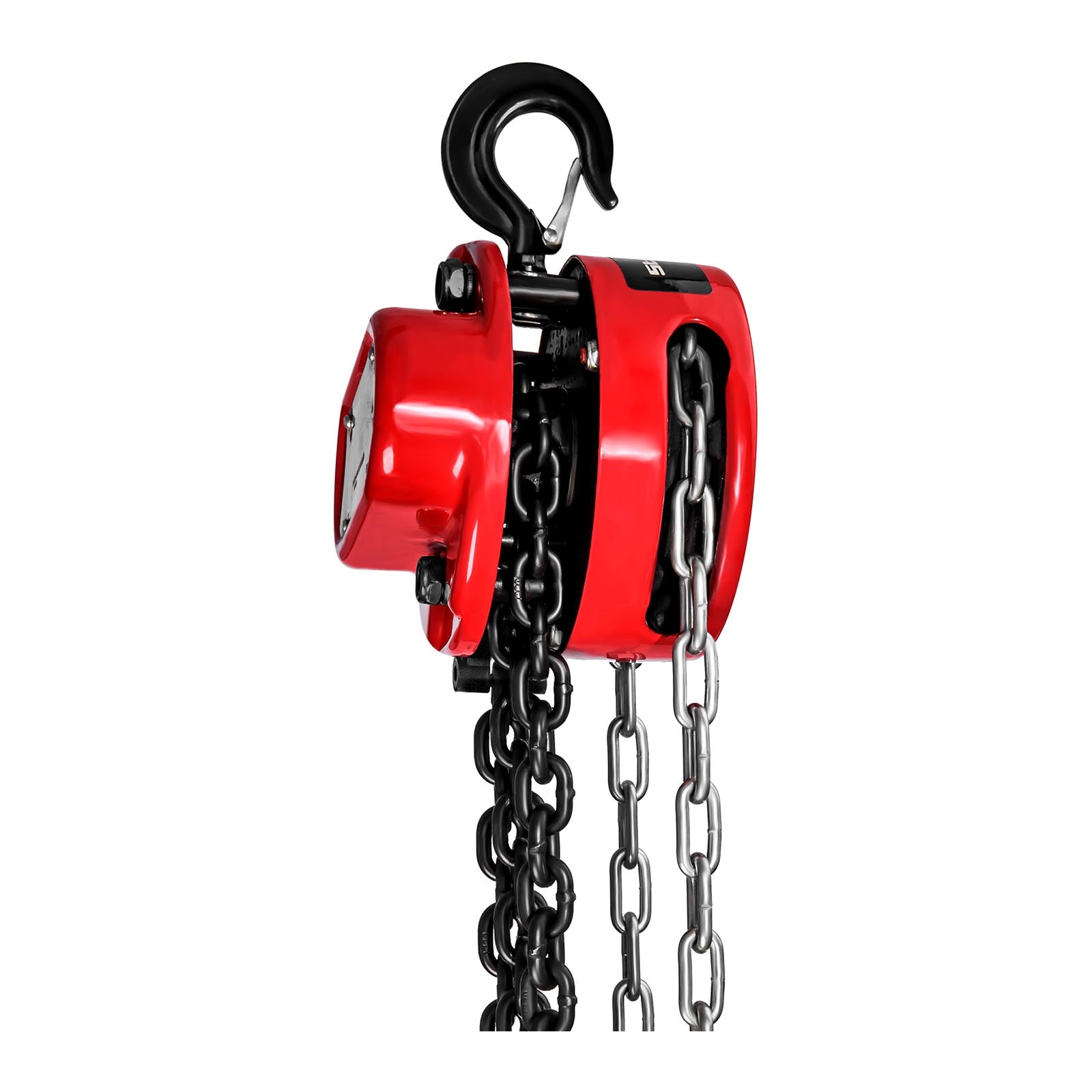

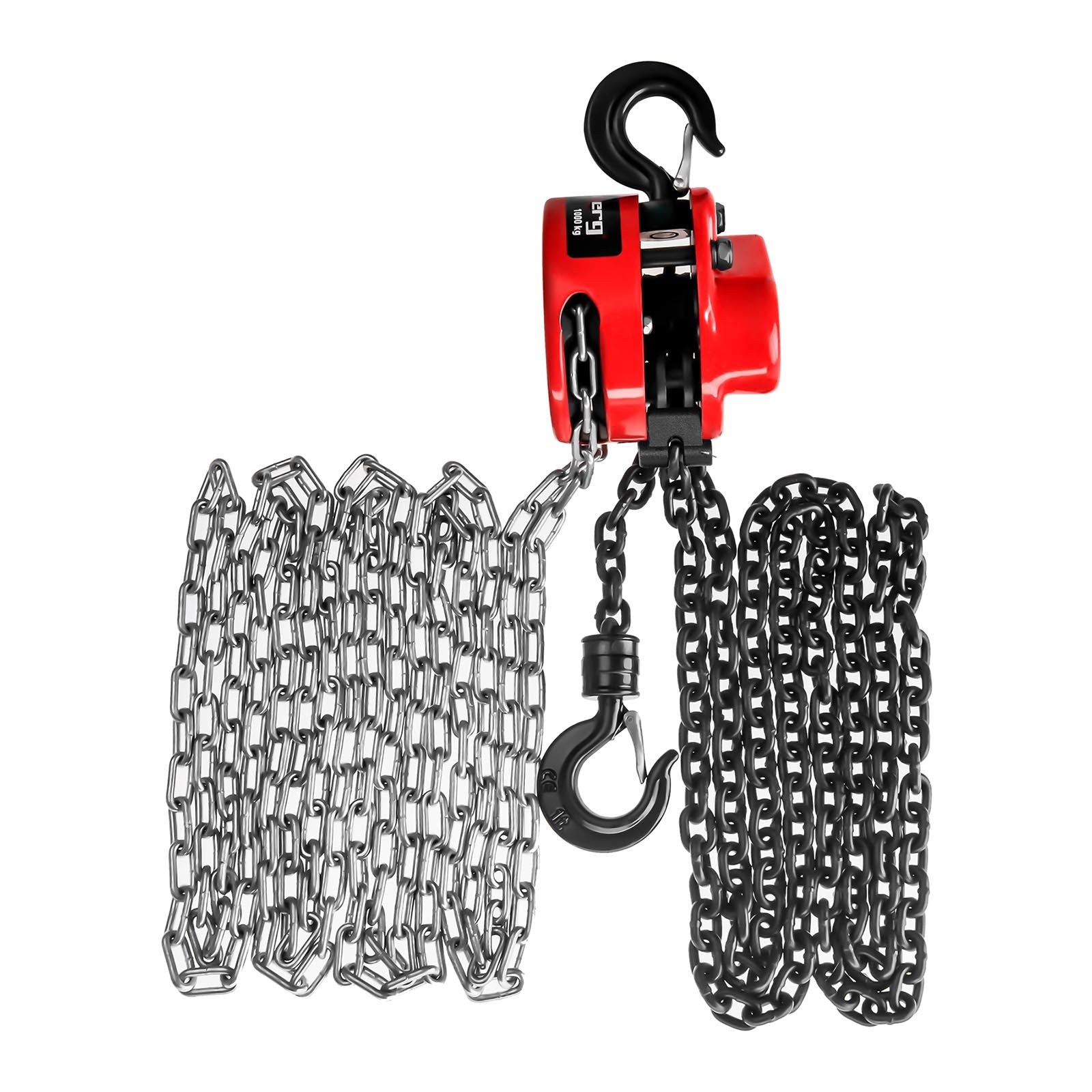

Steinberg Systems 10030375Chain winch The German brand Steinberg Systems is a versatile device that will be perfect for various manufacturing companies, mechanics, warehouses or construction sites. Its basic application is lifting and lowering heavy objects.
The hand-held chain lifter allows you to carry objects up to 1000 kg up to a height of three meters. Thanks to the durable chains (type G80, 6 mm diameter cell) and the high quality steel components, the operation with the SBS-FZ 1000/3M model is very safe. This is also influenced by the nylon tip of the control bar and the safety mechanism that stops the equipment from operating when the chain is released. To increase user comfort, the winch has been
with two rotating hooks and light-weight levers connected with a mechanism inside the enclosure. It allows for comfortable lifting and lowering of the object.
Product features: - - Productivity - maximum lifting capacity up to 1000 kg allows lifting of items up to 3 m height,
- - Comfort - a control lever and a safety mechanism which stops the operation of the equipment when the chain is loose,
- - Security - steel construction, high quality of construction, two rotating hooks and a lever with anti-slip handle.
Technical parameters: - - Model - SBS-FZ 1000/3M
- - Catalog number - 10030375
- - The state of the article - New
- - Maximum capacity - 1000 kg
- - Material - Steel
- - Maximum lifting height - 3 m
- - Minimum distance between hooks - 265 mm
- - The required force to lift the weight - 340 N
- - Chain type - G80
- - Number of carrier chains - 1
- - The diameter of the chain link - 6 mm
- - Dimensions (DxSxW) - 23.5 x 14.5 x 13 cm
- - Weight - 9 kg
- - Dimensions of dispatch (DxSxW) - 24 x 19.5 x 18.5 cm
- - Weight of shipping - 9,4 kg
Included: - Chain winch
- EN Instructions
