Manufacturer's code:

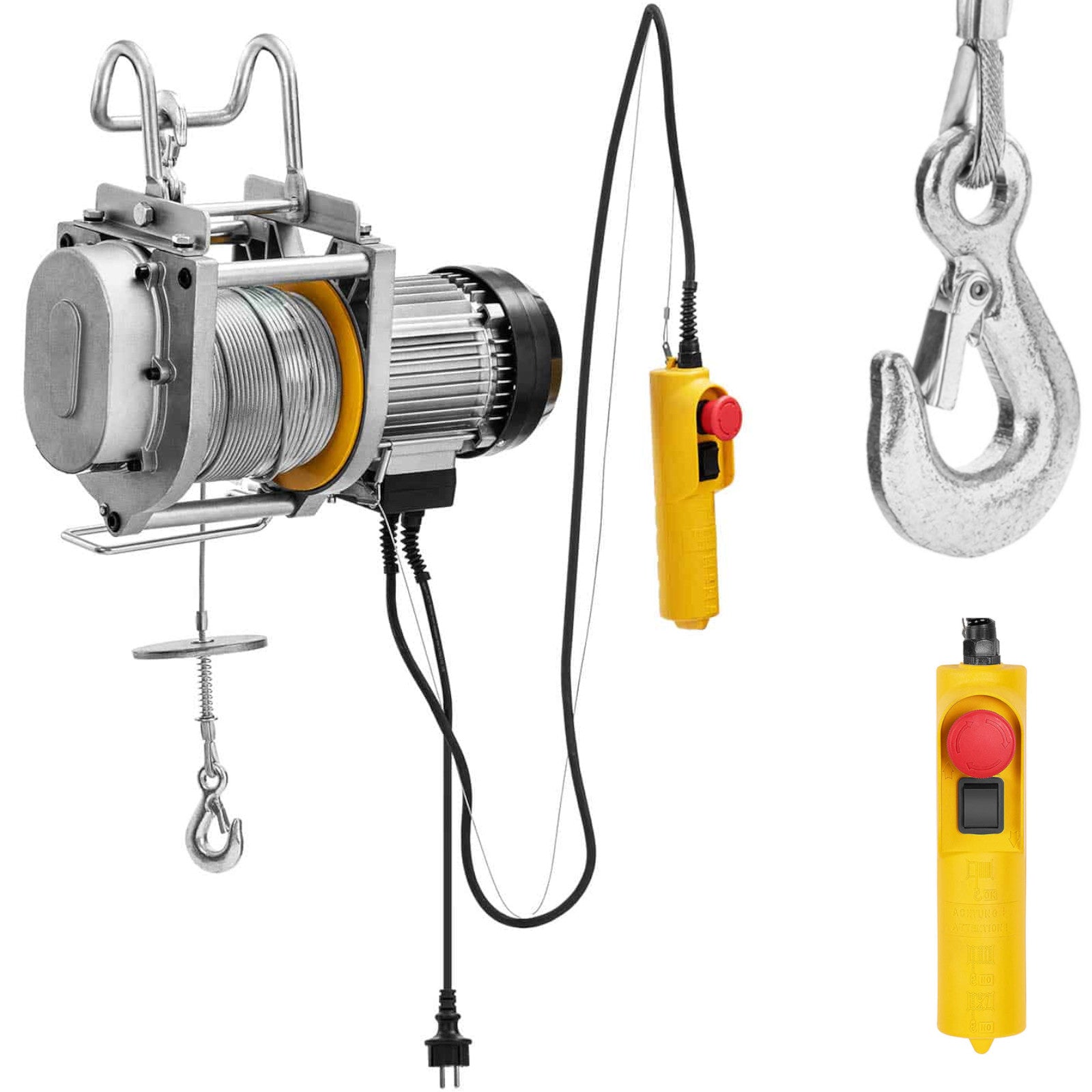

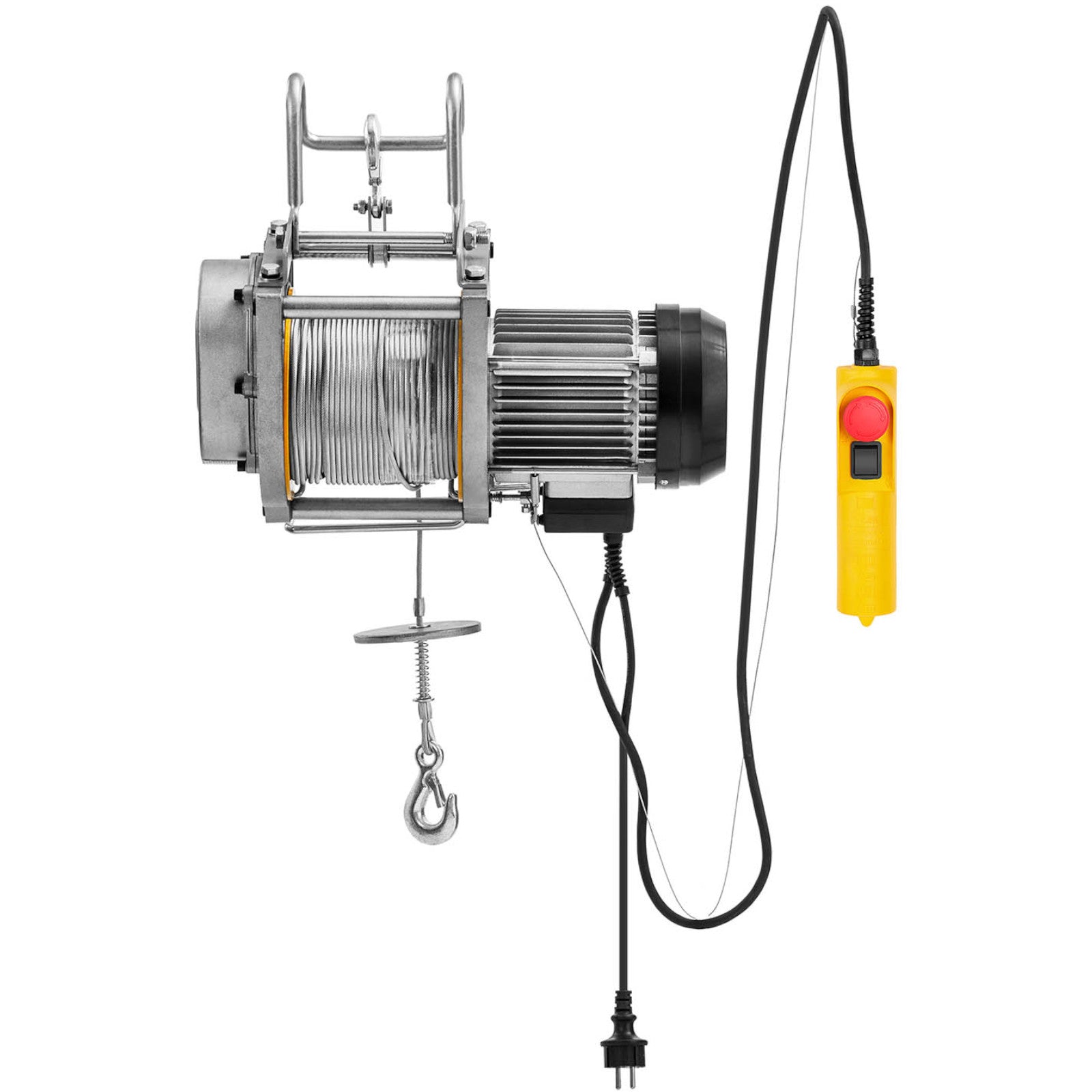

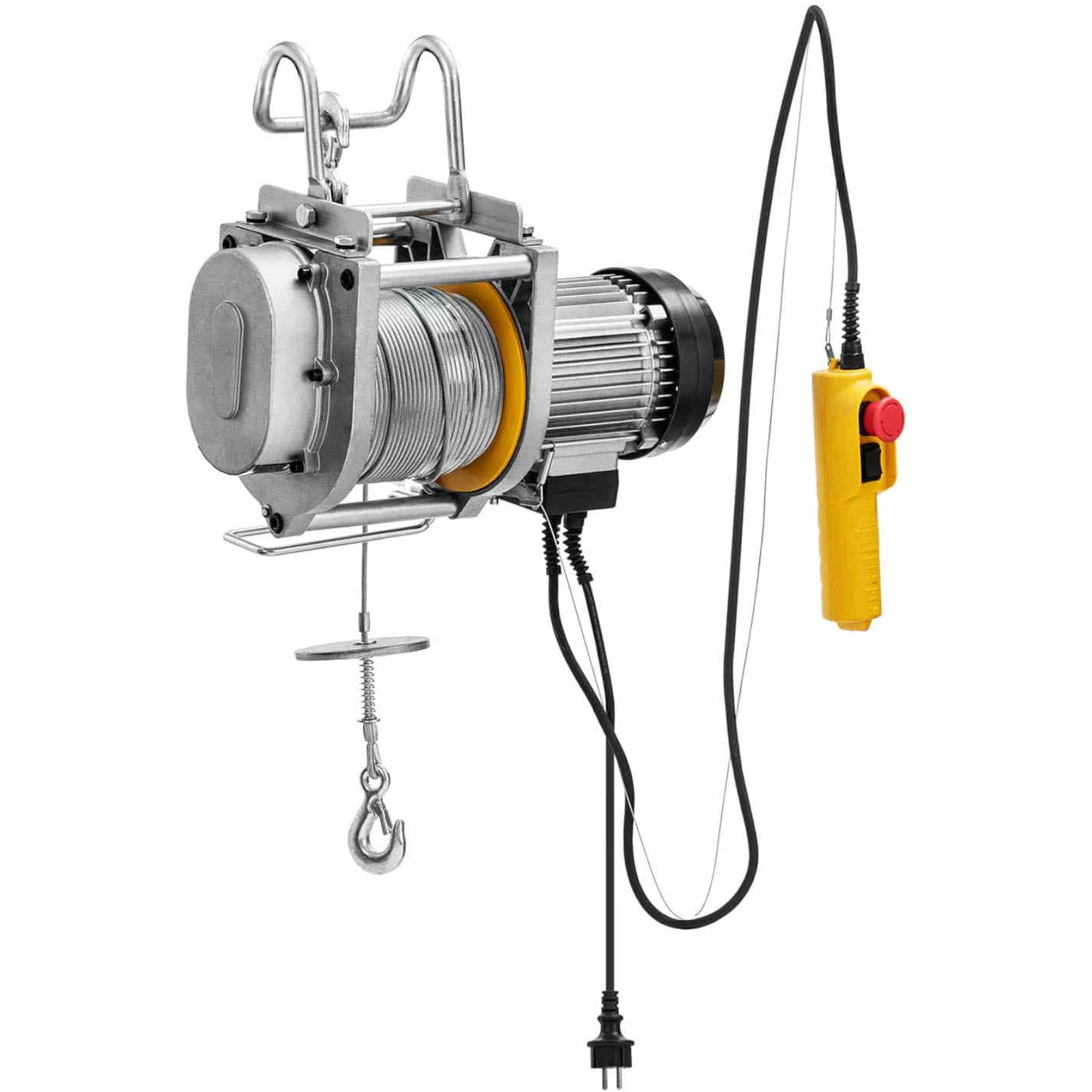

10062122MMA rope winch allows you to lift heavy loads in a warehouse or workshop without effort.
a power of 1300 W raises charges to height
60 mThe rope with diameter
5.1 mm carrying loads with values
250 kgThe lifting speed is
15 m/min.

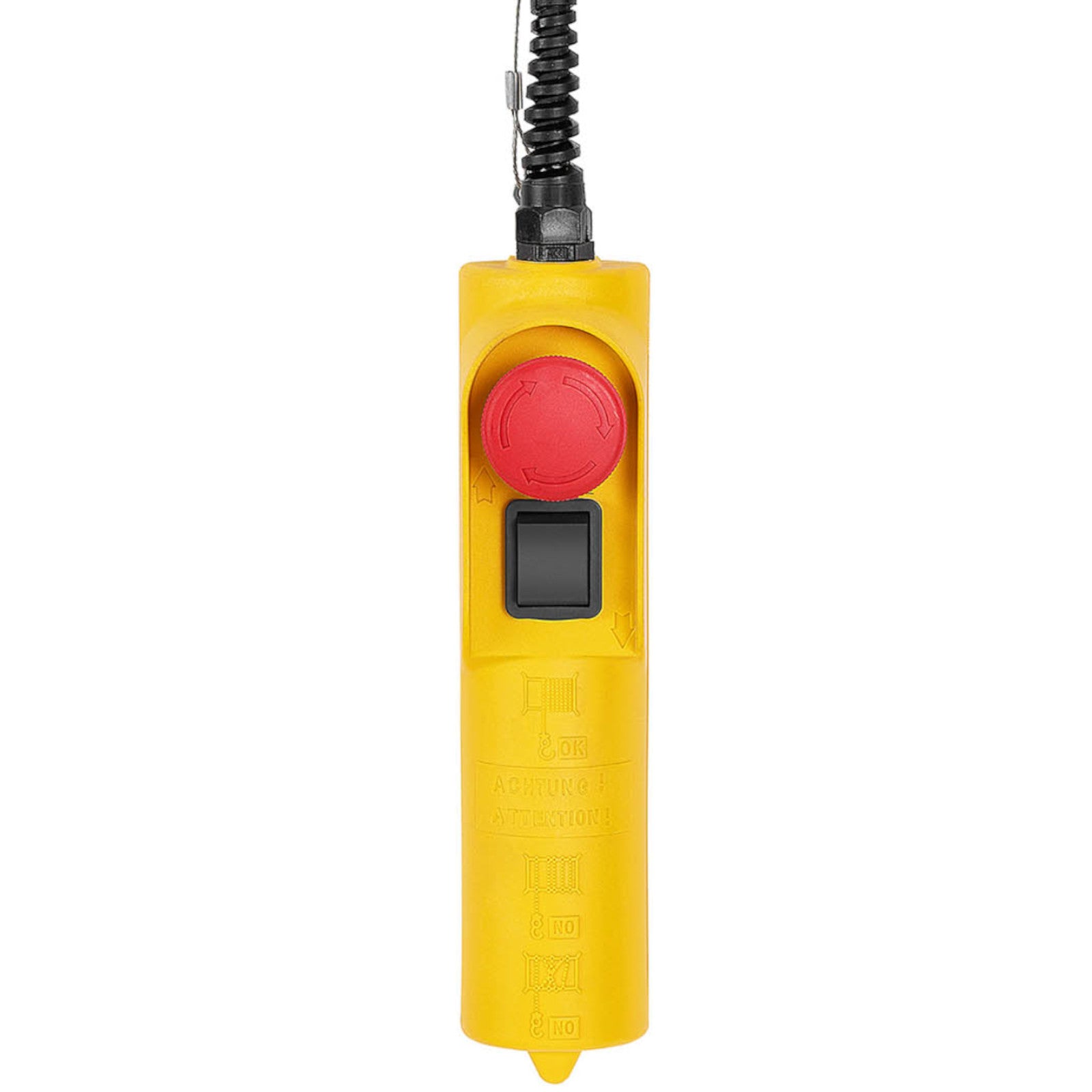

Wired pilot allows you to control the device from a distance.

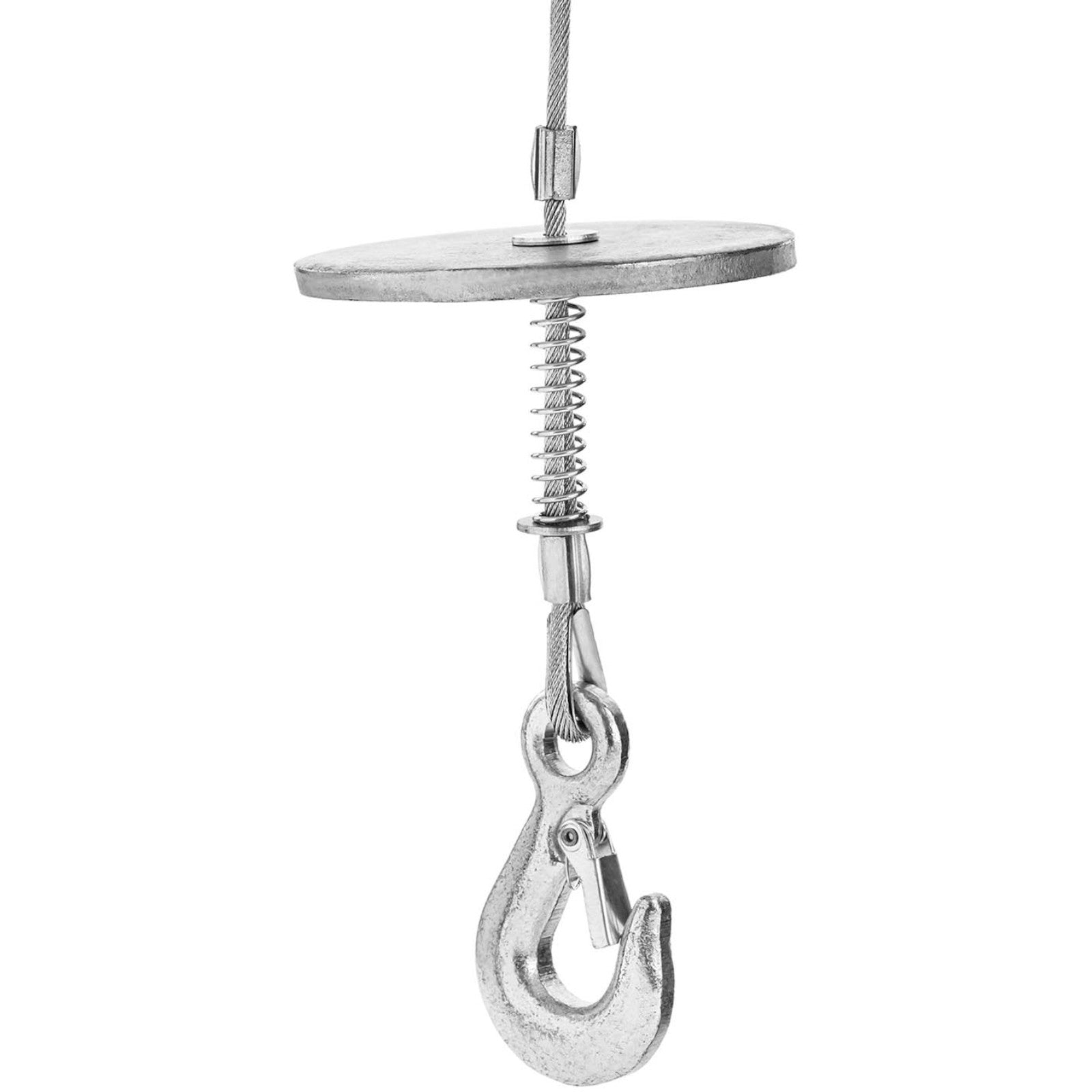

Emergency button allows you to immediately stop the winch. The hooks are equipped with
safety lockThe device automatically switches off in the highest and lowest position.
Steel housing is extremely durable, corrosion resistant. The winch has been marked
IP54 protection classis protected against dirt and water penetration, also has a protection against thermal overload.
Product features: - - Power of stretch up to 250 kg,
- - Lift height up to 60 m,
- - Steel wire with a diameter of 5.1 mm,
- - emergency switch and hooks with safety hooks,
- - A durable construction made of steel and copper.
Technical parameters: - - Catalog number - 10062122
- - The state of the article - New
- - Model - MSW-ET-250
- - Voltage [V] - 230
- - Material - Aluminium, Steel, Copper
- - Color - Grey
- - Load [kg] - 250
- - Power [W] - 1300
- - The length of the rope [m] - 60
- - Maximum load [kg] - 250
- - Engine power [W] - 1300
- - Power cord [m] - 0,5
- - Max. lifting height [m] - 60
- - Diameter of the rope [mm] - 5,1
- - Time for break at work - S3 40% - 10 min
- - Max. lifting speed - 15 m/min
- - IP protection - IP54
- - Lifting speed - without block [m/min] - 15
- - Carry-on - without block [kg] - 250
- - Max. lifting capacity - without block [m] - 60
- - Loading hook - Yes.
- - Pilot - Yes.
- - Emergency switch - Yes.
- ## I'll swing with a hook ## No.
- - Cover - mounting to the profile or tilting arm - No.
- - Dimensions (DxSxW) [cm] - 46 x 42 x 24
- - Weight [kg] - 30,3
- - Dimensions of dispatch (DxSxW) [cm] - 54 x 38 x 29
- - Weight of dispatch [kg] - 31,7
