Apraksts
Manufacturer's code:

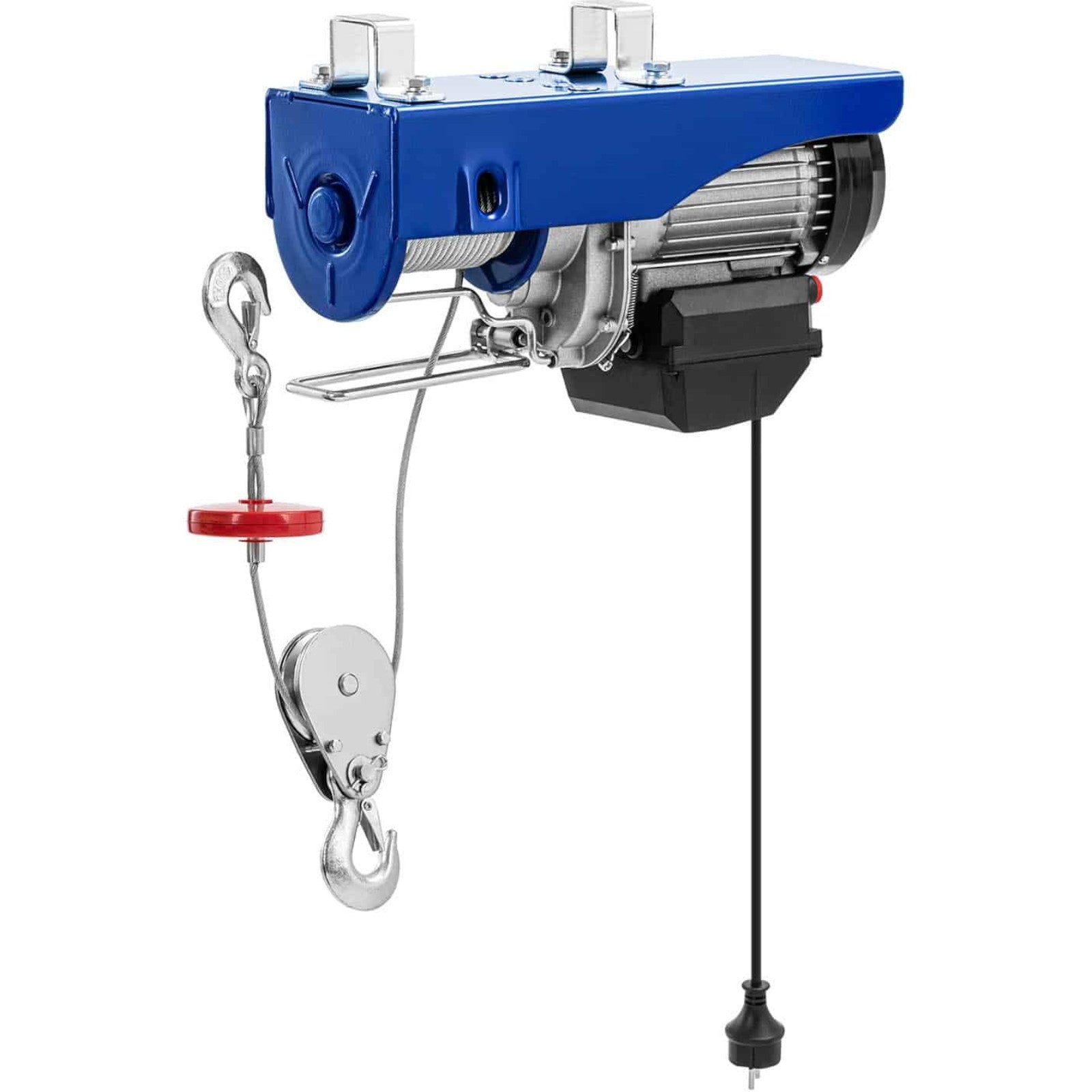

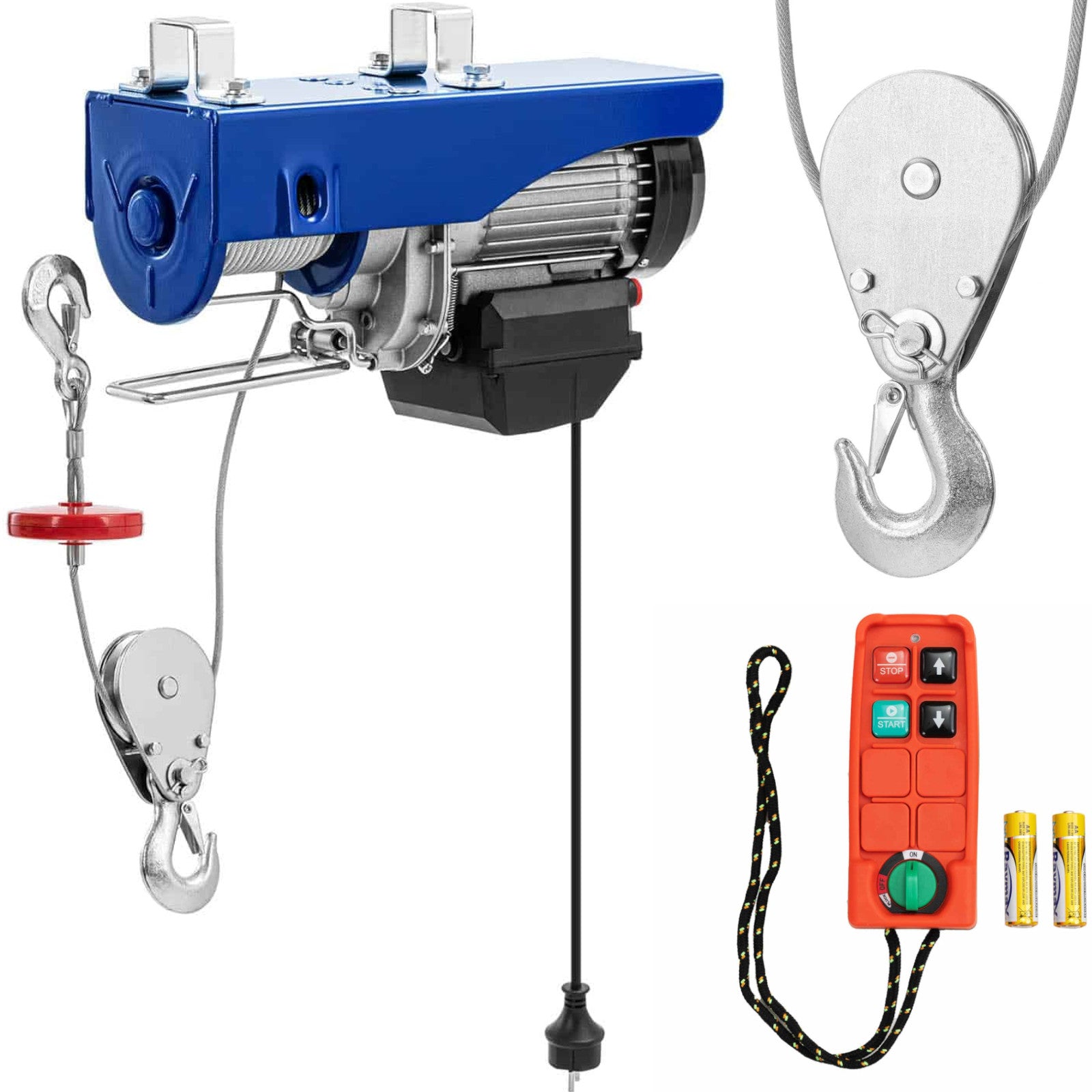

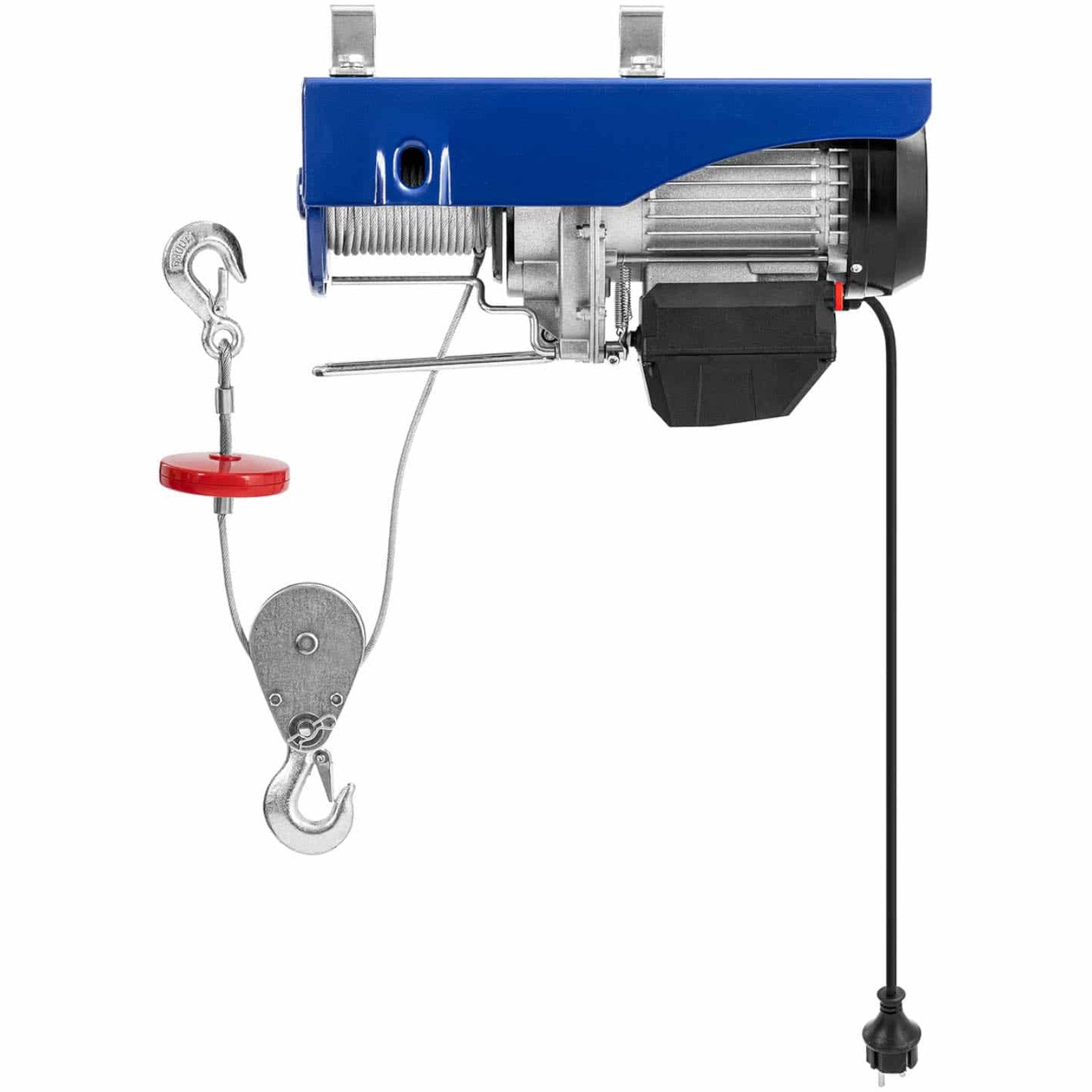

10062132MMA rope winch allows you to lift heavy loads in a warehouse or workshop without effort.
Power supply 1350 W raises loads up to 400 kg at height
12 mThe lifting speed is

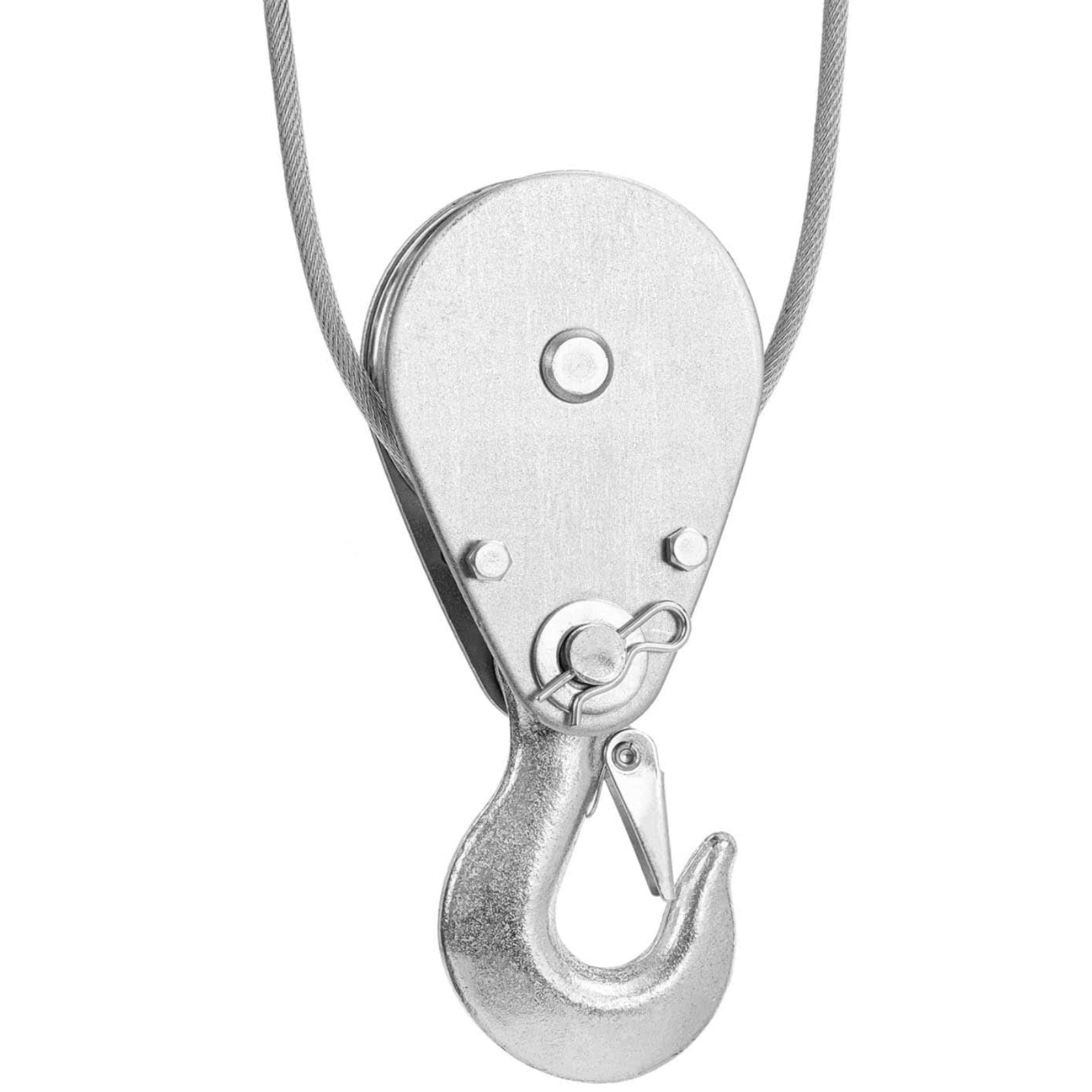

8 m/minThe steel rope is protected against twisting, durable and durable. After the block has been set, the lifting height is reduced by half, up to 6 m and the lifting speed is up to 4 m/min. At the same time the load of the winch increases to 800 kg.

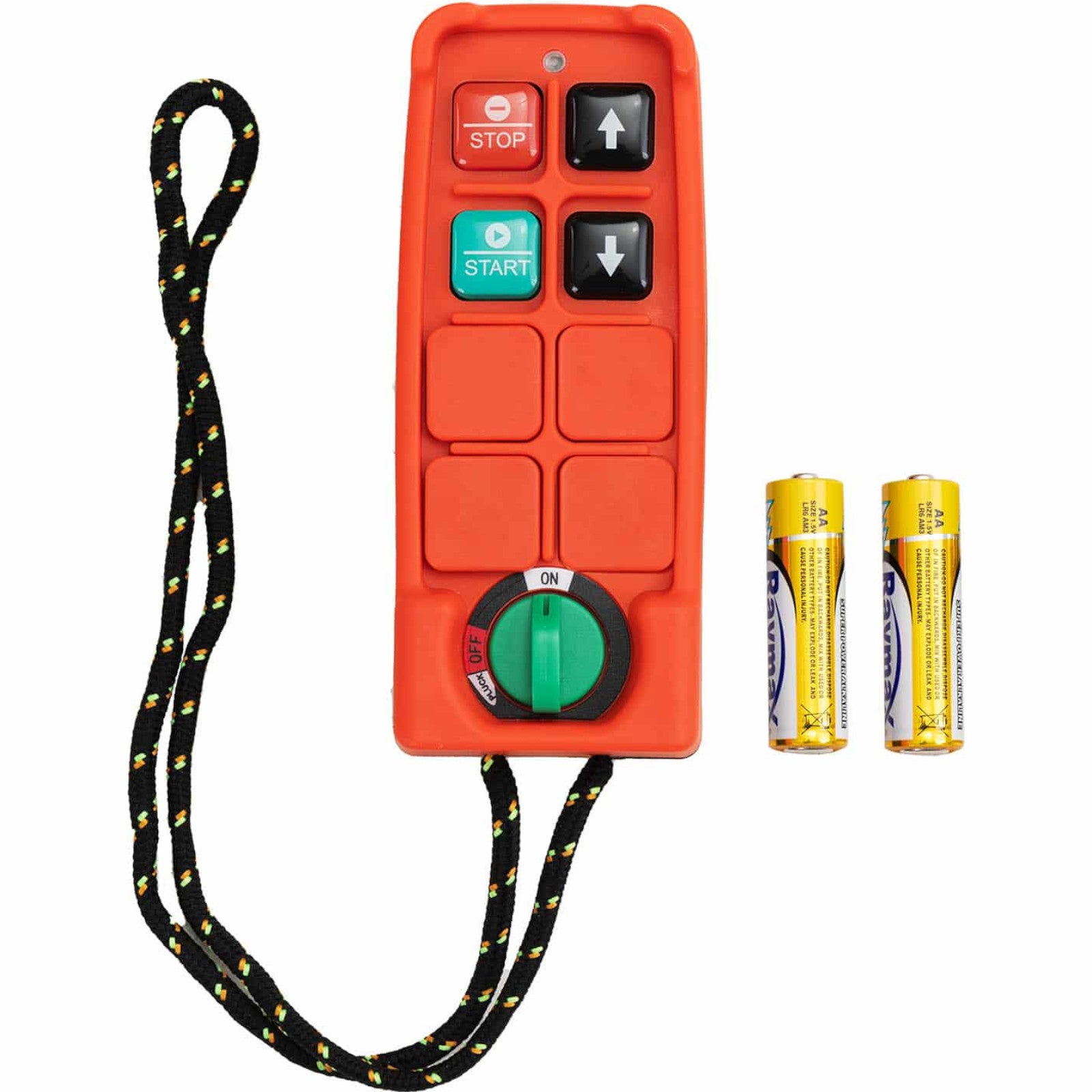

Wireless remote control allows to control the device from a distance. The device stops automatically in case of a power outage. The winch has been marked
IP54 protection classIt's protected from dirt and water.
Product features: - - Power of the haul up to 800 kg lifting speed up to 8 m/min,
- - Lift height up to 12 m, with a 6 m block,

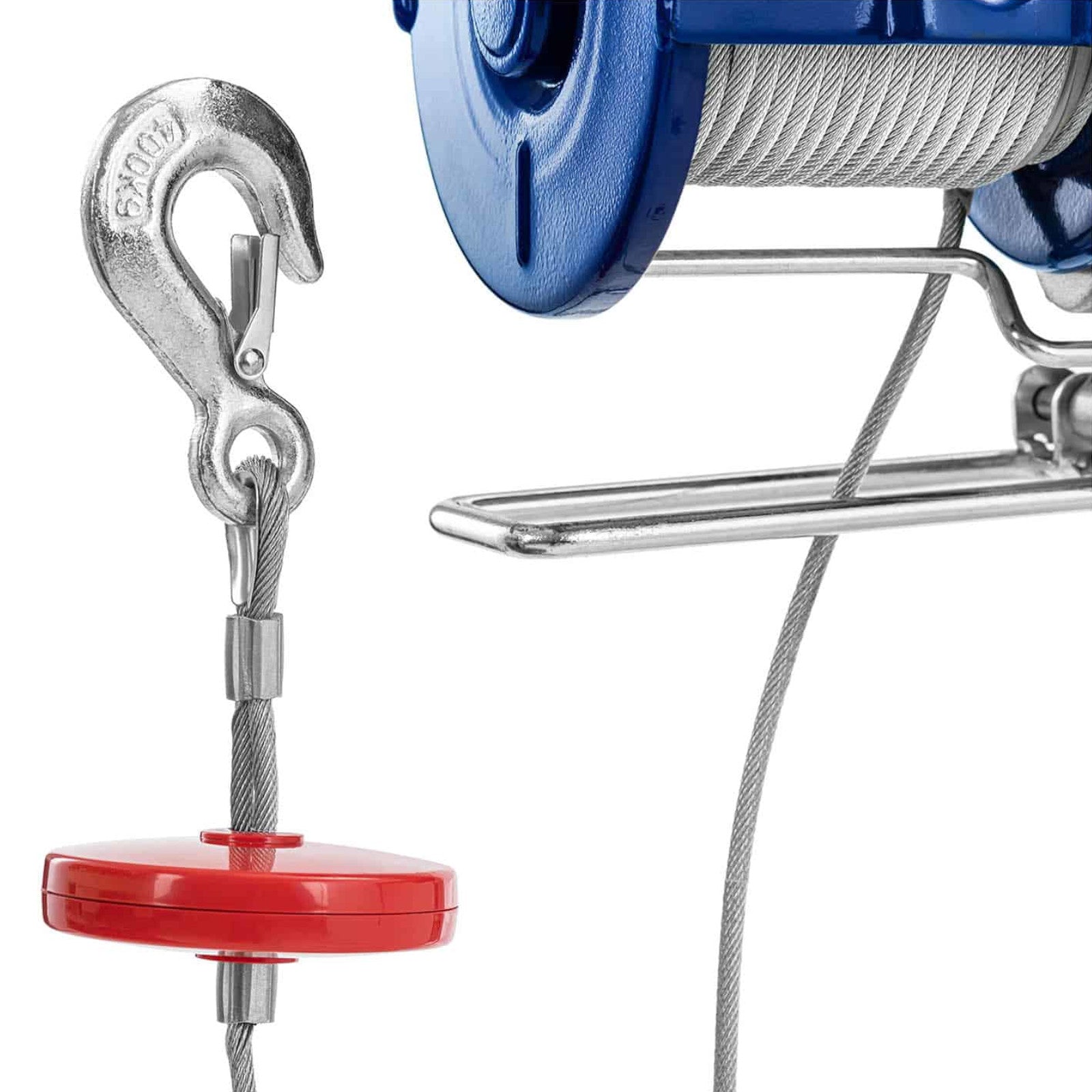

- - Steel wire with a diameter of 5.1 mm,
- - Automatic stop in case of a power outage and remote control,

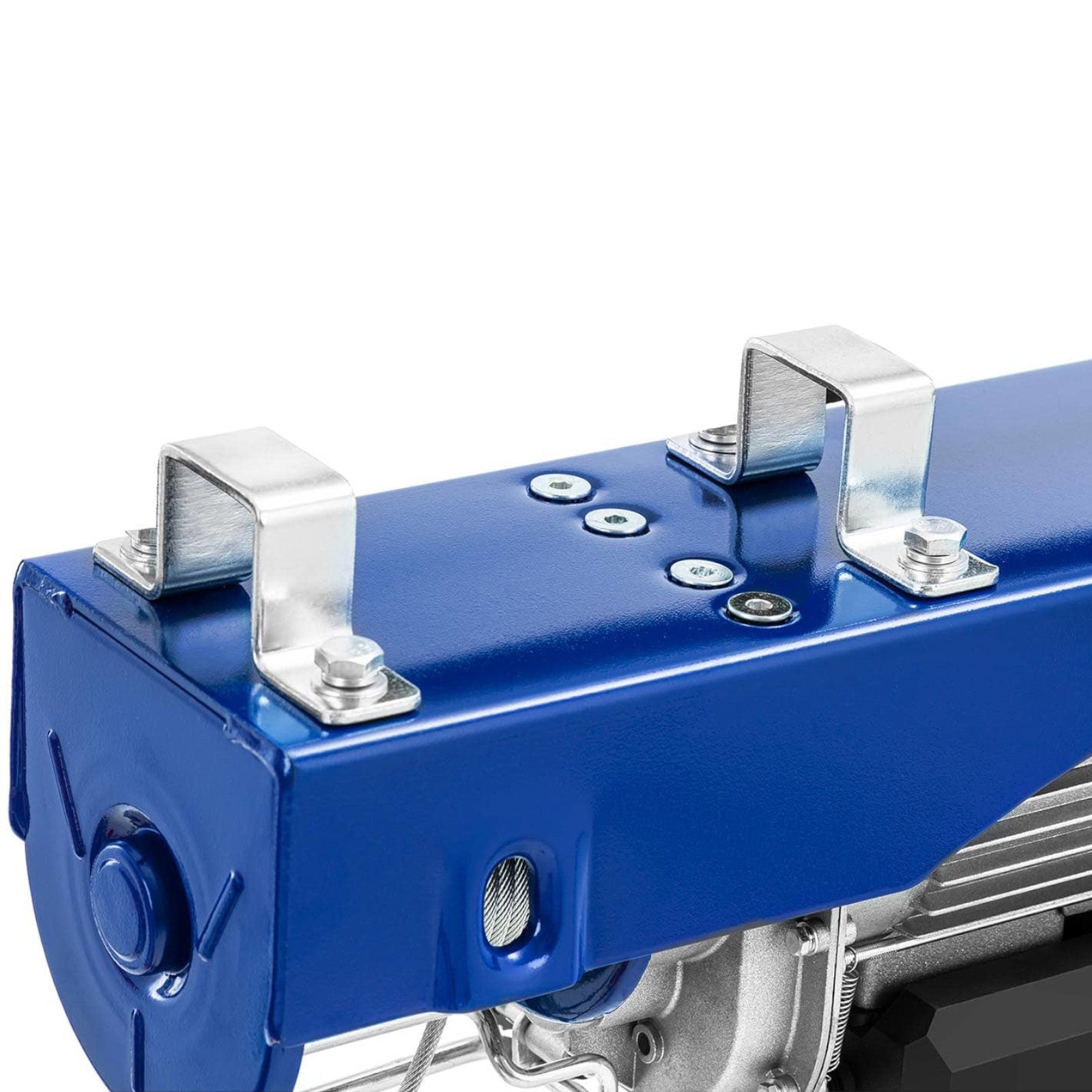

- - A durable construction made of steel, copper and aluminum.
Technical parameters: - - Catalog number - 10062132
- - The state of the article - New
- - Model - MSW-PROLIFTOR-800NW
- - Voltage [V] - 230
- - Material - Aluminium, Steel, Copper
- - Color - Blue
- - Load [kg] - 400
- - Power [W] - 1350
- - The length of the rope [m] - 12
- - Maximum load [kg] - 800
- - Engine power [W] - 1350
- - Power cord [m] - 0,55
- - Max. lifting height [m] - 12
- - Diameter of the rope [mm] - 5,1
- - Time for break at work - S3 / 20% / 10 min
- - Max. lifting speed - 8 m/min
- - IP protection - IP54
- - Lifting speed - without block [m/min] - 8
- - Carry-on - without block [kg] - 400
- - Lifting speed - with a lock [m/min] - 4
- - Carry-on with a blob. - 800
- - Max. lifting capacity - without block [m] - 12
- - Max. lifting capacity - with a lock [m] - 6
- - Loading hook - Yes.
- - Pilot - Yes.
- - Emergency switch - Yes.
- ## I'll swing with a hook ## Yes.
- - Covering the profile or tilting arm - Yes.
- - Dimensions (DxSxW) [cm] - 41 x 15 x 22
- - Weight [kg] - 19,5
- - Dimensions of dispatch (DxSxW) [cm] - 50 x 30 x 21
- - Weight of dispatch [kg] - 20,6
Included:
