Apraksts
Manufacturer's code:

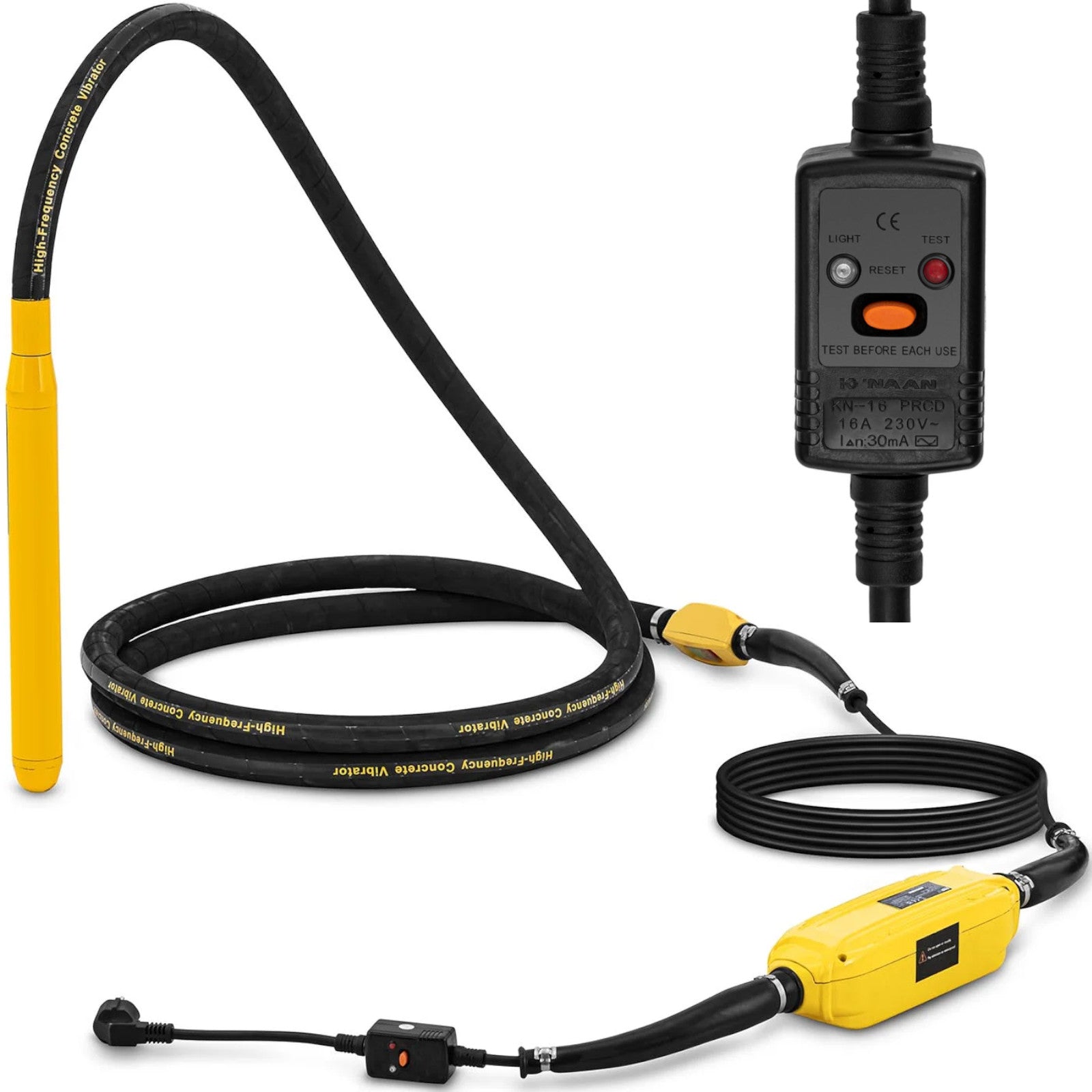

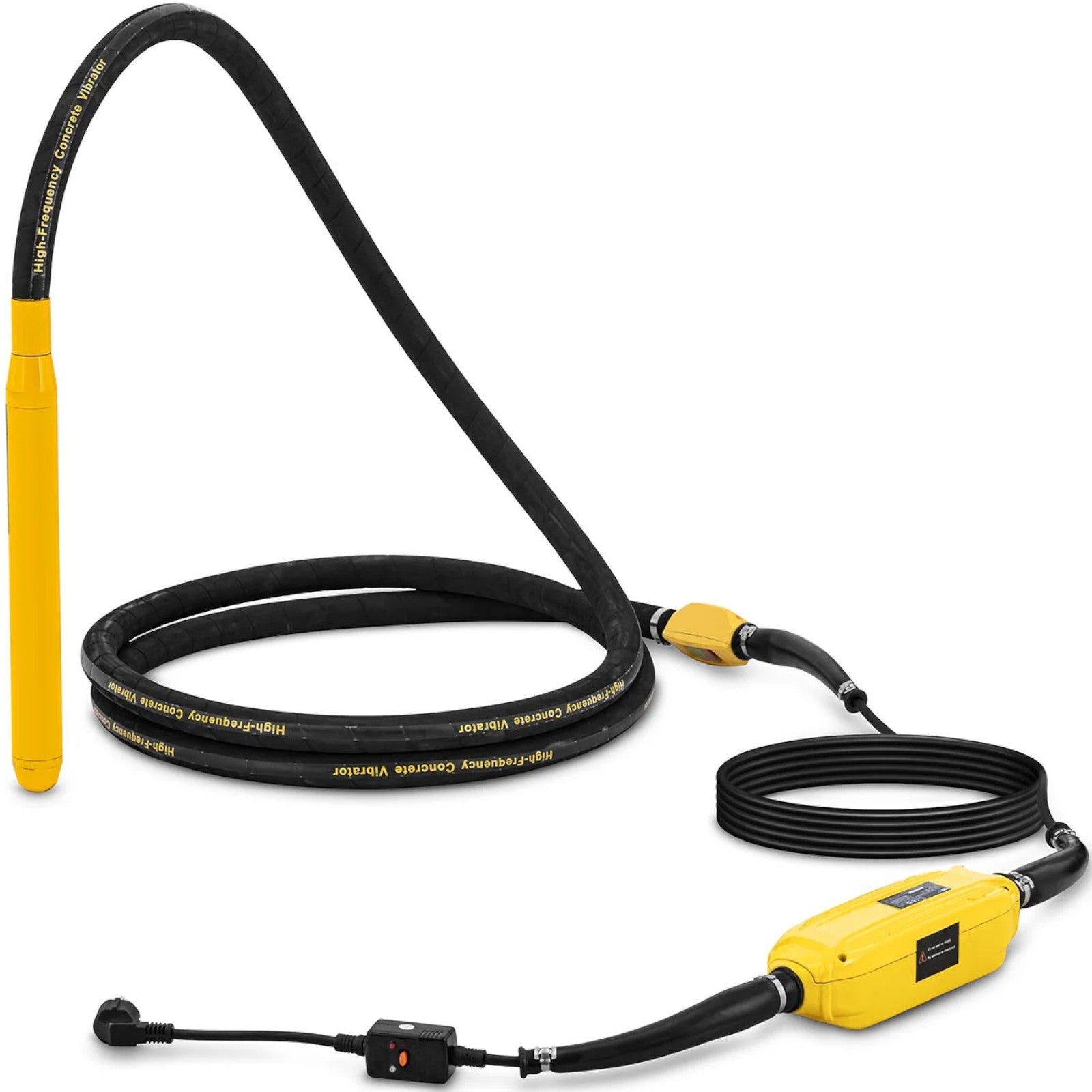

10062105Concrete vibrator with integrated frequency converter
MSWThe engine with power
1500 W generates strong vibrations
12 000/min and frequency
200 HzThe Buckle Corps.

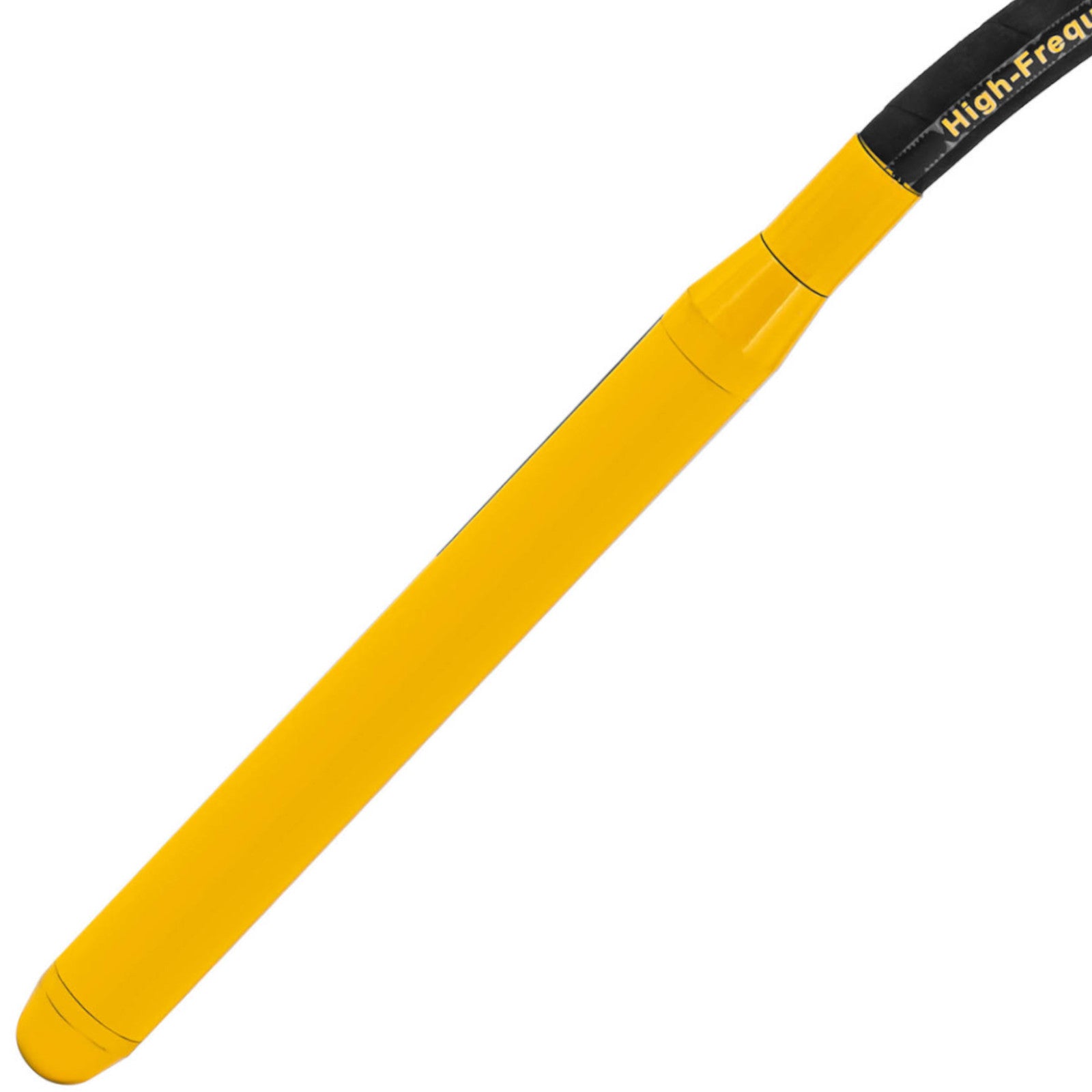

490 x 50 mm removes even very small air bubbles. Thanks to integrated converter, the building vibrator connects directly to the power supply
AC and immediately starts working, which is particularly practical. The concrete vibrator has a hose of length
5 m and a cable of length
15 mBoth allow a wide range of applications with maximum freedom of movement. Working with the device is particularly delicate thanks to the engine built into the body of the bug, which transfers vibration directly to concrete. The work effort and force required during the use of the equipment have been reduced to a minimum. The concrete vibrator has a degree of protection
IPX8 (waterproof) for vibratory bug and

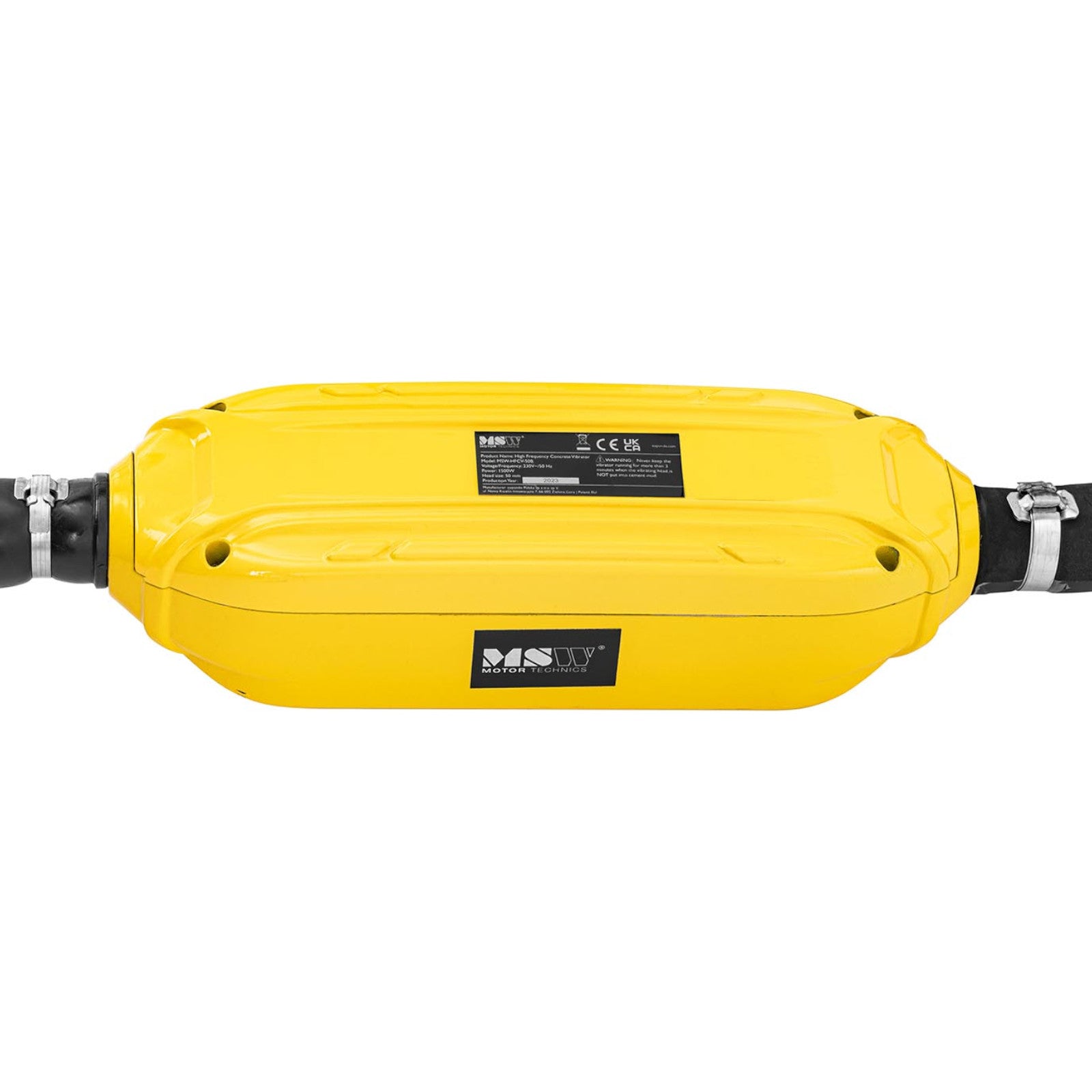

IPX5 (water spray protection) for the converter, as well as the engine overheating protection. The robust design and high quality of the workmanship make the equipment easy to maintain and very durable.
Product features: - - Equipment at 1500 W output and 200 Hz vibration frequency reaches 12,000 per minute vibrations,
- - The large bough 490 x 50 mm removes even very small air bubbles,
- - Thanks to the converter you can directly connect the AC power,
- - Low-powerful with engine in the body of the bouquet for delicate and energy-efficient work,
- - Safety with IPX8 protection classes for the bug body and IPX5 for the converter and overheating protection.
Technical parameters: - - Catalog number - 10062105
- - The state of the article - New
- - Model - MSW-HFCV-50-C
- - Material - Stainless steel, Rubber, Copper
- - Voltage [V] - 230
- - IP protection - Ipx8
- - Power [W] - 1500
- - Buckwheat Corps [mm] - 490 x 50
- - Rated speed [min] - 12 000
- - Length of the cable [m] - 15
- - Inspiring force [kN] - 5
- - The length of the hose [m] - 5
- - Frequency of vibrations (Hz) - 200
- - Dimensions (DxSxW) - 10 x 10 x 550 cm
- - Weight - 17.65 kg
- - Dimensions of shipment (DxSxW) - 60 x 58 x 21 cm
- - Weight of dispatch - 19.4 kg
Included: - - Concrete vibrator
- - User manual
