Manufacturer's code:

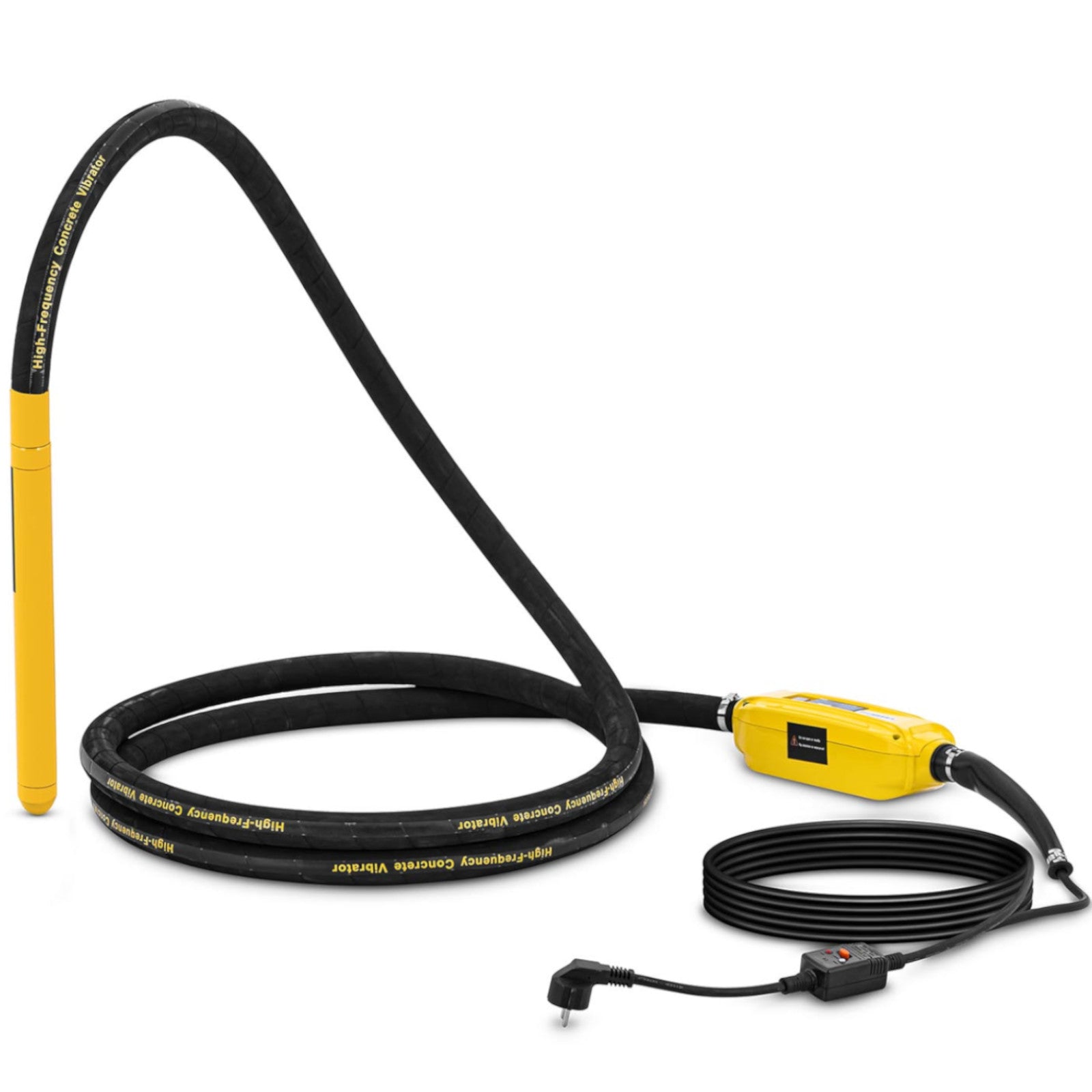

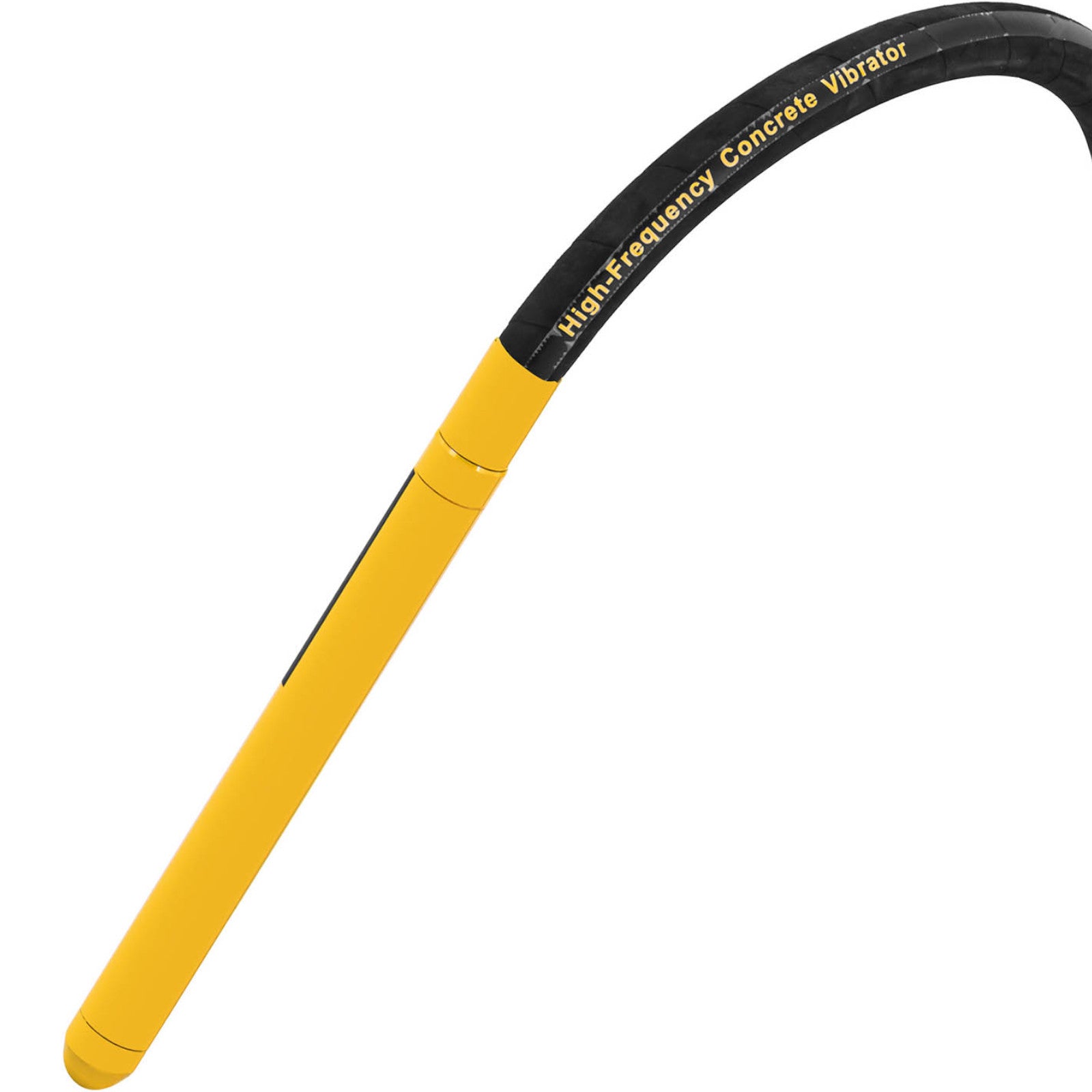

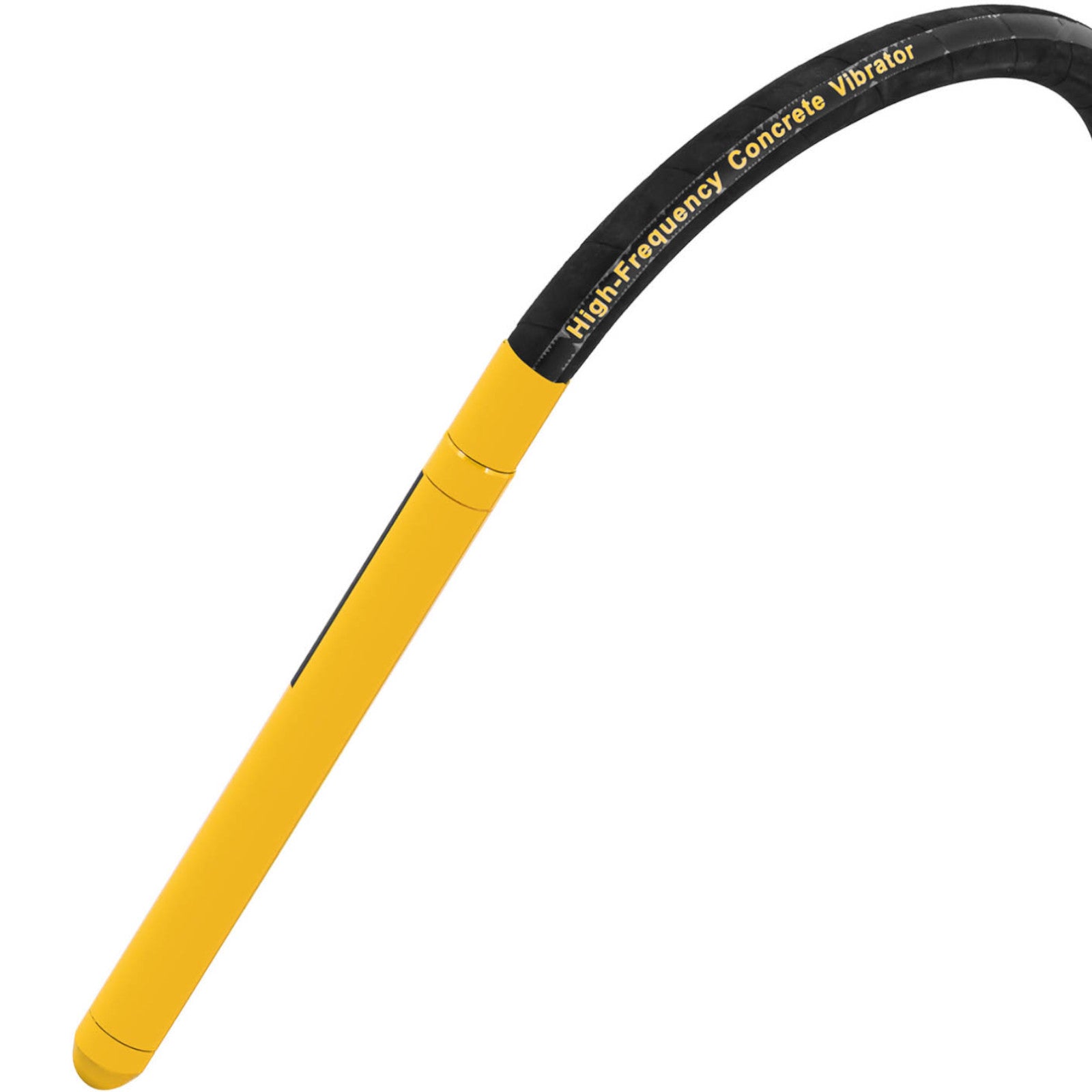

10062101Concrete vibrator with integrated frequency converter
MSWThe engine with power
1200 W generates strong vibrations
12 000/min and frequency
200 HzThe Buckle Corps.

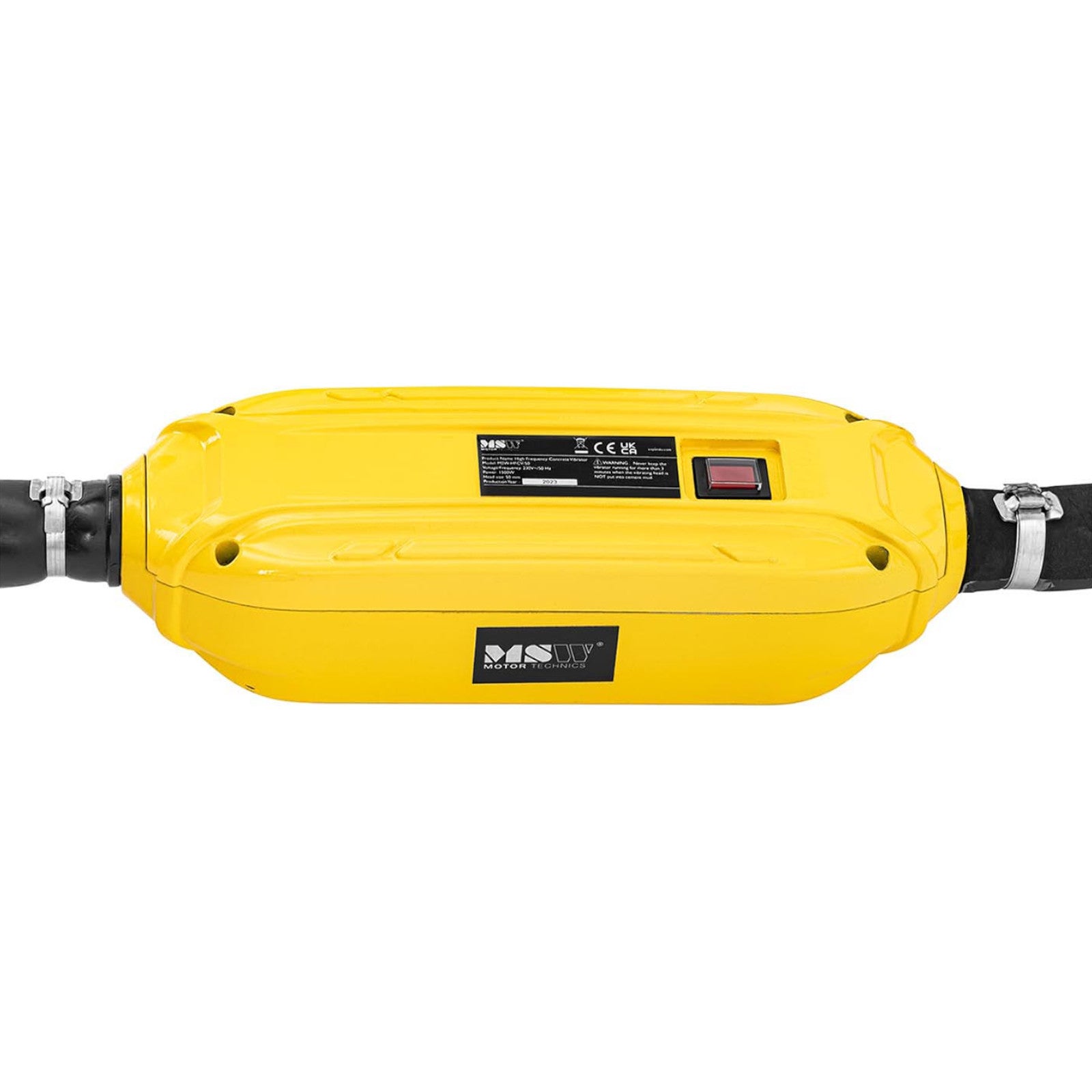

40 x 34.5 mm removes even very small air bubbles. Thanks to integrated converter, the building vibrator connects directly to the power supply
AC and immediately starts working, which is particularly practical. The concrete vibrator has a hose of length
5 m and a cable of length
15 mBoth allow a wide range of applications with maximum freedom of movement. Working with the device is particularly delicate thanks to the engine built into the body of the bug, which transfers vibration directly to concrete. The work effort and force required during the use of the equipment have been reduced to a minimum. The concrete vibrator has a degree of protection
IPX8 (waterproof) for vibratory bug and
IPX5 (water spray protection) for the converter, as well as the engine overheating protection. The robust design and high quality of the workmanship make the equipment easy to maintain and very durable.
Product features: - - The equipment at 1200 W output power and 200 Hz vibration frequency reaches the number of vibrations 12,000 per minute,
- - A large budding 40 x 34.5 mm removes even very small air bubbles,
- - Thanks to the converter you can directly connect the AC power,
- - Low-powerful with engine in the body of the bouquet for delicate and energy-efficient work,
- - Safety with IPX8 protection classes for the budding body and IPX5 for the converter and overheating protection.
Technical parameters: - - Catalog number - 10062101
- - The state of the article - New
- - Model - MSW-HFCV-40
- - Material - Stainless steel, Rubber, Copper
- - Length of the cable [m] - 15
- - Frequency [Hz] - 50
- - Inspiring force [kN] - 3.2
- - IP protection - IPX8 (Buckwheat Corps) / IPX5 (Trown)
- - The length of the hose [m] - 5
- - Rated speed [min] - 12 000
- - Voltage [V] - 230
- - Power [W] - 1200
- - Buckwheat Corps [mm] - 40 x 34.5
- - Frequency of vibrations (Hz) - 200
- - Dimensions (DxSxW) - 10 x 10 x 550 c
- - Weight - 14.1 kg
- - Dimensions of shipment (DxSxW) - 58 x 21 x 60 cm
- - Weight of dispatch - 14.9 kg
Included: - - Concrete vibrator
- - User manual
