Apraksts
Manufacturer's code:
10062619MSW brand concrete drilling rig will allow you to cut holes in hard building materials such as concrete, wall or asphalt. The drill stand with a guide rail allows you to drill even large
holes with a diameter of up to 230 mm. The diamond drilling rig
provides power of 3200 Wand

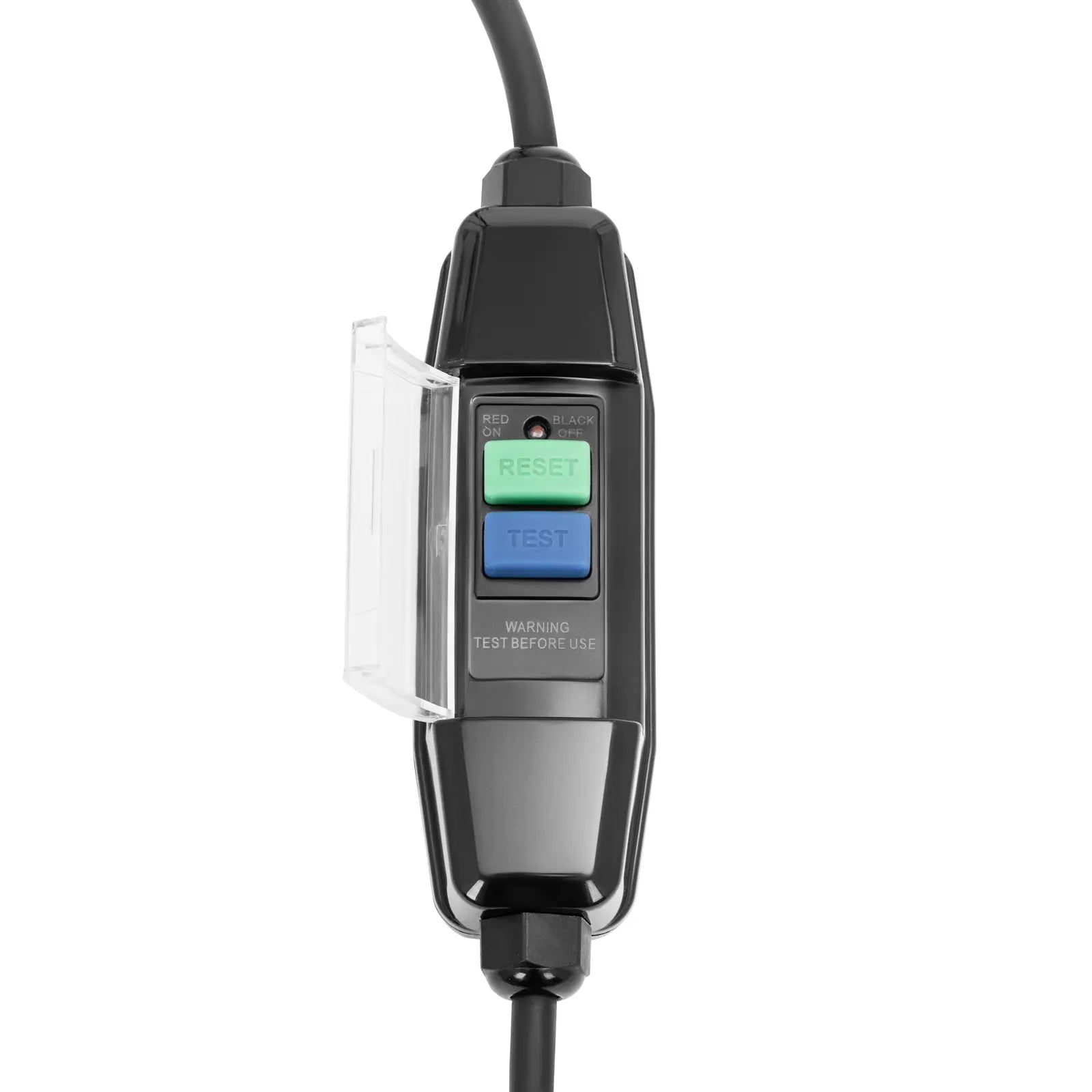

maximum speed of 750 rpm. A tripod with a stable base and guide will allow you to obtain precise results even in hard building materials. To do this, move the concrete drill rig using a large lever to achieve even power transfer. Additionally, for safety, the cable is equipped with an integrated residual current protection circuit (PRCD - Portable Residual Current Device). It will work even in high-humidity environments. The device also has overload protection and a safety switch. When drilling, you can rely on reliable water cooling. The connector, made of high-quality forged steel, is integrated directly into the core drill. The use of water significantly reduces drill wear. So the machine requires less maintenance and has a longer service life. The amount of dust generated during drilling is also reduced and the core drill heats up less.
Product features: - - The motor of the concrete drilling rig impresses with a power of 3200 W and is suitable for hard building materials,
- - Thanks to the solid tripod with guide, the core drilling rig can drill holes with a diameter of up to 230 mm,
- - The 750 rpm speed ensures optimal results when using the diamond core drill, even for large holes in hard materials,
- - The electric drill rig can be used for dry or wet drilling thanks to the water connection, which reduces heat and dust generation,
- - The diamond concrete drill rig is equipped with overload protection and has an integrated cable residual current device (PRCD) ensuring safe operation.
Technical parameters: - - Catalog number - 10062619
- - Article condition - New
- - Model - MSW-OOC-3200TPC
- - Material - Aluminum, Steel, PA6/GF30
- - Color - Black, Red
- - Voltage [V] - 220
- - Power [W] - 3200
- - Maximum drilling diameter [mm] - 230
- - Rotation speed [rpm] - 750
- - PRCD protection module on the cable - Yes
- - Control switch - Yes
- - Overload protection - Yes
- - Cable length [cm] - 226 cm

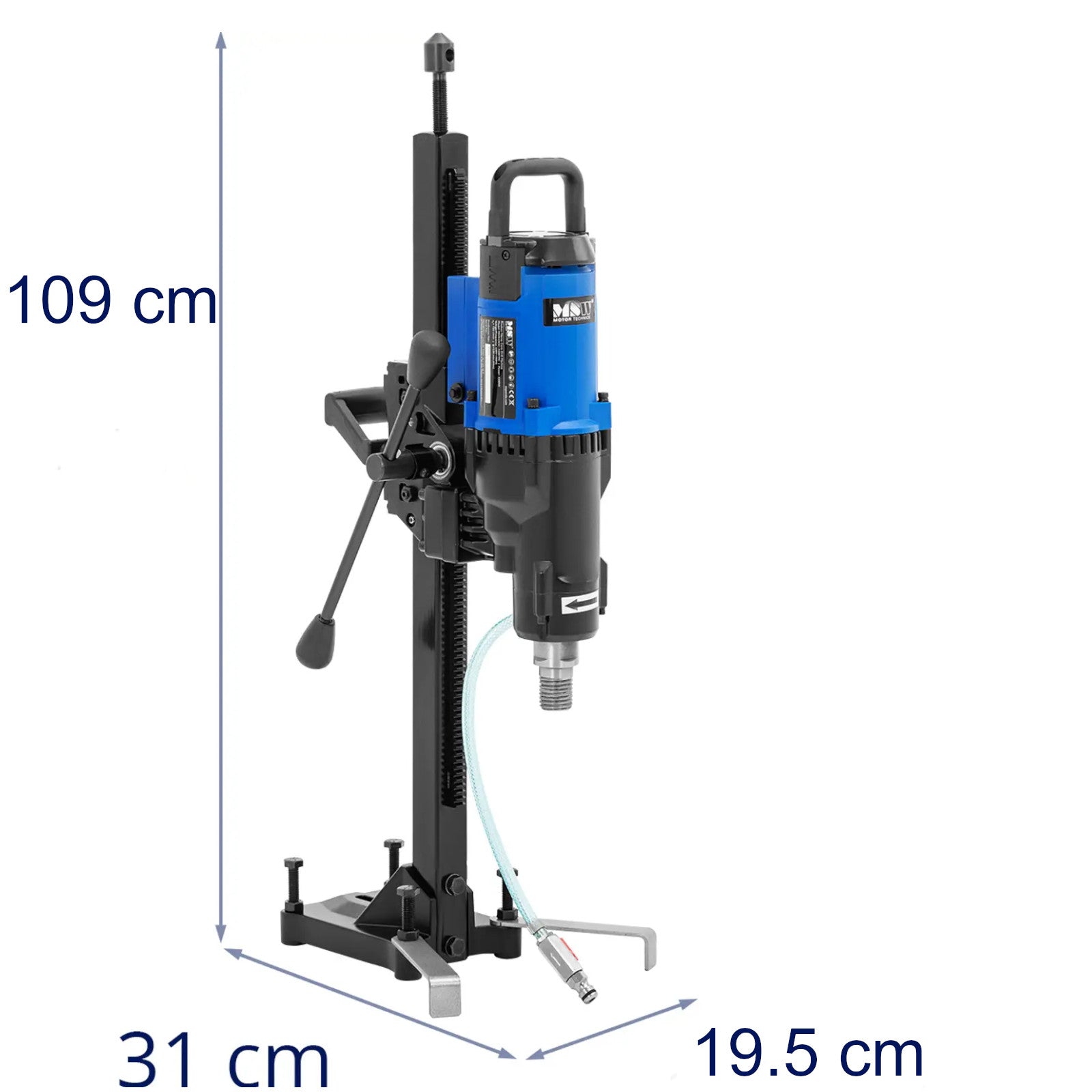

- - Dimensions (LxWxH) - 19.5 x 31 x 109 cm
- - Weight - 17.8 kg
- - Shipping dimensions (LxWxH) - 88.5 x 35.5 x 23 cm
- - Shipping weight - 21.3 kg

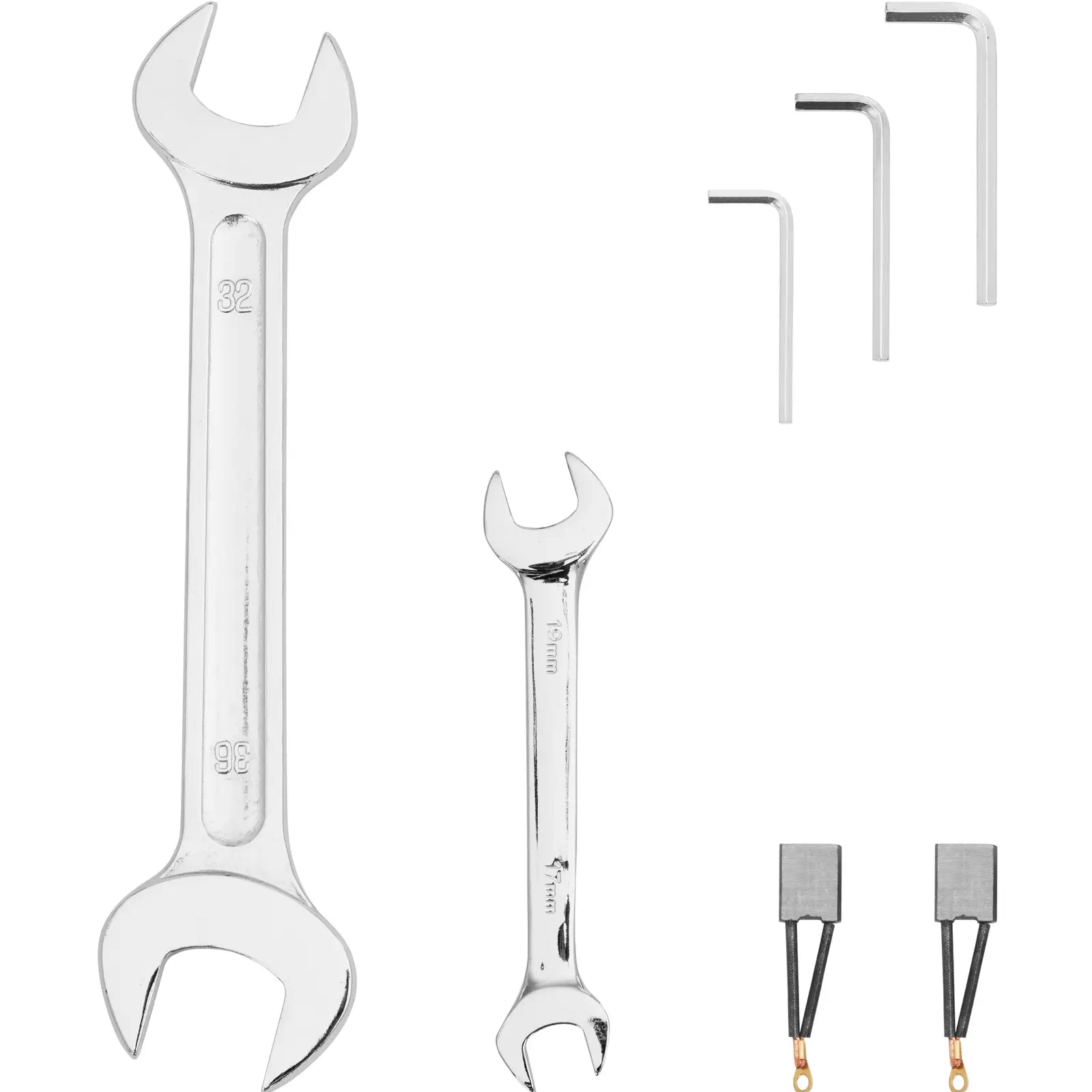

The set includes: - - Concrete drilling rig

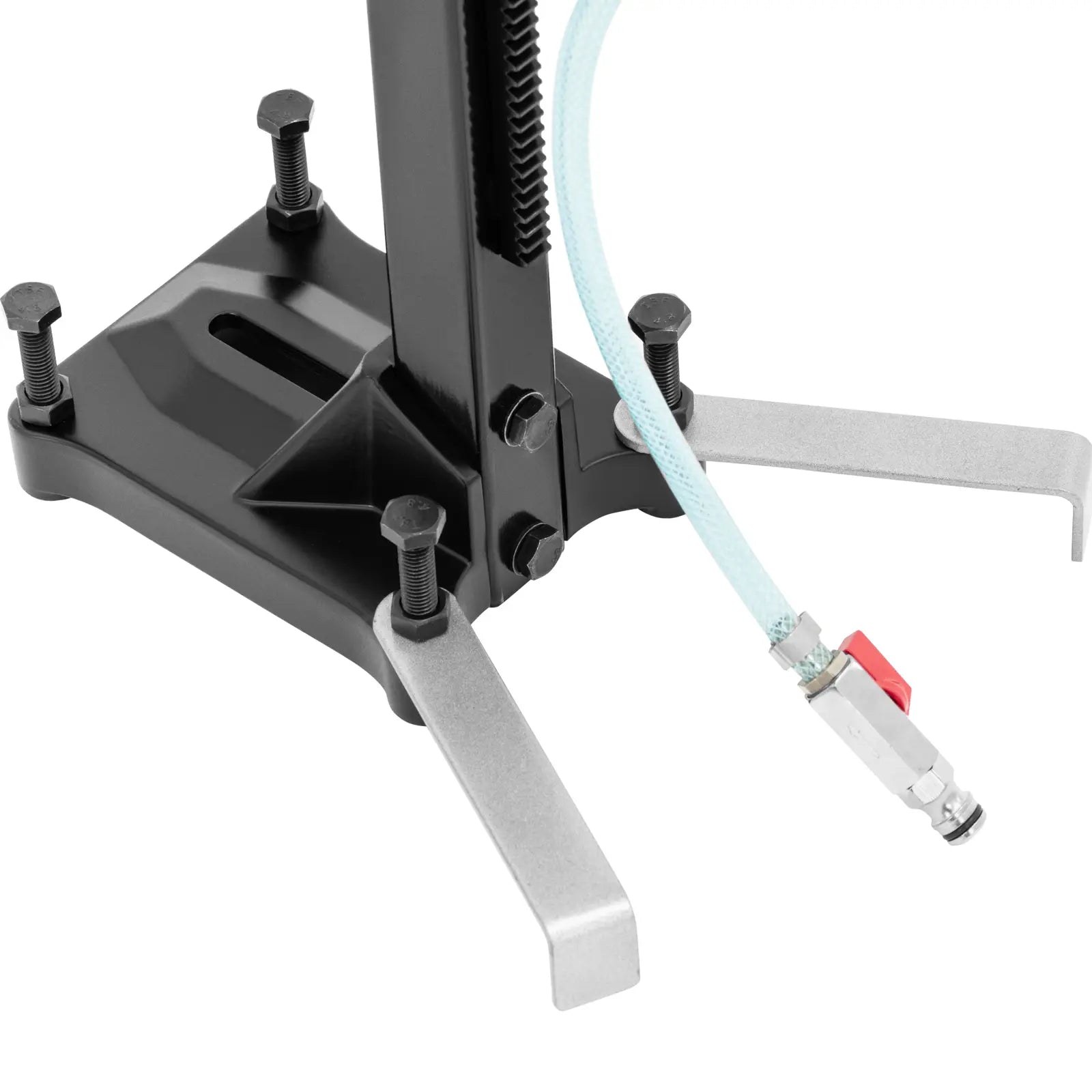

- - Tripod with guide
- - Water hose
- - 2 carbon brushes
- - 2 wrenches (32 / 36 mm 17 / 19 mm)
- - Mounting accessories
