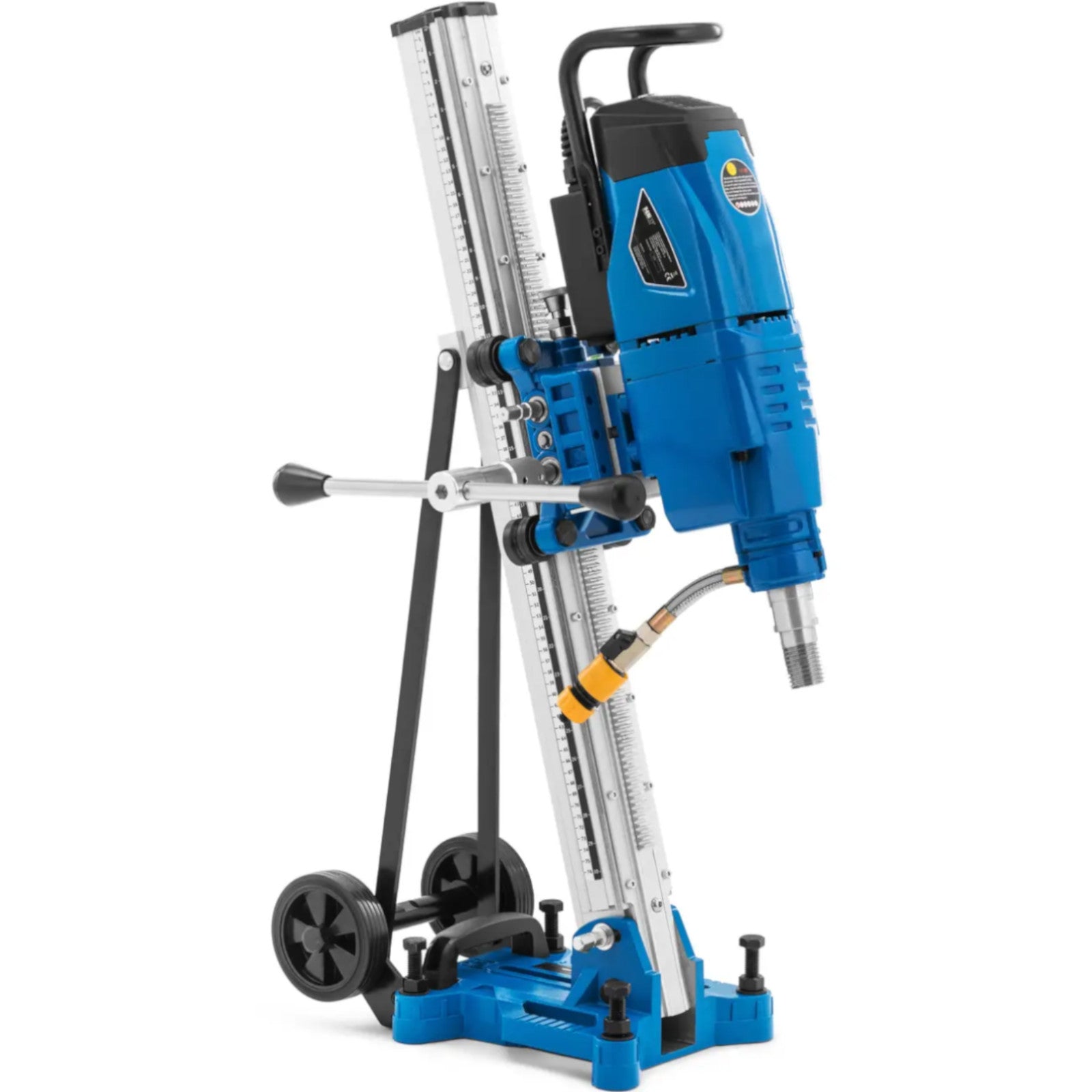

Vertical diamond drilling rig for concrete, stone with tripod 3700 W dia. 350mm

Apraksts

Manufacturer's code: 10062191
The MSW brand concrete drilling rig allows you to drill holes in hard materials such as concrete, wall or asphalt. Using a drill stand, you can make even large holes with a diameter of up to 350 mm. The power of the device is 3700 Wand the maximum speed is 610 rpm. These are ideal values ​​for core drilling holes up to a diameter of 350 mm. The drill size can be changed depending on the material, e.g. in cement you can drill holes with a diameter of up to 180 mm. The guide rail on the stand allows for precise resultsto a depth of ≤600 mm. The drilling rig hasthree power levelsfor optimal results. Use the largest diameter drill bits at the lowest speed. The equipment is cooled with water during drilling. The connector is integrated directly into the device. This reduces drill wear, reduces machine maintenance and ensures a longer service life. To service the carbon brushes, simply remove the protective cover. Diamond core drills of various diameters are securely attached to the device using a holder. A diamond drill bit can be used to drill in reinforced concrete, cement, masonry, asphalt and natural stone. The 3.5 m power cord allows for maximum freedom of movement. The drilling rig is equipped with a residual current device (PRCD - Portable Residual Current Device) which allows you to always use the device safely. In the event of a short circuit, the work is stopped immediately.
Product features:
  • - Powerful 3700 W motor with carbon brushes,
  • - A tripod with a guide allows clean core drilling up to a diameter of 350 mm,
  • - Depending on the gear, speeds up to 100 - 310 / 100 - 460 / 100 - 610 rpm,
  • - For dry and wet drilling,

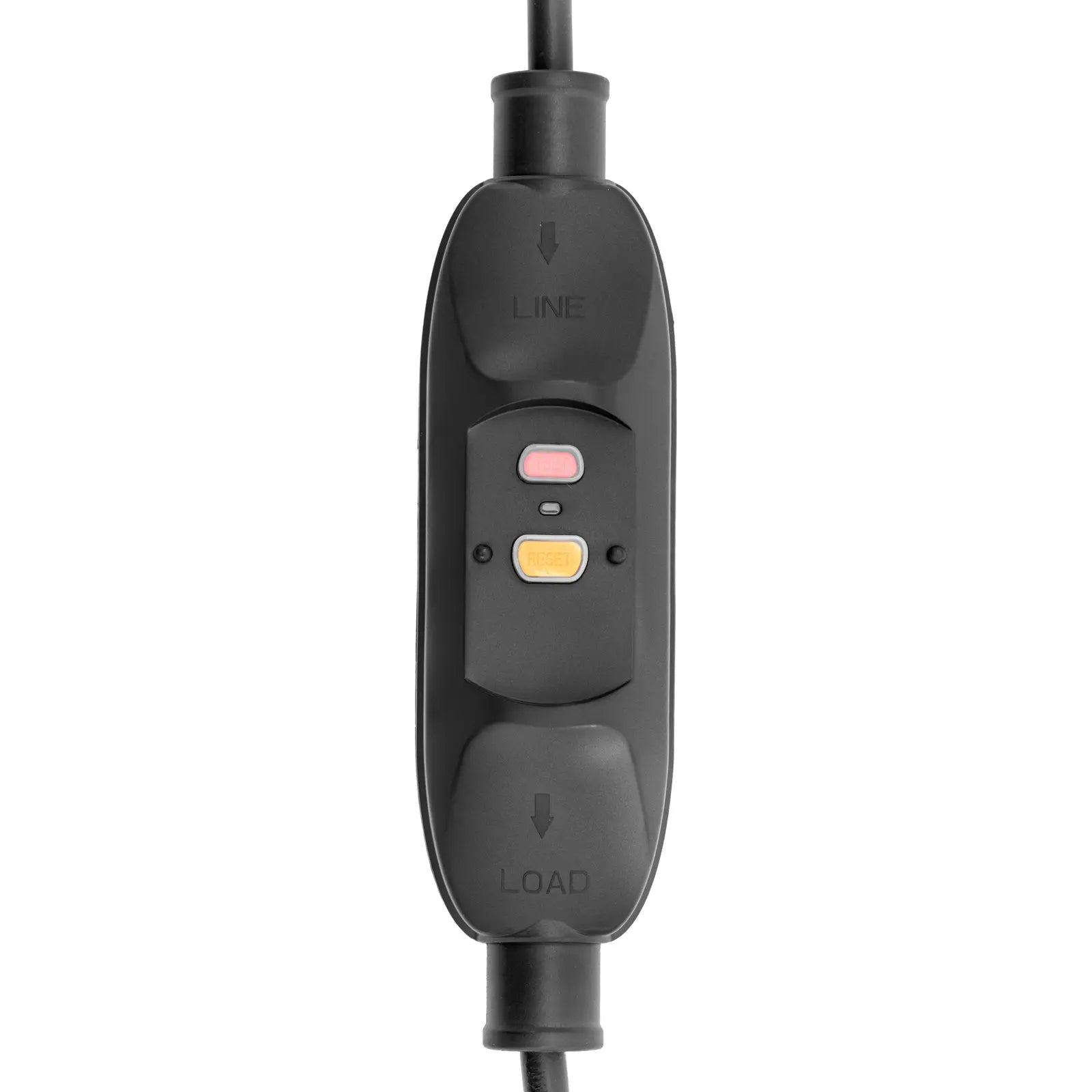

  • - Cable with a residual current device (PRCD - Portable Residual Current Device).

Technical parameters:
  • - Catalog number - 10062191
  • - Article condition - New
  • - Model - MSW-DDM-O5300S
  • - Material - Aluminum, Plastic, Copper, Iron
  • - Voltage [V] - 230
  • - Current [A] - 18
  • - Power [W] - 3700
  • - Drilling diameter on gear 1/2/3 [mm] - 20-70/70-130/130-210
  • - Guide range adjustment [mm] - ≤600
  • - Water hose connector diameter [mm] - 10
  • - Maximum drilling diameter [mm] - 350
  • - Water connection diameter ['] - 0.4
  • - Drilling diameter with a tripod in 1/2/3 gear [mm] - 120 / 220 / 350
  • - Core drill mounting diameter [''] - 1 1/4 - 7 UNC and G1/2
  • - PRCD security module on the cable - Yes
  • - Dry and wet core drilling - Yes
  • - Sound power level [dB] - 105 dB
  • - Sound pressure level [dB] - 92 dB
  • - Cooling hose length [m] - 3.5 m
  • - Dimensions (LxWxH) - 55 x 33 x 93 cm
  • - Weight - 35.2 kg
  • - Dimensions and shipping weight (LxWxH) - 23.5 kg 45 x 92 x 30 cm, 16 kg 24 x 56 x 40 cm

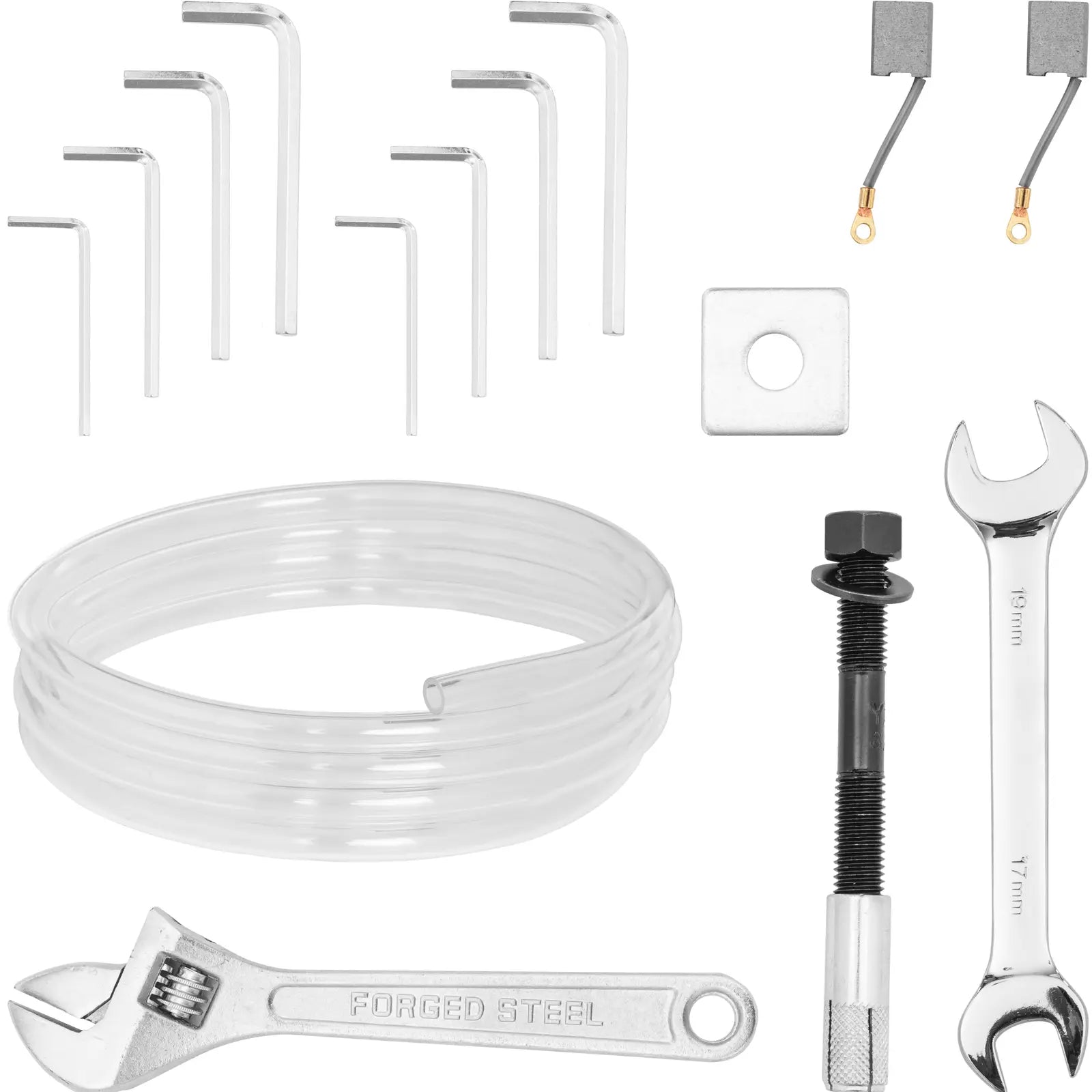

Included in the set:
  • - Concrete drill

Vertical diamond drilling rig for concrete, stone with tripod 3700 W dia. 350mm

Produkta forma

Manufacturer's code: 10062191The MSW brand concrete drilling rig allows you to drill holes in hard materials such as concrete, wall... Lasīt vairāk

Svītrkods: 4062859160379

20 noliktavā

€1.817,56 Ieskaitot PVN

    • Guaranteed secure & safe checkout.

      paypal

    Apraksts

    Manufacturer's code: 10062191
    The MSW brand concrete drilling rig allows you to drill holes in hard materials such as concrete, wall or asphalt. Using a drill stand, you can make even large holes with a diameter of up to 350 mm. The power of the device is 3700 Wand the maximum speed is 610 rpm. These are ideal values ​​for core drilling holes up to a diameter of 350 mm. The drill size can be changed depending on the material, e.g. in cement you can drill holes with a diameter of up to 180 mm. The guide rail on the stand allows for precise resultsto a depth of ≤600 mm. The drilling rig hasthree power levelsfor optimal results. Use the largest diameter drill bits at the lowest speed. The equipment is cooled with water during drilling. The connector is integrated directly into the device. This reduces drill wear, reduces machine maintenance and ensures a longer service life. To service the carbon brushes, simply remove the protective cover. Diamond core drills of various diameters are securely attached to the device using a holder. A diamond drill bit can be used to drill in reinforced concrete, cement, masonry, asphalt and natural stone. The 3.5 m power cord allows for maximum freedom of movement. The drilling rig is equipped with a residual current device (PRCD - Portable Residual Current Device) which allows you to always use the device safely. In the event of a short circuit, the work is stopped immediately.
    Product features:
    • - Powerful 3700 W motor with carbon brushes,
    • - A tripod with a guide allows clean core drilling up to a diameter of 350 mm,
    • - Depending on the gear, speeds up to 100 - 310 / 100 - 460 / 100 - 610 rpm,
    • - For dry and wet drilling,
    • - Cable with a residual current device (PRCD - Portable Residual Current Device).

    Technical parameters:
    • - Catalog number - 10062191
    • - Article condition - New
    • - Model - MSW-DDM-O5300S
    • - Material - Aluminum, Plastic, Copper, Iron
    • - Voltage [V] - 230
    • - Current [A] - 18
    • - Power [W] - 3700
    • - Drilling diameter on gear 1/2/3 [mm] - 20-70/70-130/130-210
    • - Guide range adjustment [mm] - ≤600
    • - Water hose connector diameter [mm] - 10
    • - Maximum drilling diameter [mm] - 350
    • - Water connection diameter ['] - 0.4
    • - Drilling diameter with a tripod in 1/2/3 gear [mm] - 120 / 220 / 350
    • - Core drill mounting diameter [''] - 1 1/4 - 7 UNC and G1/2
    • - PRCD security module on the cable - Yes
    • - Dry and wet core drilling - Yes
    • - Sound power level [dB] - 105 dB
    • - Sound pressure level [dB] - 92 dB
    • - Cooling hose length [m] - 3.5 m
    • - Dimensions (LxWxH) - 55 x 33 x 93 cm
    • - Weight - 35.2 kg
    • - Dimensions and shipping weight (LxWxH) - 23.5 kg 45 x 92 x 30 cm, 16 kg 24 x 56 x 40 cm

    Included in the set:
    • - Concrete drill
