Manufacturer's code:

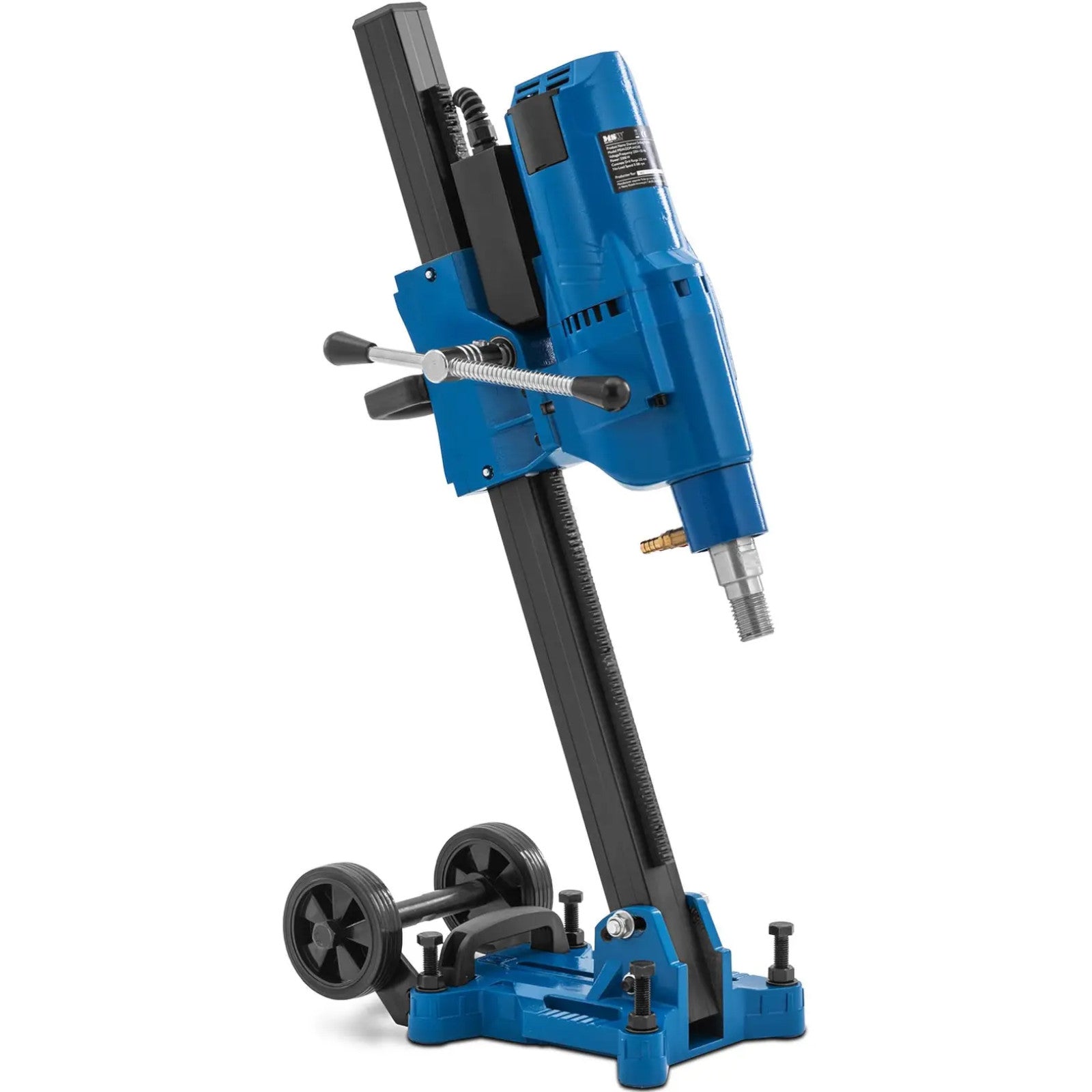

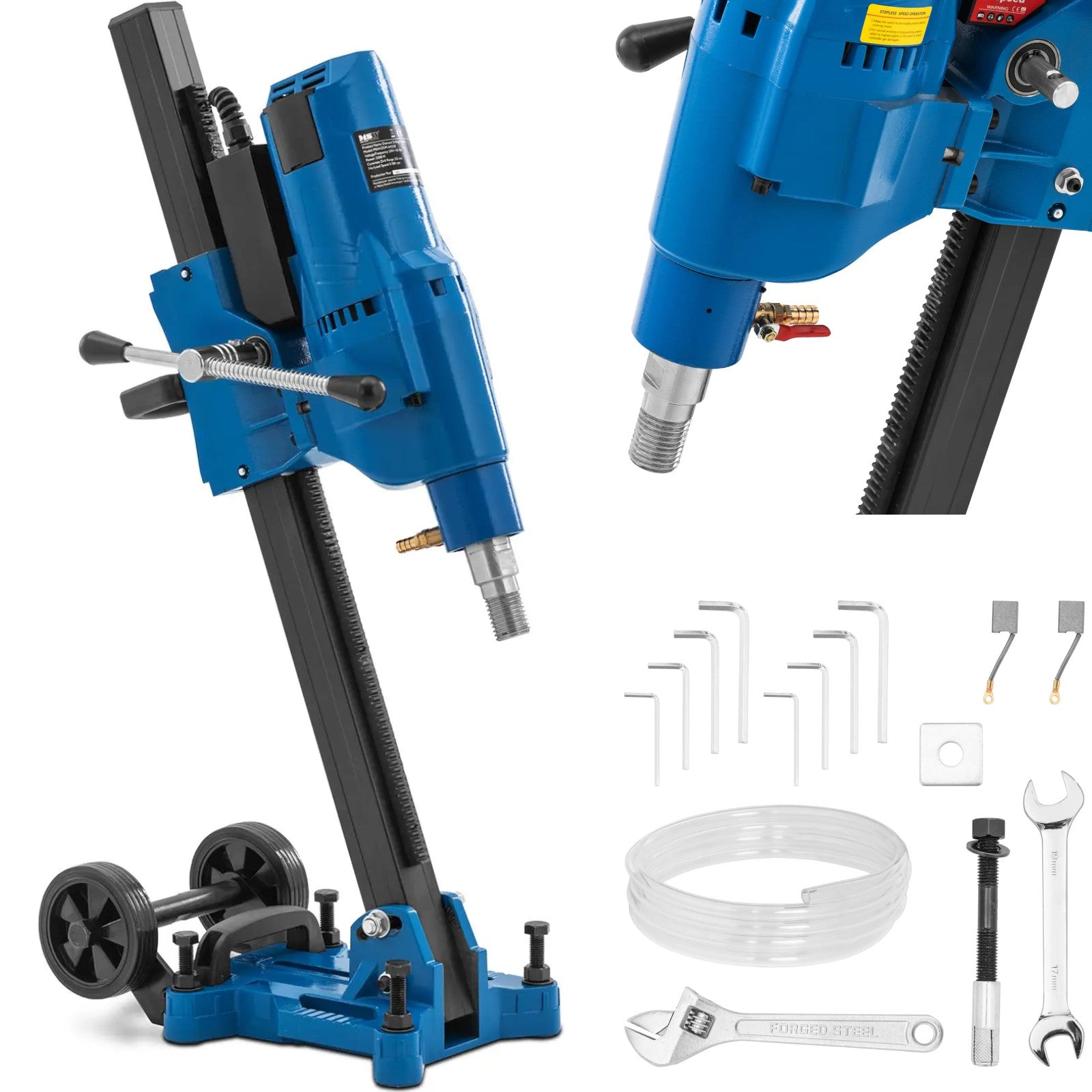

10062192The MSW brand concrete drilling rig allows you to reliably drill holes in hard materials such as concrete, masonry or asphalt. Using a drill stand, it is possible to make even large holes with a diameter of up to 255 mm. The device has a power of 3300 W and a speed of 550 rpm. These are ideal values for core drilling holes. The size of the drill varies depending on the material, e.g. in cement you can drill holes with a diameter of up to 180 mm. Thanks to the guide rail on the stand, precise results are achieved up to a depth of ≤500 mm.

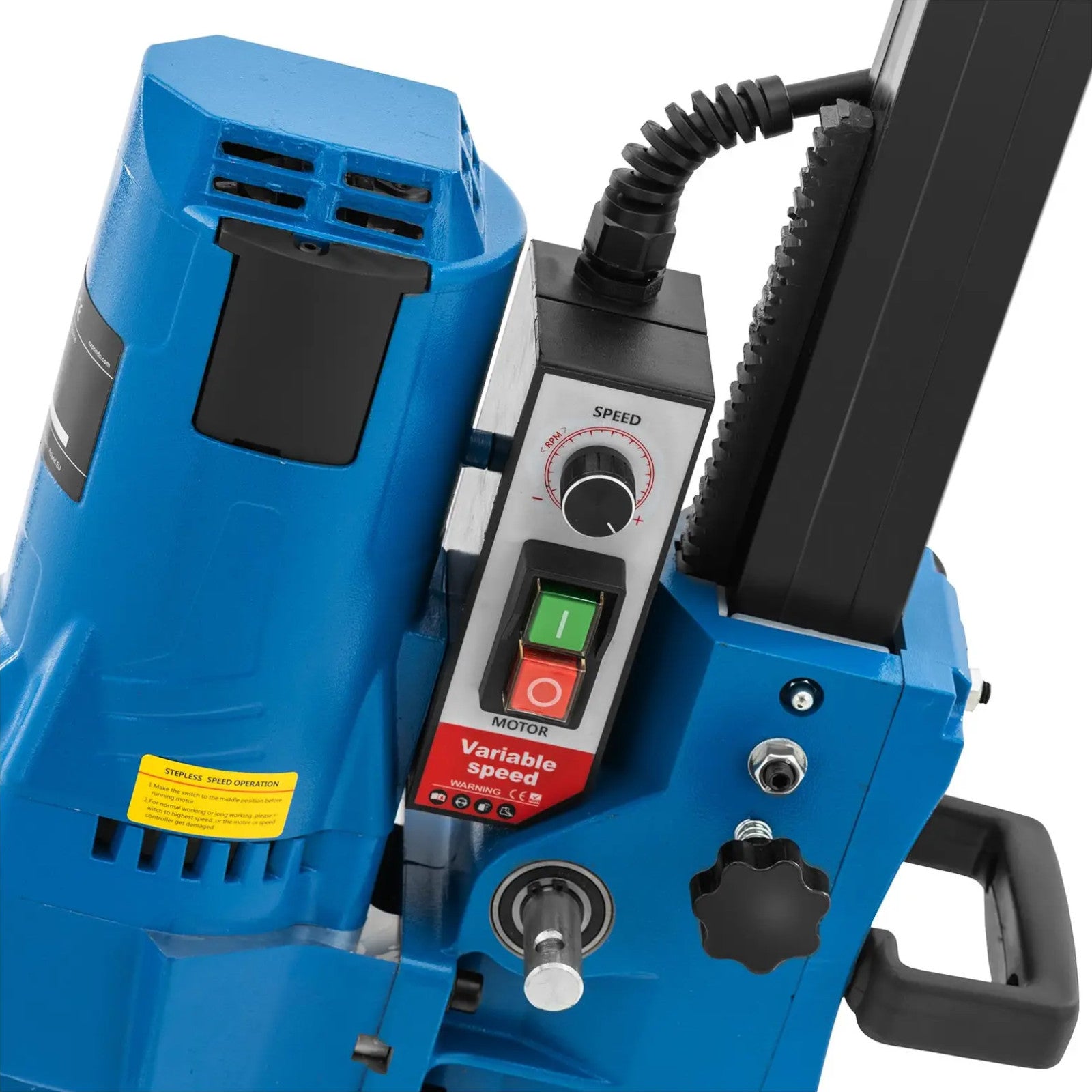

Three power levels allow for optimal results. It is best to use the largest diameter drill bits at the lowest speed. The drilling rig is

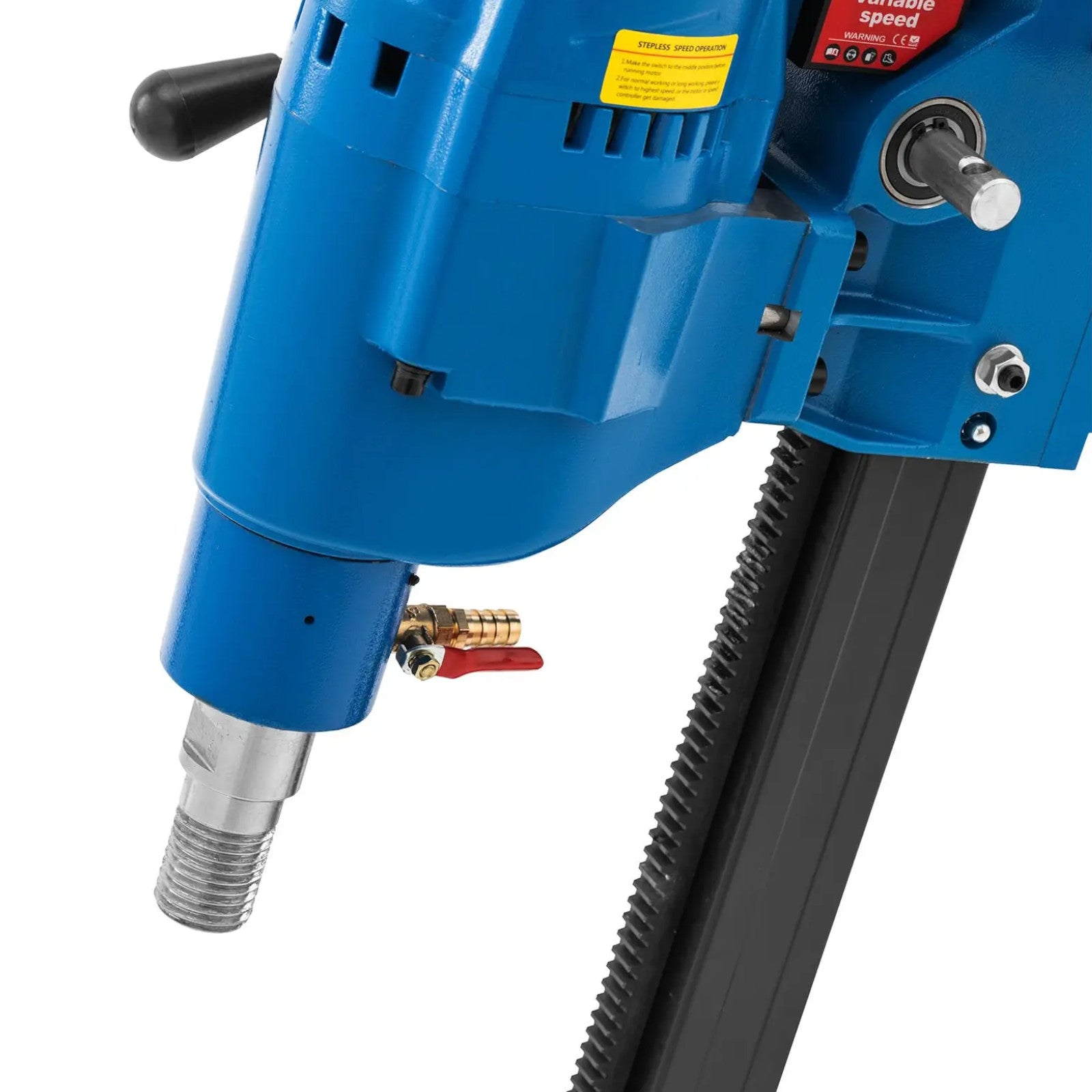

water cooled. The connector is integrated directly into the device. This reduces drill wear, reduces machine maintenance and ensures a longer service life. To service the carbon brushes, simply remove the protective cover. Drill bits of different diameters are securely attached to the device using a holder. A diamond drill bit can be used to drill in reinforced concrete, cement, masonry, asphalt and natural stone.
3.5 m long power cord ensures maximum freedom of movement.
Product features: - - Powerful 3300 W motor, with carbon brushes,
- - A tripod with a guide enables clean core drilling up to a diameter of 255 mm,
- - Efficiency depending on the gear, speed up to 0 - 550 rpm,
- - For dry and wet drilling,
- - Stable structure made of cast aluminum withstands even heavy loads.
Technical parameters: - - Catalog number - 10062192
- - Article condition - New
- - Model - MSW-DDM-A4250S
- - Material - Aluminium, Plastic, Copper, Iron
- - Voltage [V] - 230
- - Current [A] - 17
- - Power [W] - 3300
- - Drilling diameter on gear 1/2/3 [mm] - 155
- - Guide range adjustment [mm] - ≤500
- - Water hose connector diameter [mm] - 10
- - Maximum drilling diameter [mm] - 255
- - Water connector diameter ['] - 0.4
- - Core drill mounting diameter [''] - 1 1/4 - 7 UNC and G1/2
- - Core drilling, dry and wet method - Yes
- - Sound power level - 103 dB
- - Sound pressure level - 90 dB
- - Cooling hose length - 3.5 m
- - Dimensions (LxWxH) - 50 x 25 x 93 cm
- - Weight - 24.1 kg
- - Shipping dimensions (LxWxH) - 104 x 38 x 24 cm
- - Shipping weight - 26.52 kg

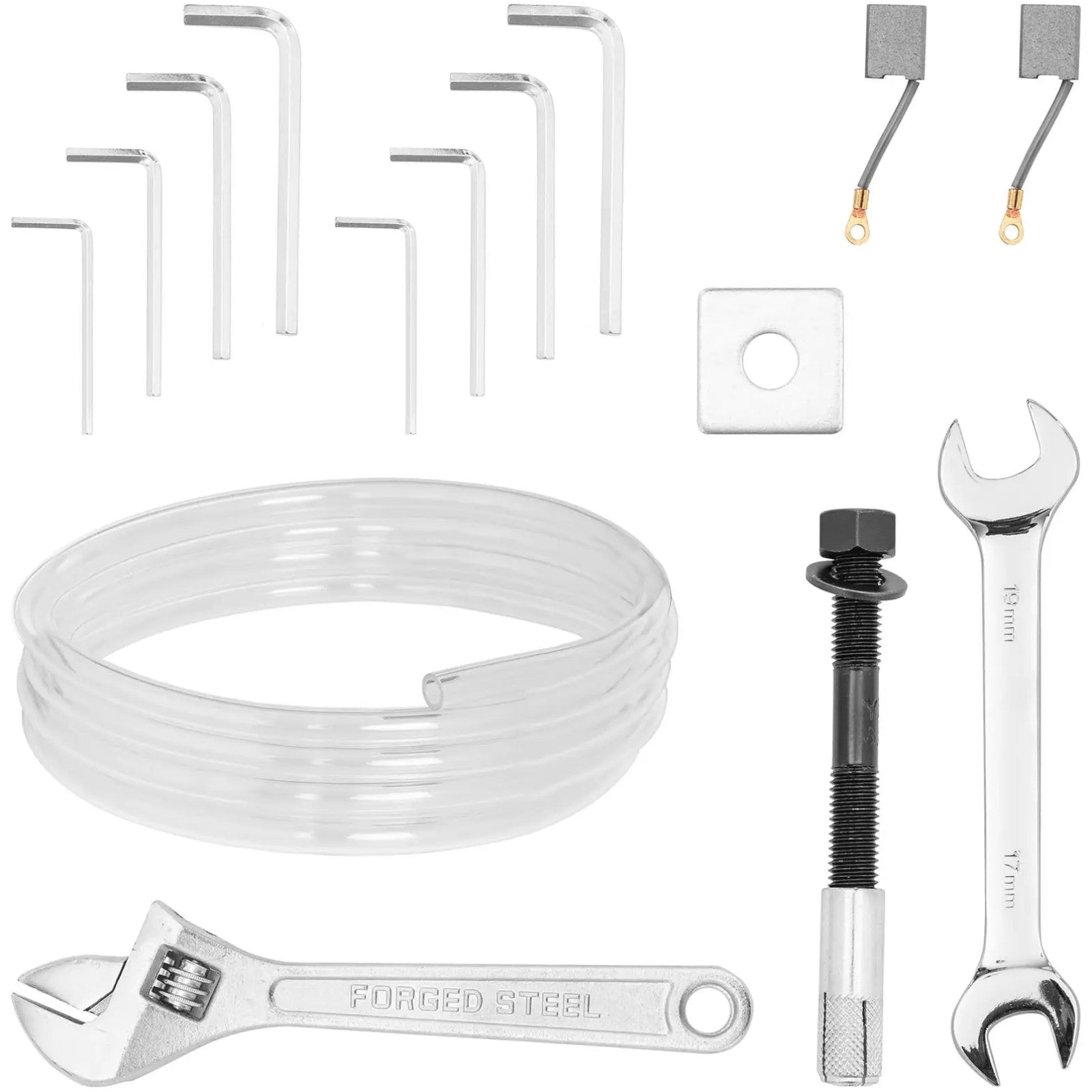

Included in the set:
