Manufacturer's code:

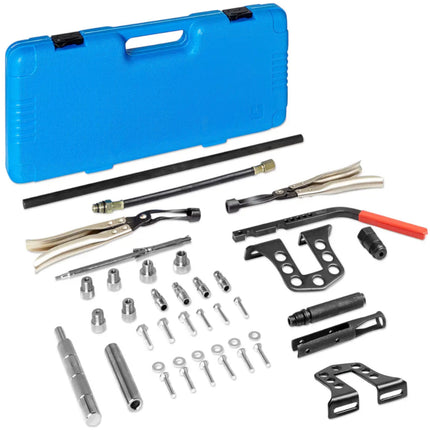

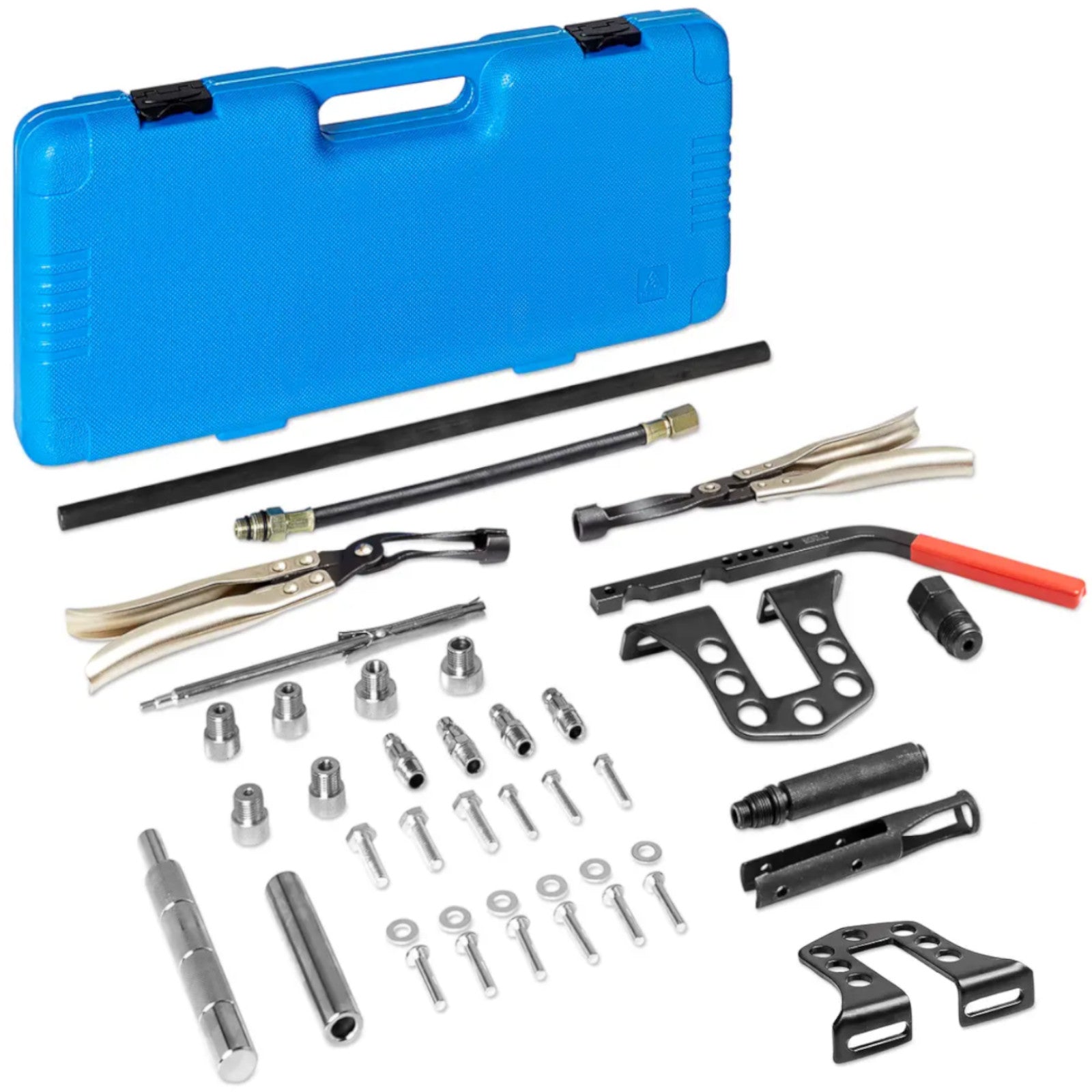

10061132A practical valve spring extractor from
MSW can be used in professional car mechanics workshops, services, etc. The tool allows direct assembly and disassembly of valve springs (including guides and bushings). It can also remove seals (including oily ones). The functional kit is suitable for all OHV and OHC petrol or diesel engines with 8, 16 and 24 valves. Perfectly fits Audi, Nissan, Toyota, Chrysler, Honda, Mazda, Mitsubishi, Porsche, Volvo and VW cars. The set is made of durable, solid steel. Thanks to large holes on both sides of the compression pipe, the element can be quickly removed or installed. Valve pliers can reach deep and tight places. Thanks to the adapters, the seal will be precisely positioned. Their knurled tip facilitates gentle removal of parts. The set also includes a practical magnetic gripper.
Product features: - - Can be used for typical vehicles with 8, 16 or 24 valves, petrol or diesel engines,
- - Thanks to the use of compressed air and an adjustable base, valves can be replaced without removing the cylinder head,
- - High-quality materials and careful workmanship guarantee durability,
- - A rich set of accessories allows immediate use of the tool,
- - Thanks to the suitcase, everything can be properly stored.
Technical parameters: - - Catalog number - 10061132
- - Article condition - New
- - Model - MSW-VSK-1
- - Material - Steel
- - Dimensions (LxWxH) - 50.5 x 22.3 x 7 cm
- - Weight - 4.77 kg
- - Shipping dimensions (LxWxH) - 51.5 x 23.3 x 8 cm
- - Shipping weight - 4.99 kg
The set includes: - - AG 1/4" connector – 4 pcs.
- - Compressed air adapter
- - Air adapter tube, AG M14 x 1.25, AG M18 x 1.5
- - Clamp
- - Magnetic Valve Wedge
- - M24 x 2.0 Air Adapter
- - Valve Spring Plate Adapter
- - 510mm Connector
- - Angle Valve Shaft Pliers
- - 110mm Mounting Bushing
- - Shaft pressure
- - Screw + set of mounting screws – 12 pcs.
- - End bracket – 2 pcs.
- - Mounting sleeves: 17 x 11 mm, 15 x 10 mm, 13 x 8 mm, 12 x 7 mm, 10 x 6 mm, 10 x 5 mm
- - Set of screws for end bracket – 8 pcs
- - BMC case
