Manufacturer's code:

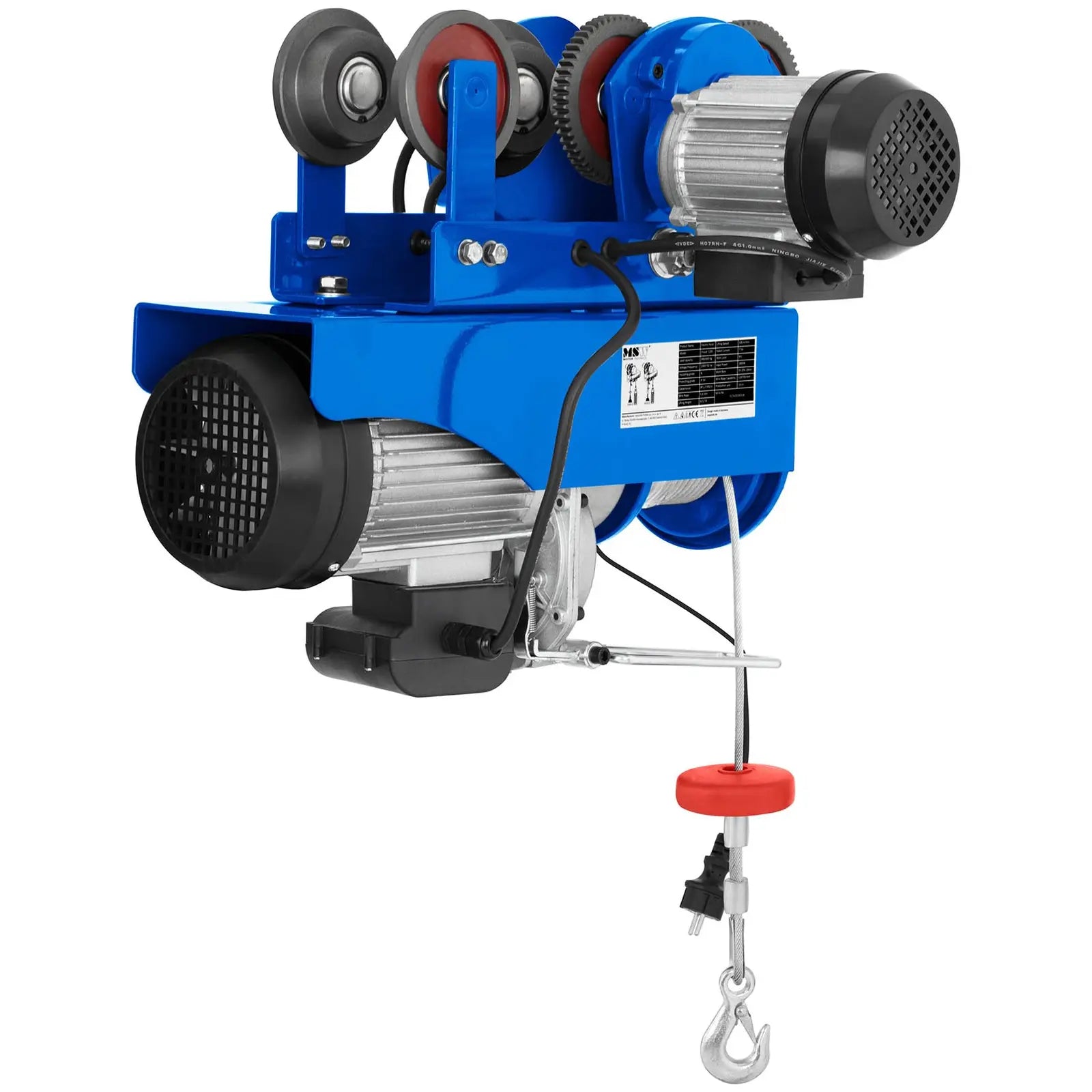

10060005Electric winch with MMA crane it will be ideal for large storage or closed spaces and outdoors. Thanks to a quick crane reaching 13 m/min, you can carry loads even on a bar with corners, provided that the radius of the arc is at least 1 m.
The electric winch is equipped with a stable 12 m long steel rope and 600 kg load capacity. It is made of CK45 steel and is resistant to twisting and wear, which affects its exceptional durability.

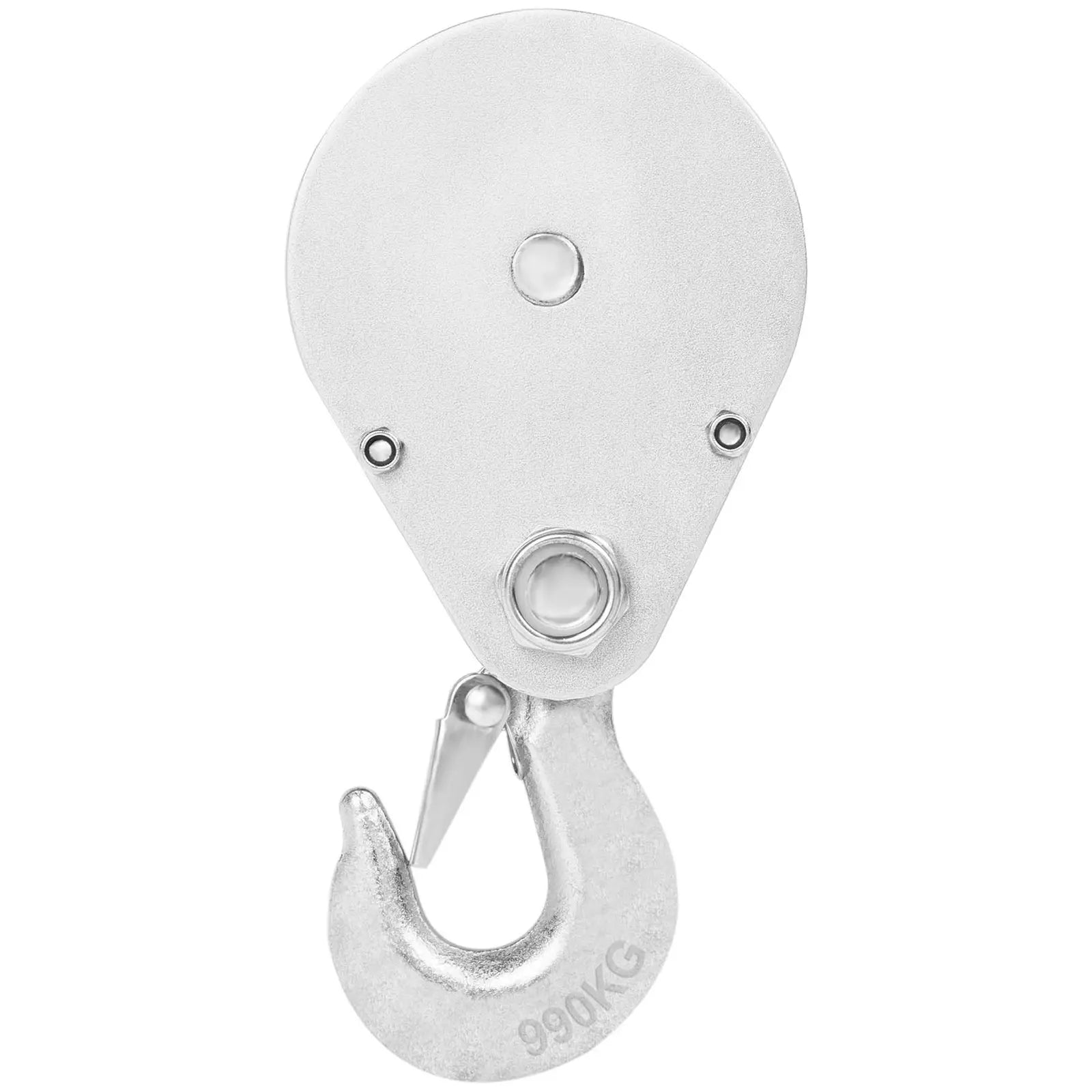

Just use the block to increase the load capacity up to 990 kgThe lifting height will then be 6 m and the lifting speed will be reduced by half from 8 to 4 m/min. Thanks to the winch the load will always be well secured. The hook has a safety lock.

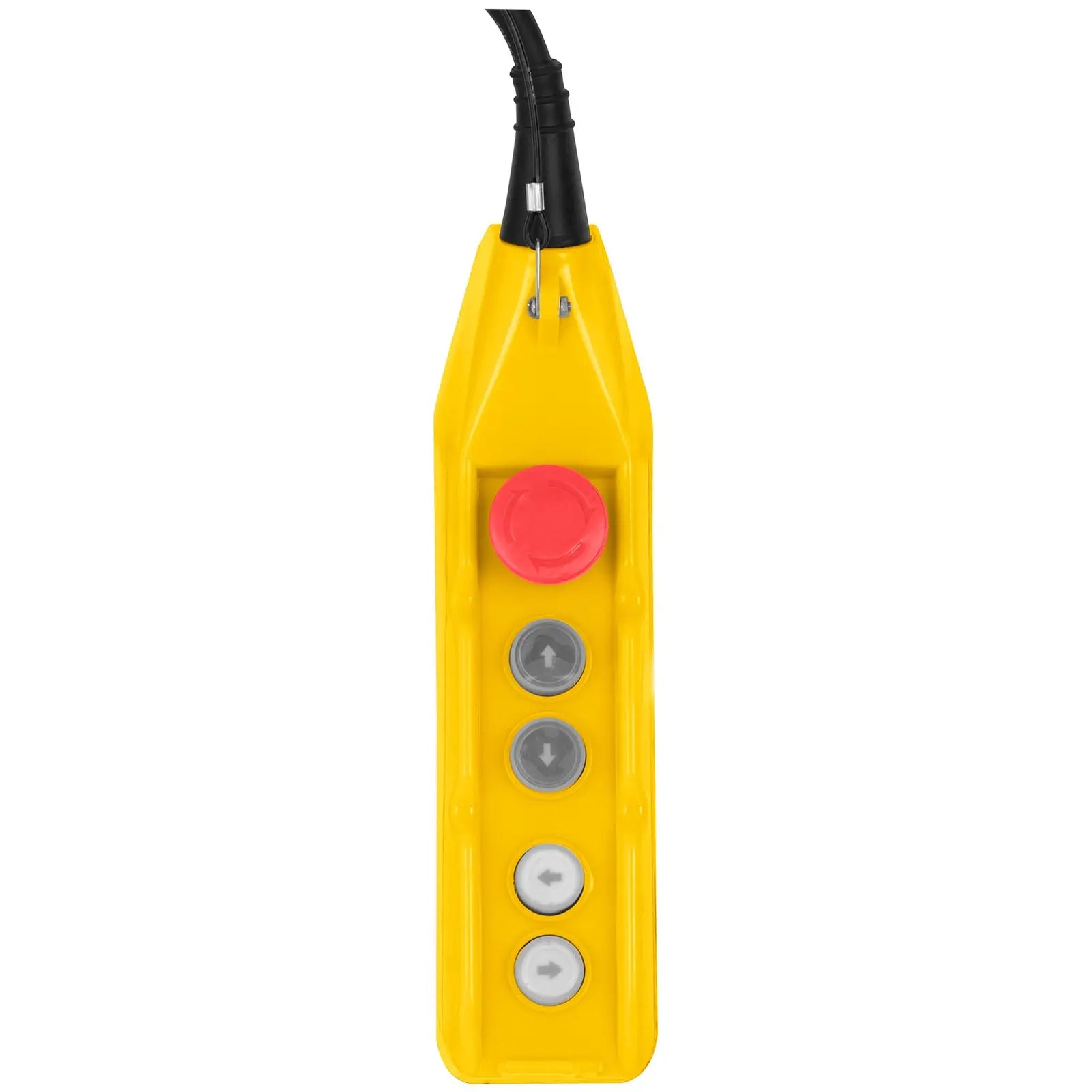

Thanks to the overload protection, the electric winch will work reliably for a long time, and the 1800 W motor will not overheat. The electromagnetic braking system will guarantee quiet operation. Easy access to the load from all sides will be possible thanks to the 360deg rotating hook. The winch is operated with a 2.4 meter cable pilot.
The 1200-giller is fitted to a steel beam of 68-94 mm wide and at least 110 mm high. These may be high-alloy beams, atheists or two-pieces.
Product features: - - High load capacity up to 990 kg,
- - The hook can be turned by 360deg,
- - Lift speed 8 m/min without and 4 m/min with a lock,
- - The crane is also suitable for bend beams,
- - Wired 2.4 m long remote control with stress reduction.
Technical parameters: - - Catalog number - 10060005
- - The state of the article - New
- - Model - PROCAT 1200
- - Voltage [V] - 230
- - The rope material - Ck45 steel
- - Type of gearbox grease - EP
- - Electric motor B
- - Cranberry engine B
- - Electric motor IP54
- - Electric motor S3 20% - 10 min
- - The crane engine IP20
- - crane engine S3 20% - 10 min
- - Loading hook - Yes.
- - Pilot - Yes.
- ## I'll swing with a hook ## Yes.
- - The length of the rope - 12 m
- - Pilot wire - 2.5 m
- - Speed of movement - 13 m/mn
- - The diameter of the rope - 5.6 mm
- - Engine - Power - 1800 W
- - The strength of the rope-- 3000 kg
- - The crane engine - power - 540 W
- - Average lower speed - one-way lift - 9.6 m/mn
- - Minimum radius of the curve - 1 m
- - Maximum lifting height 12 m
- - Average lifting speed - with a reel - 4 m/mn
- - Maximum load capacity 600 kg
- - The average drop-down speed - with the reel - 4.8 m/mn
- - Maximum lifting height 6 m
- - Maximum load capacity 990 kg
- - Dimensions (DxSxW) - 54 x 42 x 45.5 cm
- - Weight - 51.5 kg
- - Dimensions of dispatch (DxSxW) - 62 x 51.5 x 54 cm
- - Weight of shipping - 54.68 kg
Included: - - Cable winch with crane
- - Electric winch
- - I'll shut up.
