Apraksts
Manufacturer's number:
10030313Precision thickness gauge Steinberg Systems is capable of measuring in the range
from 0 to 5000 μm to ±2% + 1 μmThe device is adapted to work on the level of
simple surfaces as well as curvedIt's due.
"V" type tipwhich provides a minimum measuring area
with a value of 20 mm, 5 mm for convex surfaces and 25 mm for concave surfaces. The tester has many functions, including test mode, method of measurement, whether the unit of measurement (μm, mm, miles) is possible. The device also allows to save
up to 320 results, and thanks
Mini USB port keep them on the computer disk. The meter is adapted to work
at temperatures from 0 to 50°C and air humidity 20-80%.
Operation of the device is easy because

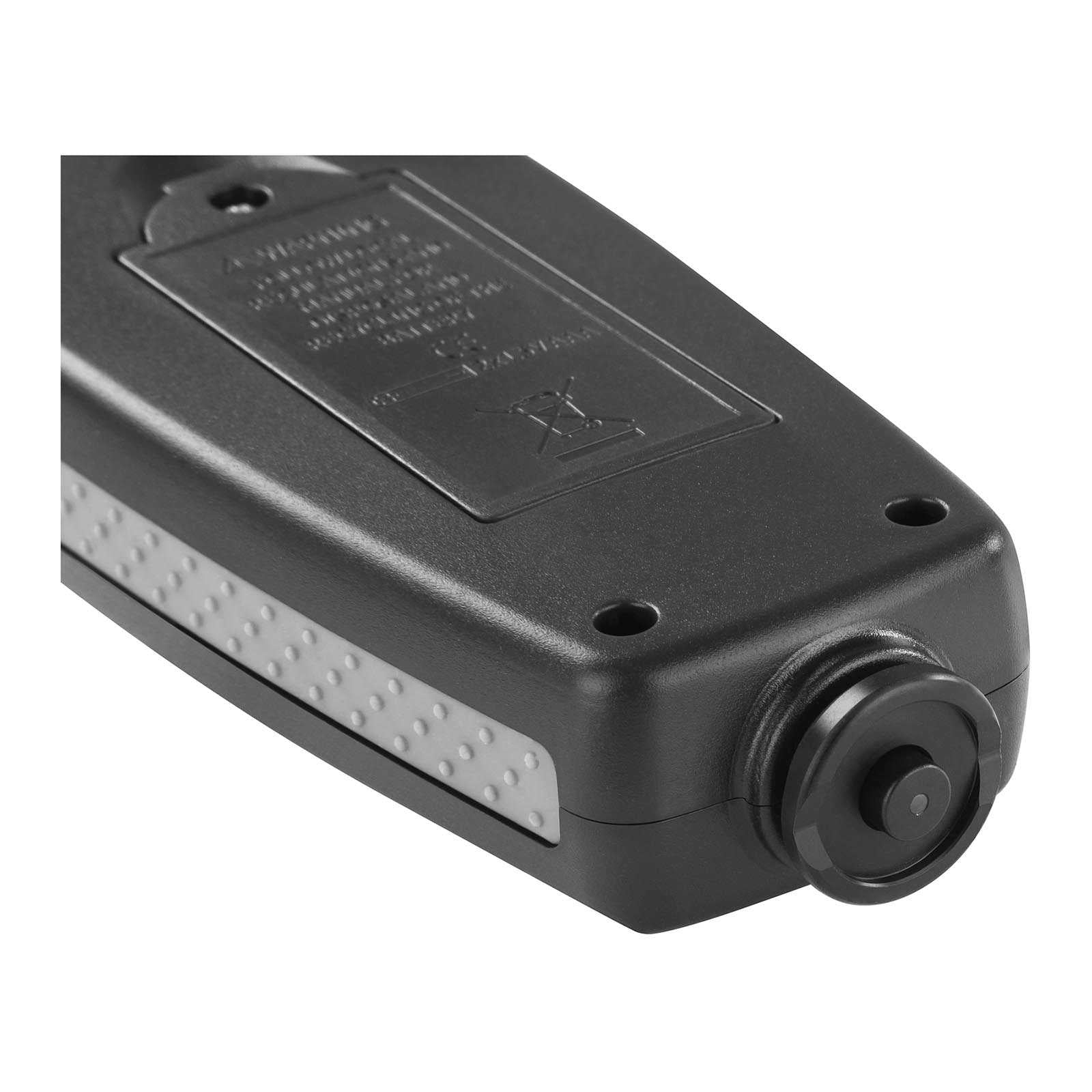

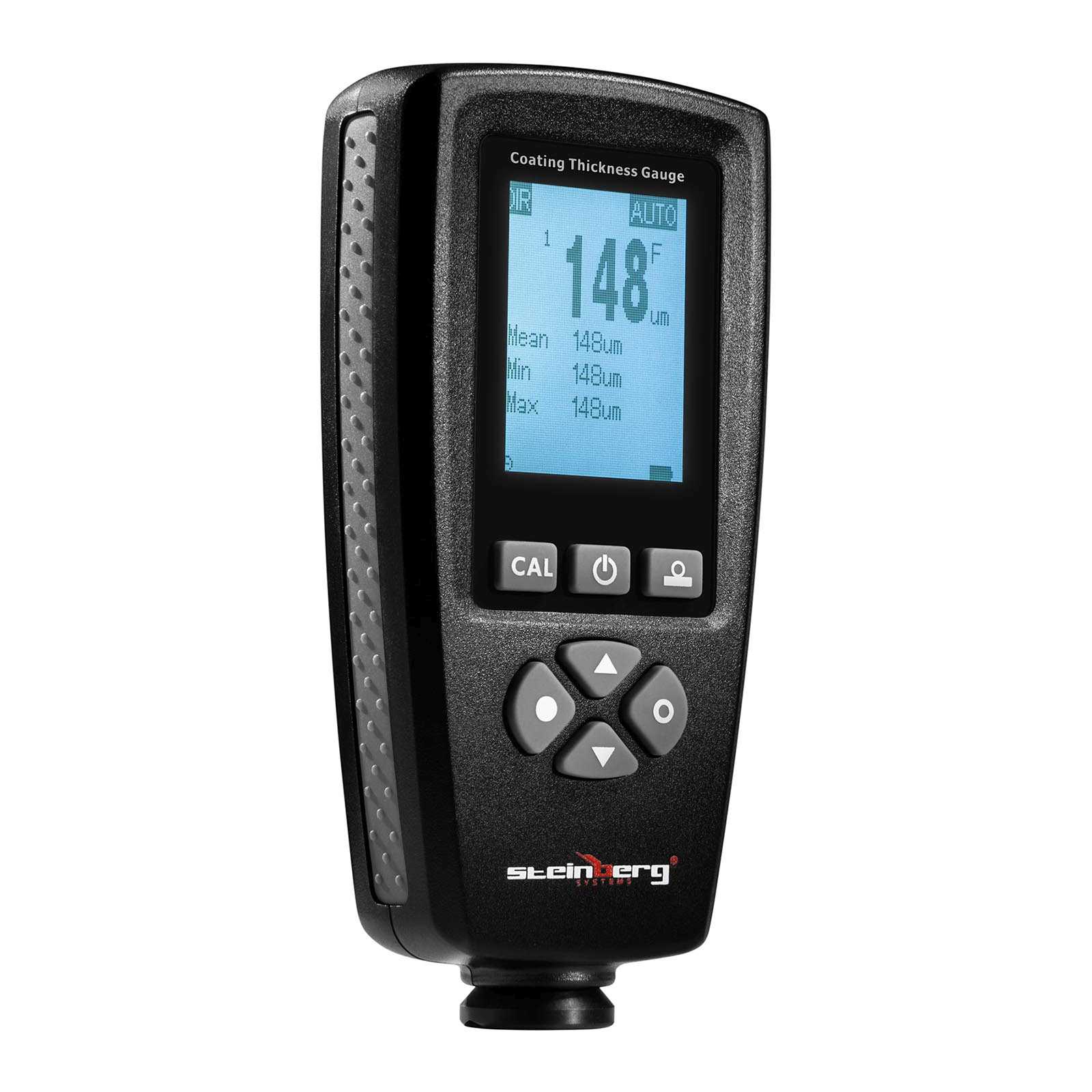

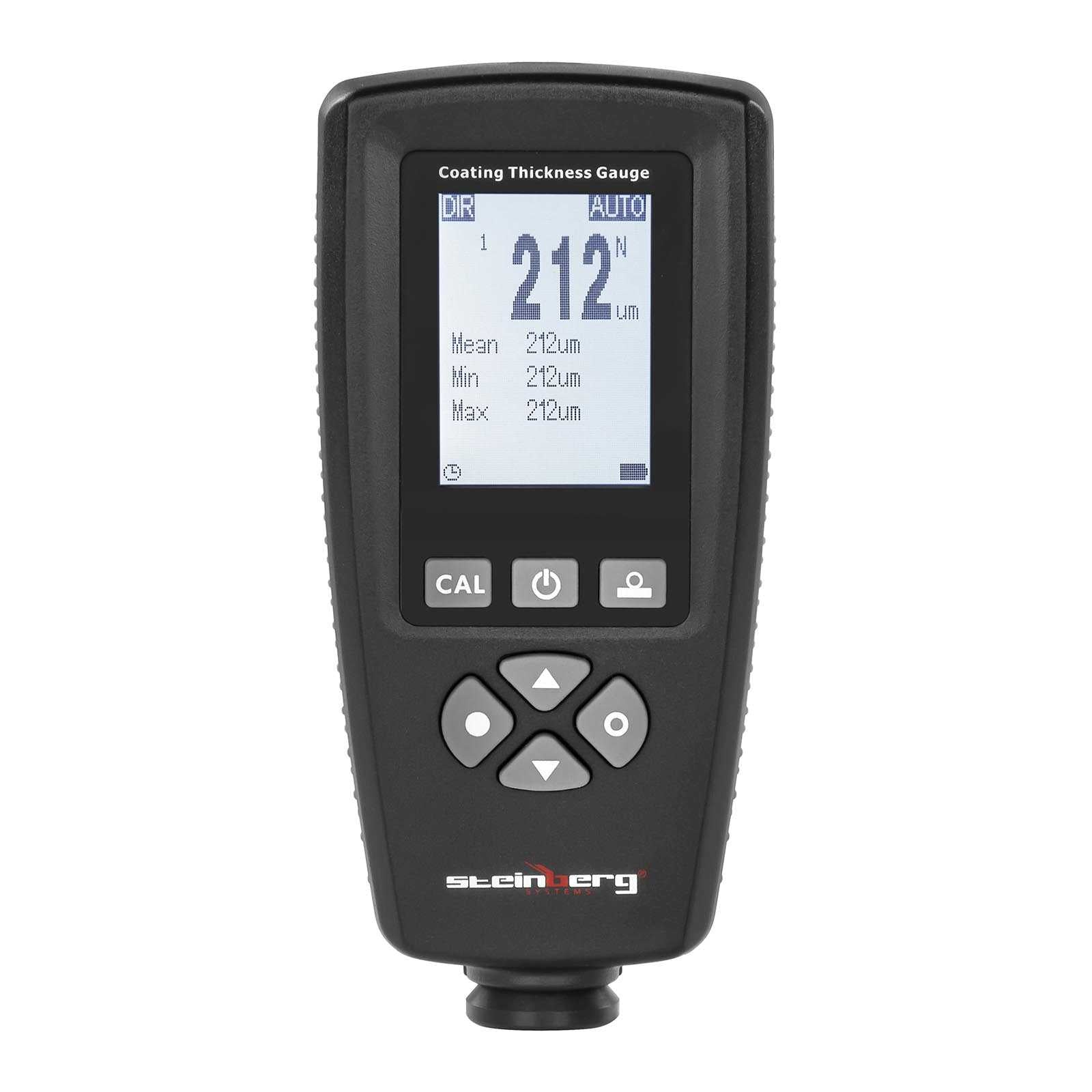

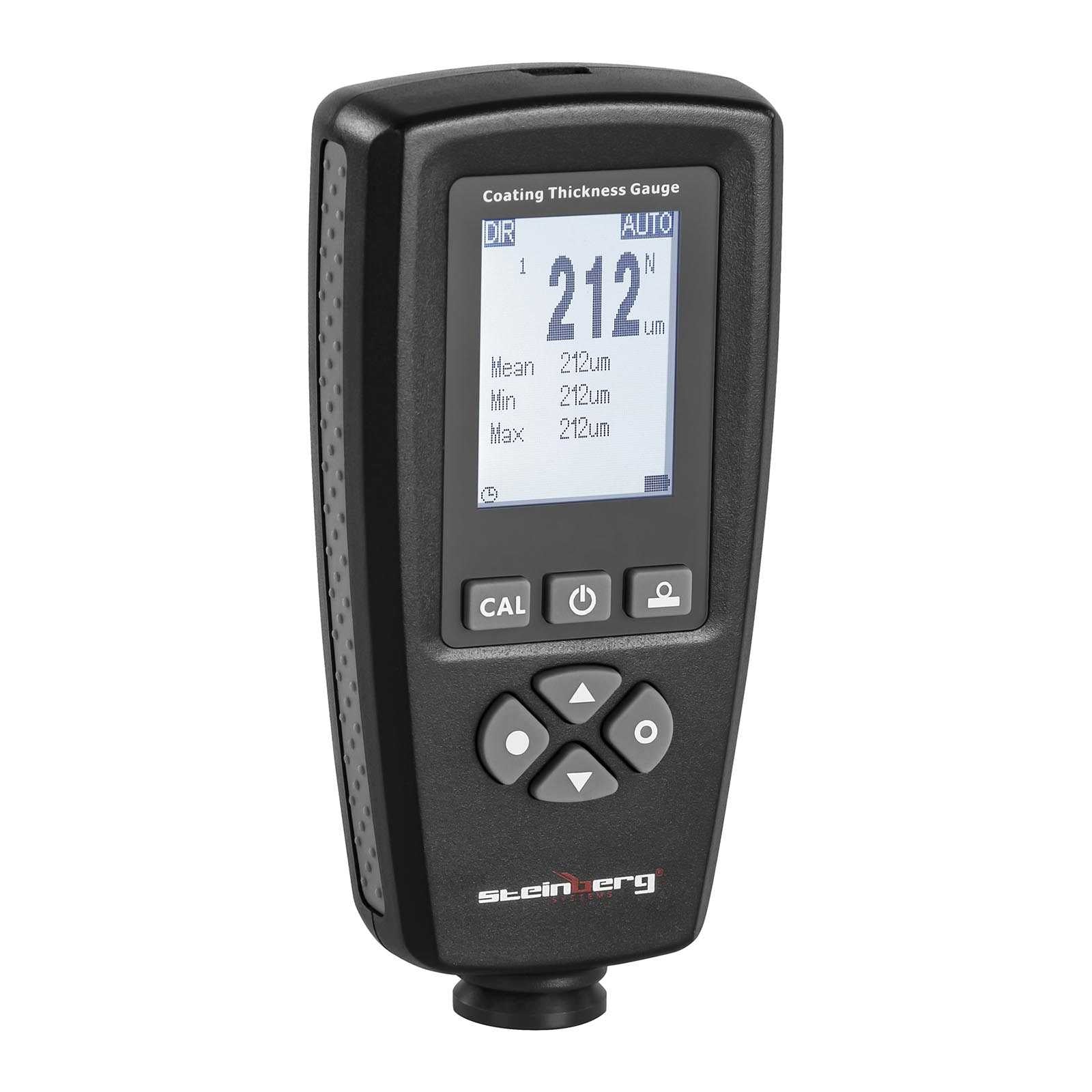

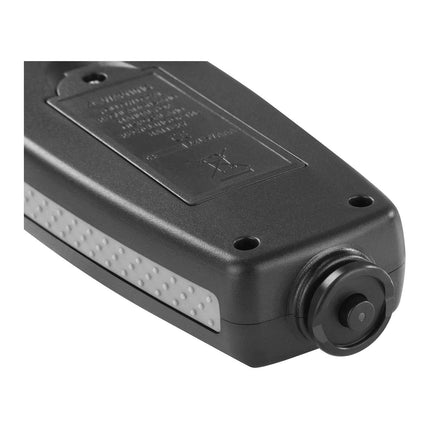

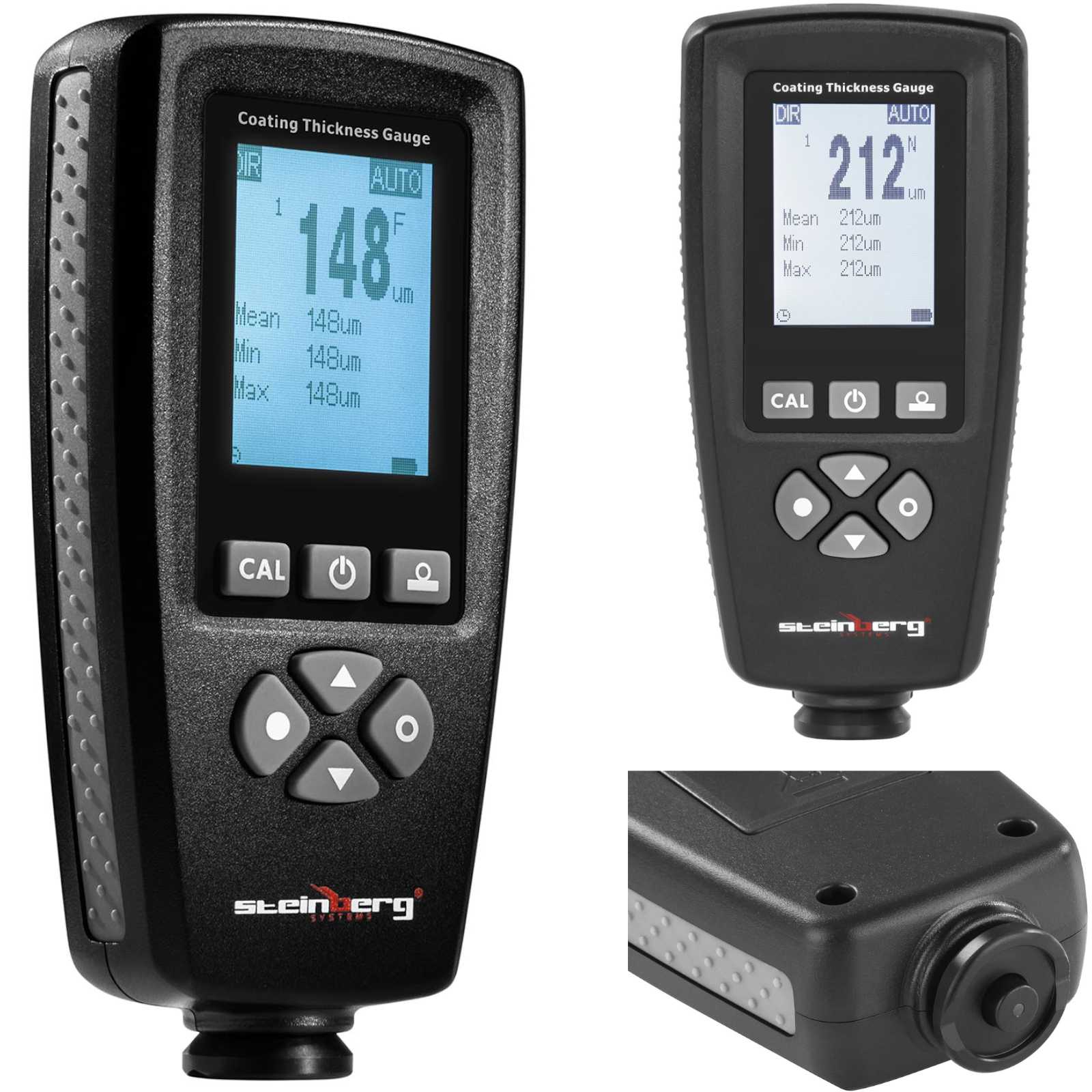

convex buttons and illuminated LCD screenThe spring probe ensures safety during measurement,
without scratching the paintThe test is completed by a sound signal.
The tester kit includes
accessories necessary for its proper functioningAmong them are: USB cable, CD with software and
calibration platesWith the help of the latter, the user can ensure the precise operation of the meter.
comfortable suitcase will facilitate the transport of the whole set.
The device is powered by
Two batteries 1.5 V AAA. The special system turns off the tester when it is not used for 3 minutes, allowing
extend battery life.
Product features: - - Use - quickly measures the paint coating of the body and thickness of metal,
- - Universality - will be used in the automotive and metal industry,
- - Functionality - to the ferromagnetics,
- - Precision measurements - measurement with accuracy ±2% + 1 μm,
- - Productivity - working at 0-50°C and humidity 20-80%
Technical parameters: - - Model - SBS-CT-123 PRO
- - Catalog number - 10030313
- - The material of the casing - Plastic ABS, rubber
- - Power supply - 2 x 1,5V AAA batteries
- - Methods of measurement - Magnetic induction (for ferromagnetics)
- - Measurement modes - Ferromagnetics
- - Range of measurements - 0 - 5000μm
- - Accuracy of measurements - ±2% + 1μm
- - Resolution - 0,1μm in the range 0μm - 99,9μm
- - Units of measurement - μm, mm, miles
- - Minimum average measurement area - Ø20 mm
- - Minimum radius of curvature - 5 mm for convex surfaces
- - Minimum thickness of material - 0,2 mm for ferromagnetics
- - The ambient temperature range during measurements - 0 - 50℃
- - Range of air humidity during measurements - 20%-90%
- - Storage temperature - -10℃ ~ 60℃
- - Embedded memory capacity - Max. 320 results of measurements
- - The way you connect to the computer - USB Mini
- - Batteries included - Yes.
- - The calibration plates in the set - Yes.
- ## A moving case ## Yes.
- - Mini USB cable length - 0.75 m
- - Dimensions (DxSxW) - 11.5 x 5 x 2.9 cm
- - Weight - 0,1 kg
- - Dimensions of dispatch (DxSxW) - 25 x 20 x 5 cm
- - Weight of shipping - 0,5 kg
Included: - - Lacquer thickness meter
- - Mini USB cable
- - CD with software
- - Tiles for calibration
- - AAA batteries
- - Portable case
- - PL Manual
