Manufacturer's code:

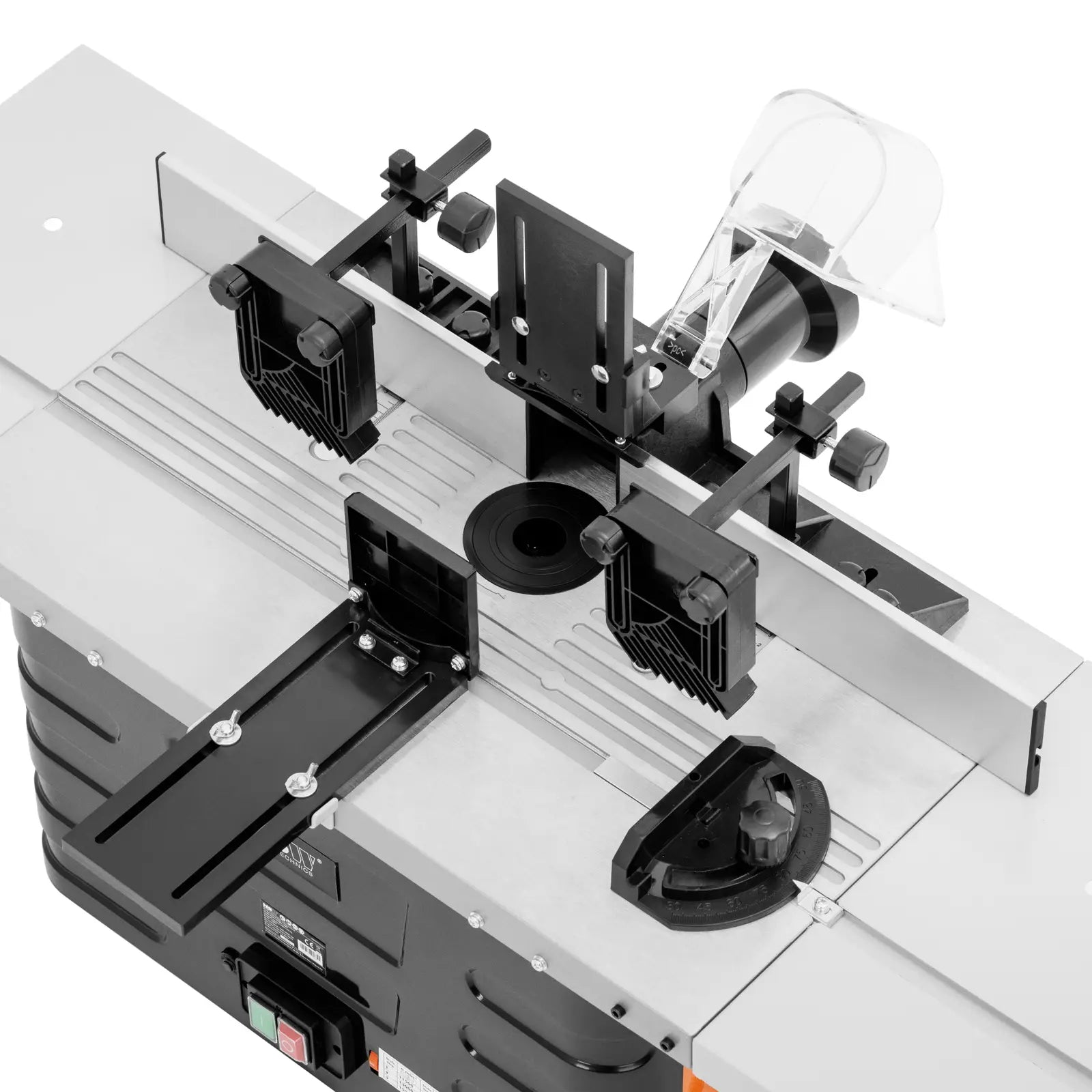

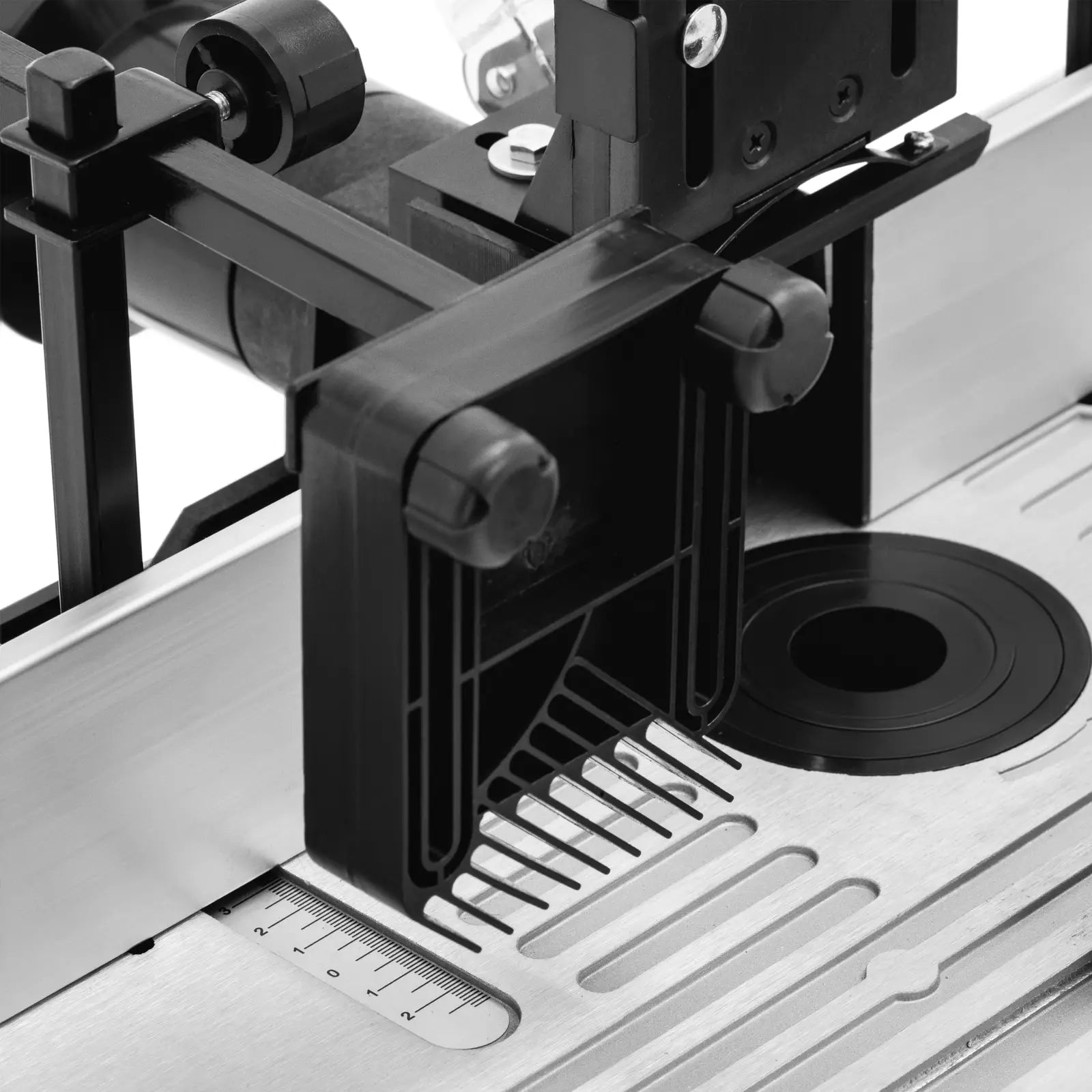

10062507The MSW brand table milling machine enables processing wood and similar materials, such as plastics and some types of metals. It can be used for rounding, milling, chamfering, grooving or profiling in various ways and in many application areas. This is ensured by numerous setting options and a wide range of accessories. The efficient 1500 W motor reaches speeds ranging from 11,500 to 24,000 rpm. Thanks to the stop, ruler and angle scale, you can obtain precise and repeatable cutting results with cutters with a diameter of up to 50 mm. The milling machine offers a spacious worktop that can be flexibly expanded using two side elements, each measuring
61 x 36 cm. In this way, even larger workpieces can be processed conveniently. The milling machine is also easy to adapt in other ways. Stepless spindle height adjustment from 0 to 40 mm, three table inserts with a length of 32, 47 and 55 mm and three collets of 6, 8 and 12 mm allow you to choose optimal settings for various materials and tasks. The solid construction of the table milling machine is safe and stable. Made of high-quality materials such as aluminum, steel and copper, it guarantees precise results.
Product features: - - Processing of wood and similar materials by rounding, chamfering, slot or profile milling,
- - Generates a speed of up to 24,000 rpm with a power of 1500 W,

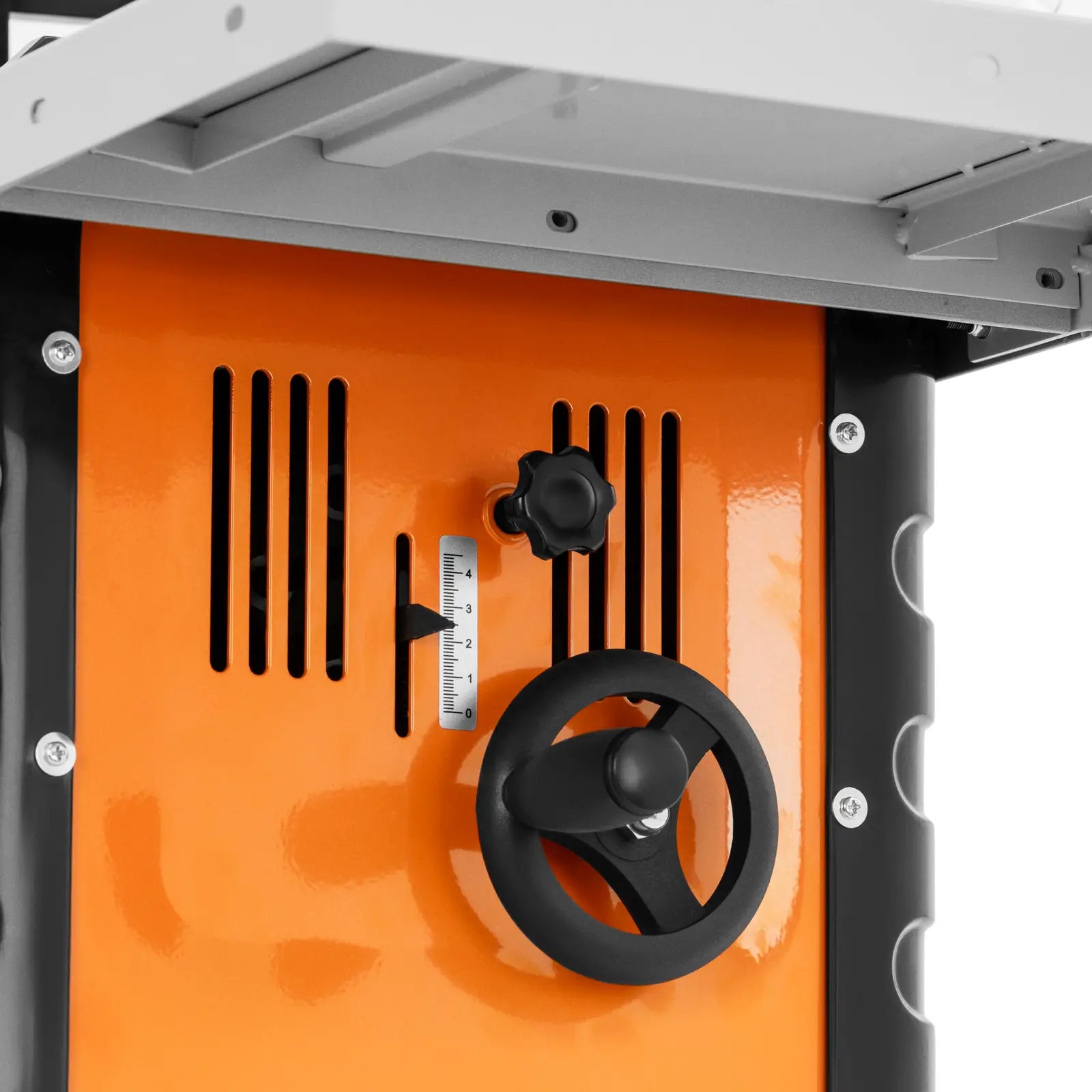

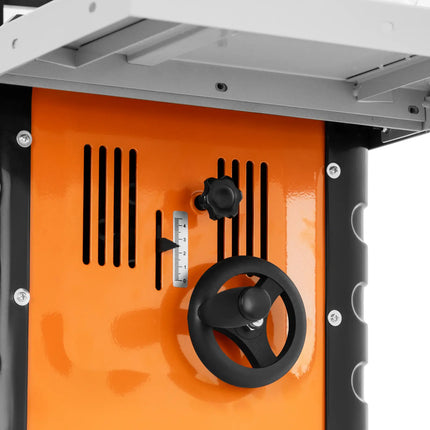

- - Versatile setting options thanks to the spindle height from 0 to 40 mm, three inserts with diameters of 32, 47 and 55 mm and three collets with diameters of 6, 8 and 12 mm,
- - Large work table with two optional extensions with dimensions of 61 x 36 cm each,
- - Stop system and stable base for maximum control and smooth operation work.
Technical parameters: - - Catalog number - 10062507
- - Article condition - New
- - Model - MSW-WOBD-1500Y
- - Material - Aluminum, PP, Nylon, Steel, Copper
- - Voltage [V] - 230
- - Spindle [mm] - 0-40
- - Rated speed [rpm] - 11500-24000
- - Power [W] - 1500
- - Table dimensions [mm] - 610 x 360
- - Power cord [m] - 1.8 m
- - Number of shelves [pcs] - 3 Pc

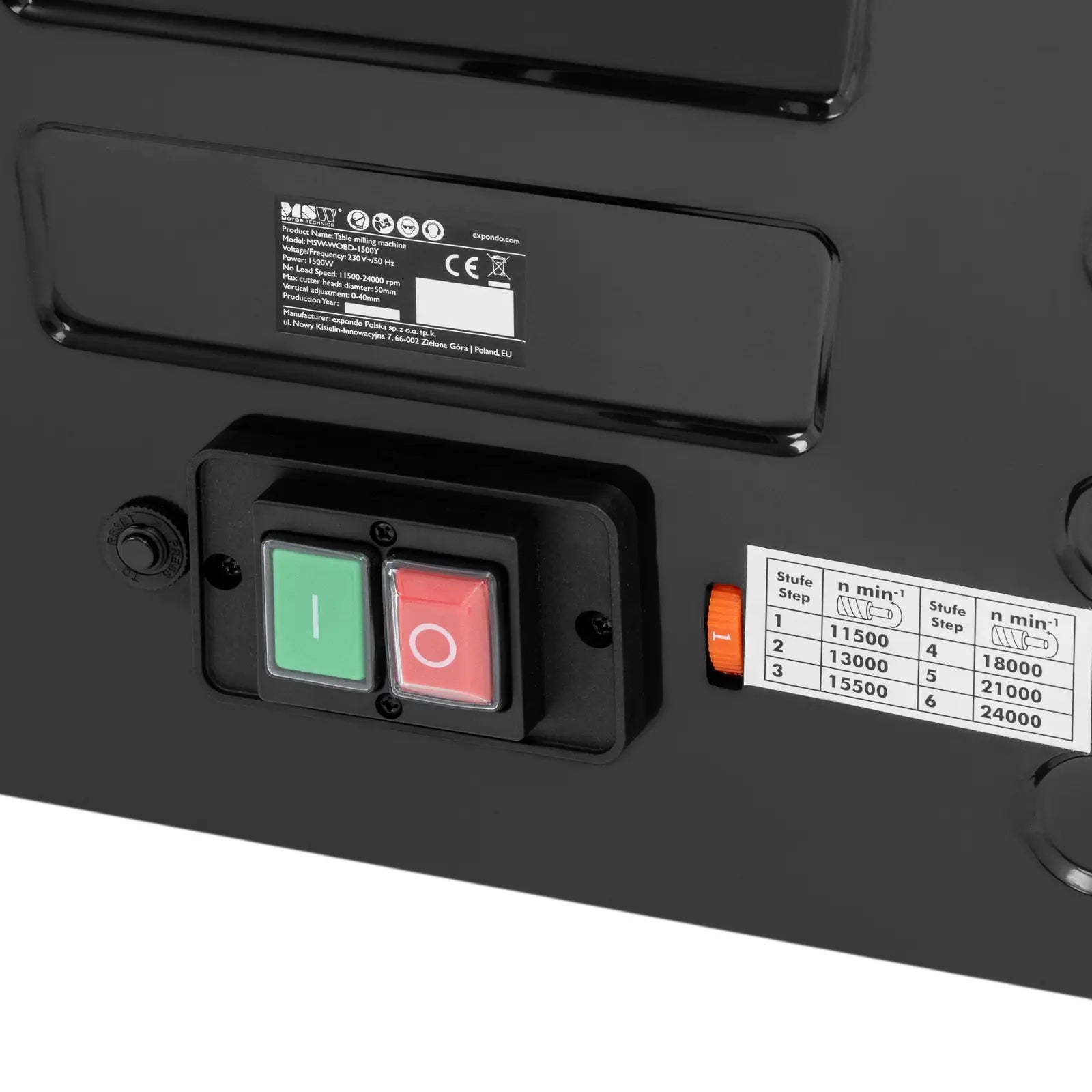

- - Speed control - Yes
- - Dimensions (LxWxH) - 103 x 36 x 31 cm
- - Weight - 20.6 kg
- - Shipping dimensions (LxWxH) - 66 x 51 x 40 cm
- - Shipping weight - 23 kg

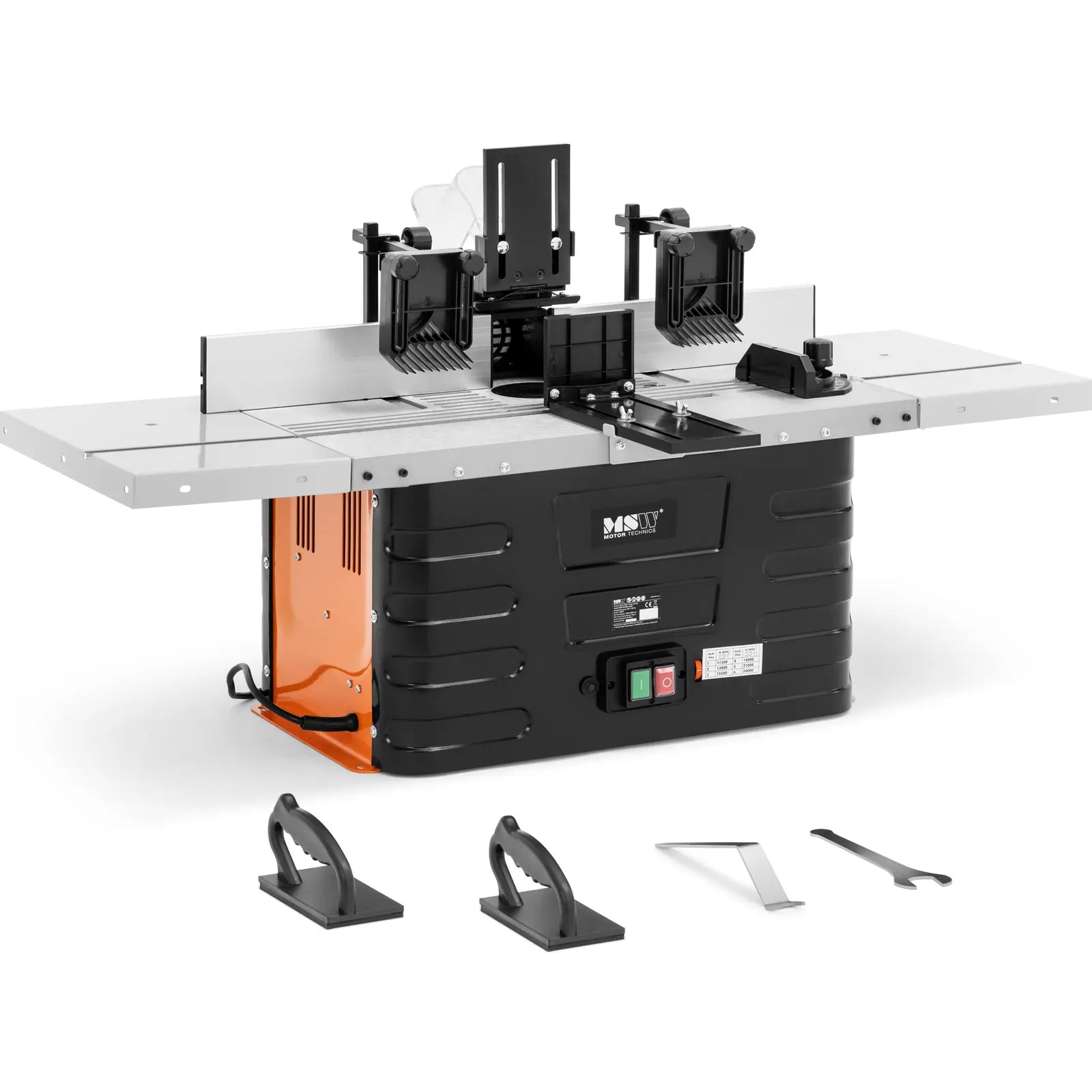

Included in the set: - - Table milling machine
- - Extension
- - Accessories
- - Mounting accessories
