Apraksts
Manufacturer's number:
10060139MMA branding guide lets you charge lead-acid batteries and batteries for cars, trucks, tractors, mopeds or motorboats. It will be suitable for professional workshops or services, as well as for home garages.
Startup function it allows you to start the car engine when the battery is completely unloaded. It will be used when starting cars for petrol or diesel (including vans, trucks and tractors).
up to 30 A provides fast and efficient charging. It has two modes to choose from,
MIN and MAXThe first one is suitable for standard battery charging. The second one allows to charge the heavily used battery in a short time thanks to high current.
Short-circuit protection system ensures safe operation. Built-in fuse prevents sparks and the clip from being formed when clamps are connected to the battery. Ready

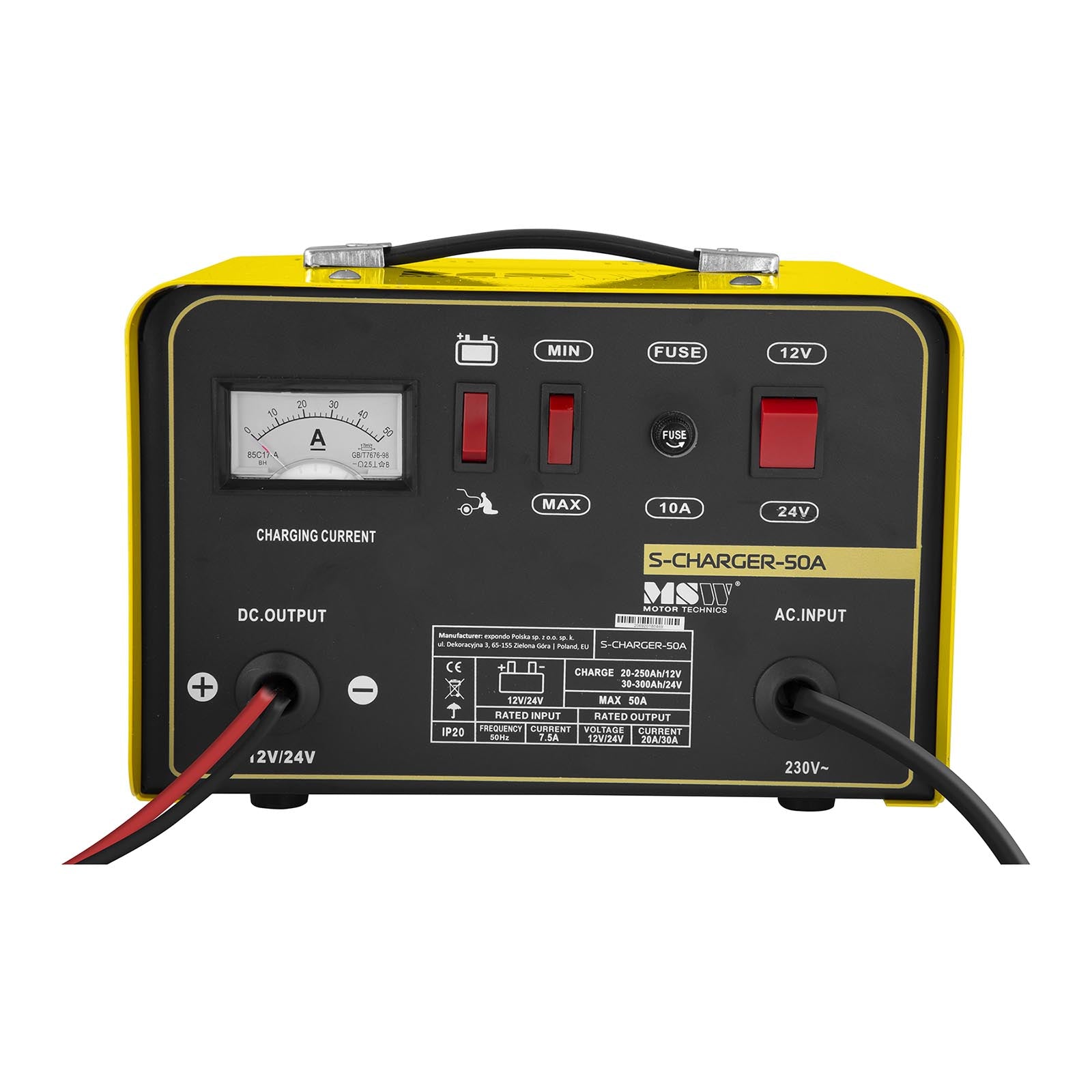

Control panel The functional buttons translate into simple operation. The voltage value (
12 or 24 V) is selected by the switch. Handle and compact size facilitate the transportation of equipment.

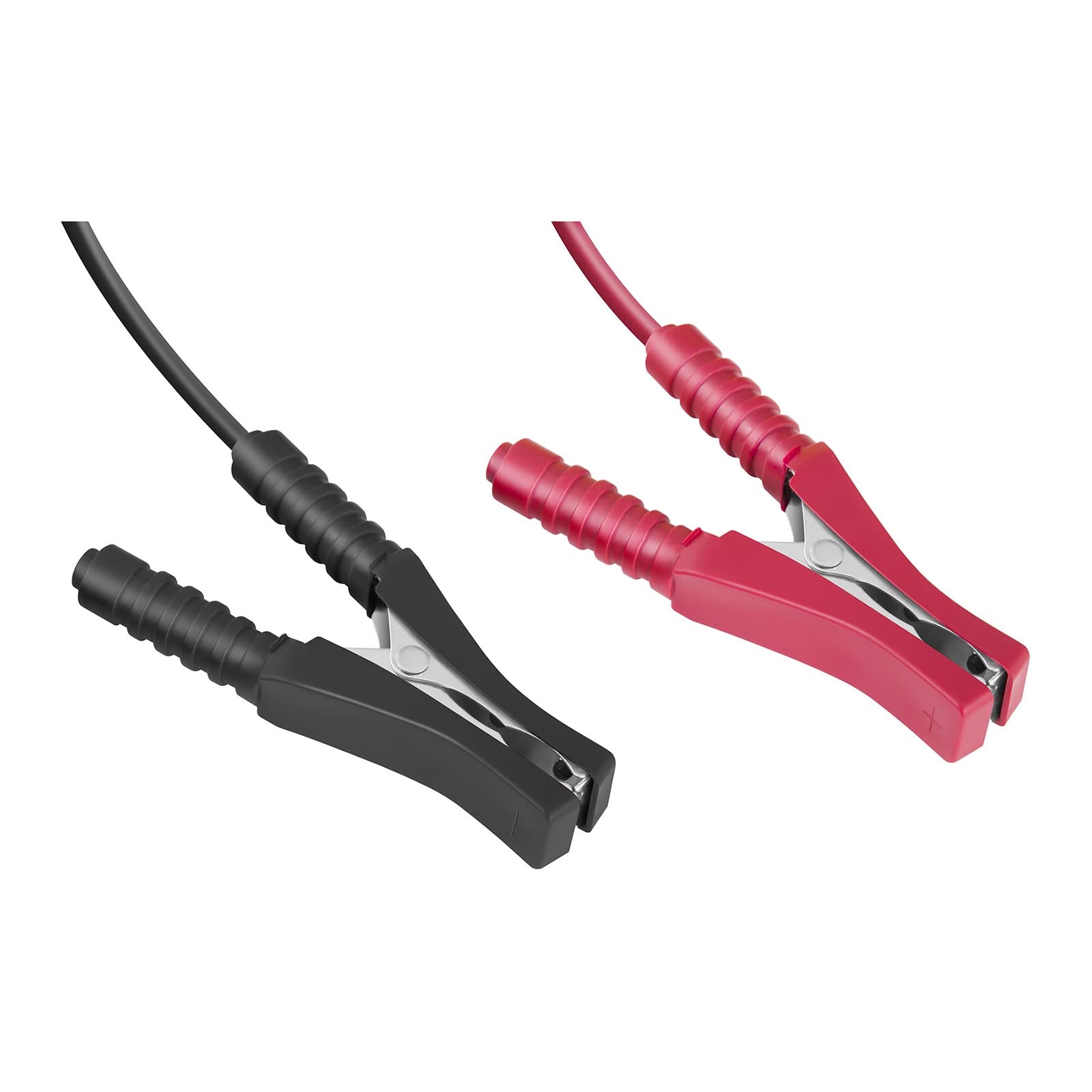

Included cables They prevent them from being lost.
Product features: - - Start-up function - starting the car even with a fully unloaded battery,
- - Charging mode to choose from (MIN - low charge current, MAX - high charge current),
- - current up to 30 A for fast charging,
- - a 12/24 V voltage switch,
- - Built-in power cords and a clamp.
Technical parameters: - - Model - S-CHARGER-50A
- - Catalog number - 10060139
- - The state of the article - New
- - Type of battery - Lead-acid
- - Voltage [V] - 230
- - Display type - Analog
- - IP protection - IP20
- - Functions - Loading/start
- - Input voltage [V] - 12 / 24
- - Recommended battery capacity [Ah] - 20 - 300
- - Maximum energy consumption of the start-up function [W] - 2200
- - Battery count - 1
- - Terminal cable length (+) - 1.5 m
- - Terminal cable length (-) - 1.5 m
- - Maximum energy consumption - 1700 W
- - Maximum start-up current - 130 A
- - Dimensions (DxSxW) - 22.7 x 29 x 22 cm
- - Weight - 9.76 kg
- - Dimensions of dispatch (DxSxW) - 36 x 30 x 24 cm
- - Weight of shipping - 11.1 kg
Included: - - Wireless rectifier
- - PL Manual
