Apraksts
Manufacturer's code:

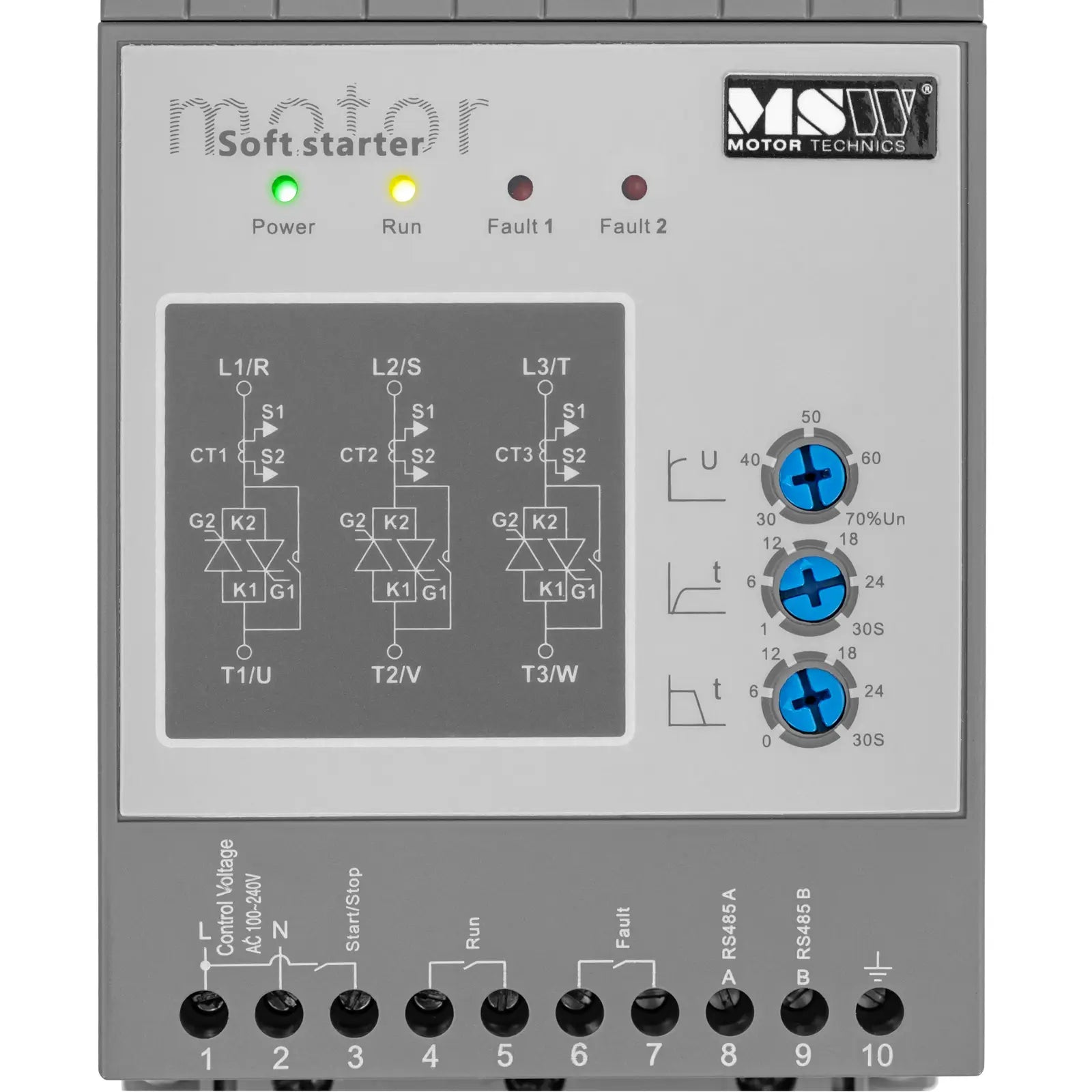

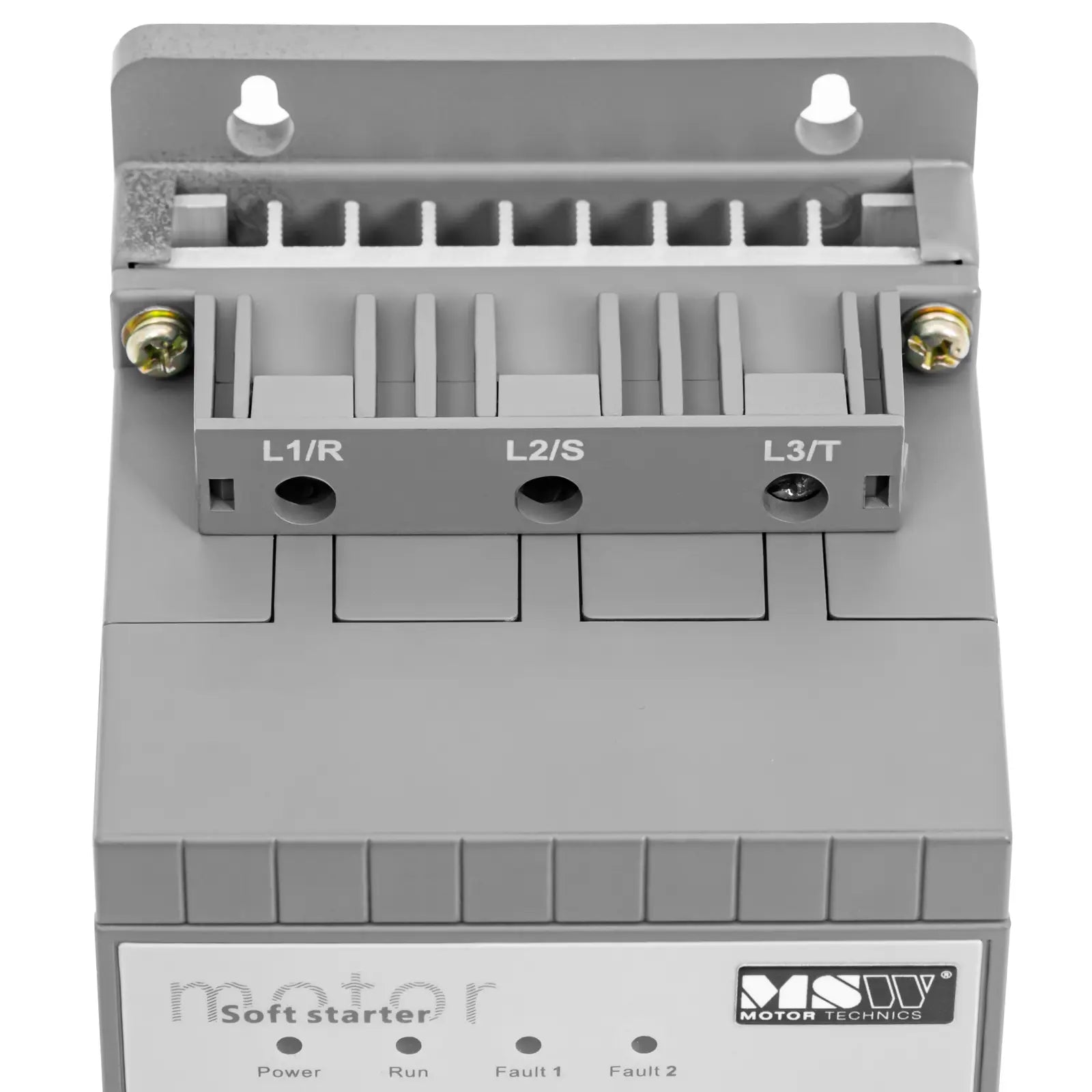

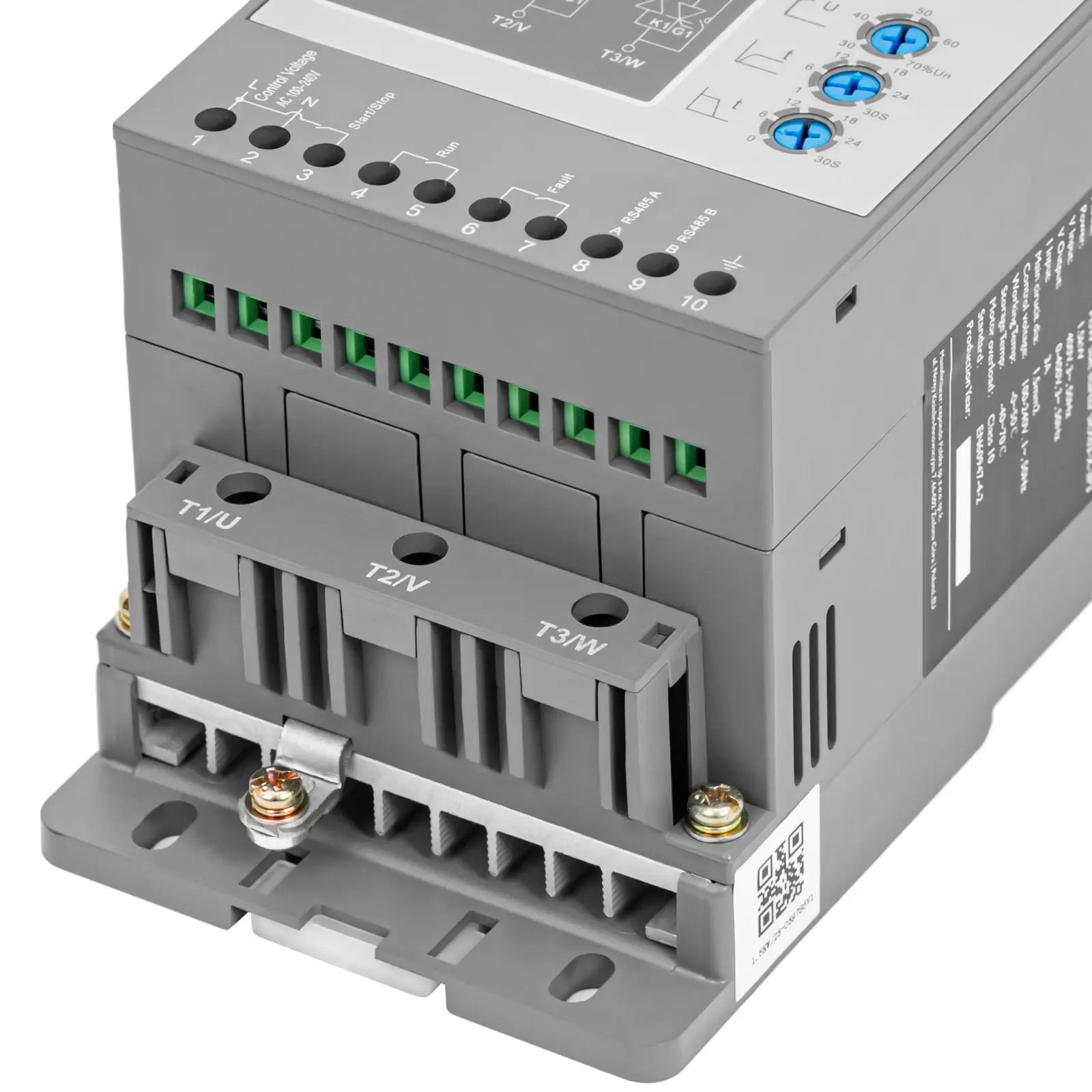

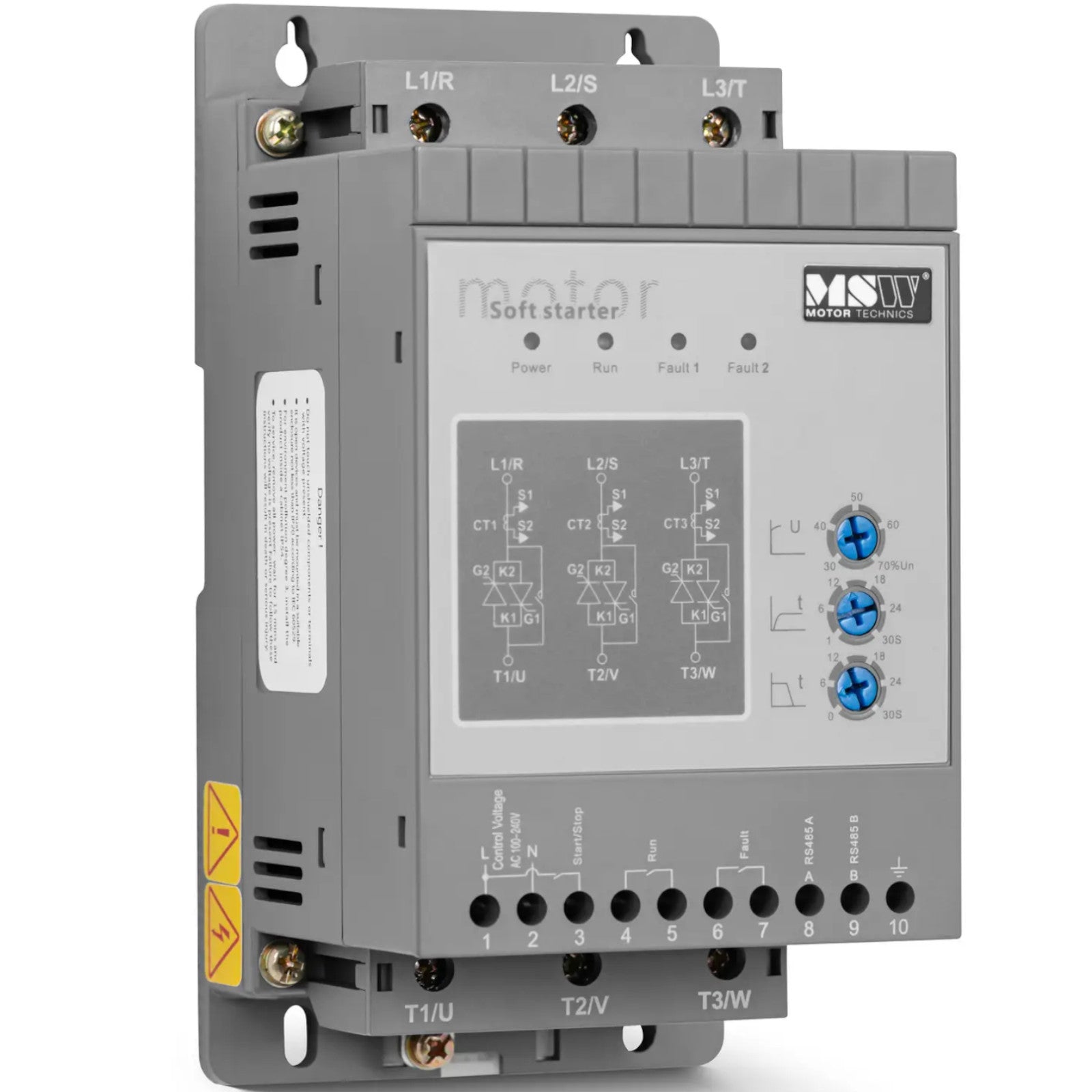

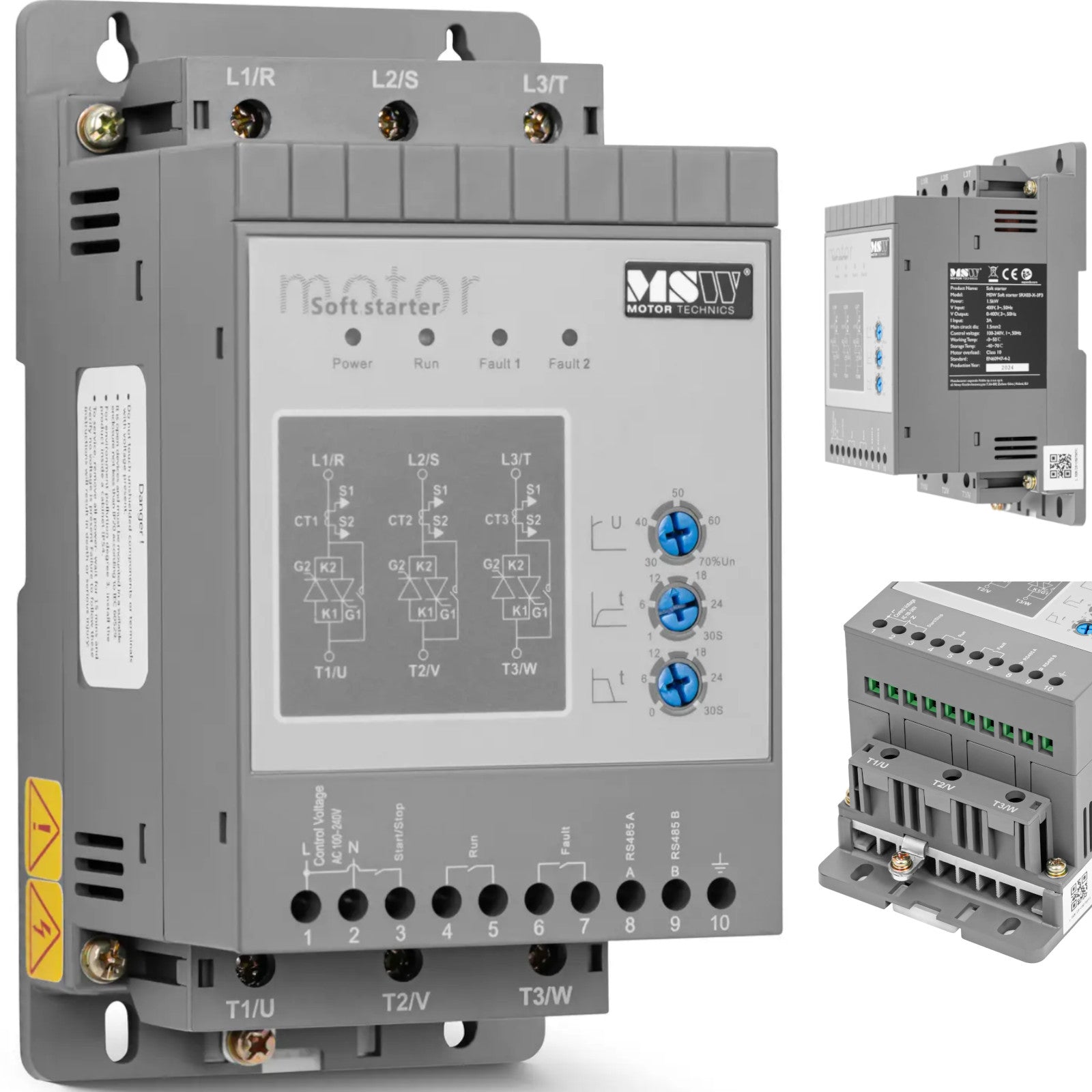

10062931The MSW brand soft starter allows you to extend the life of the equipment and turn on pumps, compressors or conveyors with
400 Vvoltage. The control voltage in the range of
100 - 240 V allows it to be used with various power networks. The drive starts at reduced voltage, which will increase according to a precisely set voltage ramp up to the operating value. As a result, the engine will run smoother and without fluctuations. The model also prevents water pressure surges when the pumps are running. The high-quality soft start module can be connected to devices with a maximum power of
1.5 kW. Therefore, it is ideal for commercial and industrial applications. In addition to high efficiency, the MSW soft start system ensures optimal energy efficiency. Integrated bypass reduces power loss as soon as the engine reaches full power. Automatic, touchless start/stop function reduces wear and tear during operation. Additionally, three-phase control allows you to reliably adjust the torque, which will result in a smooth start of the engine without jerks.
Class 10 overload protection ensures safe operation, preventing damage to the machine and thus improving the engine's resistance. The 400 V soft start impresses with its easy operation and, thanks to its compact design, takes up little space.
Product features: - - With a voltage of 400 V and a power of 1.5 kW, the soft starter starts the engines gently and safely at reduced voltage,
- - The soft start system with pump control function avoids water pressure surges,
- - Thanks to overload protection Class 10 soft starter provides adequate protection for the motor,
- - Contactless start/stop function of the soft starter module enables gentle and smooth starting of the motor,
- - With a control voltage of 100 - 240 V, the 240 V soft starter can be used worldwide with various power networks.

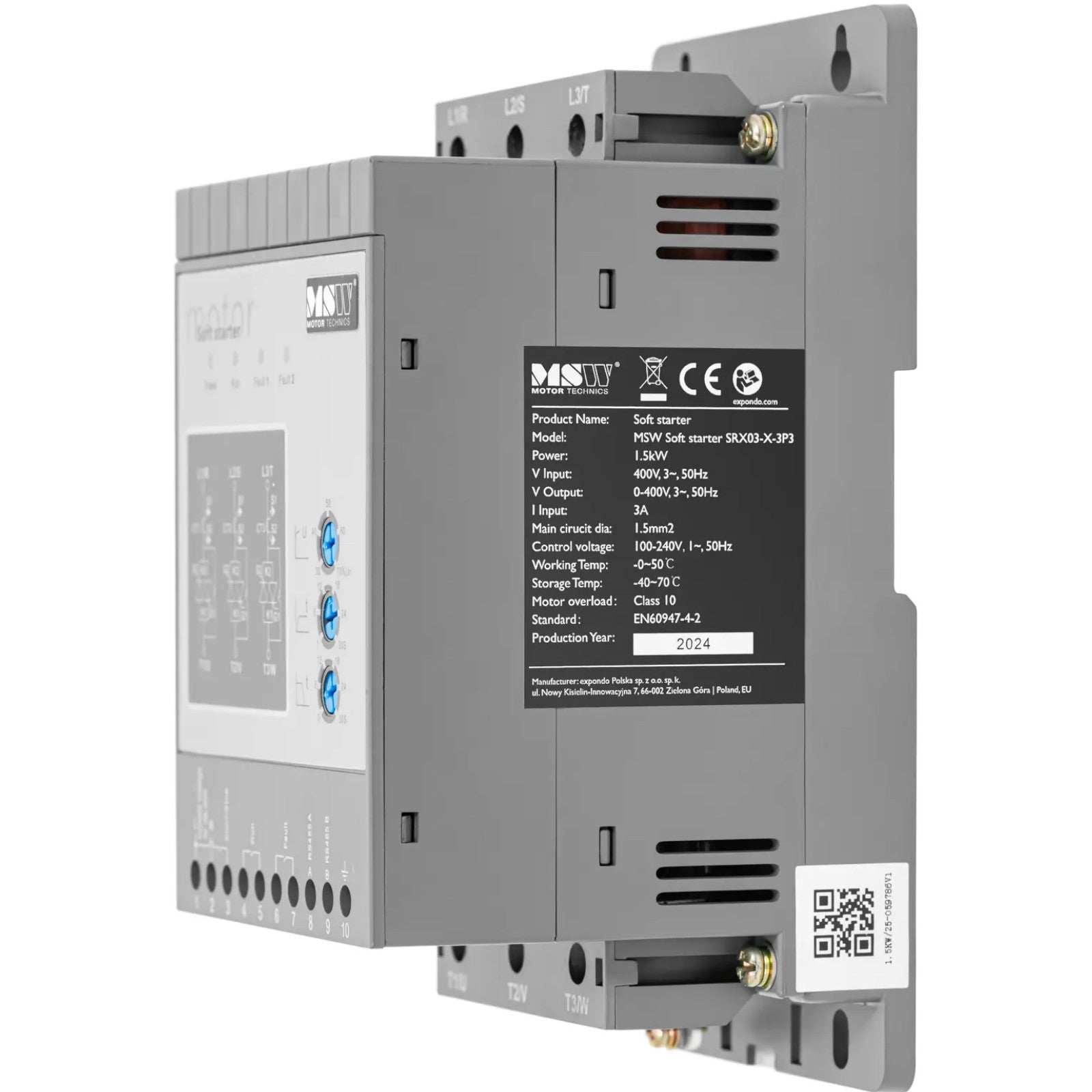

Technical parameters: - - Catalog number - 10062931
- - Article condition - New
- - Model - MSW SOFT STARTER SRX03-X-3P3
- - Color - Gray
- - Maximum power - 1.5 kW
- - Material - ABS
- - Voltage [V] - 400, 100-240
- - IP protection level - -
- - Storage temperature [deg C] - 0-50
- - Operating temperature range [deg C] - -40-70
- - Rated input current [A] - 3
- - Weight - 0.8
- - Shipping weight - 1

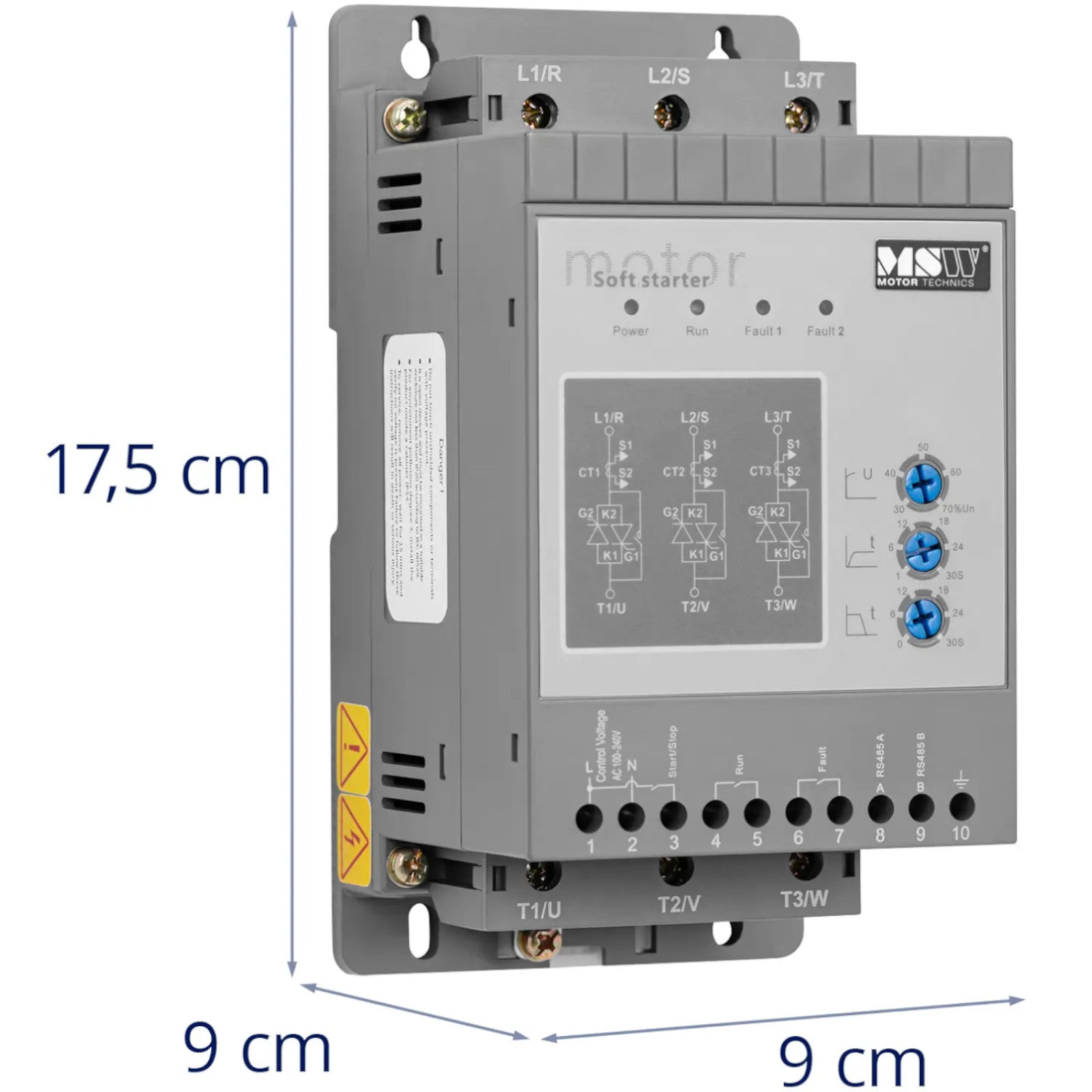

- - Dimensions (LxWxH) - 17.5 x 9 x 9 cm
- - Shipping dimensions (LxWxH) - 23x15x16
