Product code:

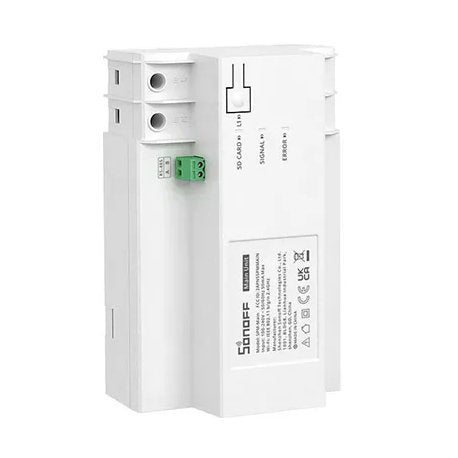

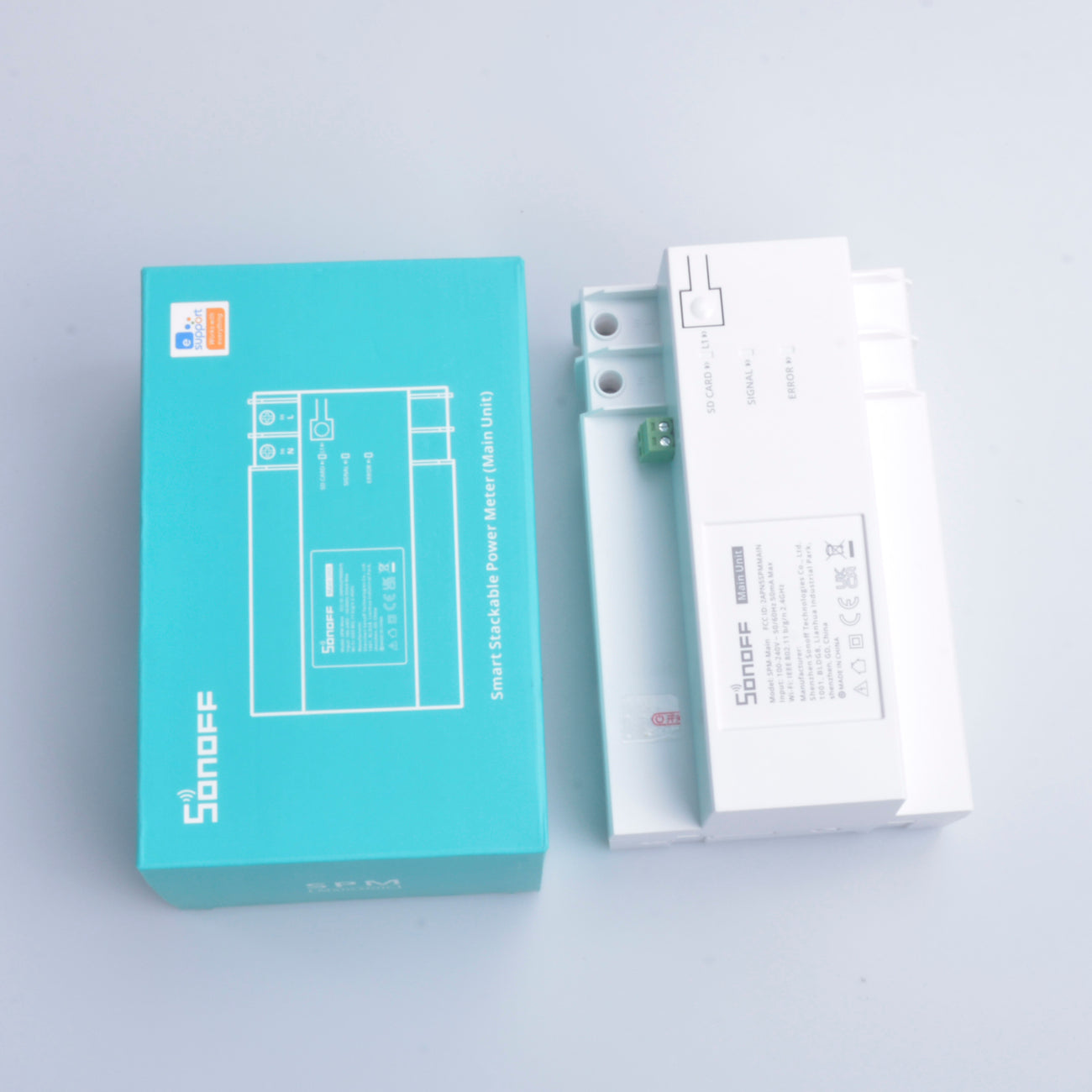

1017021Smart Sonoff SPM-Main switchThe device is a main component of the system consisting of SPM-Main and SPM-4Relay.
The device supports wired communication
(Ethernet RJ45 port) and wireless Wi-Fi. The product is very versatile -
supports up to 128 channelsTo do this, connect it to the SPM-4Relay switch (max 32 pieces).

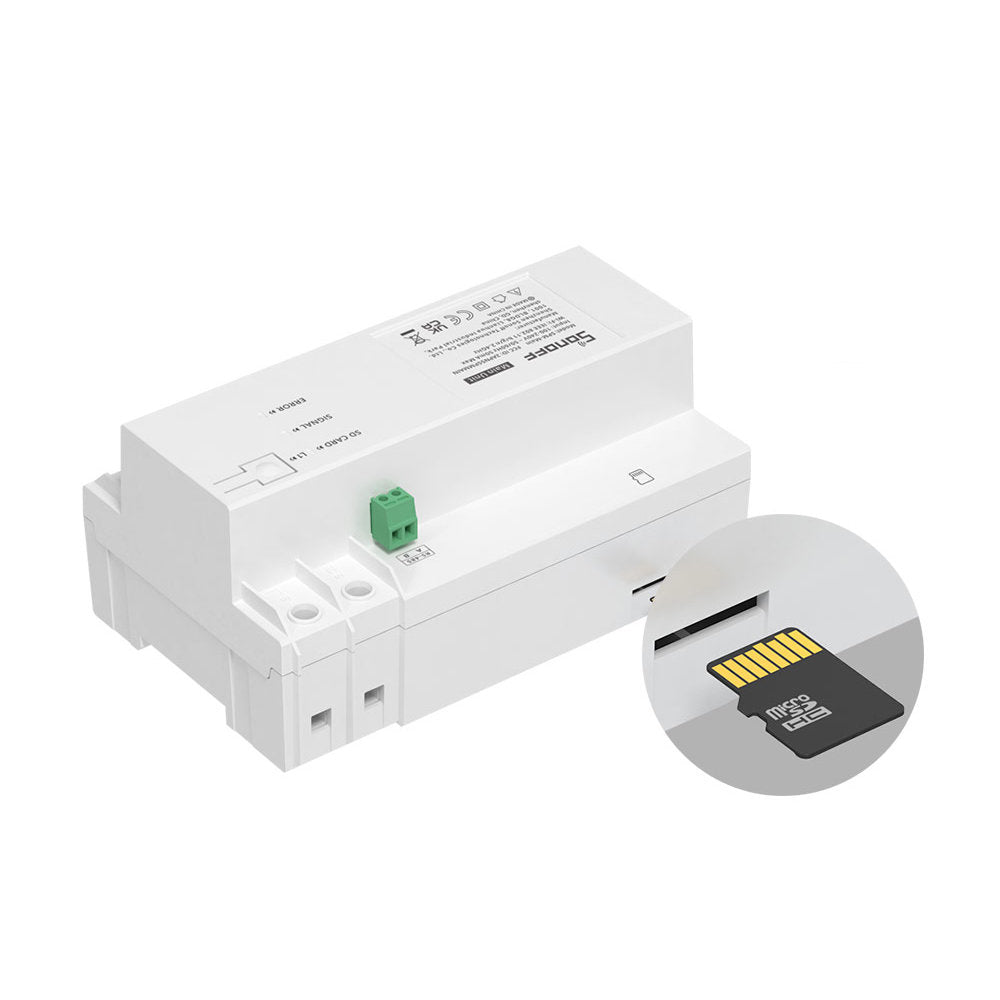

The SPM-Main is equipped with overload protection that will avoid damage to your devices. In addition, thanks to the built-in microSD card reader
you can secure the history of energy consumption even from 180 days ago
MicroSD card and SPM-4Relay are not included in the set - you can buy it separately.
Key features: - The SPM-Main switch has many different applications - it allows you to check how much electricity your tenants consume per month, what is the energy consumption in your office
- Securing expensive equipment equipment in the server room - the switch has overload protection.

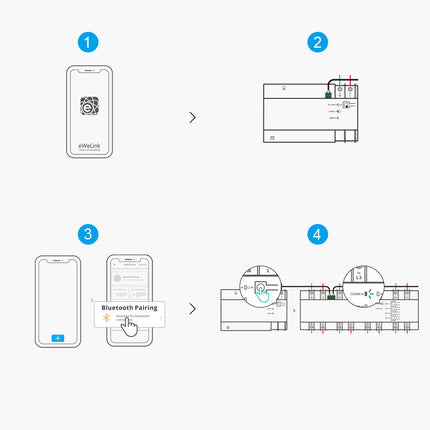

- Connecting devices - SPM-Main communicates with the cloud via Ethernet RJ45 or Wi-Fi port.

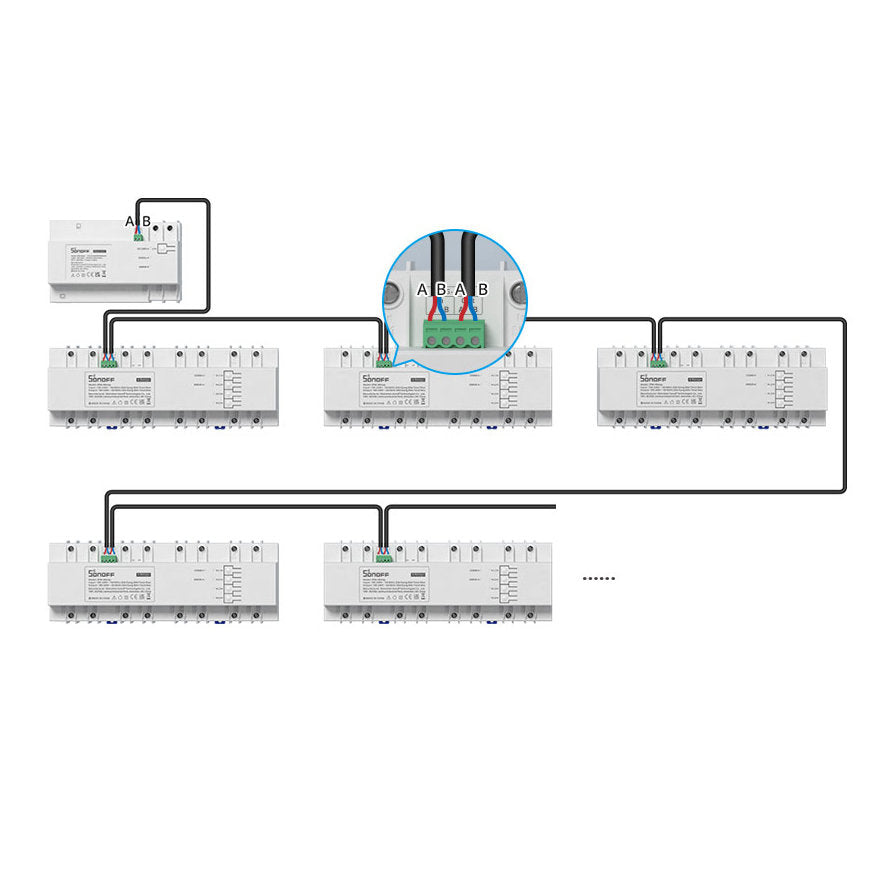

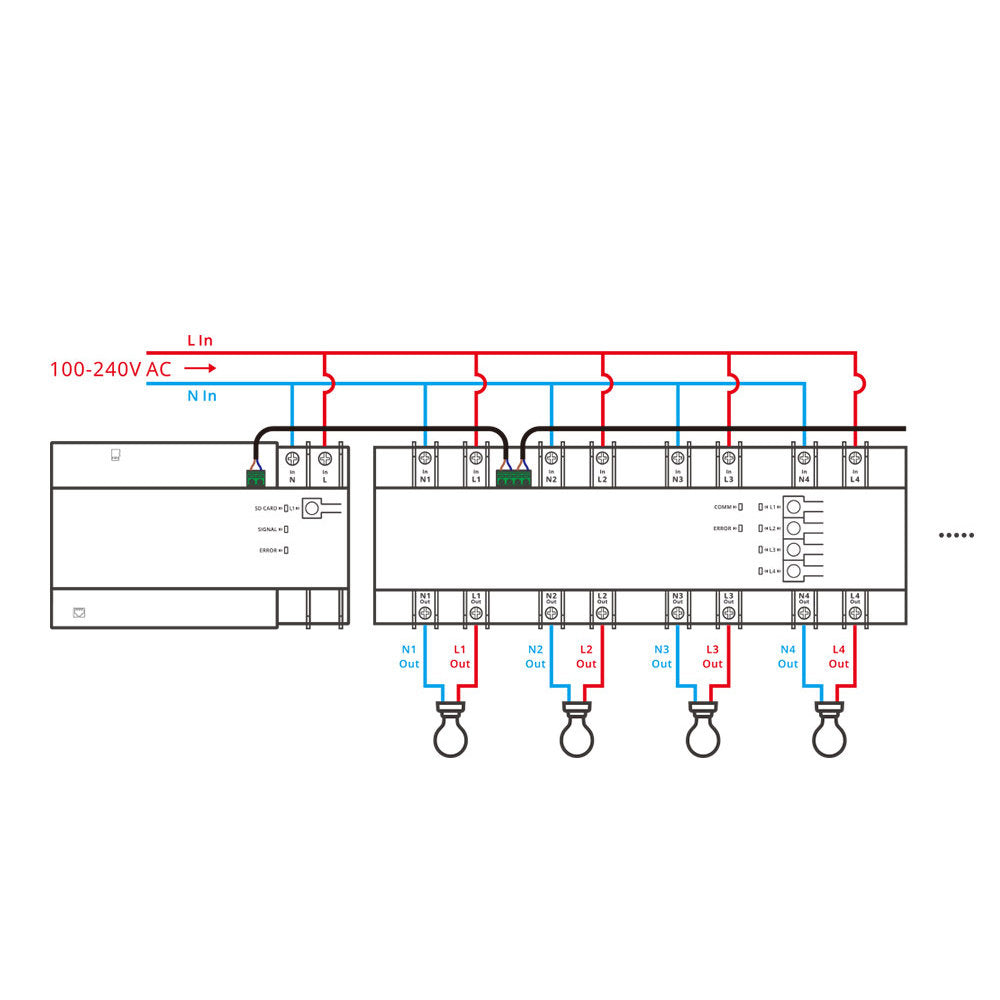

- The connection to SPM-4Relay switches is via RS-485 port, which ensures a stable transmission over long distances.
- Support up to 128 channels - One SPM-Main main module allows you to connect and control up to 32 SPM-4Relay switches.
- Each SPM-4Relay offers up to 4 independent channels with a maximum load of 20 A each.
- This allows SPM-Main to handle as many as 128 channels.
- It is ideal for residential blocks - allows checking energy consumption in 128 apartments.

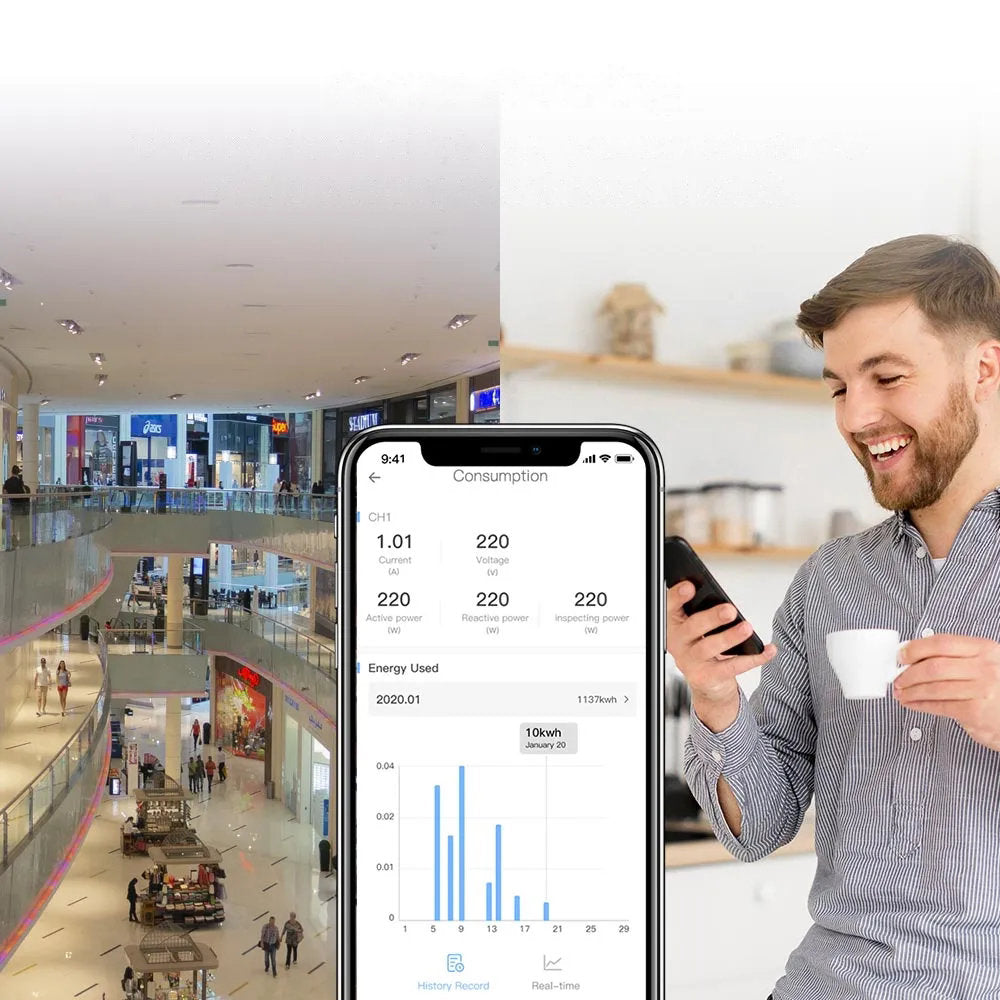

- The history of energy consumption on the microSD card - The product allows you to record the history of energy consumption measurements over the last 180 days.

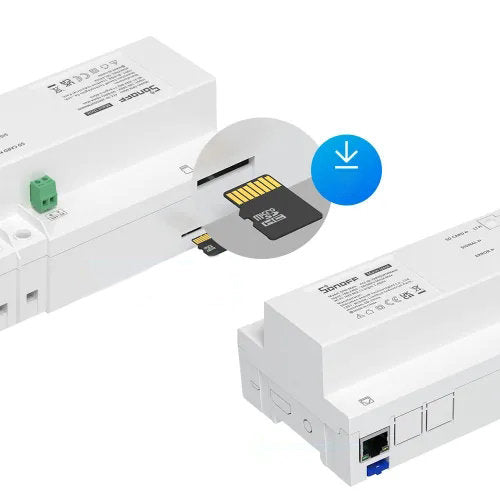

- The switch is equipped with a microSD card reader (8-32 GB, microSDHC).
- It offers the possibility to conveniently export data and secure security of important information.

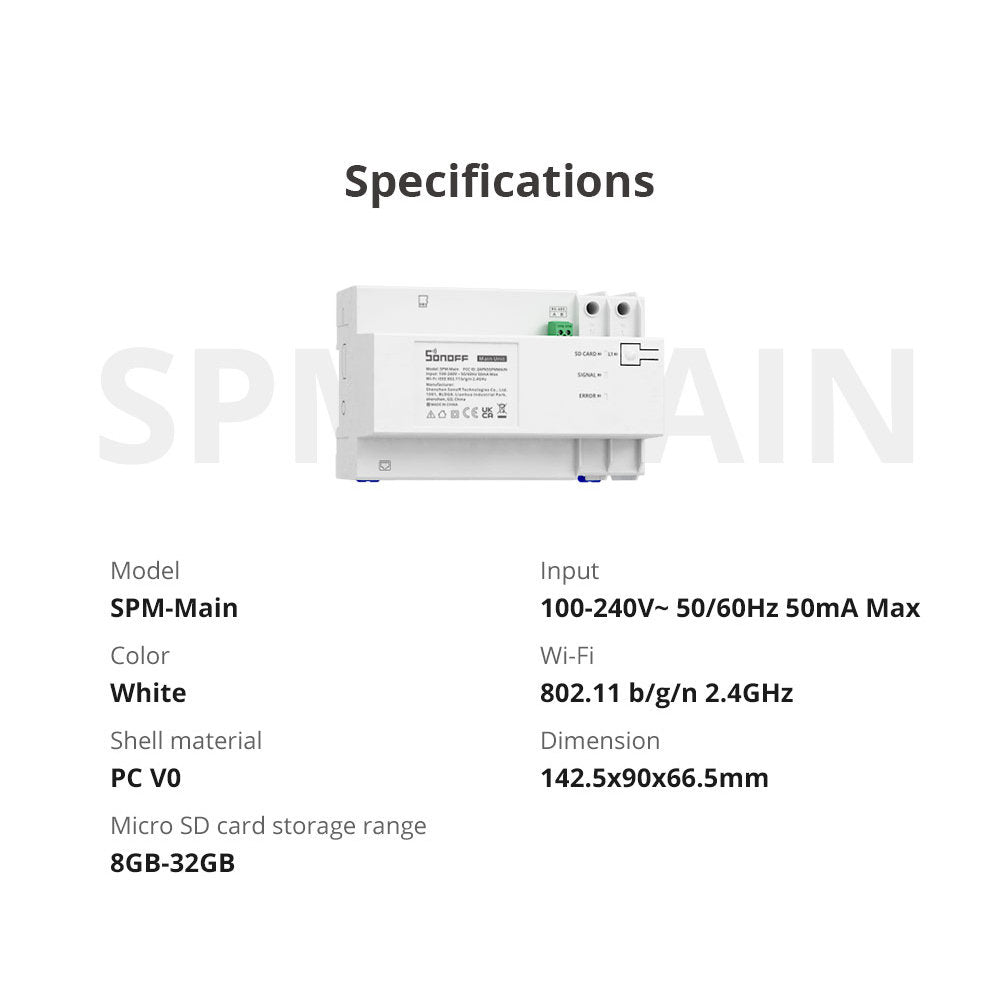

Specification: - Manufacturer: Sonoff
- Model: SPM-Main
- Color: White
- Input: 100-240 V ~50/60 Hz 50 mA max.
- Wi-Fi: 802.11 b/g/n 2,4 GHz
- Material: PC V0
- Dimensions: 142.5 x 90 x 66.5 mm
- Compatible microSD cards: 8-32 GB (microSDHC)
