Apraksts
Manufacturer's code:

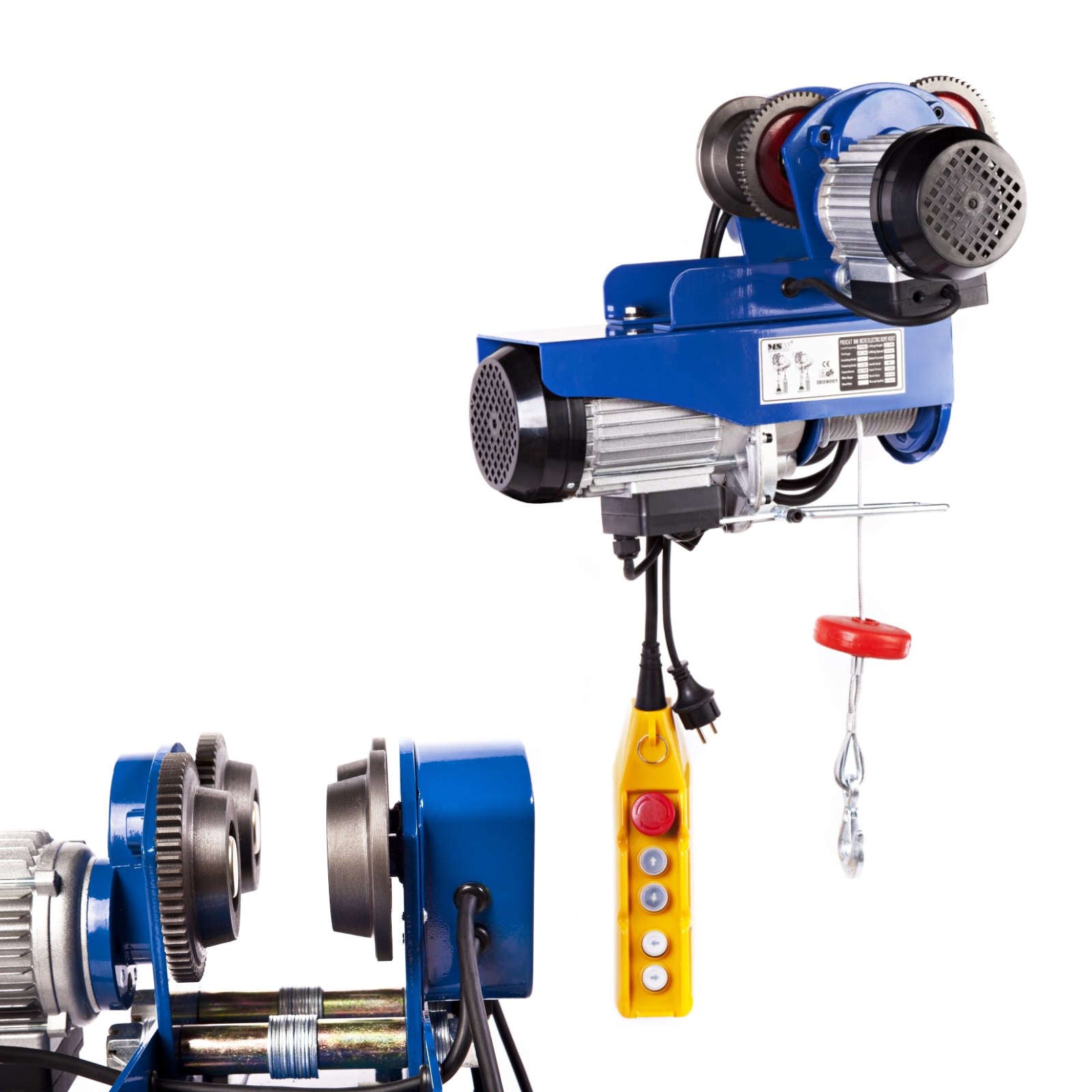

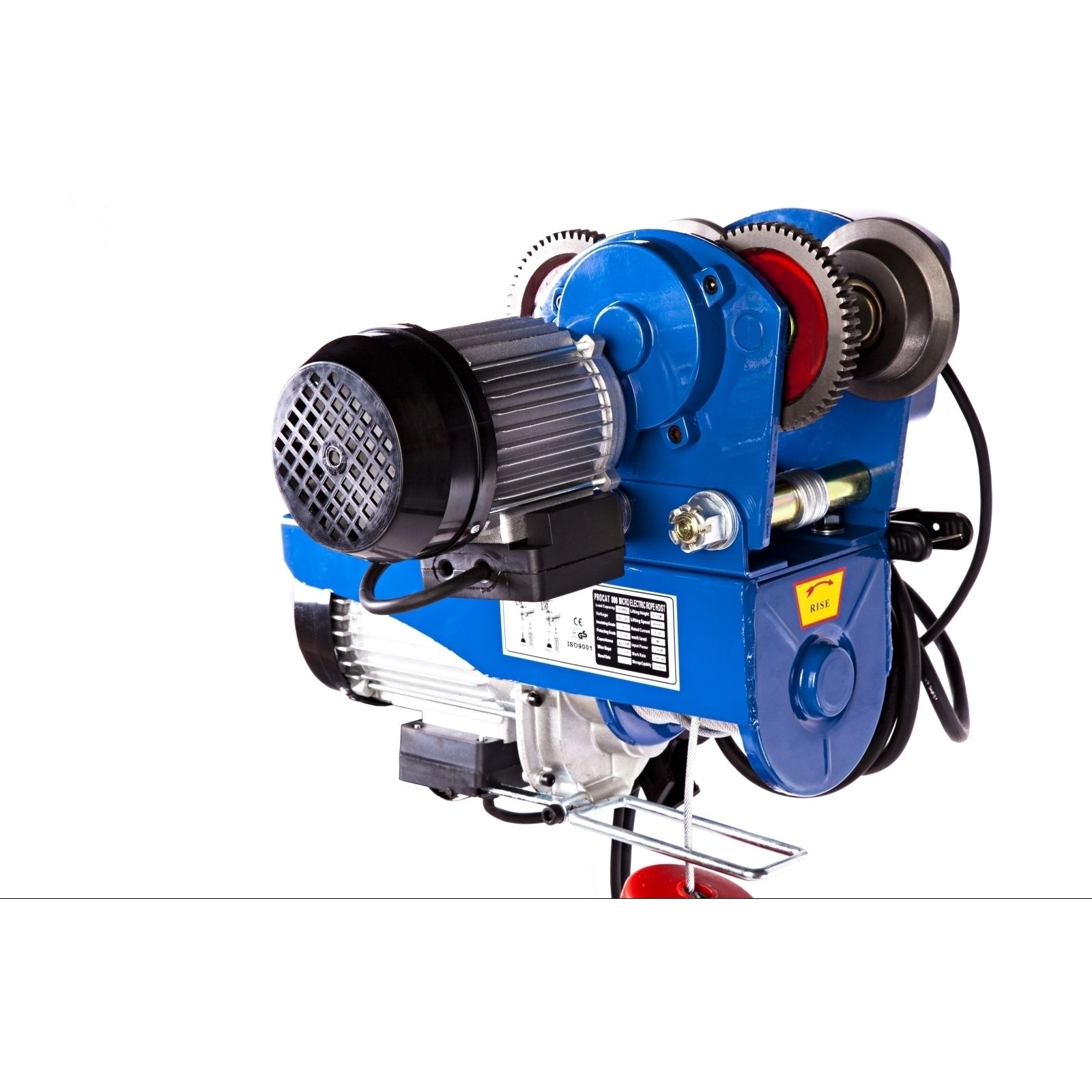

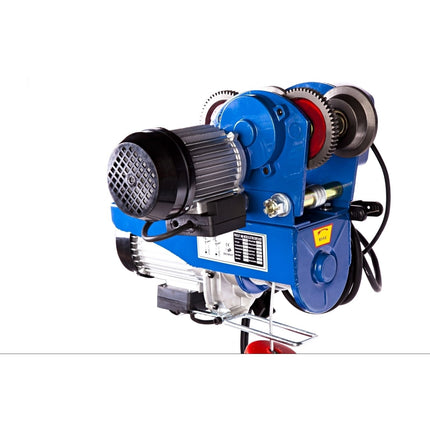

10060013Electric winch with MMA crane it will be ideal in large storage or indoors and outdoors. Thanks to a fast 13 m/min crane, you can carry loads even on a beam with bends, provided that the radius of the arc is at least 1 m.
The electric winch is equipped with a stable steel rope with a length of 12 m and a load capacity of 400 kgIt is made of steel with CK45 and is resistant to twisting and wear, which affects its exceptional durability.
Just use the block to increase the load capacity up to 800 kg. The lifting height will then be 6 m and the lifting speed will decrease by half from 8 to 4 m/min. The hook has a safety lock.
Thanks to the overload protection, the winch will work reliably for a long time, and the 1800 W motor will not overheat. The electromagnetic braking system will guarantee quiet operation. Easy access to the load from all sides will be possible thanks to the 360-deg-turned hook The winch can be operated with a 2.4-metre wired remote.

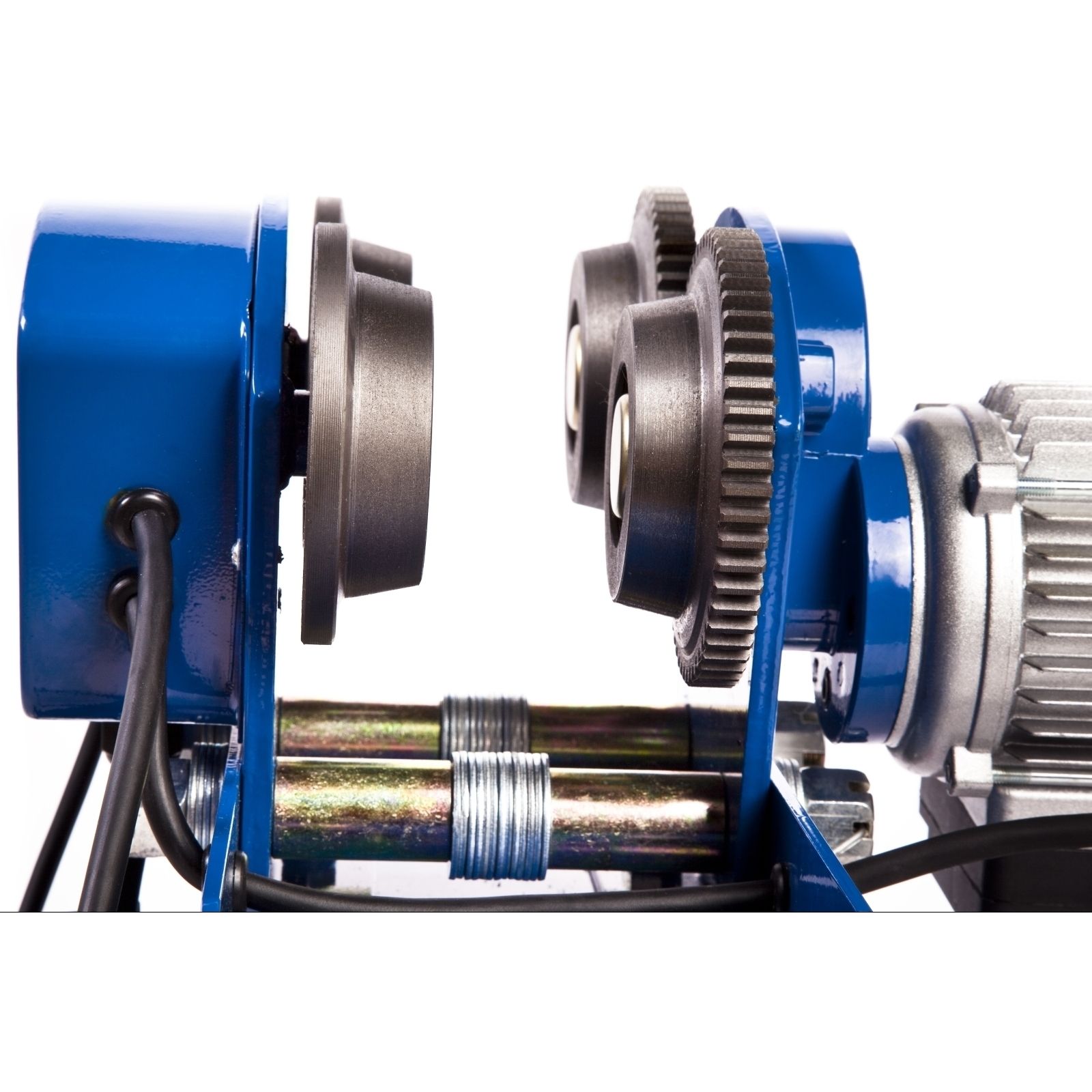

Tractor DAC 800 The steel beam of a width of 68 - 94 mm and a height of at least 110 mm may be attached. These may be high-alloy beams, atheists or two-pieces.
Product features: - - He's lifting weights to 800 kg,
- - Easy access to the cargo, the hook can be turned by 360deg,
- - Lift speed 8 m/min without and 4 m/min with a lock,
- - The crane is also suitable for bend beams,
- - Wired 2.4 m long remote control with stress reduction.
Technical parameters: - - Catalog number - 10060013
- - The state of the article - New
- - Model - PROCAT 800
- - Color - Blue
- - Voltage [V] - 230
- - The rope material - Ck45 steel
- - Type of gearbox grease - EP
- - Electric motor B
- - Cranberry engine B
- - Electric motor IP54
- - Electric motor S3 20% - 10 min
- - The crane engine IP20
- - crane engine S3 20% - 10 min
- - Loading hook - Yes.
- - Pilot - Yes.
- ## I'll swing with a hook ## Yes.
- - The length of the rope - 12 m
- - Pilot wire - 2.4 m
- - Speed of movement - 13 m/mn
- - The diameter of the rope - 5.1 mm
- - Engine - Power - 1300 W
- - The strength of the rope-- 2000 kg
- - The crane engine - power - 540 W
- - Average lower speed - one-way lift - 9.6 m/mn
- - Minimum radius of the curve - 1 m
- - Maximum lifting height 12 m
- - Average lifting speed - with a reel - 4 m/mn
- - Maximum load capacity 400 kg
- - The average drop-down speed - with the reel - 4.8 m/mn
- - Maximum lifting height 6 m
- - Maximum load capacity 800 kg
- - Dimensions (DxSxW) - 49 x 41 x 41 cm
- - Weight - 35.5 kg
- - Dimensions of dispatch (DxSxW) - 53.2 x 48.2 x 48.2 cm
- - Weight of shipping - 39.26 kg
Included: - - Cable winch with crane
- - Electric winch
- - I'll shut up.
