Apraksts
Manufacturer's code:

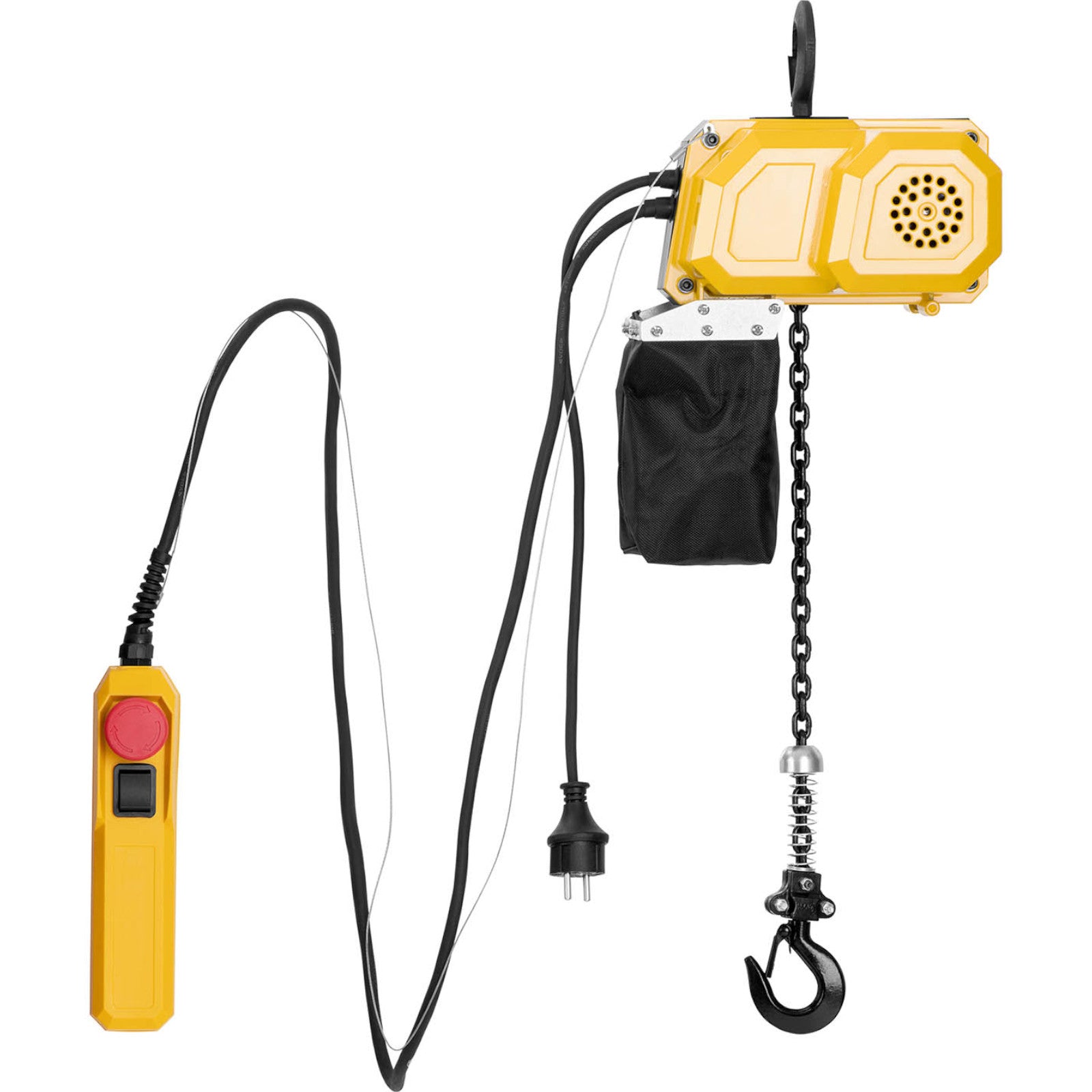

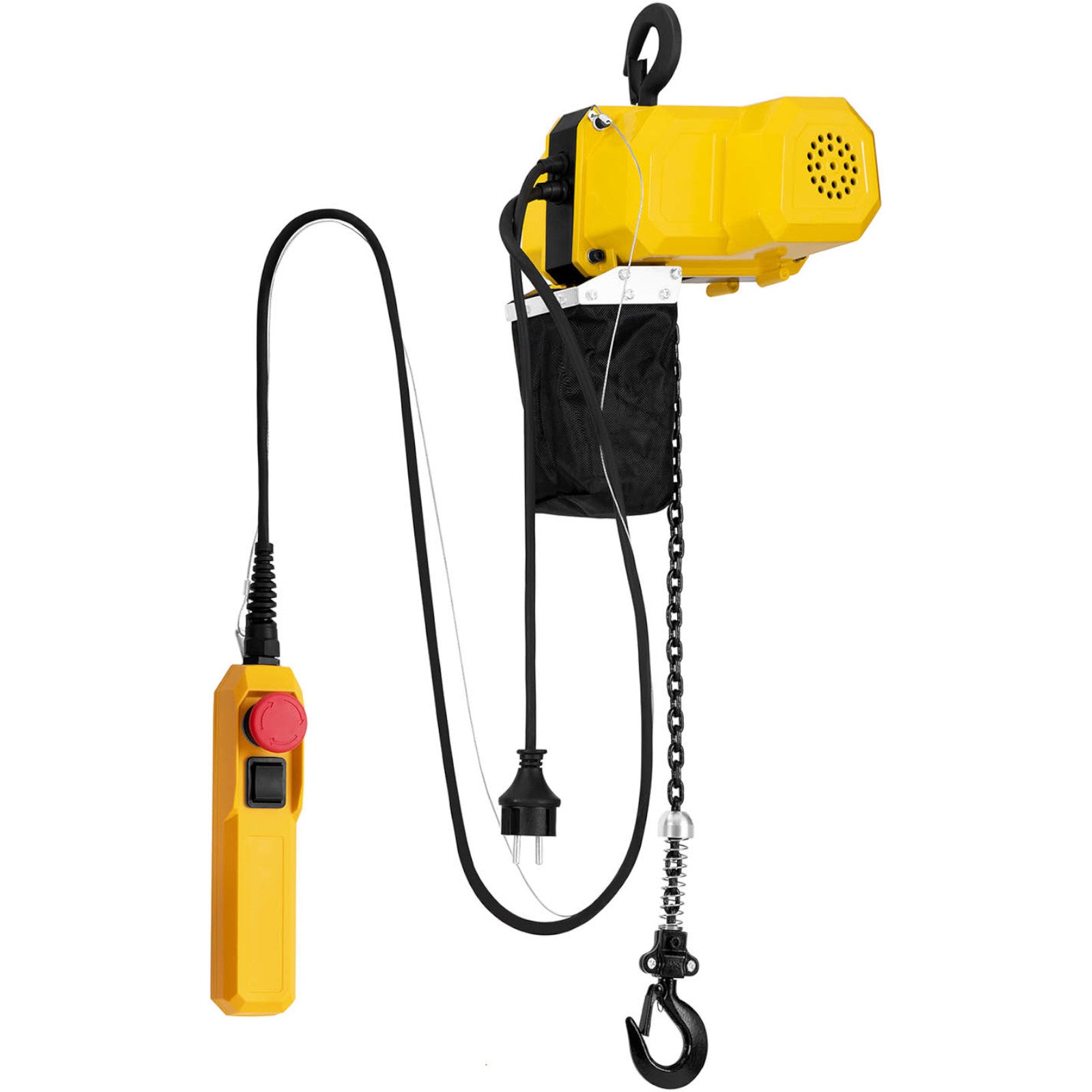

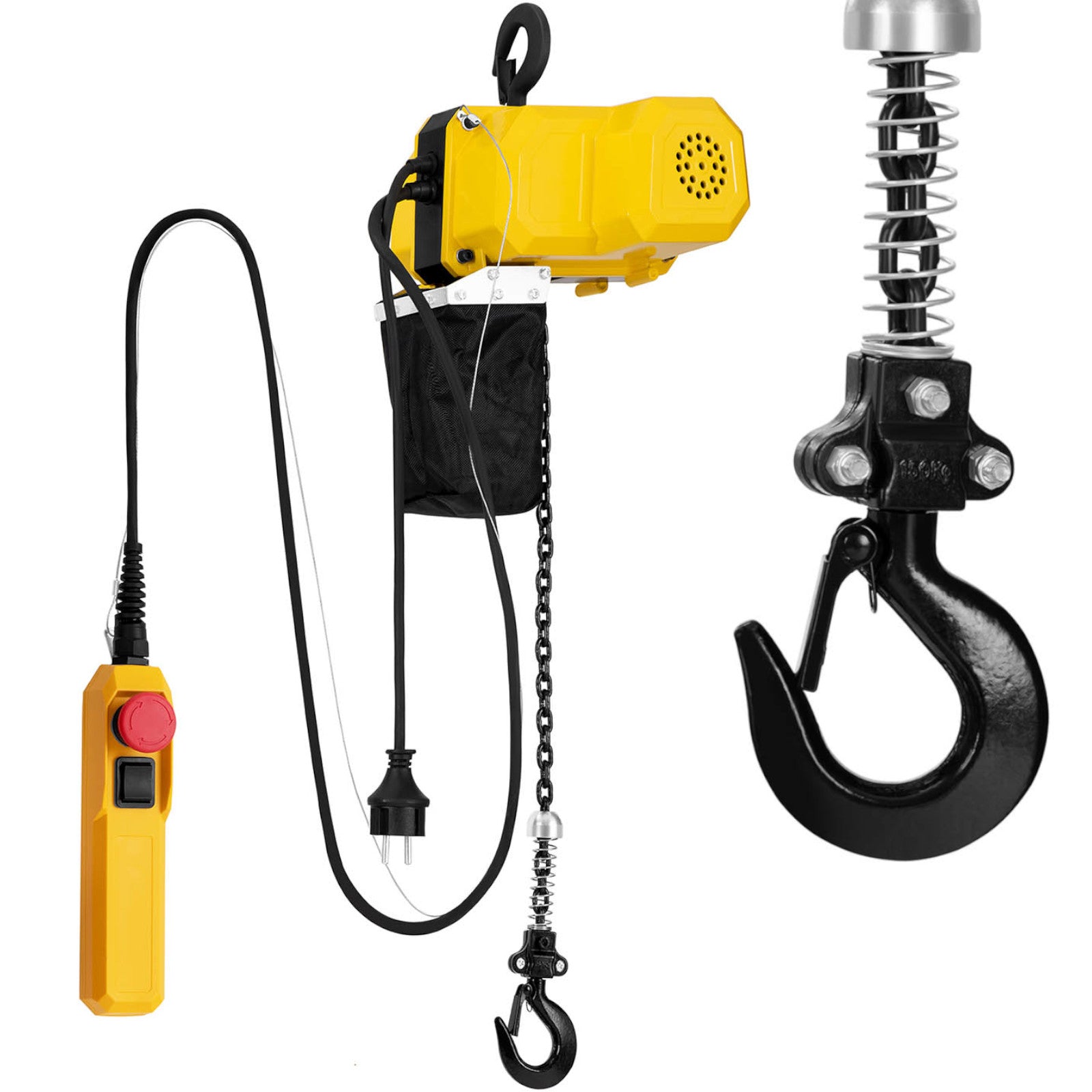

10030800Steinberg Systems cable winch it is suitable for lifting heavy loads in the warehouse and workshop. The winch has an engine with power
240 Wwhich allows lifting heavy loads to height up to
6 mThe lifting speed is

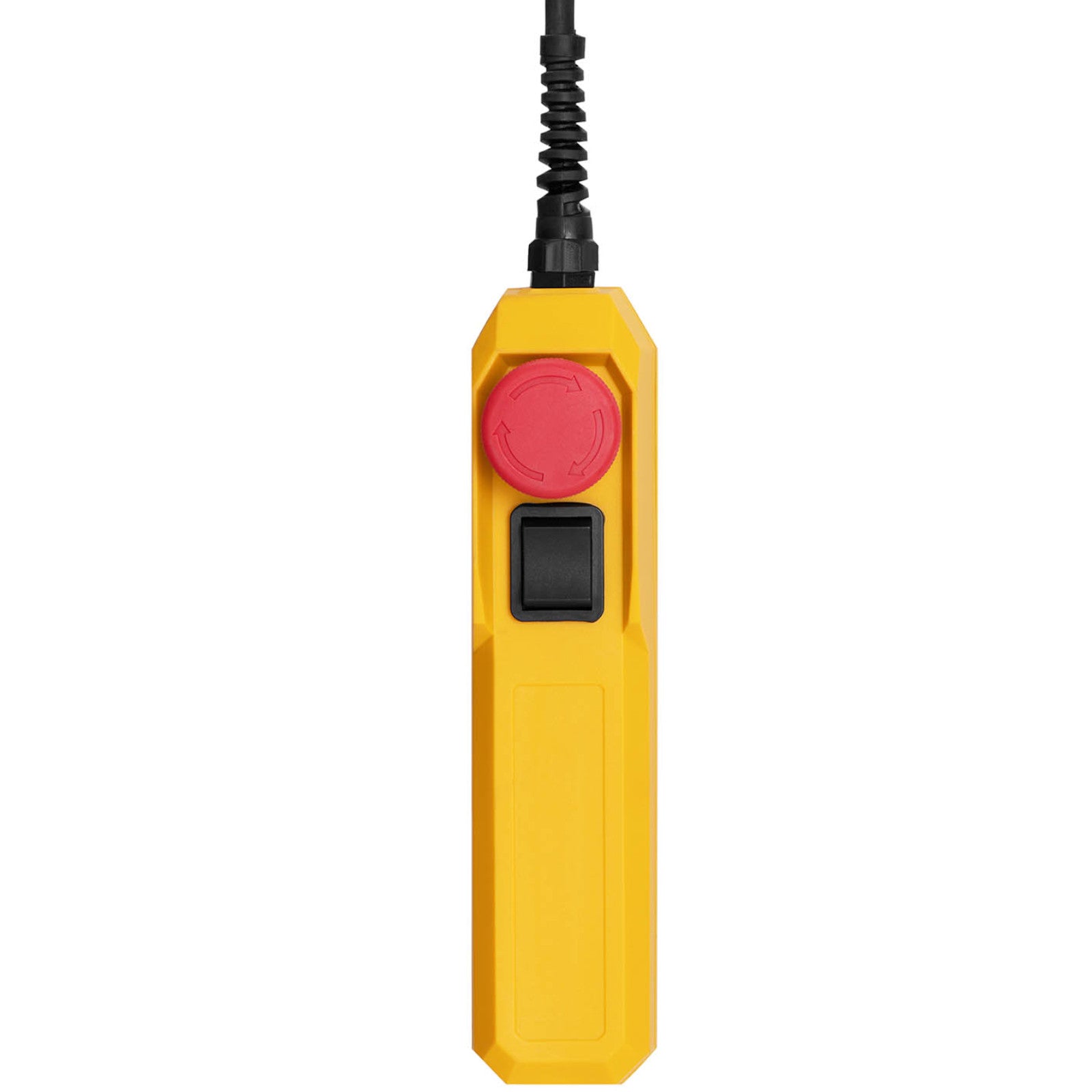

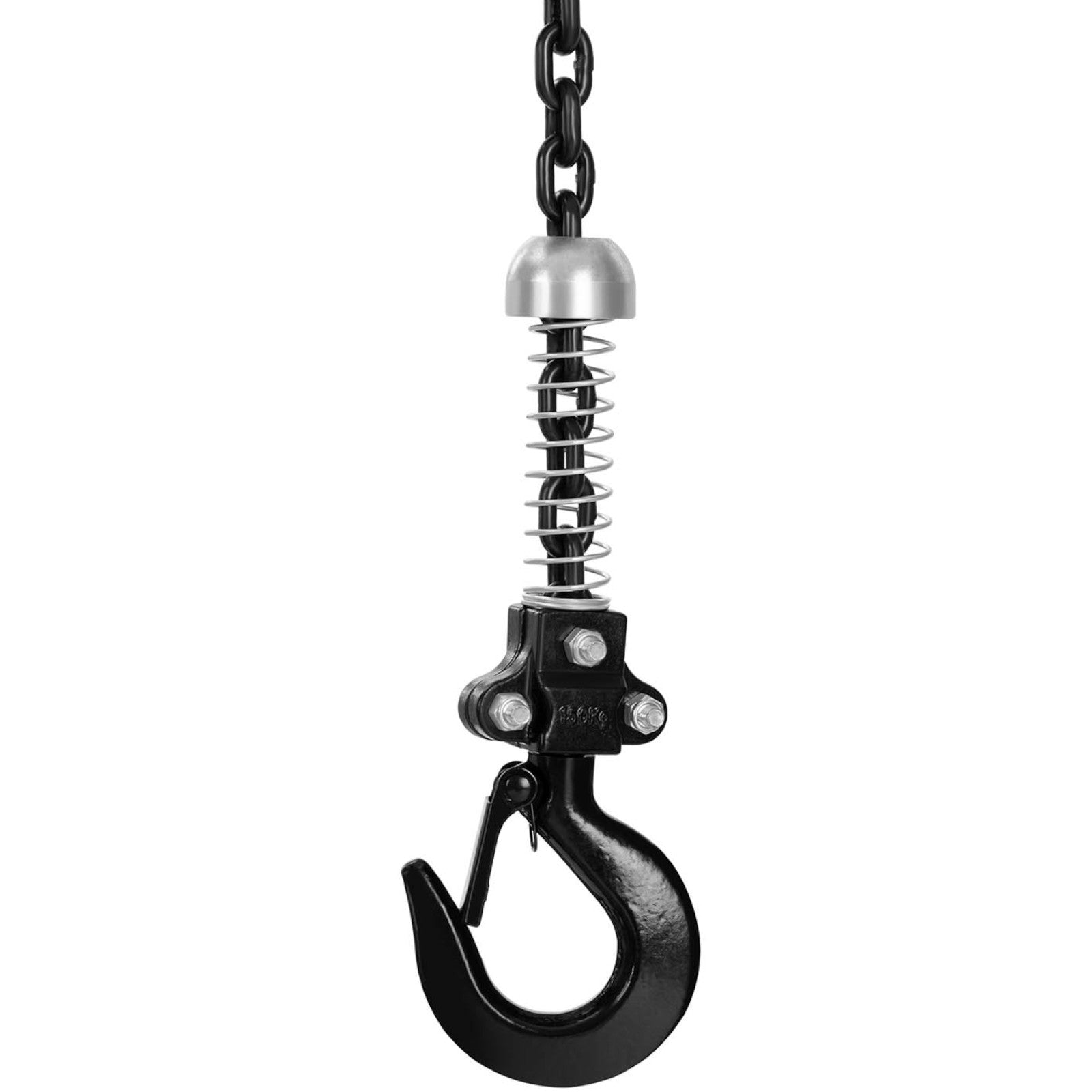

3m/minThe wired remote control allows you to control the device from a distance. The emergency switch stops the chain. The cargo hook has
safety lockwhich ensures safe transport of the fixed object. Stainless steel chain
diameter 4 mm is robust and wear-resistant. Suitable for lifting heavy goods
up to 150 kgThe device housing was made of durable
steelThe winch has a class of protection.
IP54It also has protection against overload.
Product features: - - A chain-cup with a lifting capacity of 150 kg.
- - Height of lifting 6 m,
- - Raises charges at a speed of 3 m/min,
- - Steel chain with a diameter of 4 mm,
- - Protection class IP54 and emergency switch.
Technical parameters: - - Model - SBS-EH-150/6
- - Catalog number - 10030800
- - The state of the article - New
- - Voltage [V] - 230
- - Load [kg] - 150
- - The diameter of the chain [mm] - 4
- - Material - Steel, copper
- - Permissible load [kg] - 150
- - Maximum load [kg] - 150
- - Engine power [W] - 240
- - Max. lifting height [m] - 6
- - Max. lifting speed - 3
- - IP protection - IP54
- - Loading hook - Yes.
- - Emergency switch - Yes.
- - Dimensions (DxSxW) [cm] - 22.5 x 18 x 21.5
- - Weight [kg] - 9
- - Dimensions of dispatch (DxSxW) [cm] - 31 x 31 x 26
- - Weight of dispatch [kg] - 9,9
Included: - - Cable winch
- - User manual
