Apraksts
Manufacturer's code:

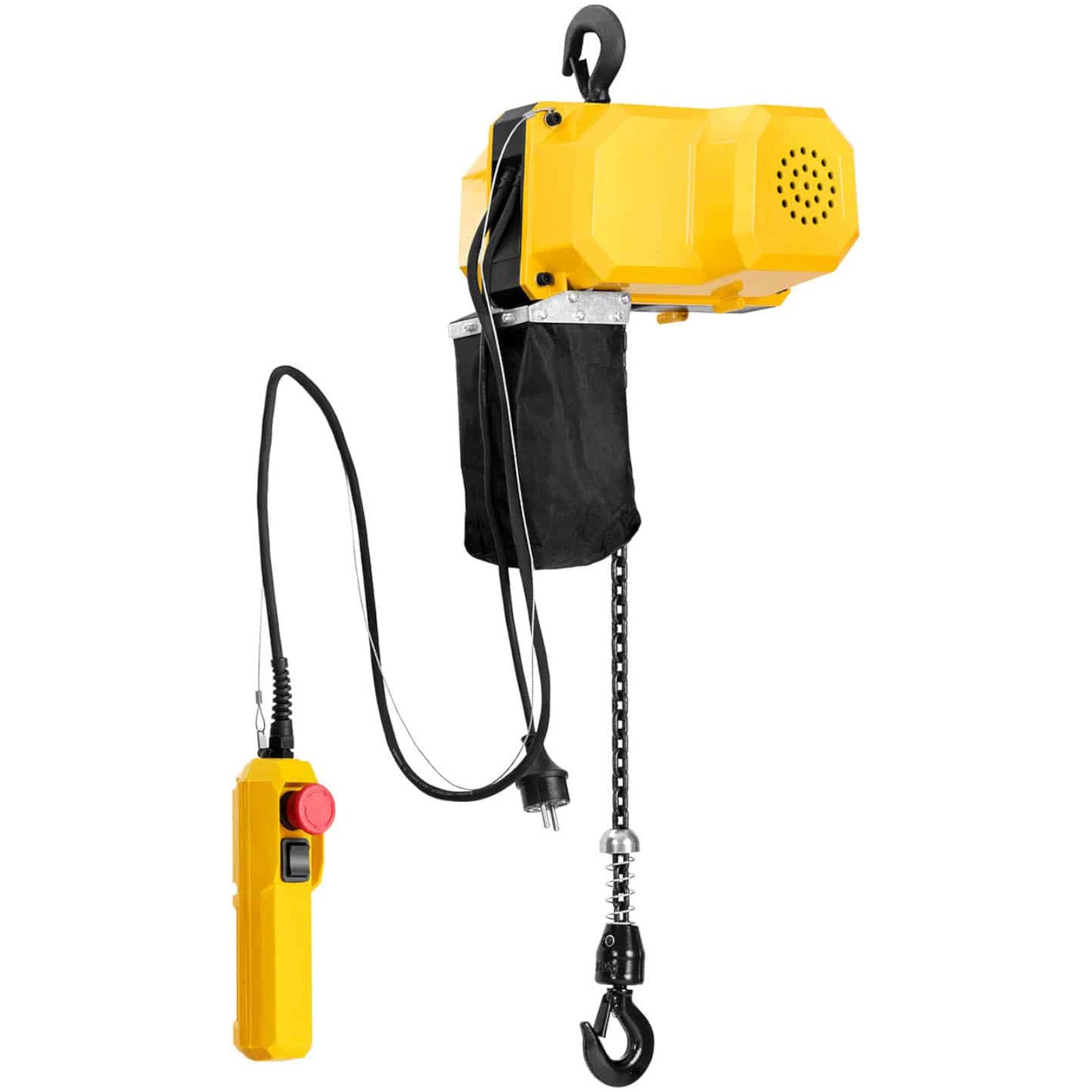

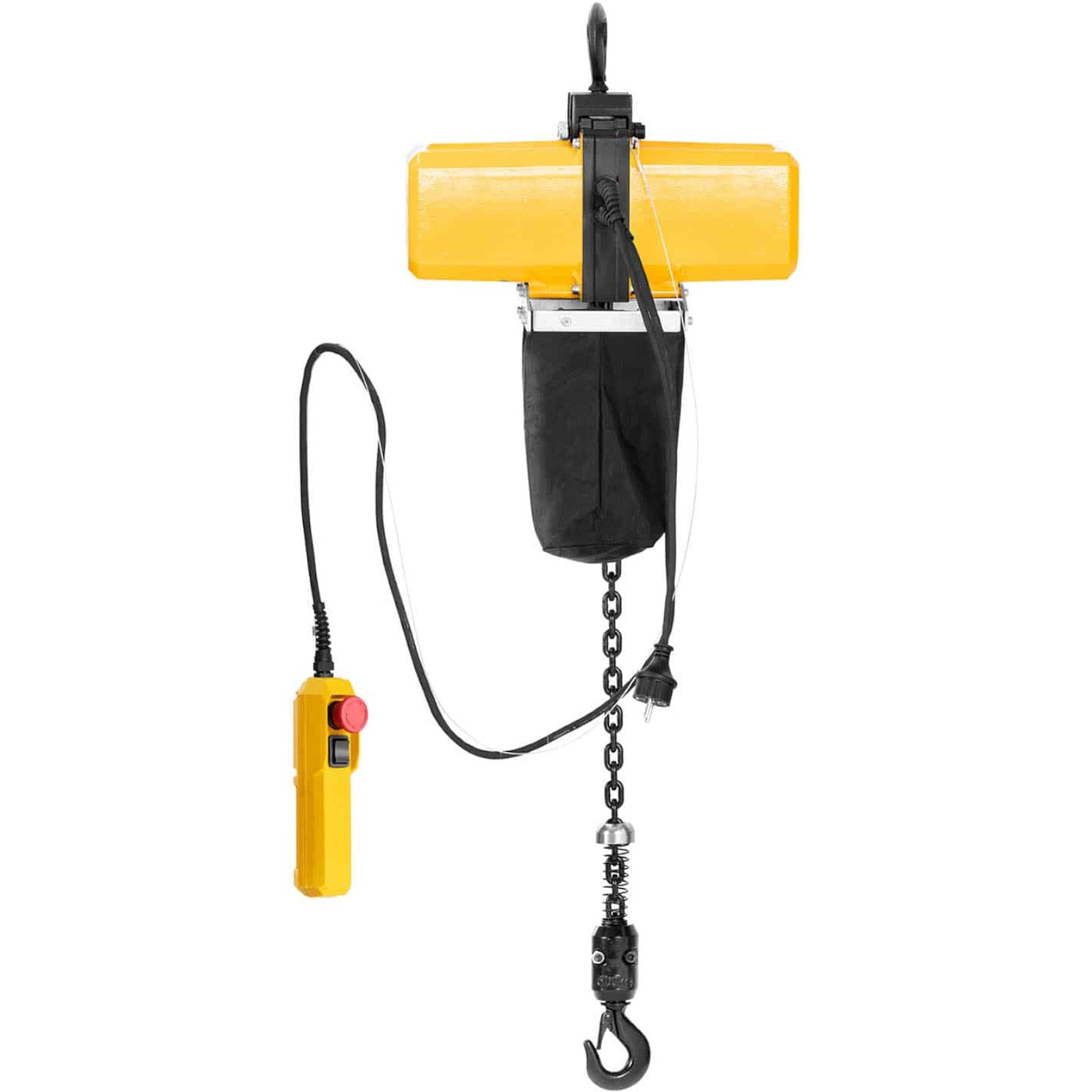

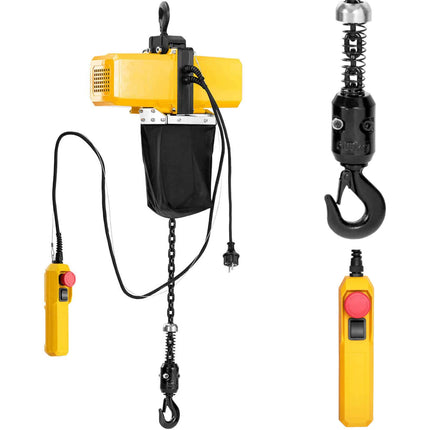

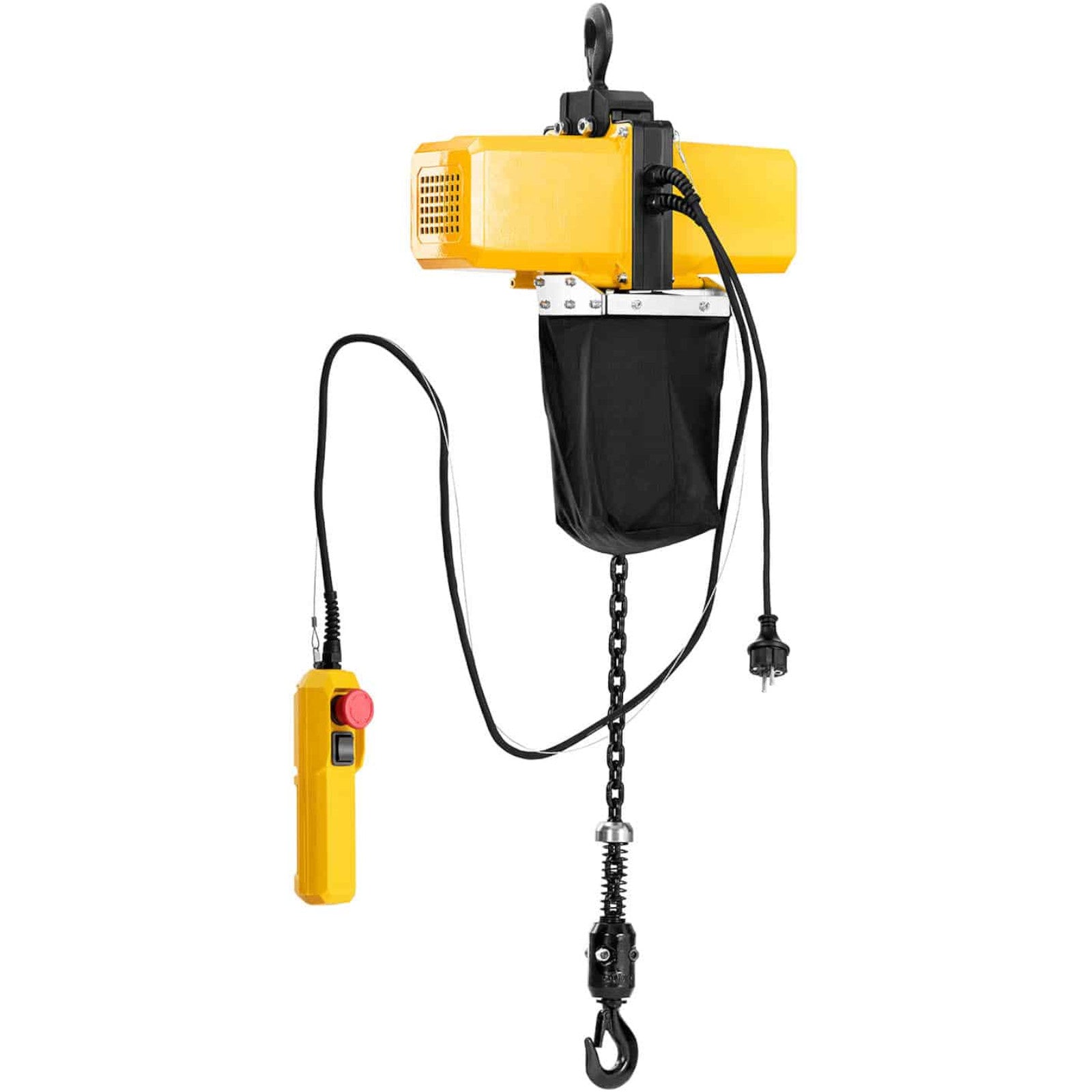

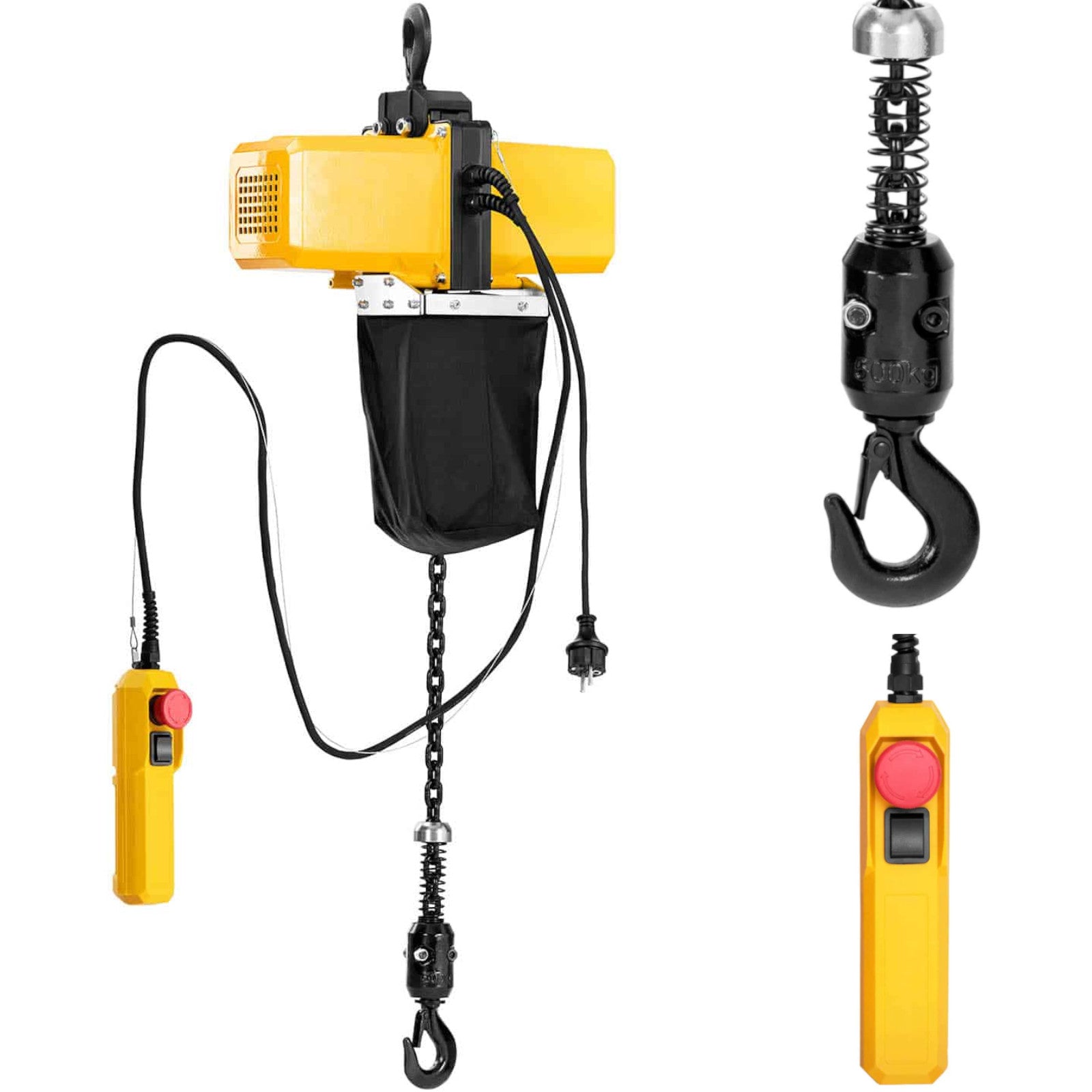

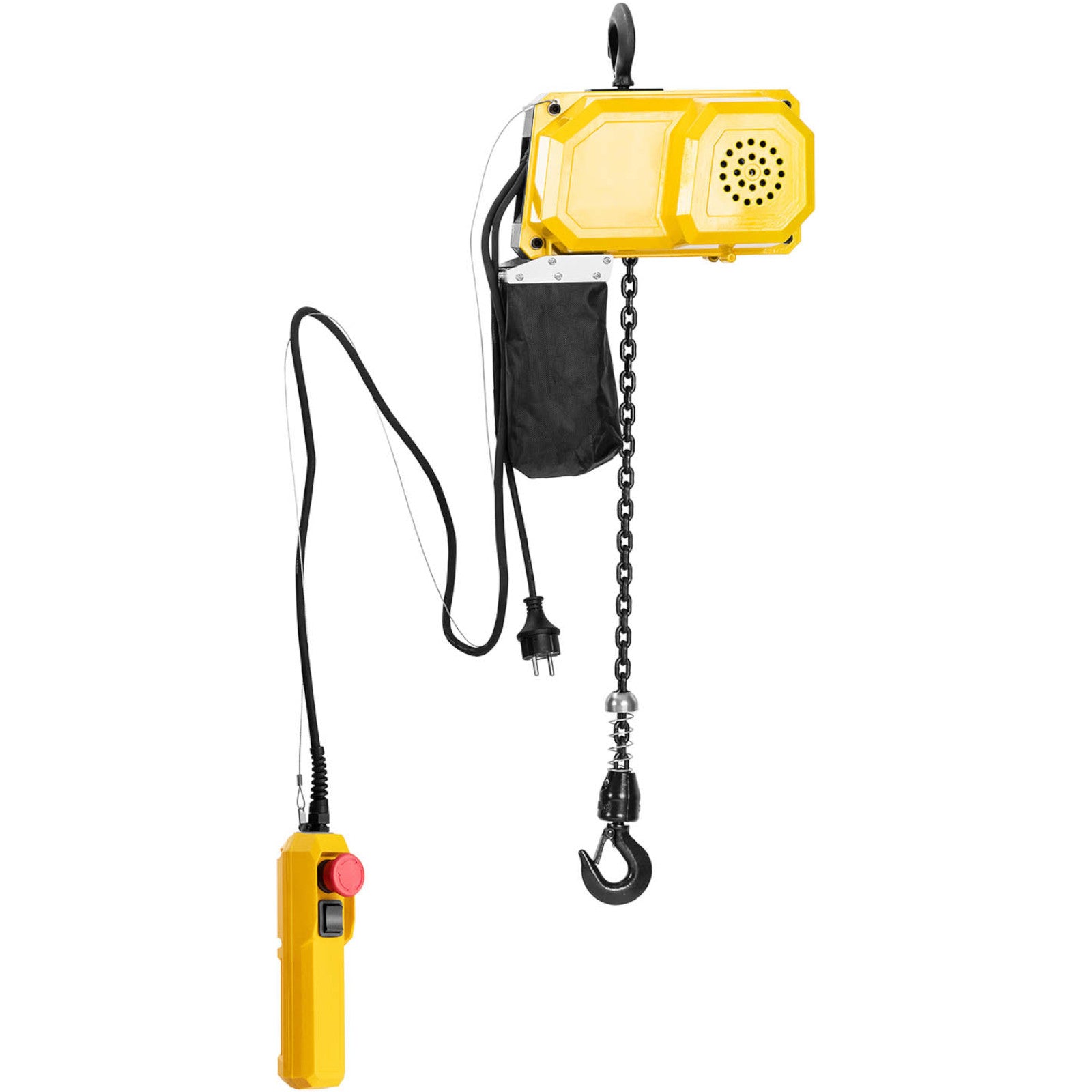

10030798Steinberg Systems Chain Puller allows lifting and lowering loads up to
500 kgHeight of lifting
3 m The solid hook allows you to easily attach the device. The 680 W motor enables quick and effortless operation. The lifting speed is up to 3m/min.

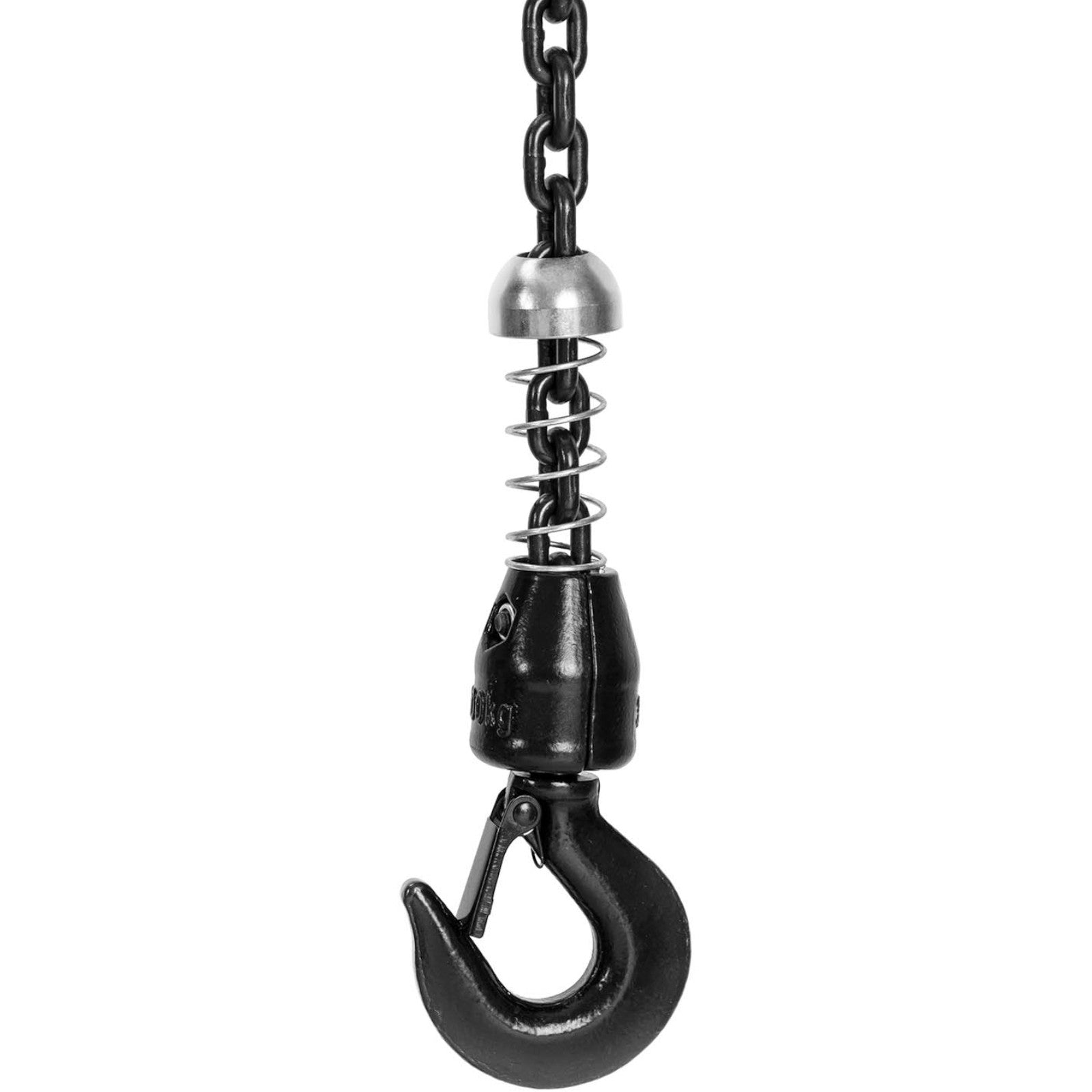

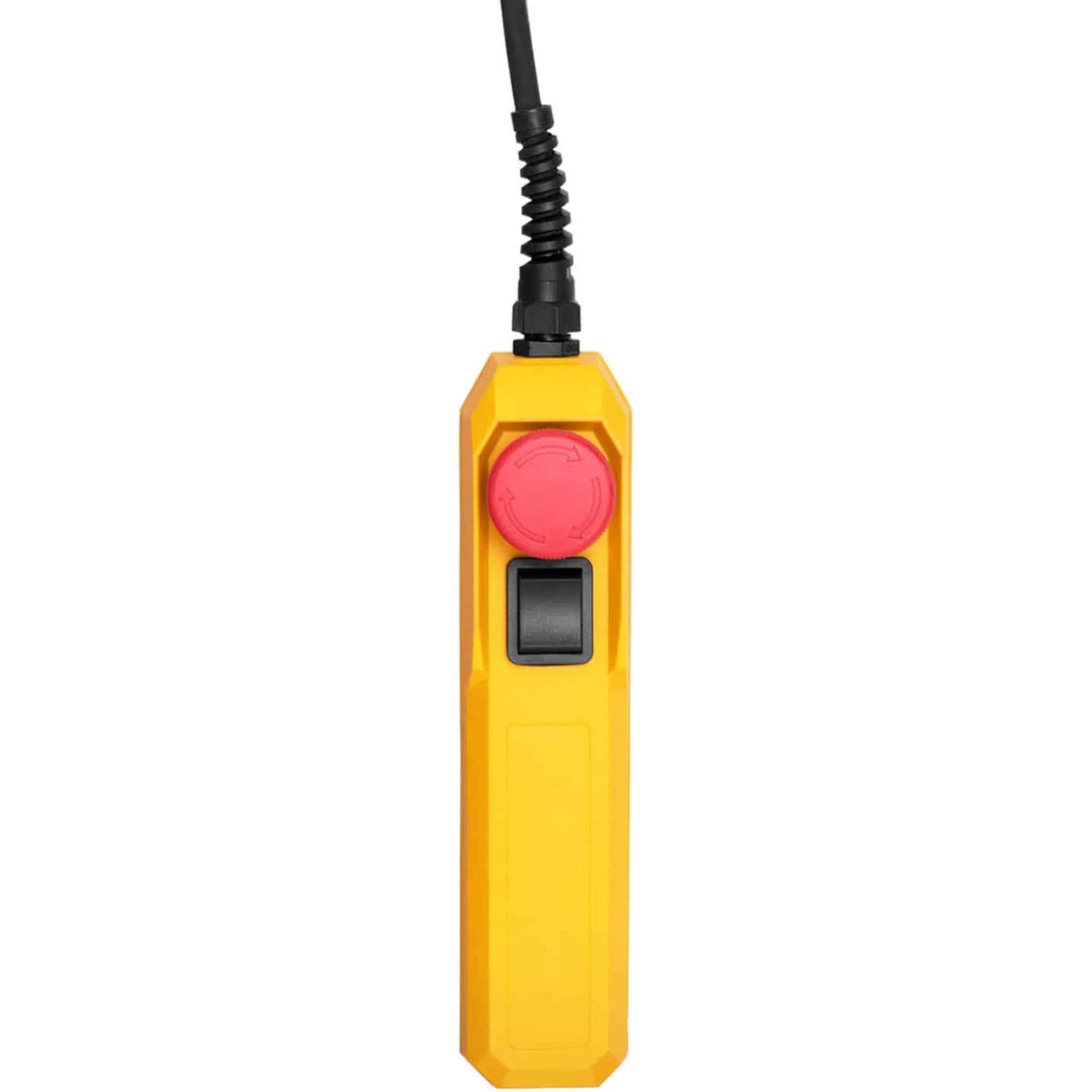

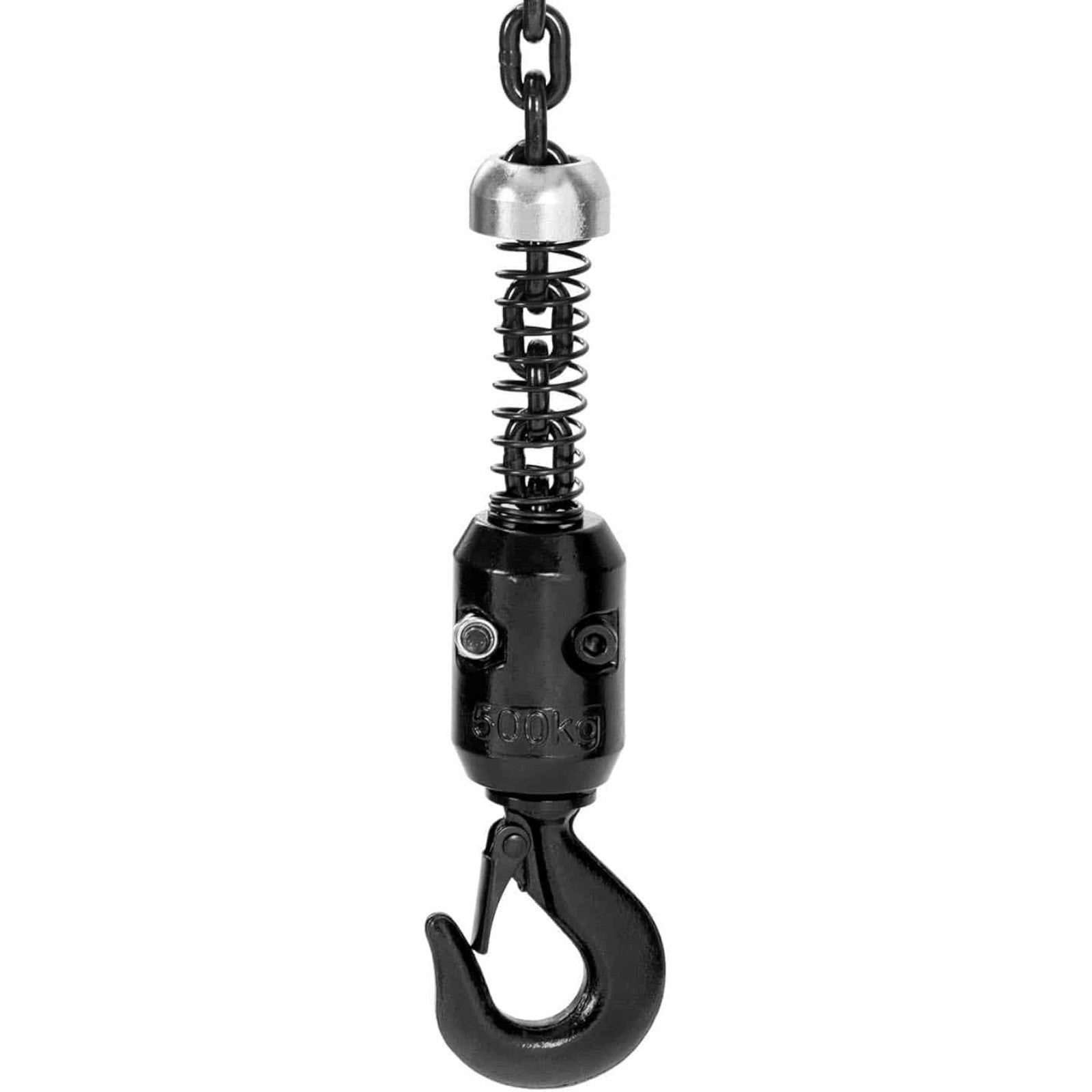

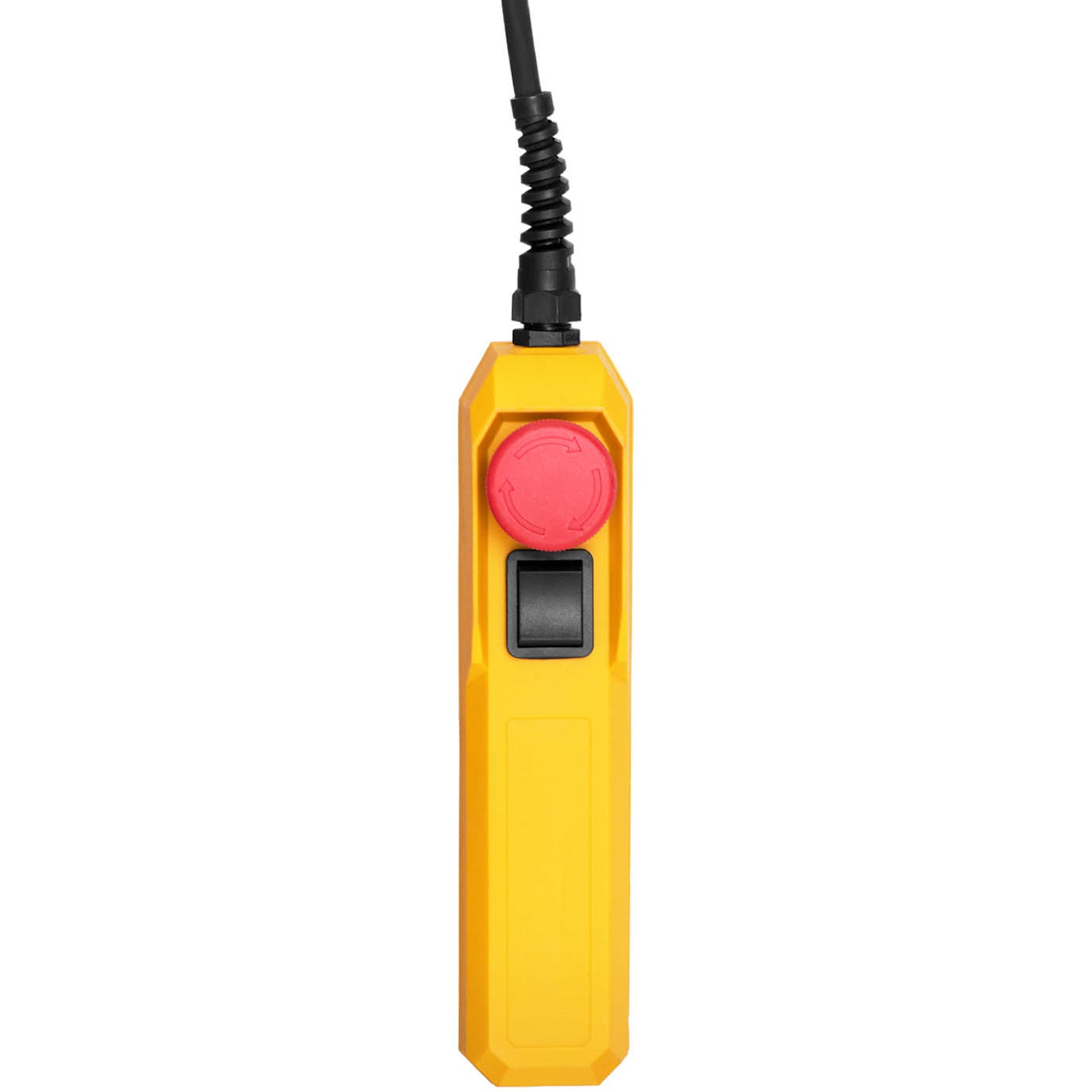

Pilot The emergency switch on the remote control stops the device in case of danger. The cargo hook is equipped with a safety lock that ensures safe transport of the goods. The stainless steel chain with a diameter of 6.3 is robust and wear-resistant. The steel case is scratch-resistant, spray-resistant or corrosion-resistant. The extractor has IP54 protection class, is protected against dirt or water penetration. It also has protection against overload.
Product features: - - 500 kg lifting capacity,
- - Height of lifting 3 m,
- - Raises charges at a speed of 3 m/min,
- - Steel chain with a diameter of 6.3 mm,
- - Protection class IP54 and emergency switch.
Technical parameters: - - Catalog number - 10030798
- - The state of the article - New
- - Model - SBS-ECH-500/3
- - Voltage [V] - 230
- - Load [kg] - 500
- - The diameter of the chain [mm] - 6,3
- - Power [W] - 680
- - Material - Steel, copper
- - Permissible load [kg] - 500
- - Maximum load [kg] - 500
- - Engine power [W] - 680
- - Max. lifting height [m] - 3
- - Max. lifting speed - 3
- - IP protection - IP54
- - Loading hook - Yes.
- - Emergency switch - Yes.
- - Dimensions (DxSxW) [cm] - 38 x 17.5 x 30
- - Weight [kg] - 18,5
- - Dimensions of dispatch (DxSxW) [cm] - 48 x 36 x 32
- - Weight of dispatch [kg] - 21,9
Included: - - Chain winch
- - User manual
