Pellet machine, industrial sawdust feed pellet machine, 100 kg/h dia. 120mm

Apraksts

Manufacturer's code: 10280043
The professional industrial pellet machine by Wiesenfield is used to produce pellets, animal feed and granules from various organic materials. The granulator allows you to use wood sawdust, straw, nut shells, rice husks or paper. They are placed in a special matrix with holes of 6 mm in diameter, where they are exposed to high pressure and temperature (60-80 degrees Celsius). Some materials require the use of special binders. The pellet machine is capable of producing60-100 kg of feedand40-60 kg of sawdust pelletsper hour. A specialemergency brake ensures user protection. 4 wheels ensuremobility of the machine and facilitate transport.
Product features:
  • - Production of pellets for heating and fertilization,
  • - Production of fodder for feeding animals,
  • - 3000 W motor,
  • - Die with a diameter of 120 mm,
  • - Pellet diameter 6 mm,
  • - Operating temperature from 60 to 80deg C,
  • - Compact, mobile and easy to use,
  • - Cast iron and alloy steel.

Technical data:
  • - Model - WIE-PM-500
  • - Catalog number - 10280043
  • - Article condition - New
  • - Manufacturer - Wiesenfield
  • - Voltage [V] - 400
  • - User manual - Yes
  • - Emergency stop - Yes
  • - Speed rotation [rpm] - 1430
  • - Housing material - Cast iron
  • - Power [W] - 3000
  • - IP protection level - 55
  • - Frequency [Hz] - 50
  • - Matrix diameter [mm] - 120
  • - Size of die holes [mm] - 6
  • - Sawdust production efficiency [kg/h] - 40-60
  • - Feed production efficiency [kg/h] - 60-100
  • - Continuous operation time [h] - 24
  • - Dimensions (LxWxH) [cm] - 88.5 x 35.5 x 73
  • - Weight [kg] - 77
  • - Shipping dimensions (LxWxH) [cm] - 82 x 35 x 75
  • - Shipping weight [kg] - 87

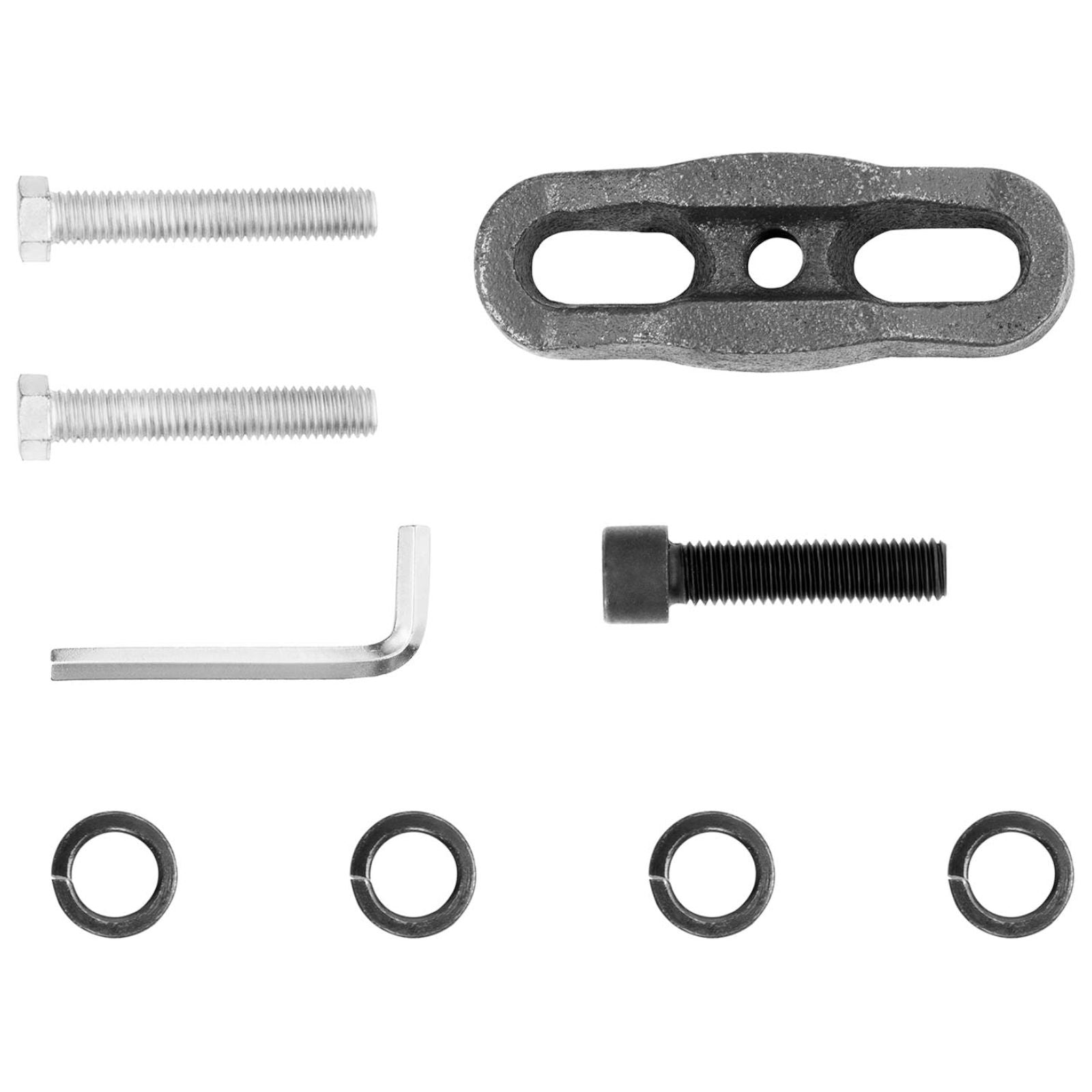

The set includes:
  • - Pellet machine,
  • - Wheels dia. 81 x 22 mm - 4 pcs,
  • - 8 mm Allen key,
  • - Puller,
  • - M10 screws - 5 pcs,
  • - Flat washers dia. 10 mm - 5 pcs.
  • - Spring washers dia. 10 mm - 7 pcs.
  • - Wheel holders - 4 pcs.
  • - User manual.
