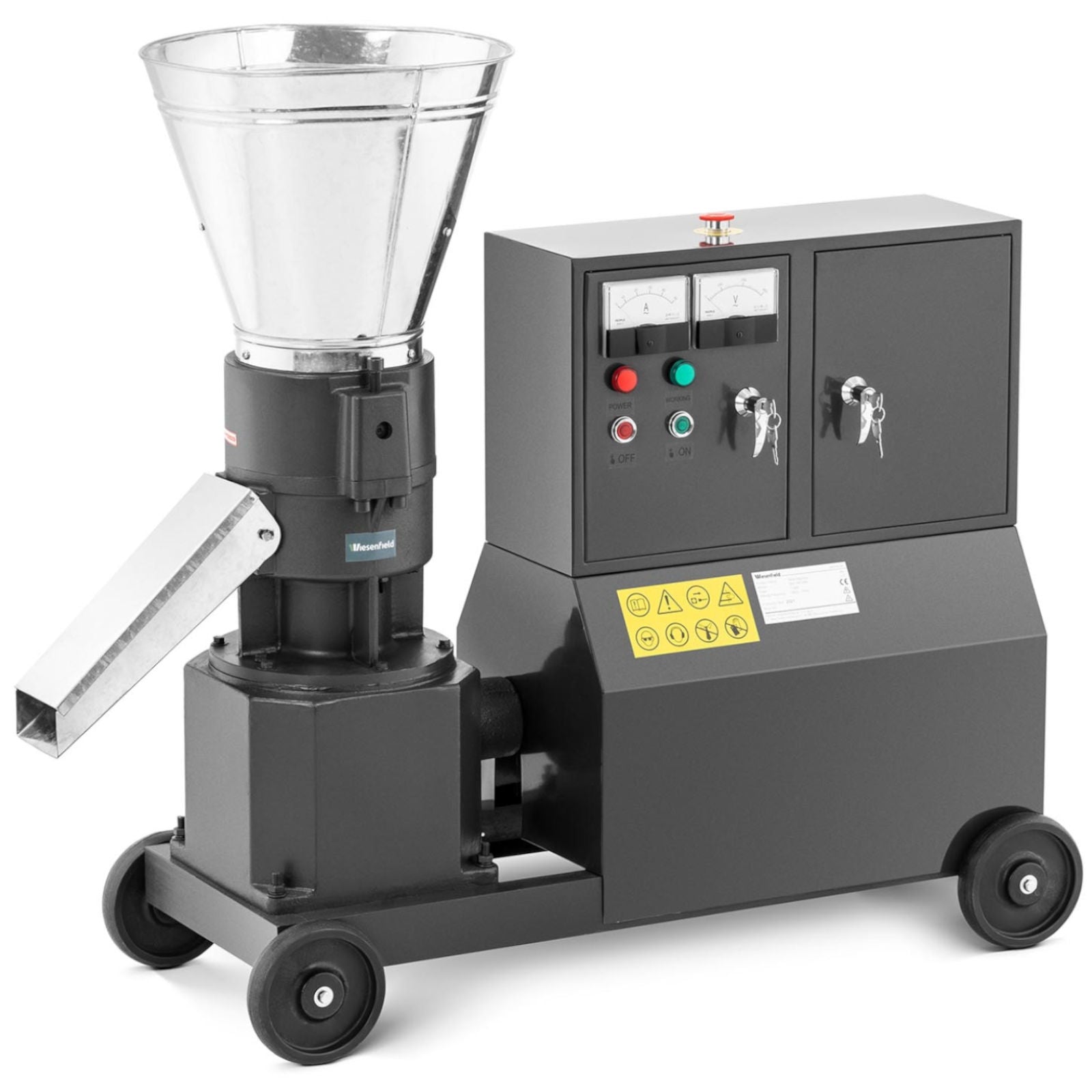

Pellet machine granulator pellet machine sawdust feed mobile 7.5 kW 400 V 300 kg/h dia. 200mm

Apraksts

Manufacturer's code: 10280041

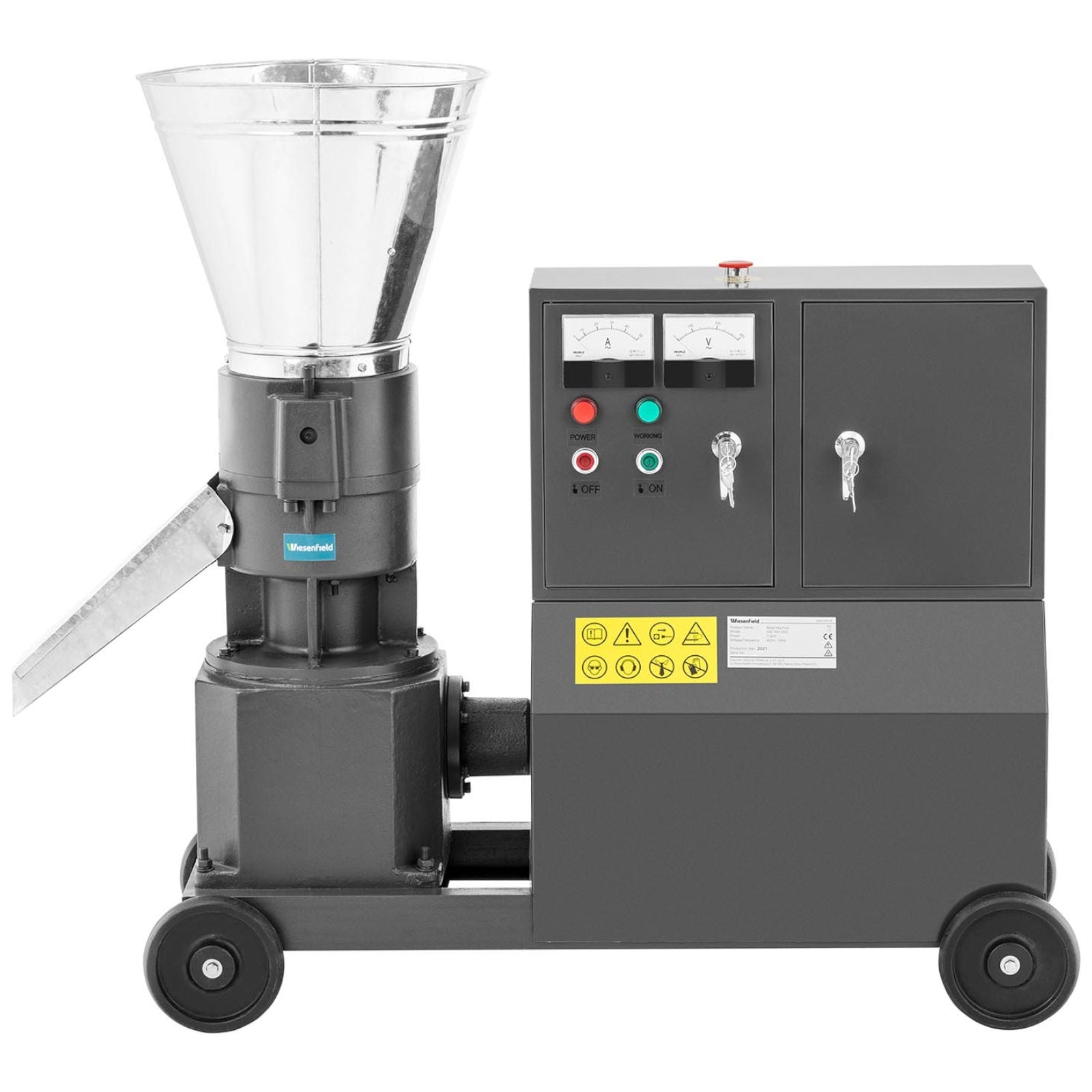

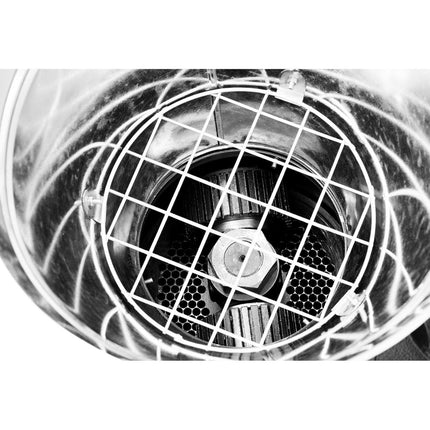

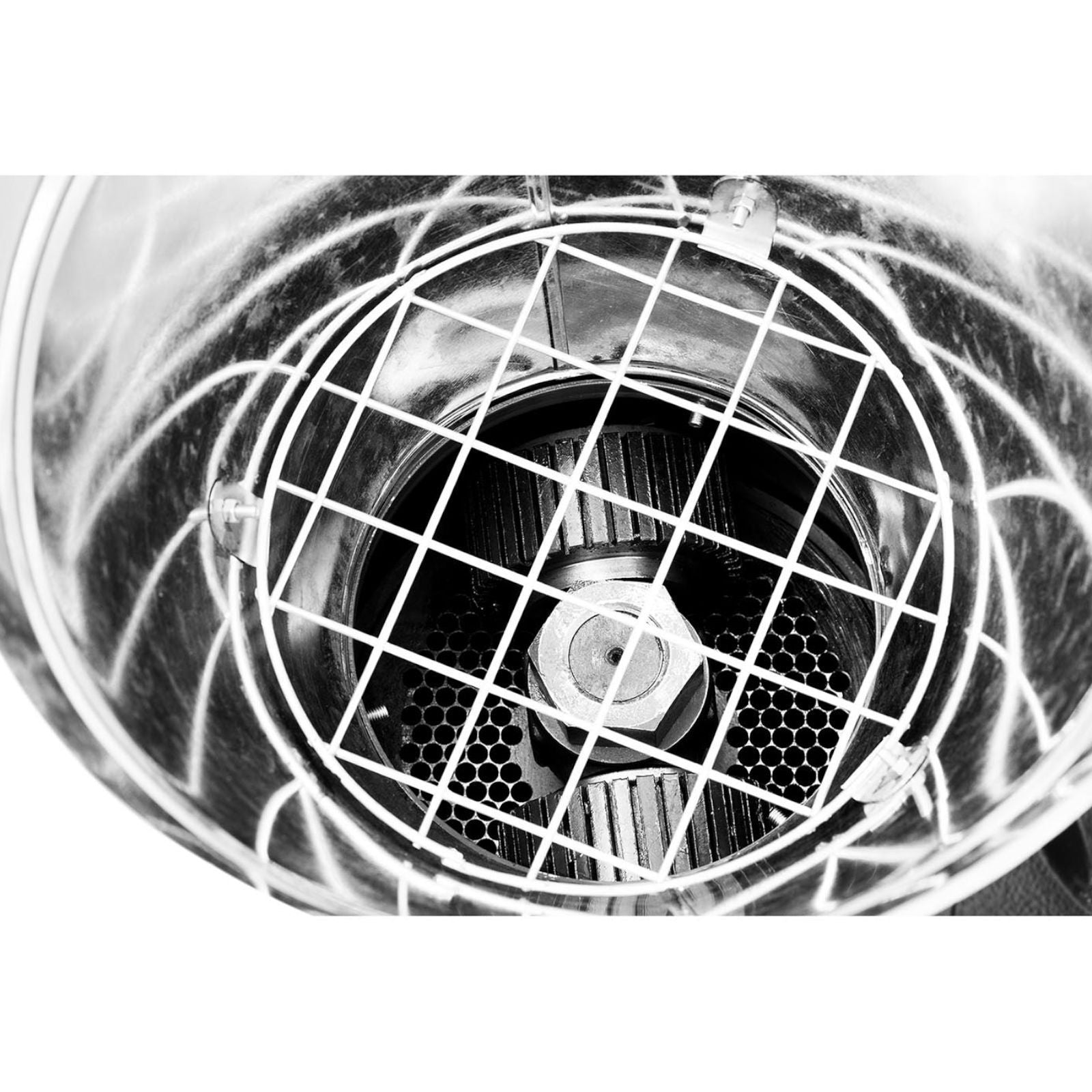

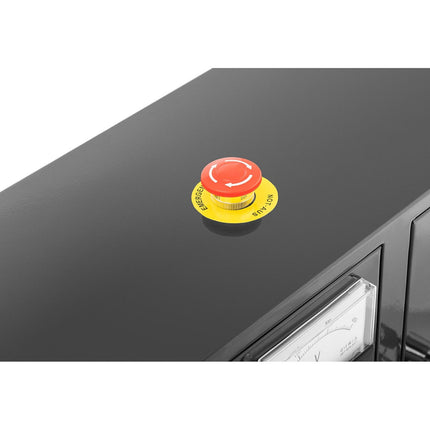

The professional industrial pellet machine by Wiesenfield is used to produce pellets, animal feed and granules from various organic materials. The granulator allows you to use wood sawdust, straw, nut shells, rice husks or paper. They are placed in a special matrix with holes of 6 mm in diameter, where they are exposed to high pressure and temperature (60-80 degrees Celsius). Some materials require the use of special binders. The pellet machine is capable of producing200-300 kg of feedand110-140 kg of sawdust pelletsper hour. A specialemergency brake ensures user protection. 4 wheels ensuremobility of the machine and facilitate transport.
Product features:
  • - Production of pellets for heating and fertilization,
  • - Production of fodder for feeding animals,
  • - 7500 W motor,
  • - Die with a diameter of 200 mm,
  • - Pellet diameter 6 mm,
  • - Operating temperature from 60 to 80deg C,
  • - Compact, mobile and easy to use,
  • - Cast iron and alloy steel.

Technical data:
  • - Model - WIE-PM-1000
  • - Catalog number - 10280041
  • - Article condition - New
  • - Manufacturer - Wiesenfield
  • - Voltage [V] - 400
  • - User manual - Yes

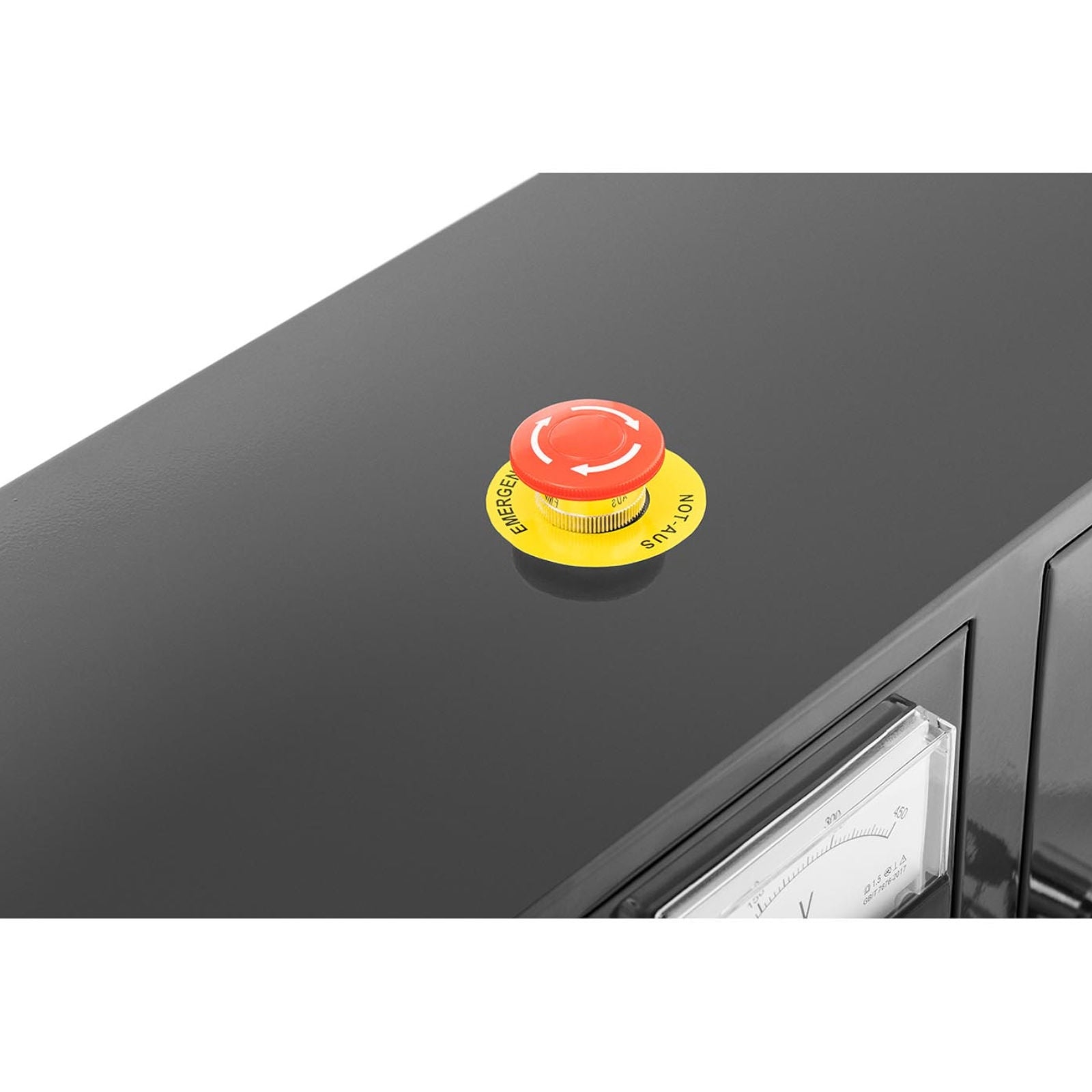

  • - Emergency stop - Yes
  • - Speed rotation [rpm] - 1140
  • - Housing material - Cast iron
  • - Power [W] - 7500
  • - IP protection level - 55
  • - Frequency [Hz] - 50
  • - Matrix diameter [mm] - 200
  • - Size of die holes [mm] - 6
  • - Sawdust production efficiency [kg/h] - 110-140
  • - Feed production efficiency [kg/h] - 200-300
  • - Continuous operation time [h] - 24
  • - Dimensions (LxWxH) [cm] - 123 x 42 x 105
  • - Weight [kg] - 185
  • - Shipping dimensions (LxWxH) [cm] - 100 x 46 x 95
  • - Shipping weight [kg] - 207

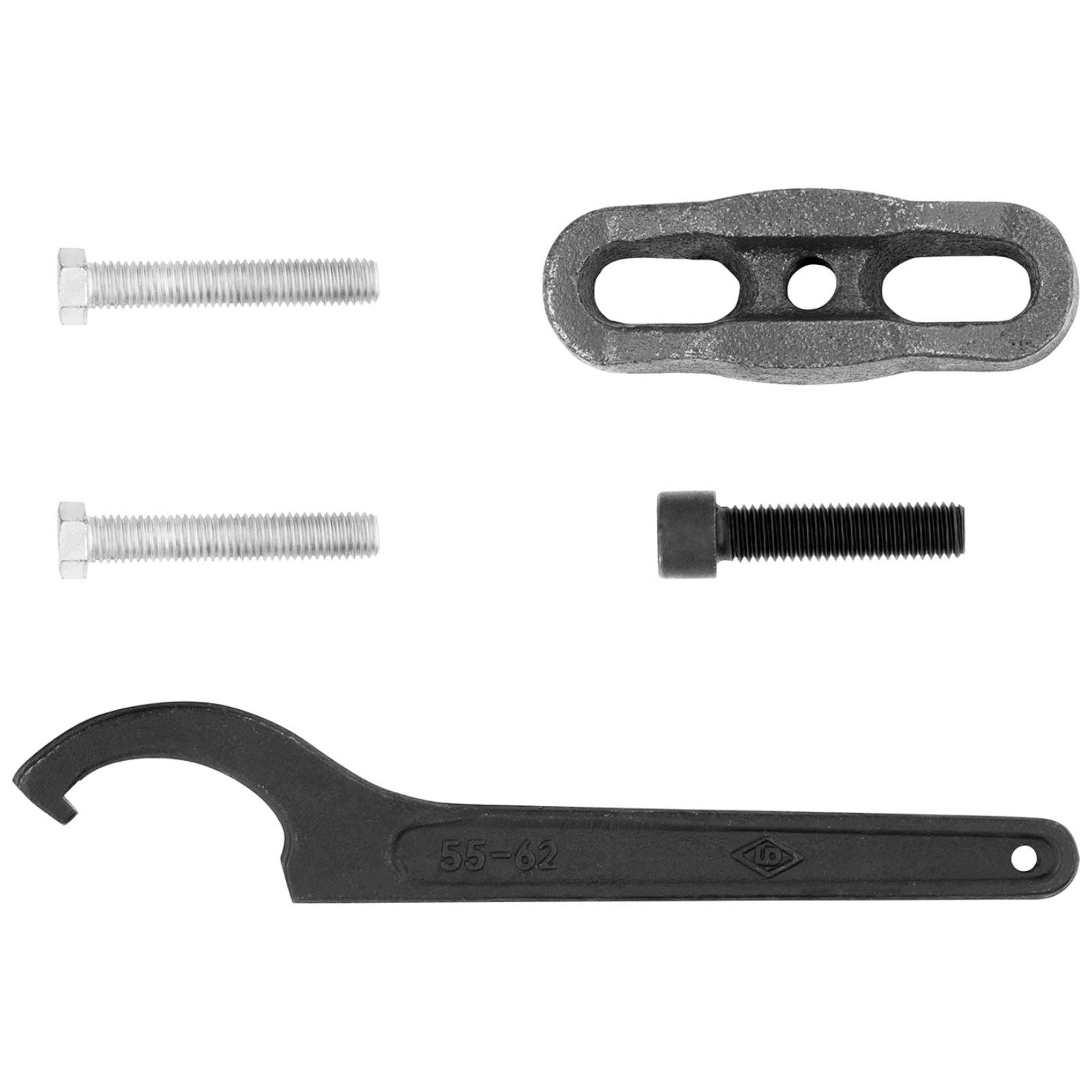

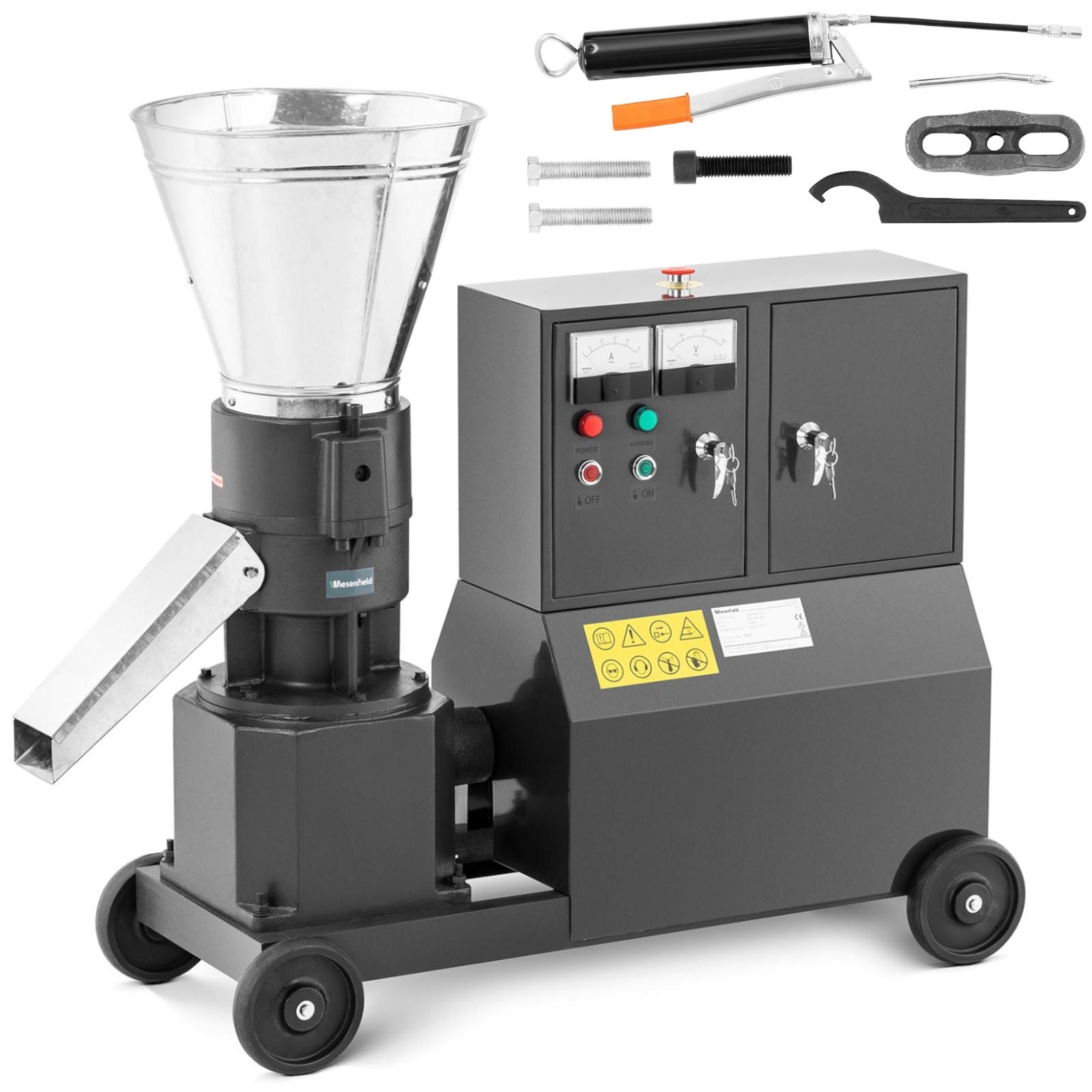

The set includes:
  • - Pellet machine,

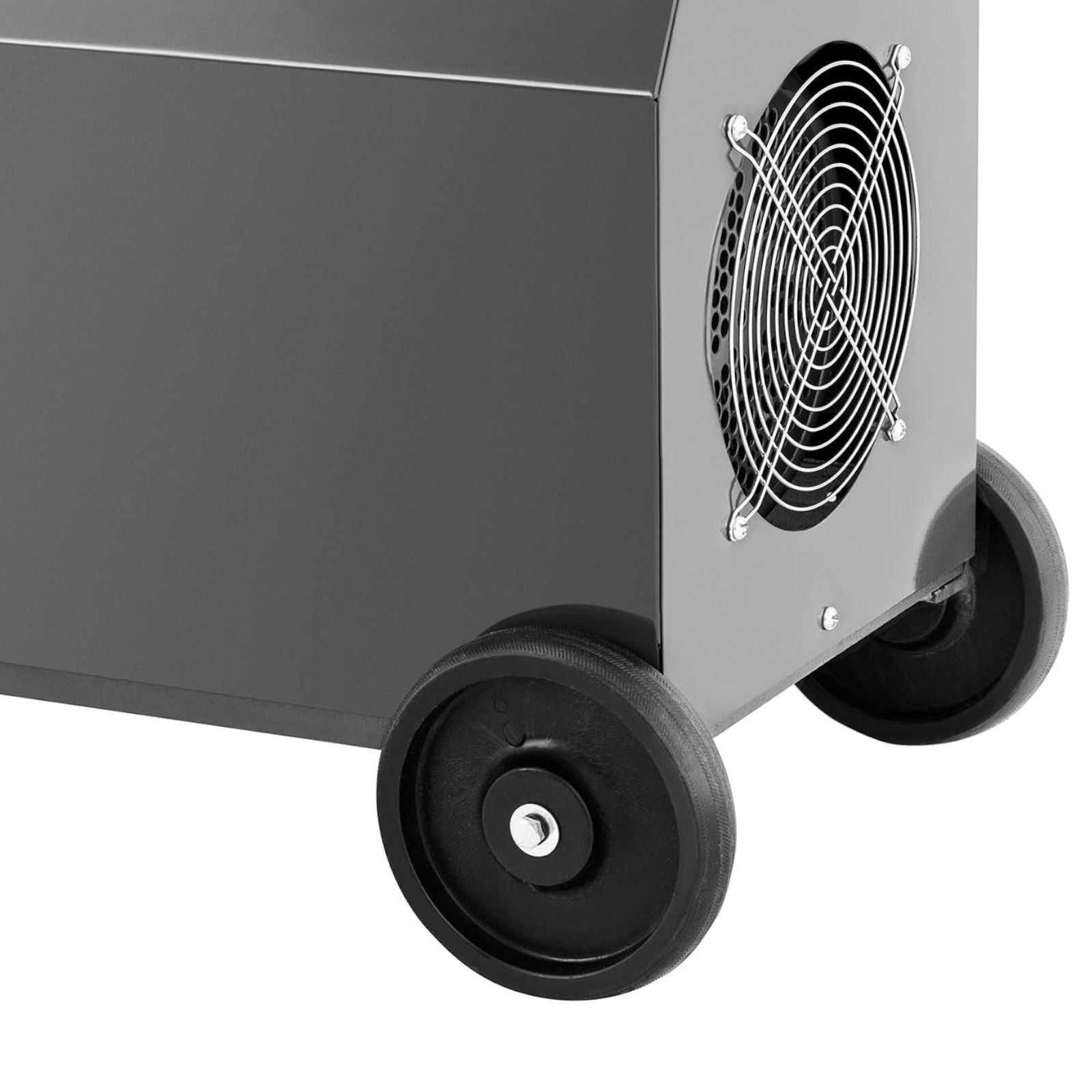

  • - Wheels dia. 160 x 33 mm - 4 pcs.,
  • - 10 mm Allen key,
  • - Puller,
  • - M8 x 16 mm screws - 5 pcs.,
  • - Flat washers dia. 8 mm - 5 pcs.
  • - Spring washers dia. 8 mm - 5 pcs,
  • - Wheel holders - 4 pcs,
  • - M10 x 45 mm screws - 2 pcs,
  • - Flat washers dia. 10 mm - 2 pcs.
  • - Screw M12 x 45 mm,

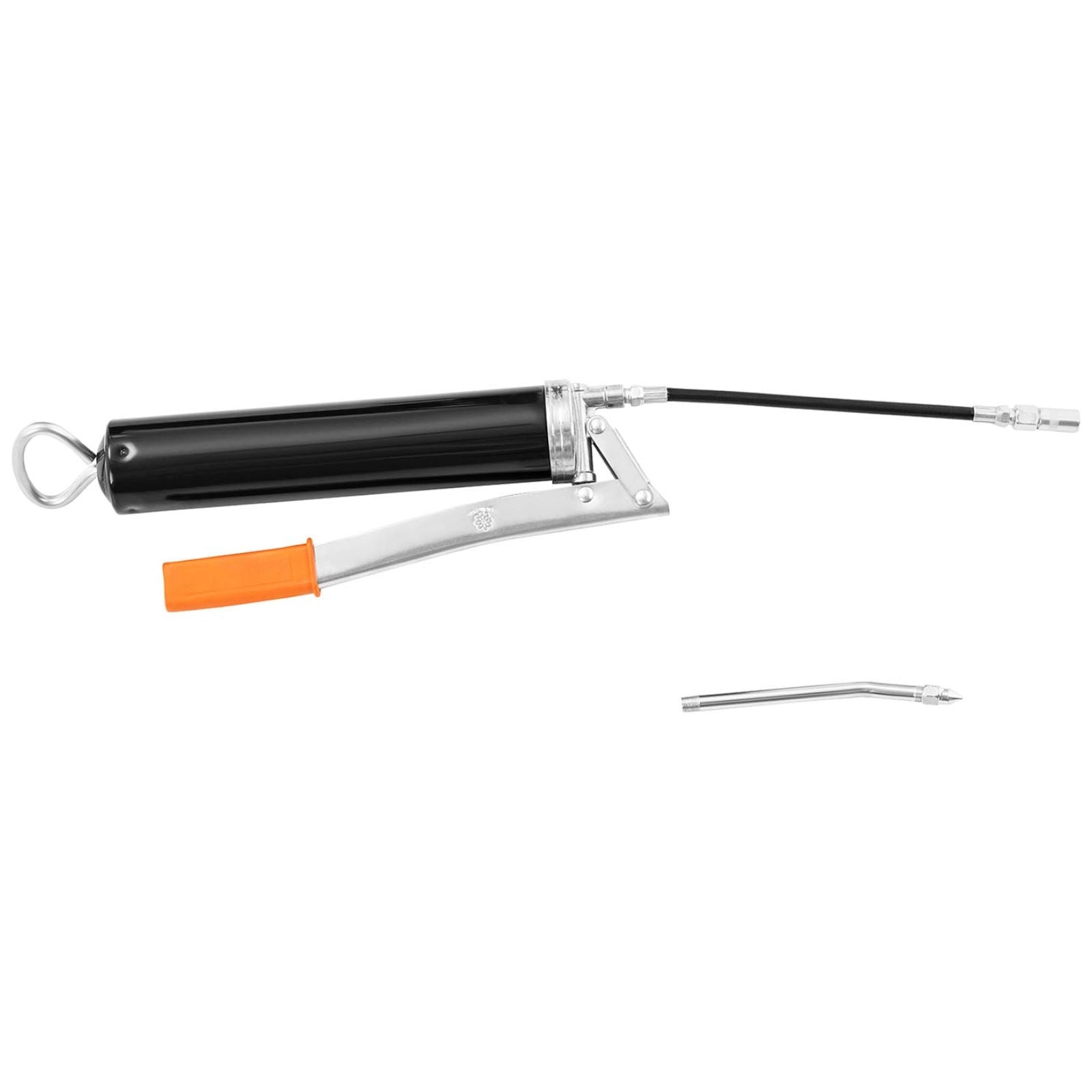

  • - Grease gun,
  • - User manual.
