Manufacturer's code:

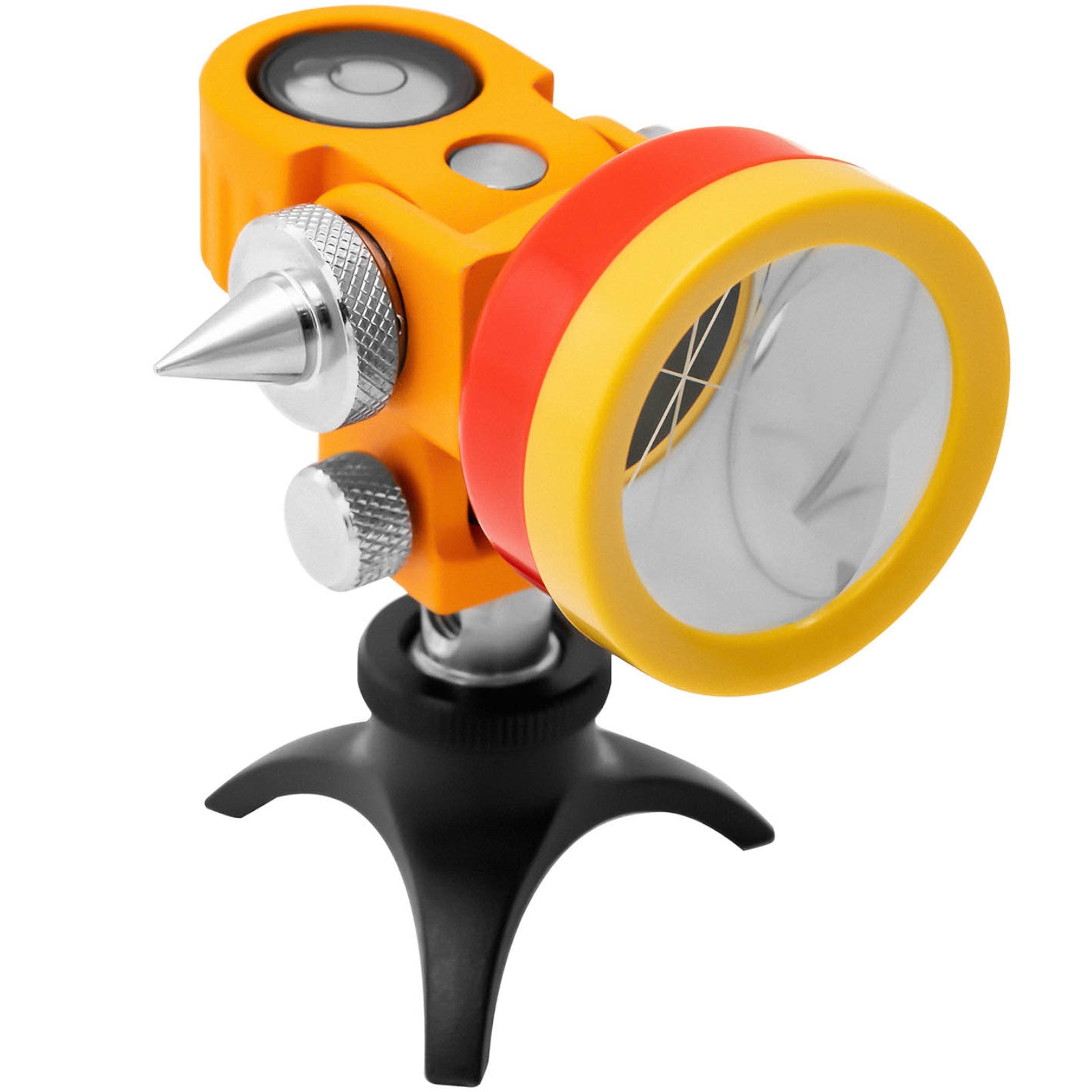

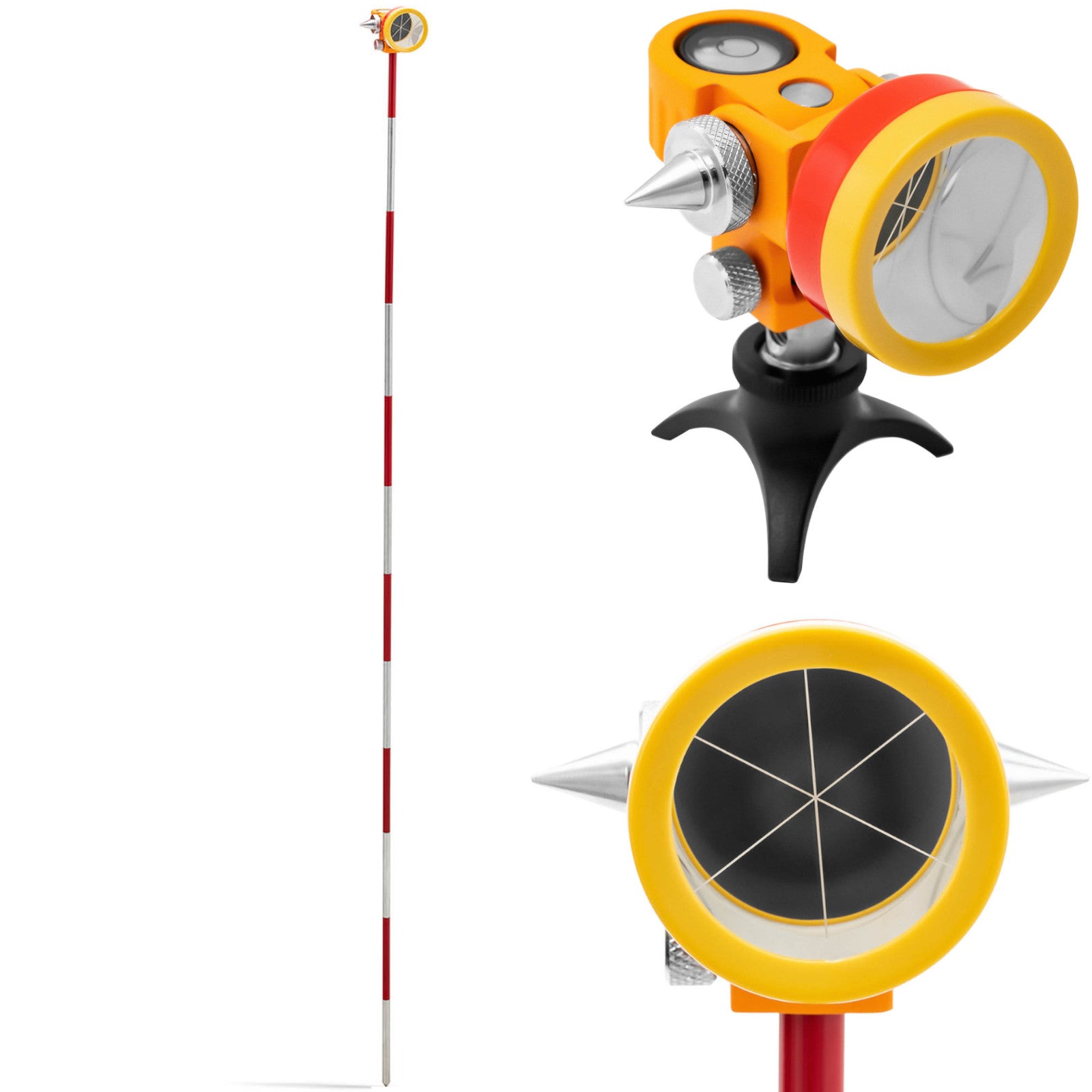

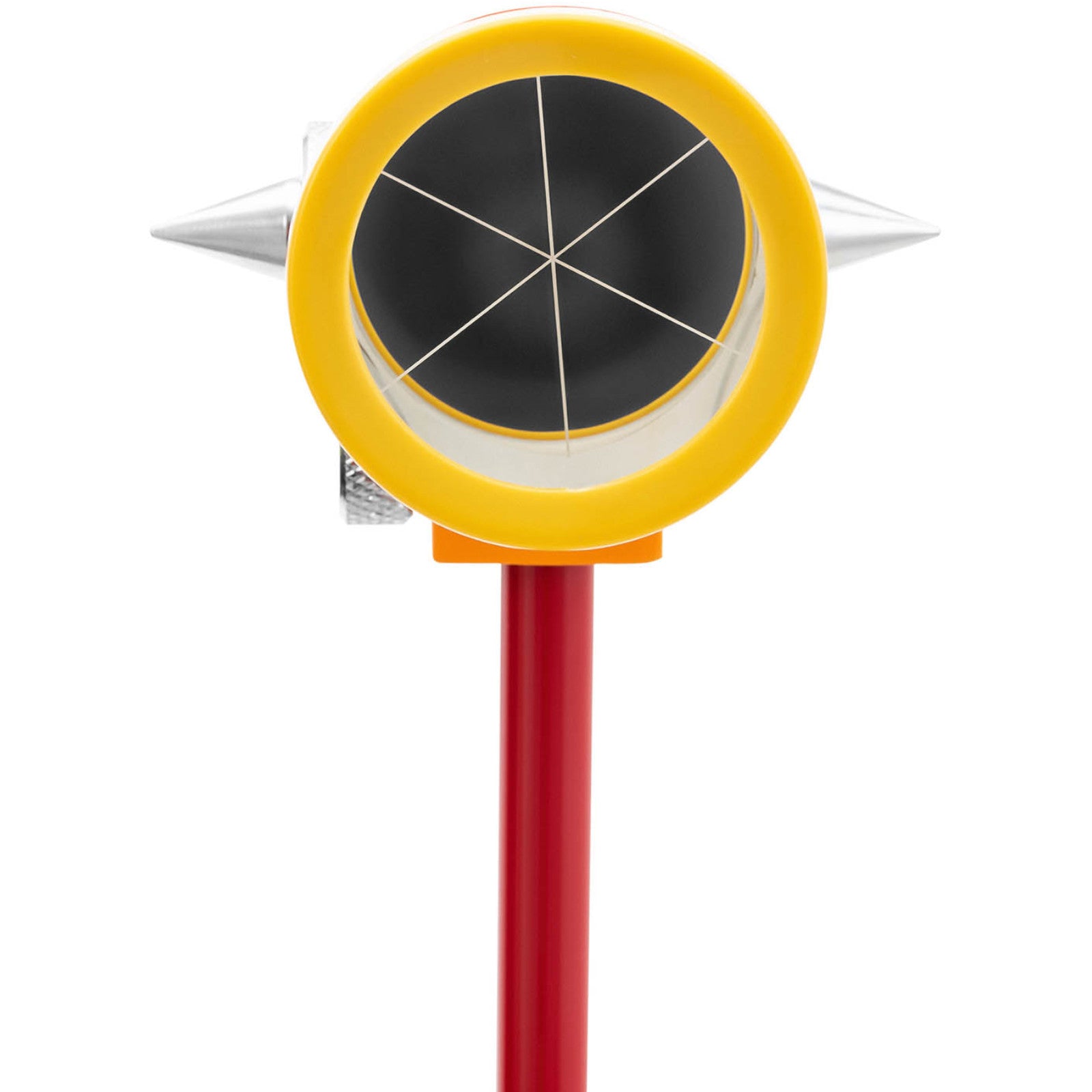

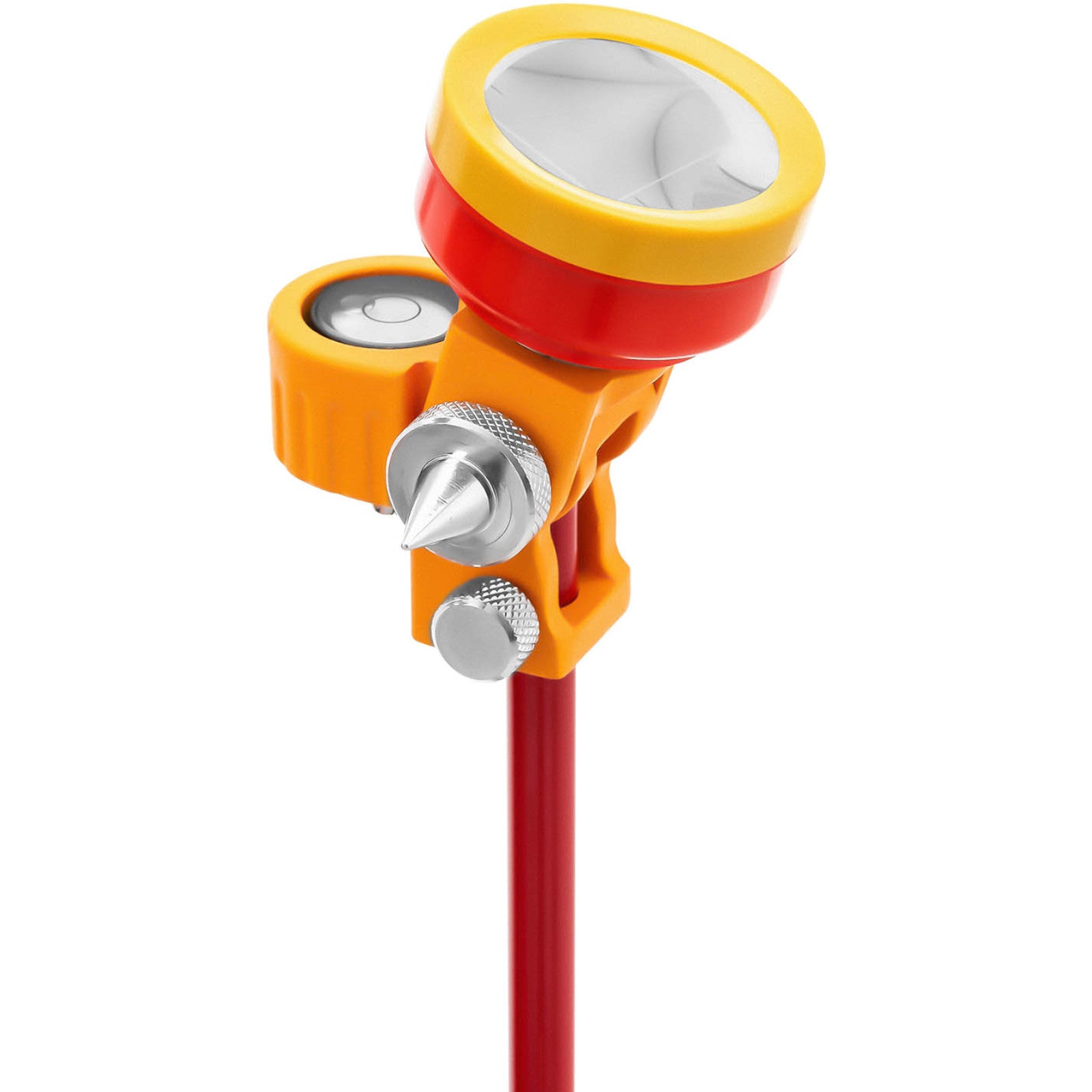

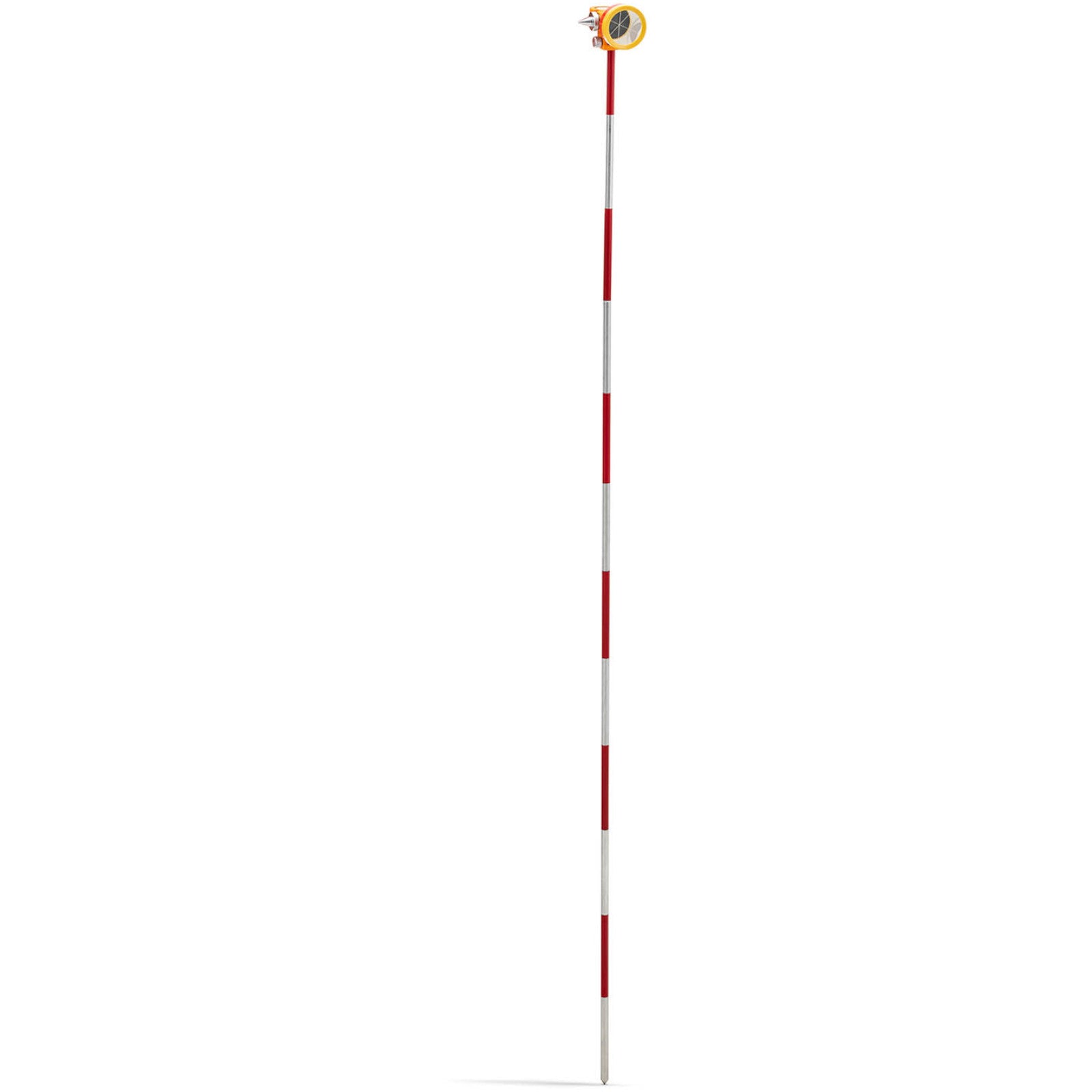

10031028Glass mirror by Steinberg Systems it allows for quick setting of the Steinberg Systems or similar tachimeters. It will be suitable for road construction and construction sites. The mini prism is attached to the pole using an aluminium alloy bracket. For compensation it is carried along the pole and fixed by means of a connector. The handle has an integrated horizontal.
Lightweight and durable construction facilitate the setting of the measuring point.
Diameter 3,6 cm and
silver coating allow optimal use of prism for all typical measurements.
Product features: - - Can be used with Steinberg Systems or similar tachometers,
- - Accurate alignment thanks to the level, 0 mm offset,
- - A solid aluminum body,
- - Diameter of prism 3.6 cm,
- - The support rod led along the pole and attached by a connector.
Technical parameters: - - Model - SBS-MPSA-103
- - Catalog number - 10031028
- - The state of the article - New
- - Material - Chrome steel
- - Offset [mm] - 0
- - Pole diameter [mm] - 9 x 30
- - Diameter of the prism hole [mm] - 36
- - Overall length [m] - 1,26
- - Dimensions (DxSxW) [cm] - 125.5 x 5 x 6
- - Weight [kg] - 0,9
- - Dimensions of dispatch (DxSxW) [cm] - 50 x 8 x 7.5
- - Weight of dispatch [kg] - 1

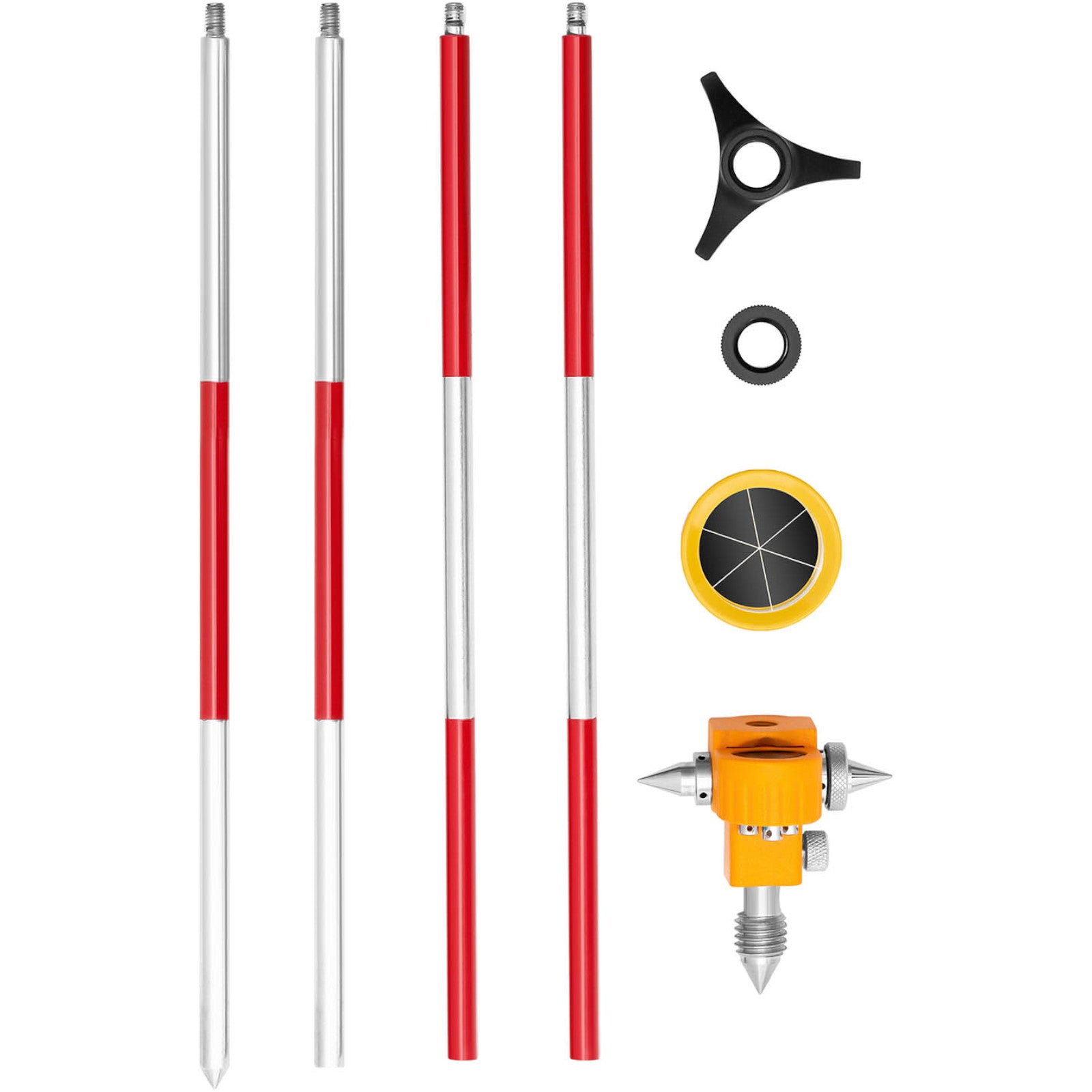

Included: - - Mini prism
- - A pad.
- - The tripod.
- - User manual
