Manufacturer's code:

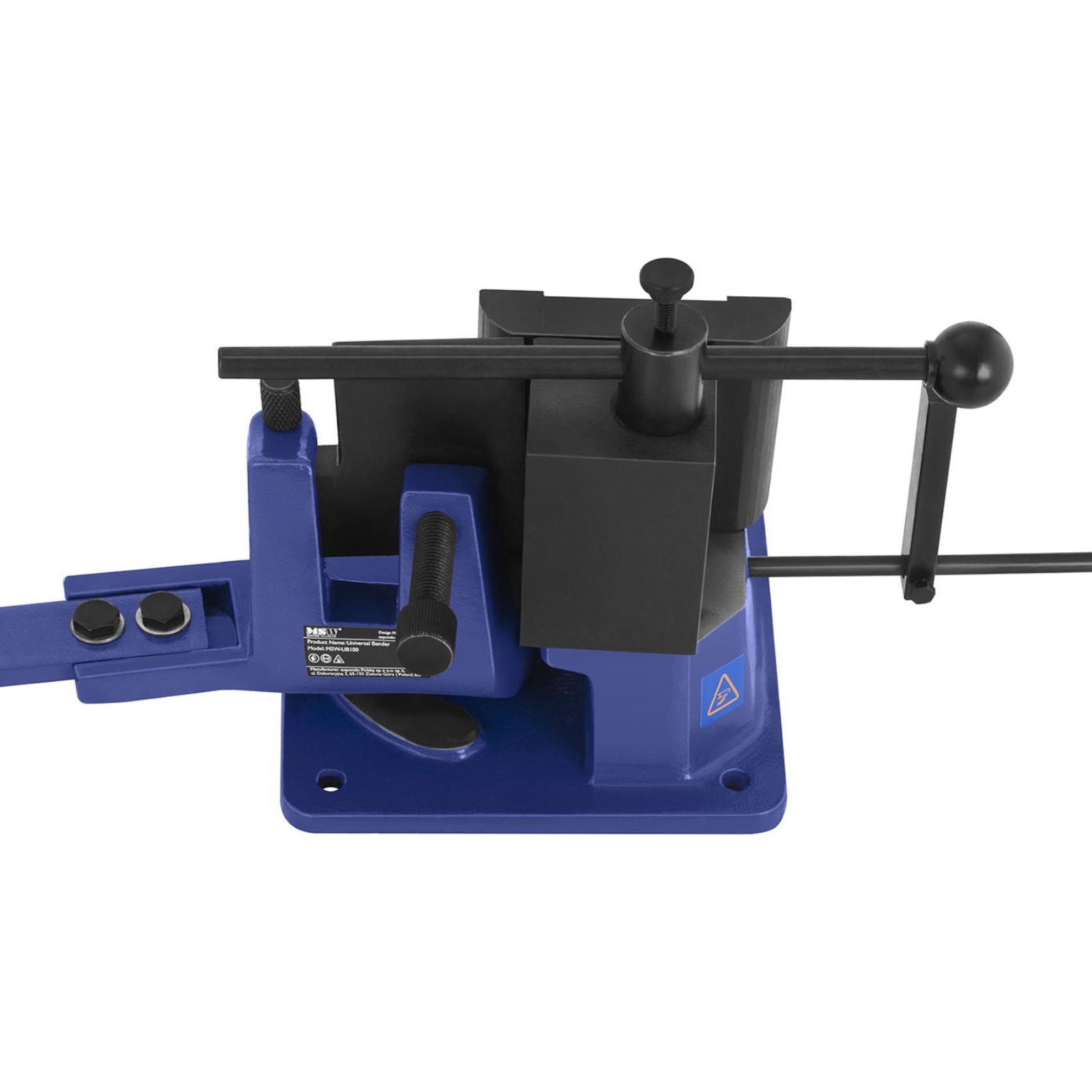

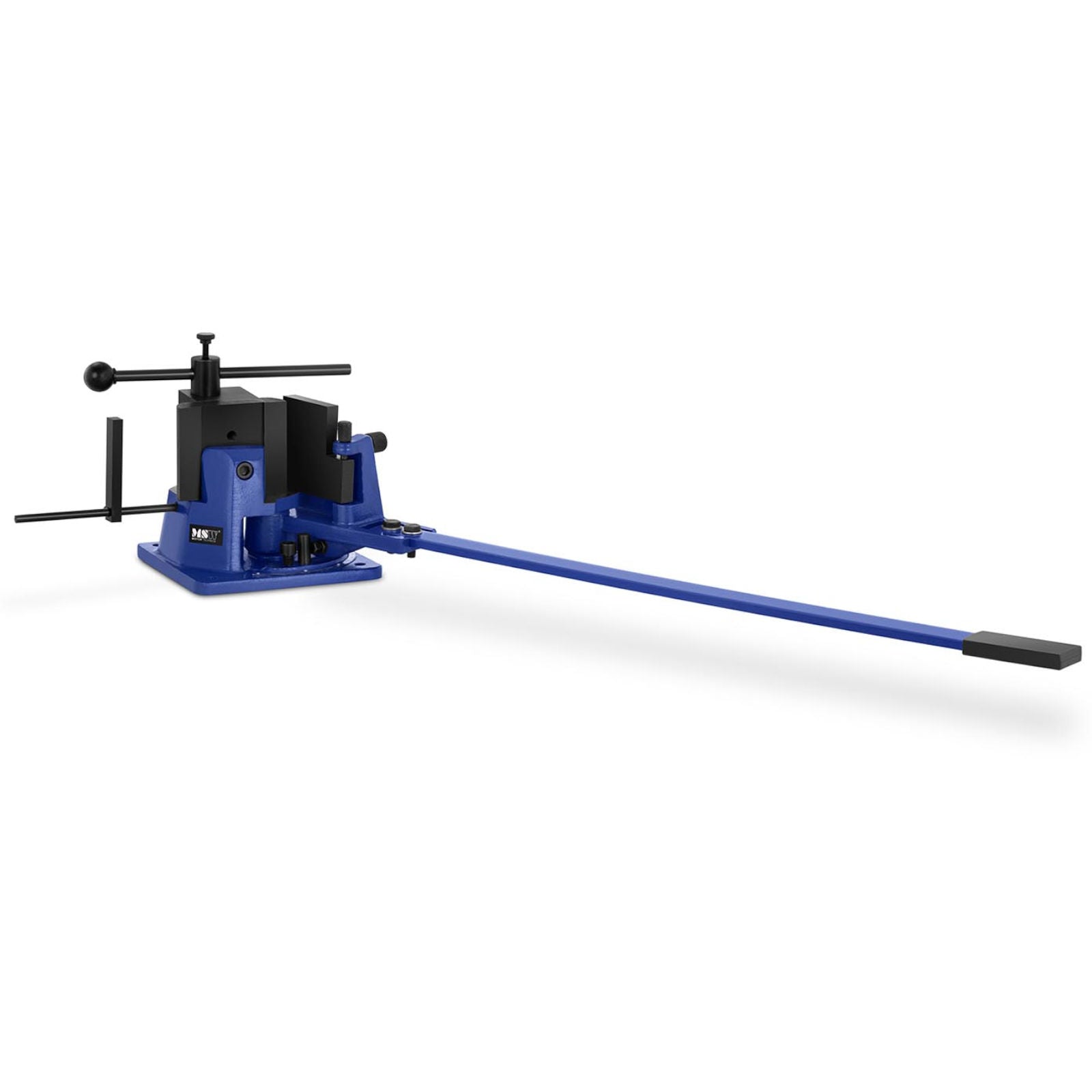

10060475The sheet metal bending machine of the German brand MSW will work well in both private and professional workshops, locksmith companies and factories. It can be used to bend cold or hot elements made of steel, copper, brass or aluminum with a flat, round, square or angular profile.
The solid fastening of materials is ensured by the use of an eccentric quick connector. The bending machine has a high pressure force on the material of
23 kg/mm2. The protractor allows for precise processing and selection of the bending angle in the range of up to 120 degrees. The structure of the device is made of steel, which ensures its stability. The bending machine can be attached to the work table with screws.
Product features: - - Versatility - for flat round, square, angular profiles,
- - Reliability - eccentric handle,

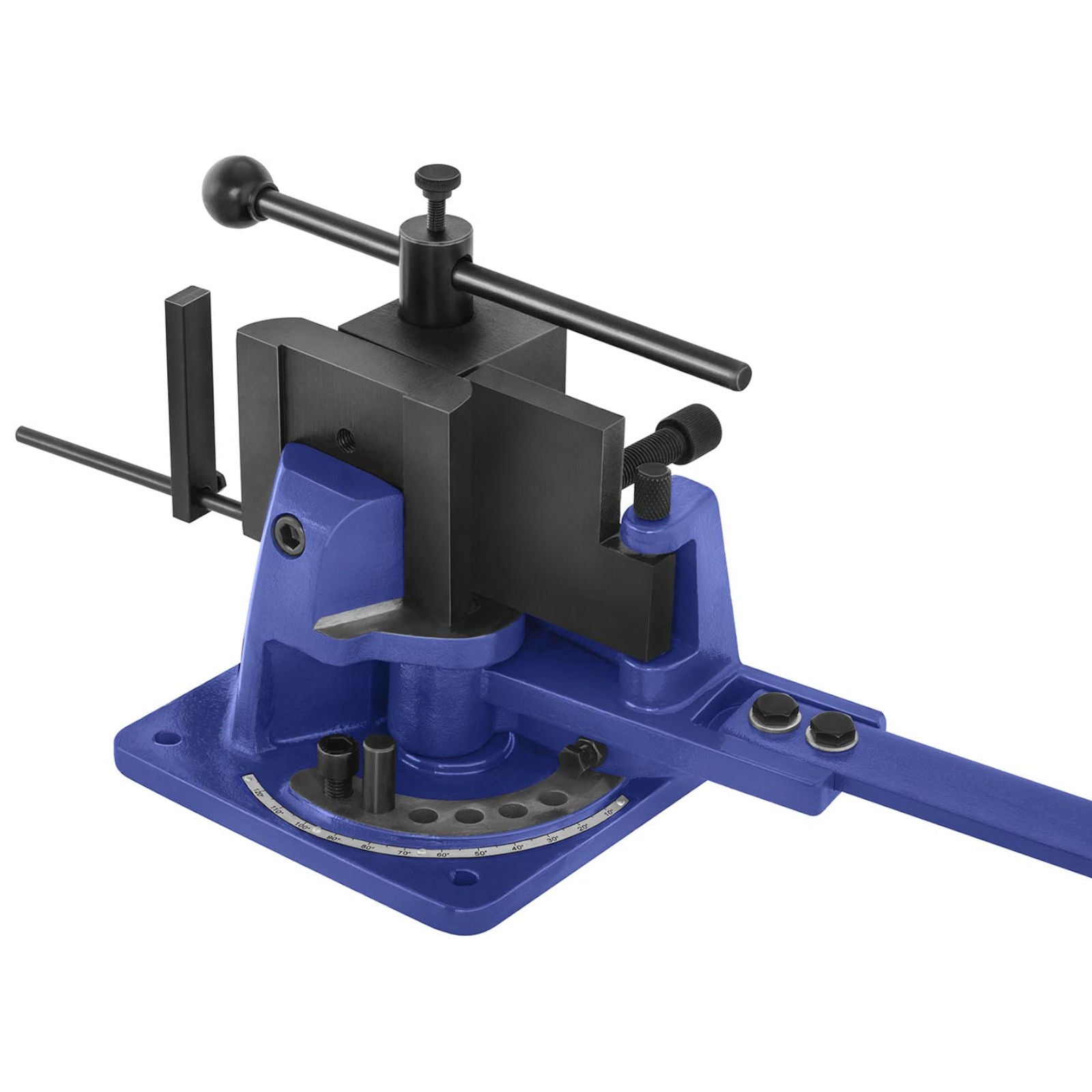

- - Precision - protractor with a scale,
- - Stability - mounting holes for attaching to the countertop,
- - Durability - solid steel construction.
Technical parameters: - - Model - MSW-UB100
- - Catalog number - 10060475
- - Article condition - New
- - Material - Steel
- - Machining angle [deg] - 120
- - Dimension of the processed profile - L / angular when bending (cold / hot) [mm] - 60 x 8 / 100 x 12
- - Maximum bending resistance - 23 kg/mm2
- - Dimension of the processed flat profile when bending (cold / hot) [mm] - 100 x 15
- - Dimension of the processed round profile when bending (cold / hot) [mm] - Ø18 / Ø30
- - Dimension of the processed square profile when bending (cold / hot) [mm] - 16 x 16 / 30 x 30
- - Dimensions (LxWxH) [cm] - 120 x 104 x 25
- - Weight [kg] - 30.8
- - Shipping dimensions (LxWxH) [cm] - 40.5 x 31 x 30
- - Shipping weight [kg] - 32.3

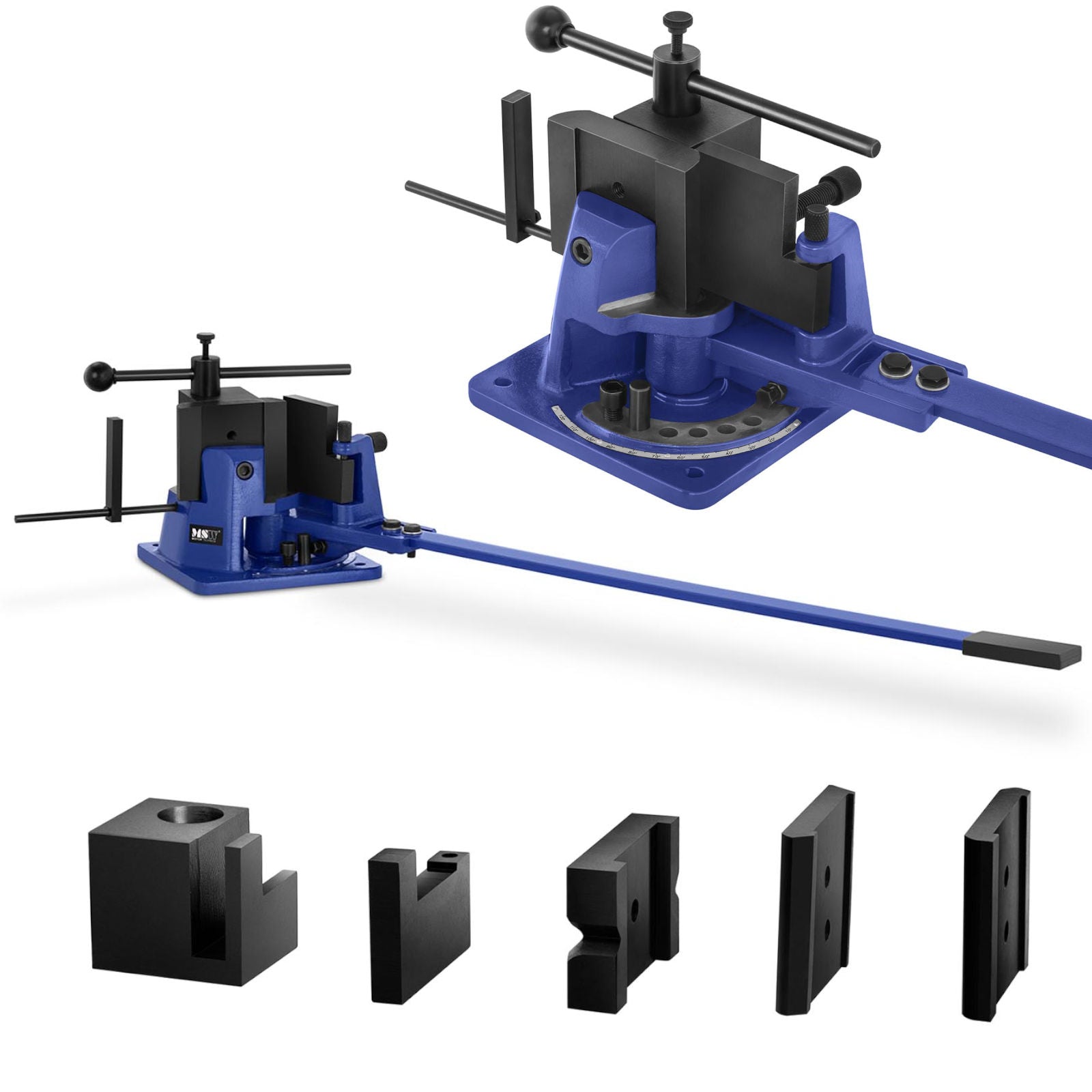

In the set: - - Sheet metal bending machine,

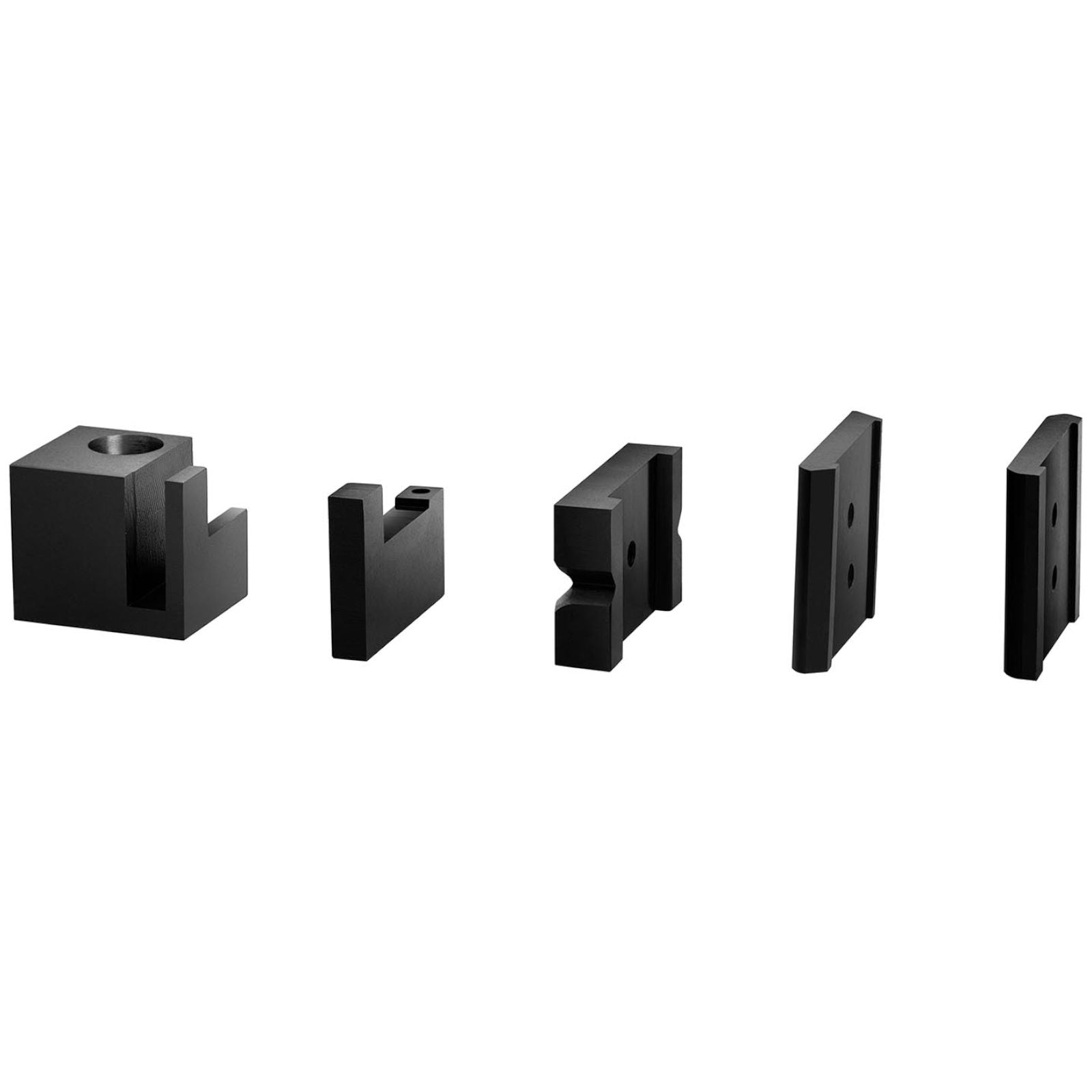

- - Dies - 5 pcs.
- - PL instructions
