Apraksts
Manufacturer's code:

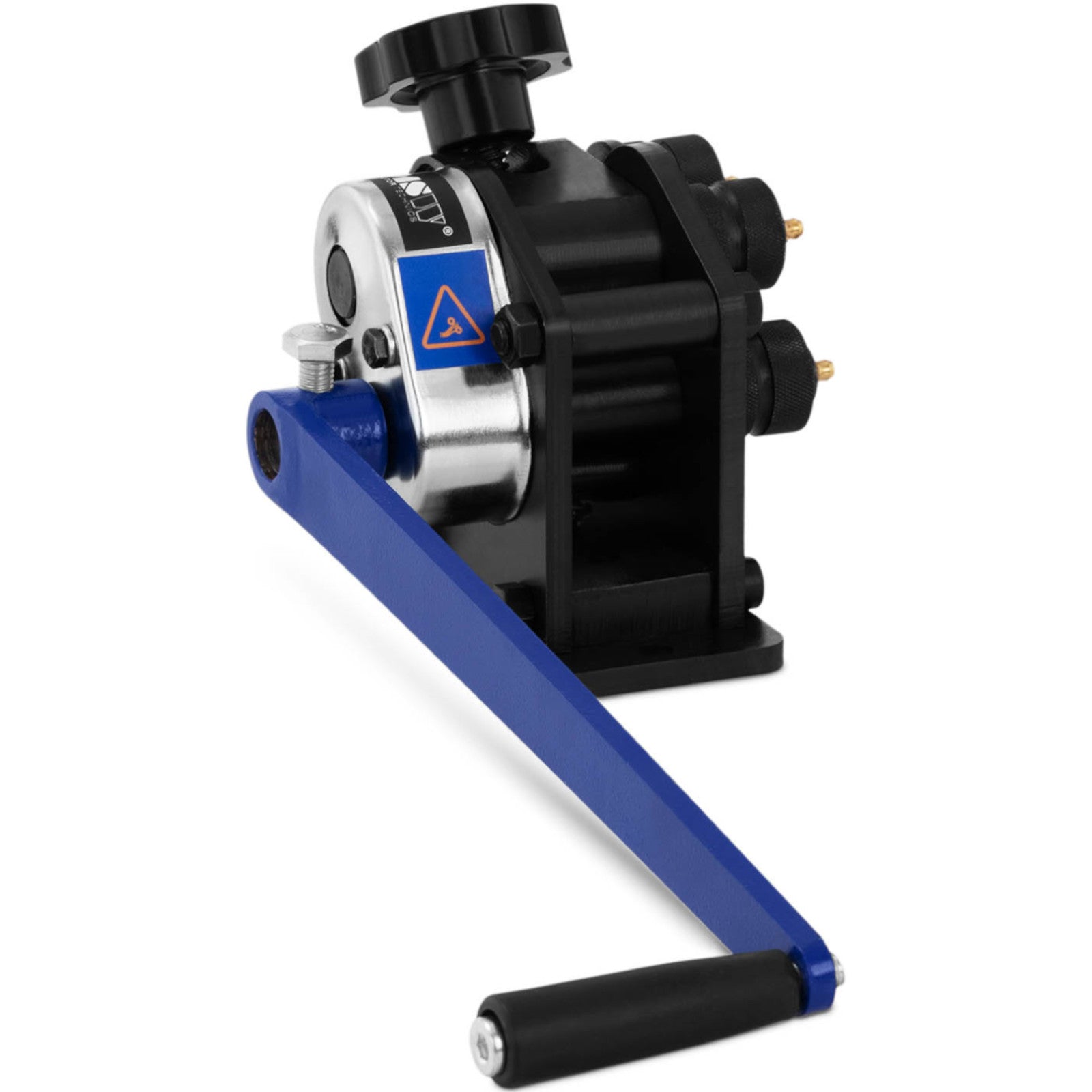

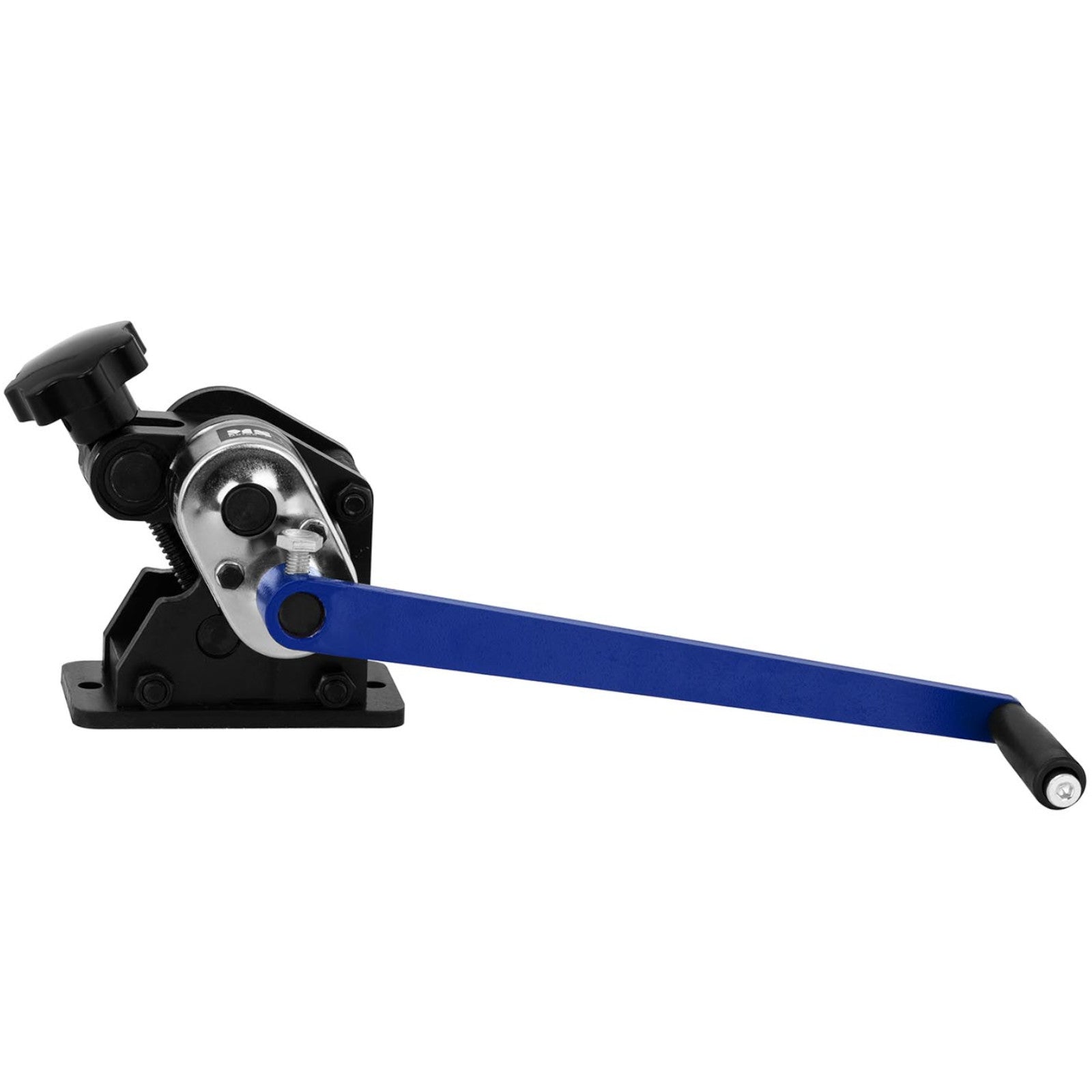

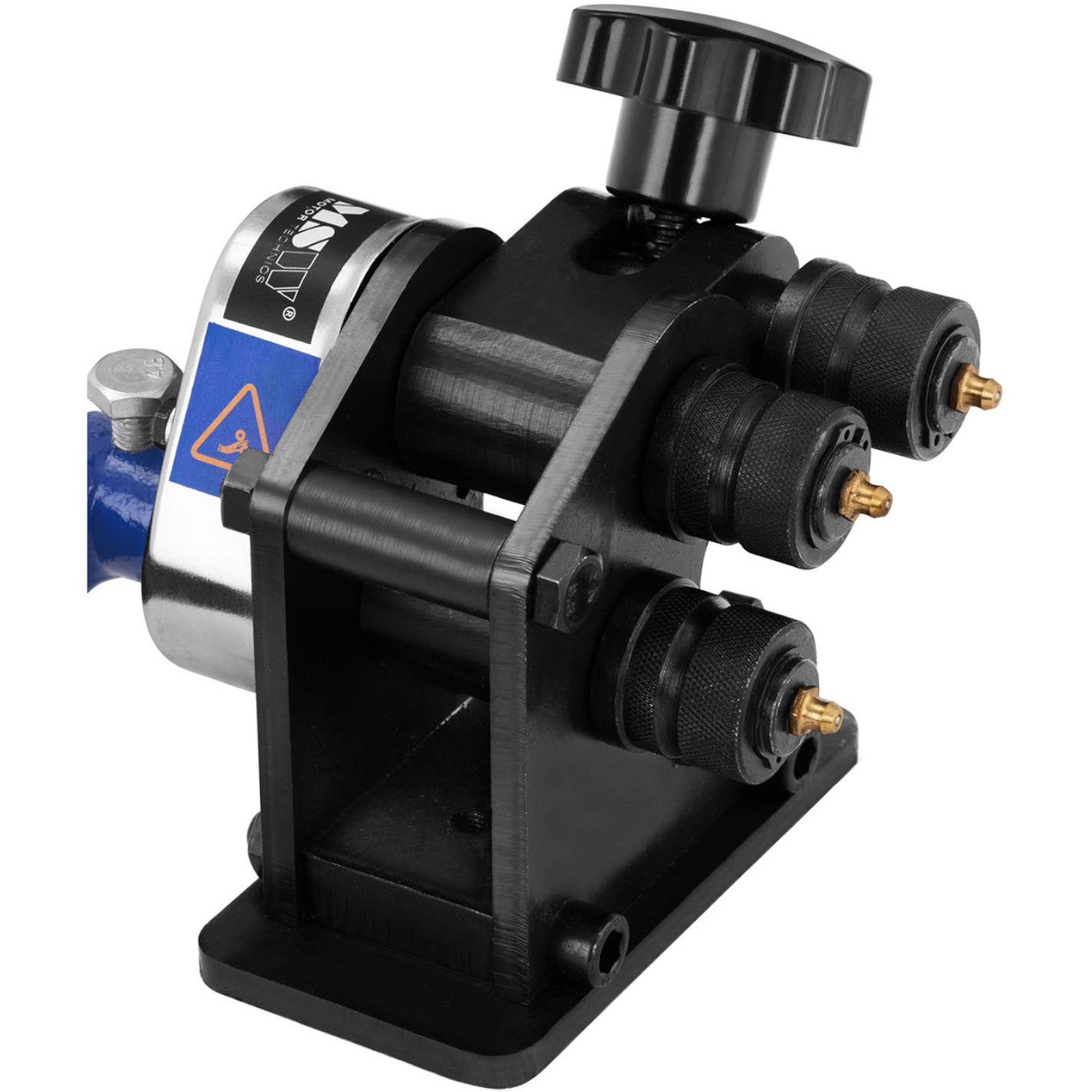

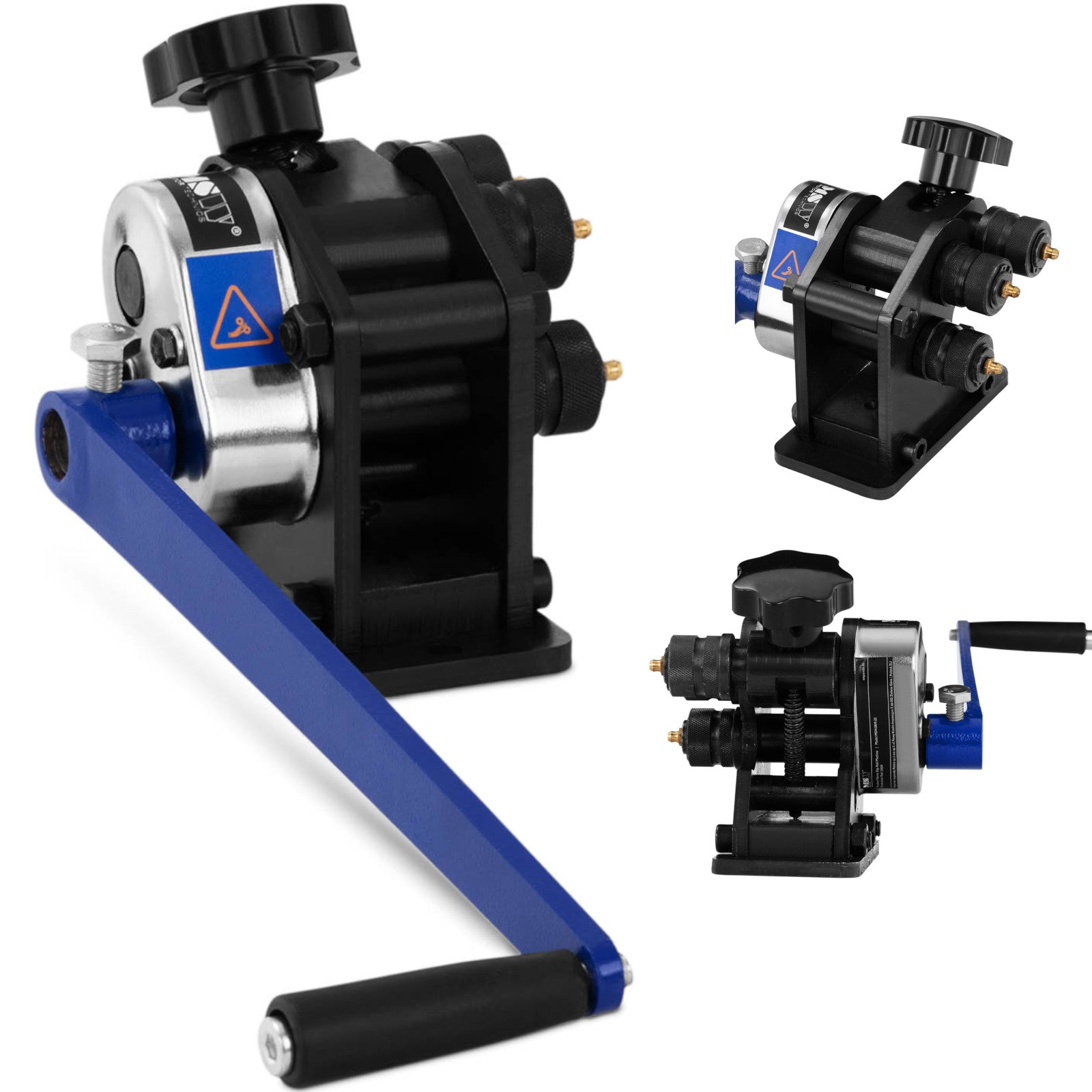

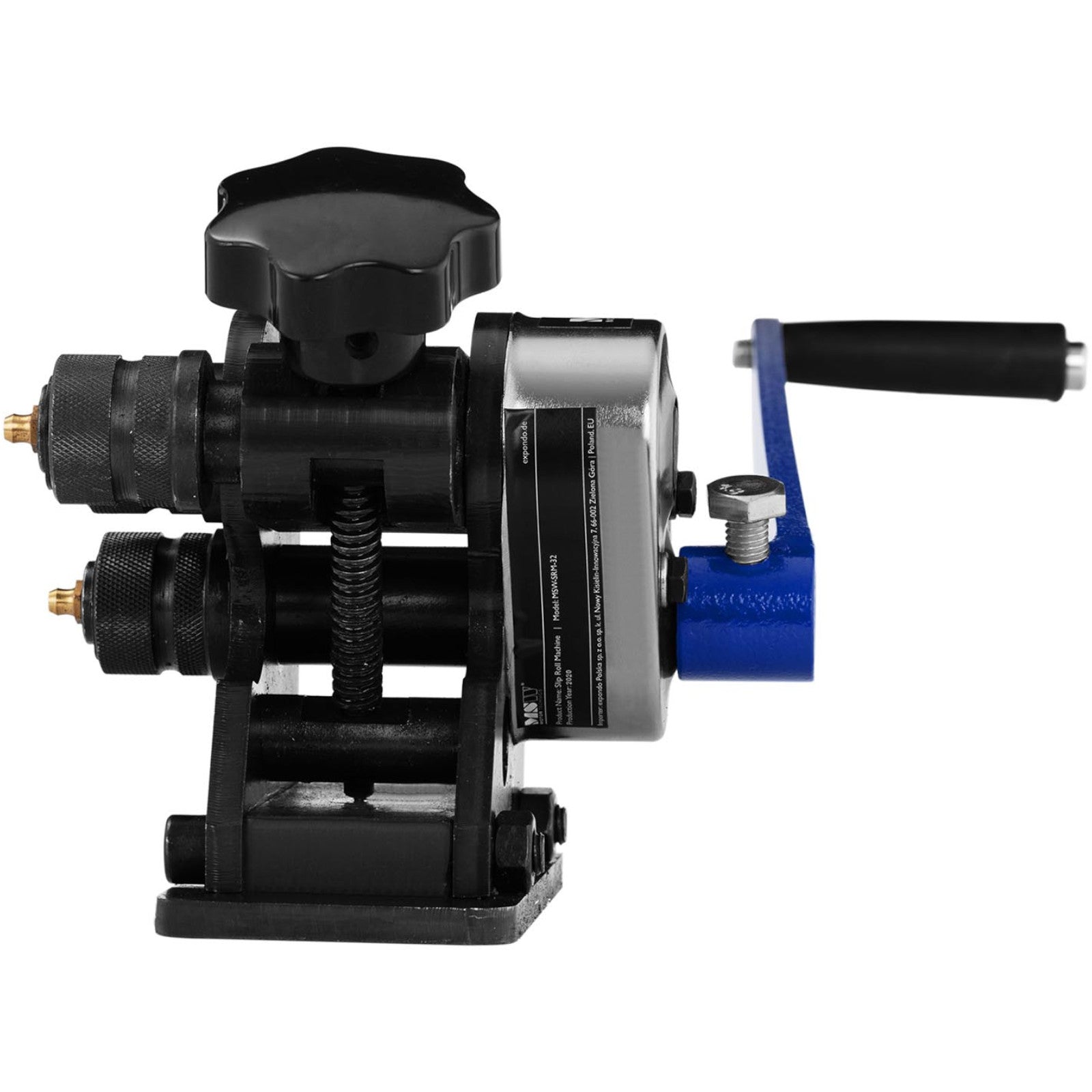

10061169MSW profile bending machine allows you to shape sheet metal in workshops, factories, construction companies and in a private garage. Rollers with a diameter of 32 mm ensure precision of operation. The maximum rolling diameter of a round profile is
6.5 mm and the dimensions of a flat profile are
25 x 5 mm. The machine allows you to obtain uniform ring-shaped elements with a diameter of min.
770 mm and max. 1400 mm. The bending machine is made of durable steel. Mounting holes allow you to attach it to the work surface. 330mm long ergonomic hand lever with non-slip grip ensures simple and comfortable operation.
Product features: - - 32mm (1-17/64 inch) diameter rolls,
- - Rolling of round profiles - max diameter 6.5mm (1/4 inch),
- - Rolling of flat profiles - 25 x 5 mm (63/64 inches),
- - Ergonomic handle, 330 mm long,
- - Made of solid steel.
Technical parameters: - - Catalog number - 10061169
- - Article condition - New
- - Model - MSW-SRM-32
- - Material - Steel
- - Steel flat bar [mm] - 25 x 5
- - Bending angle [deg] - 0-360
- - Cable diameter [mm] - 32
- - Material thickness [mm] - 8
- - Minimum rolling diameter [mm] - 770
- - Dimensions (LxWxH) [cm] - 33 x 23 x 50
- - Weight [kg] - 5.5
- - Shipping dimensions (LxWxH) [cm] - 36 x 20 x 21
- - Shipping weight [kg] - 6.3
In the set: - - Profile bending machine
- - Lever
- - User manual
