Manufacturer's name

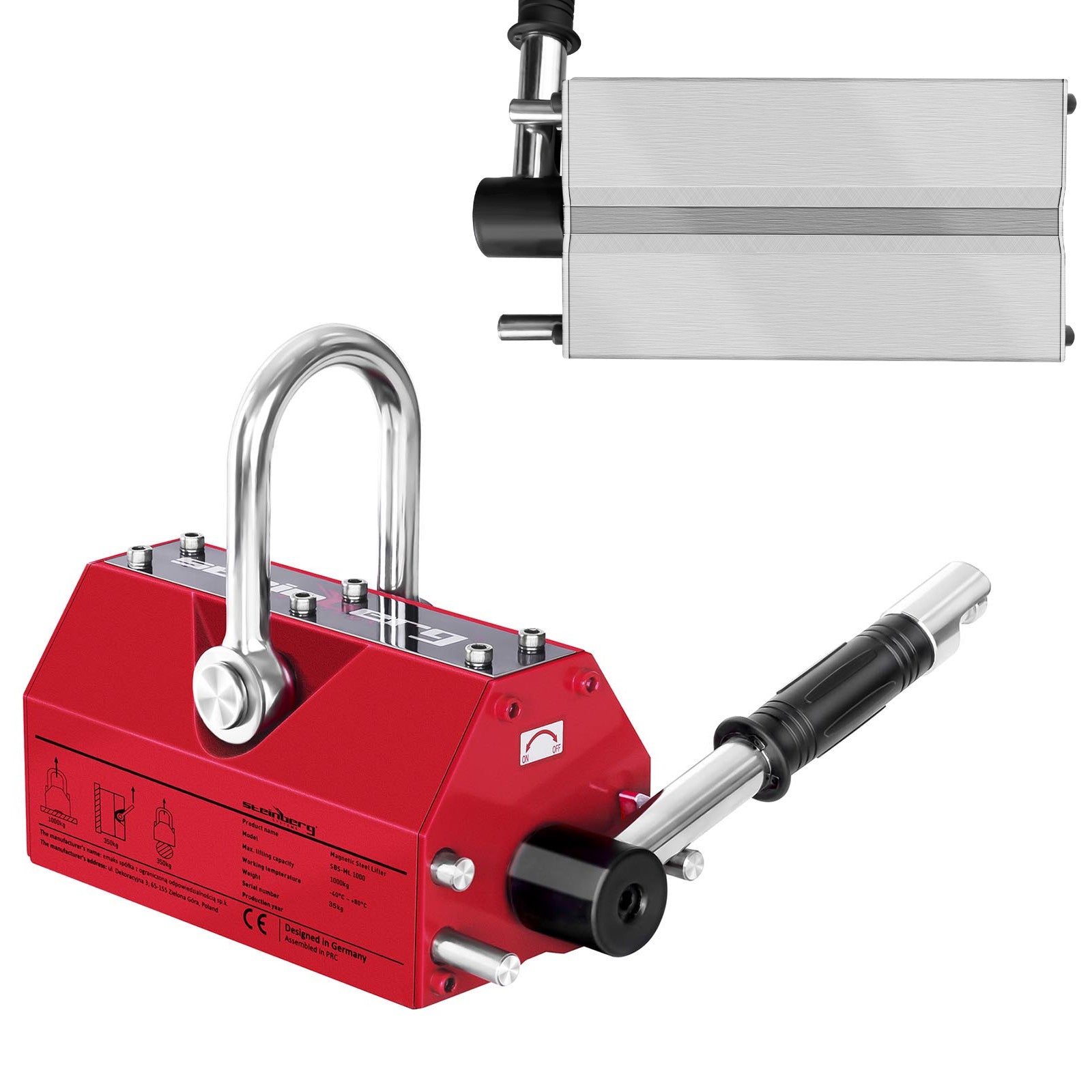

SBS-ML 1000 Magnetic lift SBS-ML 1000 Steinberg Systems is used for lifting iron and steel objects with a maximum weight of 1000 kg. It is ideal for machine, metallurgical, shipbuilding, as well as automotive workshops and construction companies.
Magnetic grip lets you lift
sheet metal and profiled elementsThe equipment uses

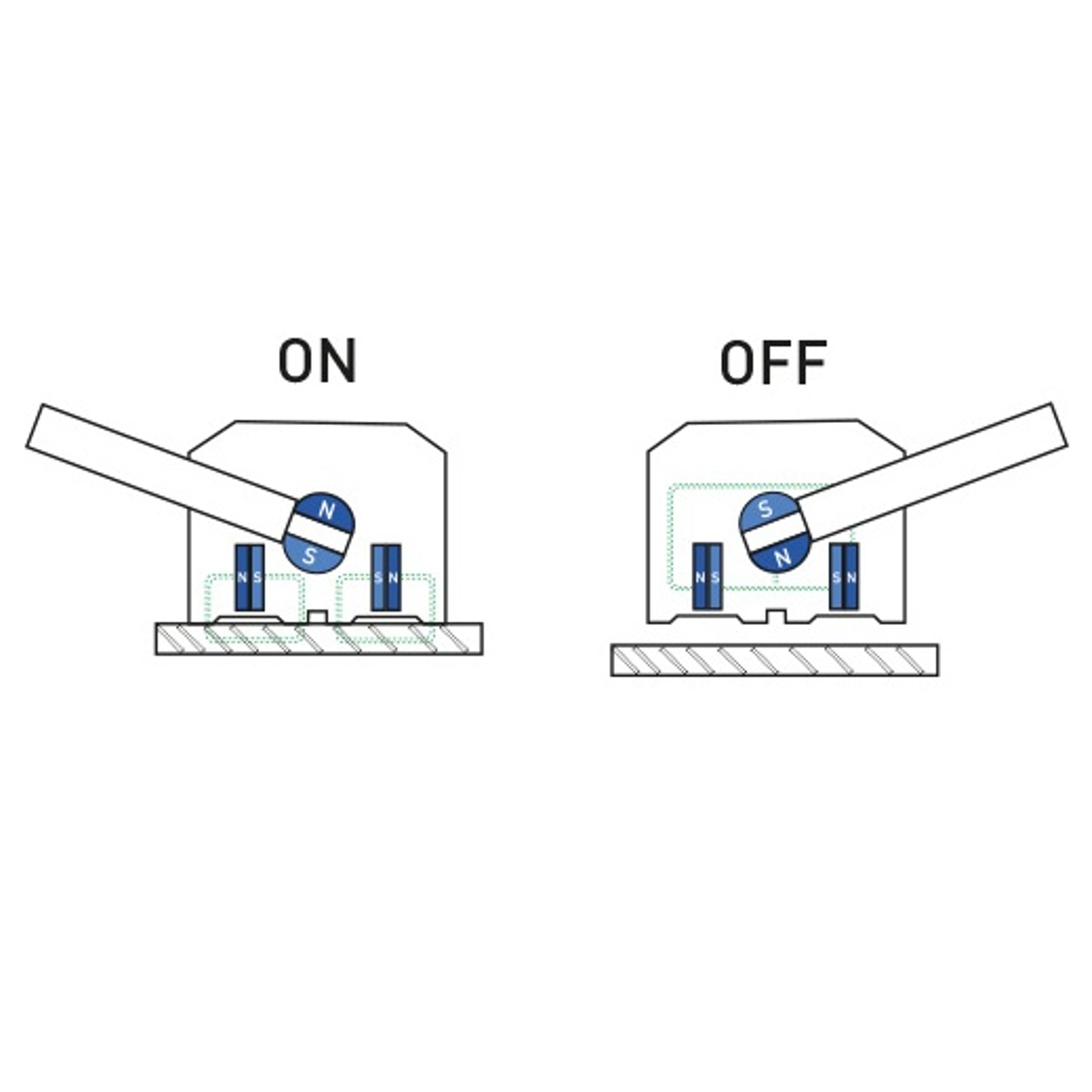

neodymium magnets (sintered), so it is very easy to use. Inside the lift there is a stationary and movable magnet that properly set the magnetic field into the raised structure. The ABS-ML 1000 magnetic grip is characterized by the safety of operation.
I don't need any power sources.It is equipped with a shekel to hang equipment, e.g. on a crane.
Characteristics and functions:- neodymium magnets
- Permissible load 1000 kg
- breaking load 3000kg
- safe and simple operation
- hand lever
- zero cost of use
Technical parameters: - - Model - SBS-ML 1000
- - Catalog number - 3200
- - The state of the article - New
- - Permissible load - 1000 kg
- - Breaking load - 3000 kg
- - Max. load for lifting vertical and rounded surfaces - 350 kg
- - Temperature range - from -40 to 80deg C
- - Color - Red
- - Disable mechanism - Mechanical lever
- - Dimensions (DxSxW) - 32.2 x 13.8 x 14 cm
- - Weight - 33.5 kg
- - Dimensions of dispatch (DxSxW) - 37.5 x 26.5 x 27.5 cm
- - Weight of shipping - 34.3 kg
Included:- Magnetic lift SBS-ML 100
- EN manual
Our devices have the CE declaration of conformity necessary for the health care.
