Manufacturer's code:

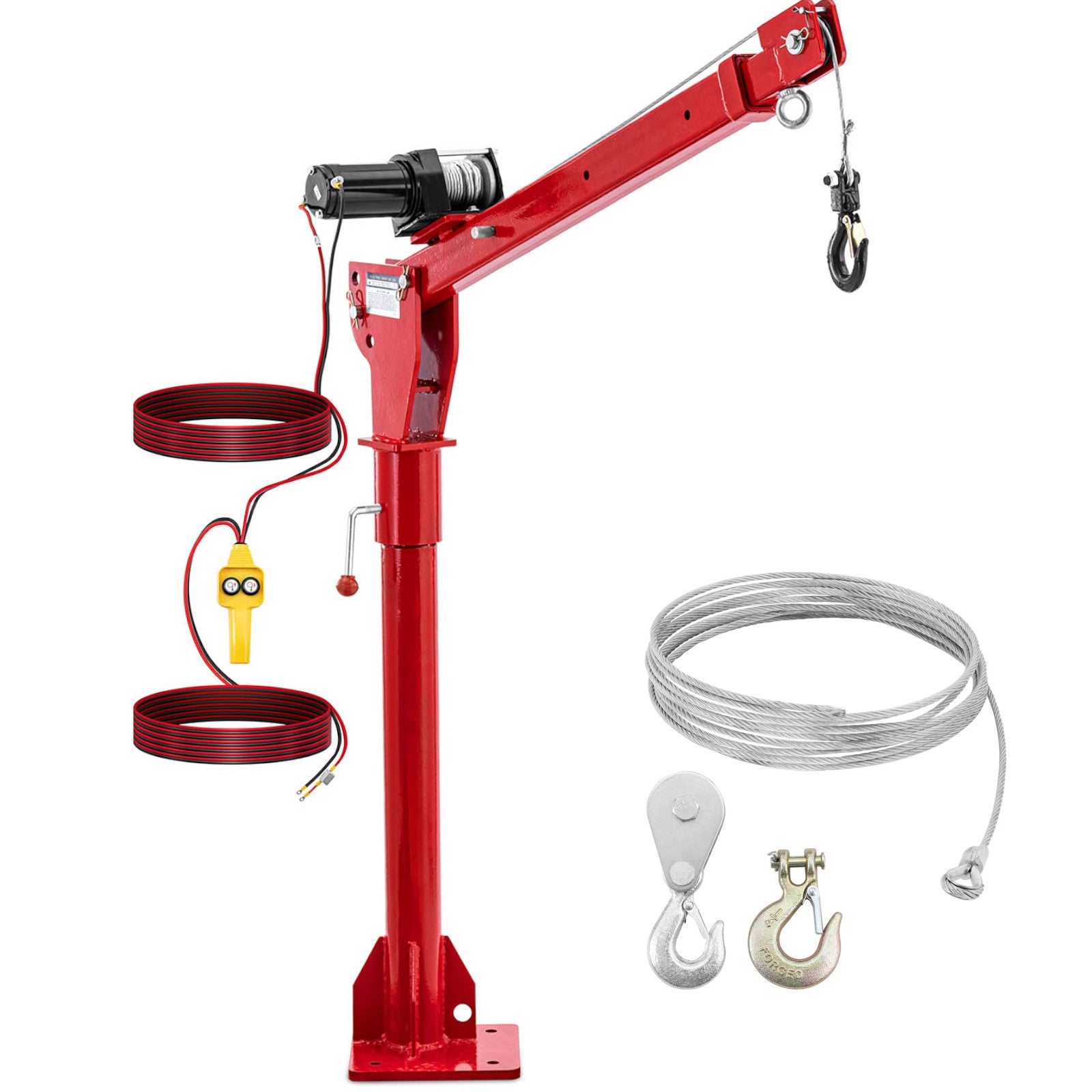

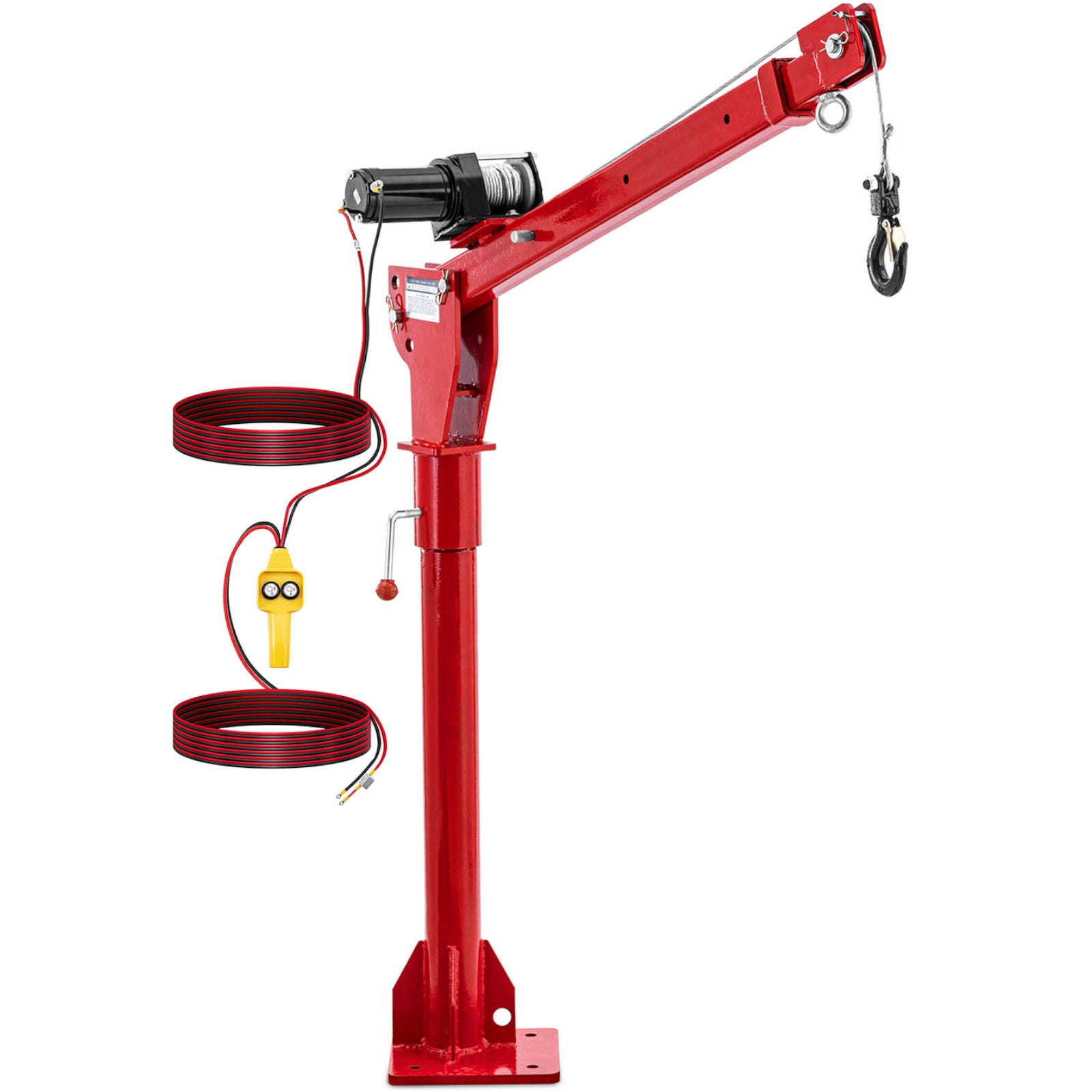

10031273Steinberg Systems Loading Cranberry allows to lift heavy loads both in the workshop and in the field. It is fixed to the delivery car using the base
250 x 250 mmThe openings are drilled in it, which makes it easier to mount on the back. The lifting arm has maximum range.

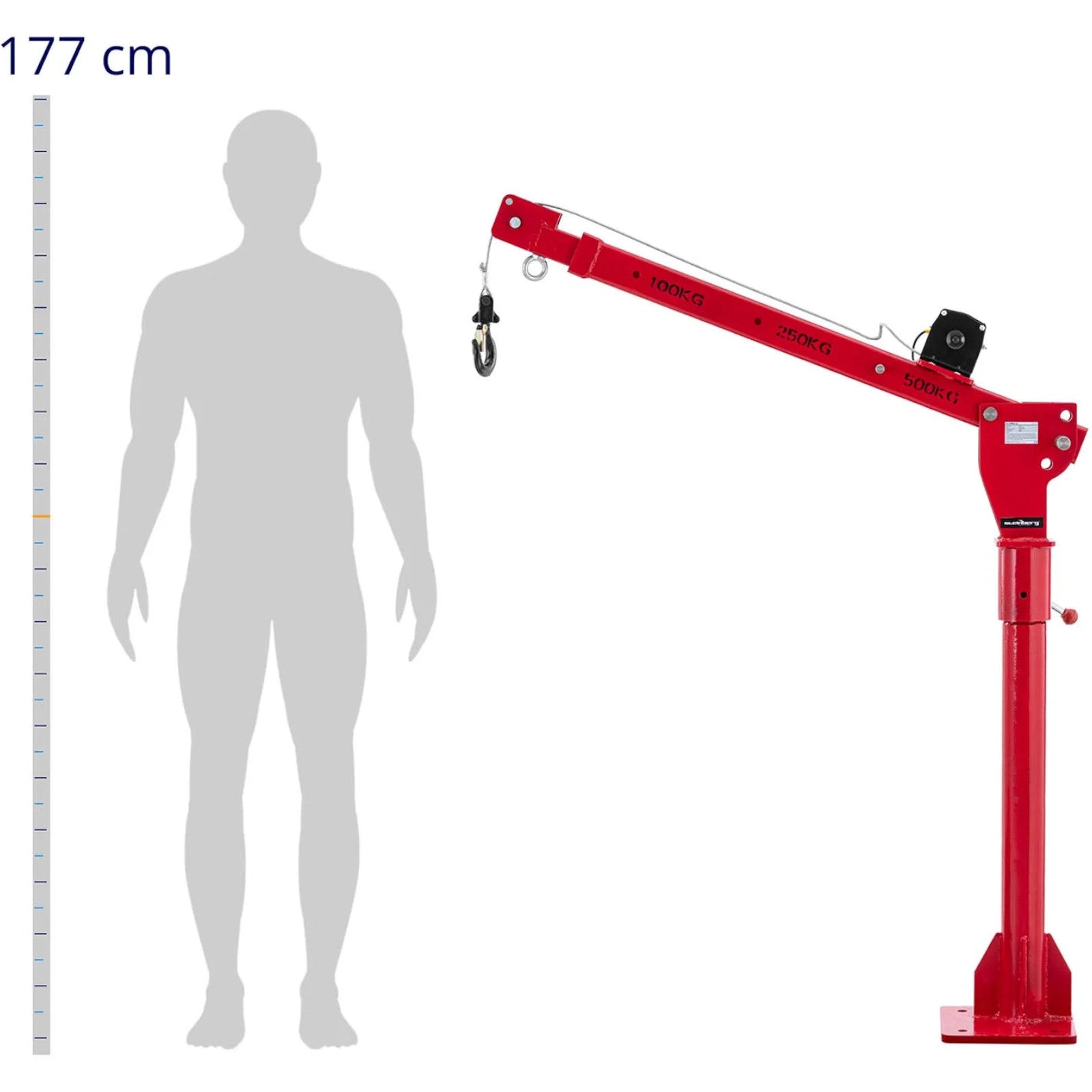

149 cmShortening the arm to
128 cm increases its load capacity
up to 500 kg and with a belt wheel even

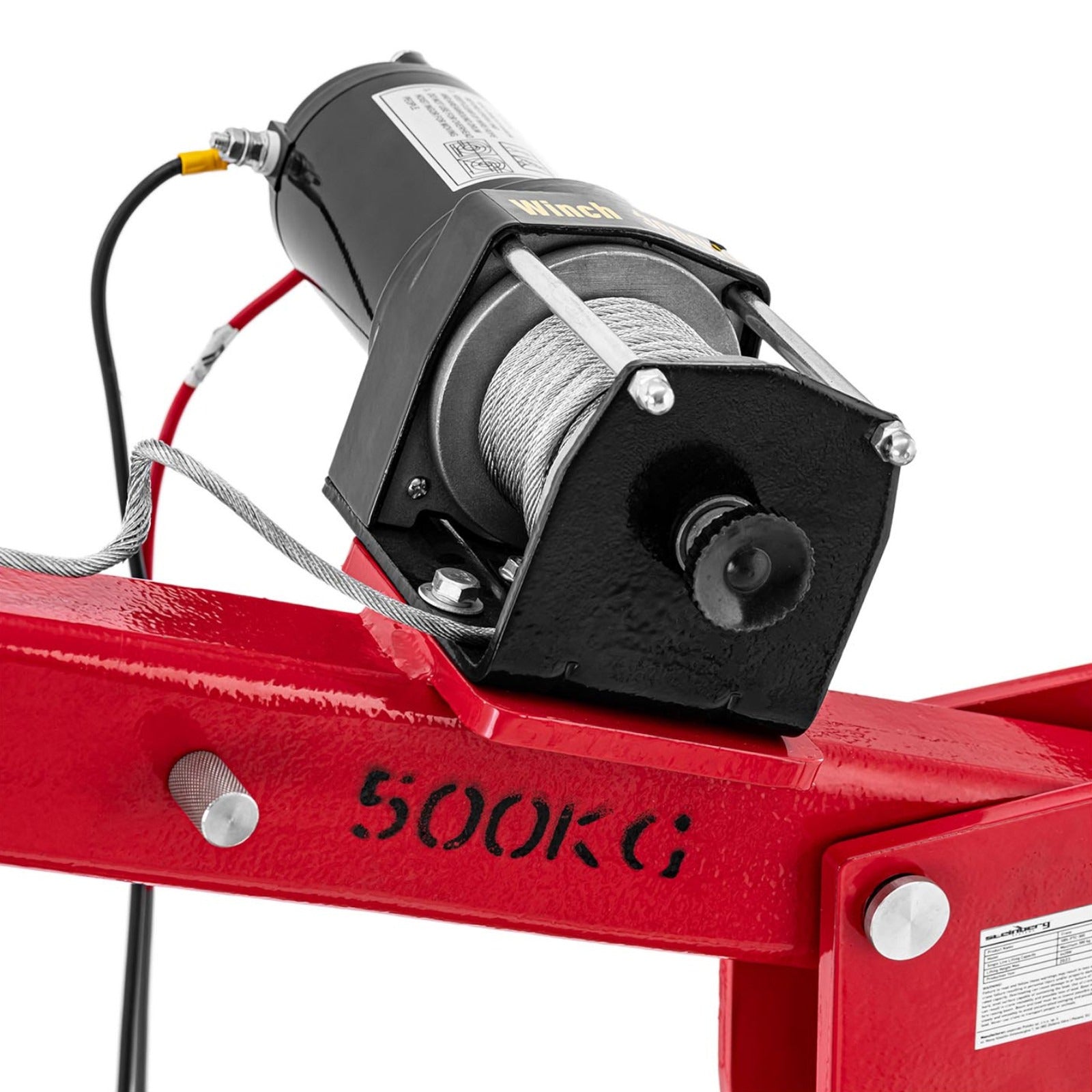

up to 800 kgTo rotate the lifting arm, loosen the lever and then block it. The load crane head can be moved precisely in any situation. The winch is attached to the lift arm. It works with tension
12 V DC and reaches output power
1000 WThis way you will get rope lifting speed

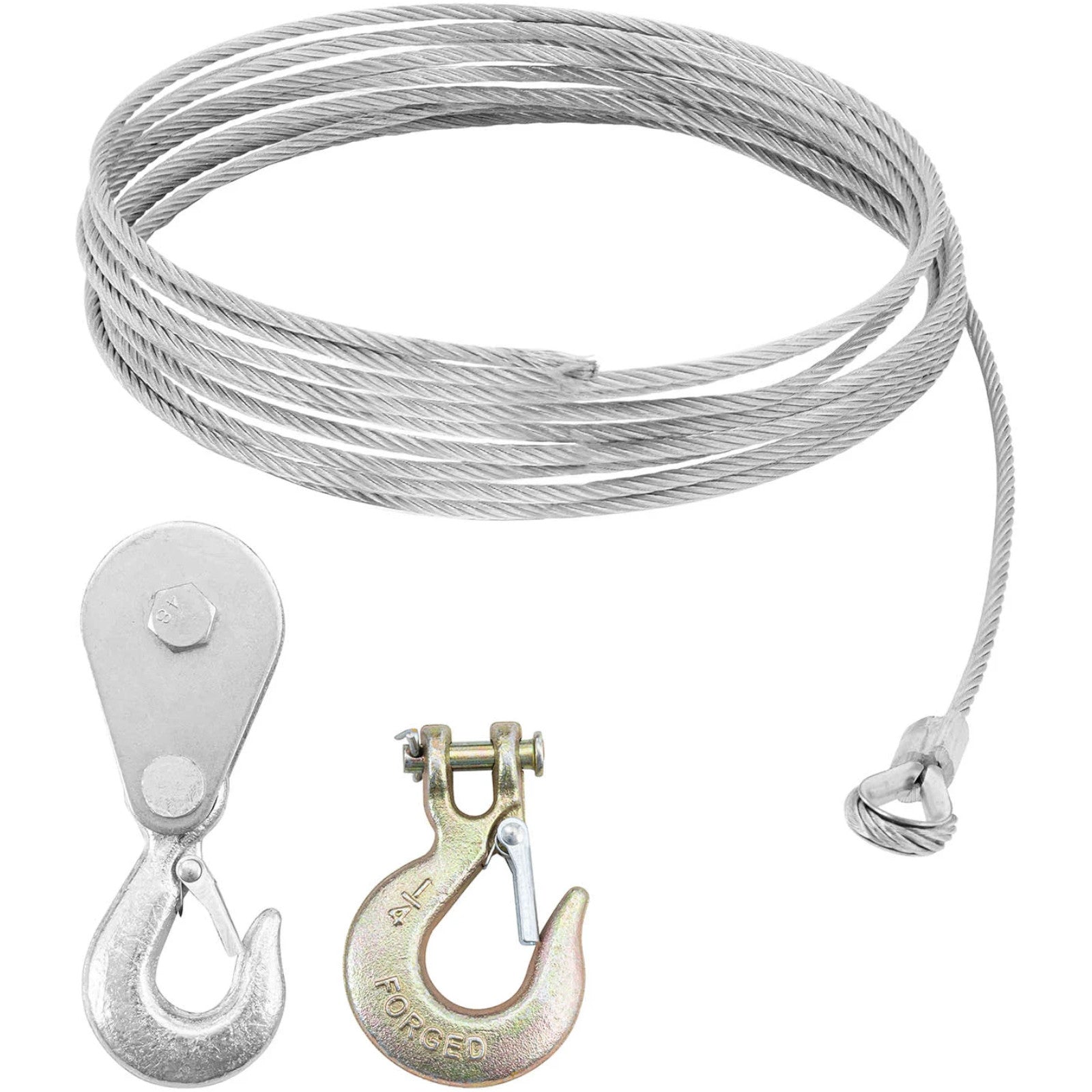

up to 3.6 m/minThe rope has a diameter.
4,8 mm and safely keeps each hooked on the cargo hook
up to 800 kgSteel rope with length
4.5 m is designed for lifting to height
up to 1.94 mThe device fits into open car stacks but can also be fitted in vehicles with closed loading space or used in the workshop.
Product features: - - 12 V cable winch raises loads up to 500 kg and with a belt wheel up to 800 kg,
- - The holes in the base allow it to be attached to the cargo surface of the car,
- - You'll spread your arm to 149 cm and turn it 360deg,
- - Lifts objects at a speed of 3.6 m/min up to a maximum height of 1.94 m,
- - Strong line with a diameter of 4.8 mm and a maximum length of 4.5 m.
Technical parameters: - - Catalog number - 10031273
- - The state of the article - New
- - Model - SBS-PTC-500
- - Material - Stainless steel, Steel
- - Base dimensions [mm] - 250x250
- - Color - Red
- - Lifting speed - without block [m/min] - 3.6
- - Carry-on - without block [kg] - 500
- - Lifting speed - with a lock [m/min] - 3.6
- - Carry-on with a blob. - 800
- - Maximum lifting height [m] - 1.94
- - Power cord [m] - 4,2
- - Maximum load [kg] - 800
- - The length of the rope [m] - 4.5
- - Diameter of the rope [mm] - 4,8
- - Voltage [V] - 12
- - Power [W] - 1000
- - Dimensions (DxSxW) - 116 x 36 x 130 cm
- - Weight - 52.8 kg
- - Dimensions of dispatch (DxSxW) - 139 x 37 x 38 cm
- - Weight of shipping - 64.5 kg
Included:
