Apraksts
Manufacturer's name:

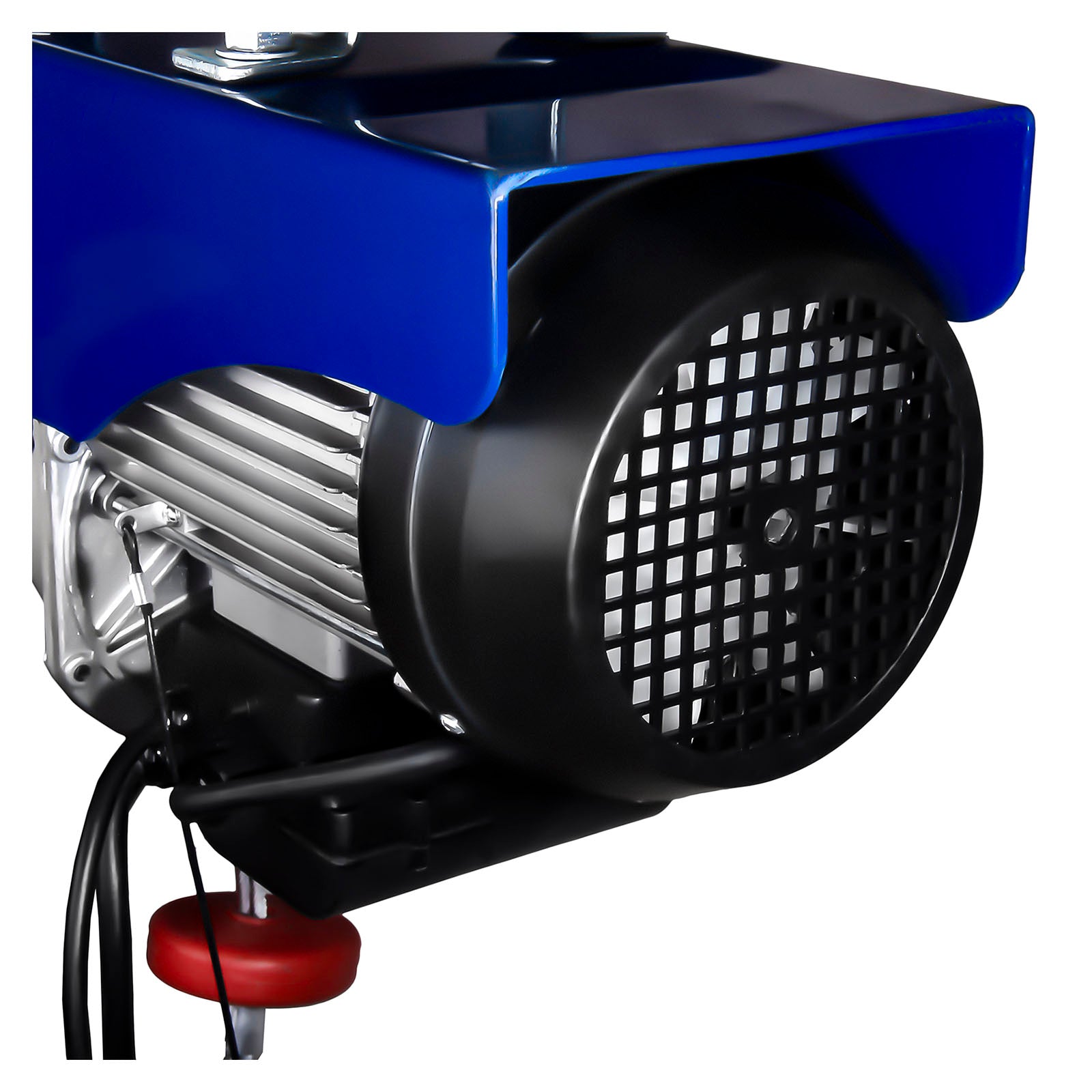

MSW PROLIFTOR 1000 Professional cable winch with electric motor of the German manufacturer MSW. The storage crane is characterized by robust construction, excellent parameters, easy installation and operation and safety of use. The device is made of durable steel, powder coated. The engine body is made of pressed aluminium.
The modern winch engine is equipped with a magnetic mechanism with a stop function The winch can be mounted into the tilting arm or for the construction of the hall or warehouse. Two steel clamps are used to attach the device, which are included in the kit.

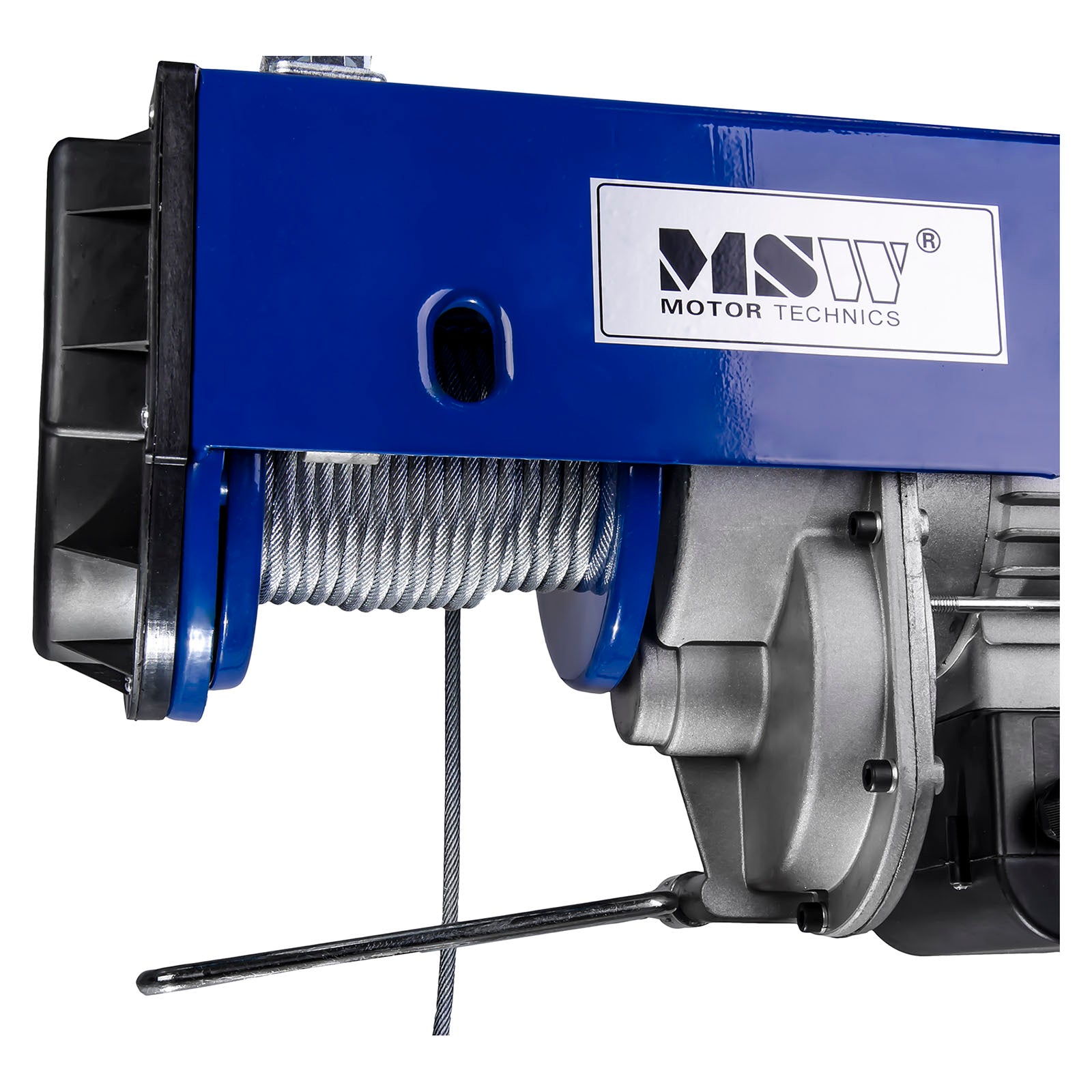

The rope roll drum is made of steel and is equipped with guides for precise line laying. N
and the rope winding drum is fitted with an extreme brake which protects the device and the rope from excessive roll-off. Another safety feature for crane crane is the mechanism to protect the drum against excessive overload and locking the line in case of power interruption.
The rope is made of durable stainless steel and is manufactured in a way that prevents it from turning while working. The machine body has a place to attach the rope in case of a block doubling the load capacity. The integrated control tape wire pilot
All controls can be done with one hand. The control cable is additionally secured with a line against the backrest and has a length of 135 cm.

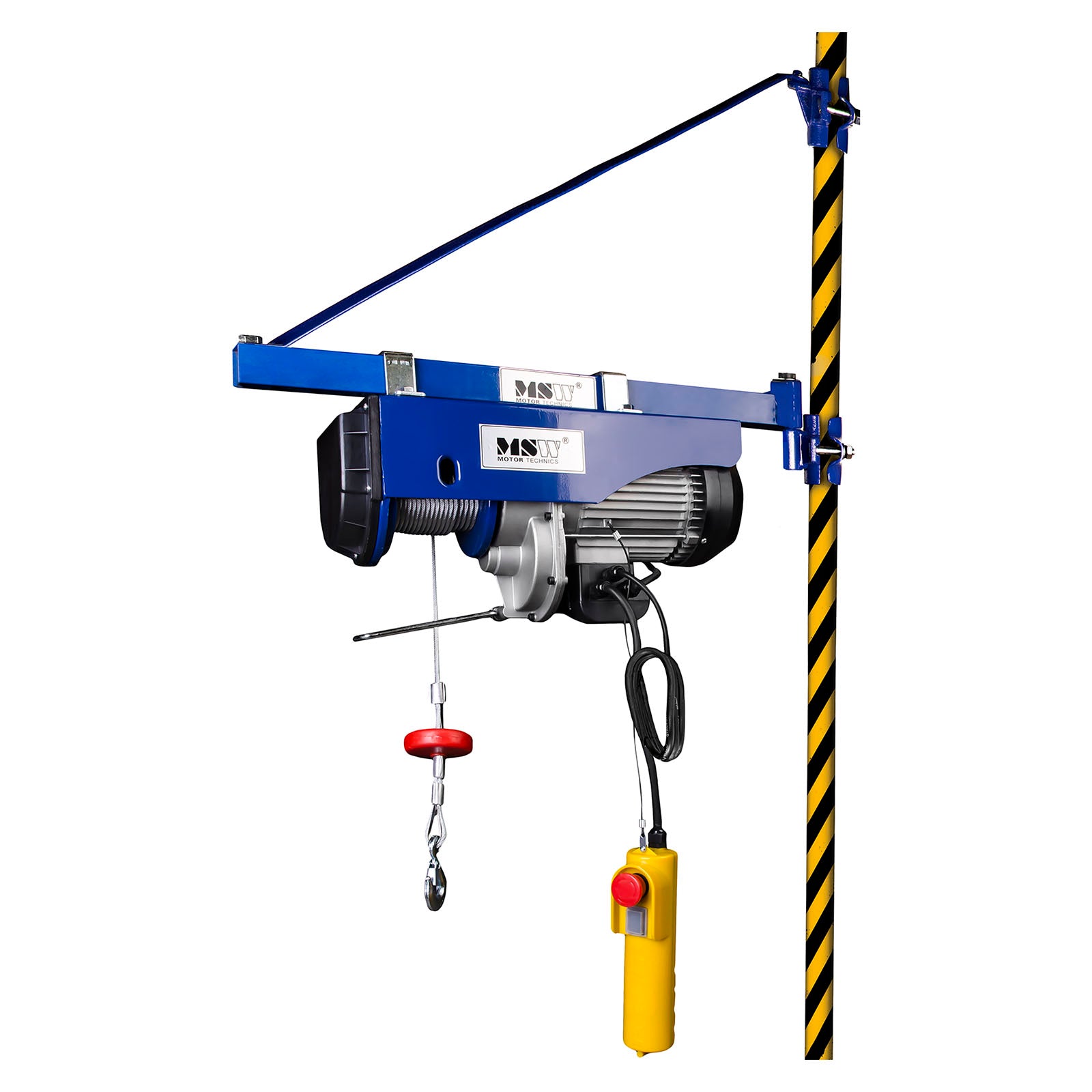

The cable crane mounted on the tilting arm will be ideally suited in warehouses, production halls, hangars, loading ramps, car workshops and wherever proven and safe equipment is required for the most difficult tasks.
Technical parameters: - - Model - PROLIFTOR 1000
- - Catalog number - 6007
- - Stan - New
- - The rope material - CK45 steel
- - Carry-on - 495 kg / 990 kg (No block/with block)
- - Lift height - 12 m / 6 m (No block/with block)
- - Lifting speed - 8 m/min / 4 m/min (No block/with block)
- - The length of the rope - 12 m
- - The diameter of the rope - 5,6 mm
- - Resistance to wire breakage - > 2500 kg
- - Cycle of work - S3-20% 10 min
- - Main voltage - 230V-50Hz
- - Engine efficiency - P1 1600W
- - Remote control remote control - Yes.
- - Insulation class - B
- - Level of protection - IP54
- - Power cord - 1.4 m
- - Dimensions (DxSxW) - 52 x 17.5 x 25 cm
- - Weight - 30,2 kg
- - Dimensions of dispatch (DxSxW) - 64 x 26 x 38 cm
- - Weight of shipping - 33.3 kg

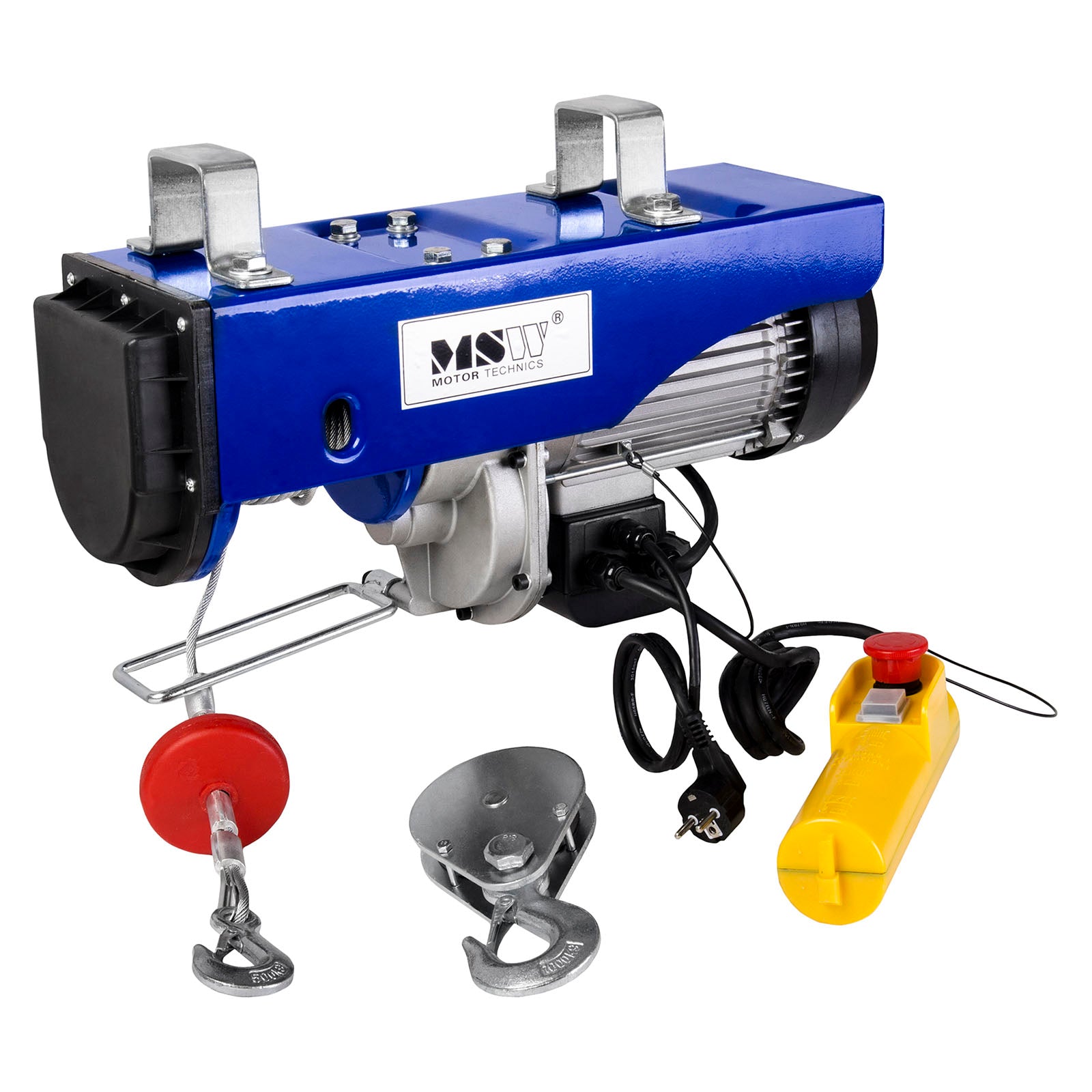

Included: - - Cable winch
- - The pilot with the wire.
- - Handles
- - Screw set
- - I'll shut up.
- - PL Manual
- - NIE MA tilting arm
