Manufacturer's code:
10062662The engraving laser package with pneumatic support (Air Assist) will offer a comprehensive solution for both of these tasks. The Steinberg Systems kit includes not only the laser module with Air Assist, but also a protective cover, a fixed focus plate and all connection and mounting accessories for quick and uncomplicated installation.

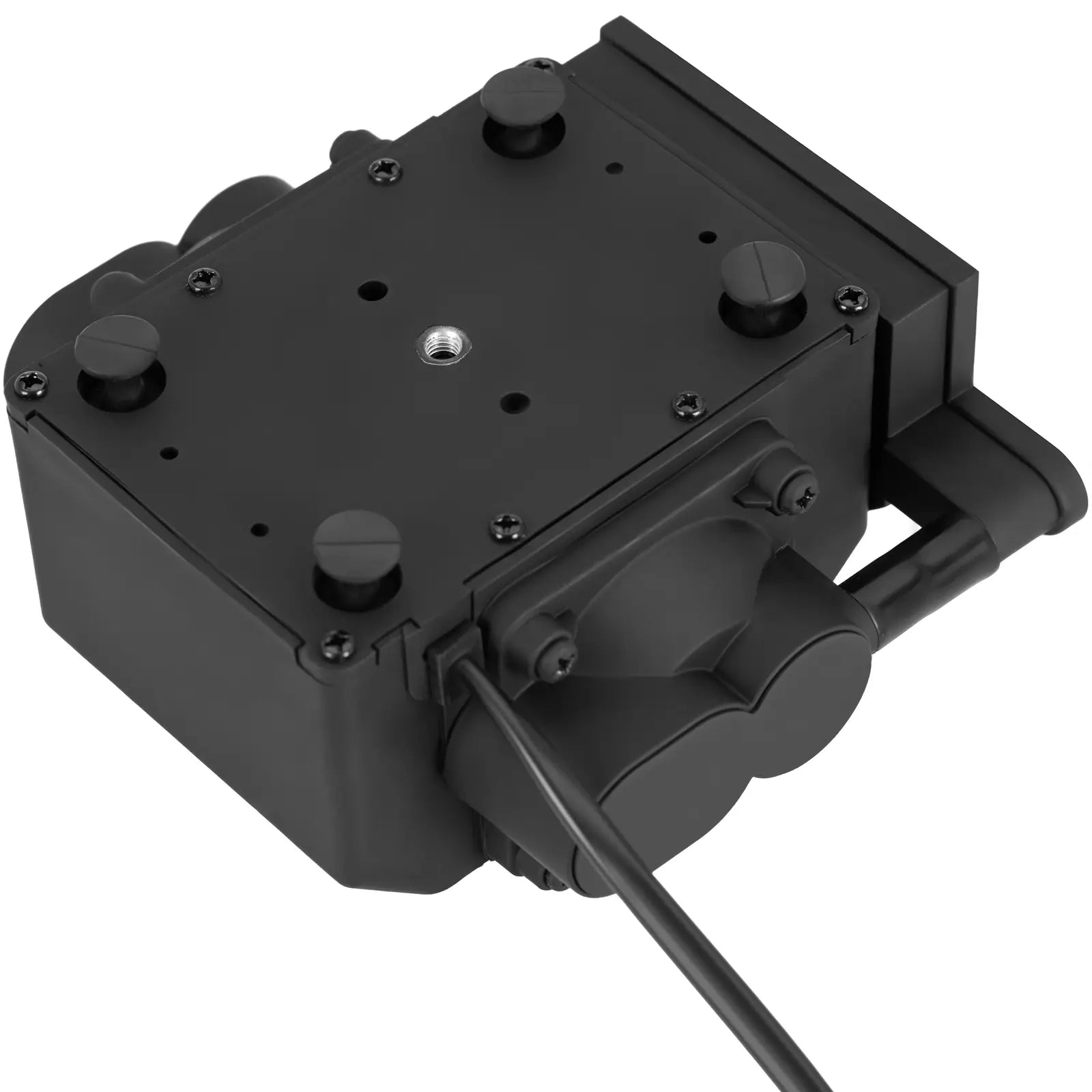

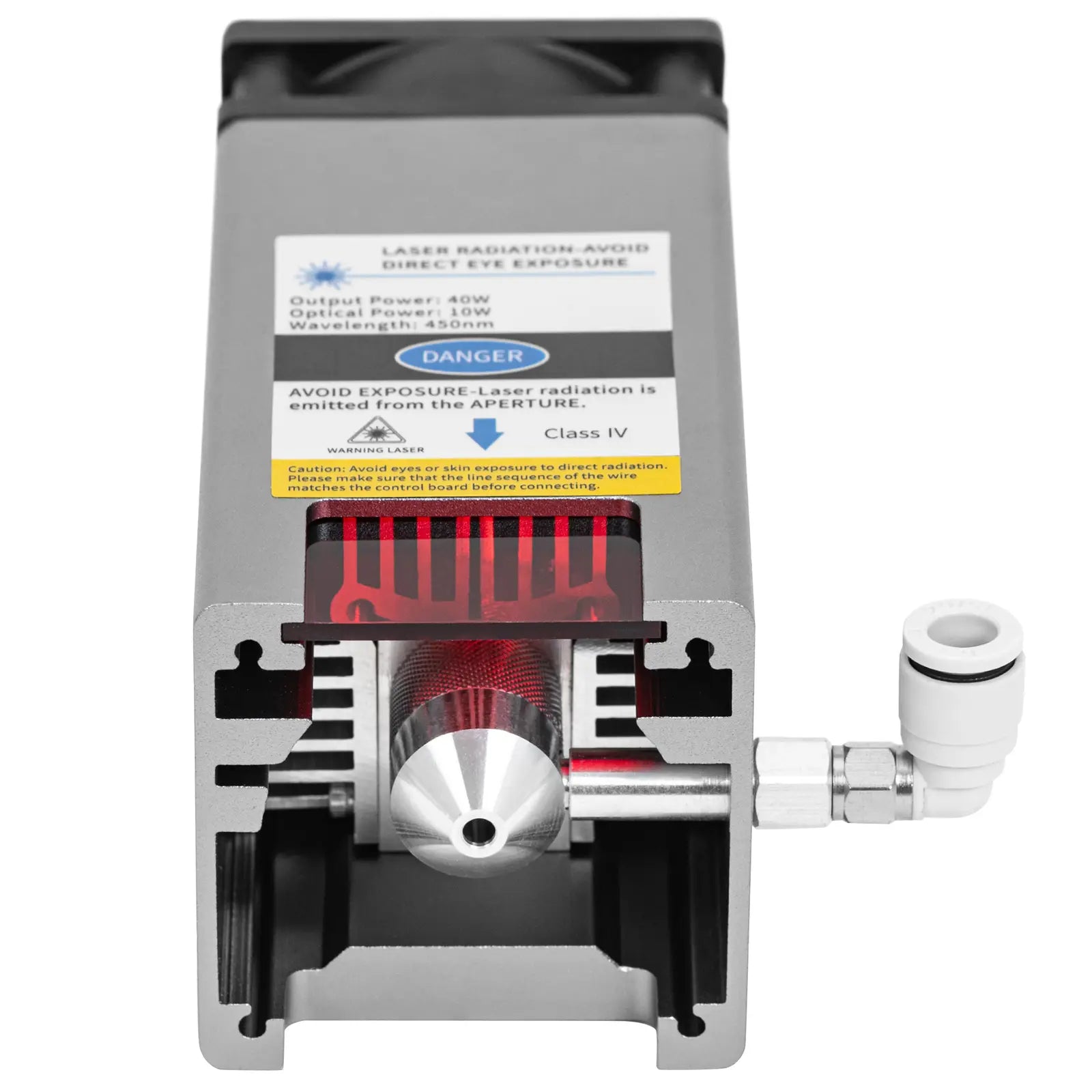

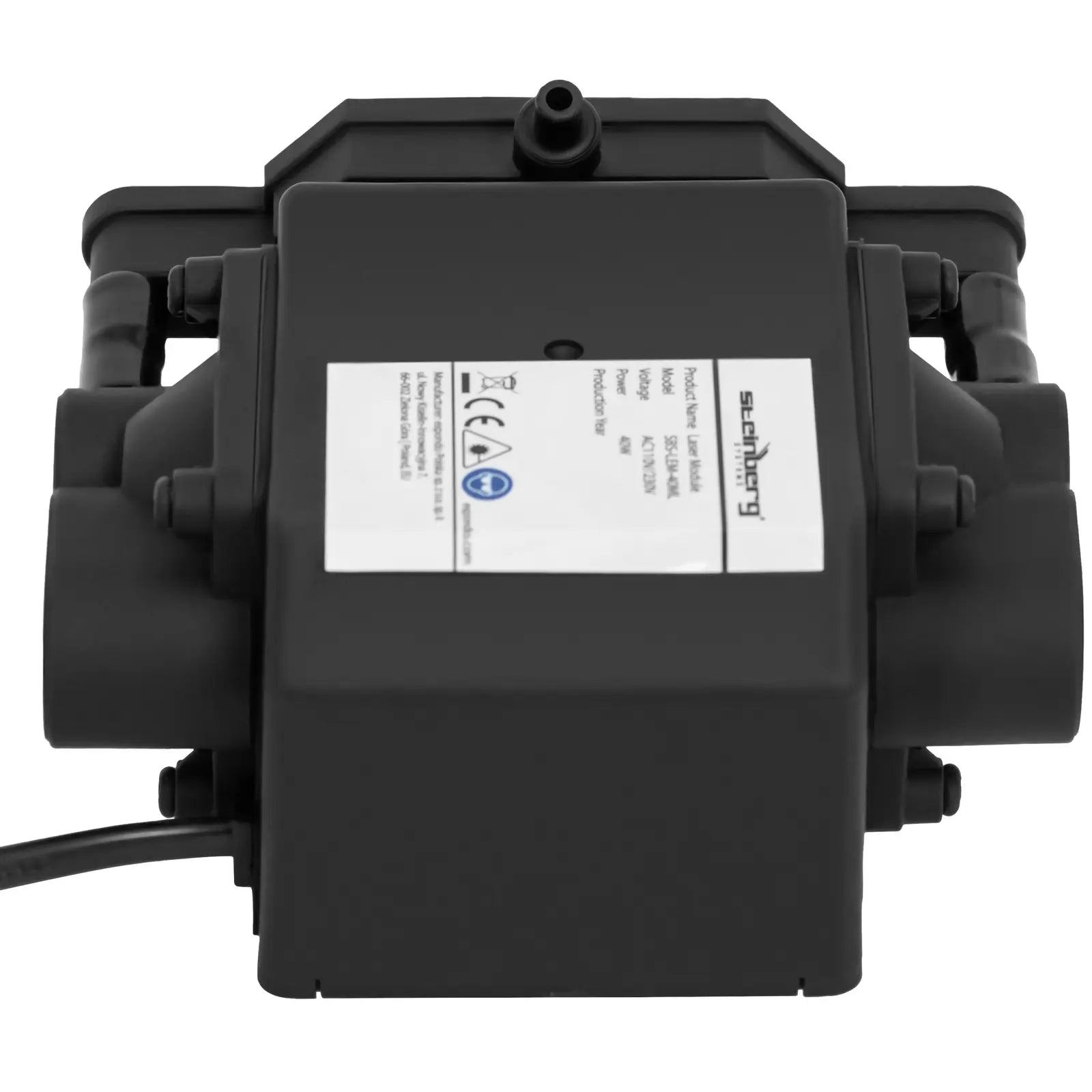

The system has a precision booster nozzle on the laser head with an impressive air flow of 27 l/min at a pressure of 27 Pa. It will not only cool the material, but also remove dust and fumes, ensuring accurate results. The laser itself has a huge power of 10 W and generates waves of 450 nm. This short length will not only allow you to engrave quickly at a speed of up to 1 m/min, but also cut precisely at a speed of up to 10 cm/min with a focusing width of 45 mm.
Thanks to the included protective cover, the laser can be operated comfortably and safely without protective glasses. The versatility of the laser module and simplified operation thanks to the fixed focus plate will allow you to process a wide range of materials quickly and error-free.
You can use it for plywood, acrylic, MDF, wood and paper, leather, bamboo, plastic, rubber, aluminum and even stainless steel. Allows you to cut elements up to 8 mm thick (plywood). The complete package can be connected to regular engraving machines and CNC milling machines, facilitating integration into work environments and enabling trouble-free use.
Product features: - - Air Assist engraving laser, laser protective cover, fixed focusing plate and all connections and mounting accessories,
- - Assist nozzle on the laser module will cool material at a speed of 27 l/min, will remove dust and fumes, thus guaranteeing clean results,
- - The blue laser with a wavelength of 450 nm engraves at a speed of up to 1 m/min and cuts at a speed of up to 10 cm/min (in each case with a focusing width of 45 mm),
- - Using a burning laser, you can process many materials such as plywood, acrylic, MDF, wood, paper, leather, bamboo, plastics, rubber, aluminum, stainless steel up to a thickness of 8 mm,
- - Fits many devices such as laser engraving machines or CNC milling machines thanks to its compact size and modular design.
Technical parameters: - - Catalog number - 10062662
- - Article condition - New
- - Model - SBS-LEM-40ML
- - Material - Rubber, Aluminum alloy
- - Color - Black
- - Voltage [V] - 110 - 230
- - Light colors - Blue
- - Power [W] - 20
- - Maximum speed - Cutting speed 120 mm/min (at 20 mm focusing width)
- - Output voltage/amps - 3-pin (12 V, GND, PWM)
- - Laser power - 10000
- - Intended use - For air compressor: ≥0.027 kPa / 27 l/min
- - Outer diameter of the air hose [mm] - 8
- - Input voltage [V] - 12 (laser)
- - Maximum engraving speed [mm/min] - 1000
- - Inner diameter of the air nozzle [mm] - 3.5
- - Intended use - Plywood, acrylic, MDF, wood, paper, leather, bamboo, plastic, rubber, aluminum, stainless steel, etc.
- - Outer diameter of the air nozzle [mm] - 6
- - Laser wavelength [nm] - 450
- - Power cord - 1.5 m
- - Maximum flow - 30 l/min
- - Noise level - 45 dB
- - Diameter of the air supply hose - 6 mm
- - Material thickness - 8 mm
- - Dimensions (LxWxH) - 17 x 12 x 7 cm
- - Weight - 1.5 kg
- - Shipping dimensions (LxWxH) - 29 x 18 x 14 cm
- - Shipping weight - 1.9 kg

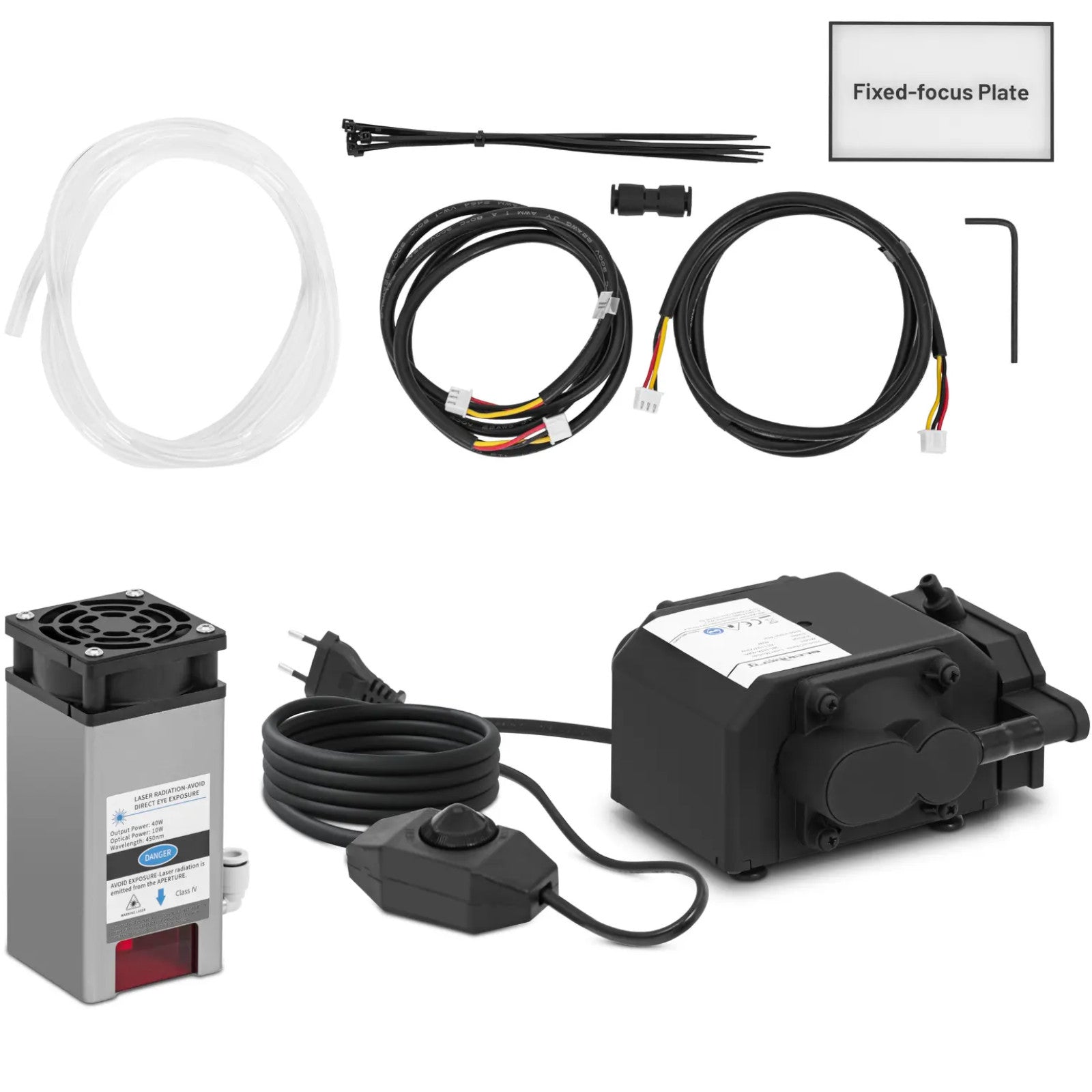

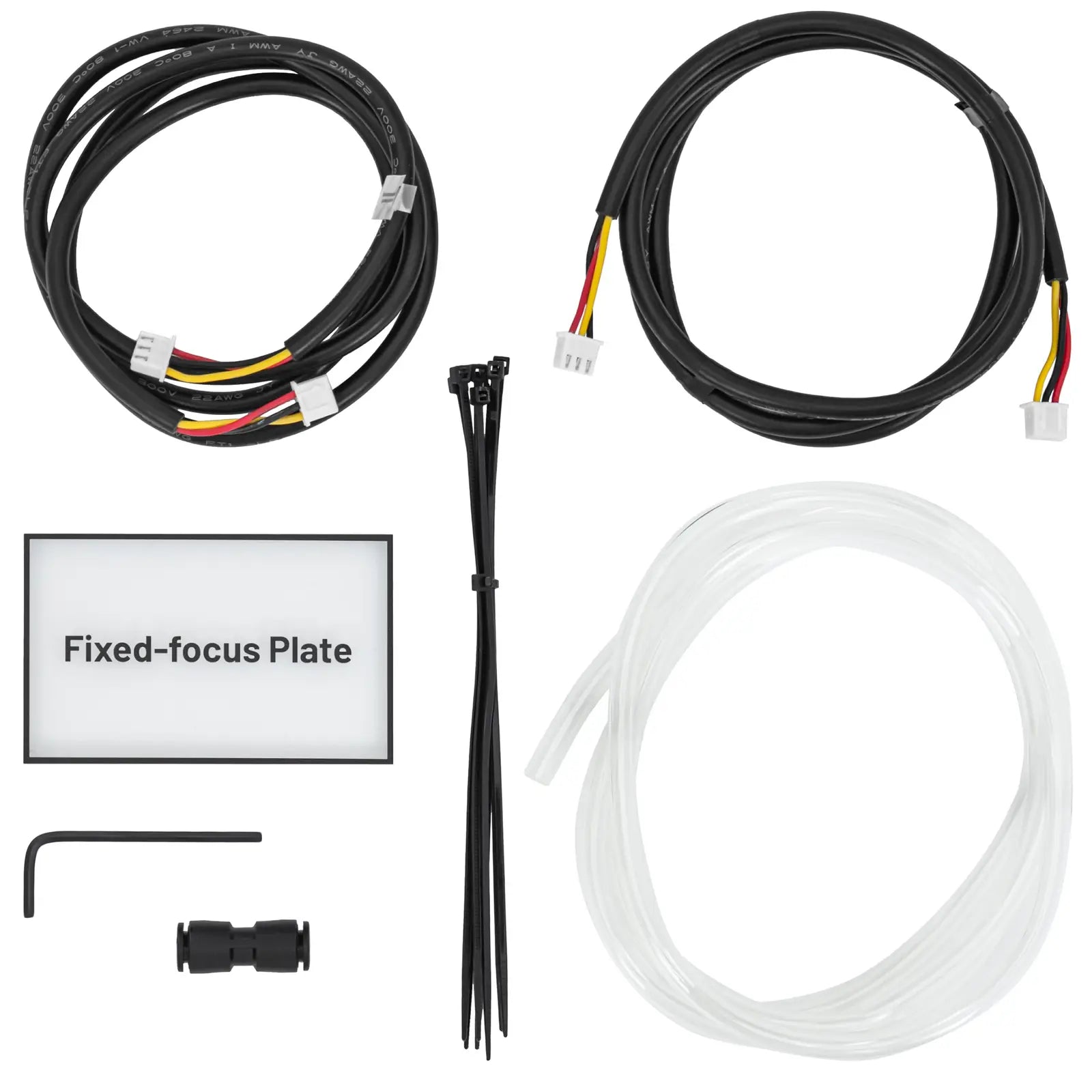

Included: - - Engraving laser
- - Connecting cable (cross)
- - Connecting cable (continuous)
- - Gas hose
- - Fixed focusing plate
- - Adapters
- - Spacer washer
- - Mounting accessories
