Manufacturer's code:

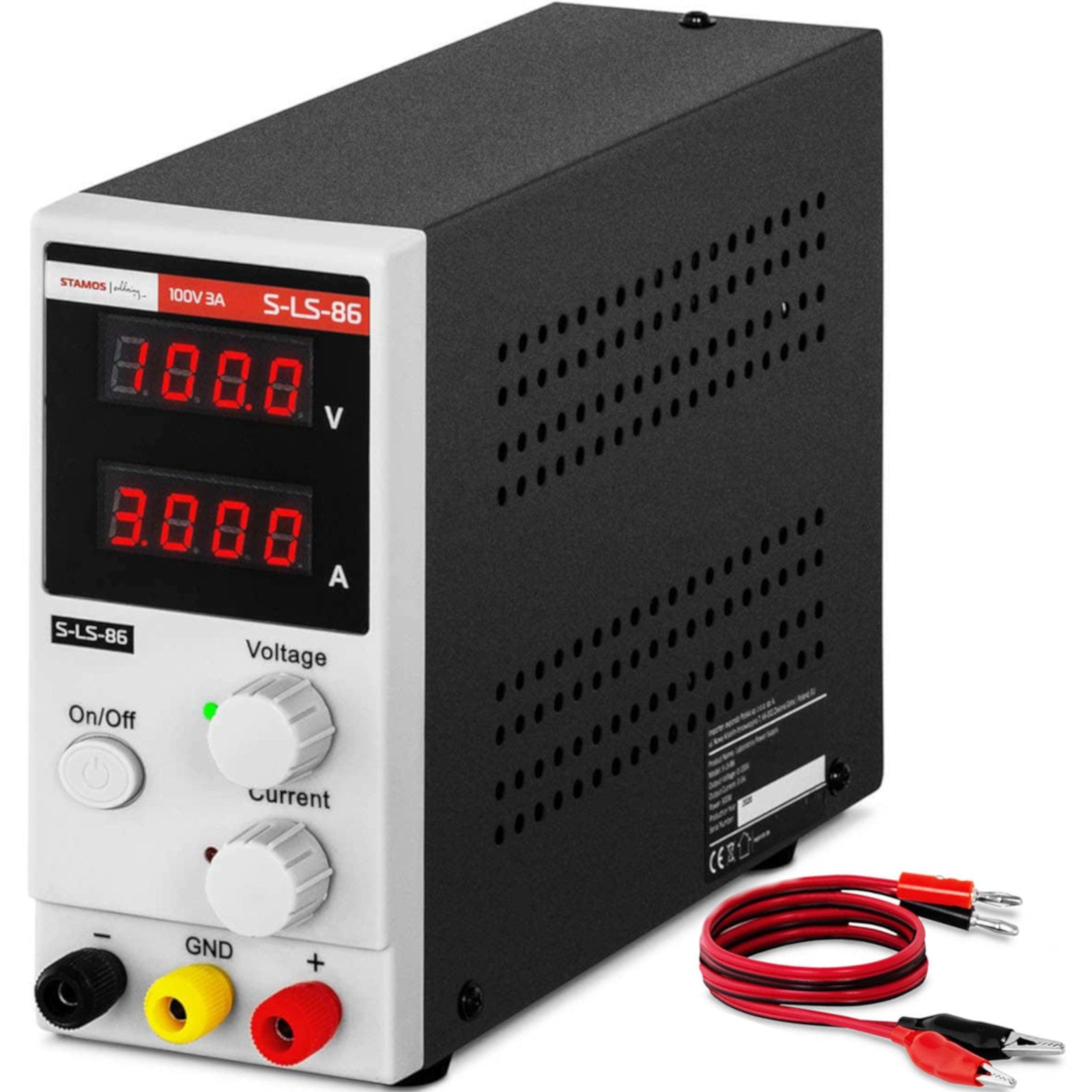

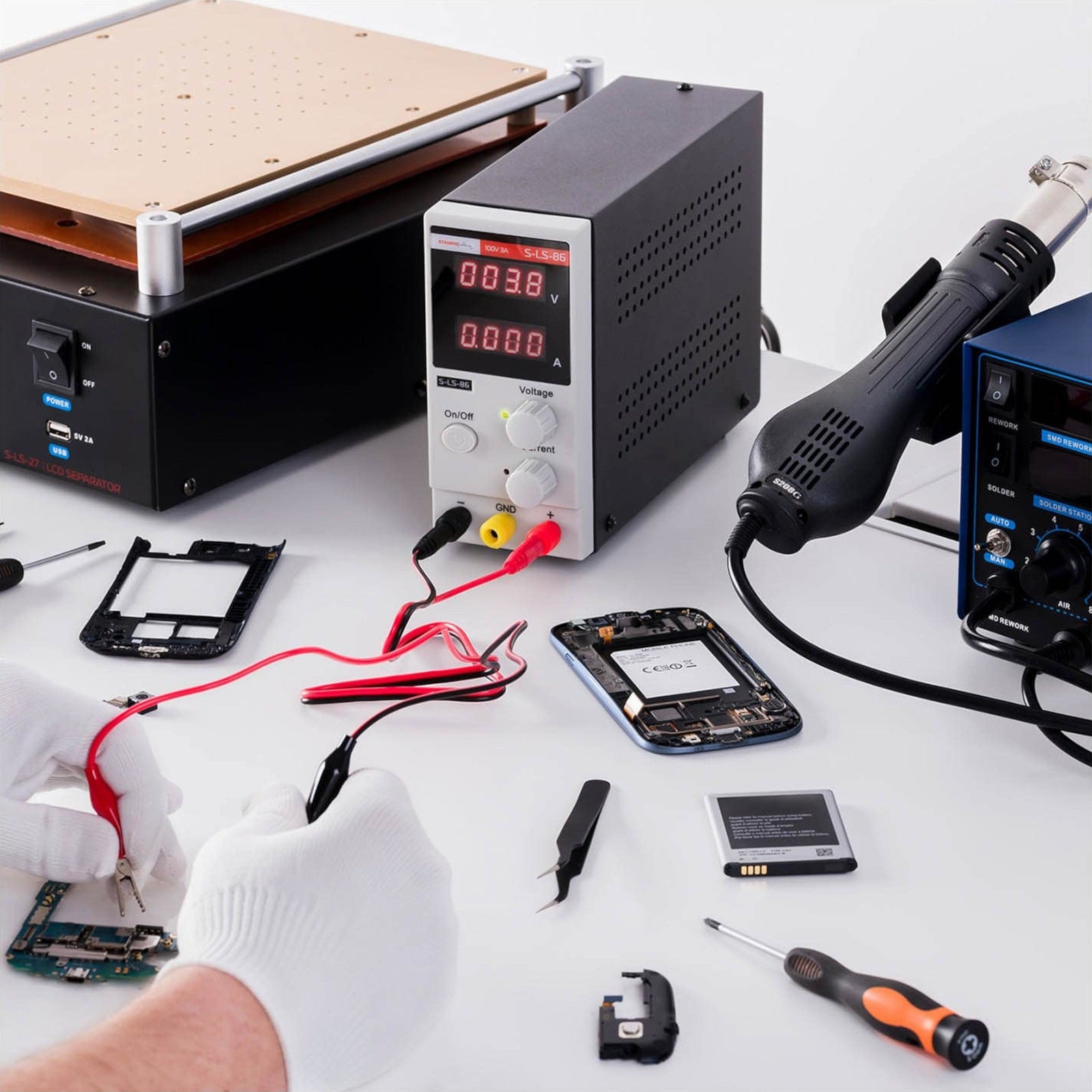

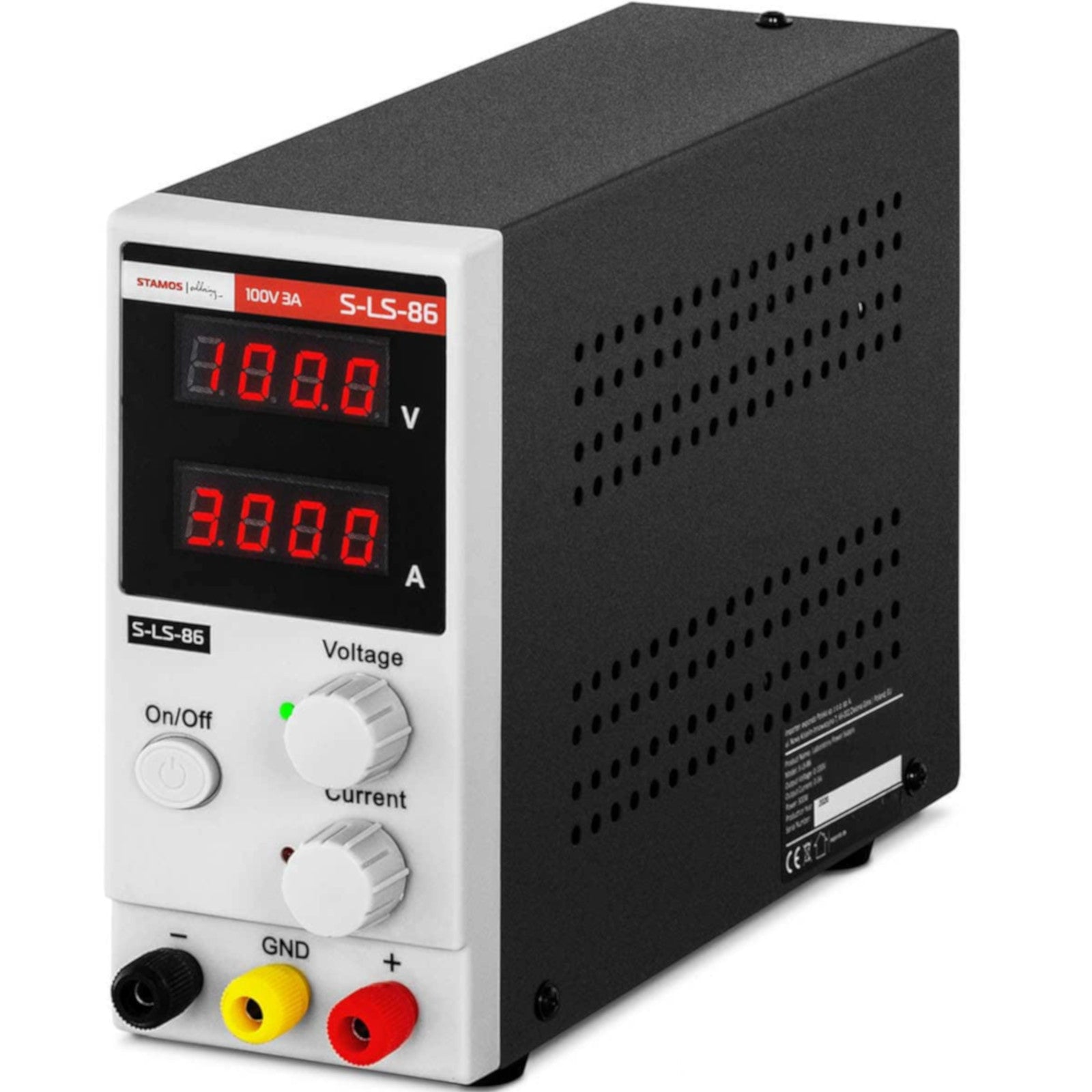

10021177Stamos Soldering Laboratory Power Supply will be suitable for industry, laboratories, telecommunications, workshops, etc. The technology used ensures low levels of aneurysms and noise.

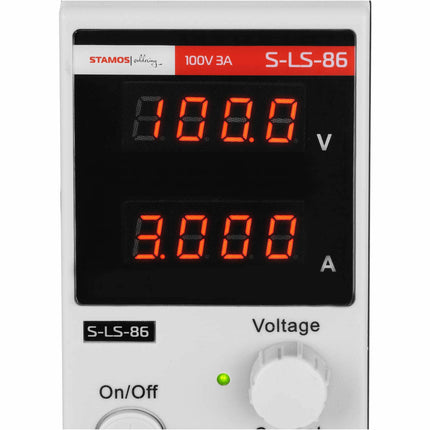

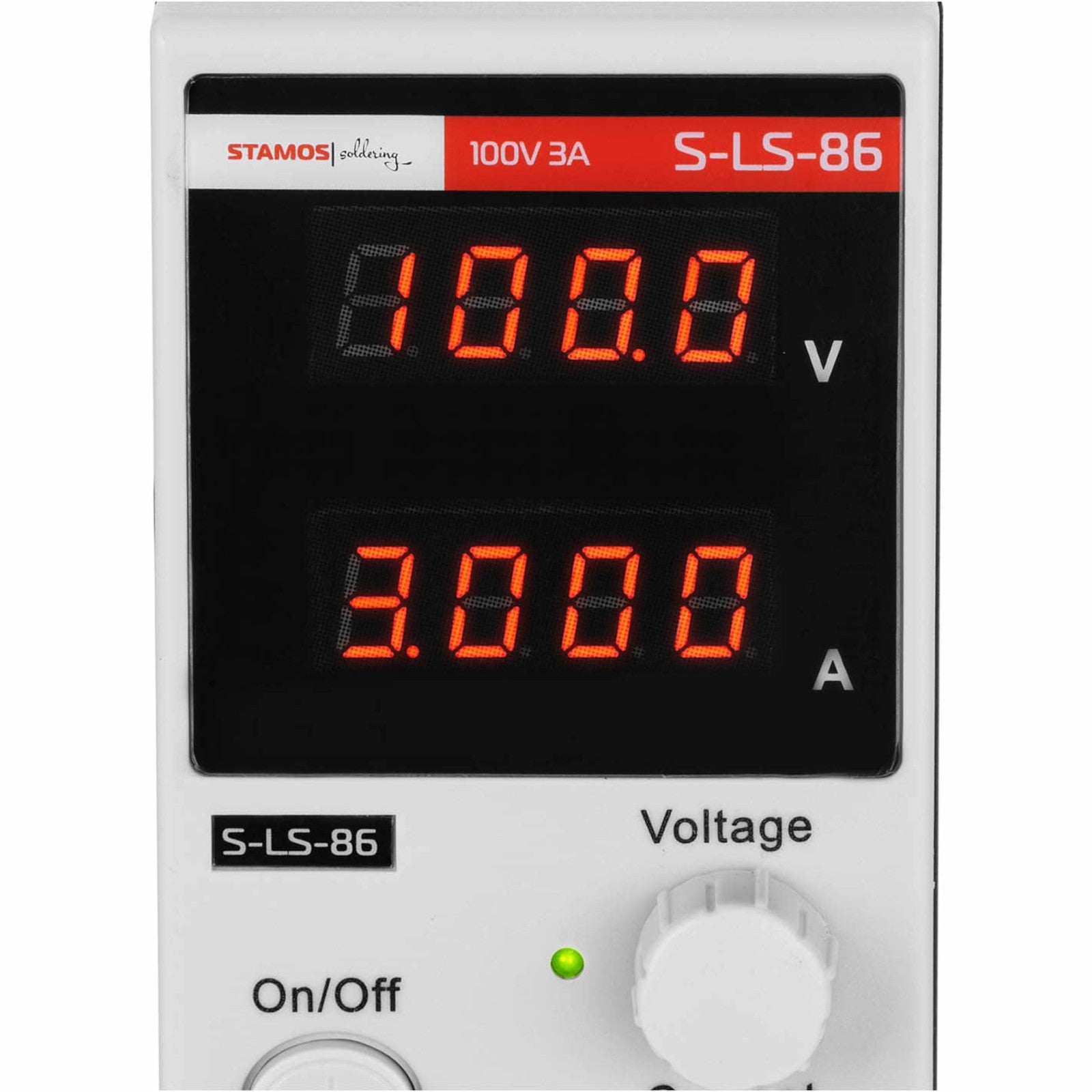

LED displays allow you to read the set values at any time. Settings are adjusted via the dials. They allow you to set the output voltage accurately from
0 to 100 V and output current from
0 to 3 AIf the power supply works as a fixed voltage (CV), it switches to operation with constant current (CA) after reaching the set load limit. This prevents damage to connected devices. The equipment is equipped with
overload protection (OPP) and
overheating protection (OTP) which automatically activates the fan after exceeding the maximum temperature. Antislip rubber feet ensure stability of the device and protect the surface from scratches.
Product features: - - DC voltage from 0 to 100 V and current from 0 to 3 A,
- - Quick check of current and output voltage,
- - Screws for setting the voltage and intensity values,
- - Rubber feet don't slide and draw surfaces,

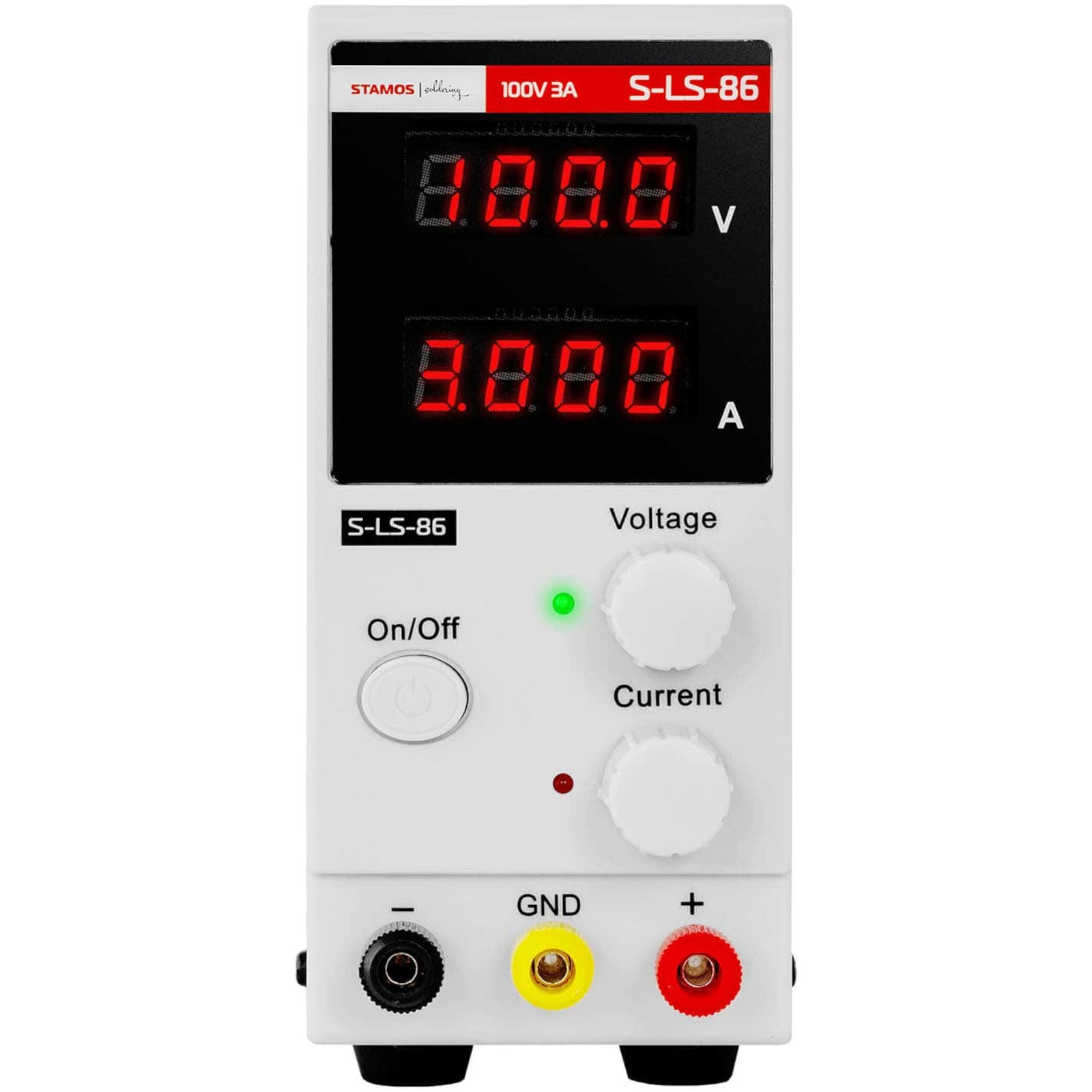

- - Clear control panel with two knobs.
Technical parameters: - - Catalog number - 10021177
- - The state of the article - New
- - Model - S-LS-86

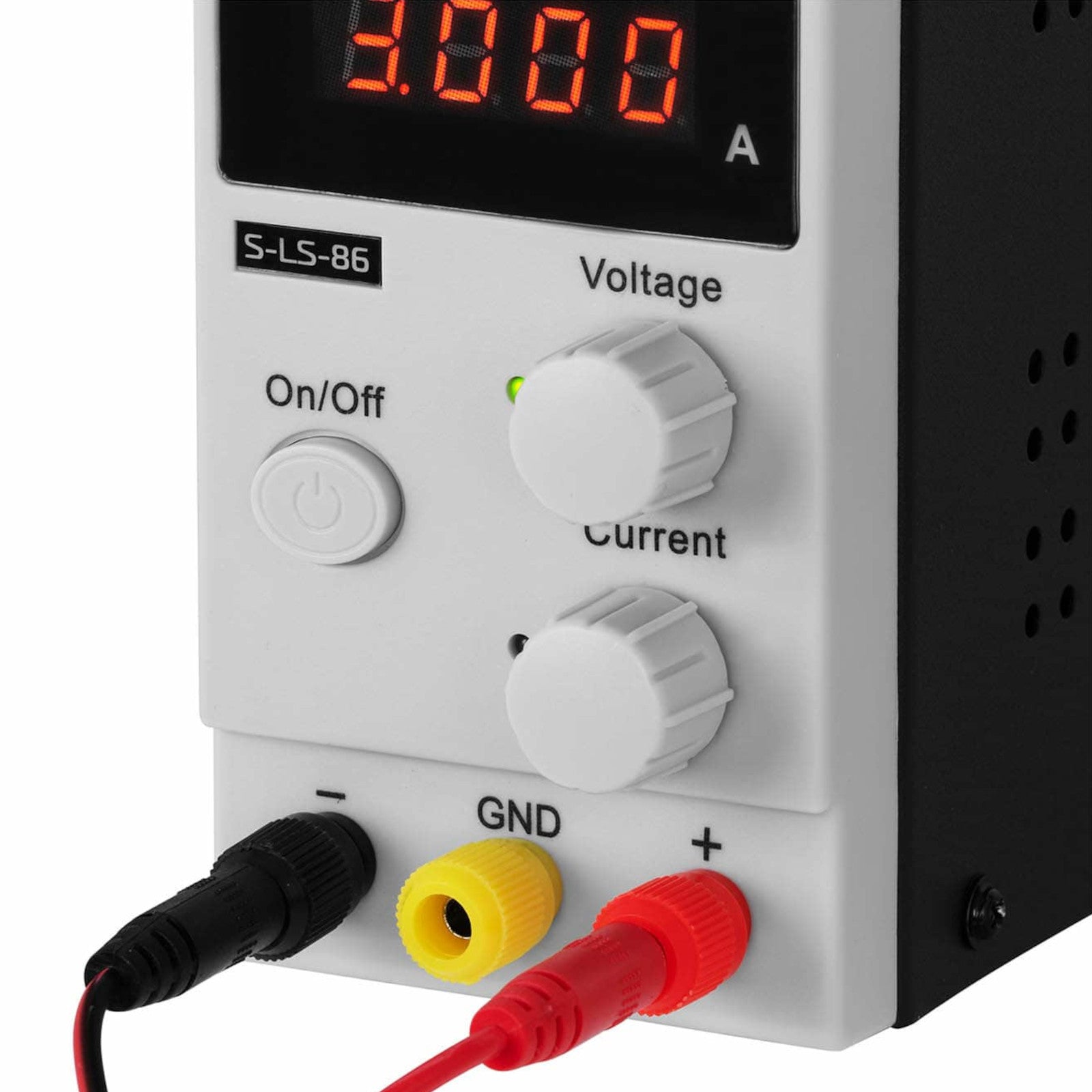

- - Connector [mm] - Output sockets, network sockets, grounding outputs

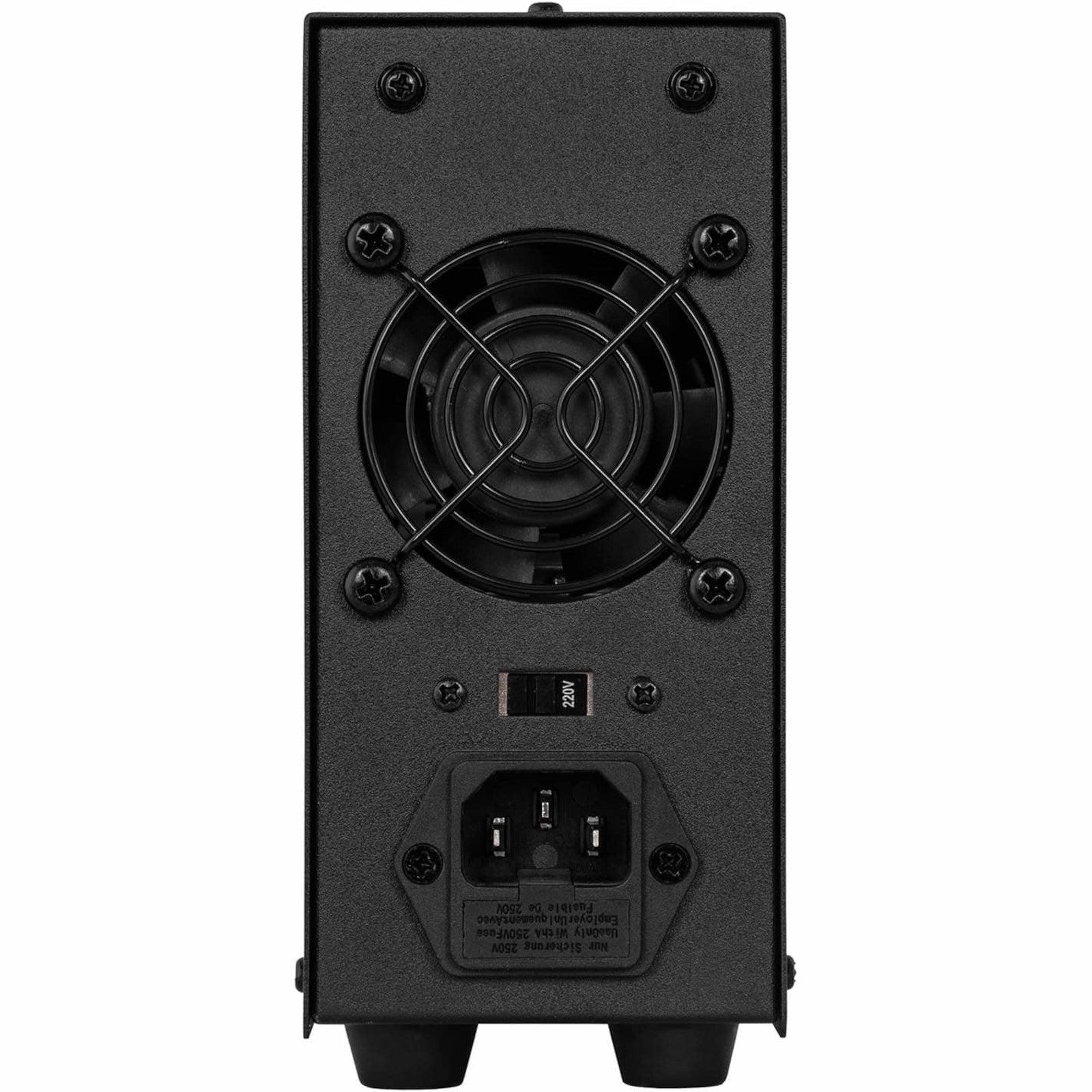

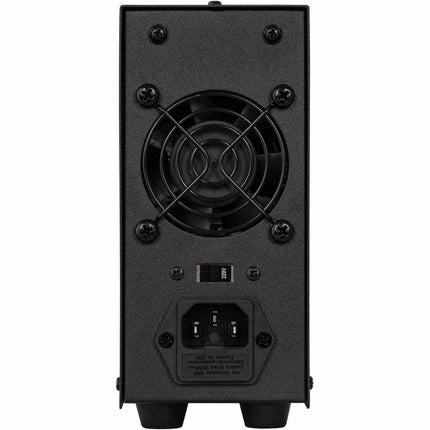

- - Cooling - Fan, temperature control
- - Color - Black
- - Flashback [A] - 5
- - Voltage stabilisation factor - CV 20 mV / CC 20 mA
- - Current stability factor - CV 50 mV / CC 20 mA
- - Type - Impulse
- - Output current [A] - 0 - 3
- - Security - OTP, OPP

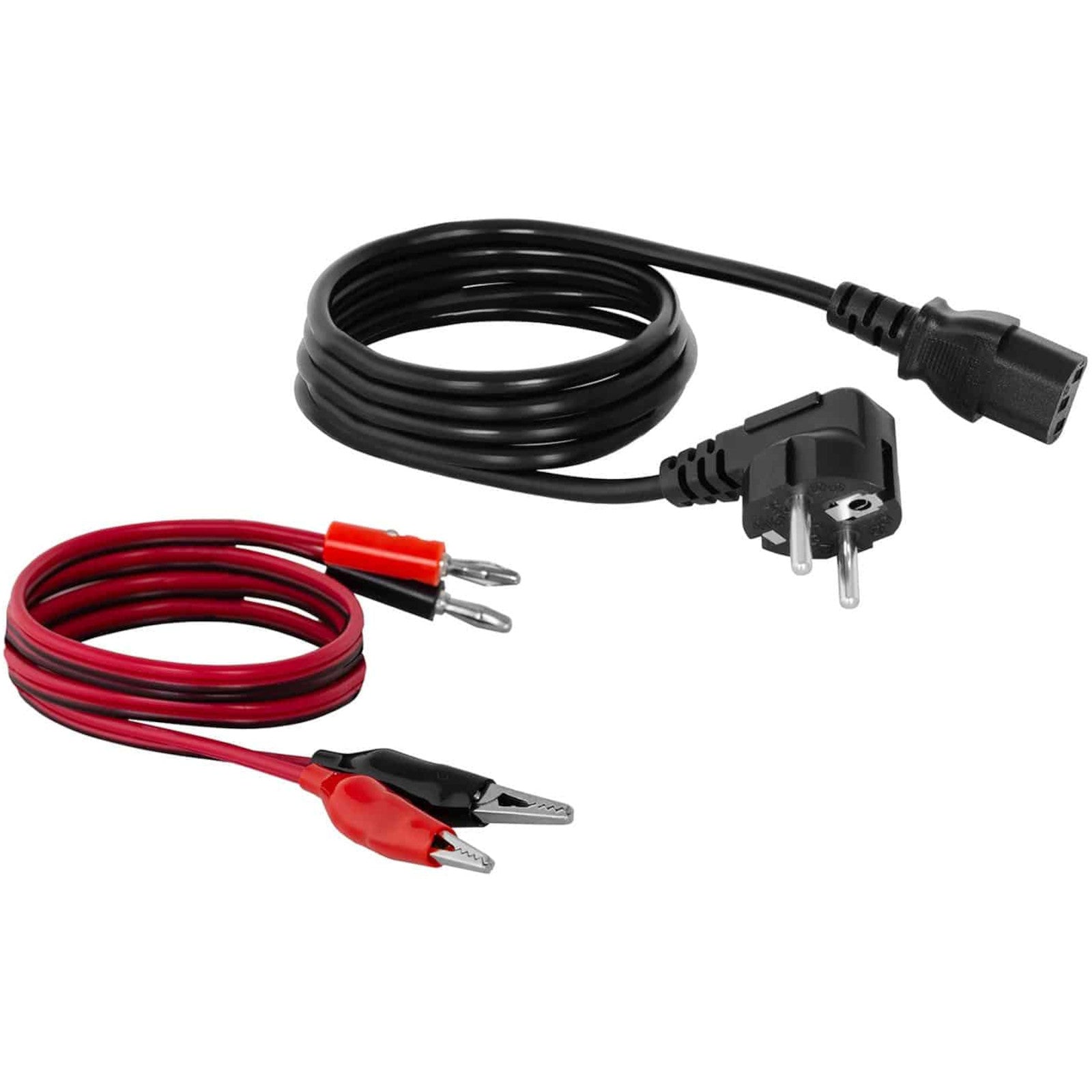

- - Power cord [m] - 1,1
- - Output voltage [V] - 0 - 100
- - Display - LED
- - Voltage [V] - 230
- - Power [W] - 300
- - Marked input current [A] - 3
- - Pulse ox - 30 mV / 20 mA

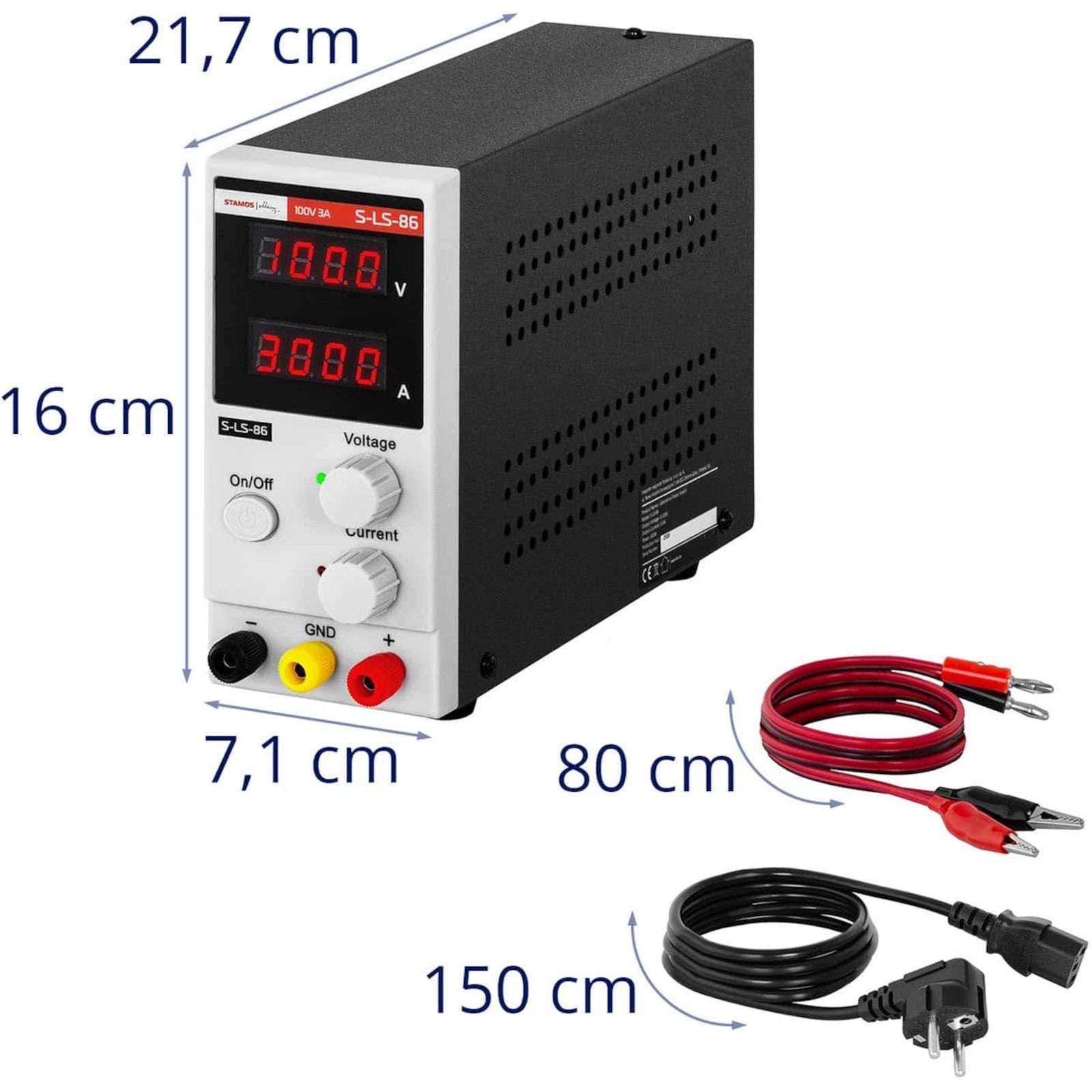

- - Dimensions (DxSxW) - 21.7 x 7.1 x 16 cm
- - Weight - 1.5 kg
- - Dimensions of dispatch (DxSxW) - 30.3 x 10.8 x 20 cm
- - Weight of shipping - 1.78 kg
Included: - - Laboratory power supply.
- - User manual
