Apraksts
Manufacturer's code:

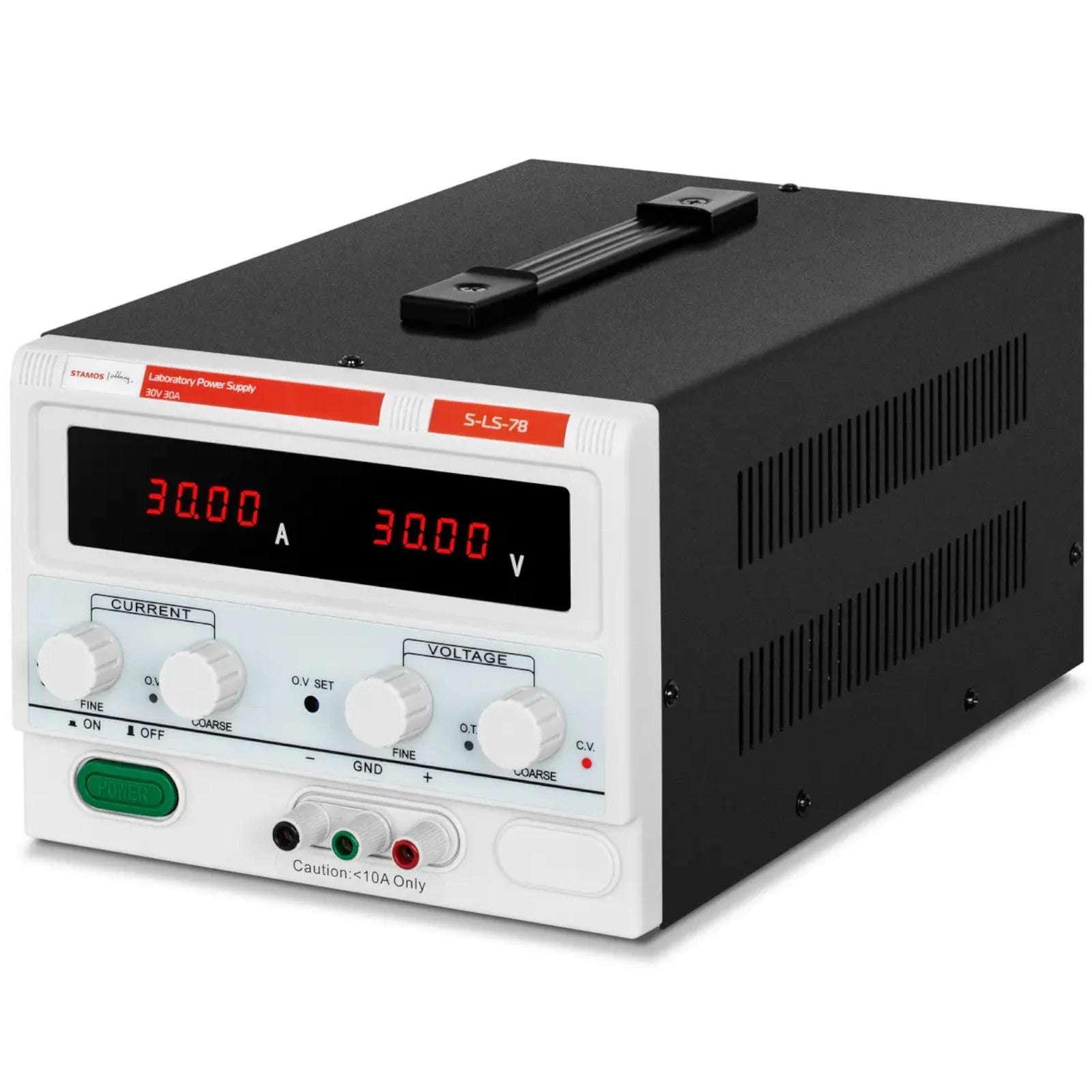

10021169The laboratory power supply from
Stamos Soldering allows you to supply external devices with direct current at a specific voltage. It is an ideal tool in industry, laboratories, telecommunications, workshops and more. The excellent efficiency of the equipment results from the use of one channel providing output voltage in the range of 0-30 V and current from 0 to 30 A. In addition, the product generates a current with very low ripple and noise (≤ 1% RMS), which does not damage the power supply circuit.
Product features: - - Maximum output power of 900 W,
- - One channel providing a max. output voltage of 30 V and output current up to 30 A,
- - Panel with knobs ensures easy and accurate setting of the voltage value and current, the LED display presents the parameters,
- - Numerous protections, including protection against overheating, too high voltage and power,
- - Rubber feet prevent slipping and scratching the surface.
Technical parameters: - - Catalog number - 10021169
- - Article condition - New
- - Model - S-LS-78
- - Connector [mm] - Output Sockets / AC Power Socket / Ground Output
- - Cooling - Fan / Temperature Control
- - Color - Black
- - Fuse [A] - 10
- - Voltage stabilization factor - CV: ≤0.2% mV / CC: ≤ 0.5% mA
- - Current stabilization factor - ≤0.5%
- - Type - Pulse
- - Output current [A] - 0 - 30
- - Protections - OVP / OTP / OPP
- - Power cable [m] - 1.1
- - Output voltage [V] - 0 - 30
- - Display - LED
- - Voltage [V] - 230
- - Power [W] - 900
- - Rated input current [A] - 30
- - Ripple - ≤1% RMS
- - Dimensions (LxWxH) - 20 x 32 x 15.4 cm
- - Weight - 4 kg
- - Shipping dimensions (LxWxH) - 40 x 25.5 x 22 cm
- - Shipping weight - 4.52 kg
Included: - - Laboratory power supply

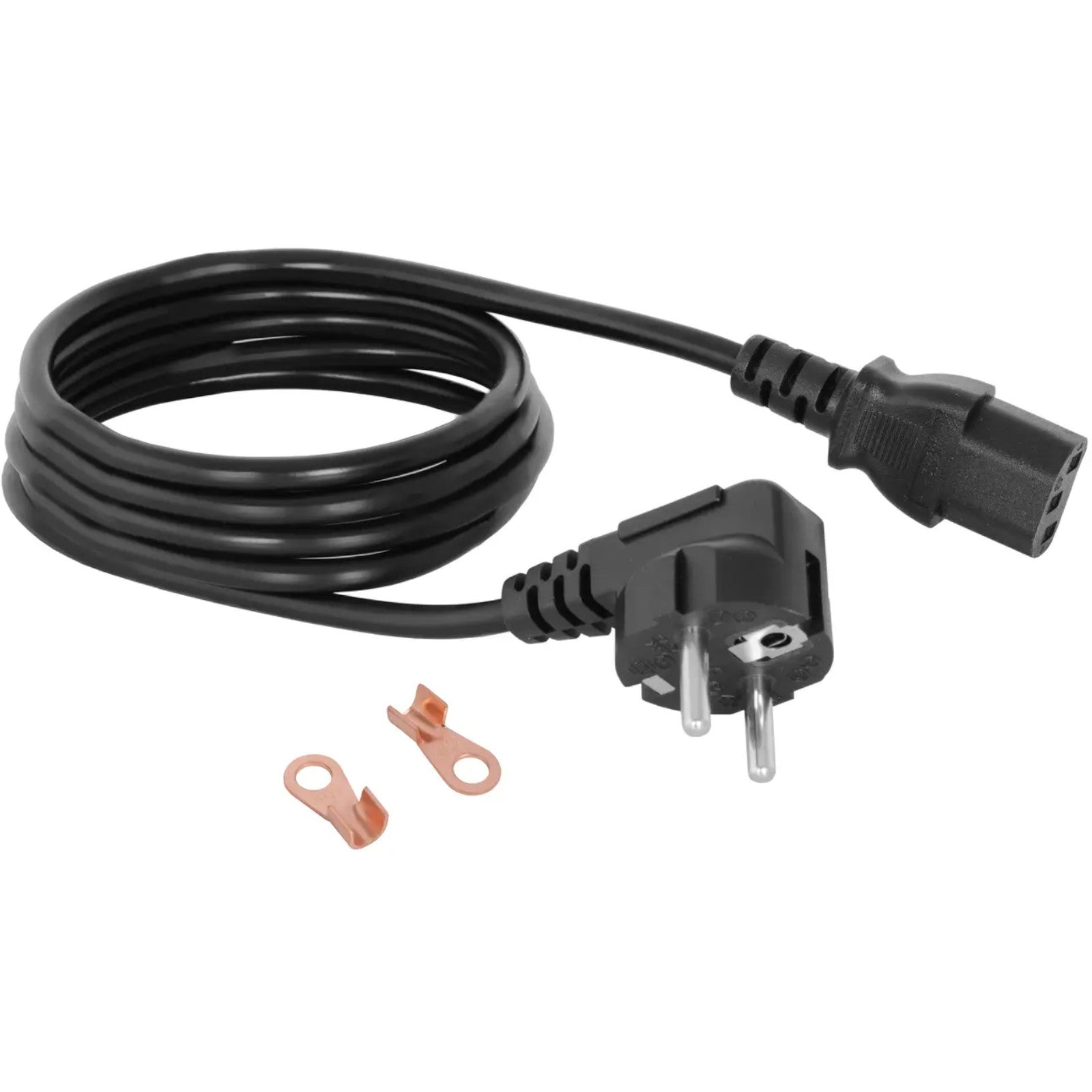

- - Power cord
- - User manual
