Manufacturer's code:

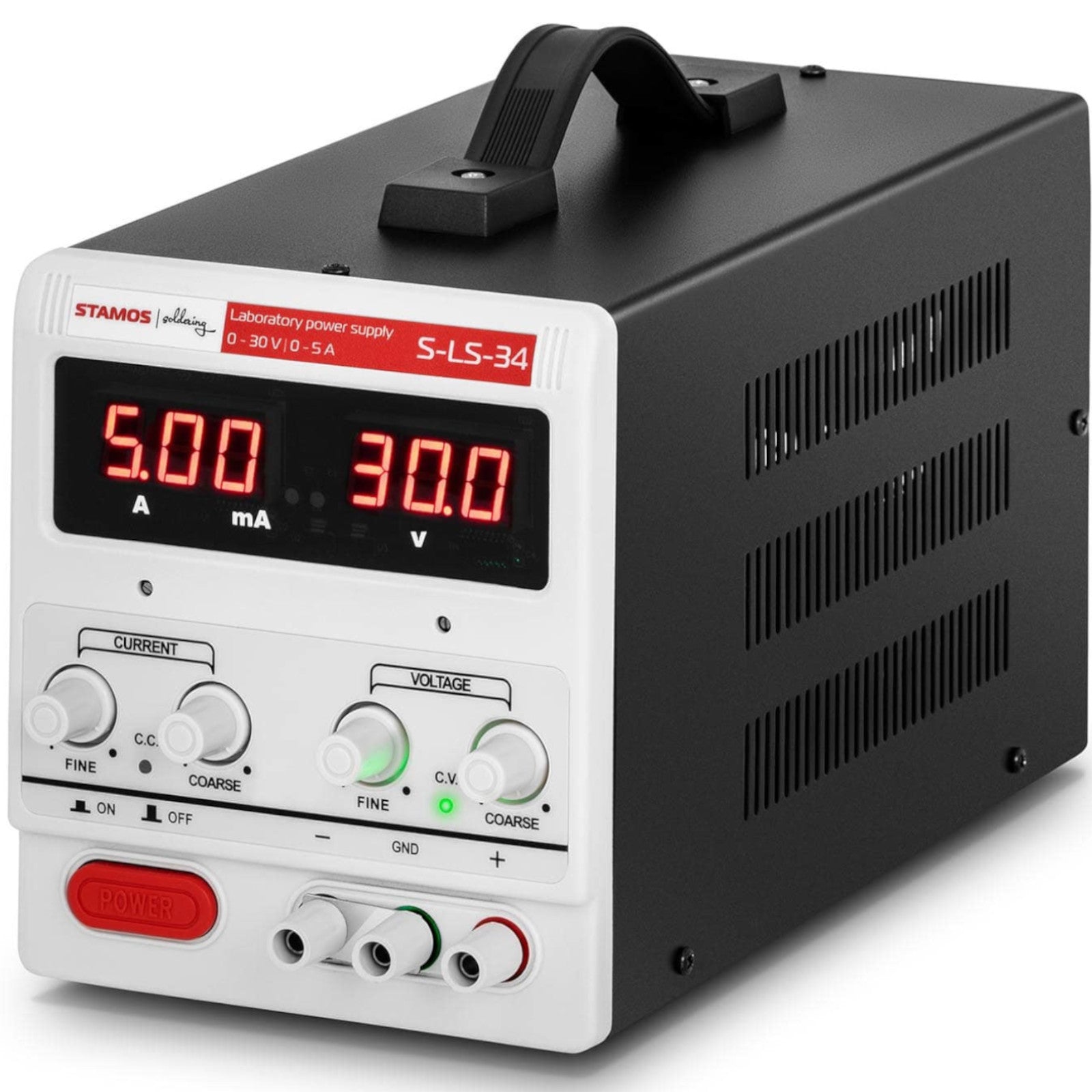

10021064Stamos Soldering Laboratory Power Supply will be used in production plants, services, laboratories, workshops and the telecommunications industry. The device is used for processing
DC current variable electricity with a specific voltage and delivery to electronic external devices. The power supply has a channel with positive output and negative output. The equipment precisely generates low pulse current
≤10% RMS and slight noises, which prevents damage to the circuit. It has a voltage to
30 V and output current to
5 AReady

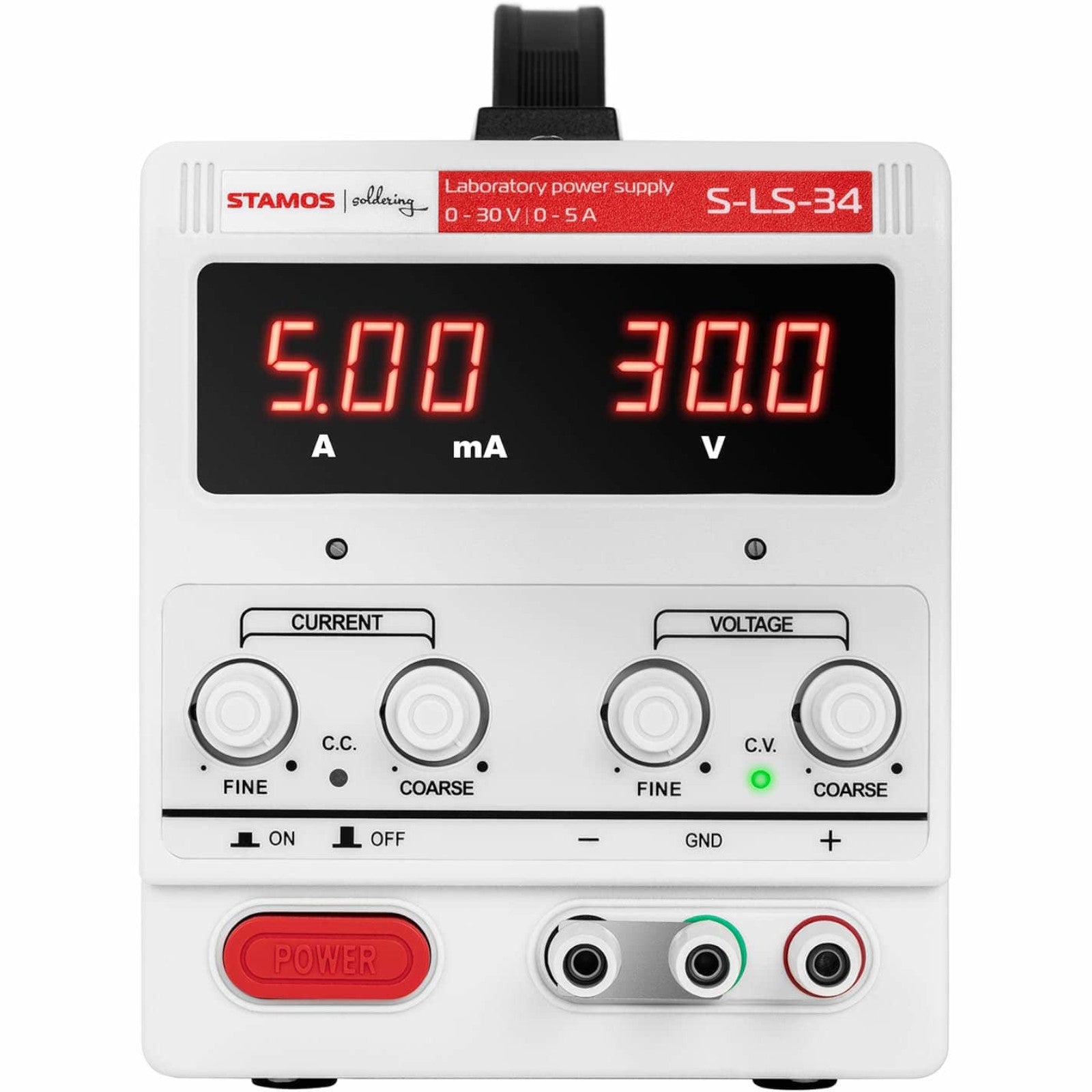

LED display The equipment allows you to operate in two C.V. modes (permanent output voltage) and C.C. (permanent load current). For safety it has an overheating function. The fan automatically switches on when the power supply exceeds 40deg C and it will switch off when it falls to 35deg C.

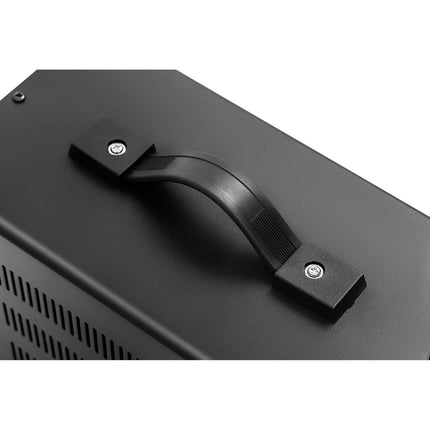

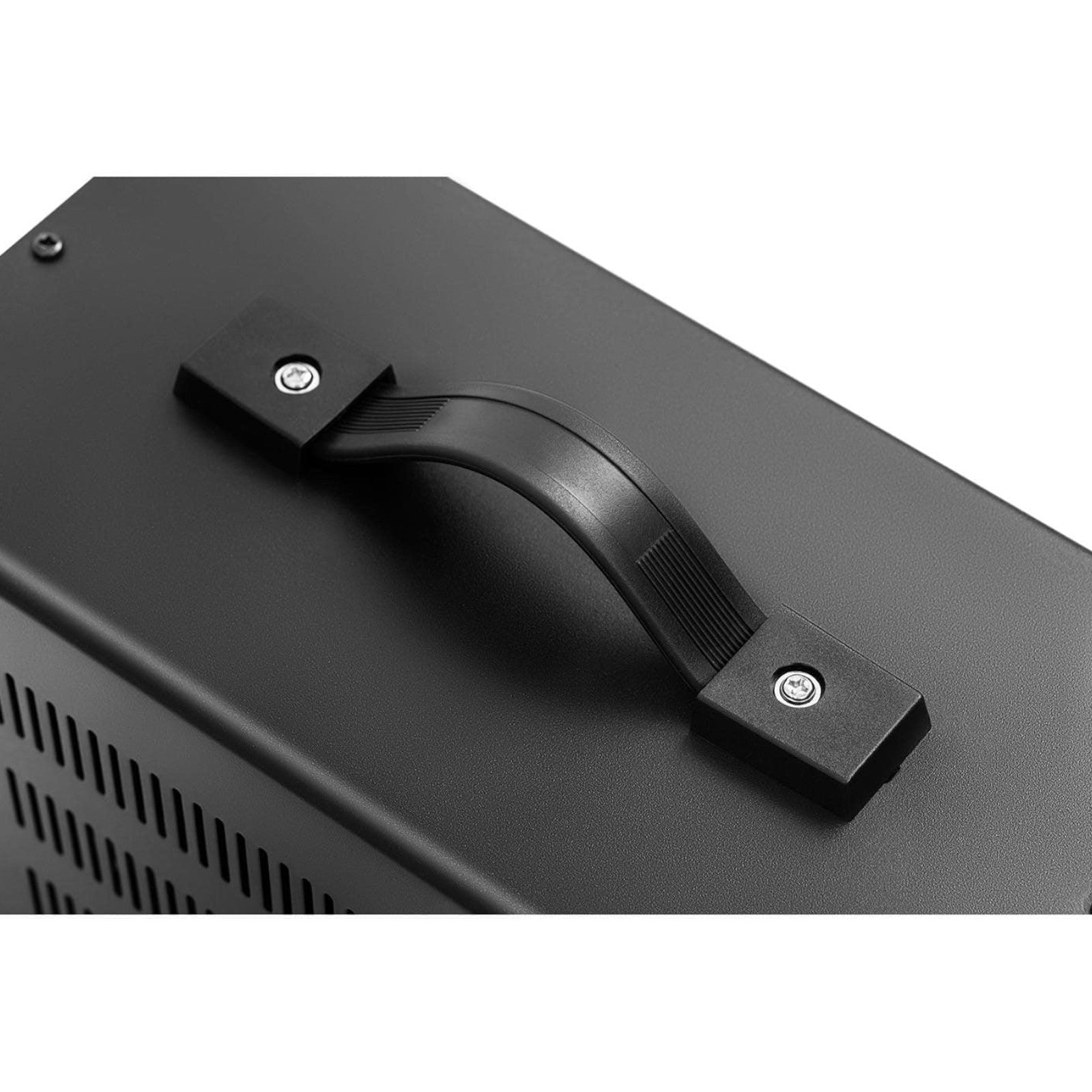

Security systems before too high voltage and current reduce the risk of failure. Small weight and compact sizes allow for easy transport of the device. Rubber feet prevent slipping and do not draw the working surface.
Product features: - - Voltage up to 30 V and intensity up to 5 A,
- - knobs for adjusting the settings,
- - A clear LED display,
- - Protection against excessive voltage and electricity and overheating.
Technical parameters: - - Catalog number - 10021064
- - The state of the article - New
- - Model - S-LS-34
- - Connector [mm] - Output sockets, power socket, ground output terminal

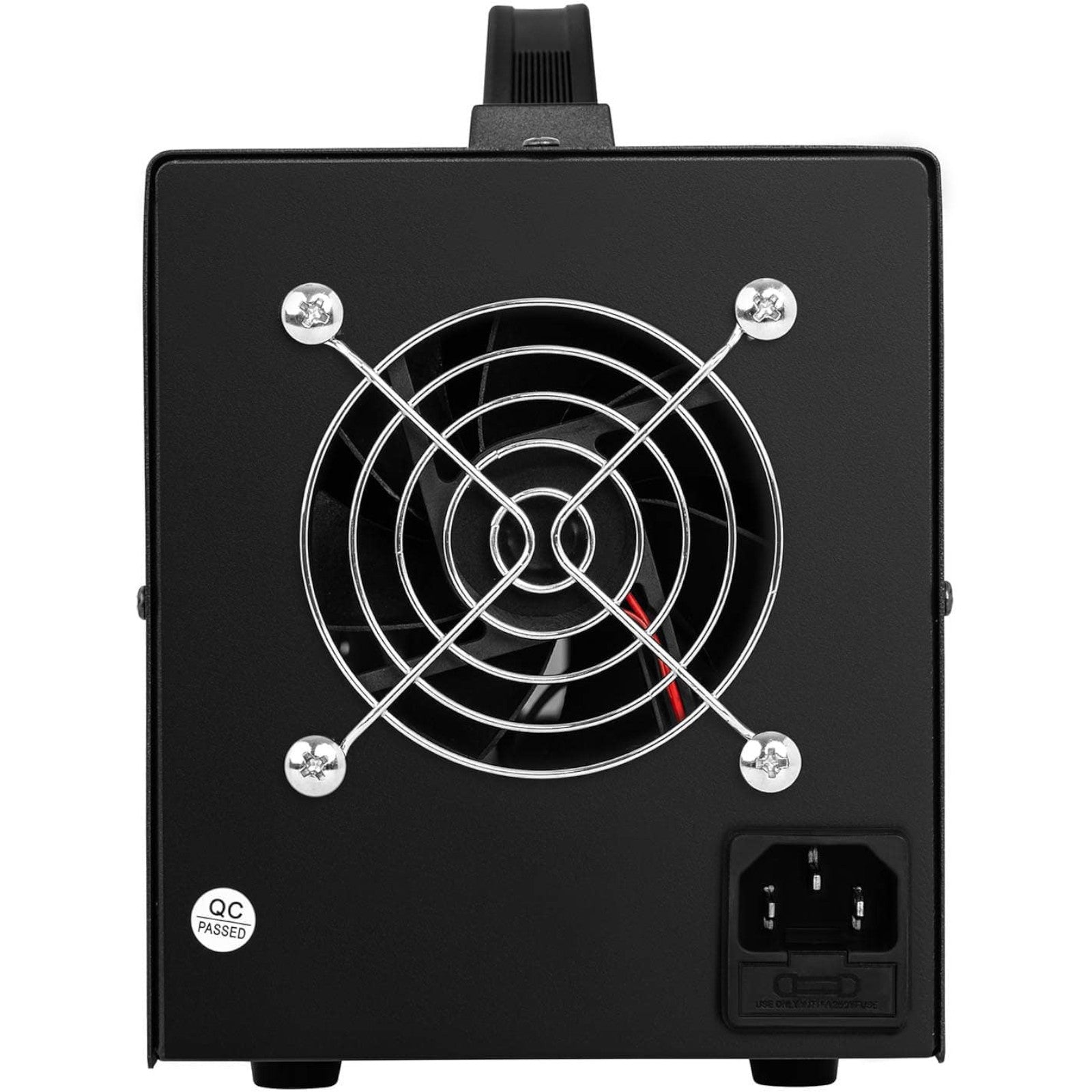

- - Cooling - Fan, temperature control
- - Range of current control [A] - N/A
- - Current indication [mA] - 000-999
- - Color - Black
- - Current current - N/A
- - Range of DC voltage regulation [V] - N/A
- - Flashback [A] - 5
- - Stability factor during load - N/A
- - Voltage stabilisation factor - Cv≤0,05%+1Mv Cc≤0,05%+10Ma
- - Current stability factor - Cv≤0,1%+5Mv Cc≤0,1%+10Ma
- - Stability factor - N/A
- - Working humidity [%] - < 80% relative humidity
- - Type - Impulse
- - Output current [A] - 0 - 5
- - Security - OVP, OCP, OTP
- - Power cord [m] - 1,2
- - Output voltage [V] - 0 - 30
- - Resolution - 100 mV / 10 mA
- - Protection against overrunning - Yes.
- - Display - LED
- - Voltage [V] - 230
- - Power [W] - 205
- - Protection against excessive tension - Yes.
- - How to connect to a computer - N/A
- - Pulse ox - Cv≤10 mV (RMS) / Cc≤20 mA (RMS)
- - Storage temperature [deg C] - -10 - 70
- - Operating temperature range [deg C] - 0-40
- - Storage humidity -
