Apraksts
Manufacturer's code:

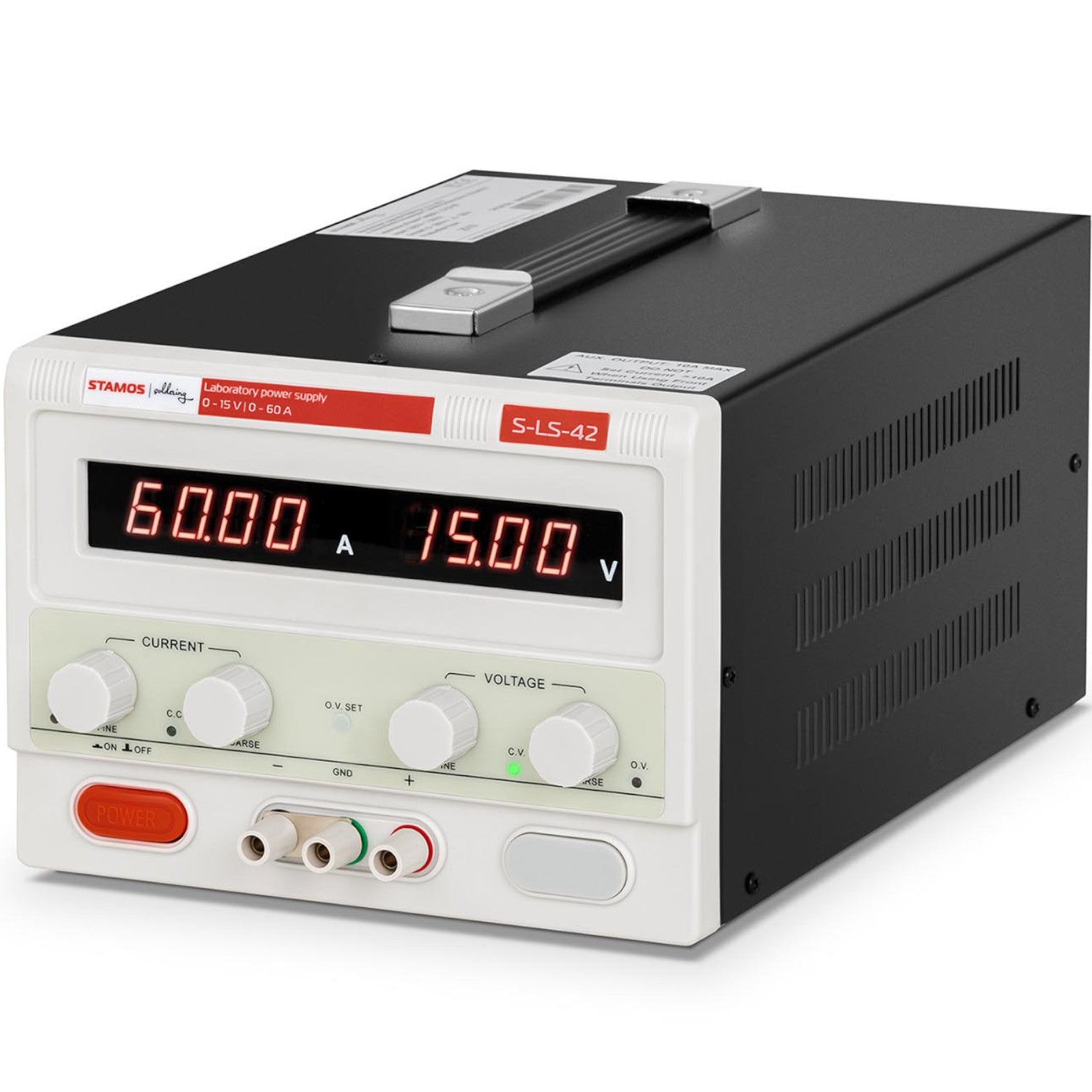

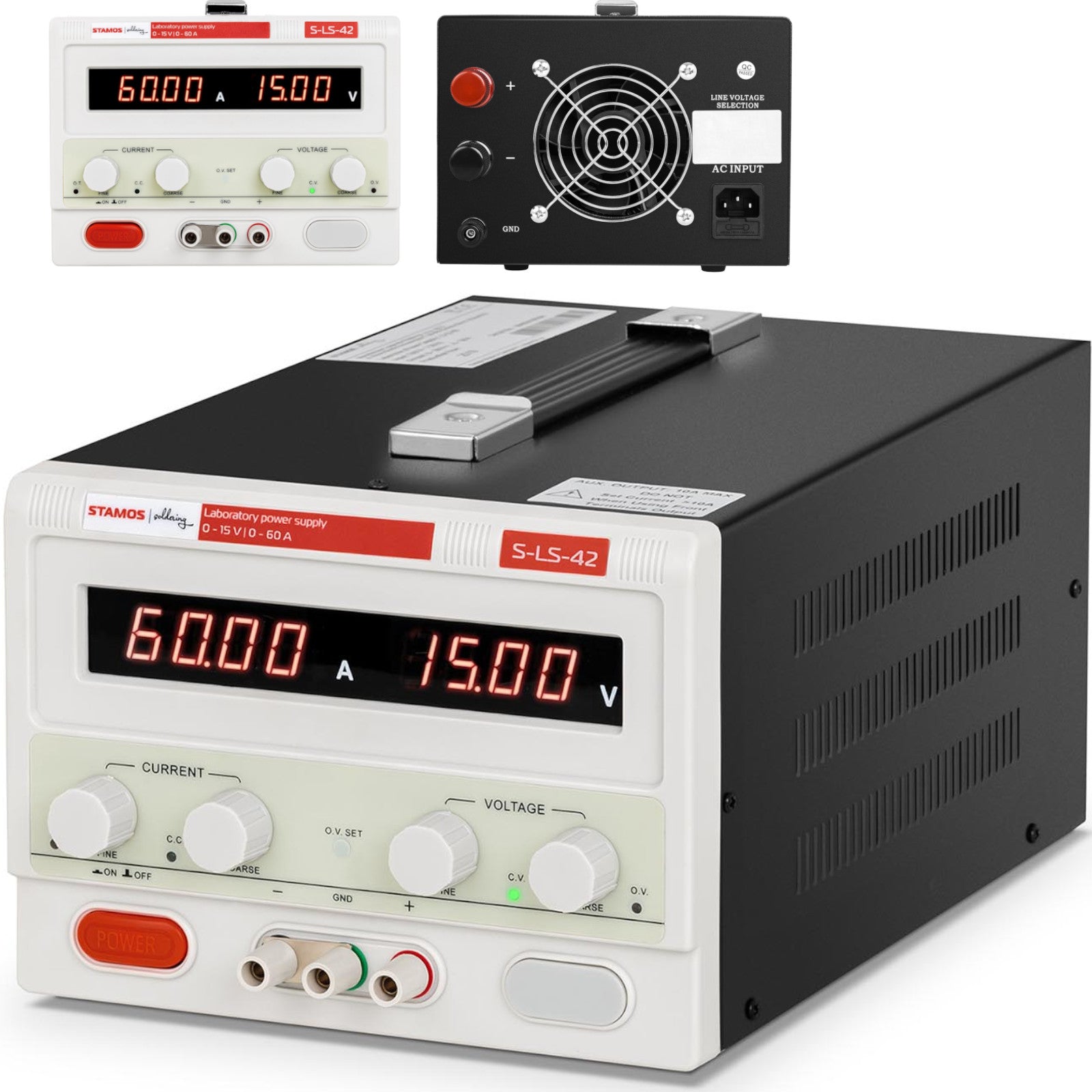

10021072 STAMOS laboratory power supply The power supply will be used in workshops, electronics services, laboratories and research institutes. It is used to convert current into electricity of a specific voltage and provides it to external electrical devices. The device is effective by placing feces with an added and negative output. The power supply precisely generates low pulse currents.
≤1% RMS and slight noise, which prevents damage to the circuit.
15 V and output current to
60 AThe power supply has a display.
LEDThe precise regulation of the current and voltage of the output current facilitates the adjustment of the corresponding parameter value. As a result, the power supply offers balanced parameters. It allows to work in two modes
C.V. and
C.C.The safety of the operation with the Stamos Soldering device has been ensured by four functions: protection against overvoltage (
OVP), overload of the stabiliser (
OCP), overheating (
OTP) and overloading the entire power supply (
OPPThe S-LS-33 is mobile due to its small weight (
3,6 kg) and compact sizes.
Product features: - - Performance thanks to channel with 0-15 V voltage and 0-60 A current,
- - Simple and precise change of working parameters by knobs,
- - LED display enables control over voltage and intensity,
- - Two modes: C.V. (permanent output voltage) and C.C. (permanent load current),
- - Safe thanks to overheating protection, too high voltage and electricity,
Technical parameters: - - Catalog number - 10021072
- - The state of the article - New
- - Model - S-LS-42
- - Type - Impulse
- - Display - LED
- - Voltage [V] - 230
- - Color - Black
- - Flashback [A] - 10
- - Power [W] - 900
- - Cooling - Fan, temperature control
- - Pulse ox - ≤ 1% of total RMS
- - Connector [mm] - Output sockets, power socket, ground output terminal
- - Power cord [m] - 1,75
- - Security - OVP, OCP, OTP, OPP
- - Resolution - 100 mV / 10 mA
- - Output voltage [V] - 0 - 15
- - Marked input current [A] - 60
- - Current current - N/A
- - Output current [A] - 0 - 60
- - Voltage stabilisation factor - Cv≤0,2% read + 2 digits, Cc≤0,5% read + 2 digits
- - Current stability factor - ≤ 0,5 per cent of read + 2 digits
- - Storage temperature [deg C] - -80
- - How to connect to a computer - N/A
- - Range of current control [A] - N/A
- - Operating temperature range [deg C] - 0-40
- - Range of DC voltage regulation [V] - N/A
- - Stability factor - Cv≤0,2% + 2D/cc≤0,5% + 2D
- - Stability factor during load - ≤0,5% + 2D
- - Protection against excessive tension - Yes.
- - Protection against overrunning - Yes.
- - Dimensions (DxSxW) [cm] - 32.5 x 20 x 16.5
- - Weight [kg] - 3.6
- - Dimensions of dispatch (DxSxW) [cm] - 37 x 25 x 21
- - Weight of dispatch [kg] - 3.8
Included: - - Laboratory power supply.
- - Plugs - 2 pcs.
- - Wire connections - 2 x 30 A
- - Power cord
- - User manual
