Manufacturer's code:

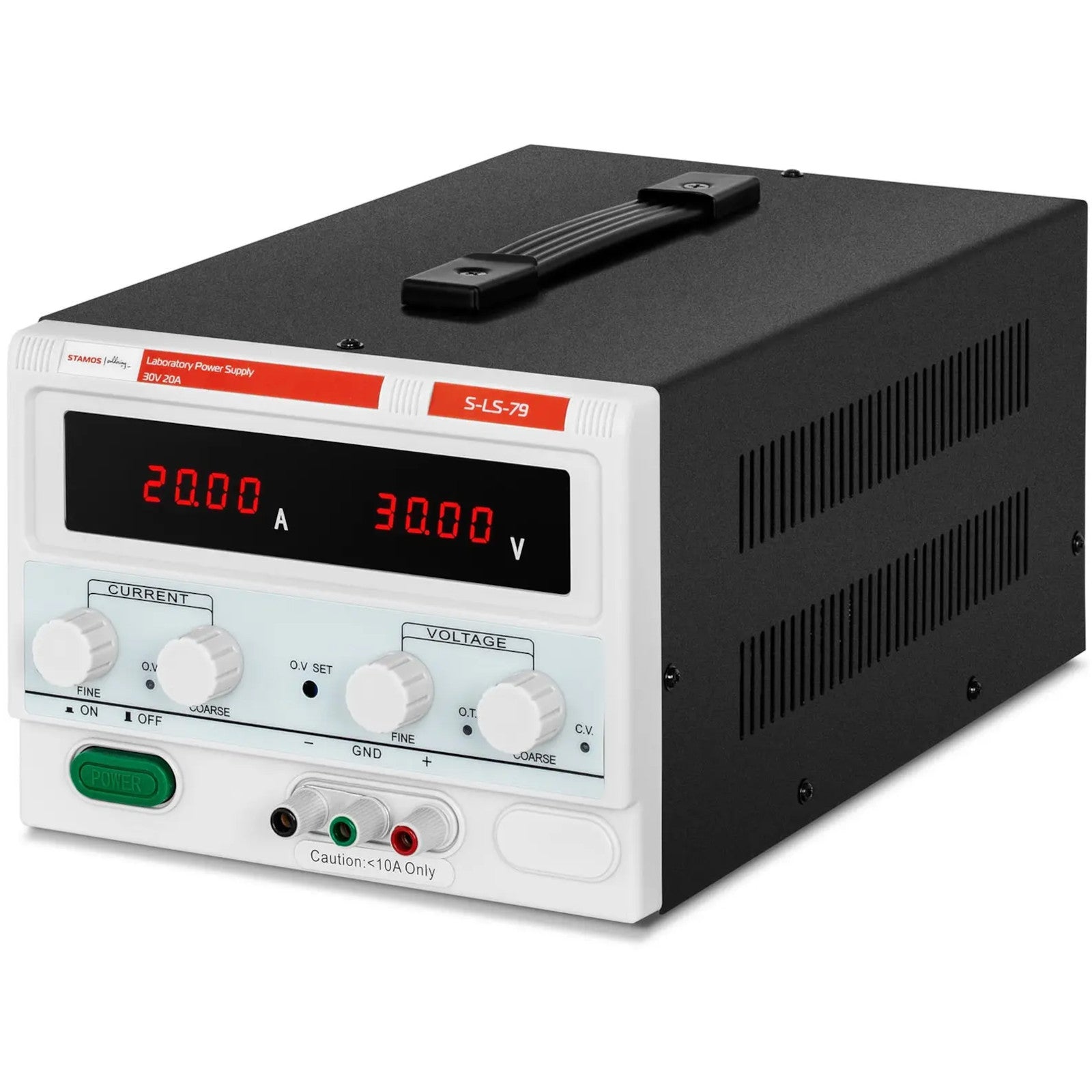

10021170The laboratory power supply by Stamos Soldering will be able to supply external devices with direct current at a specific voltage. This model is an ideal tool in industry, laboratories, telecommunications, workshops and more.
The excellent efficiency of the equipment results from the use of one channel providing an output voltage in the range of 0-30 V and a current from 0 to 20 A. In addition, the product generates a current with very low ripple and noise (≤ 1% RMS), which does not damage the power supply circuit. Convenient adjustment of the power supply is possible thanks to the knobs. They allow you to precisely set operating parameters. You can check them using the LED display. The red color is clearly visible even in dark rooms.

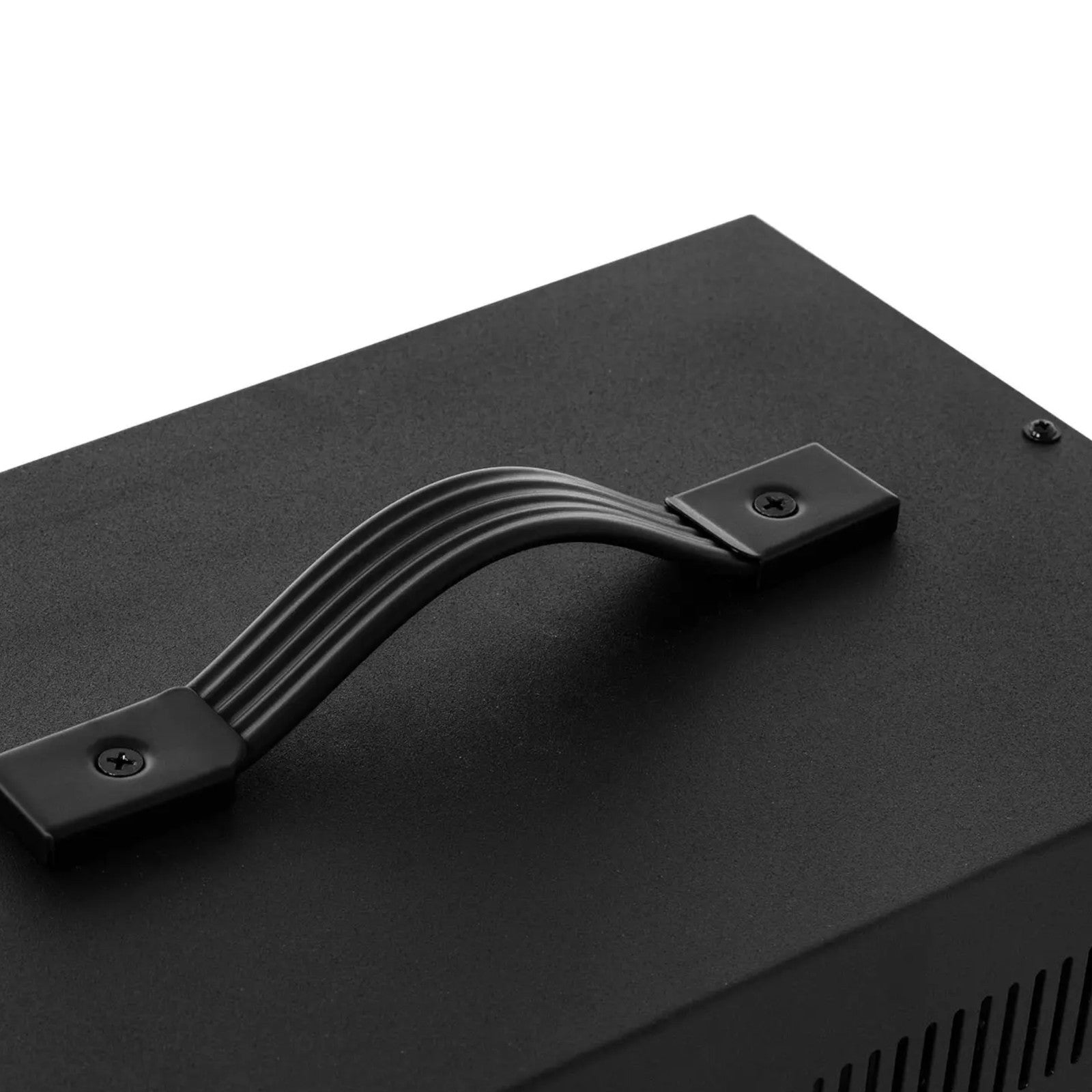

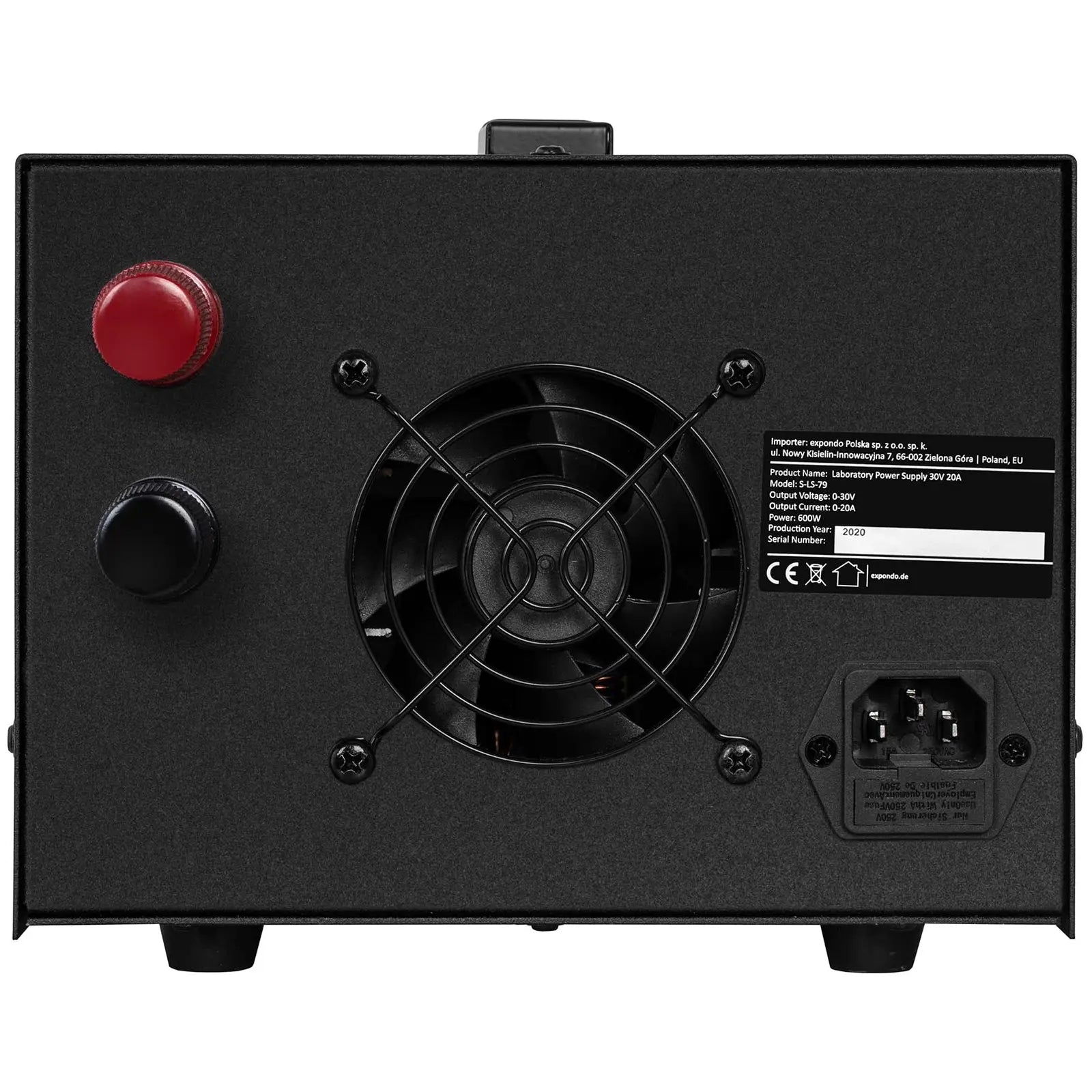

Protection against overheating is provided by an intelligent safety system. It turns on the fan when the temperature is too high. After the equipment cools down, the fan is turned off. Additionally, protection against excessive voltage and power was used. Compact dimensions allow the device to fit even in a small workstation. The power supply is also distinguished by its low weight, which, combined with a handy handle, makes it easy to carry. Rubber feet are responsible for stability. Easy operation and practical solutions, e.g. automatic CV/CC switch, will certainly improve work in many workshops.
Product features: - - Maximum output power of 600 W,
- - One channel providing a maximum output voltage of 30 V and output current up to 20 A,
- - Panel with knobs ensures easy and accurate setting of voltage and current values, LED display presents parameters,
- - Numerous protections, including overheating, too high voltage and power,
- - Rubber feet prevent slipping and scratching the surface.
Technical parameters: - - Catalog number - 10021170
- - Article condition - New
- - Model - S-LS-79
- - Type - Pulse
- - Color - Black
- - Display - LED
- - Voltage [V] - 230
- - Power [W] - 600
- - Ripple - ≤1% RMS
- - Connector [mm] - Output sockets / mains socket / grounding output
- - Protections - OVP / OTP / OPP
- - Rated input current [A] - 20
- - Voltage stabilization factor - CV: ≤0.2% mV / CC: ≤ 0.5% mA
- - Current stabilization factor - ≤0.5%
- - Dimensions (LxWxH) - 42 x 28 x 47 cm
- - Weight - 9.5 kg
- - Shipping dimensions (LxWxH) - 41 x 26 x 22 cm
- - Shipping weight - 4.4 kg

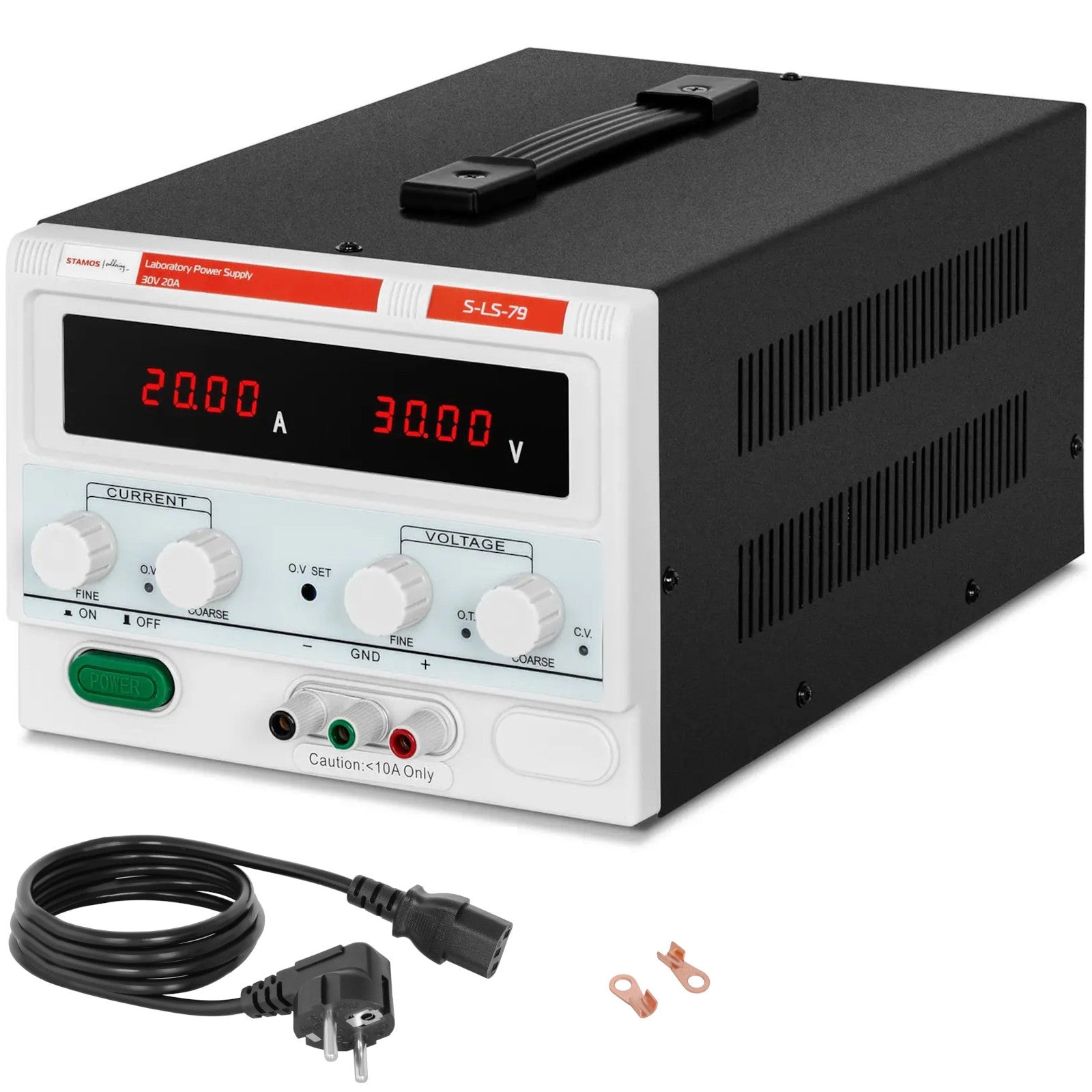

Included in the set: - - Laboratory power supply

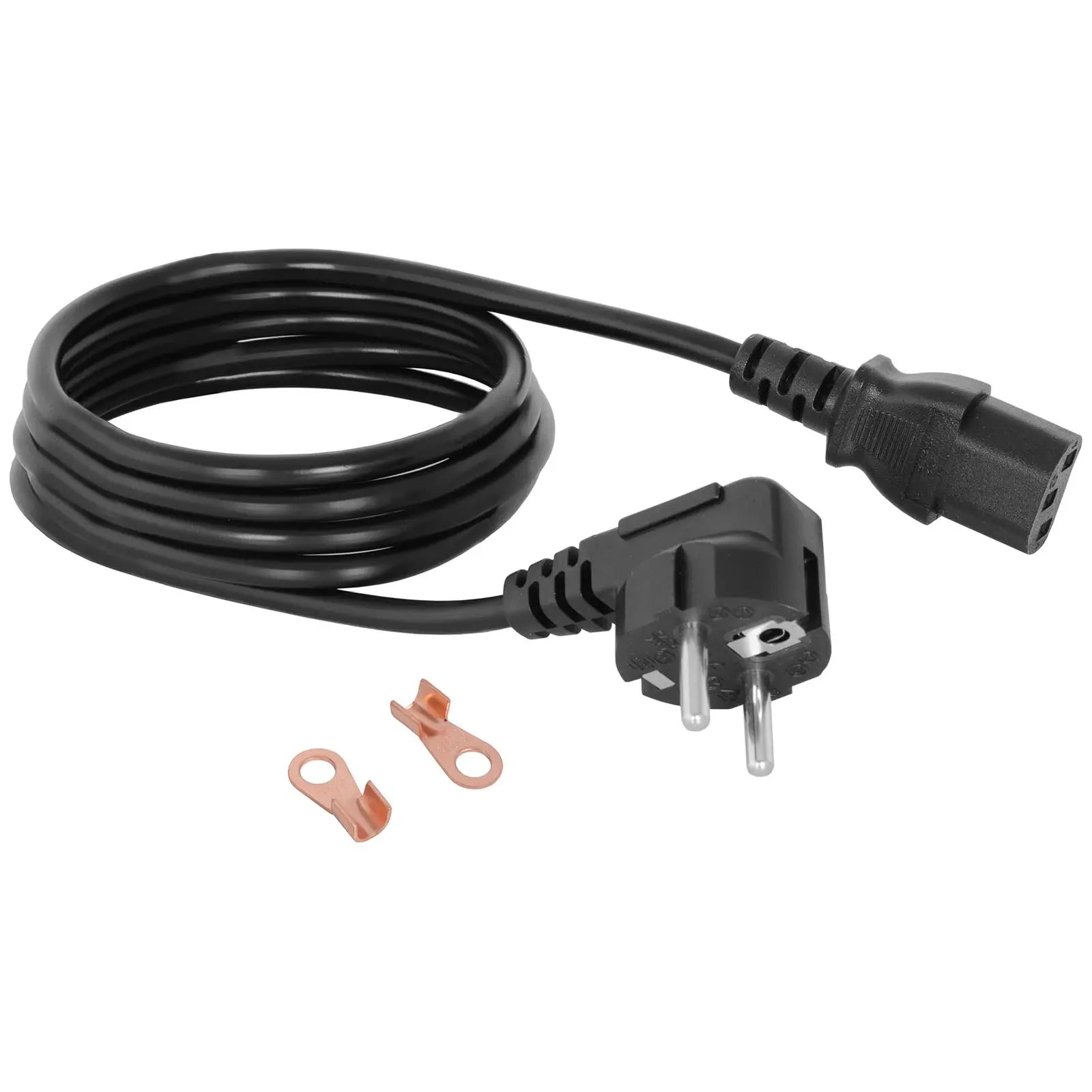

- - Power cord
