Manufacturer's name

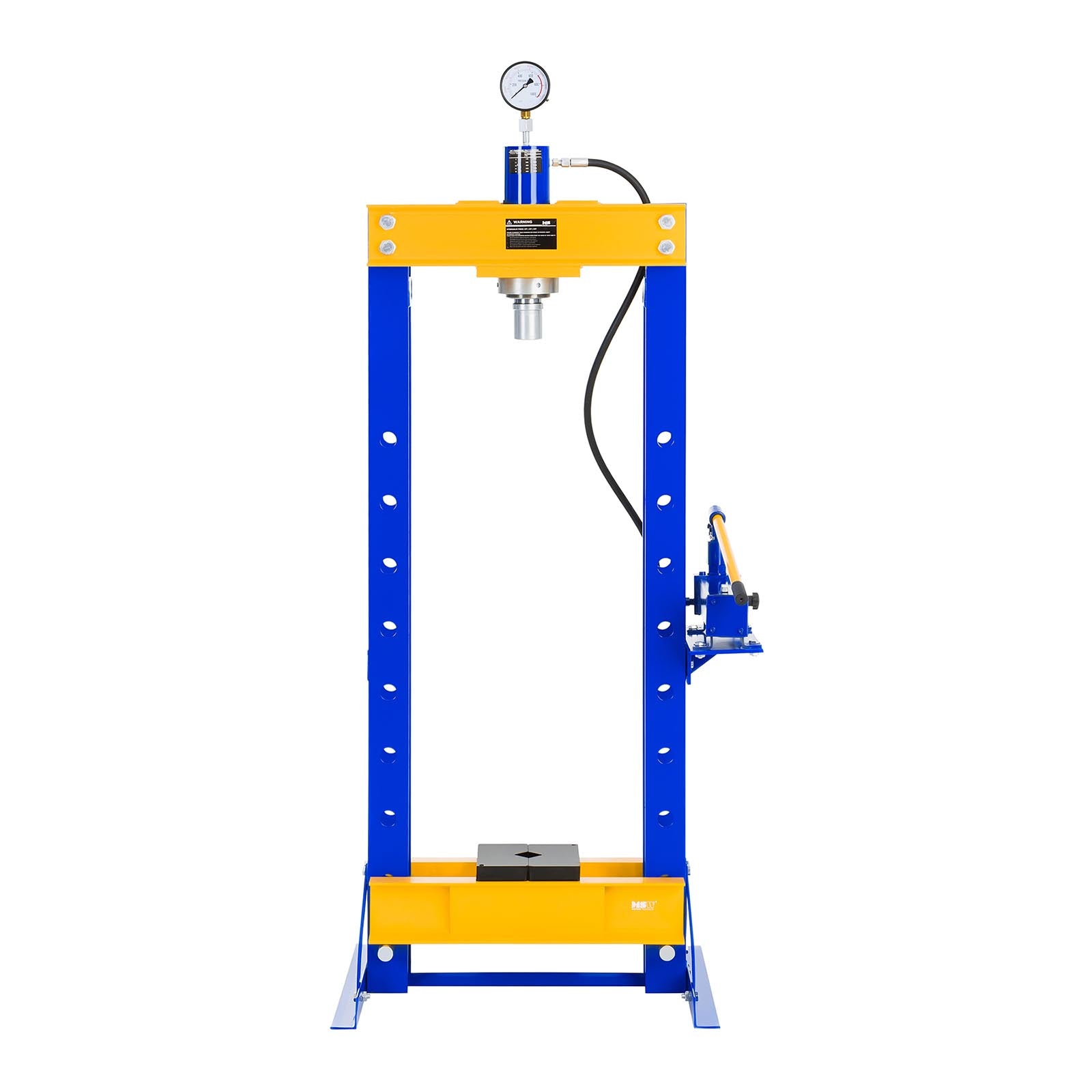

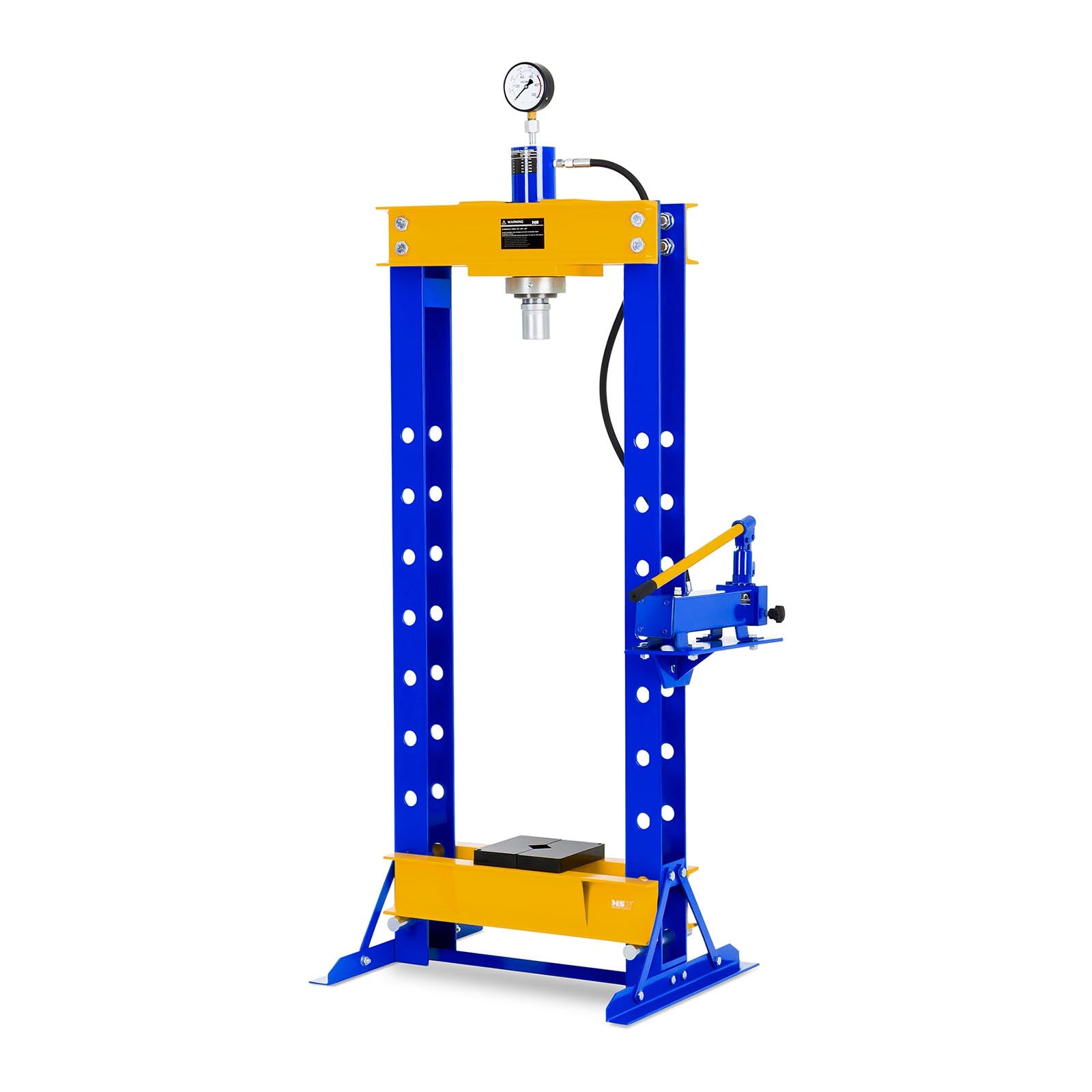

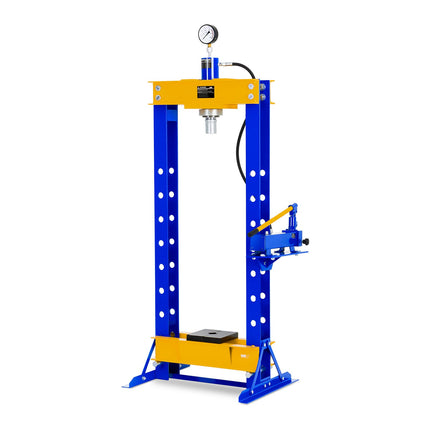

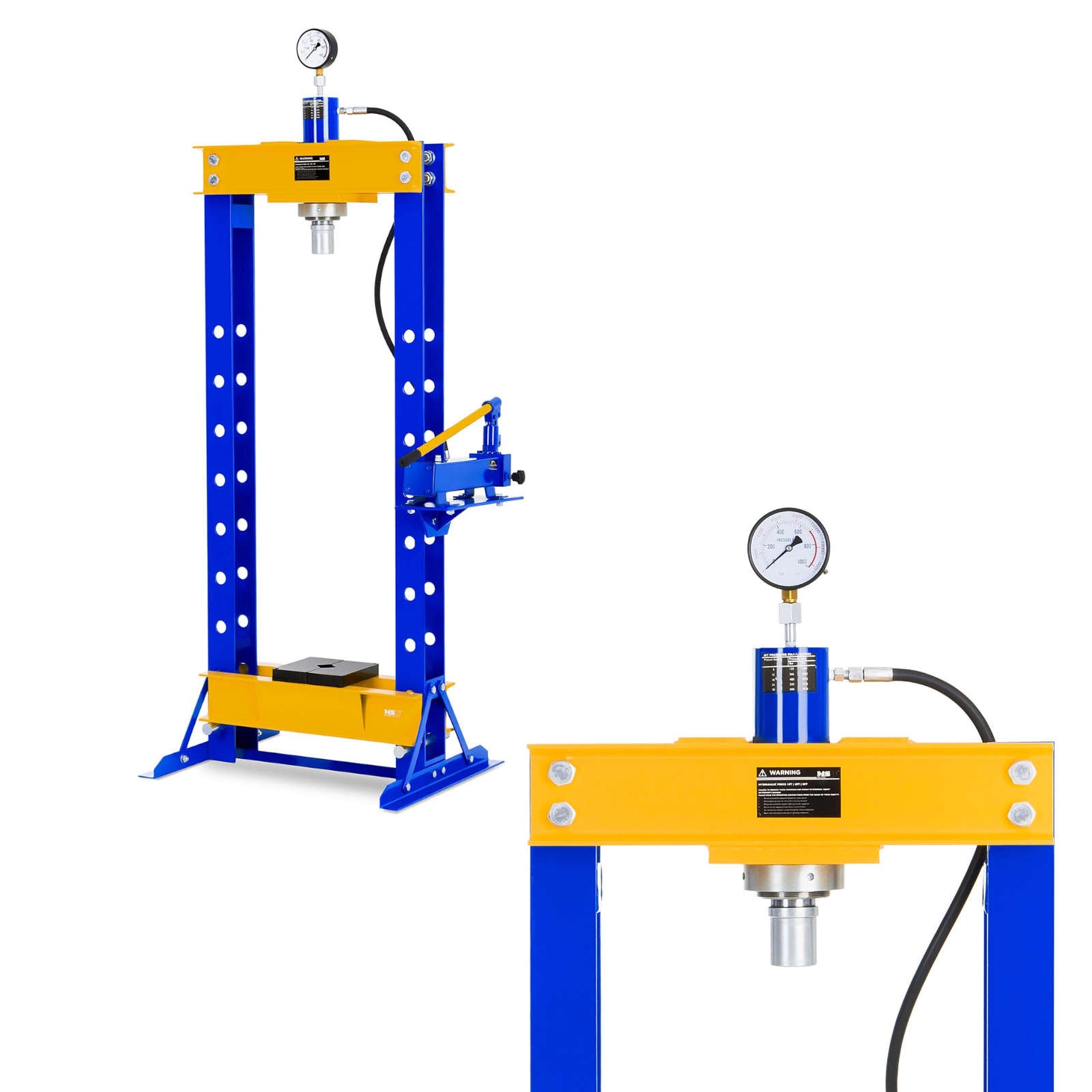

: 10060301The MSW brand hydraulic press will work well both in industry and in workshops, car services, mechanical shops or garages. With a maximum
pressing force of 30 tons, it is effective in the plastic processing of hard metals and during the assembly or disassembly of gears, bearings, hubs, sleeves, etc. The long service life of the device is ensured by an extremely durable, fully welded construction. Adjustment allows you to adjust the working height to your needs, taking into account, for example, the size of the elements being processed. Stability during use is due to shock-absorbing plates placed at the base of the press. They significantly reduce the vibrations that the hydraulic press is subjected to during operation. This has a positive impact on efficiency and ensures smooth work flow. Precision and safety of work result from the fact that the device is equipped with a high-quality manometer, which indicates the exact level of pressure at which the piston pushes. Its quick withdrawal, and thus the end of work, occurs after opening the discharge valve. Thanks to this, the user maintains full control over the pressure force of the machine, ensuring that there will be no overload. The device is distinguished by its effectiveness, solidity and ergonomics. A pressing force of 30 tons enables shaping, bending and straightening of hard metals, as well as the assembly or disassembly of elements such as bearings, gears, bushings, etc.
Product features: - - Maximum pressing force of 30 tons,
- - Working height 200-1200 mm,
- - 9 height levels,

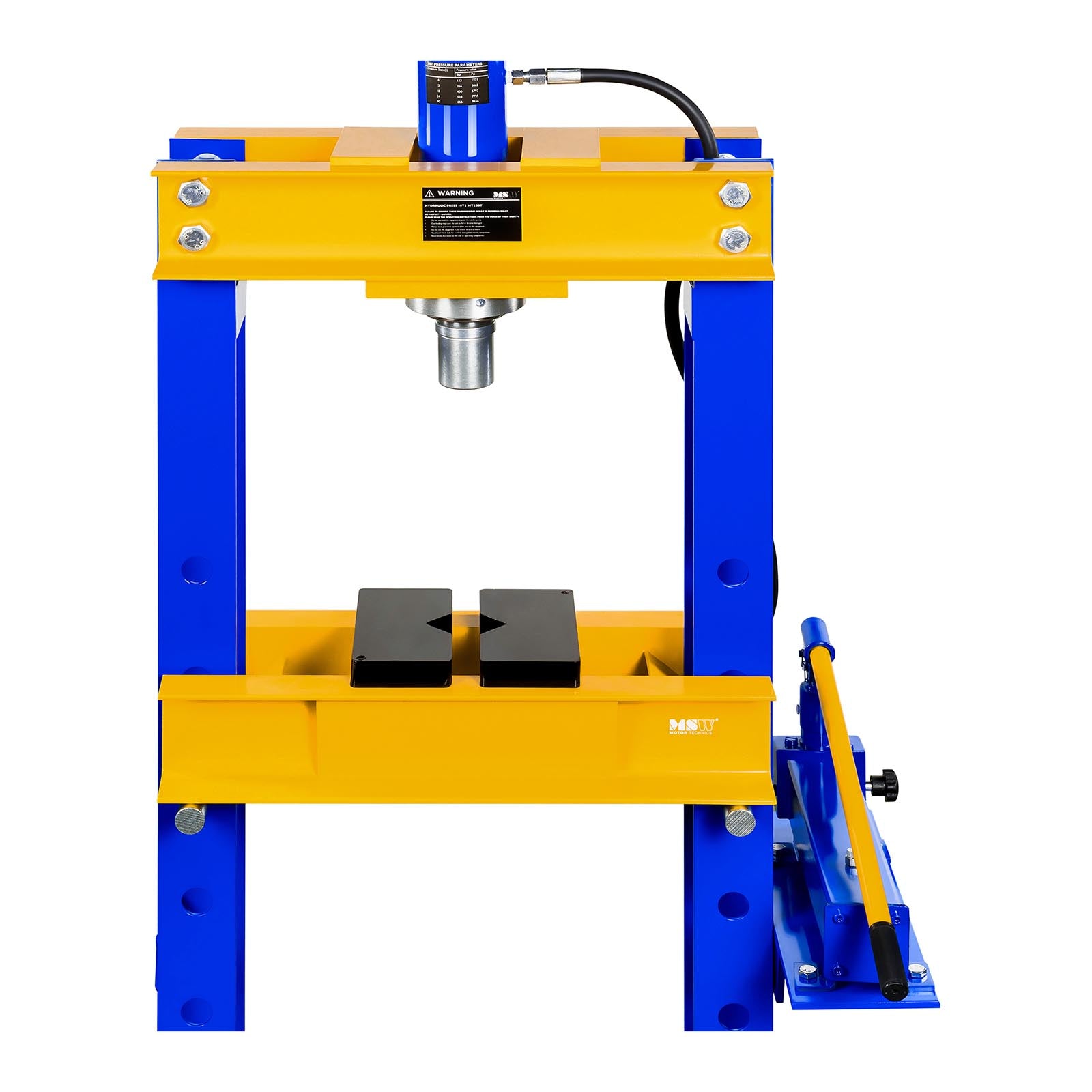

- - Width of the work table 460 mm,

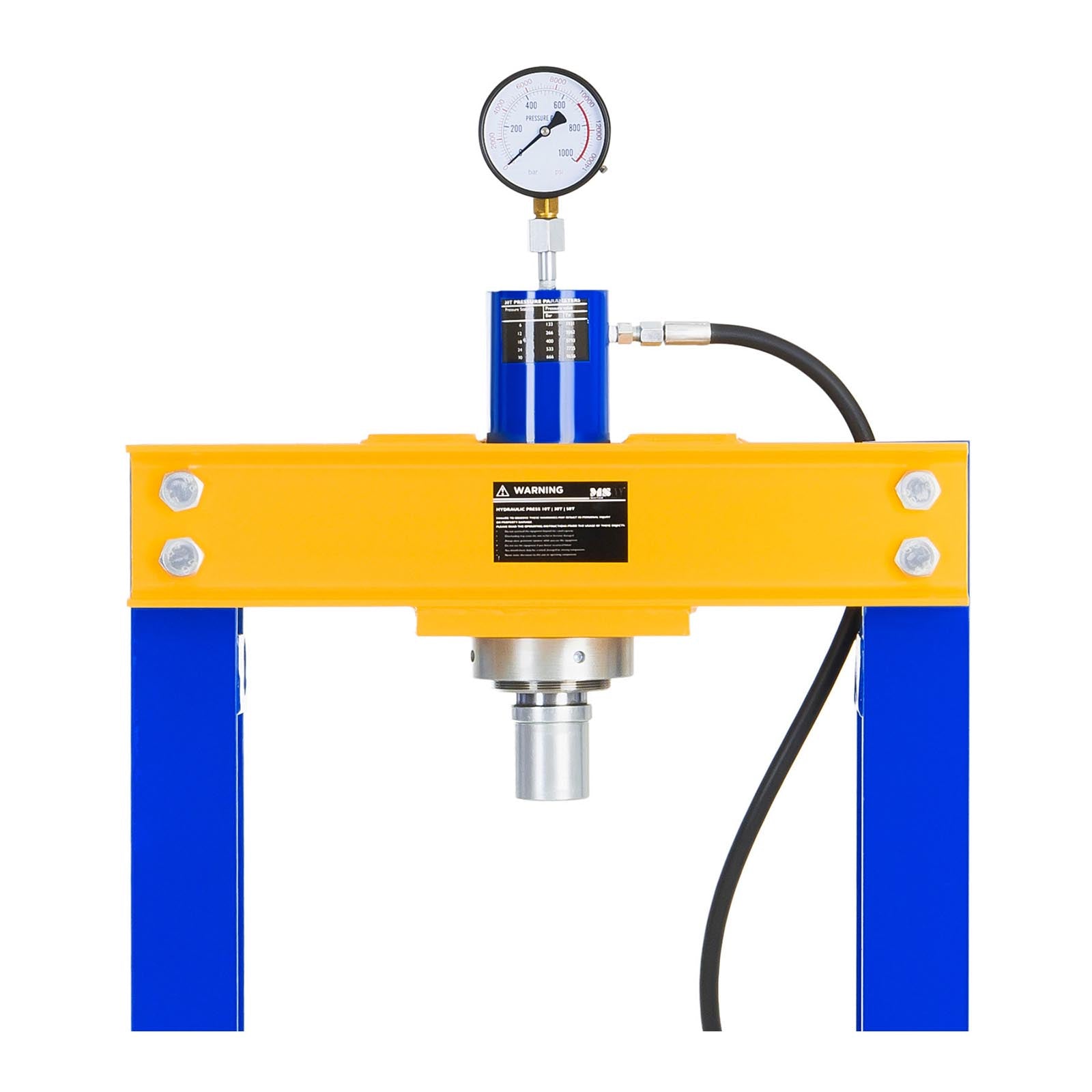

- - Manometer indicating the pressure level.
Technical parameters: - - Model - MSW-WP-30T
- - Catalog number - 10060301
- - Article condition - New
- - Maximum pressing force - 30,000 kg
- - Maximum working pressure - 666 bar
- - Piston stroke - 160 mm
- - Work table width - 460 mm
- - Dimensions (LxWxH) - 64 x 73 x 186 cm
- - Weight - 116.5 kg
- - Shipping dimensions (LxWxH) - 164 x 29 x 38 cm
- - Working height - 200-1200 (9 height steps every 125 mm)
- - Shipping weight - 132.5 kg
The set includes: - - Press assembly elements
- - Pressure gauge
- - User manual
