Manufacturer's code:

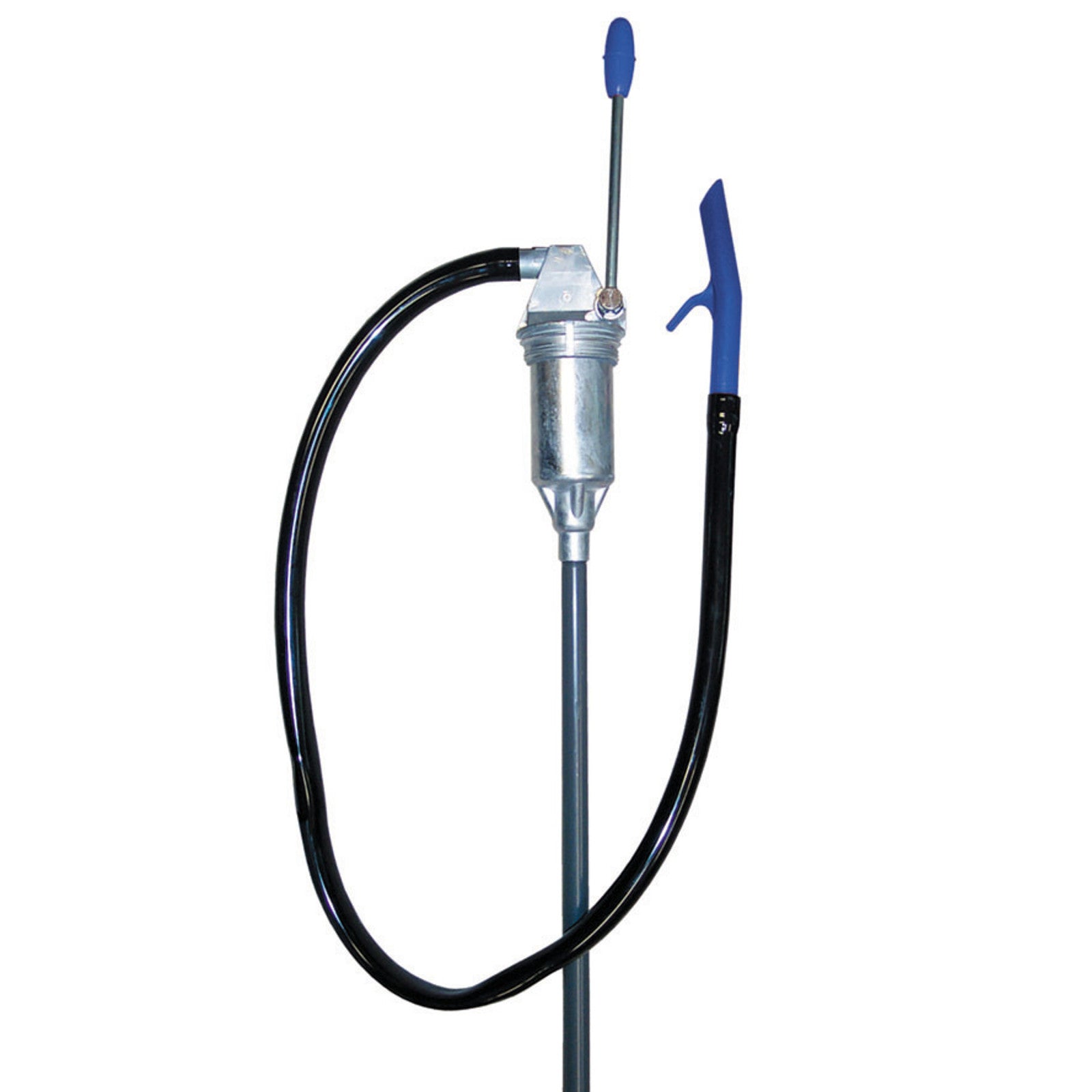

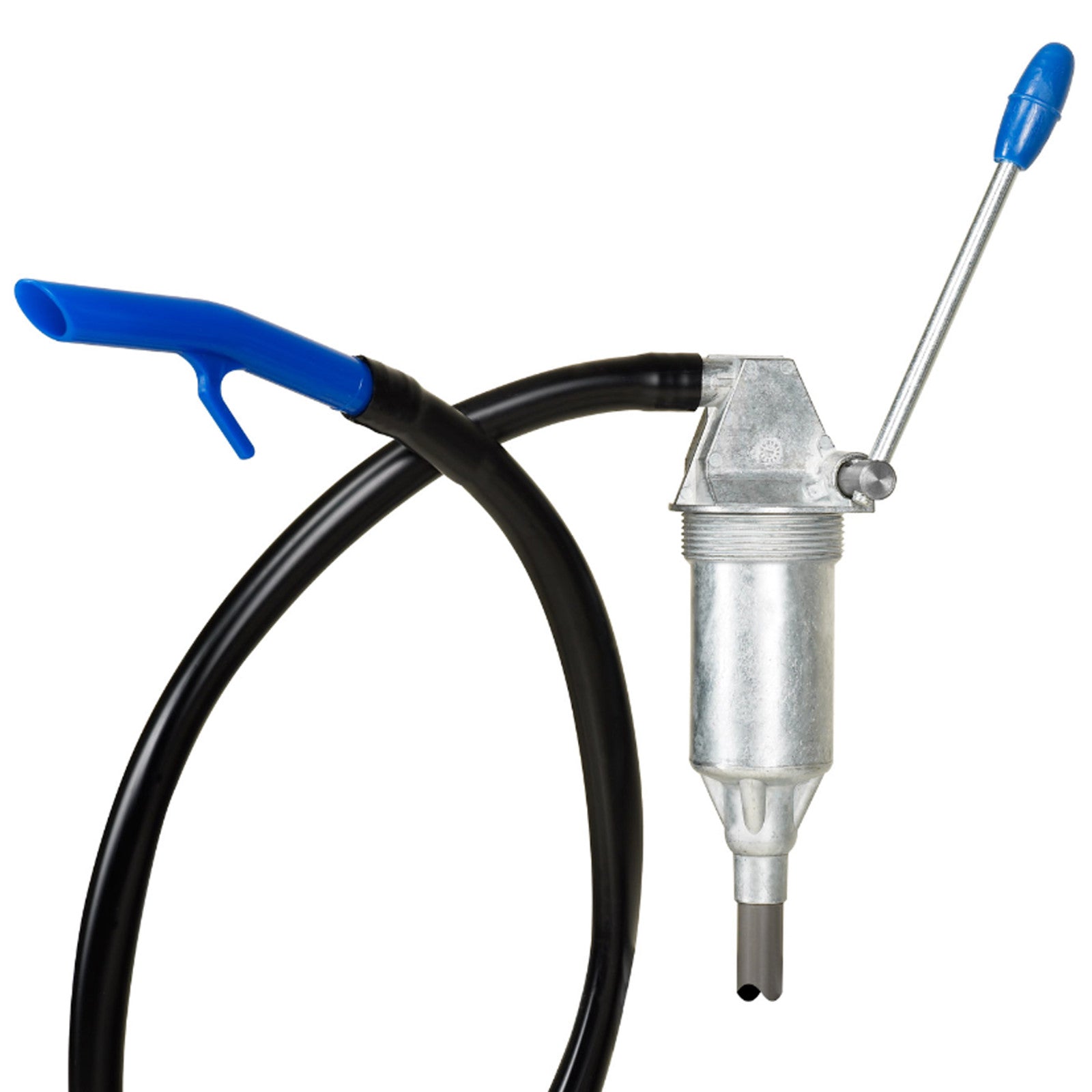

4582Powerful hand lever pump for barrels from 60 to 220 Literature mounted to the barrel flange with a diameter of 2' inches. The robust design will ensure long-lasting and trouble-free use. Wide range of applications for liquids, oils, fuel and other non-aggressive media.
Key advantages: - - durable and robust construction
- - easy installation on the barrel
- - easy without effortful service
Designed for: - - olei do SAE 50 self-lugging
- - non-aggressive media
- - undiluted antifreezes
- - fuel oil
- - diesel
- - crude oil
Specification - - Model: PRESSOL 13 020
- - Embossing capacity: 0,12 l/jump
- - Pressure pressing capacity at 60 strokes/min: approx. 7 l/min
- - Pressed media: oil for SAE 50
- - Use: barrels up to 60/200/220 l
- - PVC distribution hose: 1000 mm with plastic outlet
- - Suction tube length: 1200 mm
- - Barrel screw: G 2'a
- - Pump housing: pressure zinc cast resistant to impact
- - Gaskets: NBR (buna N)
- - Pump weight: 0,96 kg
- - Dimensions of the pack (DlxSZxW): 590 x 100 x 90 mm
- - Weight with packaging: 1.1 kg
Included:- lever pump for PRESSOL barrel 13 020
- two-piece suction tube with length cut-off possible
- 100cm outlet hose
- plastic tip of the hose with hook
