Manufacturer's name:
Goldbrunn vacuum dryer 1450Vacuum dryer German manufacturer
professional laboratory equipment GOLDBRUNN with high quality components for long-term and trouble-free operation.
Vacuum dryer is used for mild, accurate and very fast drying of oxidizing materials: samples, electronic components, laboratory glass, flammable solvents, etc.
allows drying powder materials and granulesThe use of vacuum allowed
eliminate oxidation of active substances, and hermetic closure
protects the material from external contamination.
With the possibilities
precise temperature setting, suitable for tasks in
pharmaceutical, biotech, university, cosmetic laboratories, as well as research laboratories of various companies, e.g. mining.
Reduced drying time (without condensation) provides vacuum, produced inside the chamber. In the chamber, pressure lower than the ambient atmosphere is created
133 Pa (0.00133 bar)The vacuum has an effect on the significant acceleration of the drying process. The removal of air from the chamber increases safety levels when processing delicate samples without causing the formation of stone and sediment.
The vacuum dryer is used

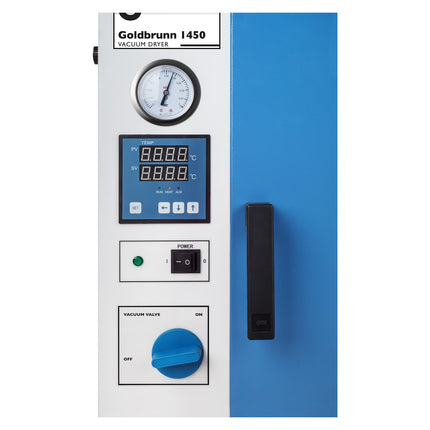

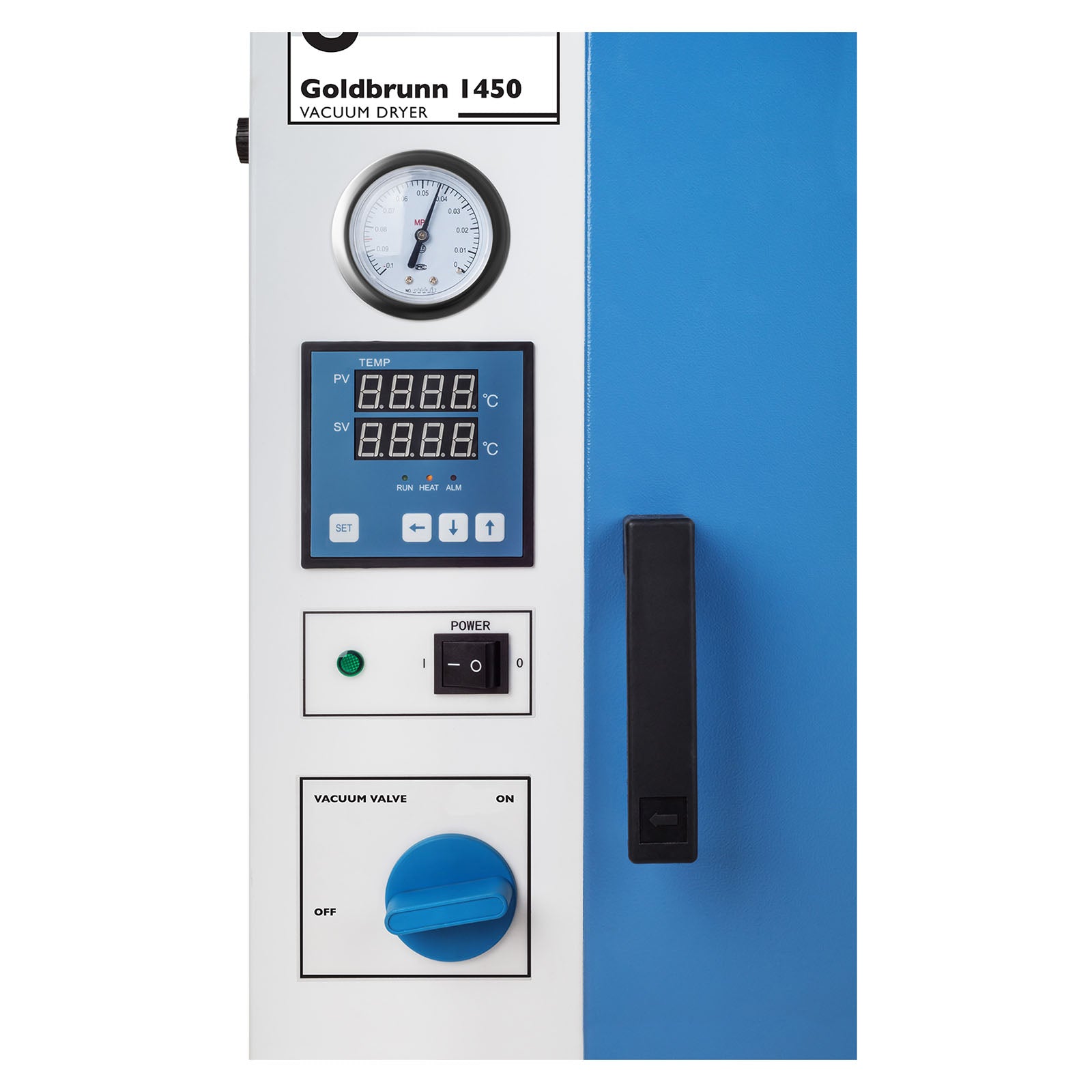

digital PID temperature regulator which allows precise temperature retention within the chamber at a constant level (
up to 50 deg C). The heating intensity can be adjusted with accuracy to
0,1 deg C.

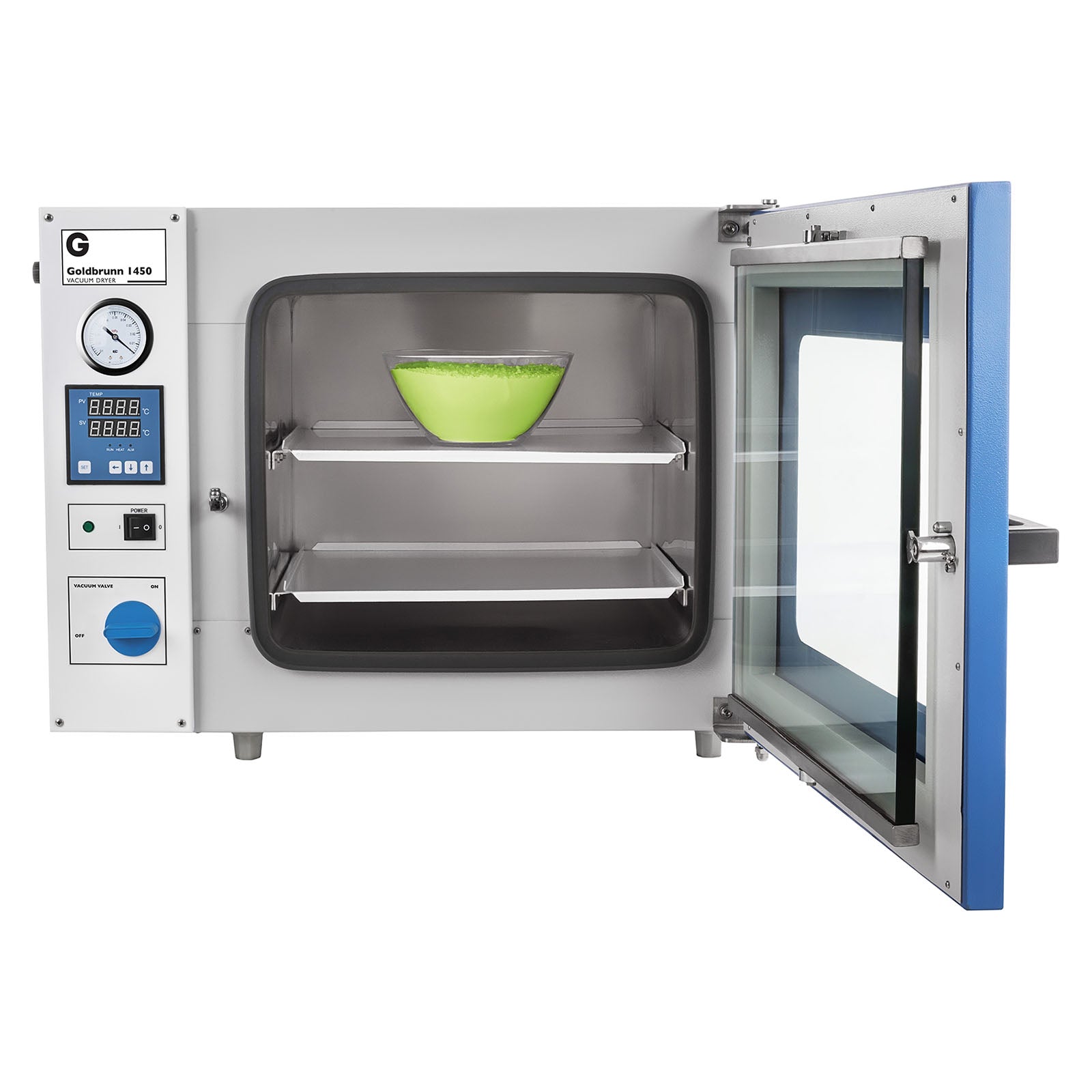

Shelves from durable aluminium, placed in the chamber can be easily inserted or removed.
Sealed door are equipped with a video window made of pressure-resistant,
double-glass protection against heat loss and implosion.
Extensive vacuum chamber (with a capacity of
50 litres) is made of durable, corrosion-resistant stainless steel which also resists chemical agents.
Easy Cleaning chambers provide smooth interior surfaces and rounded joints.
On the side wall of the device is
vacuum pump connection valve with Ø 16 mmVacuum pump is not included with the device.
Technical parameters: - - Model - Goldbrunn1450
- - Catalog number - 7013
- - The state of the article - New
- - The material of the casing - Powder-painted steel
- - The material inside the chamber - Stainless steel
- - Window material - 15 mm double tempered glass
- - Number of shelves - 2
- - Chamber capacity - 50 l
- - Display - LED
- - Rated power - 1450 W
- - Rated voltage - 230 V / 50 Hz
- - Working humidity - ≤ 85%
- - Working temperature - 5-40deg C
- - Temperature range - 50-50deg C
- - Temperature uniformity - +/ - 0,9 deg C
- - Temperature controller - PID regulator
- - Maximum leak rate - 0,01 bar/h
- - Vacuum (vacuum) level - 133 Pa (0.00133 bar)
- - Inner diameter vacuum hose - 16 mm
- - Max. heating range - 6-8deg C/min
- - Time range - 1-9999 min
- - Maximum hypertension - 0,098 MPa / 28.93 "Hg
- - Vacuum range indicator - from -0.1 to 0 MPa / from 0 to 29.52 "Hg
- - Dimensions of the interior of the chamber - 30 x 30 x 27.5 cm
- - Security - Automatic switch, overheating protection system
- - Dimensions (DxSxW) - 71 x 54 x 54.5 cm
- - Weight - 67,8 kg
- - Dimensions of dispatch (DxSxW) - 78.5 x 60 x 66 cm
- - Weight of shipping - 79 kg

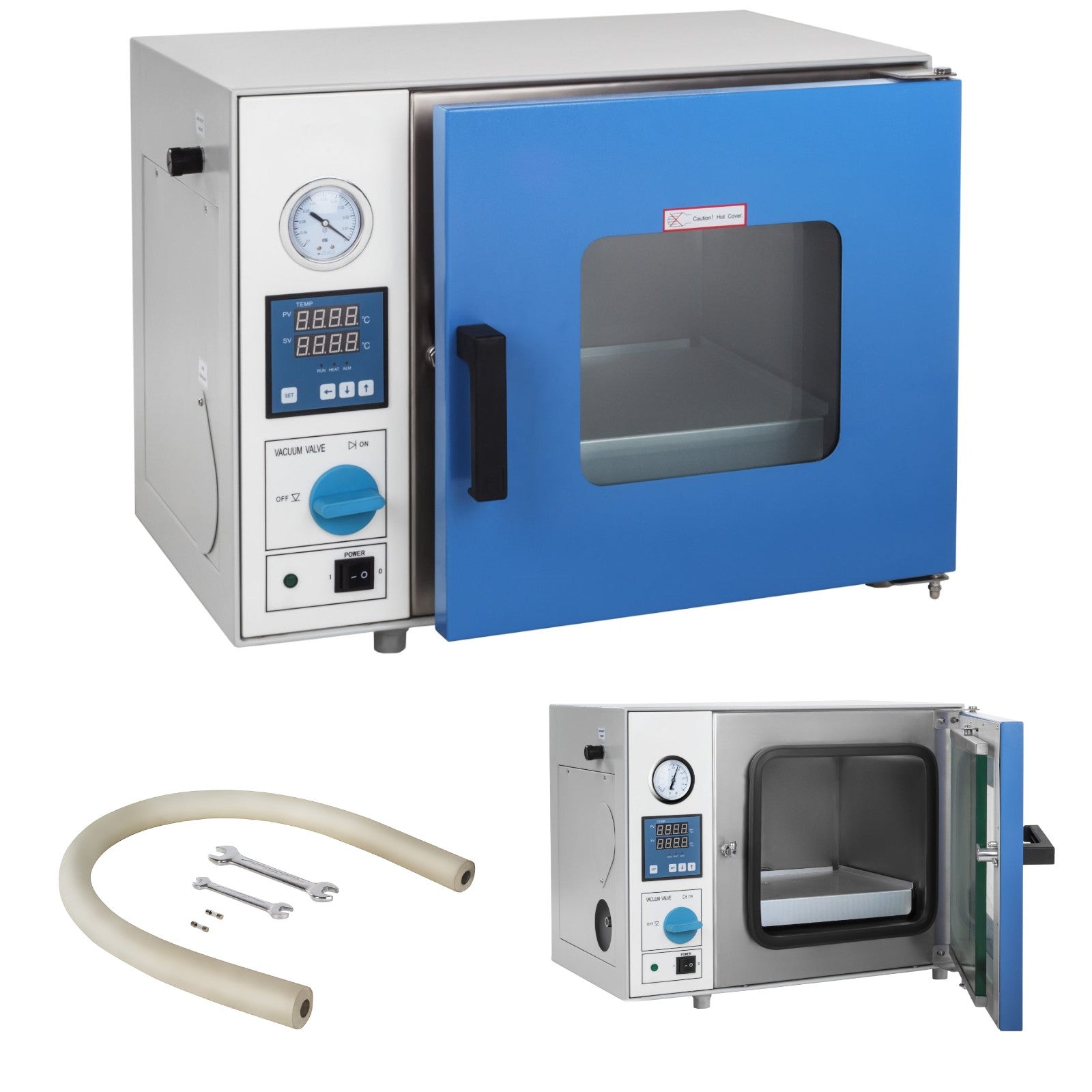

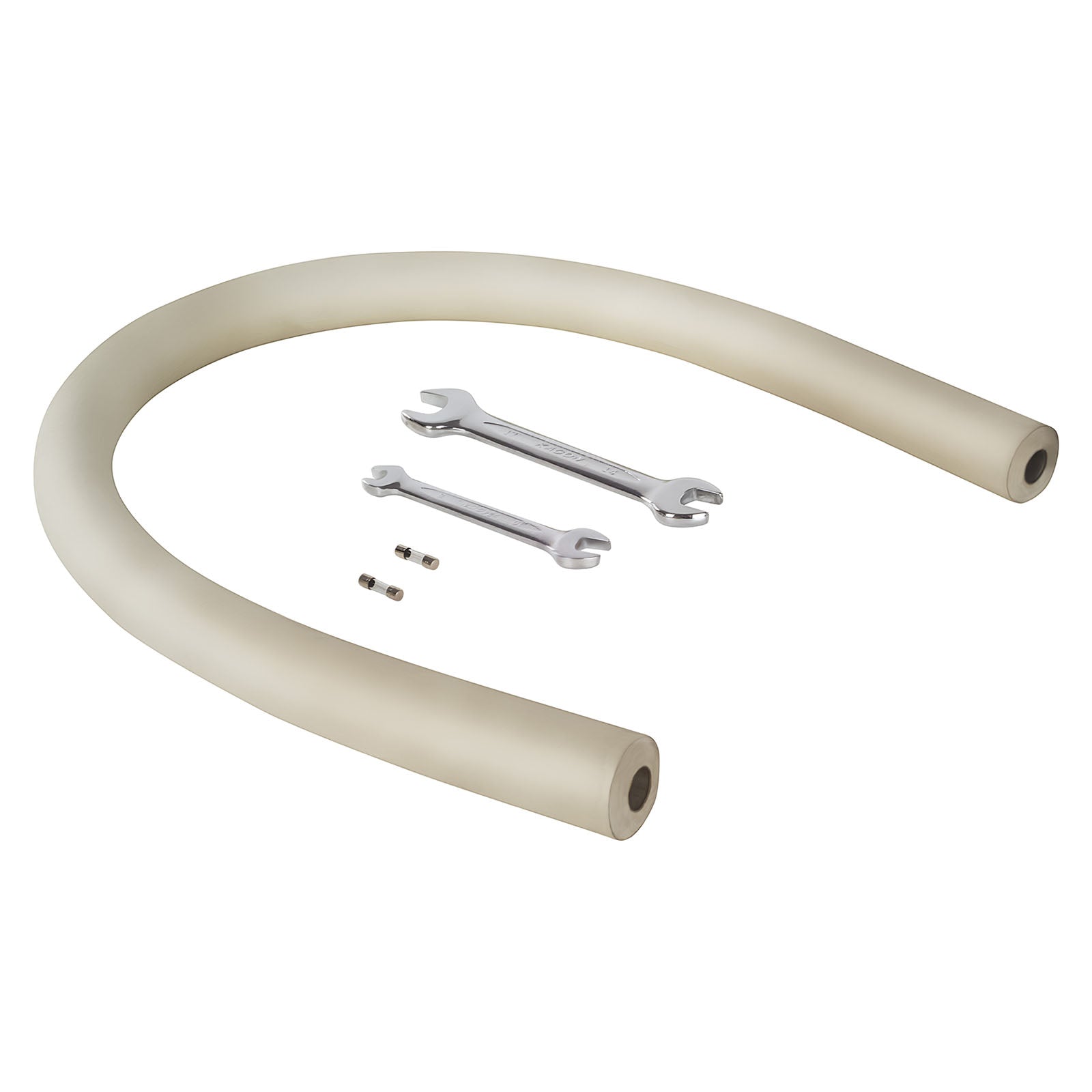

The set includes: - - Vacuum dryer
- - Flat keys (2 pieces)
- - Fuses (2 pieces)
- - Vacuum hose
- - PL Manual
- - NIE MA vacuum pump
The manual for use in which all components of the device are described in detail is included in the DOWNLOAD tab.
