Apraksts
Manufacturer's code:

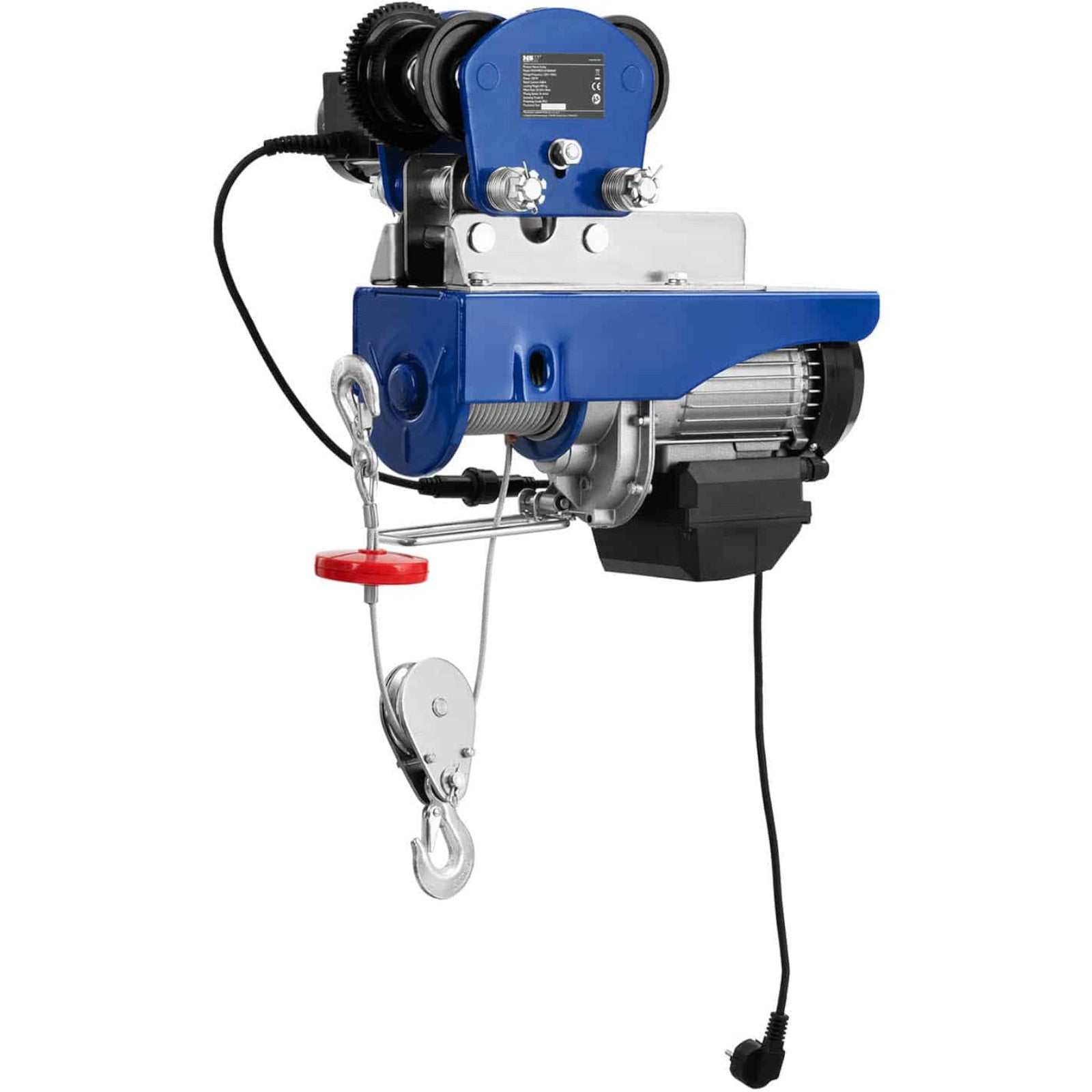

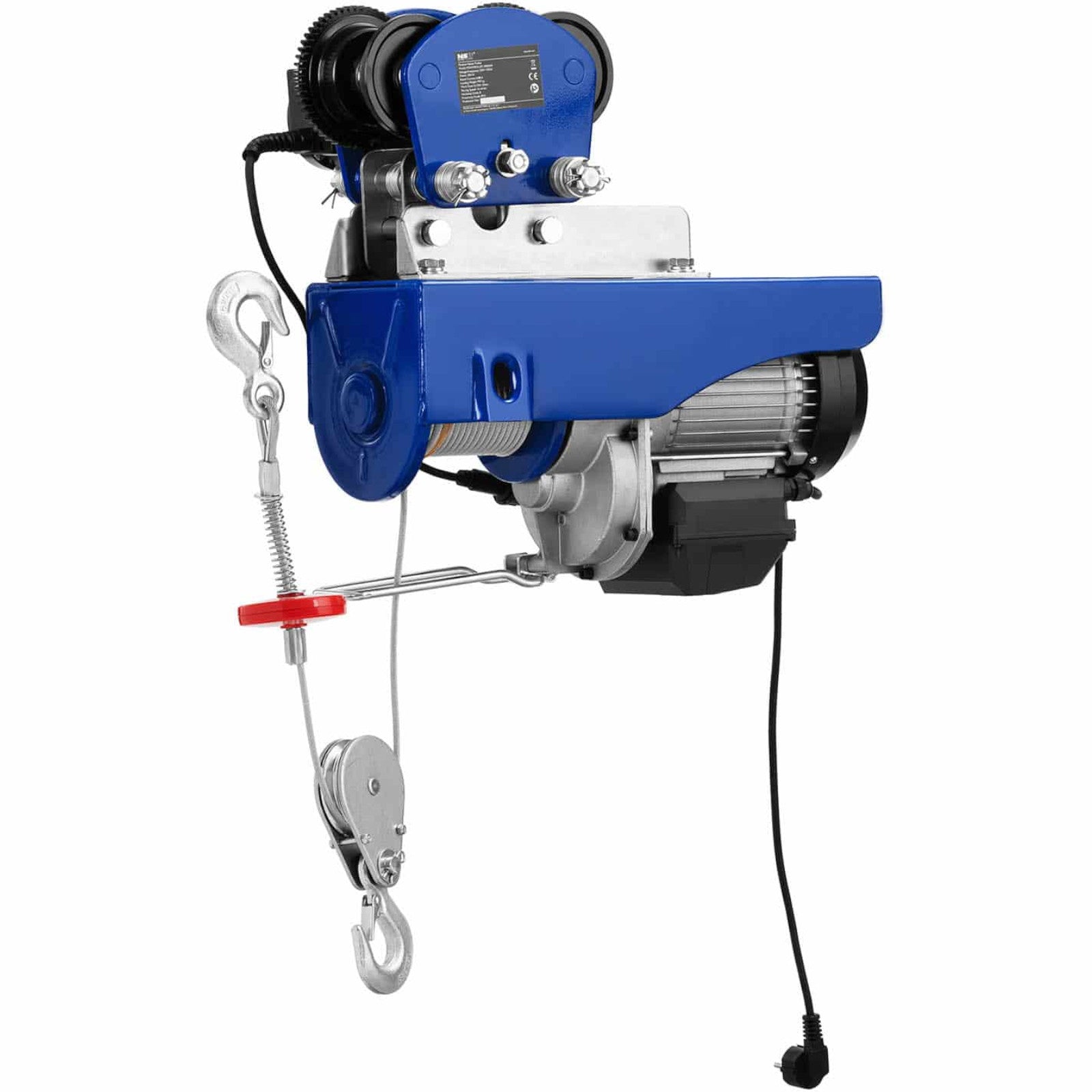

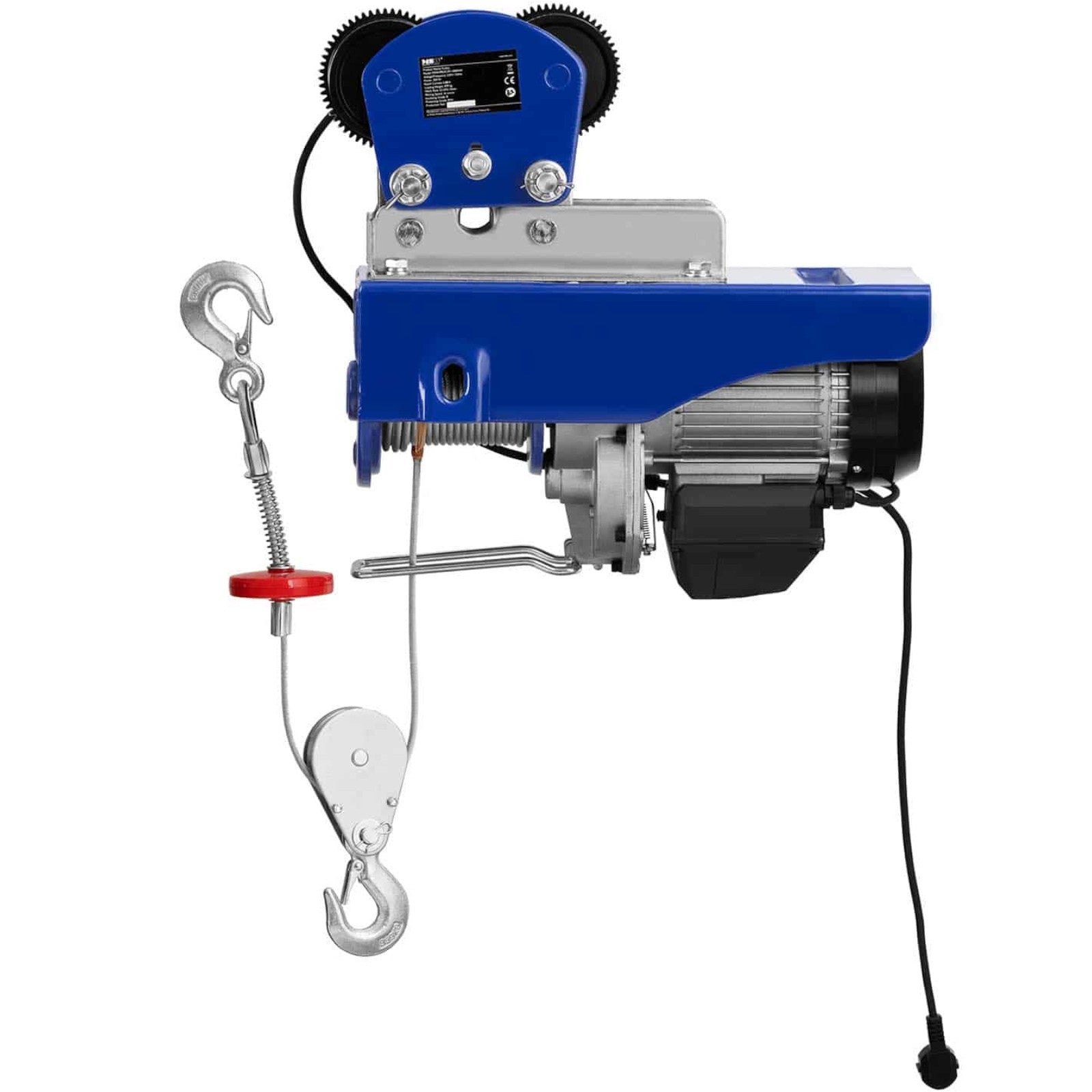

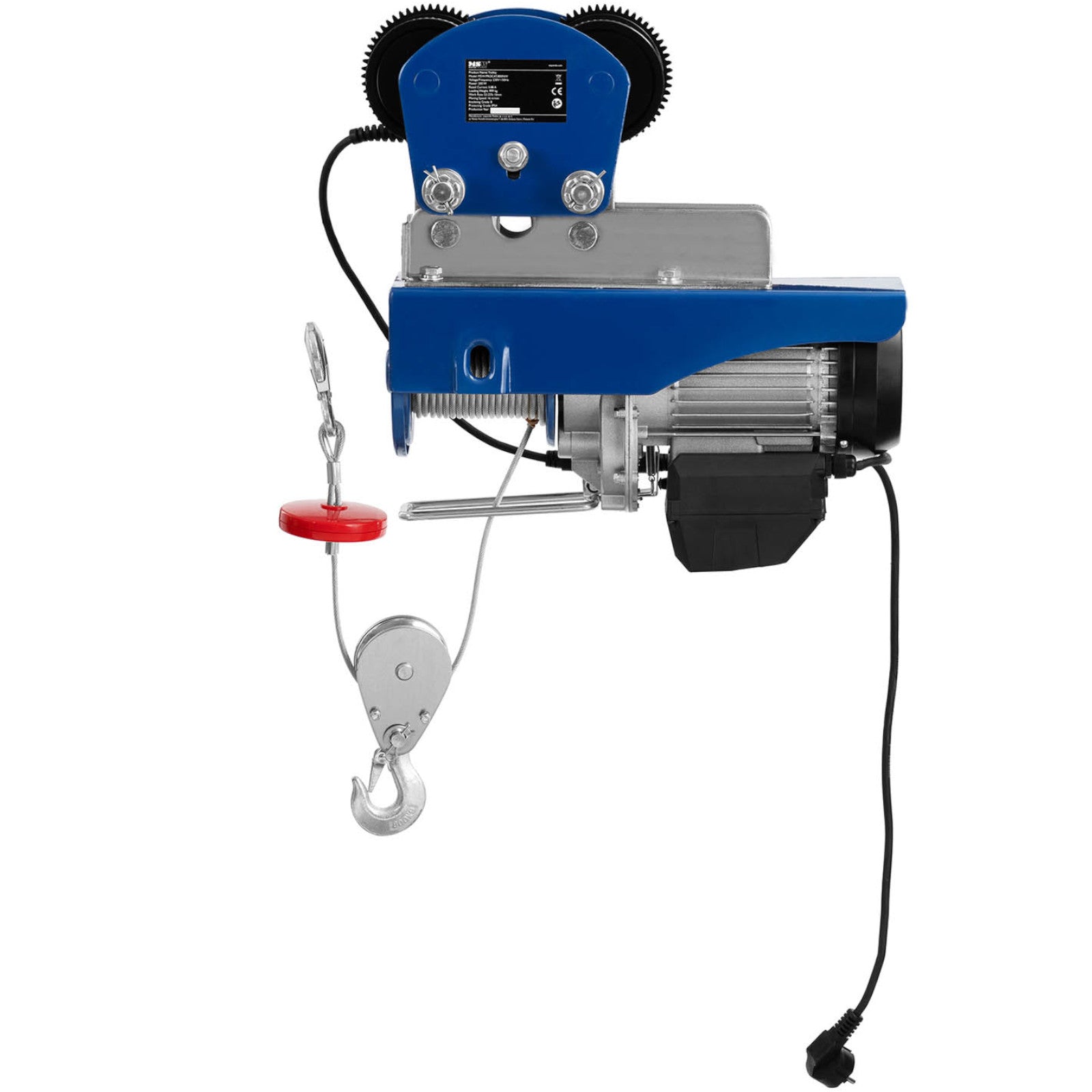

10062133MMA rope winch allows you to lift and carry heavy loads in a warehouse or workshop without effort. Ideal for professional use in factories, industry, recycling plants or shipyards and wherever you need to carry large loads. Suitable for steel beams with a width of 68 - 110 mm.
The engine with a power of 1600 W raises loads up to 500 kg at 12 m highThe lifting speed is 8 m/min.

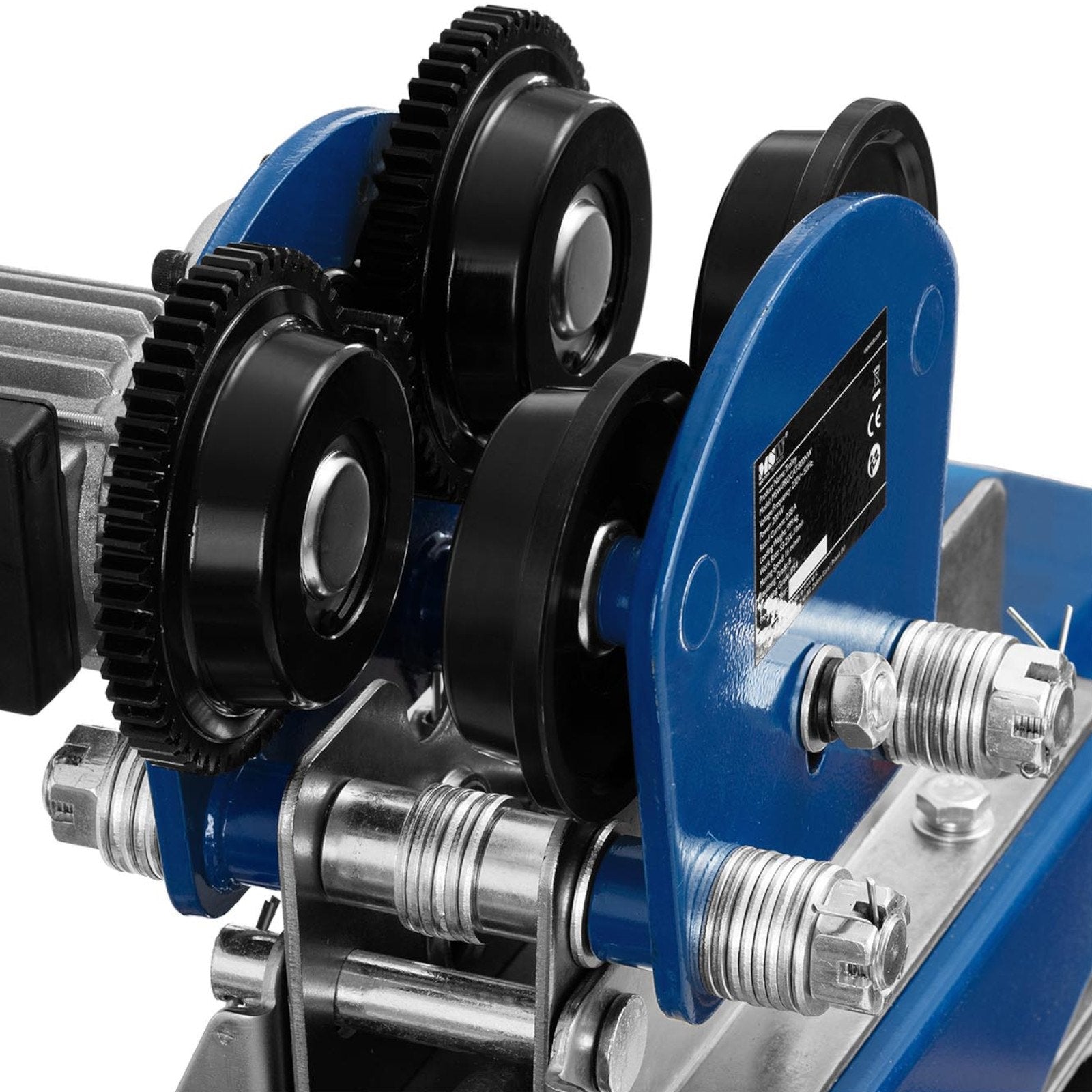

The steel rope with a length of 12 m and a diameter of 5.6 mm can withstand even intensive use. The crane can also be transported on a bend beam if the curve radius is at least 1 m. The crane moves at a speed of 0,96 km/h. After the block has been set up, the lifting height is reduced by half.
up to 6 m and lifting speed up to 4 m/minAt the same time, its load increases
up to 1000 kgThe device has therefore
twice as high load capacity If you use a lock, the remote control is remote, and for safety, the device stops in case of power outage.
The device has IP54 protection class, is resistant to dirt and water.Product features: - - The 1600 W engine carries the charge and is pilot controlled,
- - Carrying capacity up to 1000 kg,
- - Raises charges at 8 m/min,
- - high quality steel rope with 12 m length,
- - Ideal for warehouses, garages, workshops, hangars, etc.
Technical parameters: - - Catalog number - 10062133
- - The state of the article - New
- - Model - MSW-PROCAT-1000NW
- - Material - Aluminium, Steel, Copper
- - Color - Blue
- - Voltage [V] - 230
- - IP protection - IP54
- - Power [W] - 1600
- - Maximum forward speed [km/h] - 0.96
- - Engine power [W] - 1600
- - Time for break at work - S3 / 25% / 10 min
- - Maximum lifting speed - 8 m/min
- - Loading - 500 kg
- - The length of the rope - 12 m
- - Maximum load - 1000 kg
- - Maximum lifting height - 12 m
- - The diameter of the rope - 5.6 mm
- - Lift speed - without a block - 8 m/mn
- - The carrying - without the blocking - 500 kg
- - Minimum radius of the curve - 1 m
- - Lifting speed - with a blur - 4 m/mn
- - The carrying - with the glitch - 1000 kg
- - Maximum lifting capacity - without block - 12 m
- - Maximum lifting capacity - with a lock - 6 m

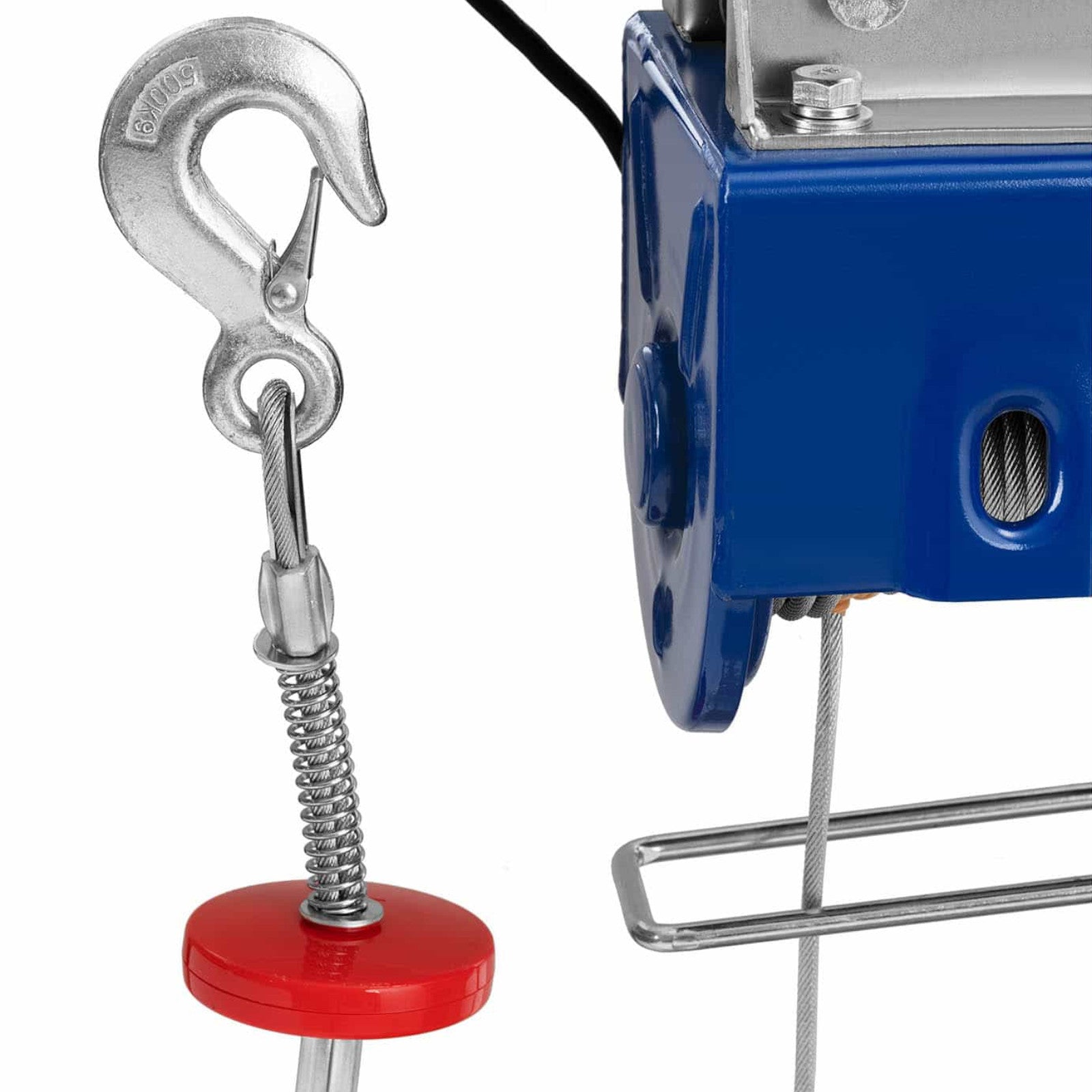

- - Loading hook - Yes.
- - Pilot - Yes.
- - Emergency switch - Yes.
- ## I'll swing with a hook ## Yes.
- - Cover - mounting to the profile or tilting arm - Yes.
- - Dimensions (DxSxW) - 50 x 17 x 28 cm
- - Weight - 44.6 kg
- - Dimensions of dispatch (DxSxW) - 91 x 65 x 47 cm
- - Weight of shipping - 46.7 kg

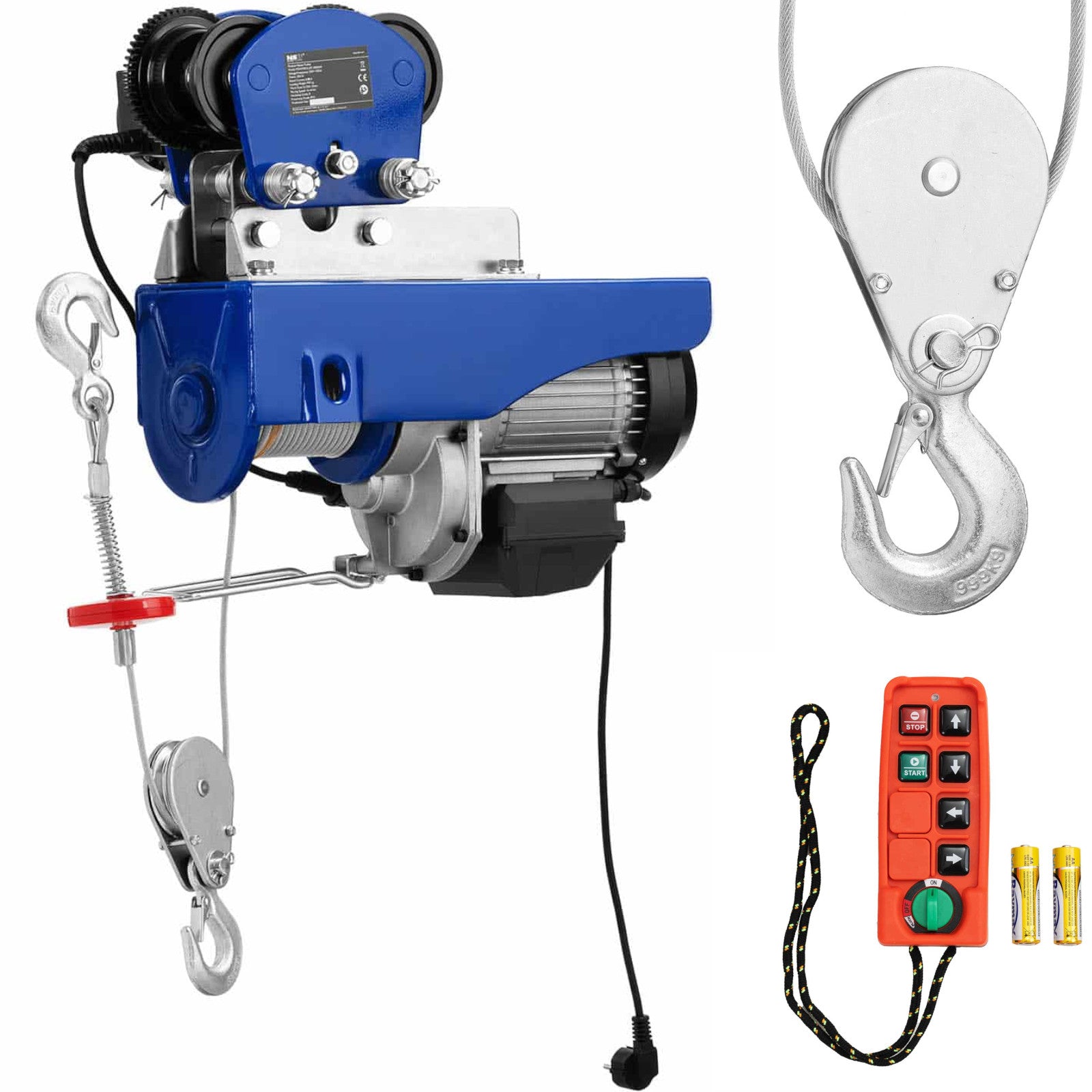

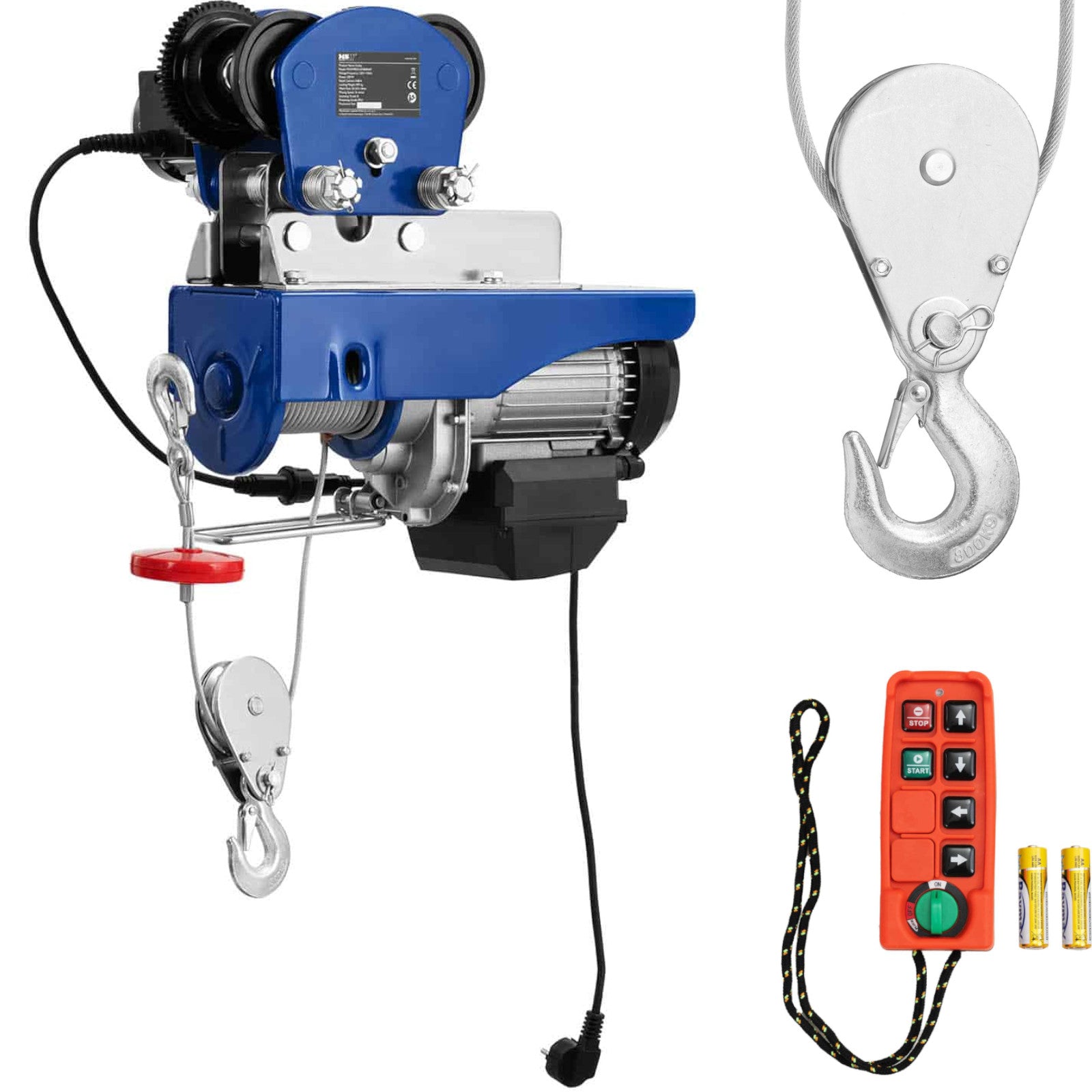

Included: - - Winding-up with crane

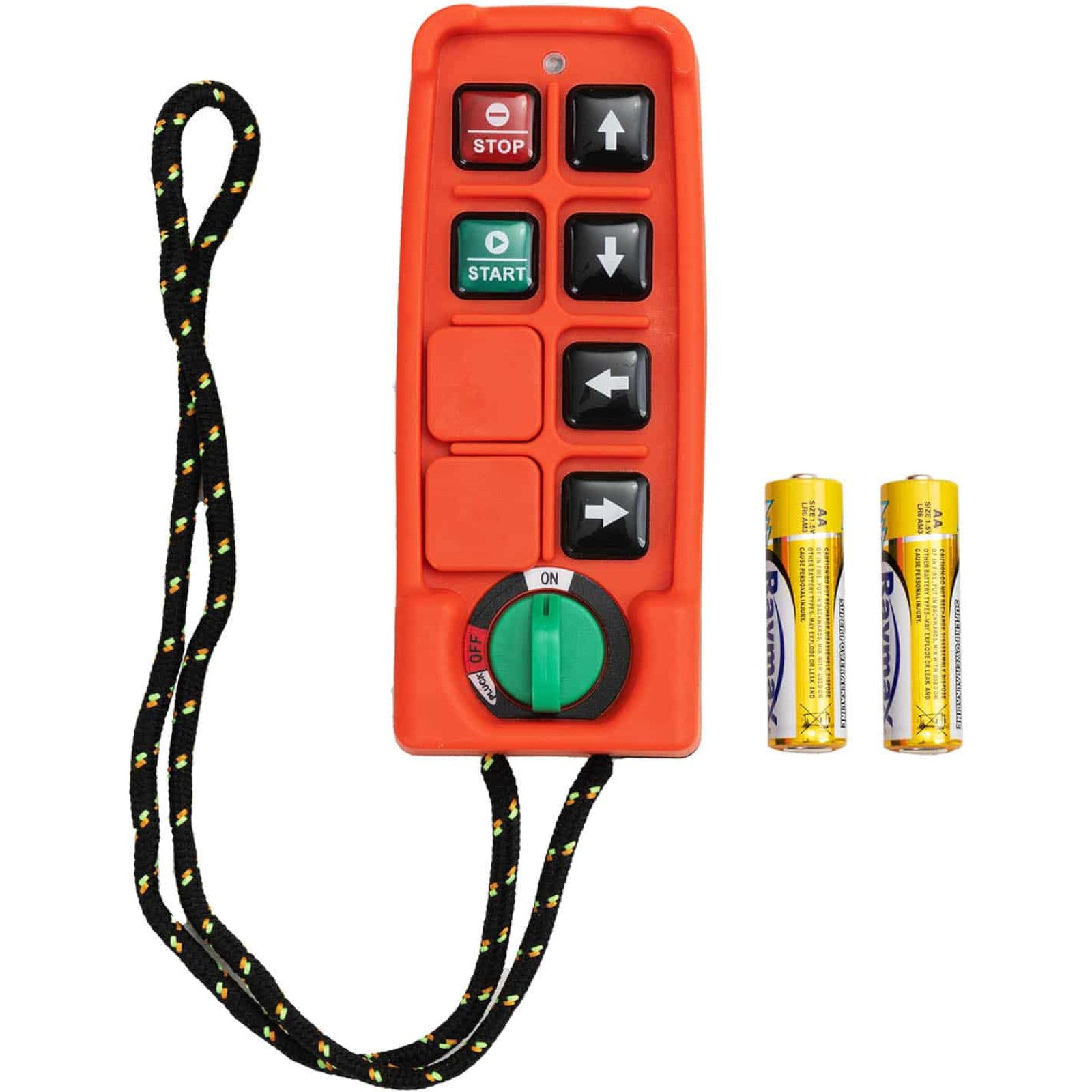

- - Pilot.
