Apraksts
Manufacturer's code:

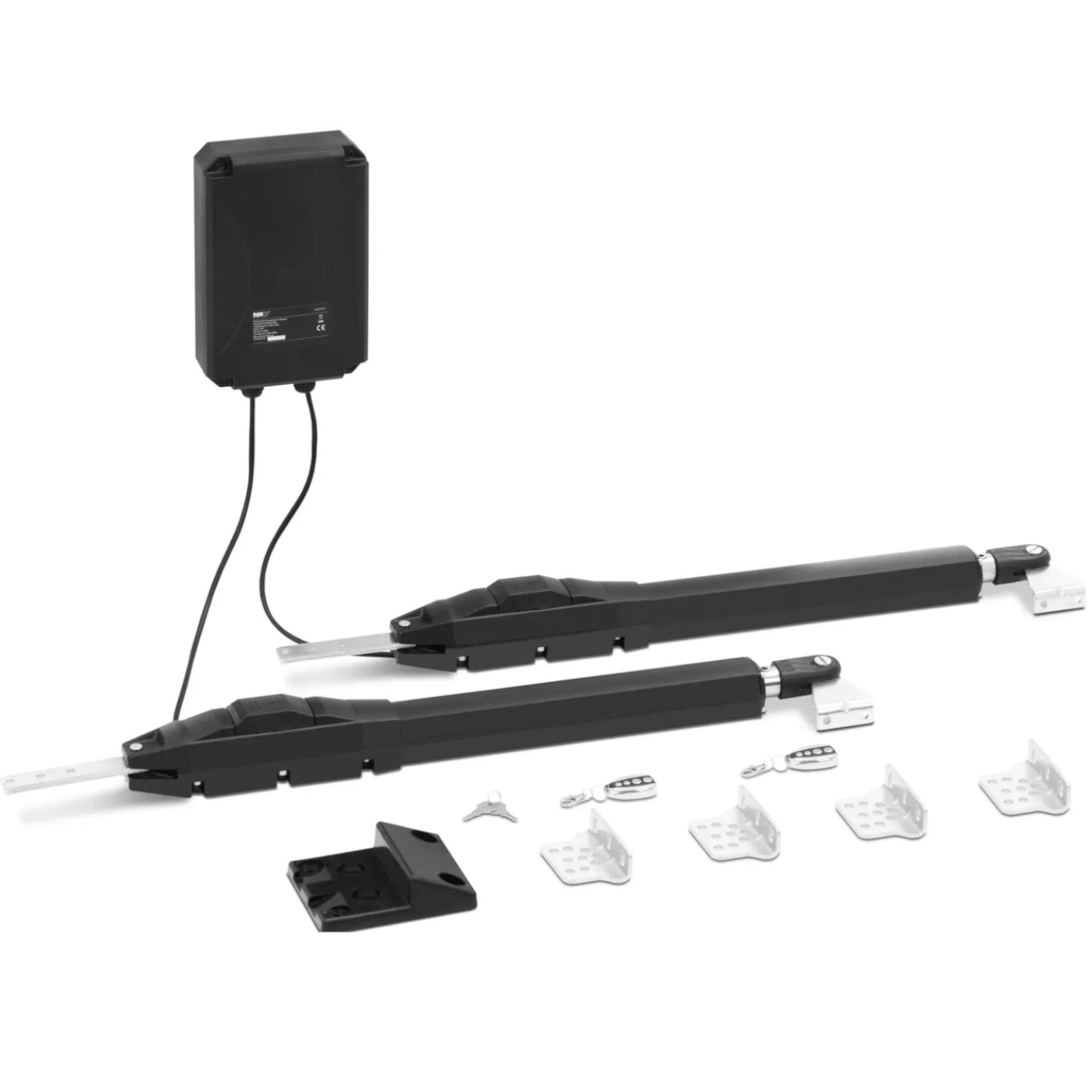

10062500The drive for a double-leaf gate by MSWguarantees comfort and greater safety on the property, in a garden, on a farm, commercial or industrial point, etc. The gate mechanism opens
2 leaves up to 2 m long and with a maximum weight of 200 kg. Daily use of the drive not only increases safety, but also makes life easier. Convenient operation is ensured by, among others,
2 remote controls with a range of 30 meters. The 2 high-performance swing gate actuators are energy-saving and therefore particularly cost-effective in the long run. Thanks to the step-by-step instructions, the drive can be installed efficiently and without any problems.
Product features: - - Drive for a gate 2 m long each and weighing 200 kg,
- - Mechanism for a double-leaf gate with 2 energy-saving motors ensuring smooth operation,
- - Easy installation and quick start-up of the swing gate motor thanks to the step-by-step instructions step by step,
- - Suitable for a wide range of double-leaf gates in homes, garages, gardens and many other areas,
- - 2 remote controls for easy operation.
Technical parameters: - - Catalog number - 10062500
- - Article condition - New
- - Model - MSW-GDOOR-005B
- - Frequency [Hz] - 50
- - Material - Aluminum
- - Color - Gray
- - Voltage [V] - 230
- - Speed [m/min] - 90
- - Power [W] - 30

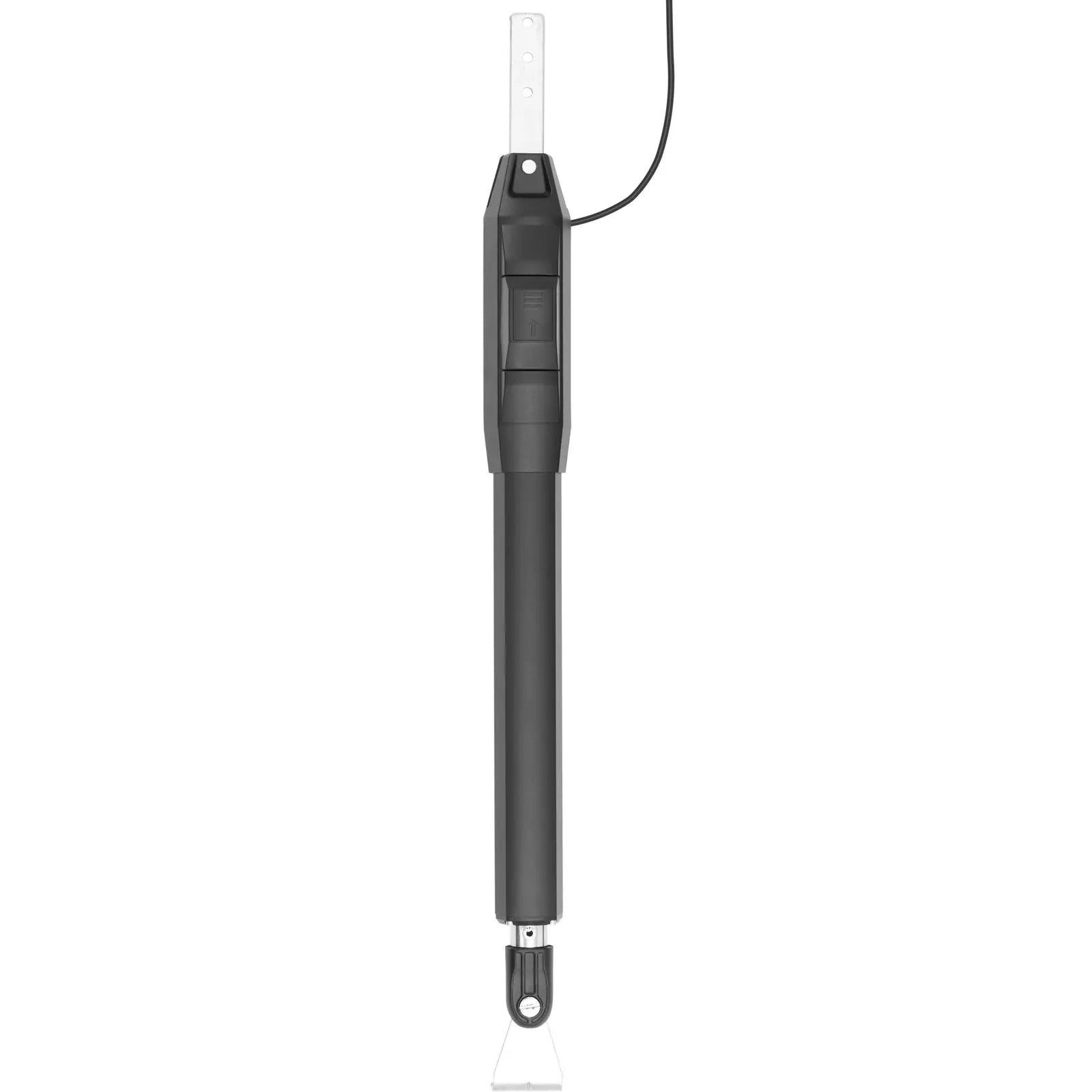

- - Drive mechanism - Piston with spindle drive
- - Operating temperature range [deg C] - -20 - 70
- - Pilot - Yes
- - Maximum pulling force [N] - 2200 N
- - Piston stroke [mm] - 300 mm
- - Dimensions (LxWxH) - 75 x 7 x 28 cm
- - Weight - 11 kg
- - Shipping dimensions (LxWxH) - 80 x 27 x 20 cm
- - Shipping weight - 12.5 kg

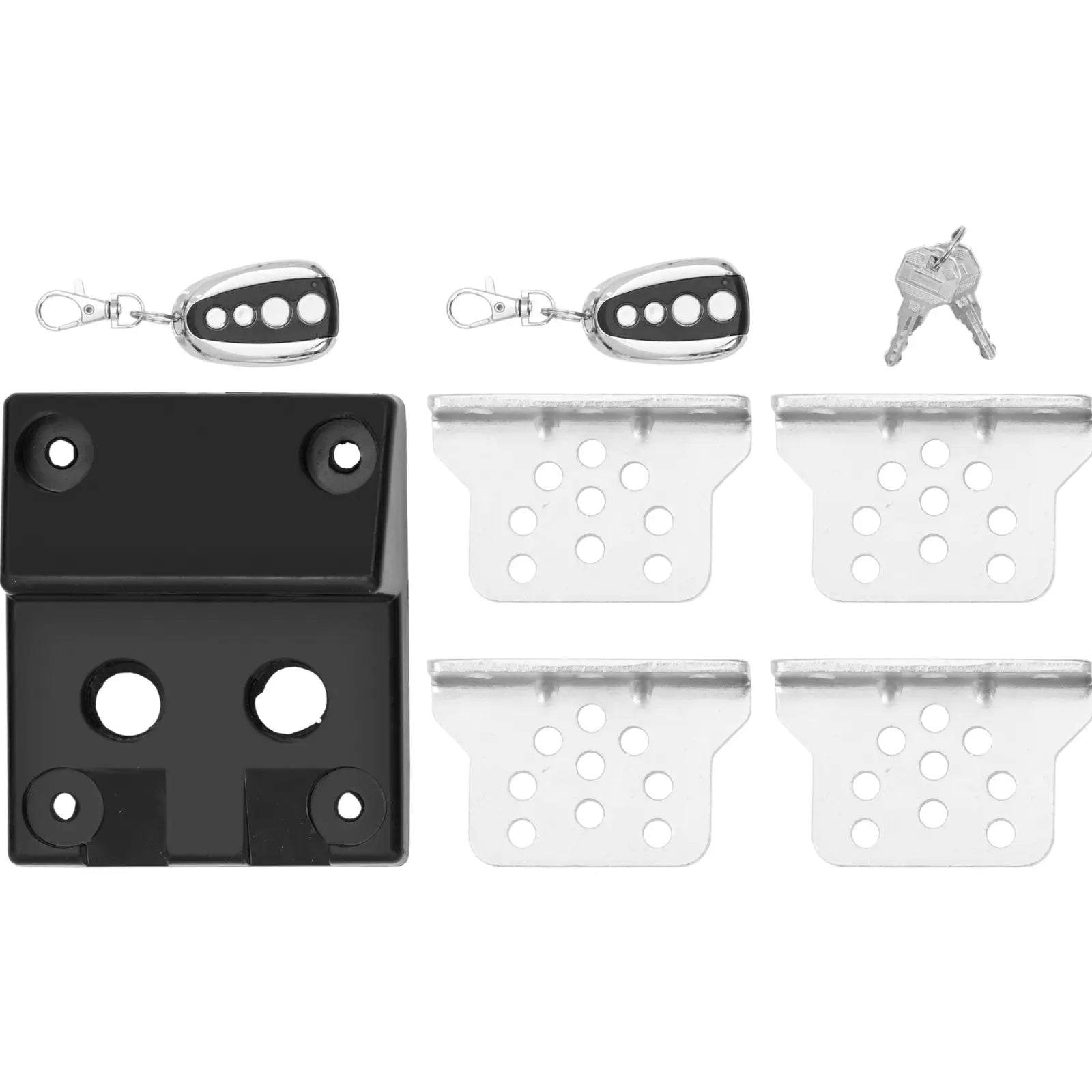

The set includes: - - Drive for a double-leaf gate
