Product code:
1009062

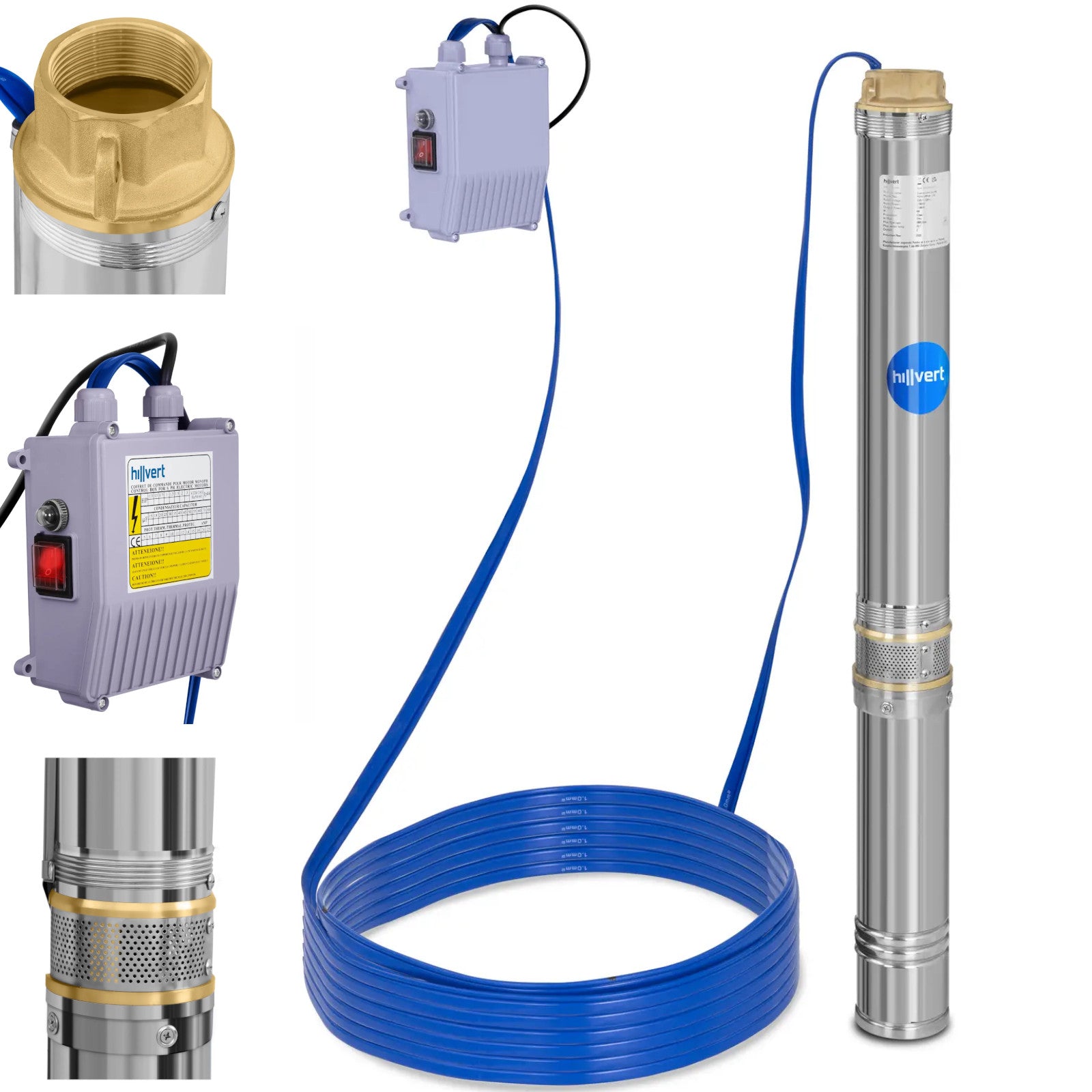

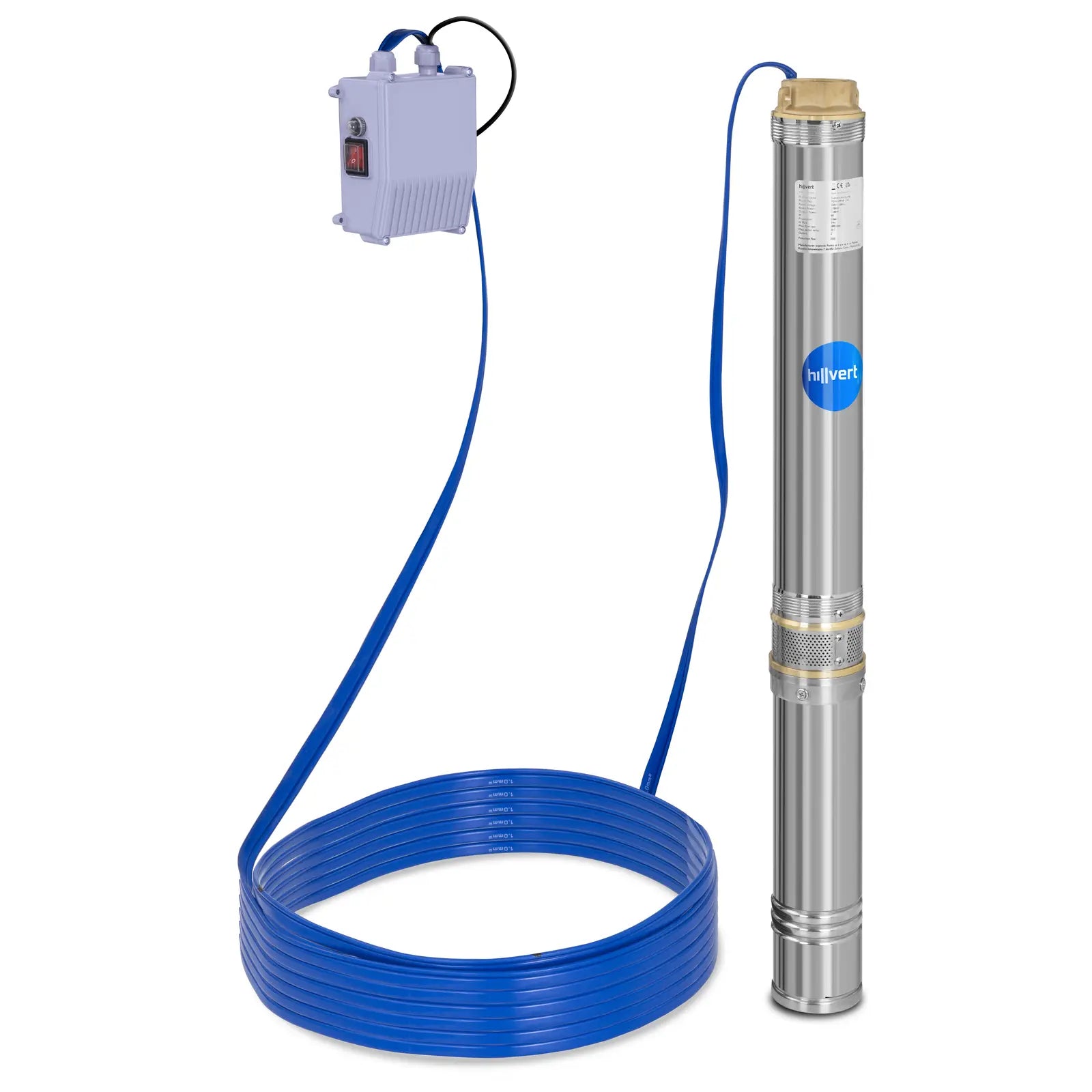

Hillvert Deepwater Pump it easily pumps water from deep and narrow wells, wells, tanks or tanks.
Stainless steel housing it has a diameter of only 95 mm and is ideal for narrow drilling.
The 1100 W motor is running at a speed of 2850 rpm and provides high flow rates up to 10 800 l/h. The device can be immersed up to 20 m depth at a maximum lifting height of 54 m. The pump for the well is suitable for clean water with a temperature of up to 35deg C.
The engine of the deep-water pump is sealed and protected from pressure and water. The stainless steel casing is corrosion-resistant and dirt-resistant. It can handle even the biggest loads reliably.
Product features: - - Performance 10 800 l/h thanks to a 1100 W engine and 2850 rpm speed.
- - Control via control box with protected switch/switch.
- - Maximum lifting height 54 m.
- - Stainless steel housing resistant to corrosion and dirt.
Technical parameters: - - Marka - Hillvert
- - Voltage [V] - 230
- - Material - Stainless steel
- - Color - Silver
- - The rated current - 6 A
- - Rated speed [min] - 2850
- - Water flow - 10 800 l/h
- - Total diameter - 95 mm / 3.75'
- - Insulation class - B
- - IEC protection class - I
- - Number of steps (pump rotors) - 8
- - Max. depth of underwater immersion - 20 m
- - Max. sand content in water [%] - 0.25
- - Maximum number of startups per hour - 50 h
- - Maximum input power - 1.7 kW
- - Maximum output power - 1.1 kW
- - Maximum water temperature - 35 deg C
- - Maximum lifting height - 54 m
- - Maximum working pressure - 5.4 Bar
- - Maximum water flow - 10.8 m3/h
- - Maximum particle size - 1.8 mm

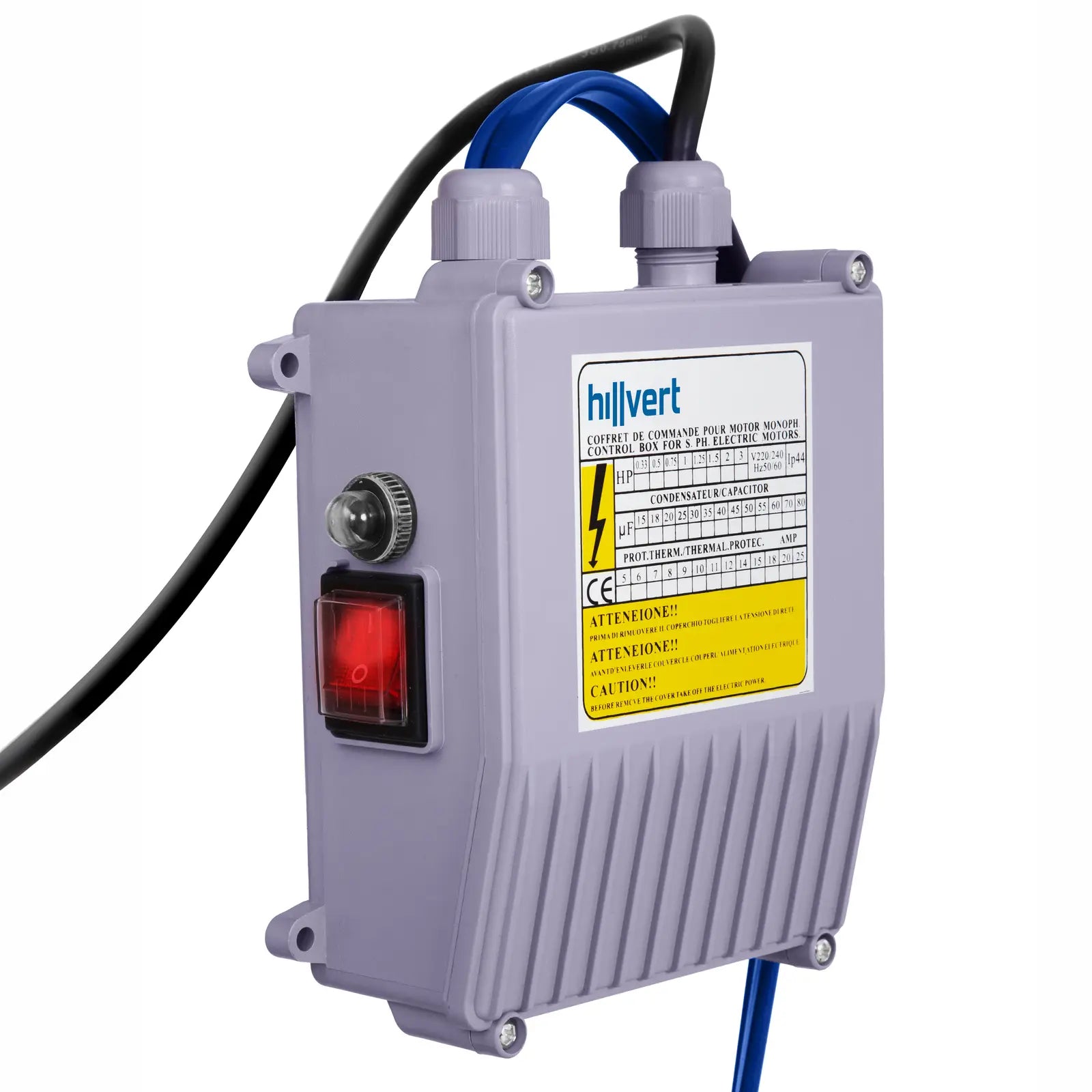

- - Control methods - External boot box (1100 W)

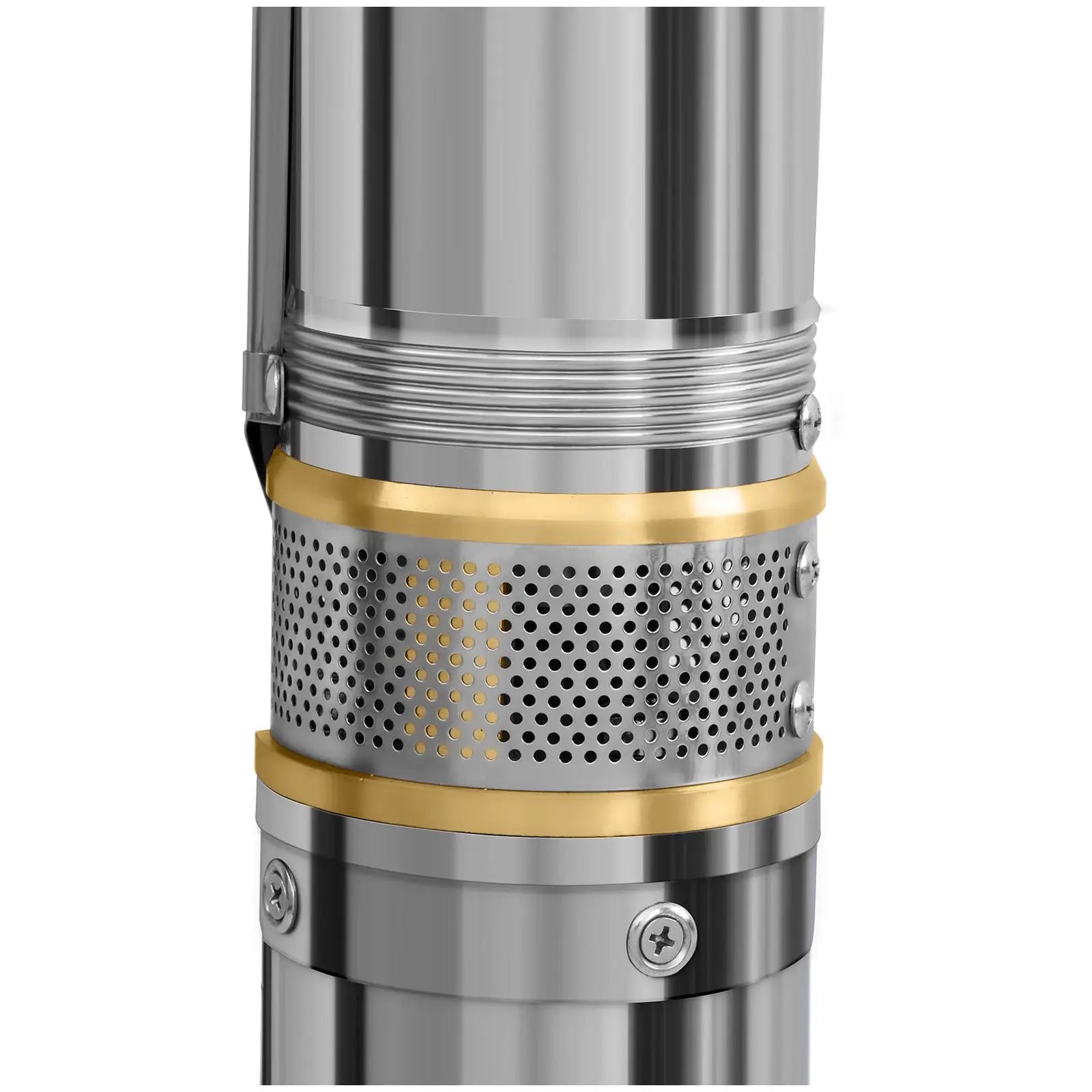

- - Filter - Yes.
- - Expansion - Yes.
- - The return valve - Yes.
- - Power cord - 20 m
- - Wire specification - H07RN-F 3G1 mm2
- - IP protection - IP68
- - The diameter of the mounting hole - 100 mm

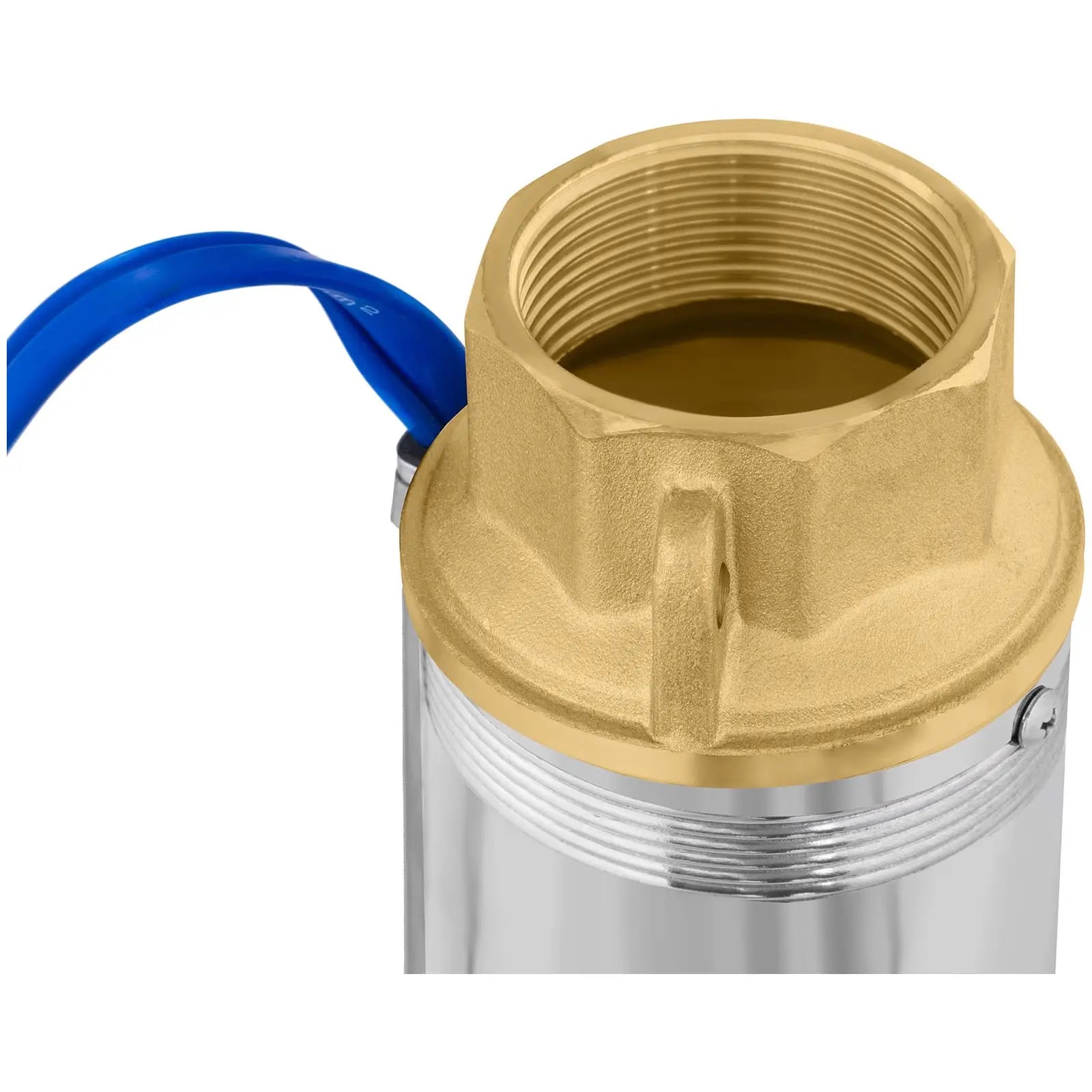

- - Diameter of water connection - 2 in
- - Dimensions (DxSxW) - 91 x 9.5 x 9 cm
- - Weight - 17 kg
- - Dimensions of dispatch (DxSxW) - 128 x 24 x 12 cm
- - Weight of shipping - 19 kg
Included:
