Product code:
1009059

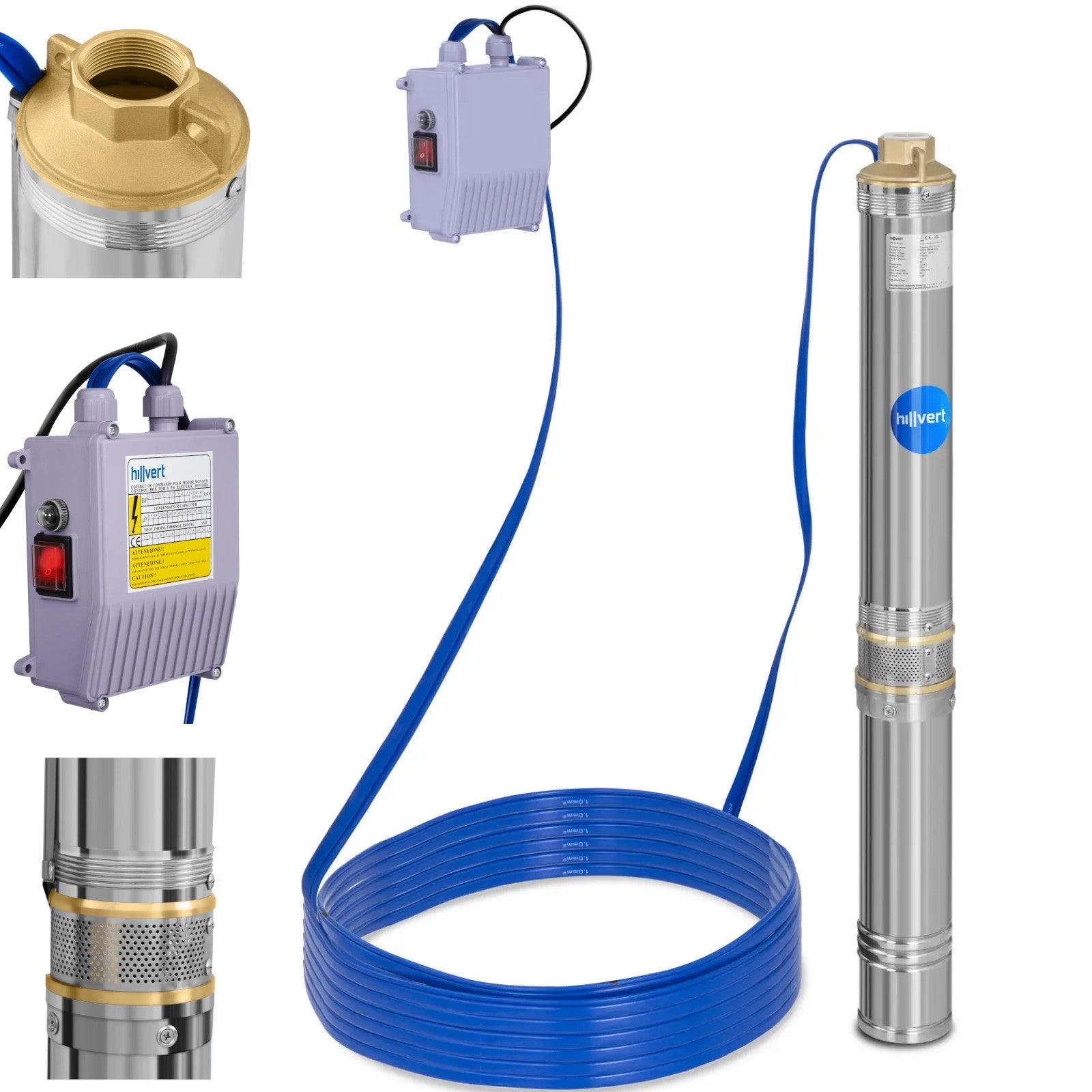

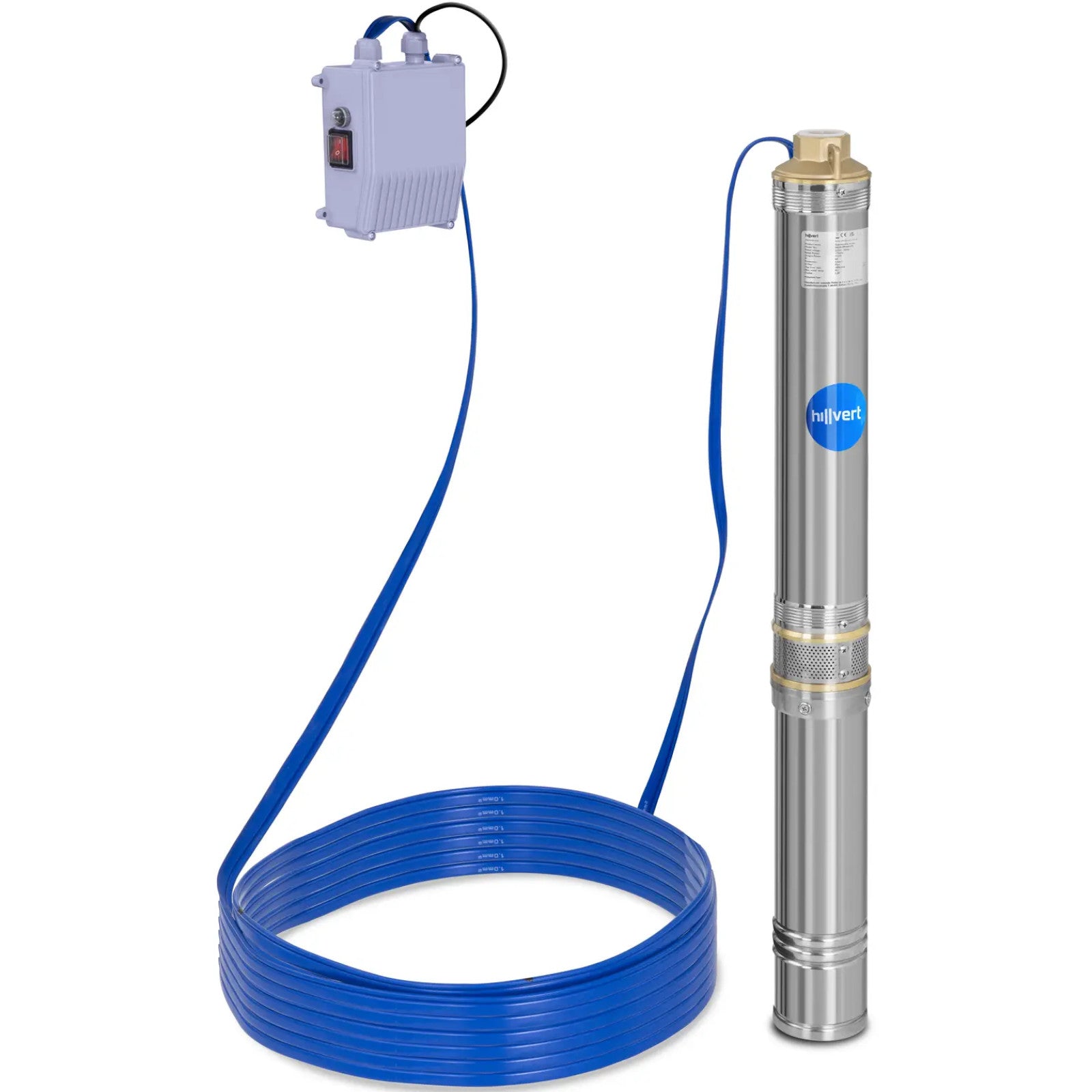

Hillvert Deepwater Pump it easily pumps water from deep and narrow wells, wells, tanks or tanks.
Stainless steel housing it has a diameter of only 95 mm and is ideal for narrow drilling.
The 750 W engine operates at a speed of 2850 rpm and provides high flow up to 6000 l/h. The device can be immersed up to 20 m depth at a maximum lifting height of 72 m. The pump for the well is suitable for clean water with a temperature up to 35deg C.
The engine of the deep-water pump is sealed and protected from pressure and water. The stainless steel casing is corrosion-resistant and dirt-resistant. It can handle even the biggest loads reliably.
Product features: - - Performance 6000 l/h thanks to an engine with a power of 750 W and a speed of 2850 rpm.

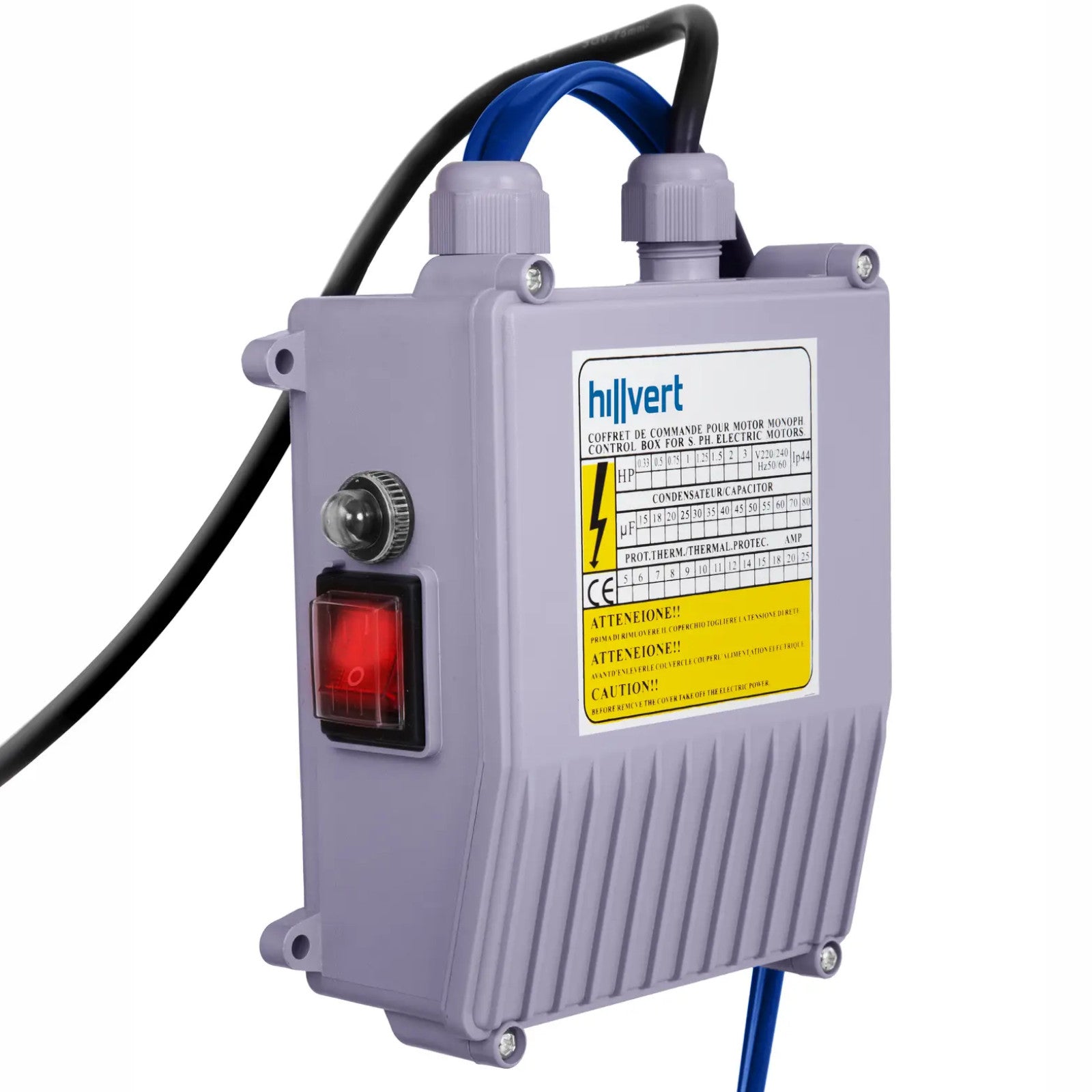

- - Control via control box with protected switch/switch.
- - Maximum lifting height 72 m.
- - Stainless steel housing resistant to corrosion and dirt.
Technical parameters: - - Marka - Hillvert
- - Voltage [V] - 230
- - Material - Stainless steel
- - Color - Silver
- - The rated current - 5 A
- - Rated speed [min] - 2850
- - Water flow - 6000 l/h
- - Total diameter - 95 mm / 3.75'
- - Insulation class - B
- - IEC protection class - I
- - Number of steps (pump rotors) - 10
- - Max. depth of underwater immersion - 20 m
- - Max. sand content in water [%] - 0.25
- - Maximum number of startups per hour - 50 h
- - Maximum input power - 1.5 kW
- - Maximum output power - 0.75 kW
- - Maximum water temperature - 35 deg C
- - Maximum lifting height - 72 m
- - Maximum working pressure - 7.2 Bar
- - Maximum water flow - 6 m3/h
- - Maximum particle size - 1.8 mm
- - Control methods - External boot box (750 W)

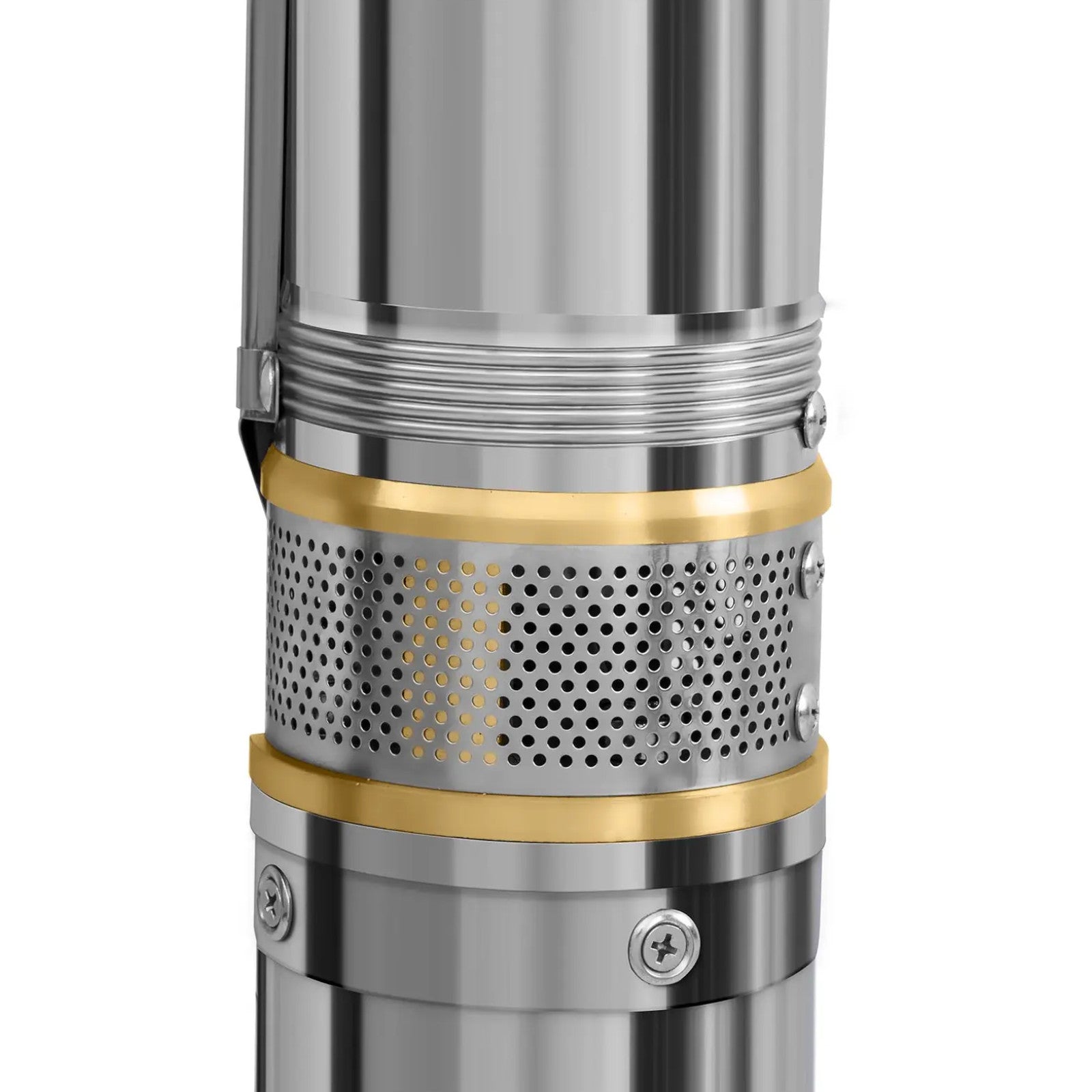

- - Filter - Yes.
- - Expansion - Yes.
- - The return valve - Yes.
- - Power cord - 20 m
- - Wire specification - H07RN-F 3G1 mm2
- - IP protection - IP68
- - The diameter of the mounting hole - 100 mm

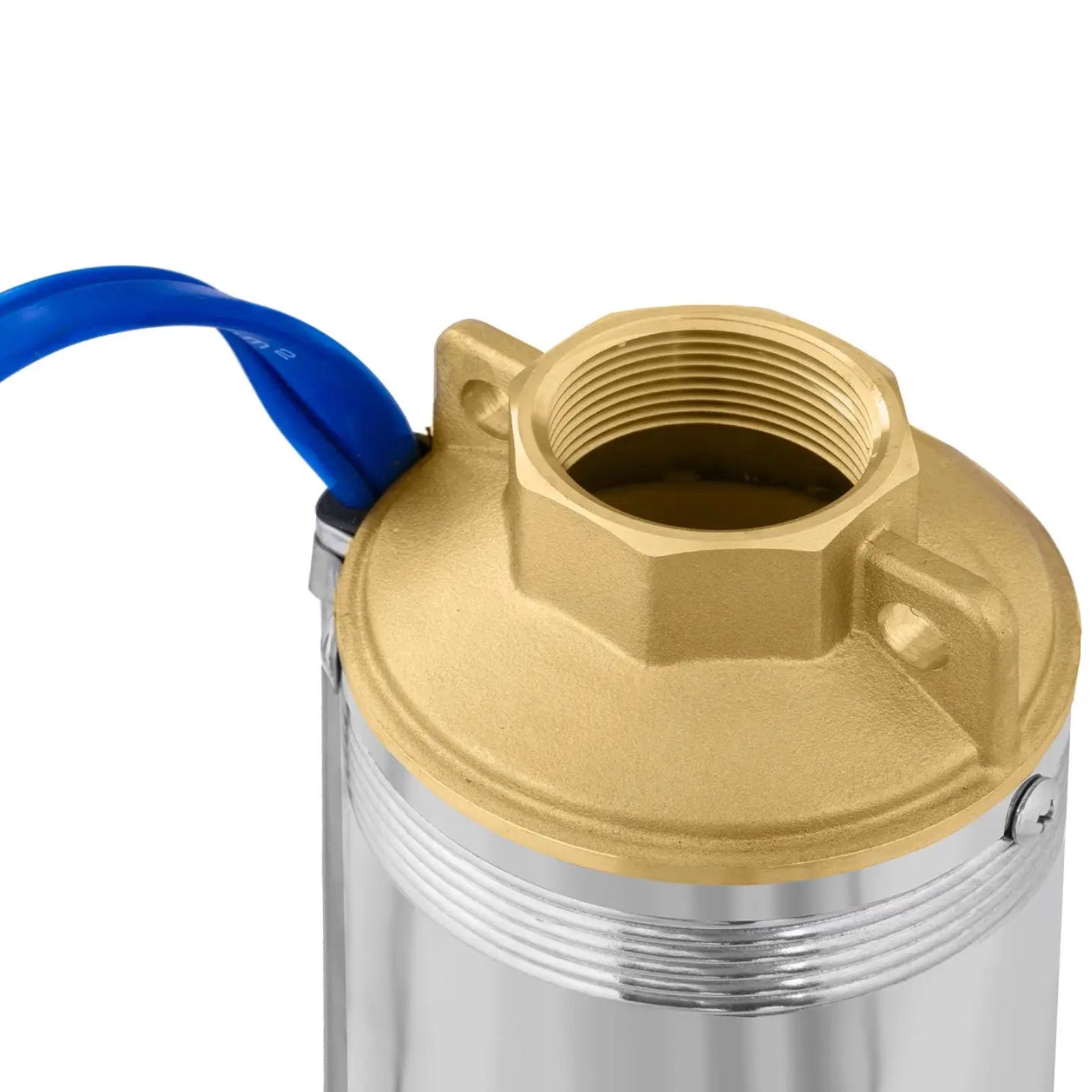

- - Diameter of water connection - 1.25 in
- - Dimensions (DxSxW) - 86 x 9 x 9 cm
- - Weight - 15 kg
- - Dimensions of dispatch (DxSxW) - 123 x 13 x 24 cm
- - Weight of shipping - 17 kg
Included:
