Manufacturer's code:

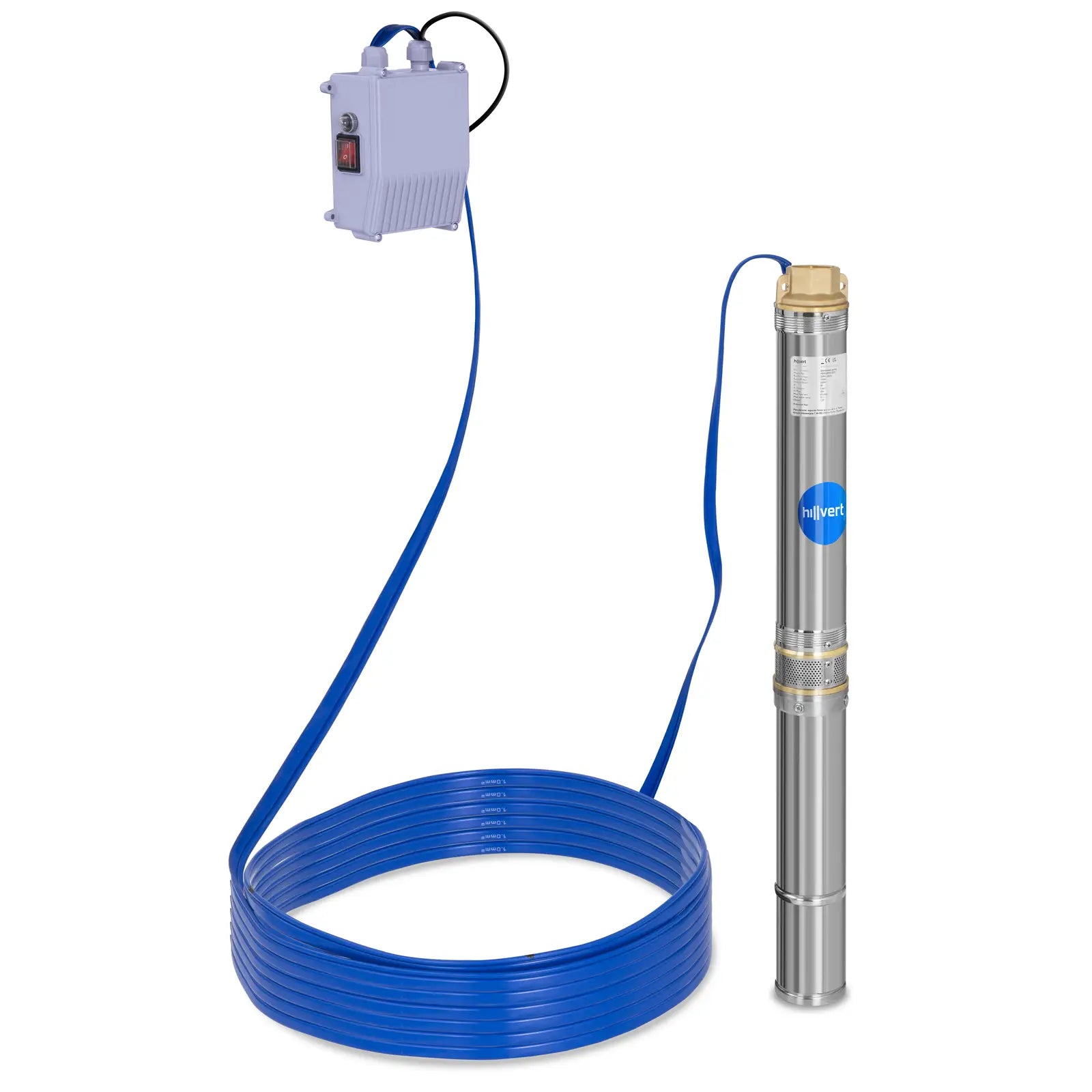

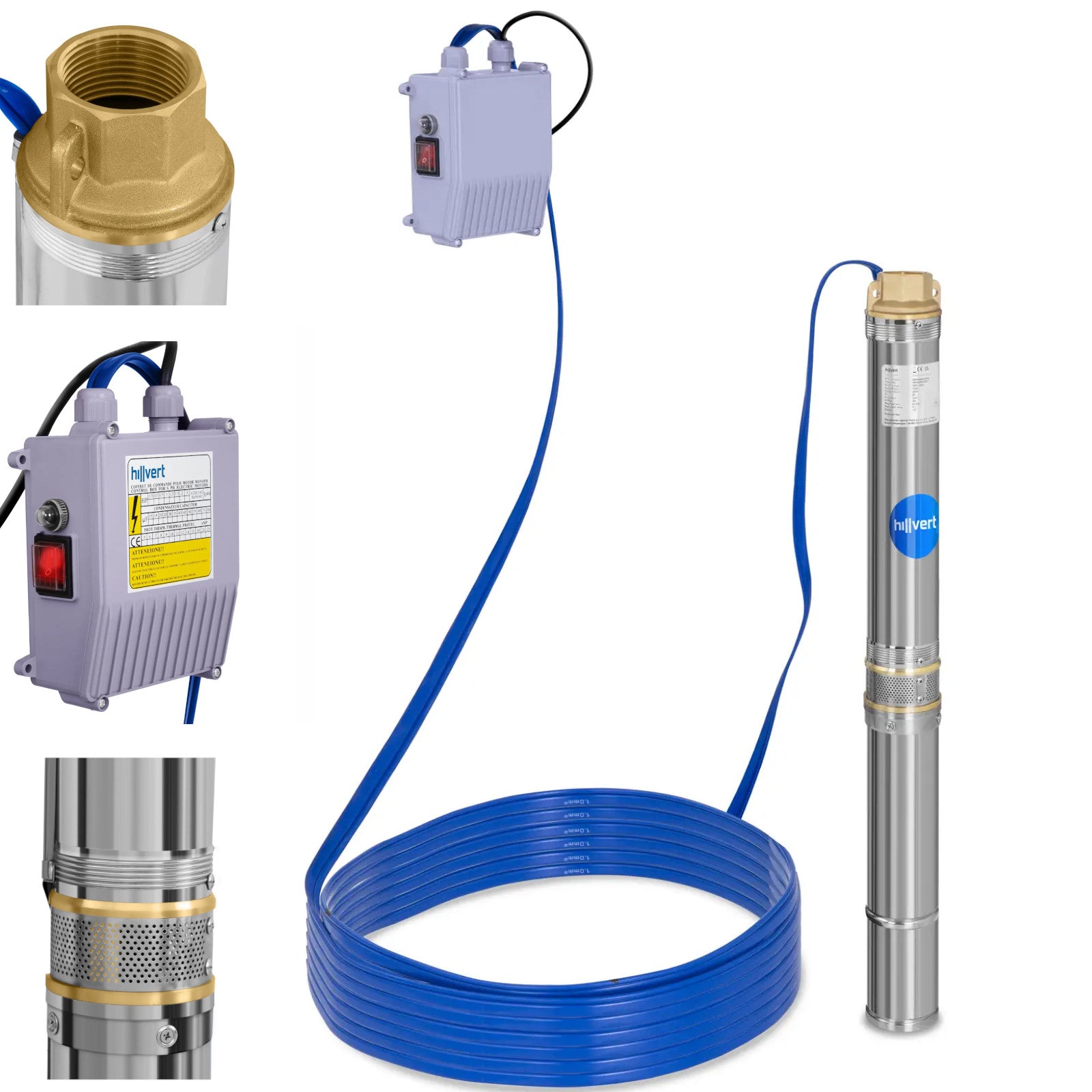

10060178Hillvert Deepwater Pump it easily pumps water from deep and narrow shafts, wells, tanks or tanks.
stainless steel It's only a diameter.
70 mm and ideally suited for narrow drilling. Engine about
Power supply 250 W working at speed
2850 rpm and provides high flow to
3800 l/hThe device can be immersed to 20 m depth at maximum lifting height.
28 mThe pump for the well is suitable for clean water with a temperature of up to 35deg C - just enough to supply water.
Product features: - - Rapid pumping - 3800 l/h performance thanks to a 250 W engine and 2850 rpm speed,

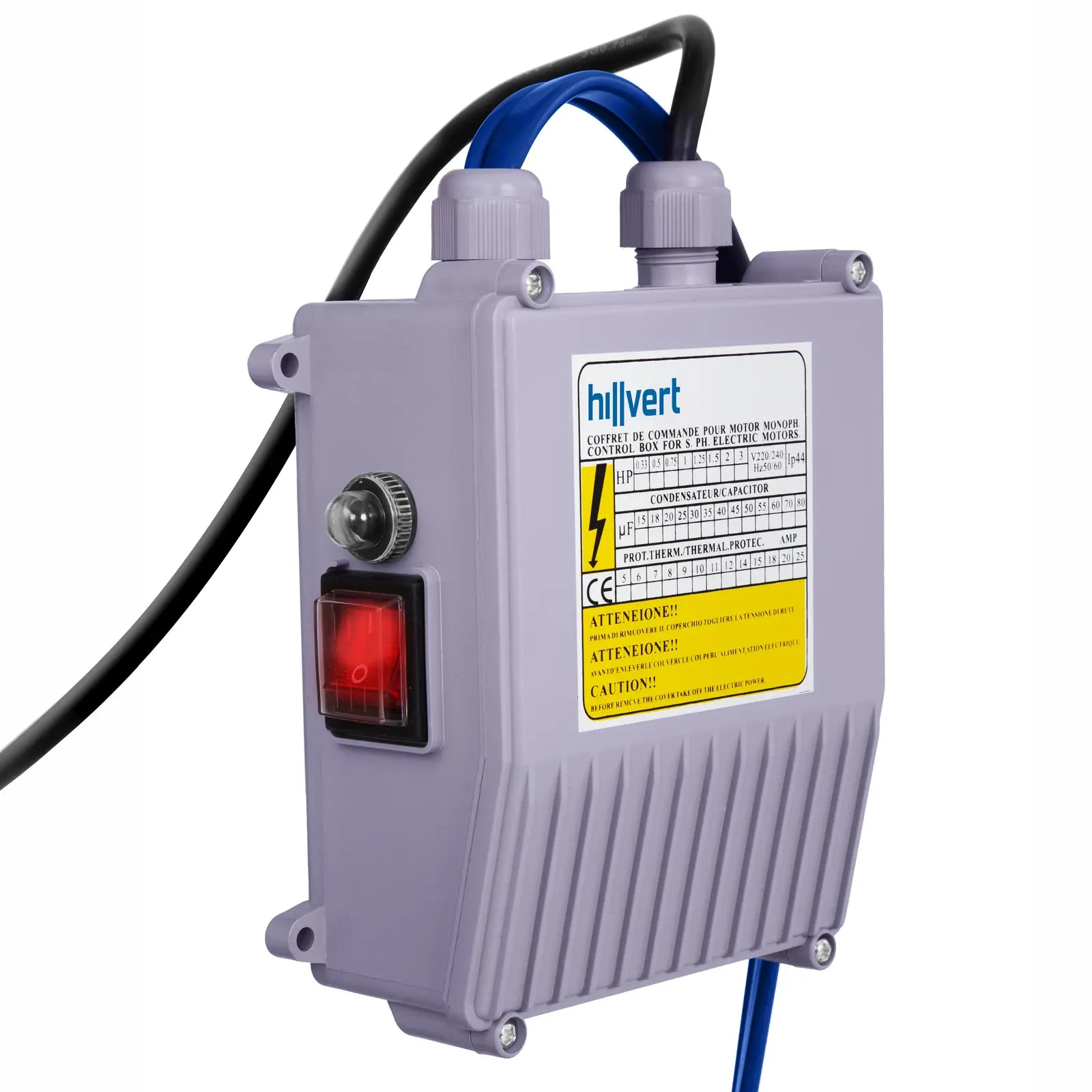

- - Convenient operation - control with control box with protected switch/off,
- - Wide application - maximum lifting height 28 m,
- - You place the device flexibly - thanks to a long power line and maximum depth of 20 m draught,
- - High durability - stainless steel casing resistant to corrosion and dirt.
Technical parameters: - - Catalog number - 10060178
- - The state of the article - New
- - Total diameter - 70mm / 2.75''

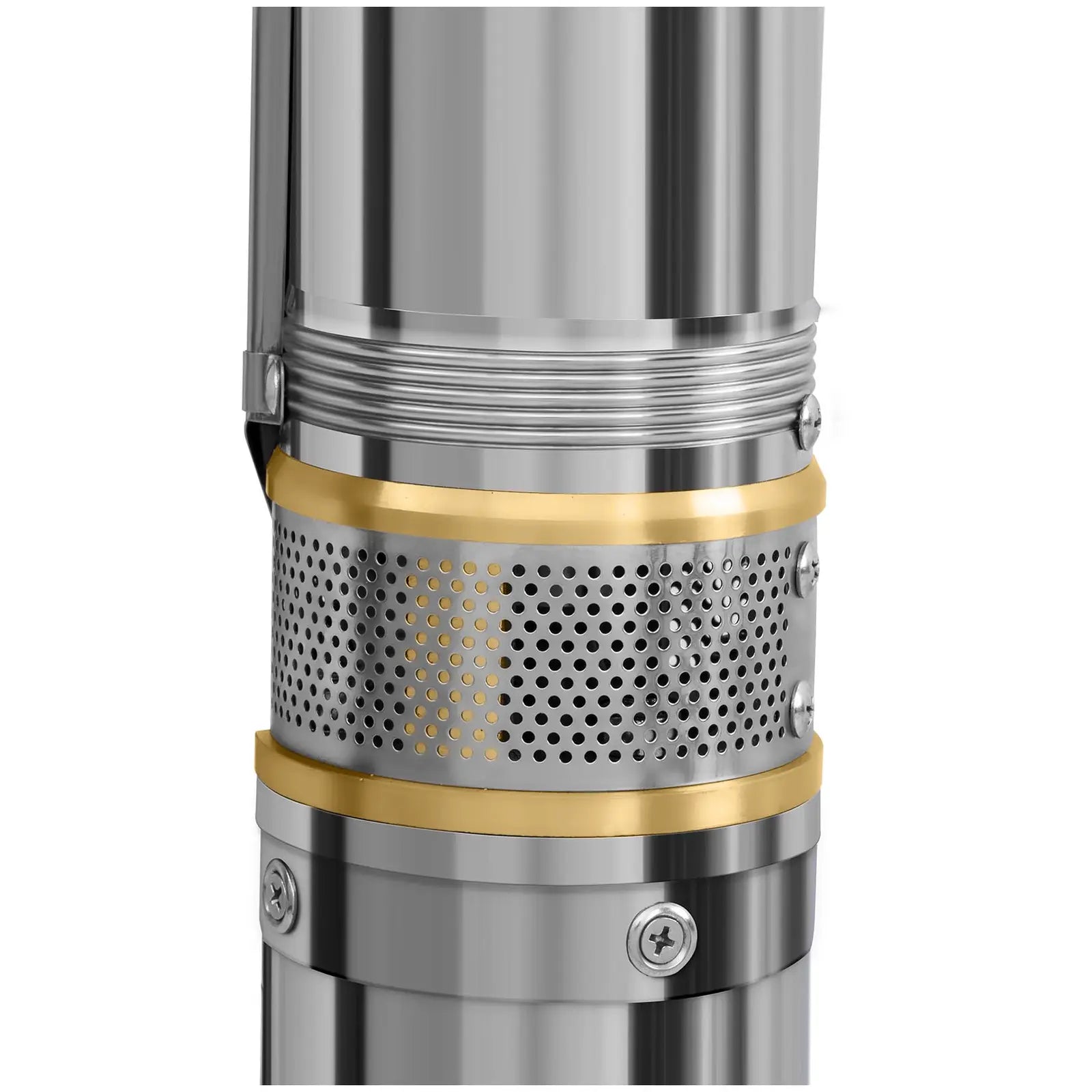

- - Filter - Yes.
- - Insulation class - B
- - IEC protection class - I
- - Color - Silver
- - Number of steps (pump rotors) - 8
- - Max. depth of underwater immersion - 20 m
- - Max. sand content in water [%] - 0.25
- - Maximum number of startups per hour - 50 h
- - Maximum input power - 0.75 kW
- - Maximum output power - 0.25 kW
- - Maximum water temperature - 35 deg C
- - Maximum lifting height - 28 m
- - Maximum working pressure - 2.6 Bar
- - Maximum water flow - 3.8 m3/h
- - Maximum particle size - 1.8 mm
- - Material - Stainless steel
- - Control methods - External boot box (250 W)
- - Voltage [V] - 230
- - The rated current - 2.5 A
- - Rated speed [min] - 2850
- - Water flow - 3800 l/h
- - Expansion - Yes.
- - Power cord - 20 m
- - Wire specification - HO7RN-F3G0.5mm2
- - IP protection - IP68
- - The diameter of the mounting hole - 80 mm

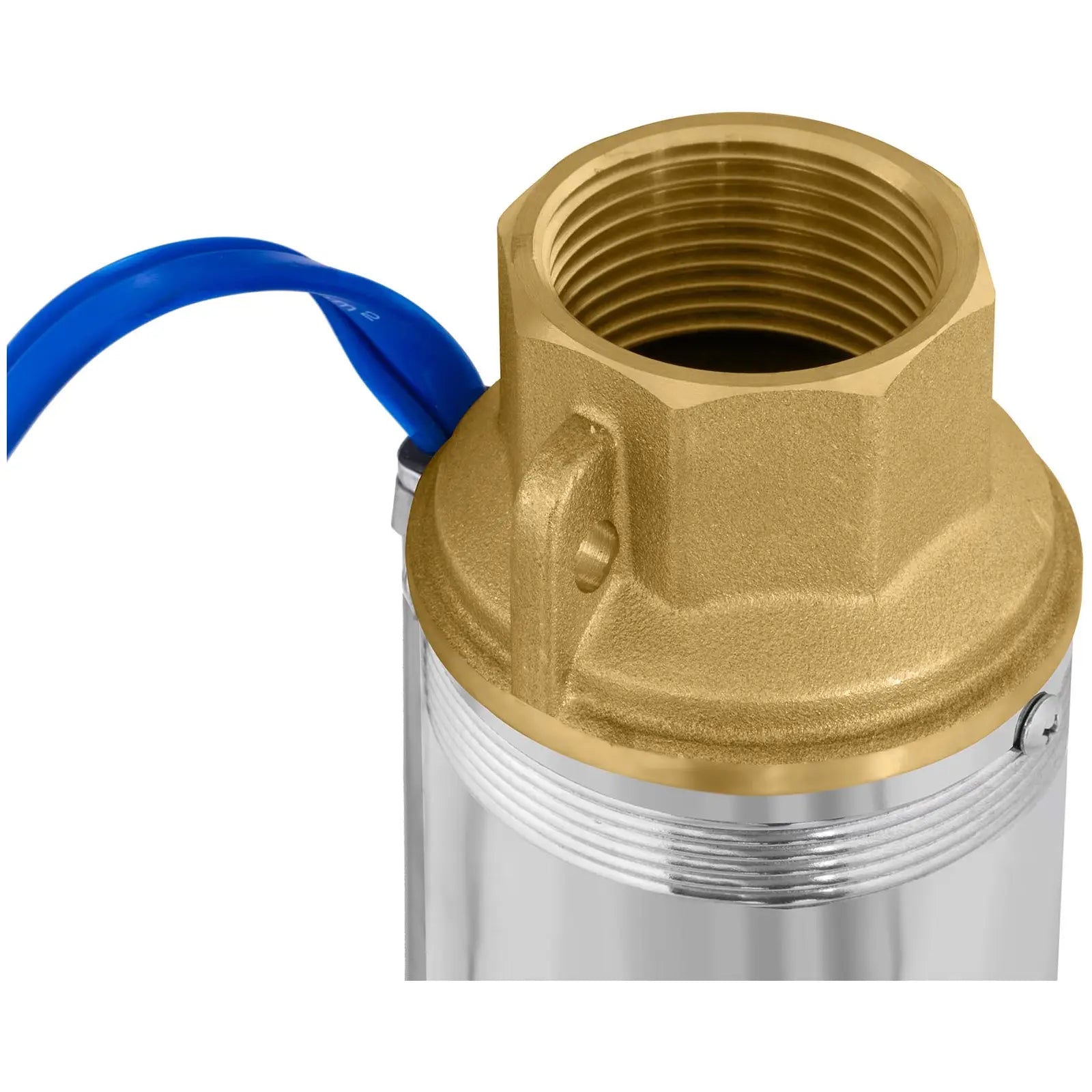

- - Diameter of water connection - 1.25 in
- - The return valve - Yes.
- - Weight - 8.75 kg
- - Weight of shipping - 10.4 kg
Included:
