Apraksts
Product code:
1009063

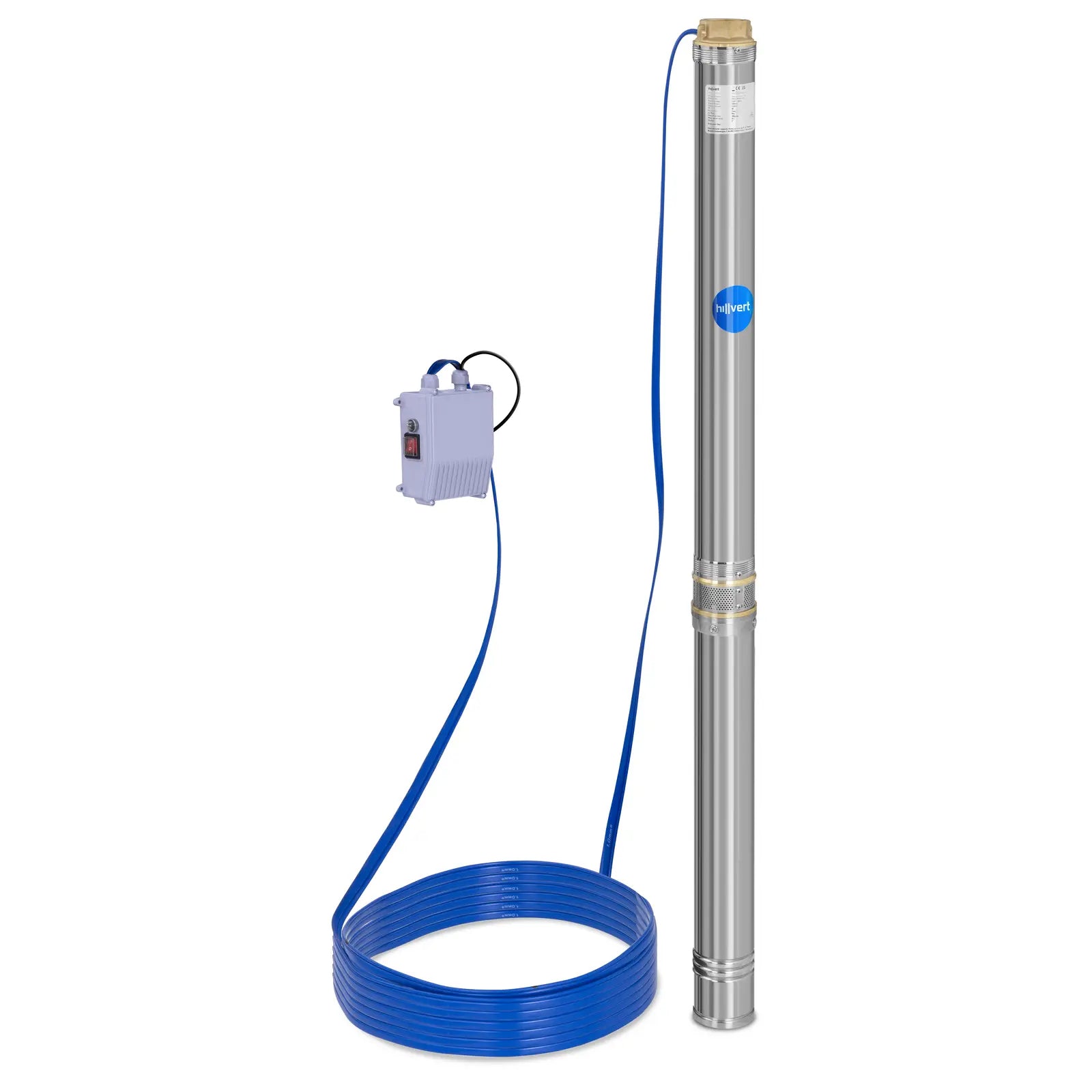

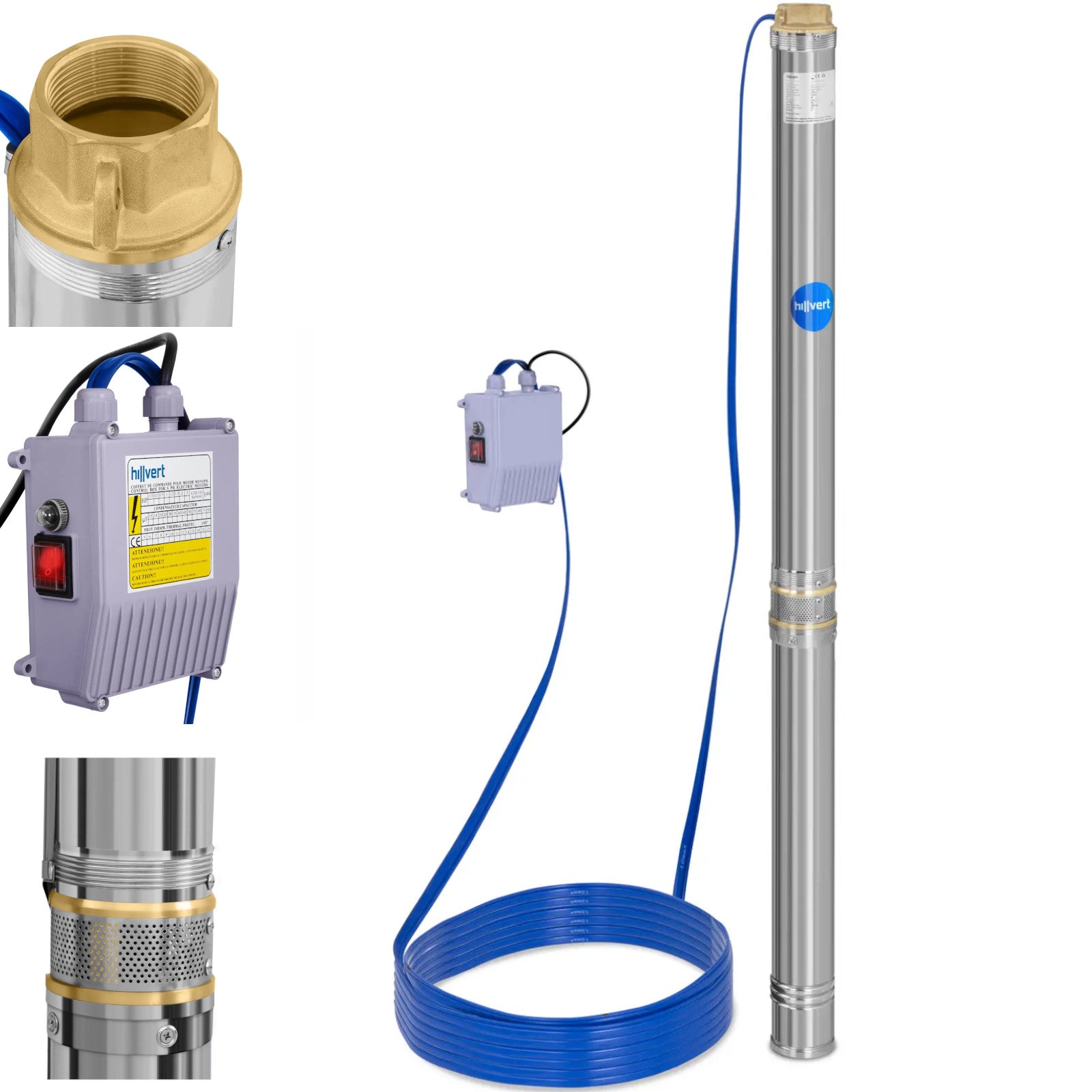

Hillvert Deepwater Pump it easily pumps water from deep and narrow wells, wells, tanks or tanks.
Stainless steel housing it has a diameter of only 95 mm and is ideal for narrow drilling.
The 2200 W motor is running at 2850 rpm and provides high flow rates of up to 10 800 l/h. The device can be immersed to a depth of 20 m at a maximum lifting height of 96 m. The pump to the well is suitable for clean water with a temperature up to 35deg C.
The engine of the deep-water pump is sealed and protected from pressure and water. The stainless steel casing is corrosion-resistant and dirt-resistant. It can handle even the biggest loads reliably.
Product features: - - Capacity 10 800 l/h thanks to 2200 W and 2850 rpm engine.
- - Control via control box with protected switch/switch.
- - Maximum lifting height 96 m.
- - Stainless steel housing resistant to corrosion and dirt.
Technical parameters: - - Marka - Hillvert
- - Voltage [V] - 230
- - Material - Stainless steel
- - Color - Silver
- - The rated current - 14 A
- - Rated speed [min] - 2850
- - Water flow - 10 800 l/h
- - Total diameter - 95 mm / 3.75'
- - Insulation class - B
- - IEC protection class - I
- - Number of steps (pump rotors) - 14
- - Max. depth of underwater immersion - 20 m
- - Max. sand content in water [%] - 0.25
- - Maximum number of startups per hour - 50 h
- - Maximum input power - 3 kW
- - Maximum output power - 2.2 kW
- - Maximum water temperature - 35 deg C
- - Maximum lifting height - 96 m
- - Maximum working pressure - 9.6 Bar
- - Maximum water flow - 10.8 m3/h
- - Maximum particle size - 1.8 mm

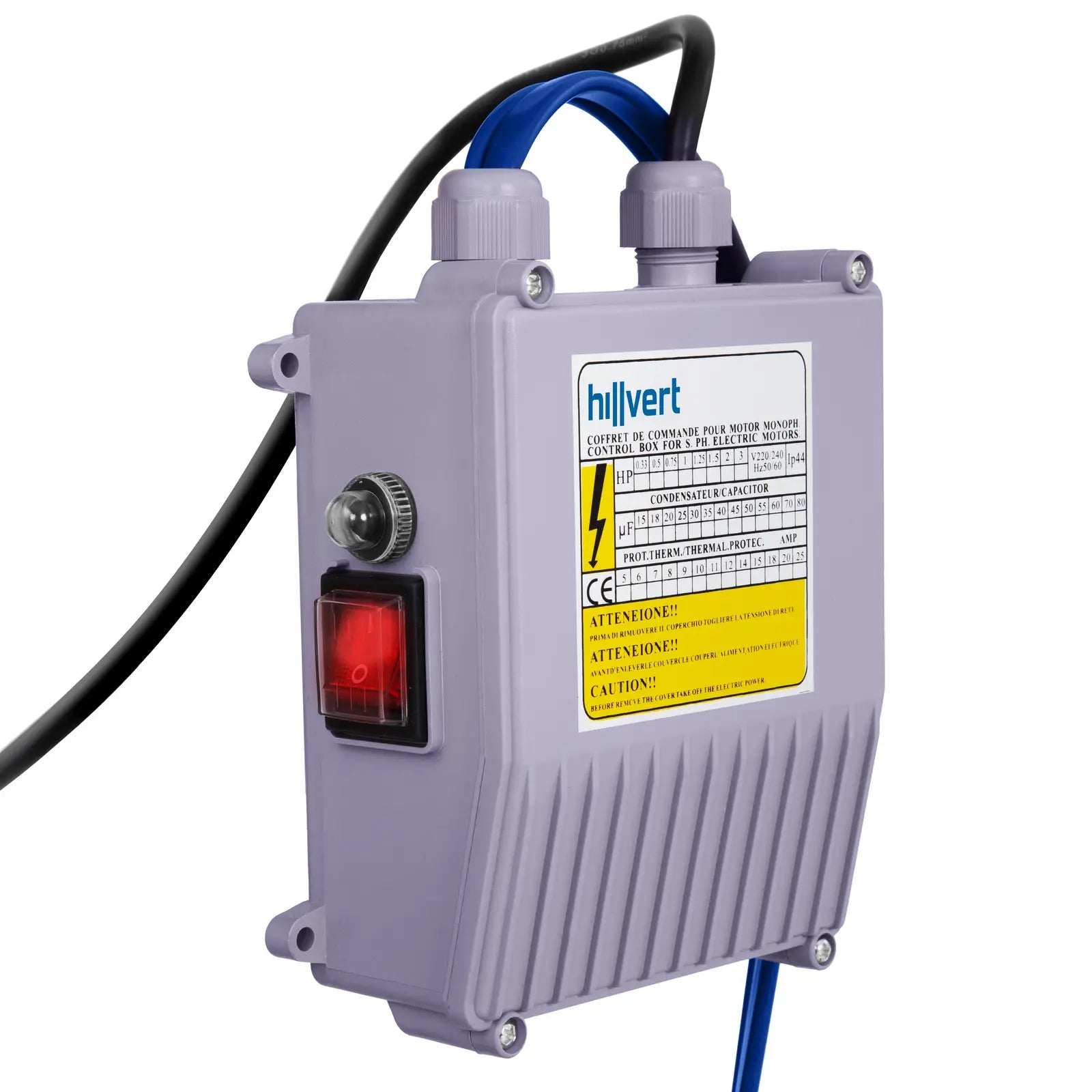

- - Control methods - External boot box (2200 W)

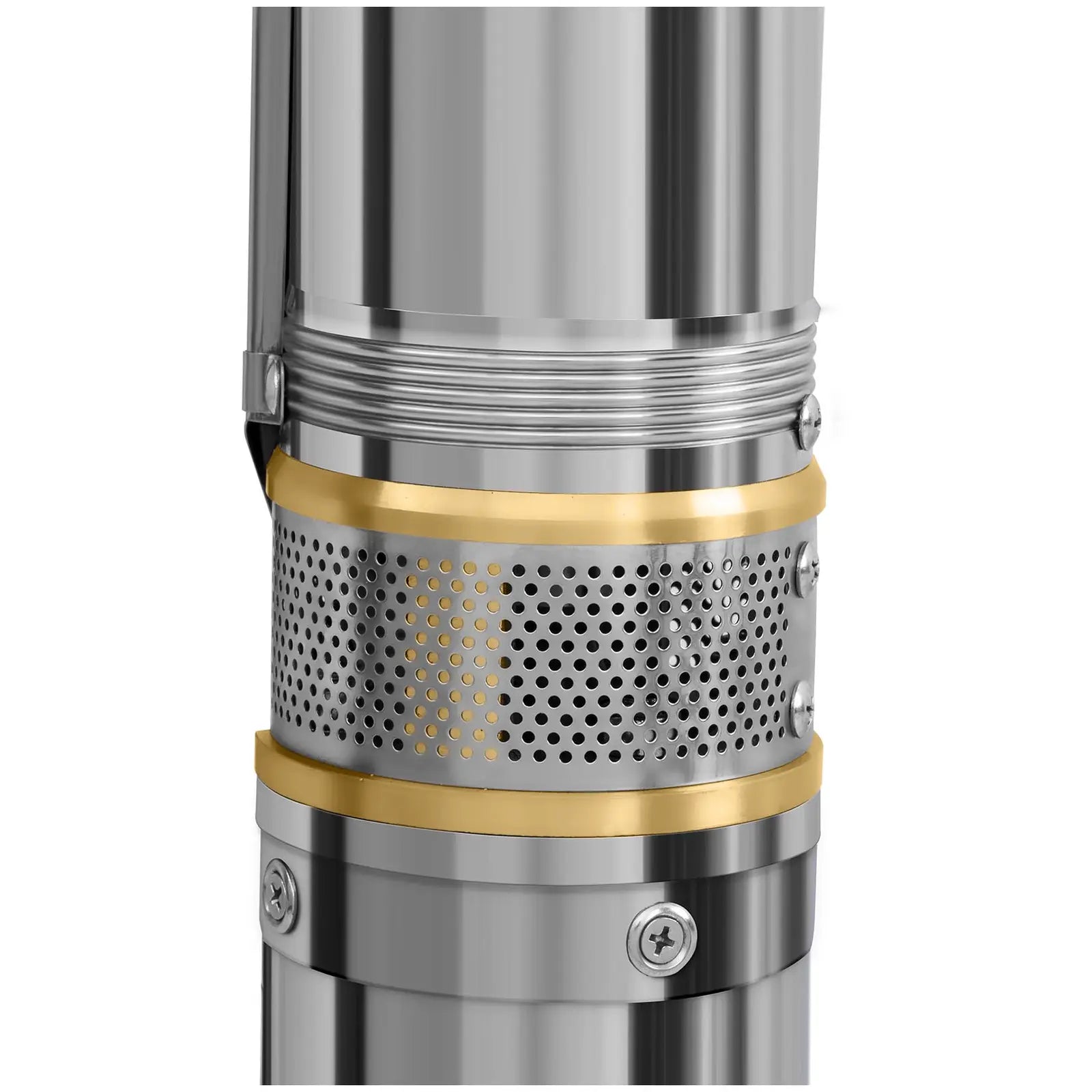

- - Filter - Yes.
- - Expansion - Yes.
- - The return valve - Yes.
- - Power cord - 20 m
- - Wire specification - HO7RN-F3G2.5mm2
- - IP protection - IP68
- - The diameter of the mounting hole - 100 mm

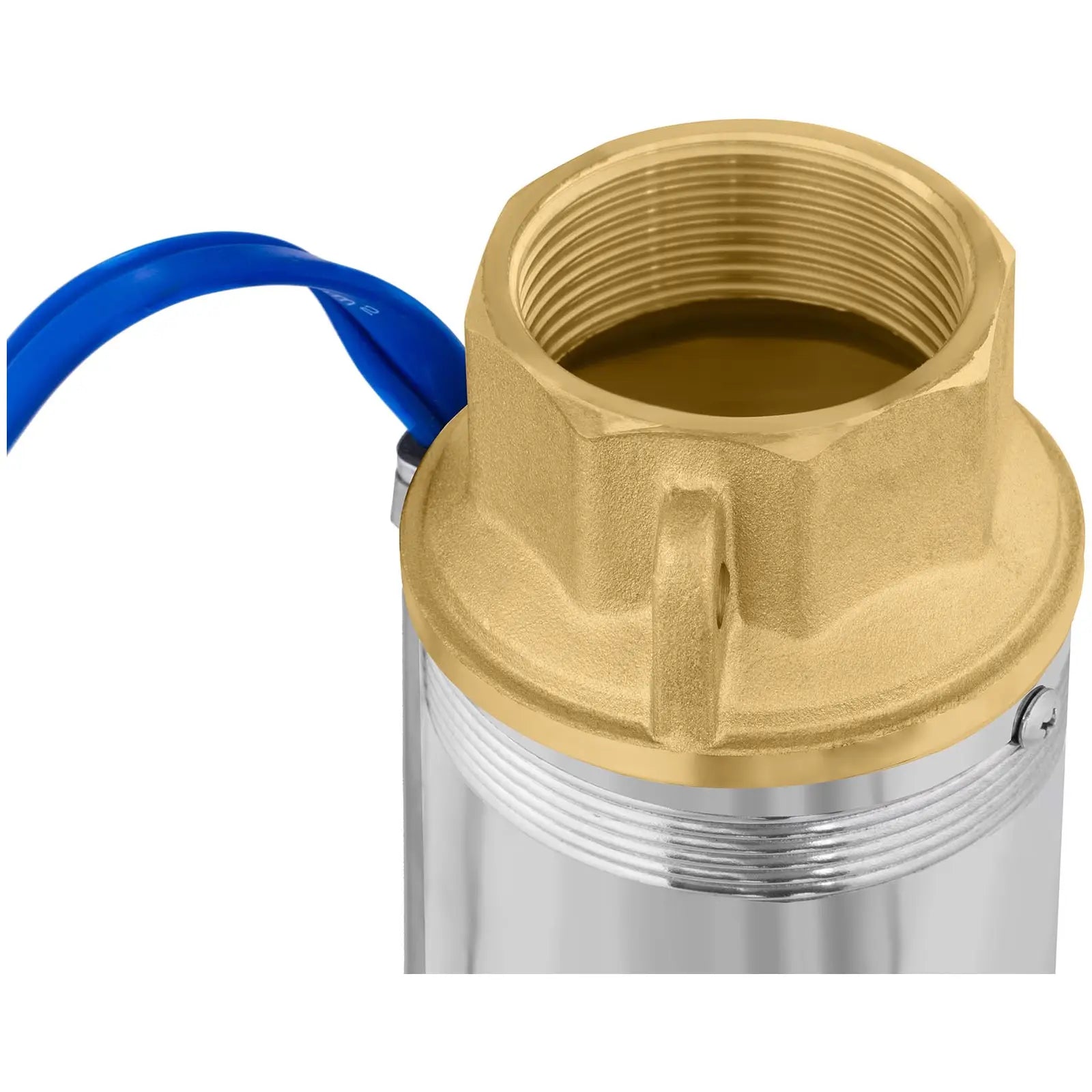

- - Diameter of water connection - 2 in
- - Dimensions (DxSxW) - 136 x 9.5 x 9 cm
- - Weight - 27 kg
- - Dimensions of dispatch (DxSxW) - 174 x 24 x 13 c
- - Weight of shipping - 29 kg
Included:
