Manufacturer's code:

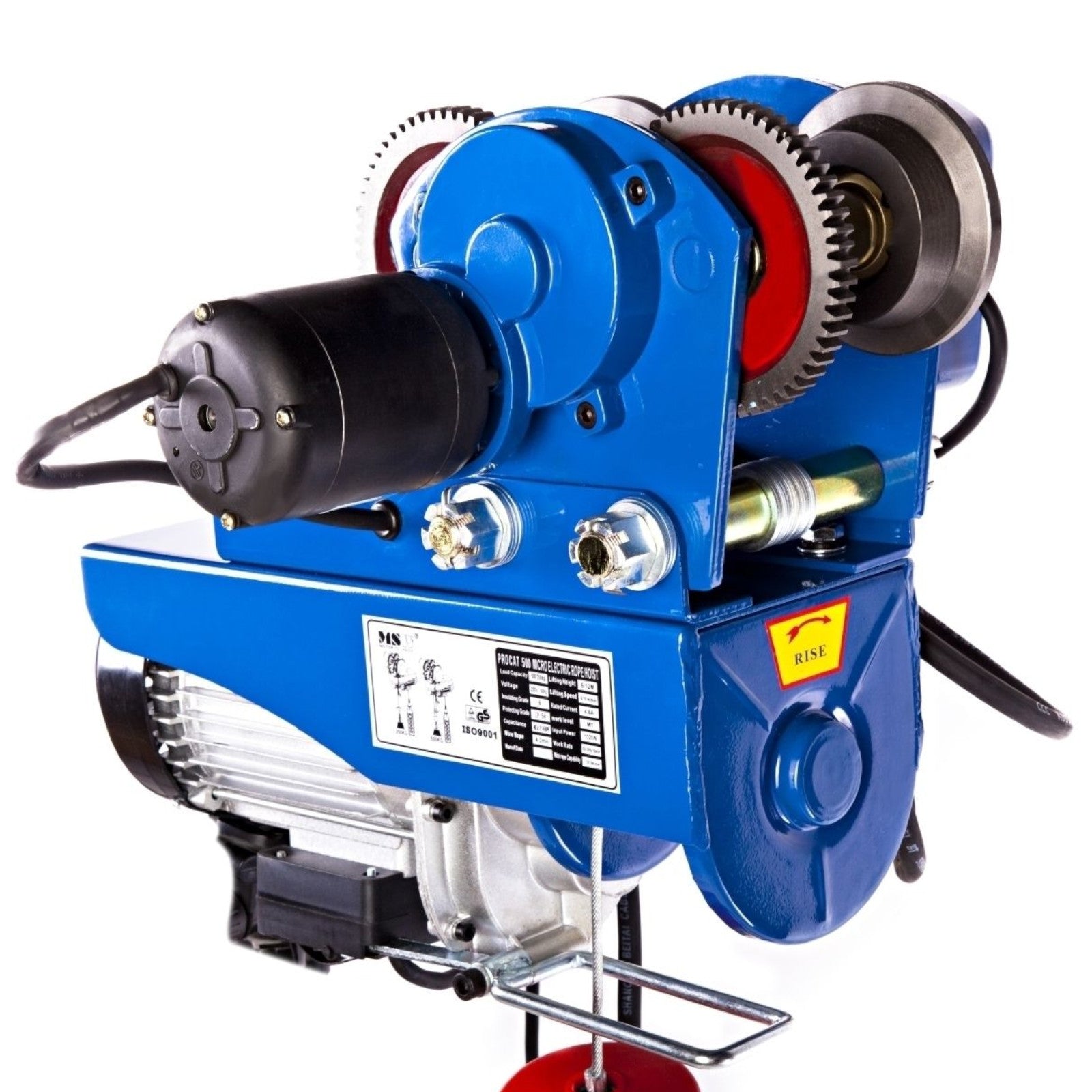

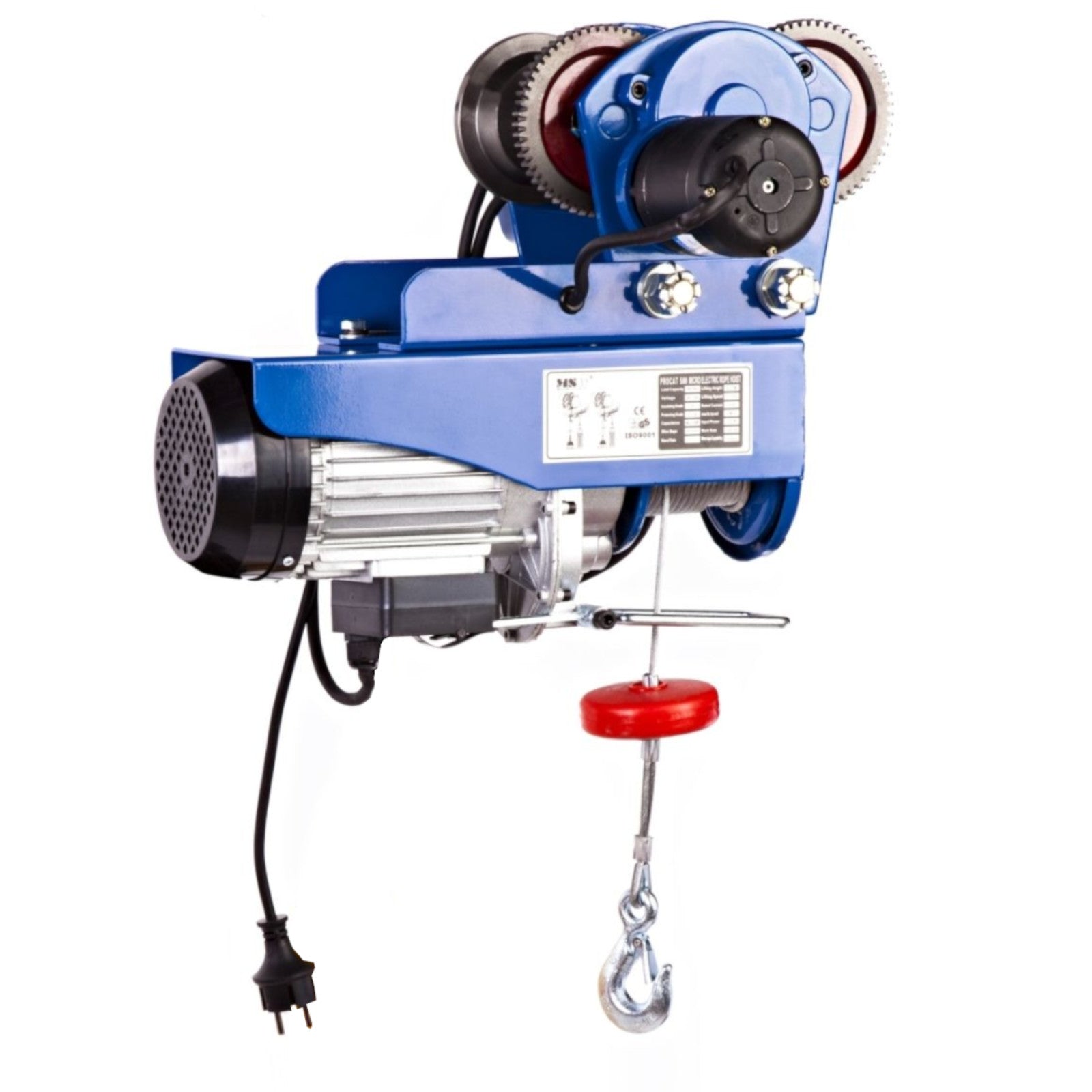

10060014MMA electric winch is designed for trade and is particularly suitable for use in large warehouses or closed spaces. The cable lift is equipped with
with a strong steel rope of 12 m length, which can carry up to 250 kg. Using the block, the pulling force will double to 500 kg. This means that you can transport different heavy objects from one place to another without any problems. After applying the block, the lifting height will decrease by half to 6 m and the lifting speed from 8 to 4 m/min. The lowering speed is 8 m/min and with the lock it will decrease to 4 m/min. The load will be fixed to a rope with a thickness of 4.2 mm by hook at all times.
Solid Ck45 steel wire The overload protection will make the winch work reliably and efficiently for a long time, and

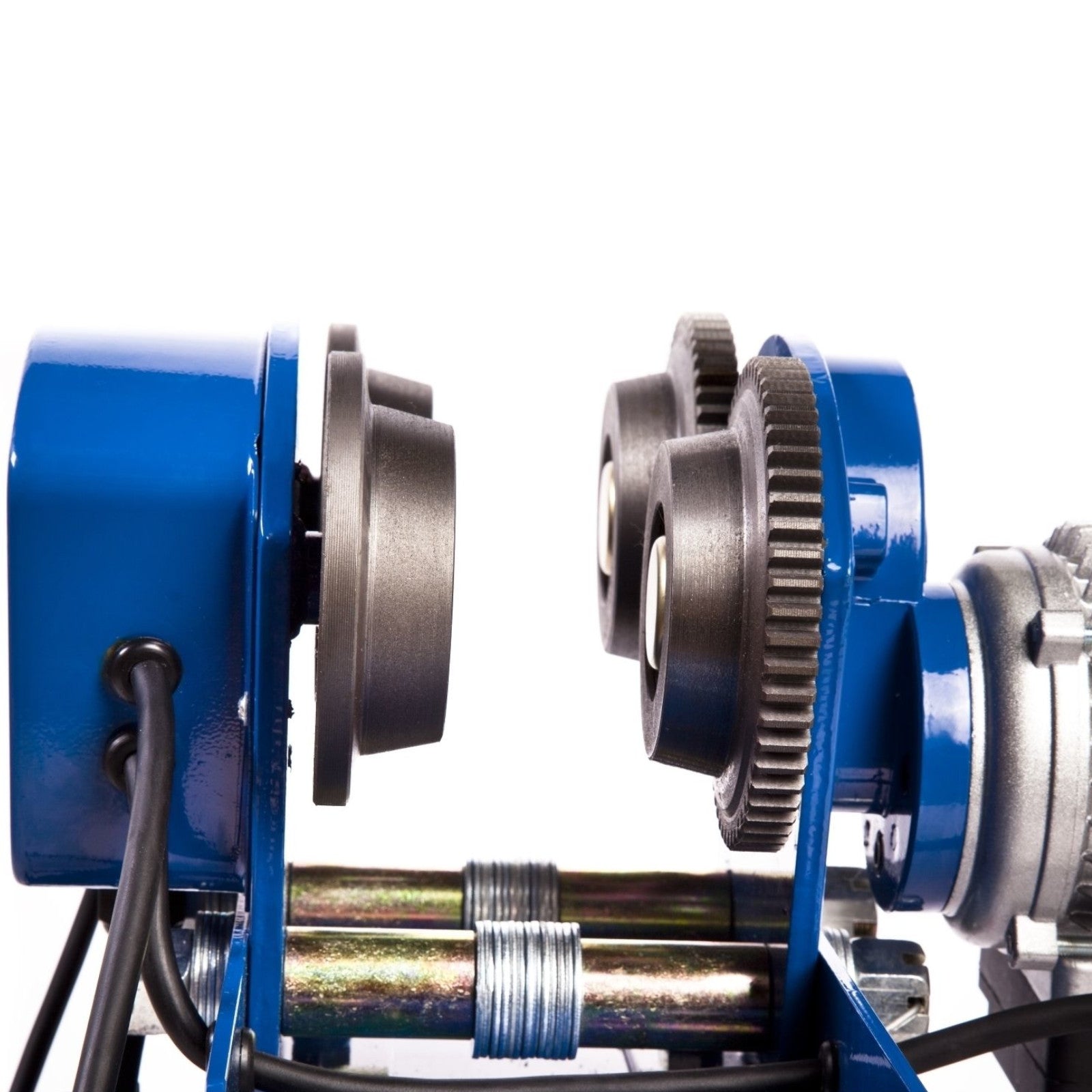

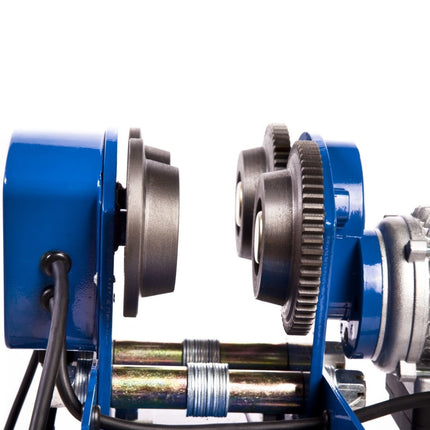

engine with a power of 900 W The attached crane will also allow transport on curved rail, provided the radius of the arc is at least 1 m. The speed of the intake is 16 m/min.
Electrical braking system The hook rotates 360 degrees, facilitating access to the cargo from all sides.

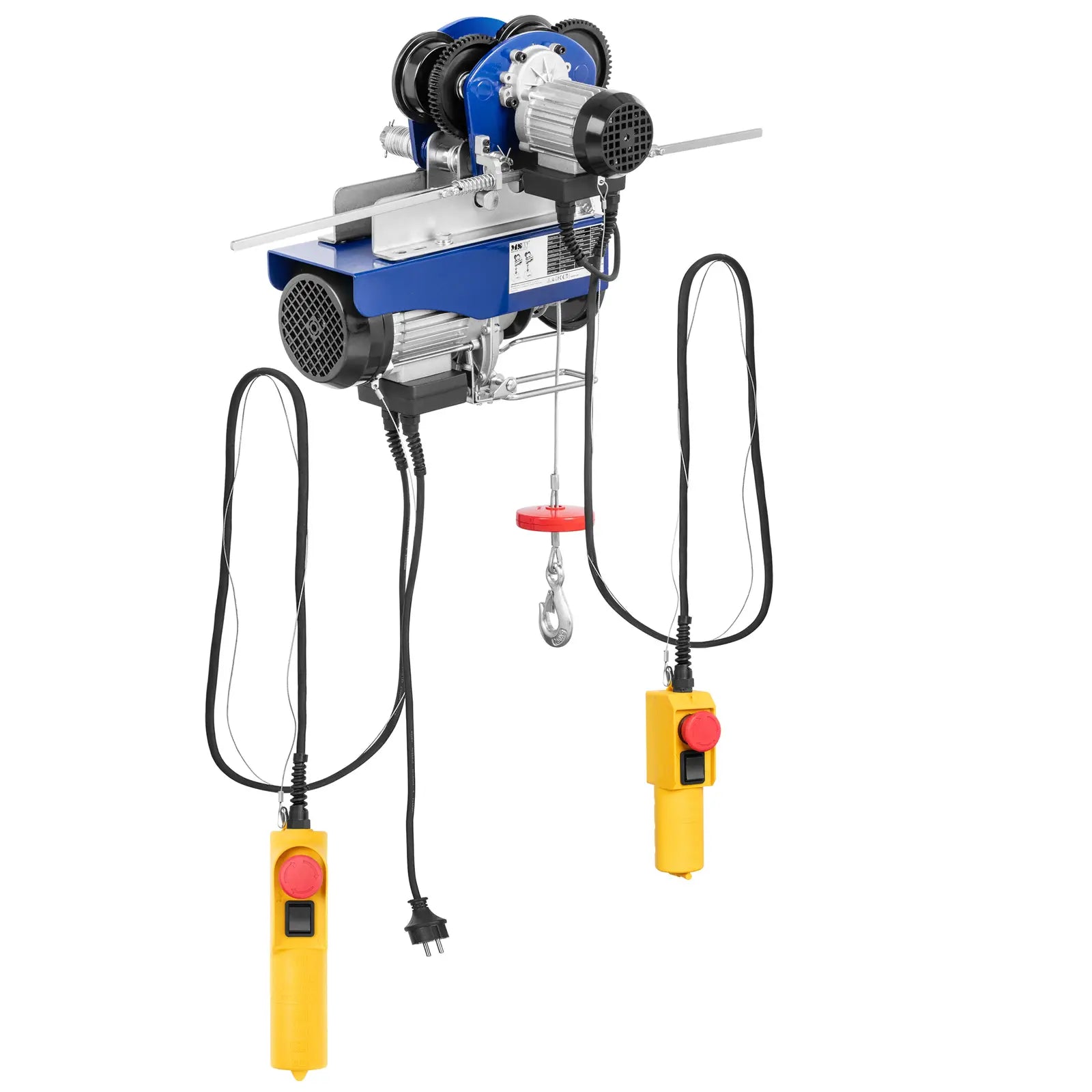

The winch can be handled by two intuitive pilots with cables of 1.45 m lengthIt also uses a reduction in stress, which can be safely worked with all the time. It protects the pilots' wires, extending the long life of the device.
The DUCAT 500 winch can be fitted to a steel beam with a width of 68 - 94 mm and a height of at least 110 mmThese may be high-alloy beams, acne or two-piece.
Product features: - - High strength of the stretch up to 500 kg,
- - hook with 360 degrees rotation,
- - Lifting speed 8 m/min and 4 m/min with a block,
- - The shifter can handle even on curved rails,
- - Two pilots with 1.45 m long wires and a reduction in stress for optimum safety.
Technical parameters: - - Catalog number - 10060014
- - The state of the article - New
- - Model - PROCAT 500
- - Frequency [Hz] - 50
- - Color - Blue
- - Voltage [V] - 230
- - The rope material - Ck45 steel
- - Type of gearbox grease - EP
- - Electric motor Class B
- - Cranberry engine Class B
- - Electric motor IP54
- - Electric motor S3 20% - 10 min
- - The crane engine IP54
- - crane engine S3 20% - 10 min
- - Loading hook - Yes.
- - Pilot - Yes.
- ## I'll swing with a hook ## Yes.
- - Tensile strength of the rope [N/mm2] - 1770
- - The length of the rope - 12 m
- - Pilot wire - 1.45 m
- - Speed of movement - 16 m/mn
- - Engine - Power - 900 W
- - The crane engine - power - 200 W
- - Average lower speed - one-way lift - 8 m/mn
- - Minimum radius of the curve - 1 m
- - Maximum lifting height 12 m
- - Average lifting speed - with a reel - 4 m/mn
- - Maximum load capacity 250 kg
- - The average drop-down speed - with the reel - 4 m/mn
- - Maximum lifting height 6 m
- - Maximum load capacity 500 kg
- - Dimensions (DxSxW) - 45 x 41 x 34 cm
- - Weight - 32.4 kg
- - Dimensions of dispatch (DxSxW) - 75 x 49 x 53 cm
- - Weight of shipping - 32.9 kg
Included: - - Cable winch with crane
- - I'll shut up.
