Manufacturer's name:

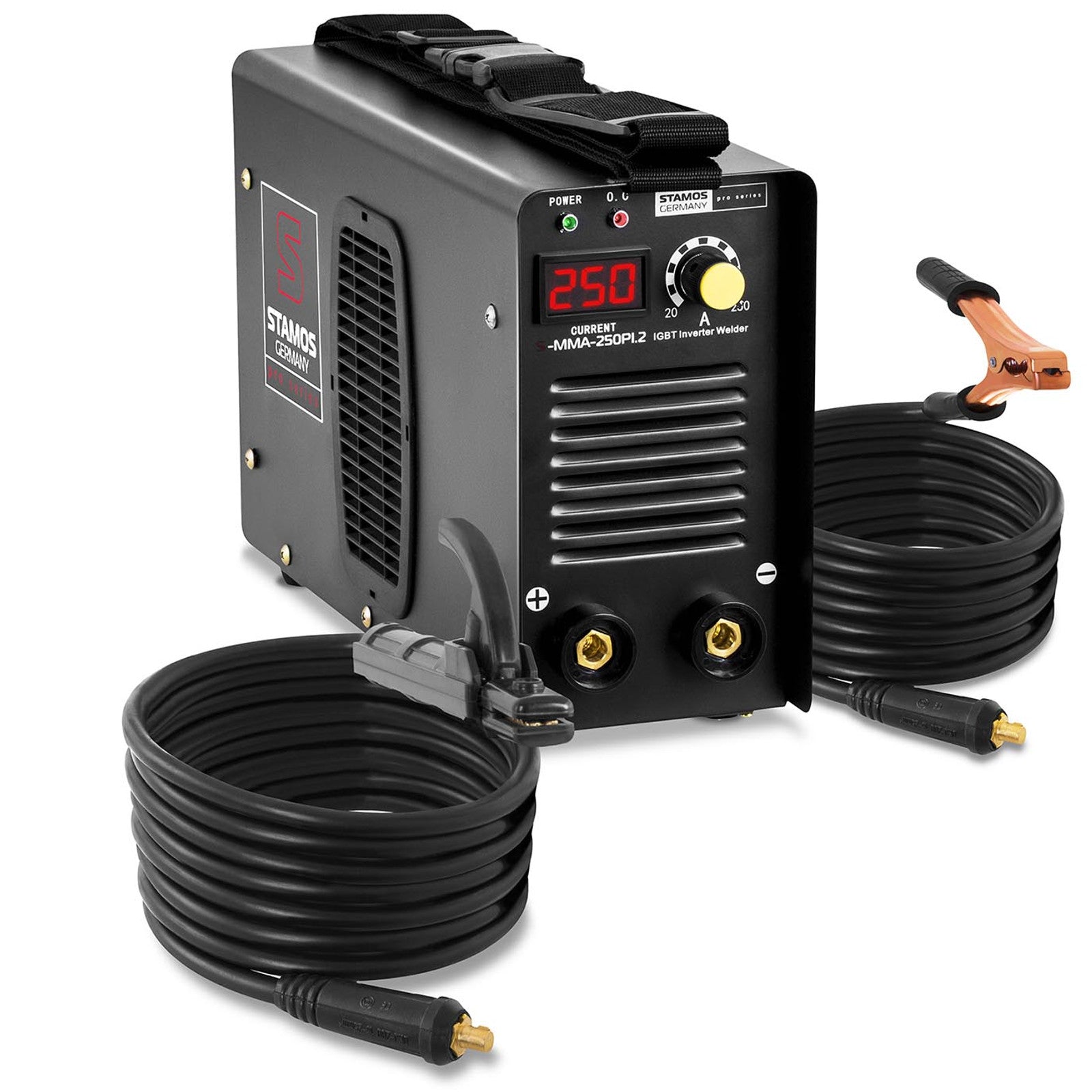

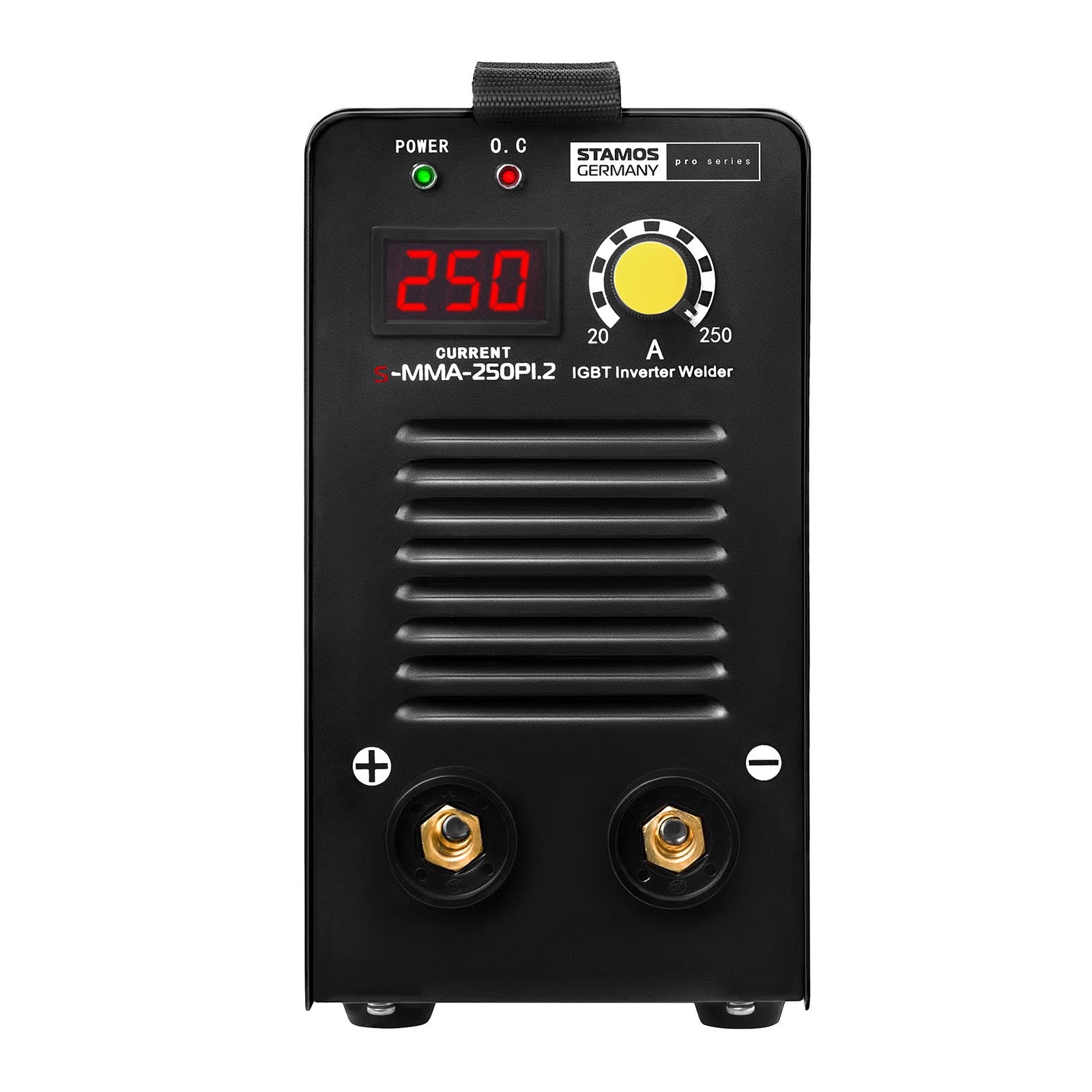

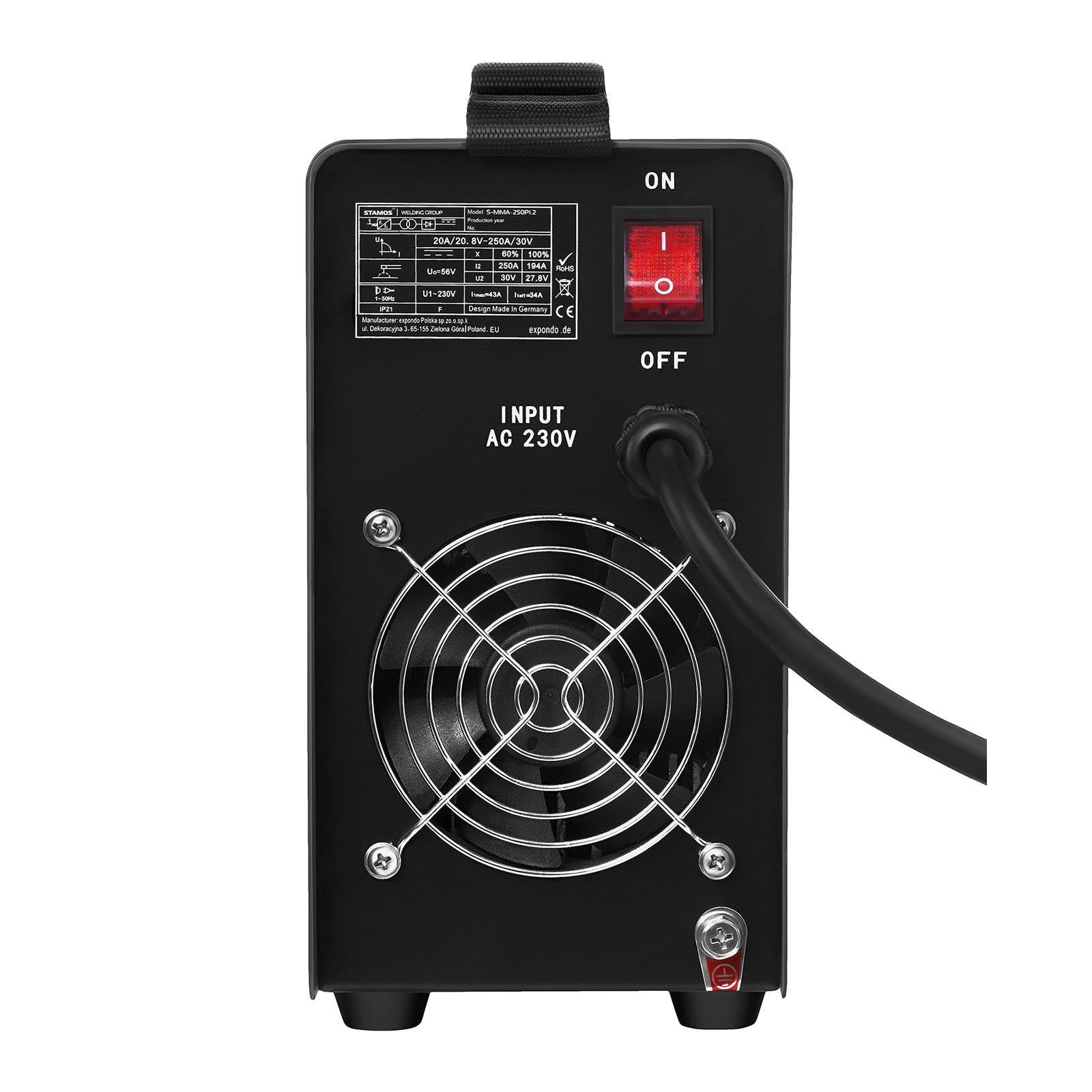

S-MMA-250PI.2 Powerful MMA welding machine The Stamos Germany brand is designed for metal welding with a coated electrode. It is made of high quality materials and modern components, thanks to which it is not only reliable but also efficient. Its working cycle is 60% with a welding current within the range of 250 A.
The S-MMA-250PI.2 was used
modern IGBT inverter technologyIt guarantees
High degree of inevitability, and
efficient operation and fast switching between functions. This is due to the three-point semiconductor element, which
is resistant to short circuit.
Characteristics: -
Productivity - modern IGBT technology helps achieve 60% cycle work,
-
Mobility - compact sizes, small weight and comfortable belt facilitate machine handling,
-
Comfort - additional functions and long wires have a positive effect on working comfort,
-
Universality - the welding machine can handle the processing of iron, nickel, iron and copper and steel alloys with a total thickness of 1,5 mm,
-
Security - control lamps warn the user during the malfunction, and the fan prevents the machine from overheating.
STAMOS devices have been made according to strict European standards and have undergone CE and RoHS conformity tests. This guarantees long service life and high quality of the device.Technical parameters: - - Model - S-MMA-250PI.2
- - Catalog number - 10020228
- - The state of the article - New
- - Voltage - 230 V / 50 Hz
- - Marked input current - 34 A
- - Maximum input current - 43 A
- - Marked input power - 7,8 kVA
- - Maximum input power - 9,9 kVA
- - Idle-temporarate - 56 V
- - MMA welding current - 20-250 A
- - Cycle of work - 60%
- - Welding current in the working cycle 60% - 250 A
- - Welding current in the working cycle 100% - 194 A
- - Diameter of electrodes - 1,6-5 mm
- - Welding thickness - 1,5 to 10 mm
- - Hot Start - Yes.
- - Power factor - 0,93
- - Productivity - 80
- - Cooling - Fan
- - Insulation class - F
- - Safety class - IP21
- - The length of the cable with MMA handle - 8 m
- - The length of the mass wire - 8 m
- - The length of the power cord - 2 m
- - Dimensions (DxSxW) - 35 x 12.5 x 22.5 cm
- - Weight - 4,8 kg
- - Dimensions of dispatch (DxSxW) - 44 x 26 x 29 cm
- - Weight of shipping - 9,7 kg
Functions of the device: -
Hot Start consists of a temporary increase in welding current during the arc glow,
Welding method: -
MMA (cooled-up electrode)

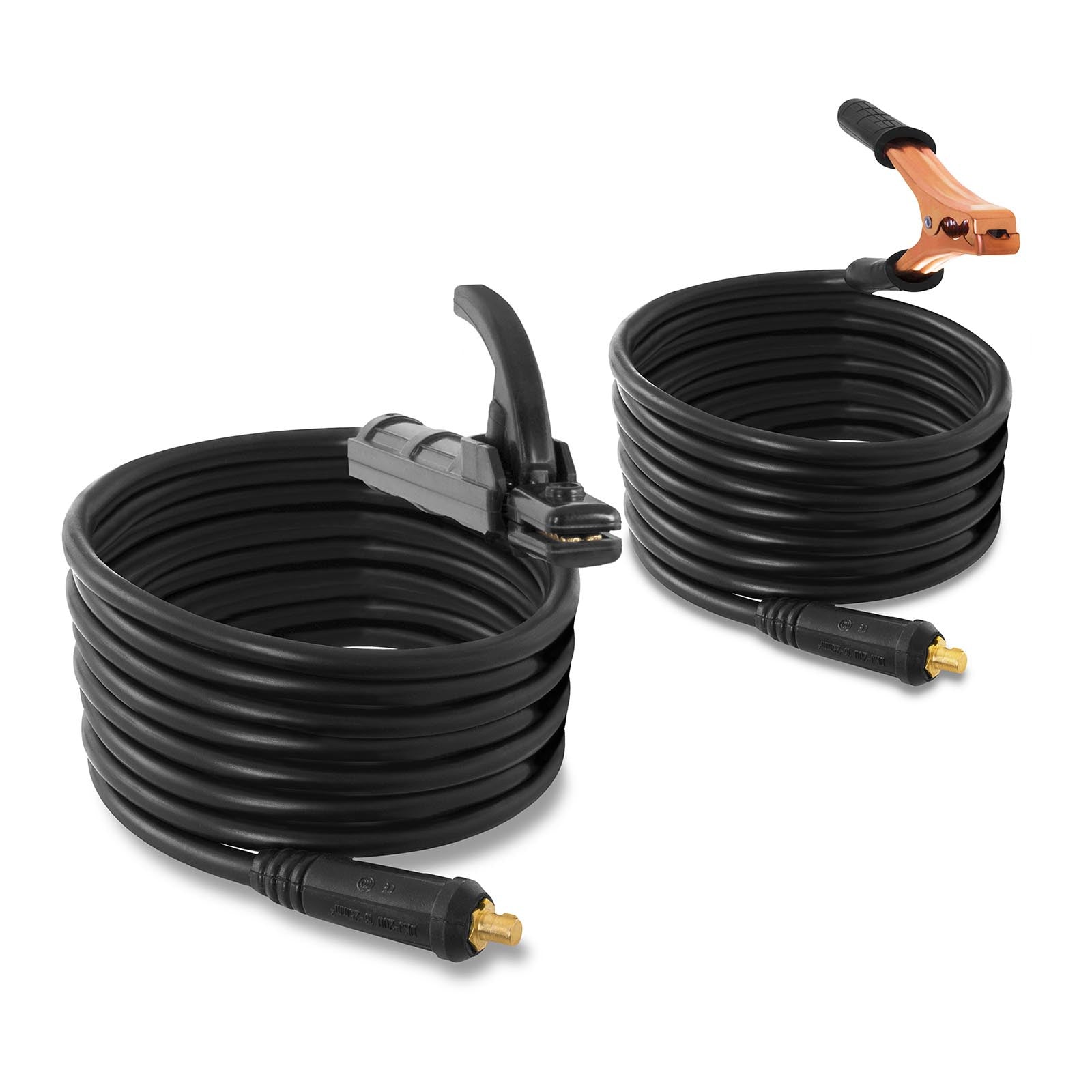

Included: - - MMA welding machine
- - MMA cable with handle - 8 m
- - Mass cable with clamp - 8 m
- - PL Manual
