Manufacturer's code:
10061098MMA hand tools kit The tools are made of high quality aluminium alloy. The handles made of non-slip plastic make the equipment securely in the hand and easily operated. The range of axial clamping is 16-32 mm. The diameters of the pipe ends can be extended in the range of 16-32 mm. You can also cut the element up to 40 mm in diameter. The complete set of accessories includes:
Clamping pins (16 x 2.2 mm, 20 x 2.8 mm, 25 x 3.5 mm, 32 x 4.4 mm) and
Pipe expansions All components are in a plastic case.
Product features: - - Ideal for tightening axial fittings and pipes,
- - Set made of high quality aluminum alloy,
- - Safe operation thanks to non-slip plastic handles,
- - cutting, clamping and expanding pipes and fittings,

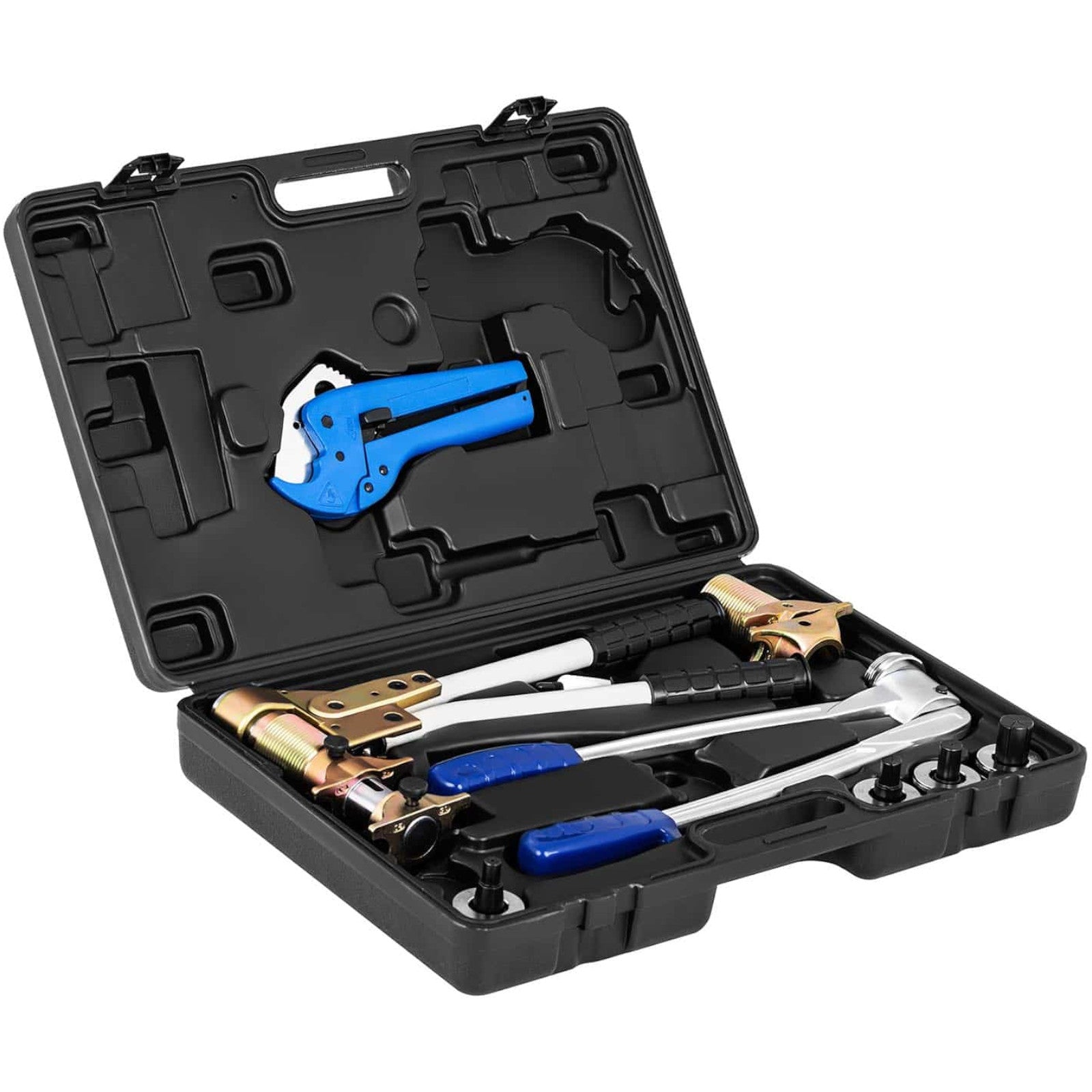

- - Plastic case for storage and transportation.
Technical parameters: - - Catalog number - 10061098
- - The state of the article - New
- - Model - MSW-PTM-02
- - Material - Aluminium alloy, Plastic
- - Additional accessories - Clamp jaws 16 x 2.2, 20 x 2.8, 25 x 3.5, 32 x 4.4 mm, expansion matrix 16 x 2.2, 20 x 2.8, 25 x 3.5, 32 x 4.4 mm
- - Cutting range [mm] - Max. 40 mm
- - Clamp strength - 40 kN
- - The suitcase is complete - Yes.
- - Expansion range - 16-32 mm
- - The range of ironing - 16-20, 25-32 mm
- - Dimensions (DxSxW) - 51 x 9.5 x 36 cm
- - Weight - 5.5 kg
- - Dimensions of dispatch (DxSxW) - 52 x 10.5 x 37 cm
- - Weight of shipping - 7.8 kg

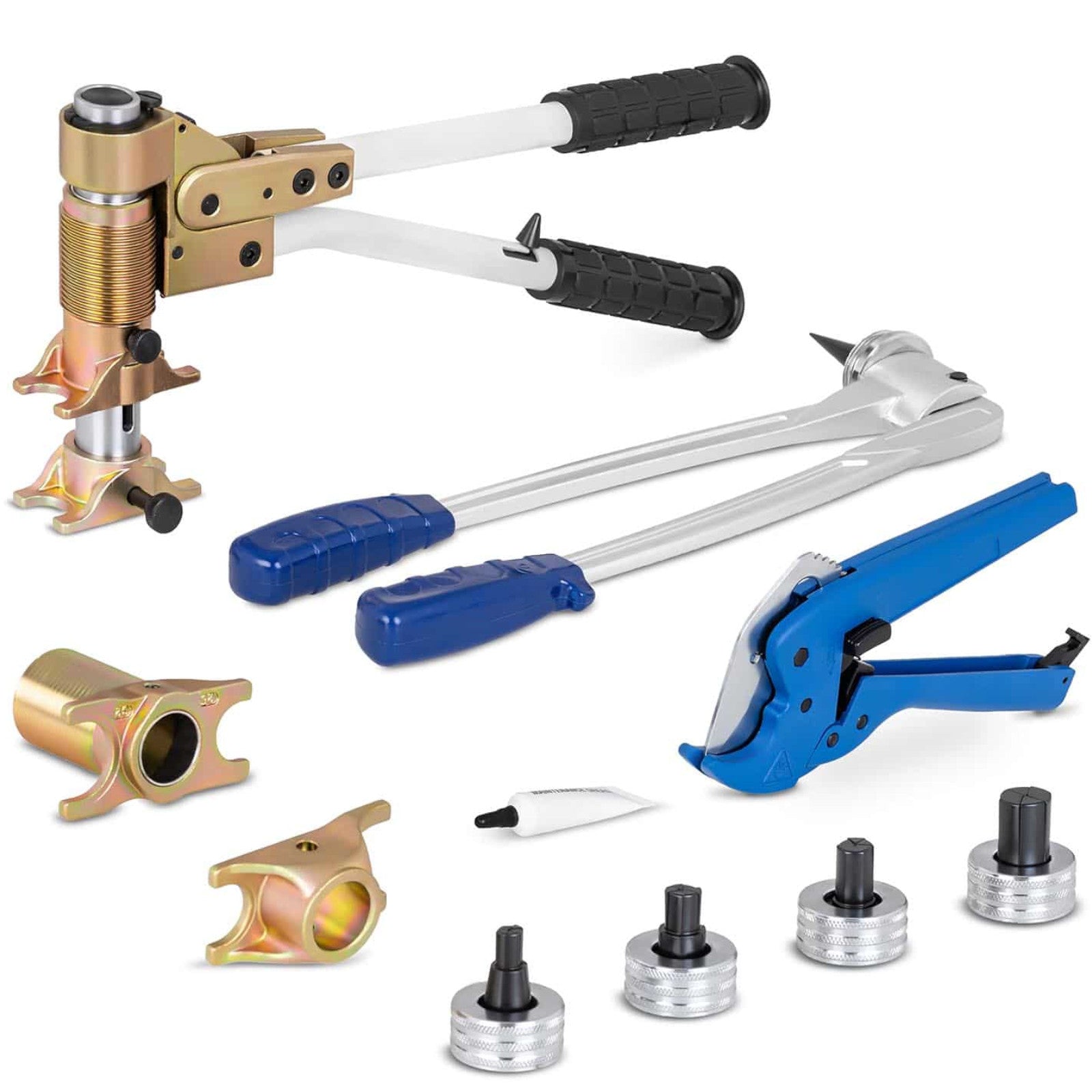

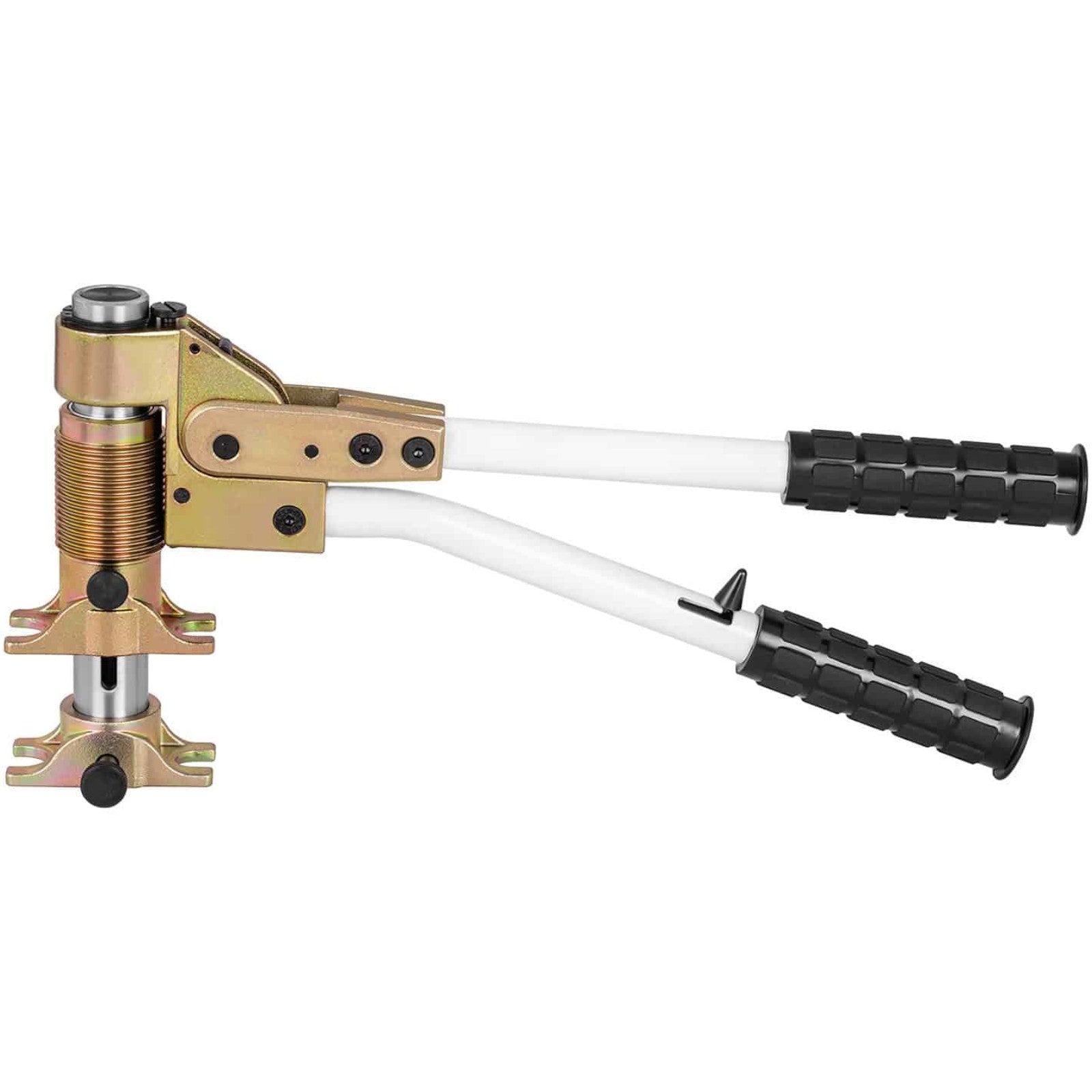

Included: - - Axial clamping machine

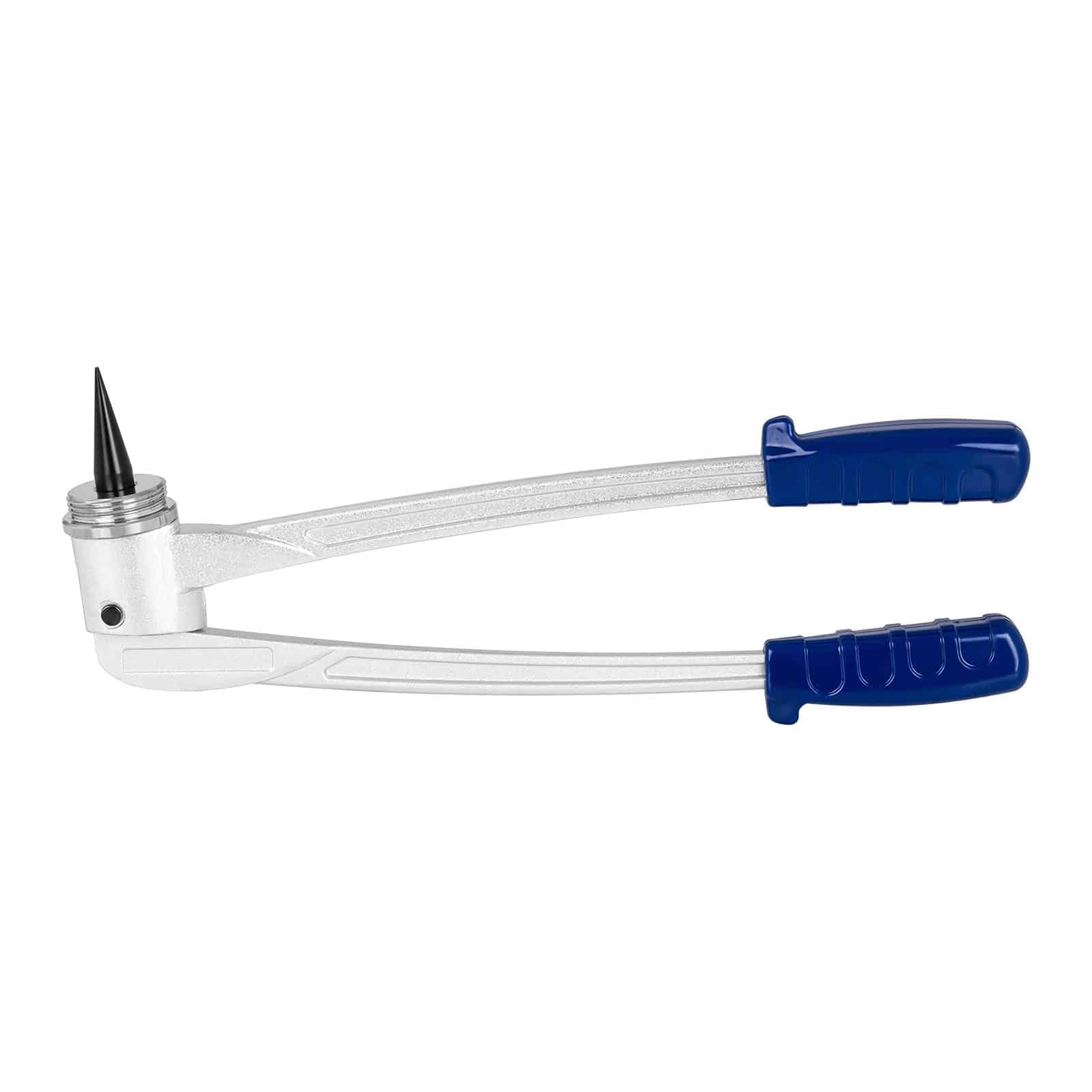

- - Expander for the pipes.

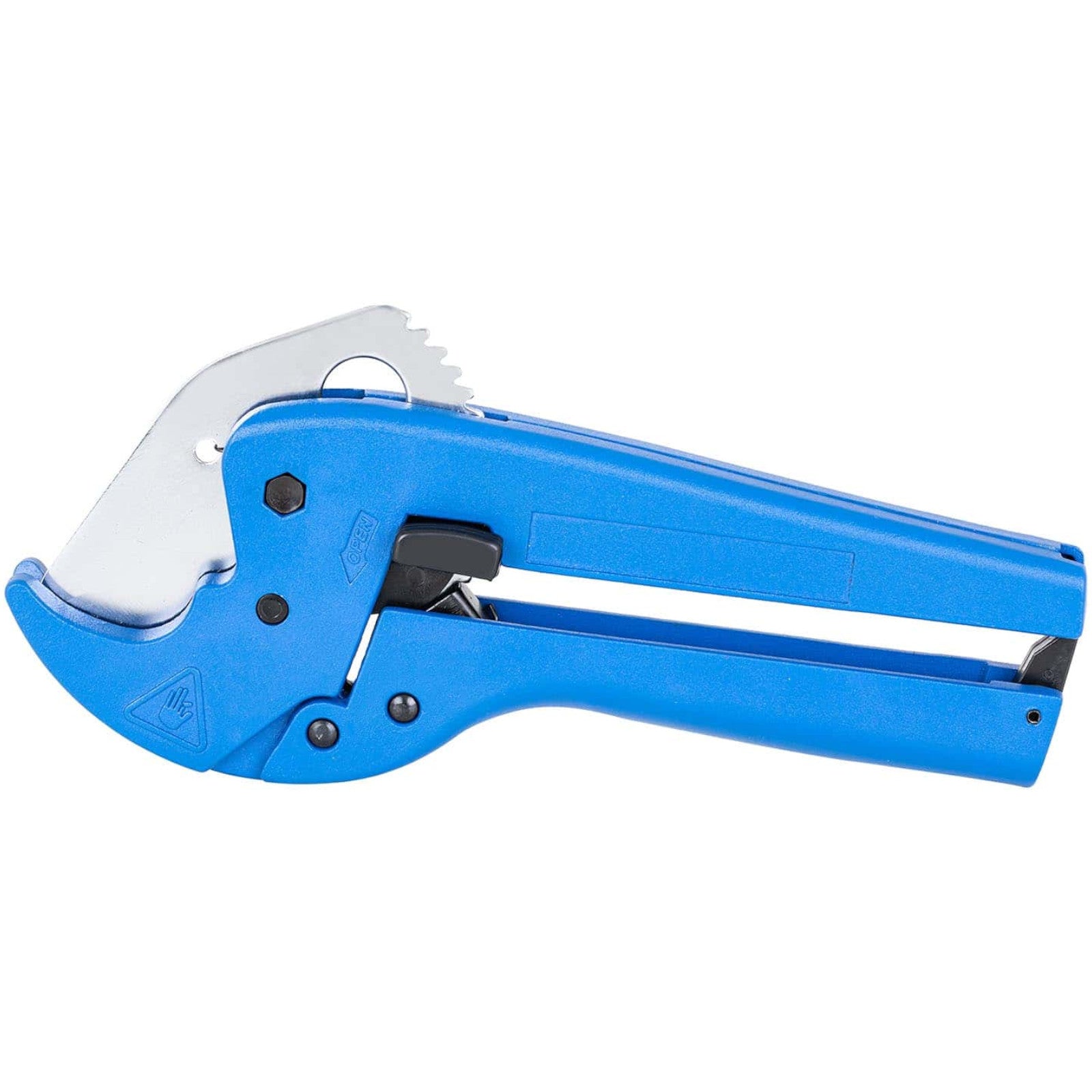

- - Scissors

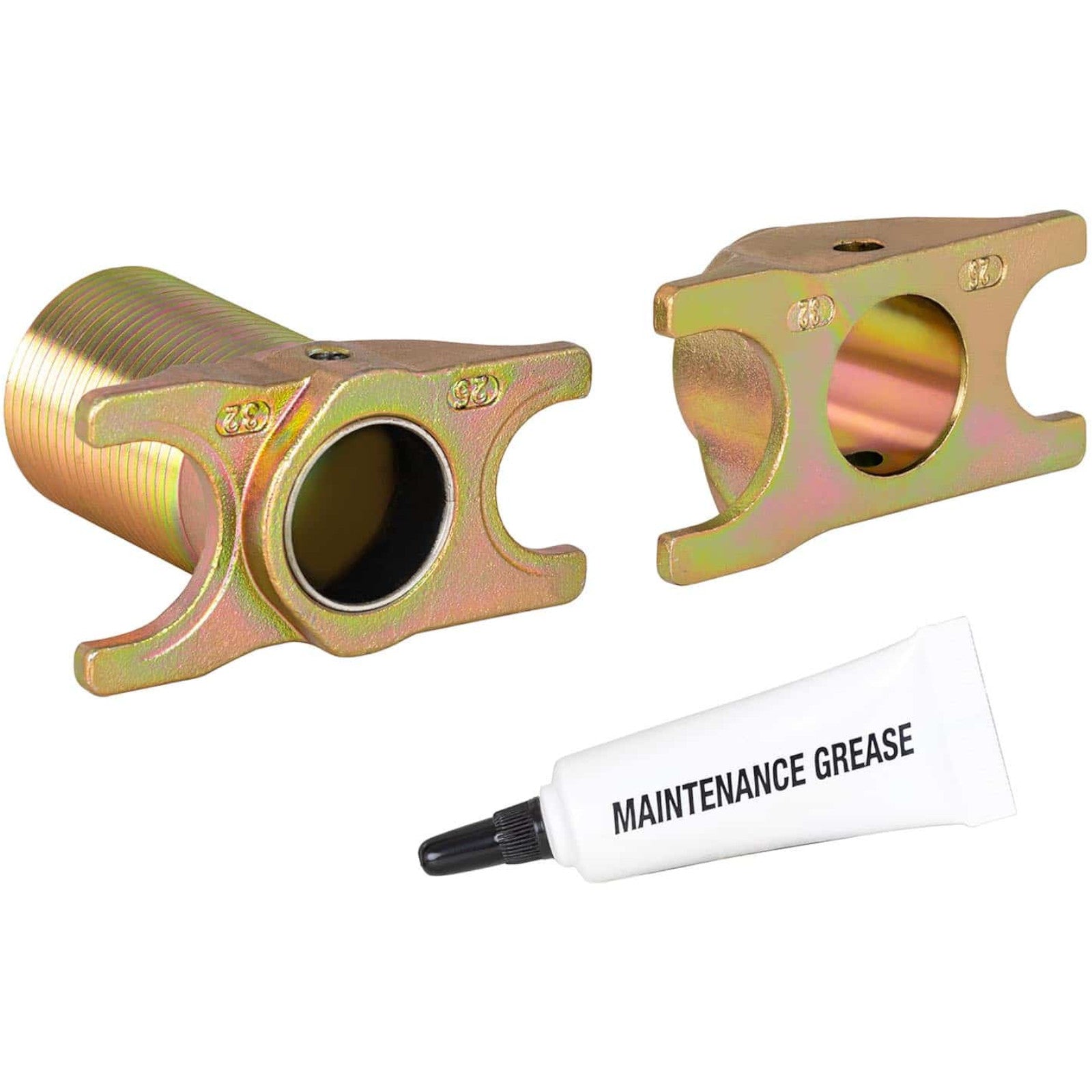

- - Clamp pliers (16 x 2.2 mm, 20 x 2.8 mm, 25 x 3.5 mm, 32 x 4.4 mm)

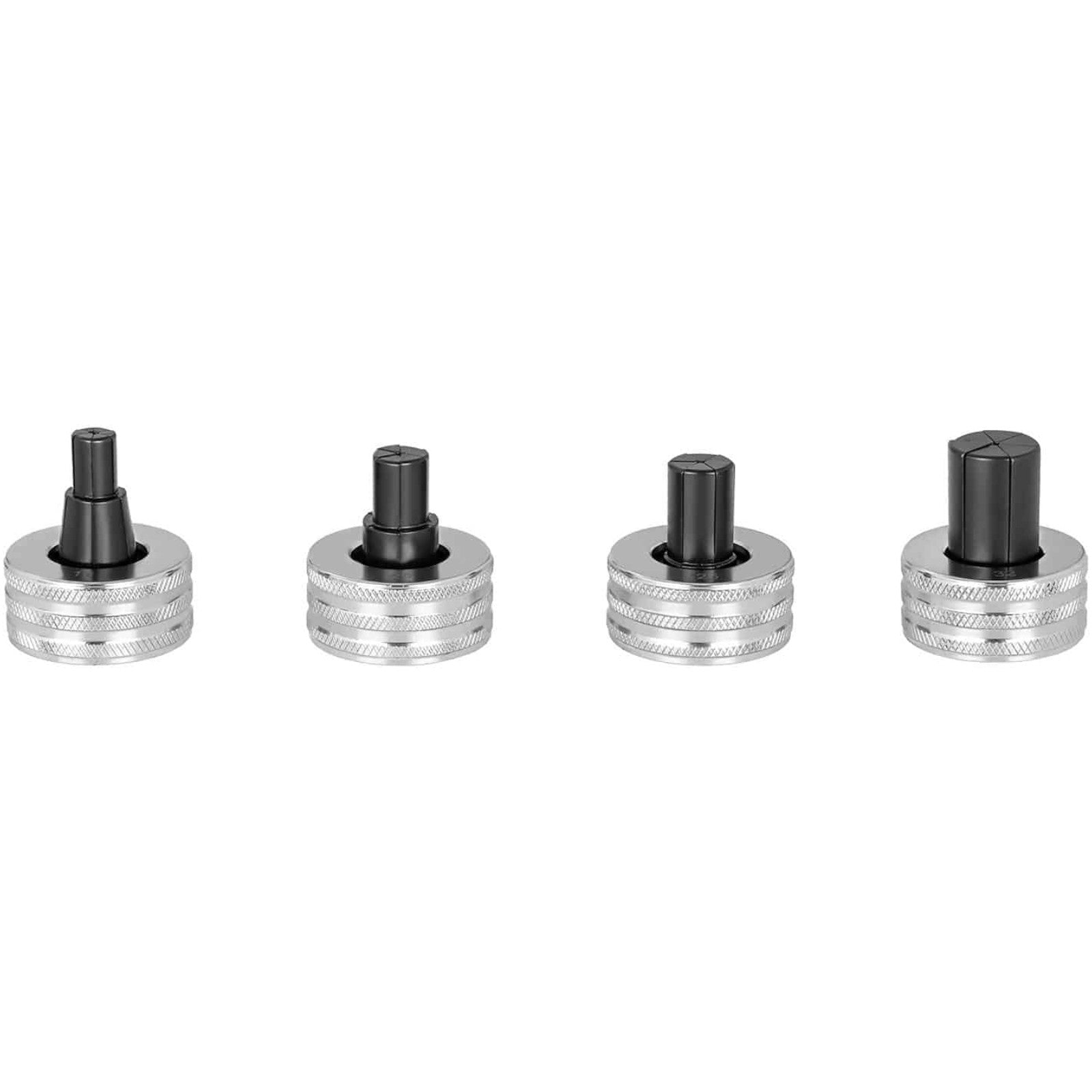

- - Expander cartridges (16 x 2.2 mm, 20 x 2.8 mm, 25 x 3.5 mm, 32 x 4.4 mm)
- - Maintenance oil
- - User manual
