Manufacturer's name:

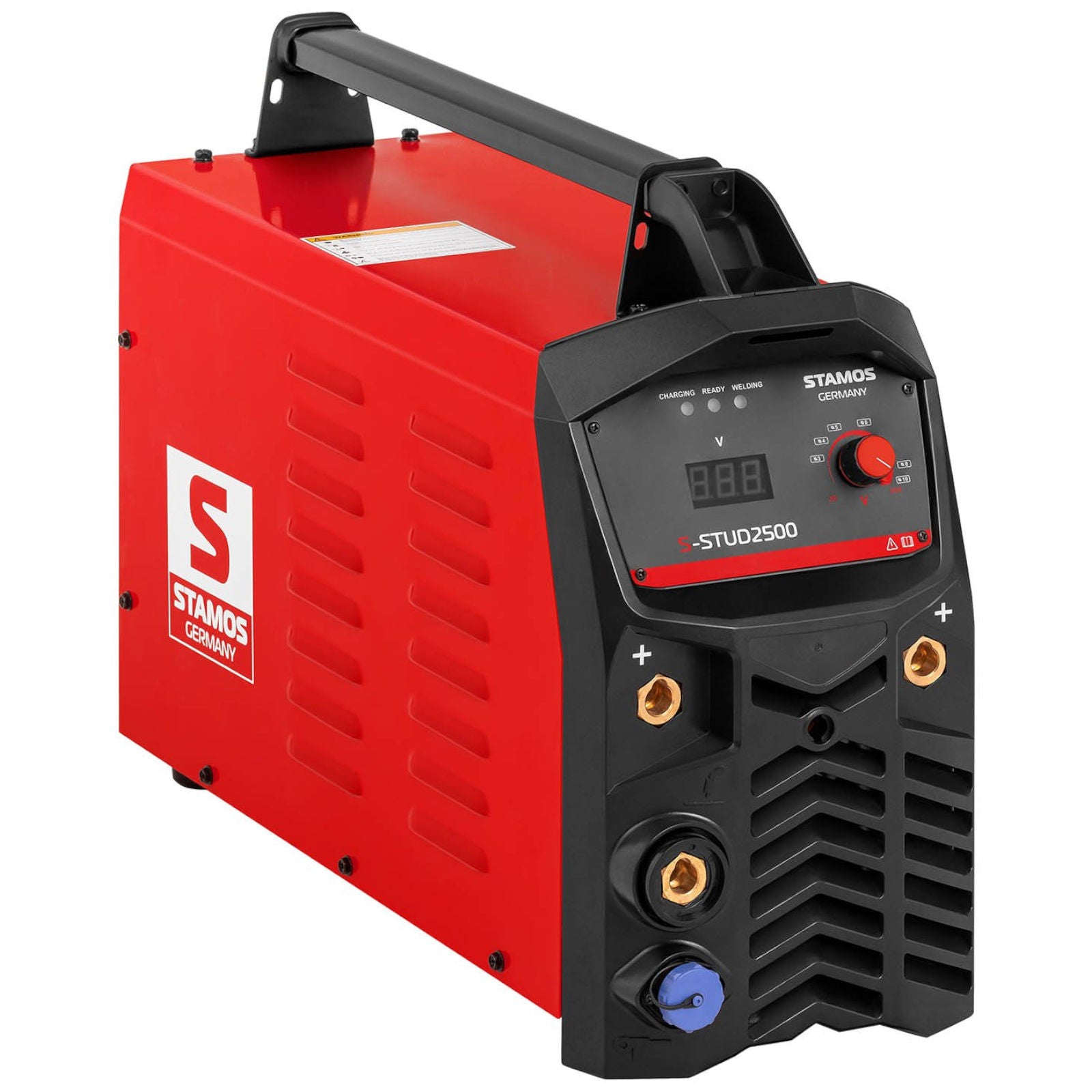

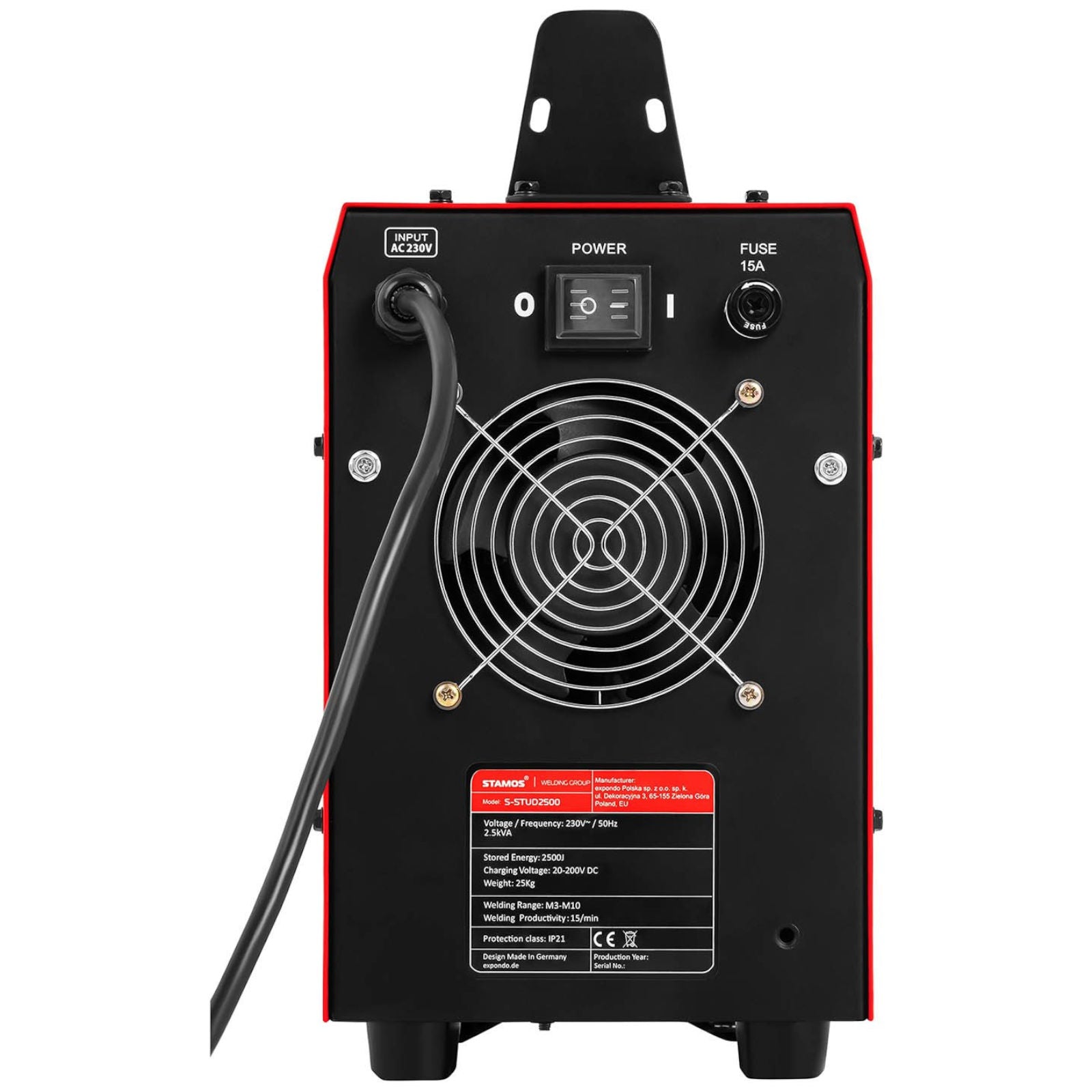

S-STUD2500 Capacitor welding machine from Stamos Germany it allows for efficient and fast welding of screws, mandibles, nails and pegs to the surface of metal. The S-STUD2500 is suitable for metal-plastics and installation of e.g. sheet metal, insulation and fences. The model leaves high quality welding.
Capacitor capacity
108000 UF and 2500 J energy The machine can handle materials such as copper, aluminium, titanium, steel (including stainless steel) and brass. Pre-treatment or finishing is not necessary.
The Stamos Germany welding machine is matched by the M3, M4, M5, M6, M8 and M10 mandibles (max. length 40 mm). They are pinned with a three-pin gun. The set includes handles for holding stakes.
Characteristics:- Quick pinning
- Sturdy weldings
- Pressure adjustment
- Instepless voltage adjustment
- Housing made of steel and plastic

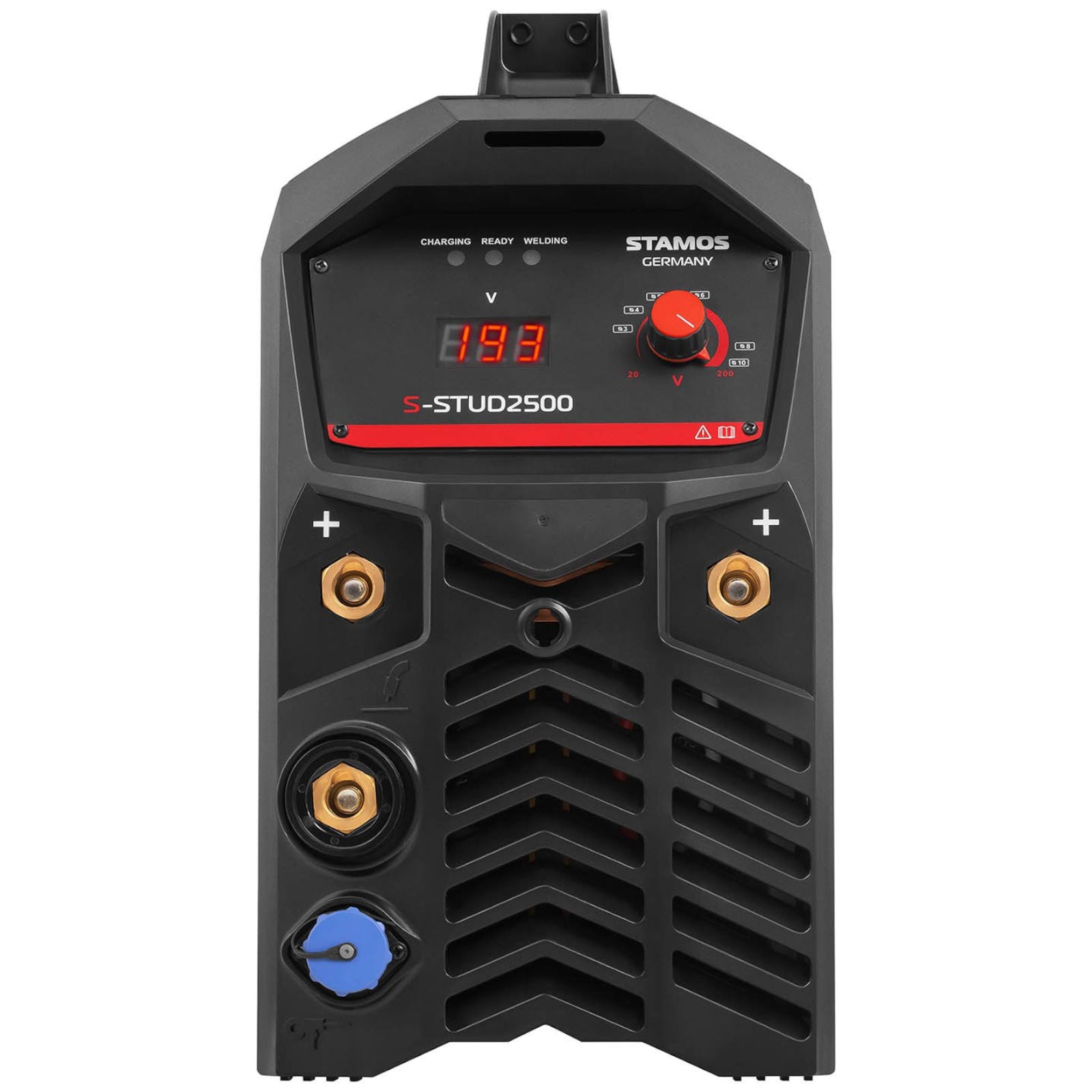

- Ready control panel
Technical parameters: - - Model - S-STUD2500
- - Catalog number - 2159
- - The state of the article - New
- - The material of the casing - Steel, plastic
- - Voltage - 230 V / 50 Hz
- - The welding voltage - 20 – 195 V
- - Rated power - 500 kVA
- - Capacitor capacity - 108000 UF
- - The stored energy - 2500 J
- - The welding range - Ø 3
- - Handles included - M3, M4, M5, M6, M8, M10
- - Max. length of stakes - 40 mm
- - The welding efficiency - 10
- - Length of the wire of the welding gun - 4 m
- - Length of the mass cable - 2 x 4 m
- - Length of power cord - 2.2 m
- - Dimensions (DxSxW) - 54.5 x 20 x 38.5 cm
- - Weight - 21 kg
- - Dimensions of dispatch (DxSxW) - 66.5 x 32 x 43 cm
- - Weight of shipping - 27.55 kg

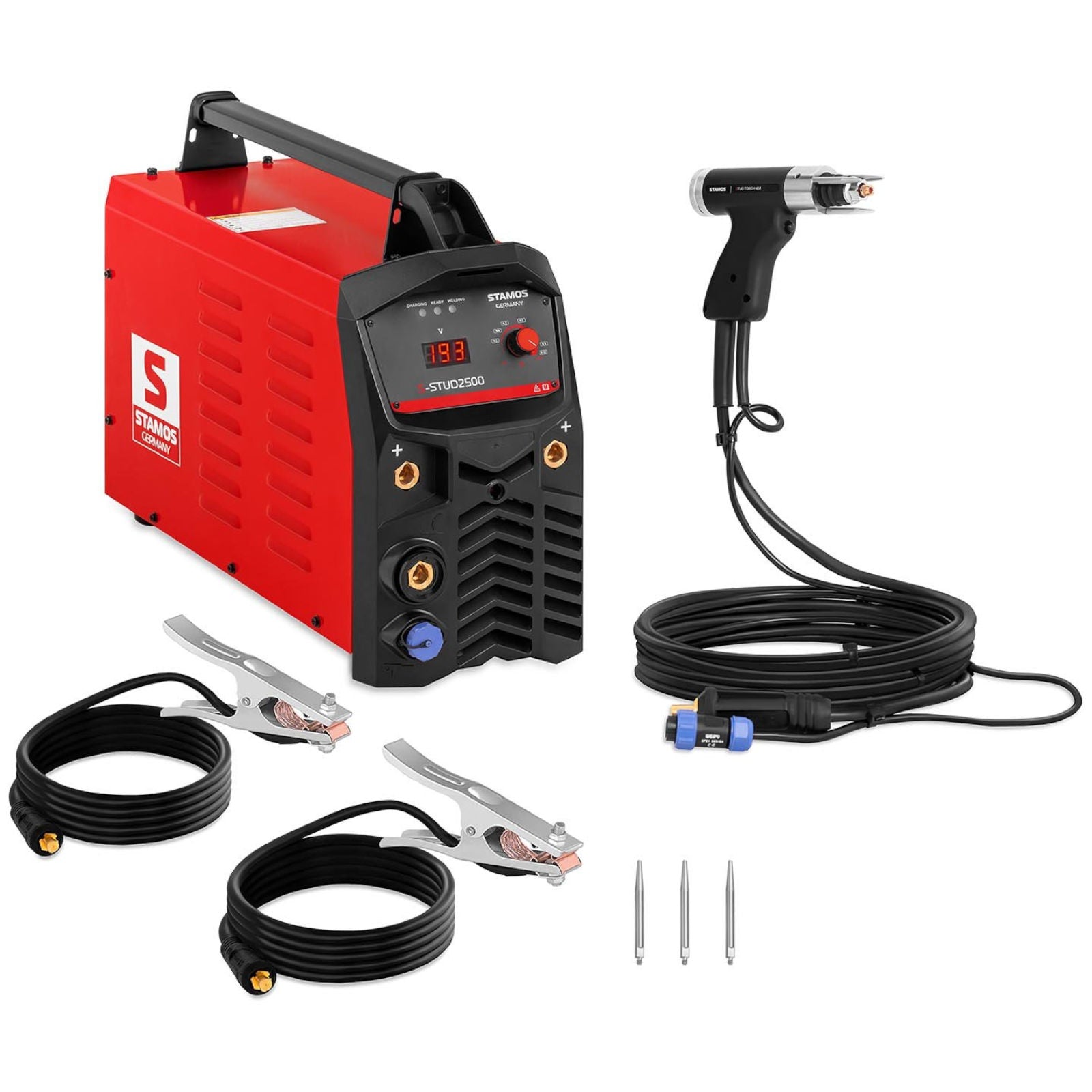

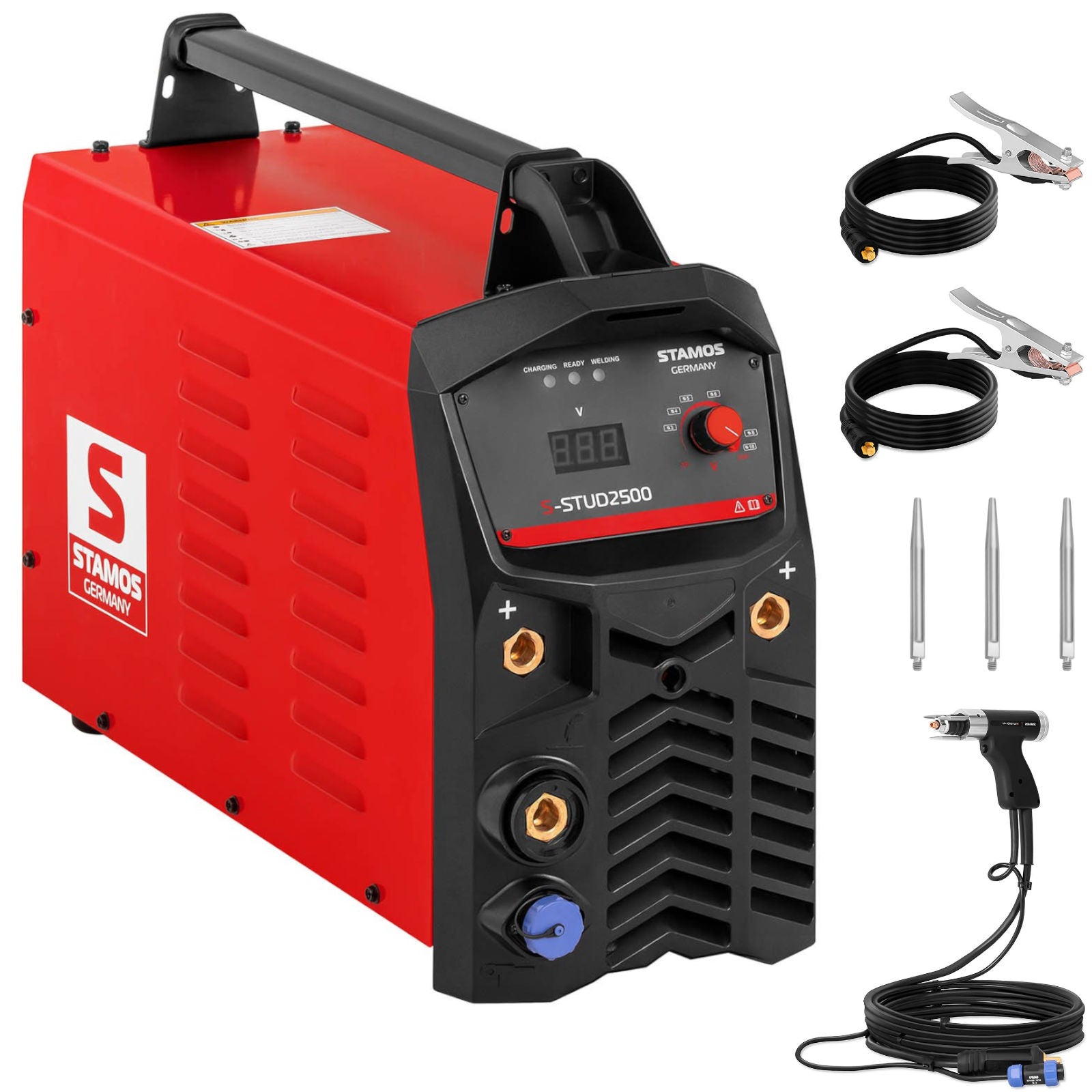

Included:- Capacitor welding machine

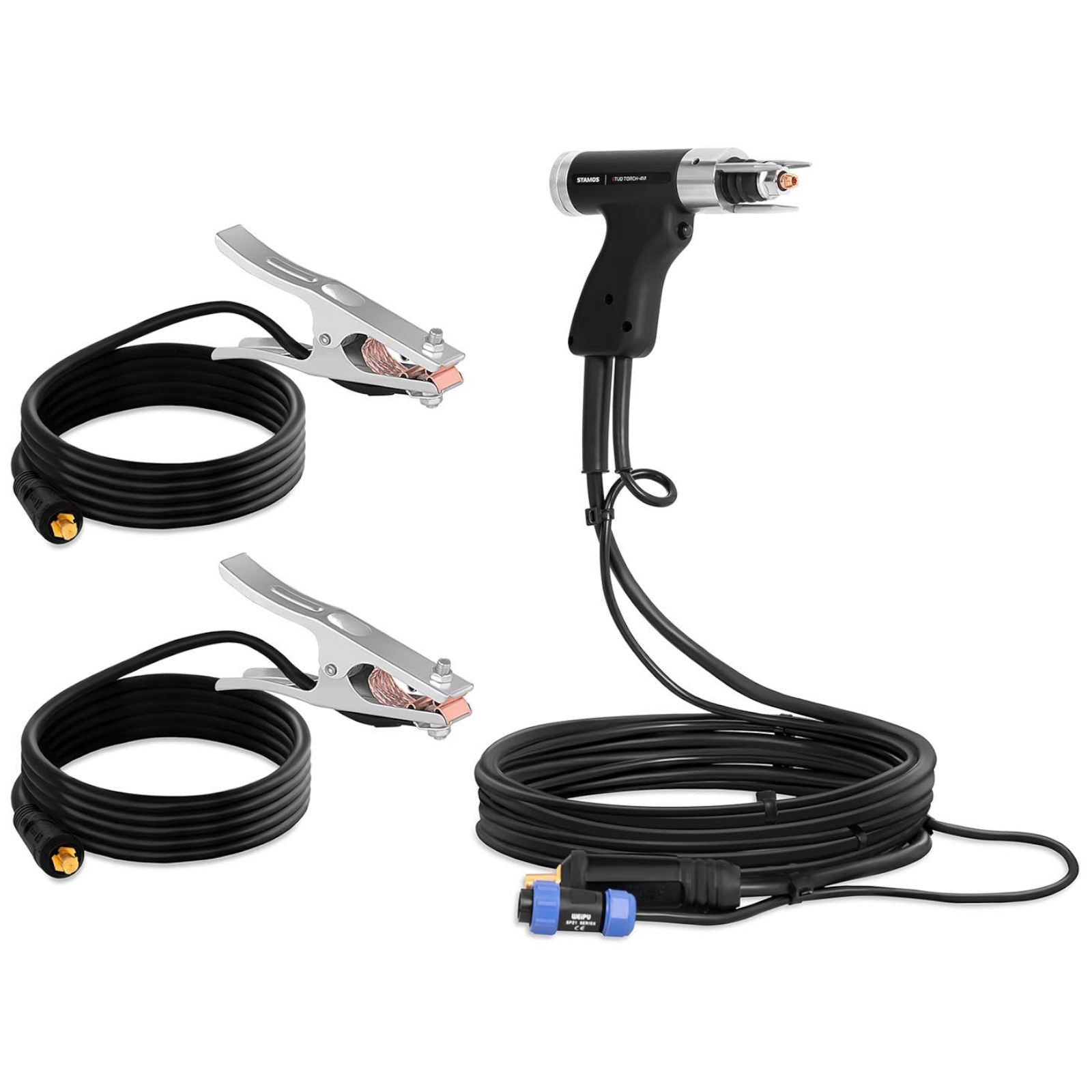

- A welding gun with a cable
- Mass cable with clamp

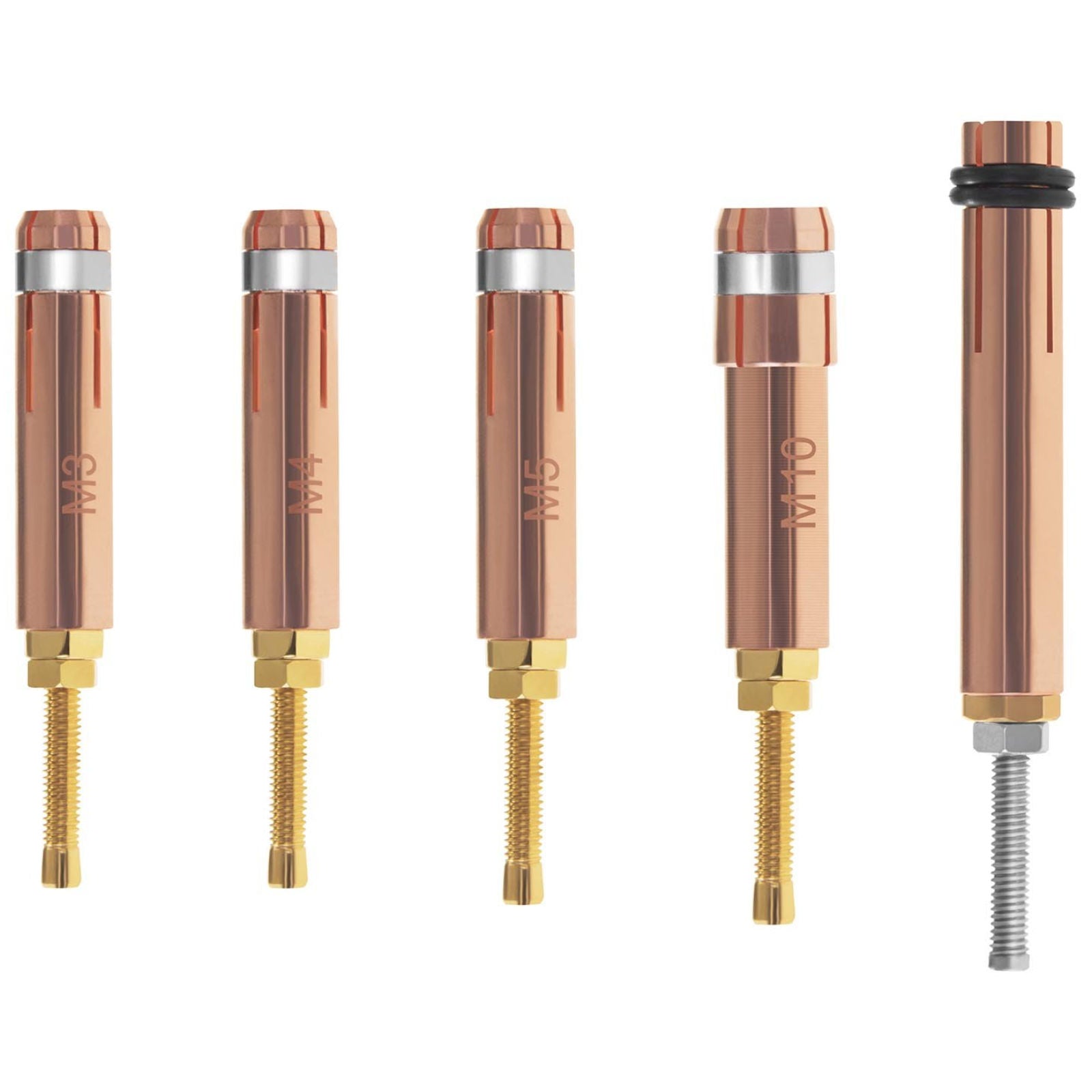

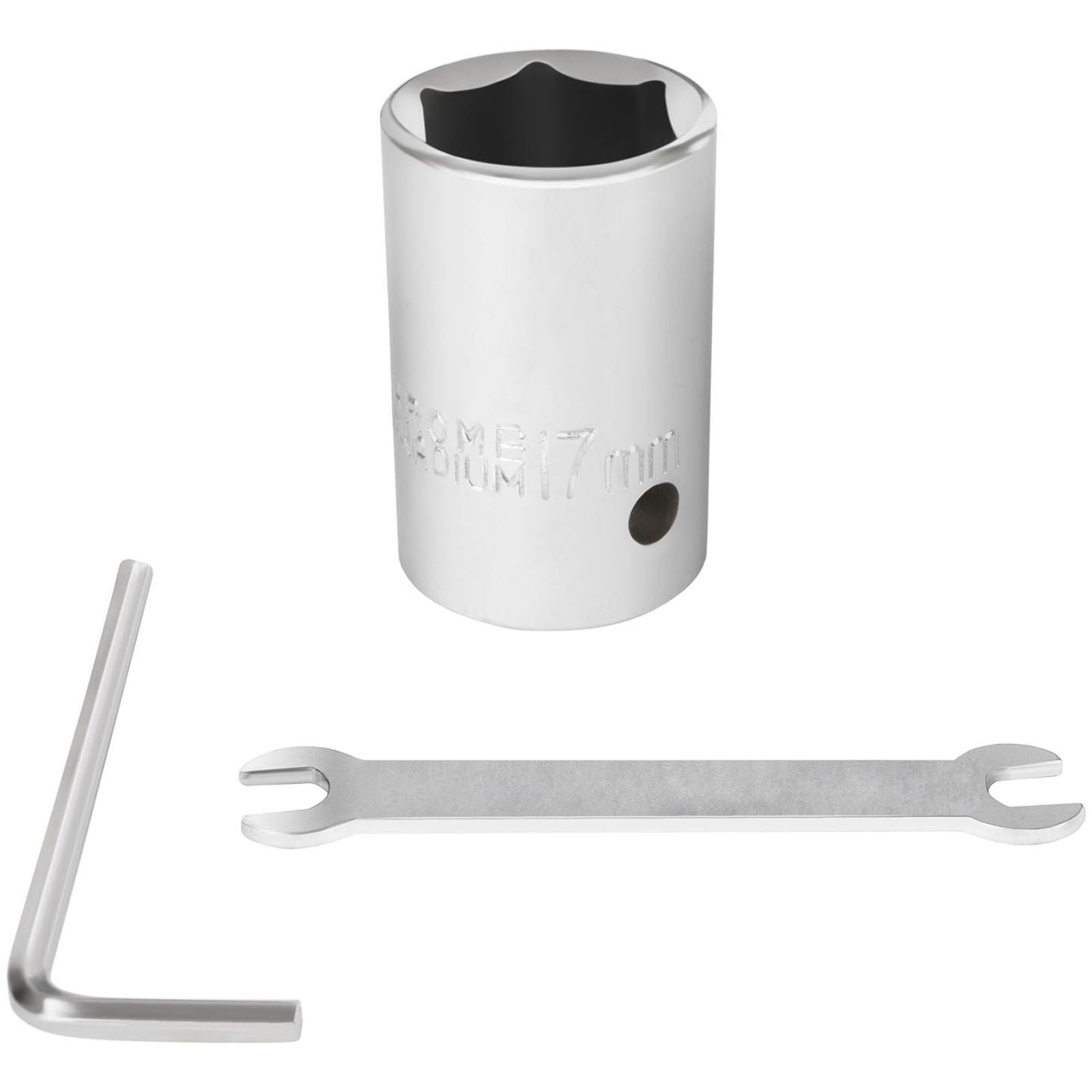

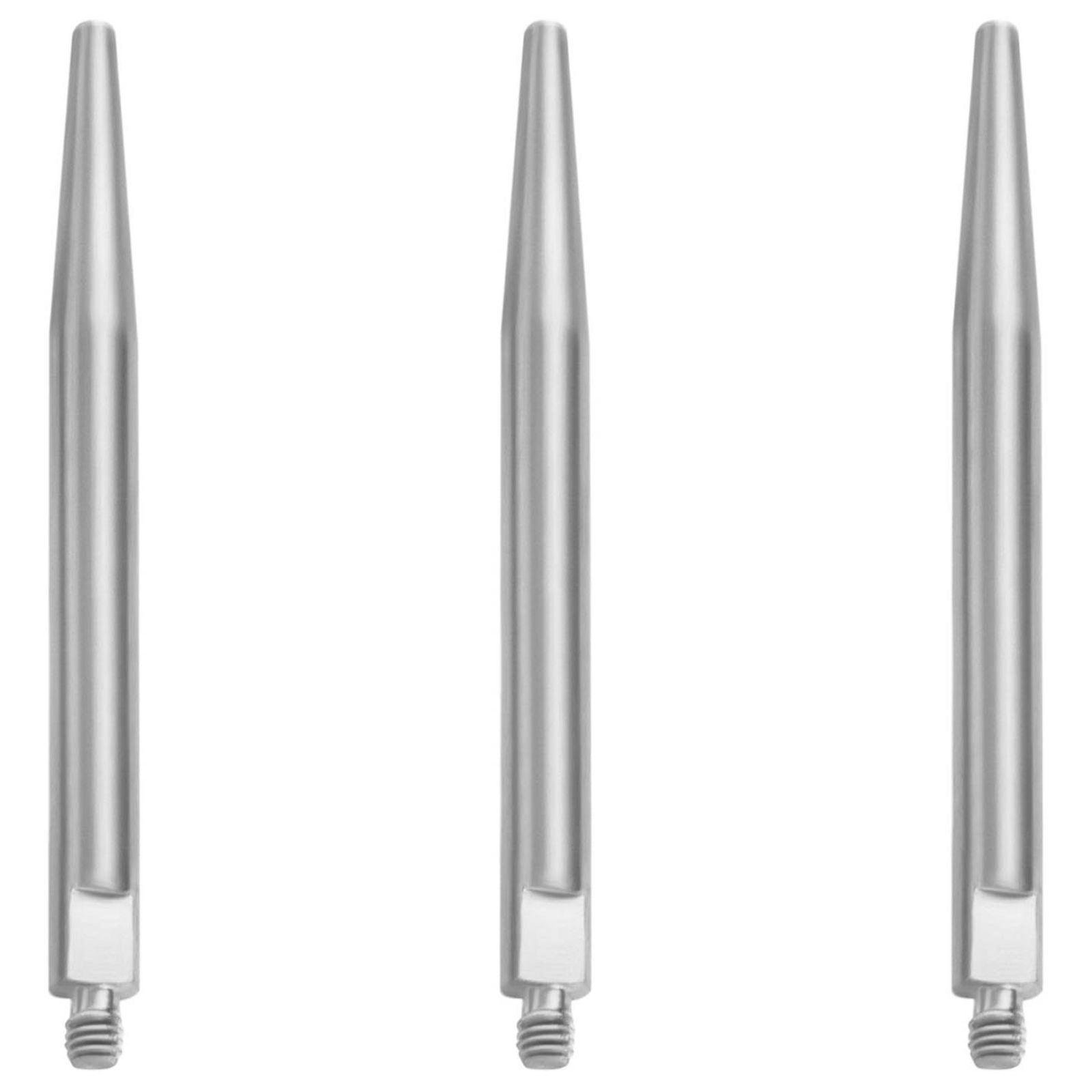

- Accessories (capsules M3, M4, M5, M6, M8, M10, keys, 3 pins)
- PL Manual
