Manufacturer's code:

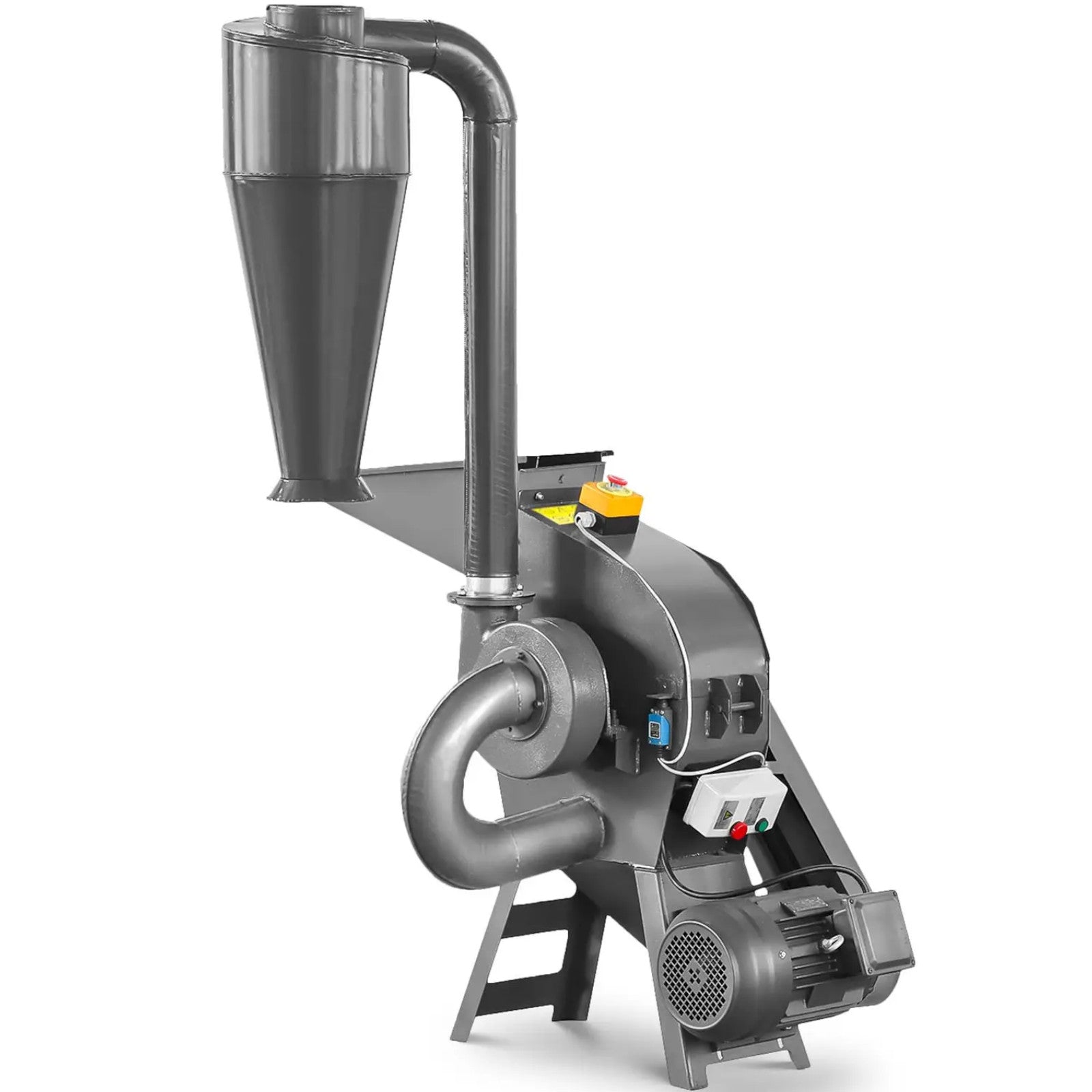

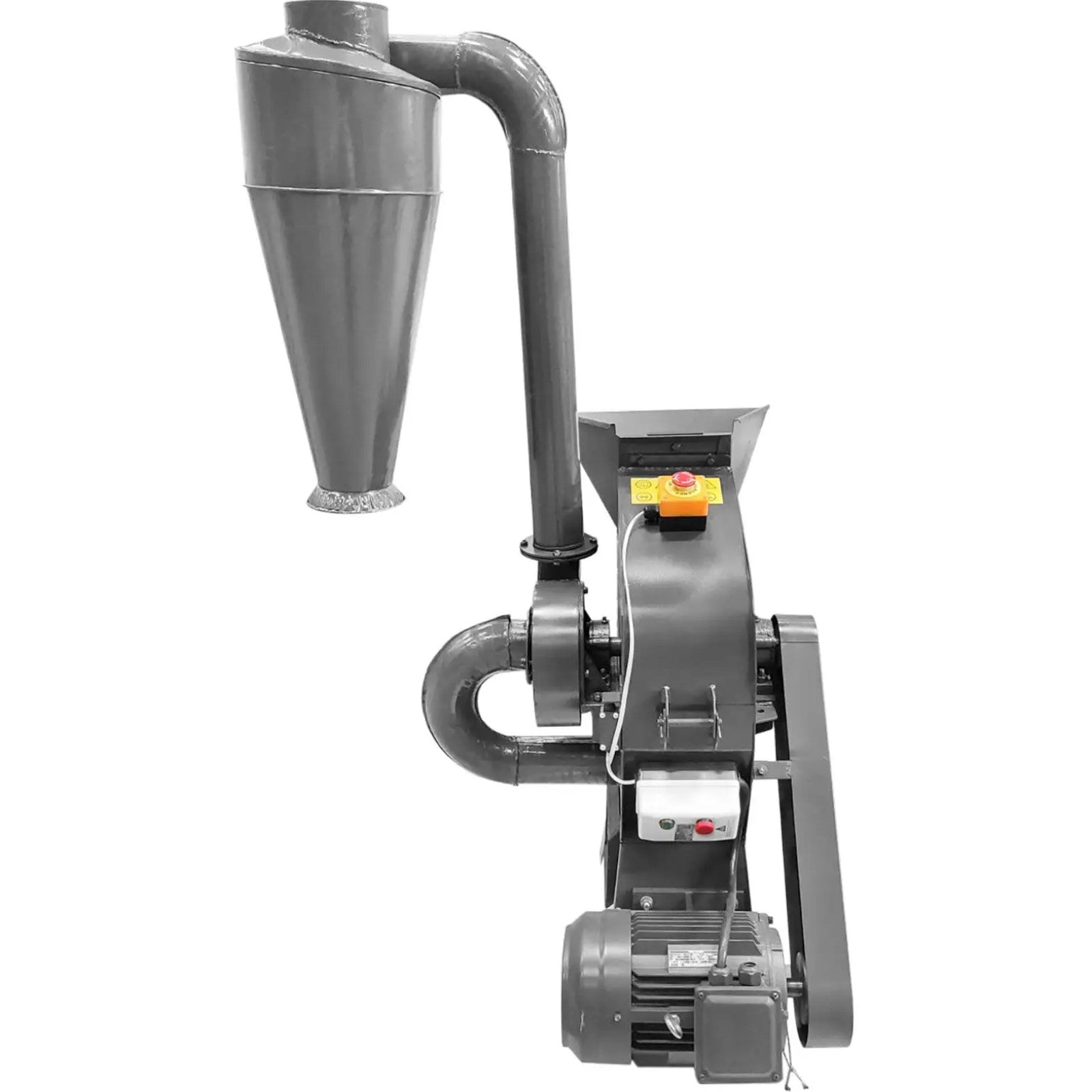

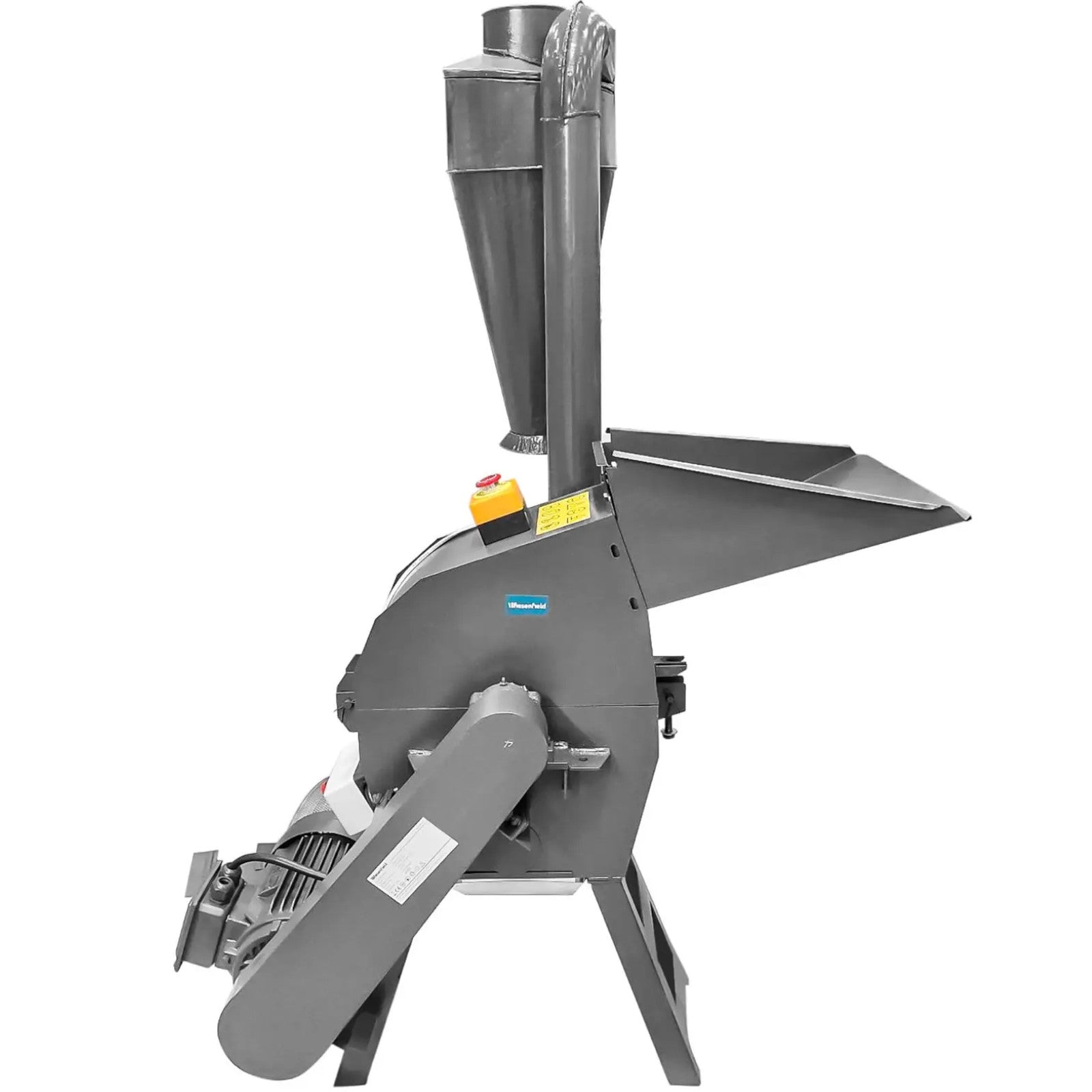

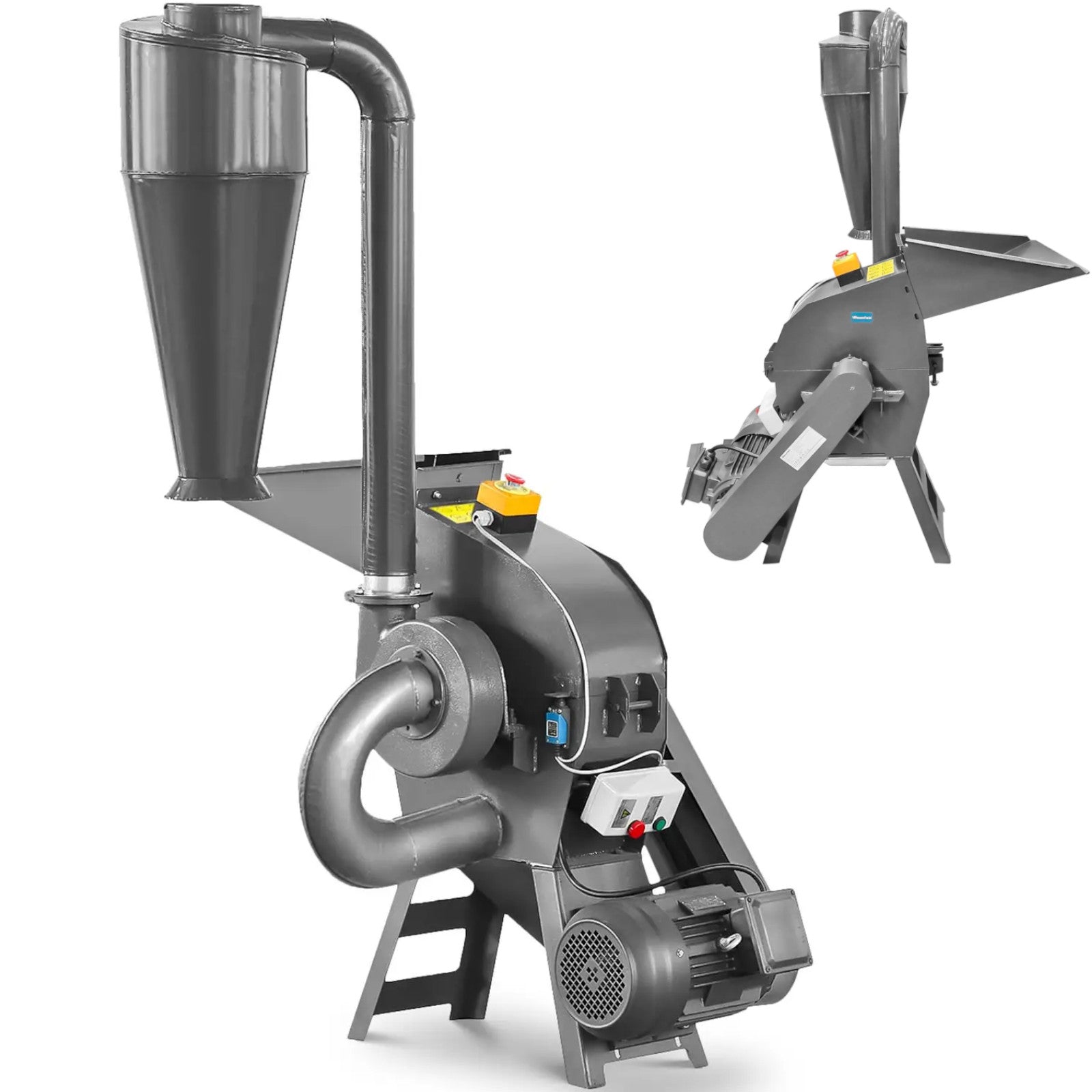

10280326The Wiesenfield brand hammer mill is an efficient machine that grinds a wide range of materials to grain sizes that can be easily further processed. It is suitable for grain, straw, alfalfa or wood shavings. The obtained meal is suitable for the production of animal feed or for the production of wood pellets. With an output power of

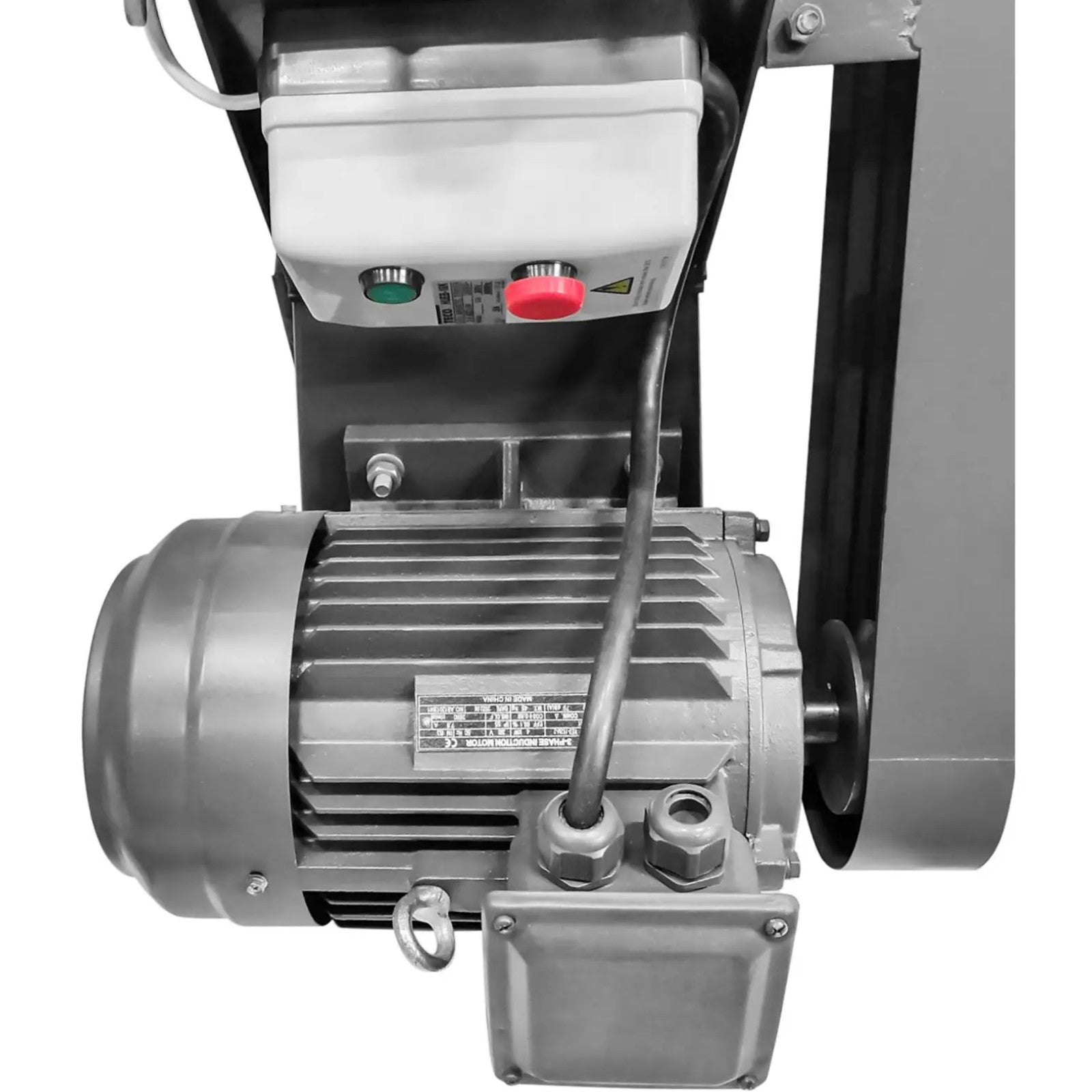

4 kWthe engine with a rotational speed of
2800 rpm drives 16 hammers in the mille. The efficiency of the device is
200 - 300 kg/h. Remember that the amount depends on the type of grain or raw material and the moisture content of the material. For best results, humidity should not exceed 15%. The grains are pushed to the outer sieve by centrifugal forces acting on the meal during grinding. The size of the sieve opening determines how coarse the grinder will grind. Holes in sizes
4 and 6 mmare available. The finished grind is intentionally filled by a cyclone. The beater shredder impresses with its ease of use, large tank and solid construction. This allows you to produce and process large amounts of ground material. A stable base guarantees safe operation.
Product features: - - Crushes grain, straw, wood shavings, alfalfa and similar raw materials for pellet production,
- - 4 kW engine reaches a rotational speed of 2800 rpm,
- - High efficiency depending on the raw material and humidity 200 - 300 kg/h,
- - Various grain sizes thanks to a sieve with dimensions of 510 x 200 mm and opening sizes of 4 and 6 mm,
- - Stable base and controlled ejection by cyclone.
Technical parameters: - - Catalog number - 10280326
- - Article condition - New
- - Model - WIE-PM-2700
- - Frequency [Hz] - 50
- - Material - Carbon steel, Cast iron
- - Color - Grey
- - Production [kg/h] - 200 - 300
- - Sieve dimensions [mm] - 510 x 200
- - Sieve opening diameters [mm] - 4 / 6
- - Angle adjustment [deg] - 270
- - Phase range - 3 phases 380 V / 50 Hz
- - Mesh opening diameter [mm] - 2 - 10
- - Permissible humidity of the measured surface [%] - 8 - 15
- - Maximum power - 4 kW
- - Number of hammers - 16 Pc
- - Engine speed [rpm] - 2800
- - Dimensions (LxWxH) - 130 x 60 x 163 cm
- - Weight - 96 kg
- - Shipping dimensions (LxWxH) - 110 x 60 x 107 cm
- - Shipping weight - 122 kg
The set includes: - - Hammer mill
- - Cyclone
- - Short metal tube
- - Tank
- - 2 sieves (hole sizes 2 and 4 mm)
