Manufacturer's name:

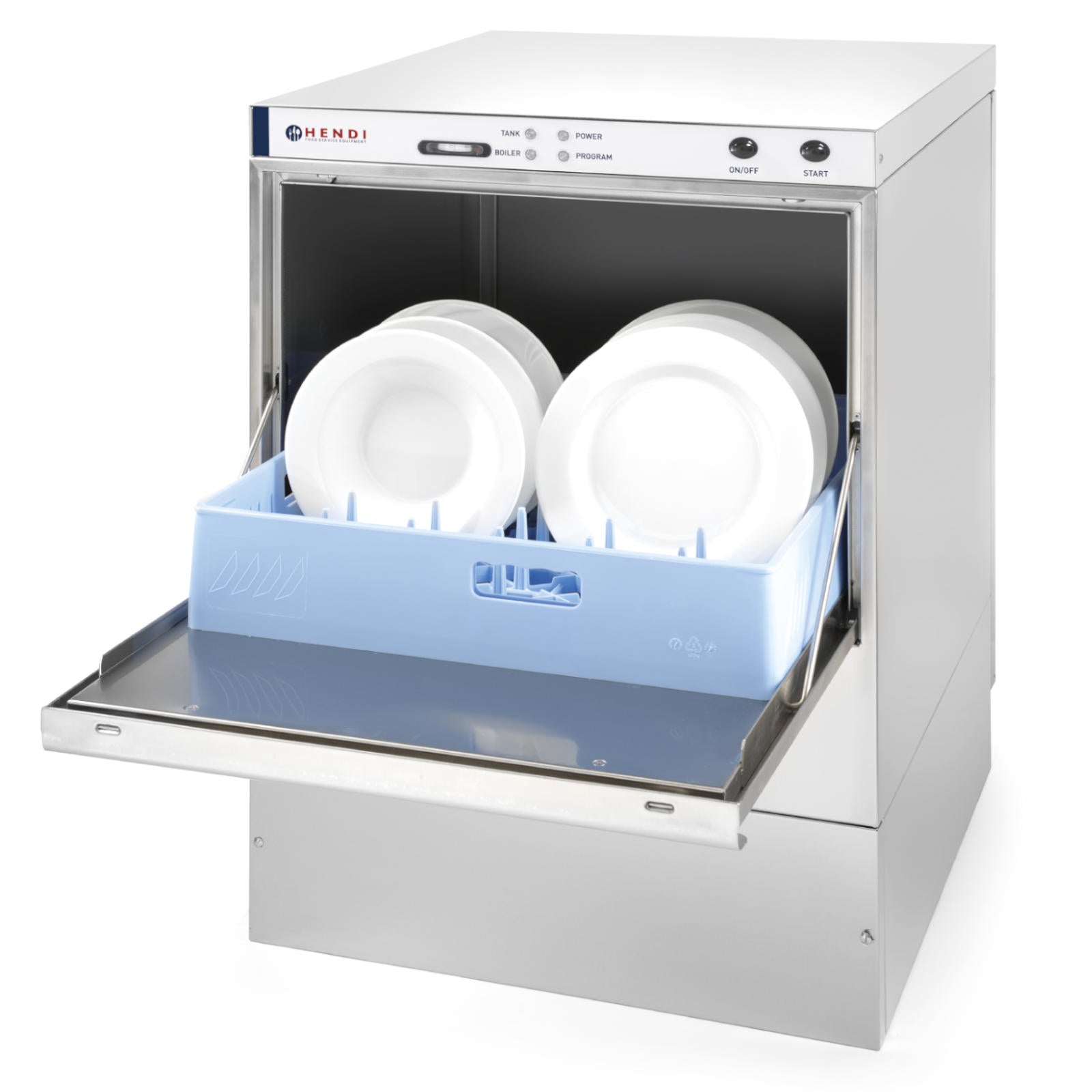

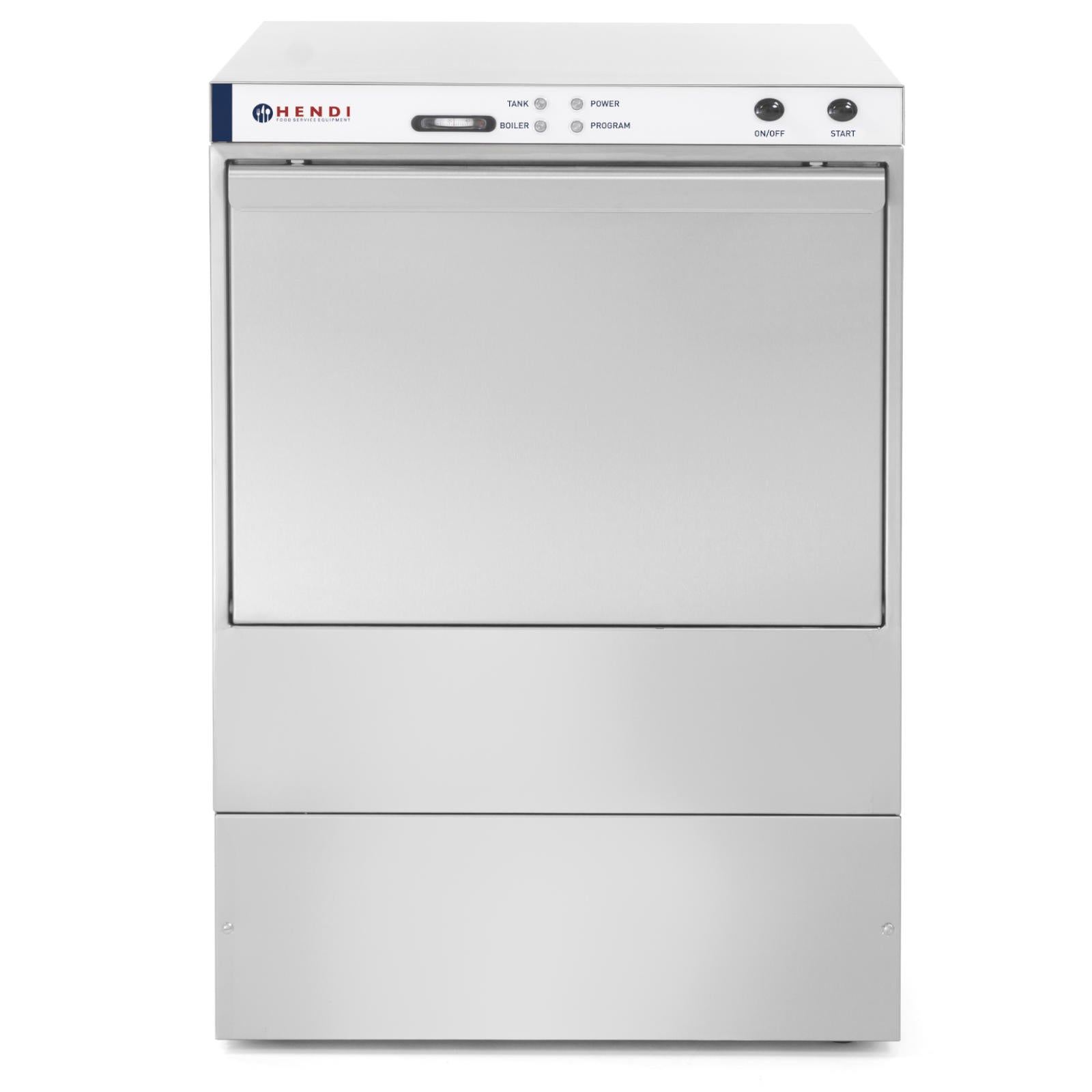

Hendi 230220Electromechanically controlled fast and cost-effective bar dishwasher Hendi brands are designed for cafes, restaurants, hotels and other professional restaurants and catering establishments. It is perfect for washing cups, cups, cutlery or plates and is extremely easy to use, maintain clean and service.
Characteristics and functions: - - up to 30 baskets per hour,
- - electromechanical control,
- - AISI 304 stainless steel housing,

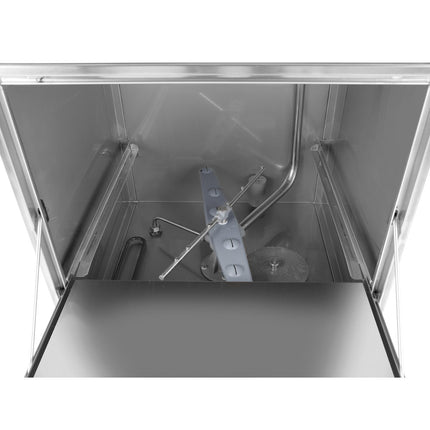

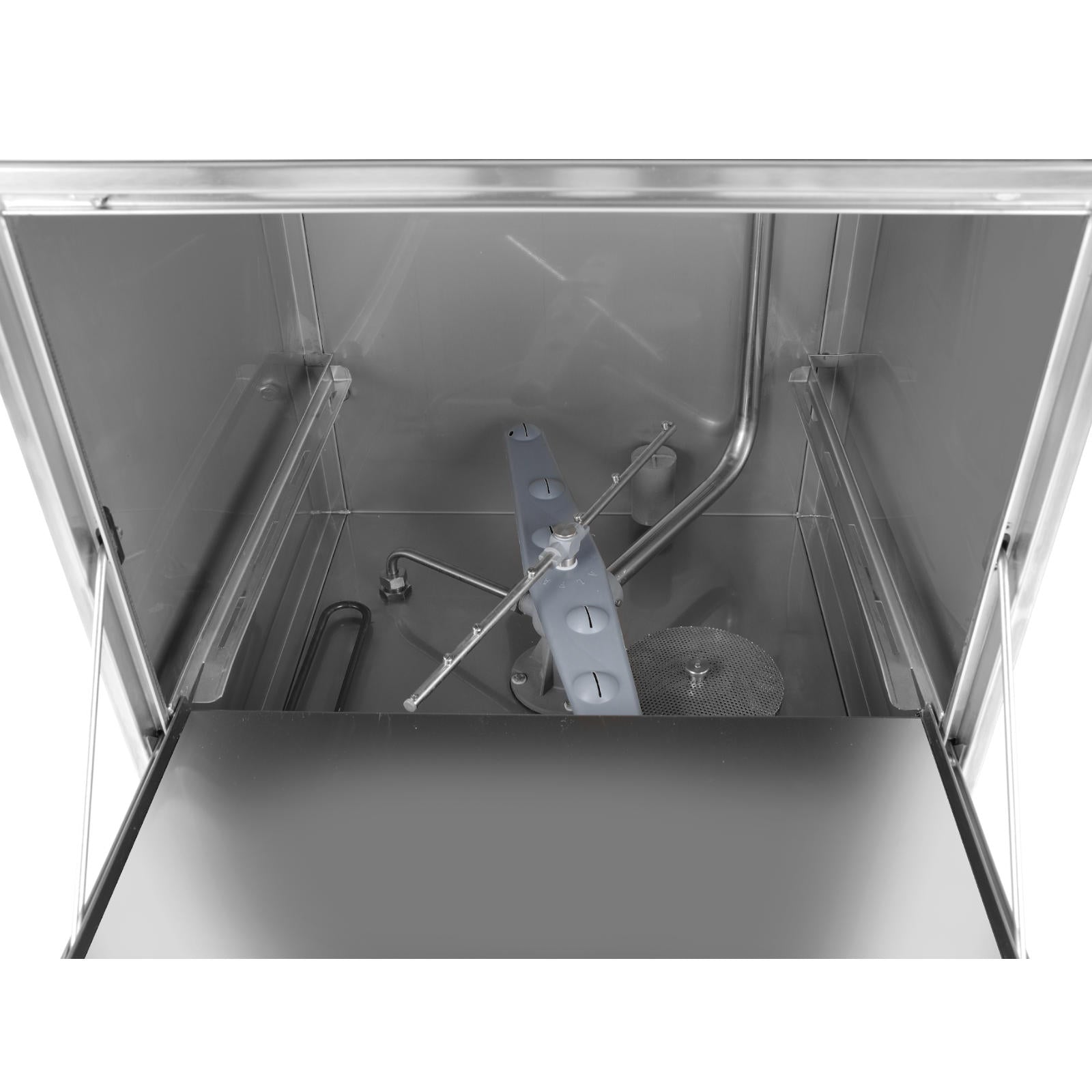

- - separate washing arms (plastic) and washing arms of stainless steel,
- - at the top of the washing arms, swivel arms,
- - solid two-layer door,
- - a 120 s washing cycle,
- - an extended set,
- - electrical cable without plug,
- - a gloss pen,
- - suitable for installation of a detergent dispenser (slurry in the back wall of the bath),
- - adjustable in height of feet with a diameter of ø40 mm (± 10 mm).
Technical parameters: - - Voltage - 230 V
- - Power - 3600 W
- - The material of the casing - Stainless steel (AISI 304)
- - Washing arms material - Plastic
- - Arm material for washing - Stainless steel
- - Length 1 cycle of washing - 120 s
- - Productivity - 30 baskets per hour
- - Water consumption (1 cycle) - 2-2,5 l (depending on the water pressure)
- - The temperature of the washing water - 62 C
- - The temperature of the water is draining - 85 C
- - Boiler (capacity/power) - 230 V
- - Bath (capacity/power) - 35 l / 2.8 kW
- - Pump power - 0,75 KM
- - Safety thermostat (boiler) - 105 C
- - Safety thermostat (bathtubs) - 99 C
- - Pump leak factor - IP 44
- - Max. dimensions of the basket - 500 x 500 x 335 mm
- - Dimensions (DxSxW) - 570 x 600 (+370) x 830 mm
- - Weight - 57 kg

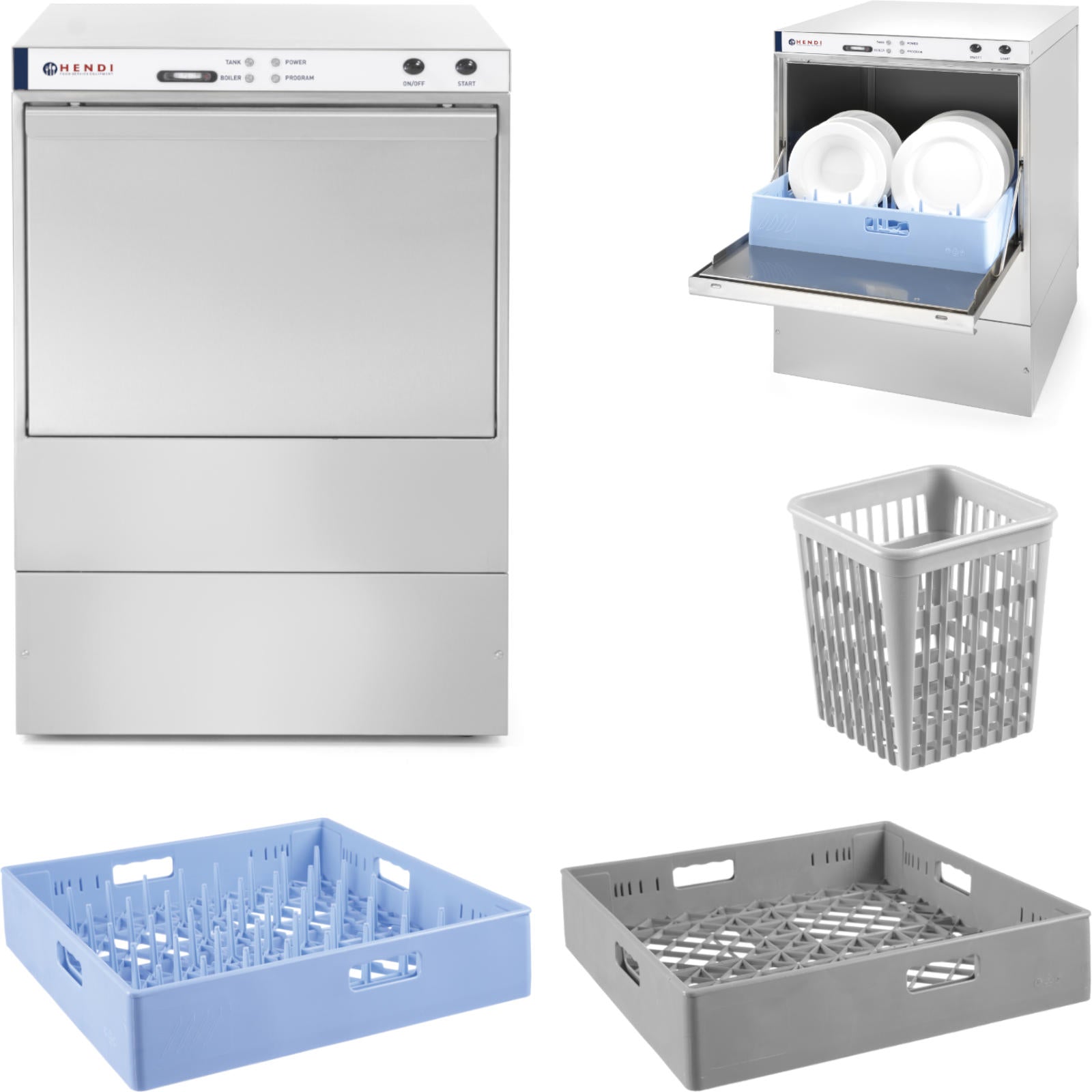

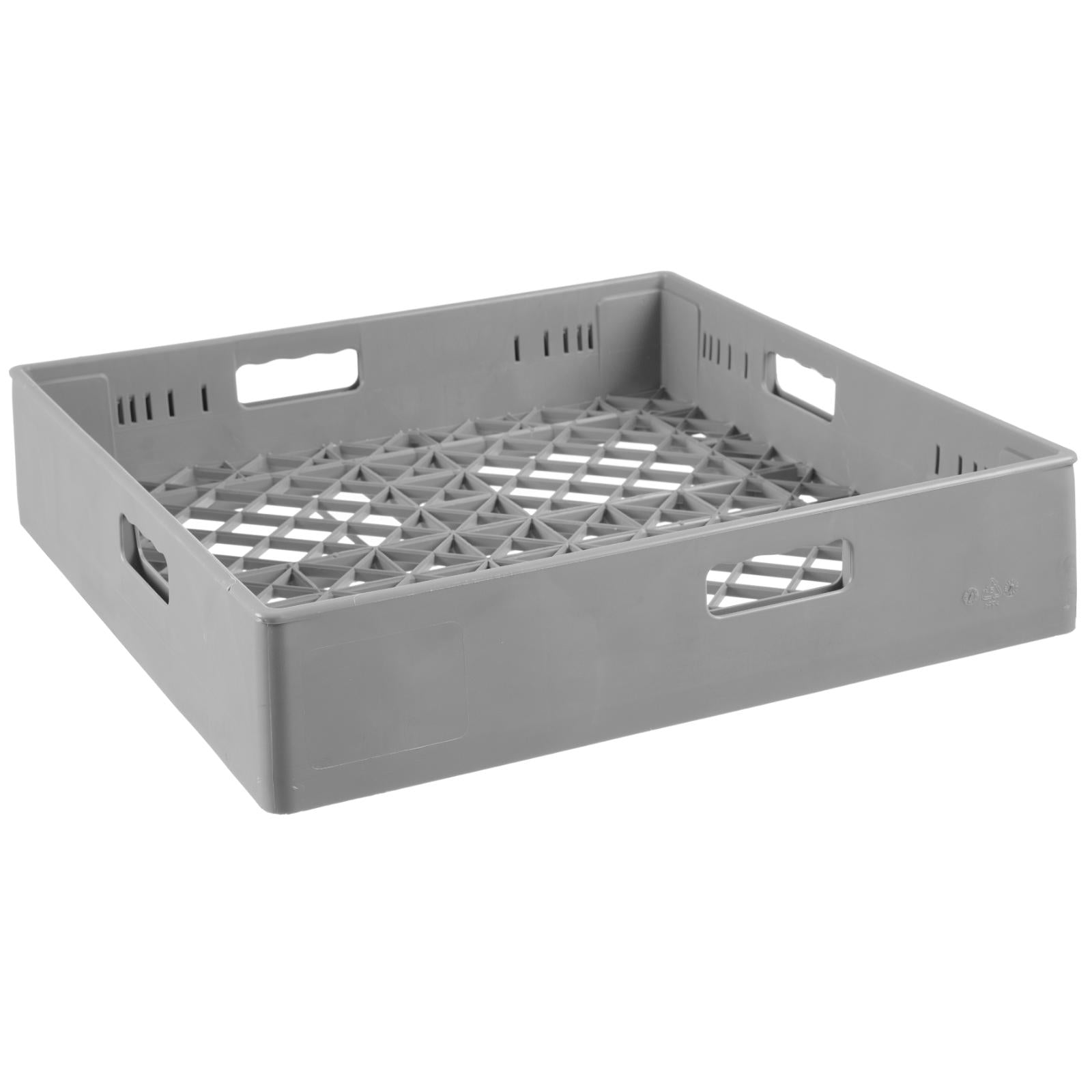

Included: - - 1x universal basket 500x500x ((H)105 mm, for glass

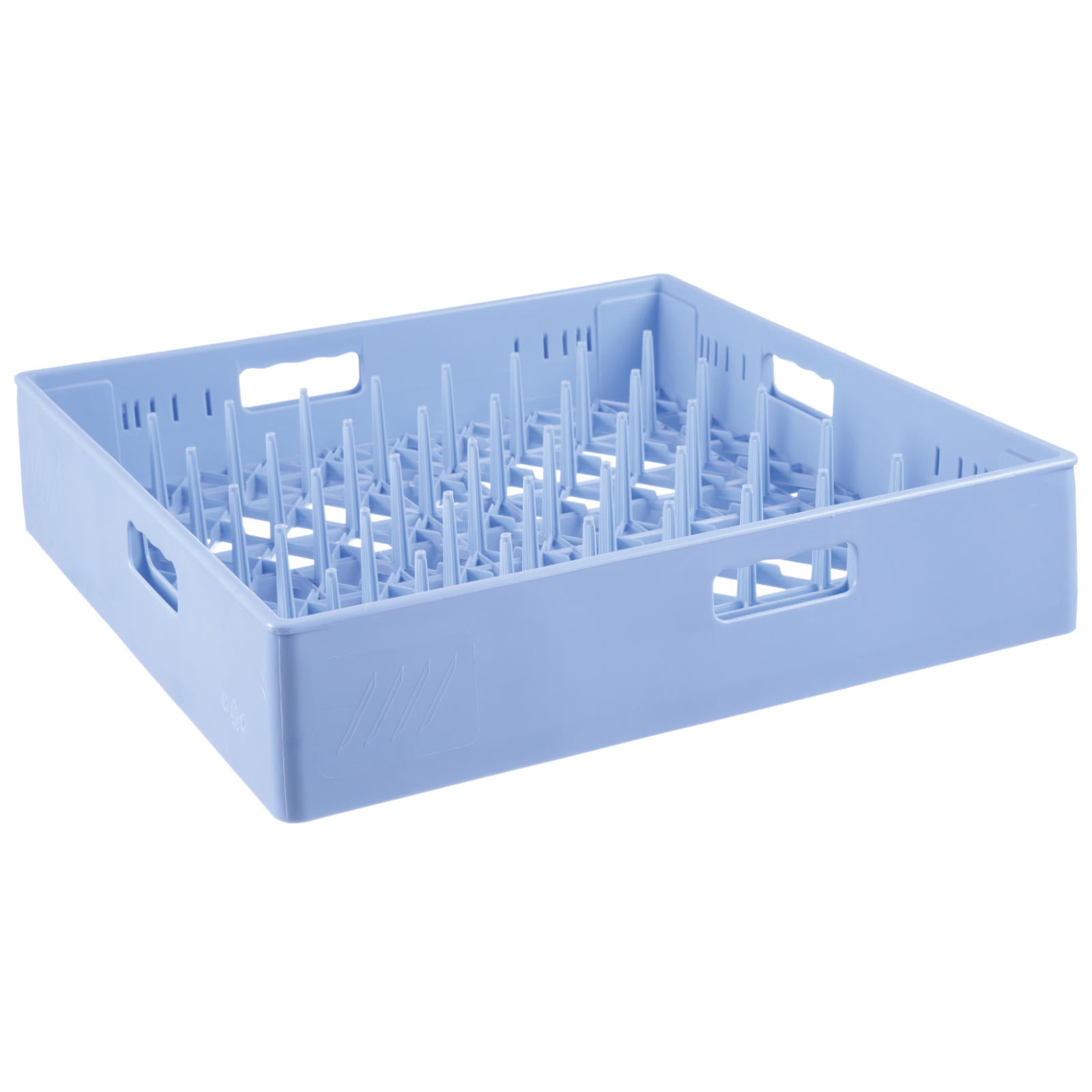

- - 1x basket with pins in 5x8 pcs, 500x500x ((H)105 mm, on deep and shallow plates

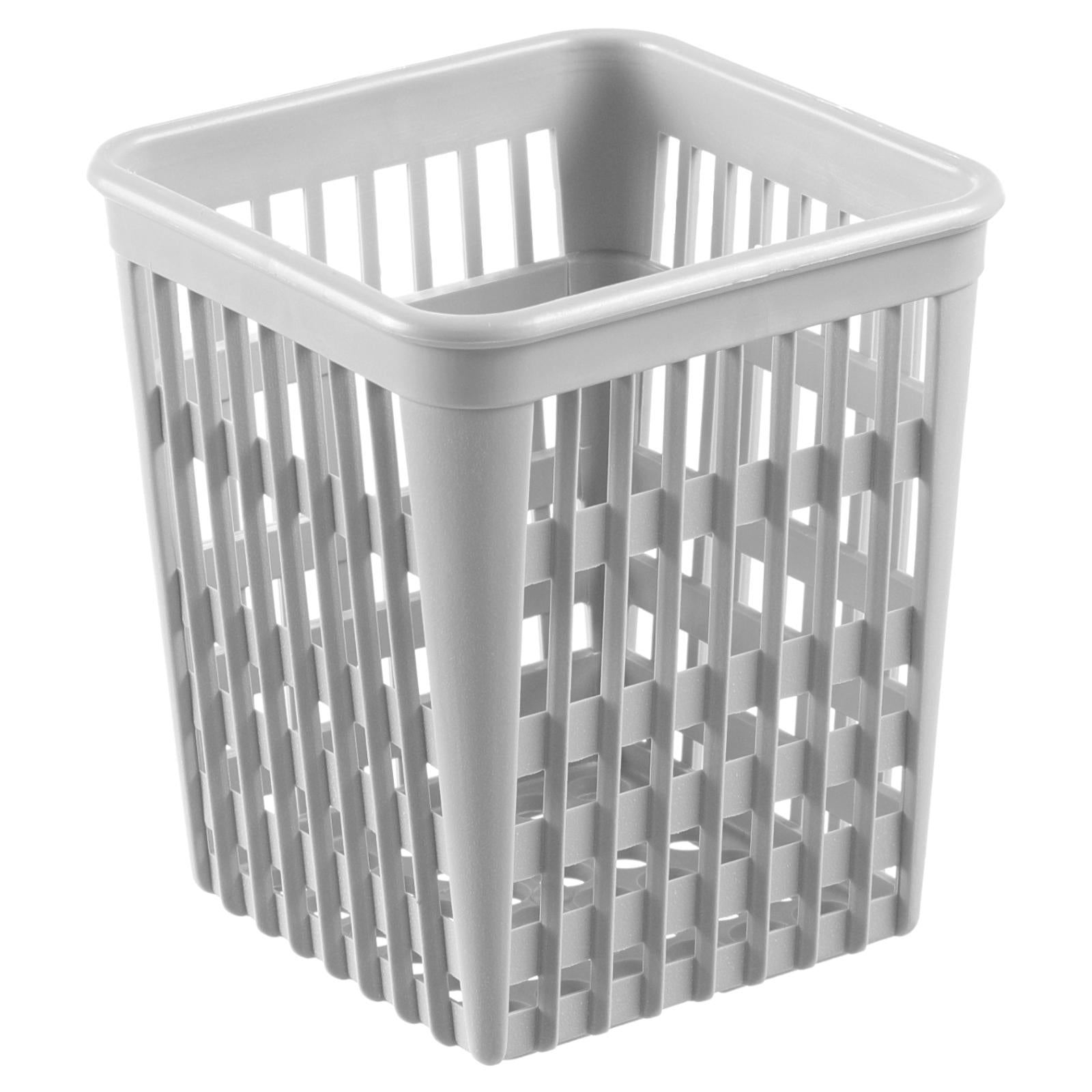

- - 1x 110x10x ((H)130 mm, on the cutlery
- - The pen of the glitter.
- - Adapting to the fitting of the detergent dispenser (slurry in the back tub)
- - hose that provides water 1.5 m long, with connection 3⁄4 8221 thread.
- - 2 m drain hose, Ø 25 mm (( 40 mm length))
- - electrical cable without plugin
- - adjustable vertical foot ± 10 mm, Ø 40 mm
